◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51168 - NLR/NMR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-12 - CYLINDER BLOCK ▶
0-12 — CYLINDER BLOCK (#74373) — 91 parça

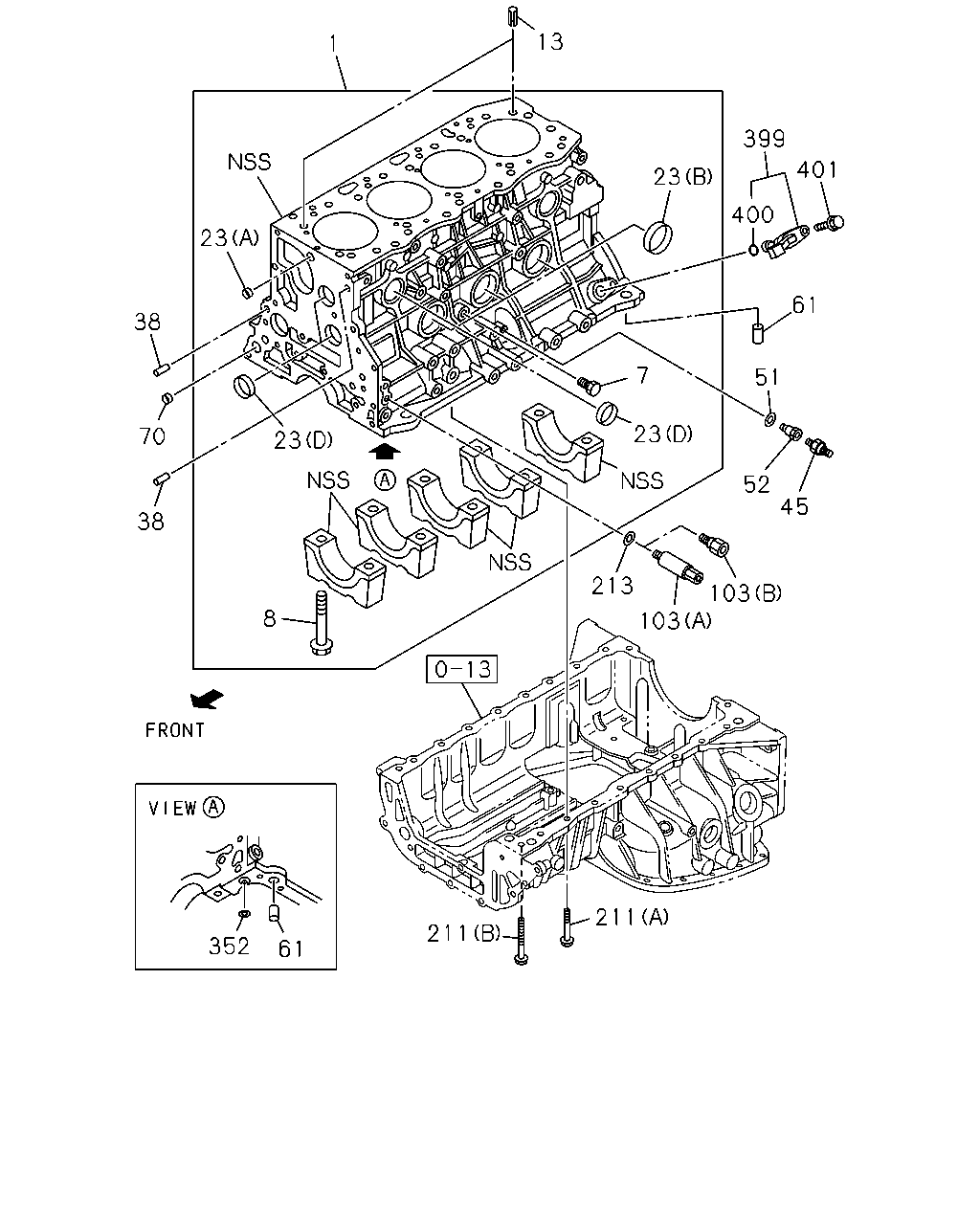

çizim 28116
1 13 23 399 401 400 61 51 52 45 103 103 213 8 23 7 23 38 70 38 23 352 61 211 211
BalonParca AdiParca NoAdetTipApplied Date
1 BLOCK ASM; CYL
EXC. ENGINE MADE IN THAILAND<6ZP> 		8-98240-635-1 01 1 1409-
1 BLOCK ASM; CYL
ENGINE MADE IN THAILAND<6ZP> 		8-98239-516-0 01 1 1305-
1 BLOCK ASM; CYL
ENGINE MADE IN THAILAND<6ZP> THA 		8-98208-506-0 01 1 1406-
1 BLOCK ASM; CYL
THA 		8-97386-617-5 01 1 0803-1104
1 BLOCK ASM; CYL
EXC. ENGINE MADE IN THAILAND<6ZP> THA 		8-97386-617-5 01 1 1105-1209
1 BLOCK ASM; CYL 8-98240-635-1 01 1 1210-
7 PLUG; WATER DRAIN
ENGINE MADE IN THAILAND<6ZP> PT1/4 		9-09664-001-0 01 1 1406-1508
7 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 0803-1405
7 PLUG; WATER DRAIN
EXC. ENGINE MADE IN THAILAND<6ZP> PT1/4 		9-09664-001-0 01 1 1406-
8 BOLT; BRG CAP
ENGINE MADE IN THAILAND<6ZP> M14X89 FLANGE THA 		8-97941-068-0 10 1 1105-1209
8 BOLT; BRG CAP
EXC. ENGINE MADE IN THAILAND<6ZP> M14X89 FLANGE 		8-94432-642-0 10 1 1509-
8 BOLT; BRG CAP
EXC. ENGINE MADE IN THAILAND<6ZP> M14X89 FLANGE 		8-94432-642-0 10 1 0803-1209
8 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 1210-1508
8 BOLT; BRG CAP
ENGINE MADE IN THAILAND<6ZP> M14X89 FLANGE 		8-94432-642-0 10 1 1509-
13 DOWEL; C/BL TO HD
EXC. ENGINE MADE IN THAILAND<6ZP> OD=14 		8-94453-344-0 02 1 0803-
23 CUP; SEALING,C/BL FRT & RR
ENGINE MADE IN THAILAND<6ZP> (A) OD=18 		5-11219-008-0 02 1 1406-1508
23 CUP; SEALING,C/BL FRT & RR
EXC. ENGINE MADE IN THAILAND<6ZP> (A) OD=18 		5-11219-008-0 02 1 1509-
23 CUP; SEALING,C/BL FRT & RR
ENGINE MADE IN THAILAND<6ZP> (D) OD=32 		5-11219-015-0 04 1 1406-1508
23 CUP; SEALING,C/BL FRT & RR
EXC. ENGINE MADE IN THAILAND<6ZP> (D) OD=32 		5-11219-015-0 04 1 1509-
23 CUP; SEALING,C/BL FRT & RR
ENGINE MADE IN THAILAND<6ZP> (B) OD=45 		8-97036-550-1 03 1 1406-1508
23 CUP; SEALING,C/BL FRT & RR
EXC. ENGINE MADE IN THAILAND<6ZP> (B) OD=45 		8-97036-550-1 03 1 1509-
23 CUP; SEALING,C/BL FRT & RR
(A) OD=18 		5-11219-008-0 02 1 0803-1405
23 CUP; SEALING,C/BL FRT & RR
EXC. ENGINE MADE IN THAILAND<6ZP> (A) OD=18 		5-11219-008-0 02 1 1406-1508
23 CUP; SEALING,C/BL FRT & RR
(D) OD=32 		5-11219-015-0 04 1 0803-1405
23 CUP; SEALING,C/BL FRT & RR
EXC. ENGINE MADE IN THAILAND<6ZP> (D) OD=32 		5-11219-015-0 04 1 1406-1508
23 CUP; SEALING,C/BL FRT & RR
EXC. ENGINE MADE IN THAILAND<6ZP> (C) OD=36 		5-11219-018-0 02 1 0803-
23 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0803-1405
23 CUP; SEALING,C/BL FRT & RR
EXC. ENGINE MADE IN THAILAND<6ZP> (B) OD=45 		8-97036-550-1 03 1 1406-1508
38 PIN; TIMING GEAR CASE
ENGINE MADE IN THAILAND<6ZP> OD=10 L=20 THA 		9-08151-020-0 02 1 1109-
38 PIN; TIMING GEAR CASE
EXC. ENGINE MADE IN THAILAND<6ZP> OD=10 L=20 		8-97135-423-0 02 1 0803-
45 SWITCH; OIL PRESSURE
ENGINE MADE IN THAILAND<6ZP> 		8-97176-230-0 01 1 1109-
45 SWITCH; OIL PRESSURE
EXC. ENGINE MADE IN THAILAND<6ZP> 		8-97176-230-0 01 1 0803-
51 GASKET; OIL PRESS WARNING SW,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE MADE IN THAILAND<6ZP> THA 		8-97912-498-0 01 1 1109-
51 GASKET; OIL PRESS WARNING SW,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE MADE IN THAILAND<6ZP> 		8-94336-292-0 01 1 0803-
52 NIPPLE; OIL PRESS WARNING SW,C/BL
ENGINE MADE IN THAILAND<6ZP> 		8-94167-750-2 01 1 1502-
52 NIPPLE; OIL PRESS WARNING SW,C/BL 8-98089-872-0 01 1 0803-1501
52 NIPPLE; OIL PRESS WARNING SW,C/BL
EXC. ENGINE MADE IN THAILAND<6ZP> 		8-94167-750-2 01 1 1502-
61 PIN; STRAIGHT
ENGINE MADE IN THAILAND<6ZP> L=31 THA 		8-97920-964-1 02 1 1109-
61 PIN; STRAIGHT
EXC. ENGINE MADE IN THAILAND<6ZP> L=31 		9-09878-597-0 02 1 0803-
70 CUP; SEALING,FRT & RR
EXC. ENGINE MADE IN THAILAND<6ZP> OD=16 		5-11129-006-0 06 1 0803-
103 NIPPLE; OIL FEED
ENGINE MADE IN THAILAND<6ZP> (A) THA 		8-97316-983-4 01 1 1109-
103 NIPPLE; OIL FEED
ENGINE MADE IN THAILAND<6ZP> (A) THA 		8-97316-983-4 01 1 1301-
103 NIPPLE; OIL FEED
(A) THA 		8-97316-983-4 01 1 0803-1212
103 NIPPLE; OIL FEED
EXC. ENGINE MADE IN THAILAND<6ZP> (B) 		8-94469-596-0 01 1 1301-
211 BOLT; CRANKCASE
ENGINE MADE IN THAILAND<6ZP> (A) M8X25 FLANGE THA 		0-28650-825-0 19 1 1109-
211 BOLT; CRANKCASE
ENGINE MADE IN THAILAND<6ZP> (B) M8X40 FLANGE THA 		0-28650-840-0 01 1 1109-
211 BOLT; CRANKCASE
EXC. ENGINE MADE IN THAILAND<6ZP> (A) M8X25 FLANGE THA 		0-28650-825-0 19 1 0803-
211 BOLT; CRANKCASE
EXC. ENGINE MADE IN THAILAND<6ZP> (B) M8X40 FLANGE THA 		0-28650-840-0 01 1 0803-
213 GASKET; NIPPLE,OIL FEED
ENGINE MADE IN THAILAND<6ZP> ID=10.2 OD=16.0 THA 		9-09571-410-0 01 1 1109-
213 GASKET; NIPPLE,OIL FEED
EXC. ENGINE MADE IN THAILAND<6ZP> ID=10.2 OD=16.0 THA 		9-09571-410-0 01 1 0803-
352 GASKET; C/BL TO CRANKCASE
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE MADE IN THAILAND<6ZP> THA 		9-09566-116-0 01 1 1109-
352 GASKET; C/BL TO CRANKCASE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE MADE IN THAILAND<6ZP> THA 		9-09566-116-0 01 1 0803-
399 SENSOR; CRANKSHAFT POSITION
EXC. ENGINE MADE IN THAILAND<6ZP> 		8-97312-108-1 01 1 0803-
400 GASKET; CRANKSHAFT POSITION SENSOR
EXC. ENGINE MADE IN THAILAND<6ZP> ID=14.2 OD=18.8 		8-97369-404-0 01 1 0803-
401 BOLT; SENSOR
ENGINE MADE IN THAILAND<6ZP> M6X16 FLANGE THA 		0-28050-616-0 01 1 1109-
401 BOLT; SENSOR
EXC. ENGINE MADE IN THAILAND<6ZP> M6X16 FLANGE THA 		0-28050-616-0 01 1 0803-

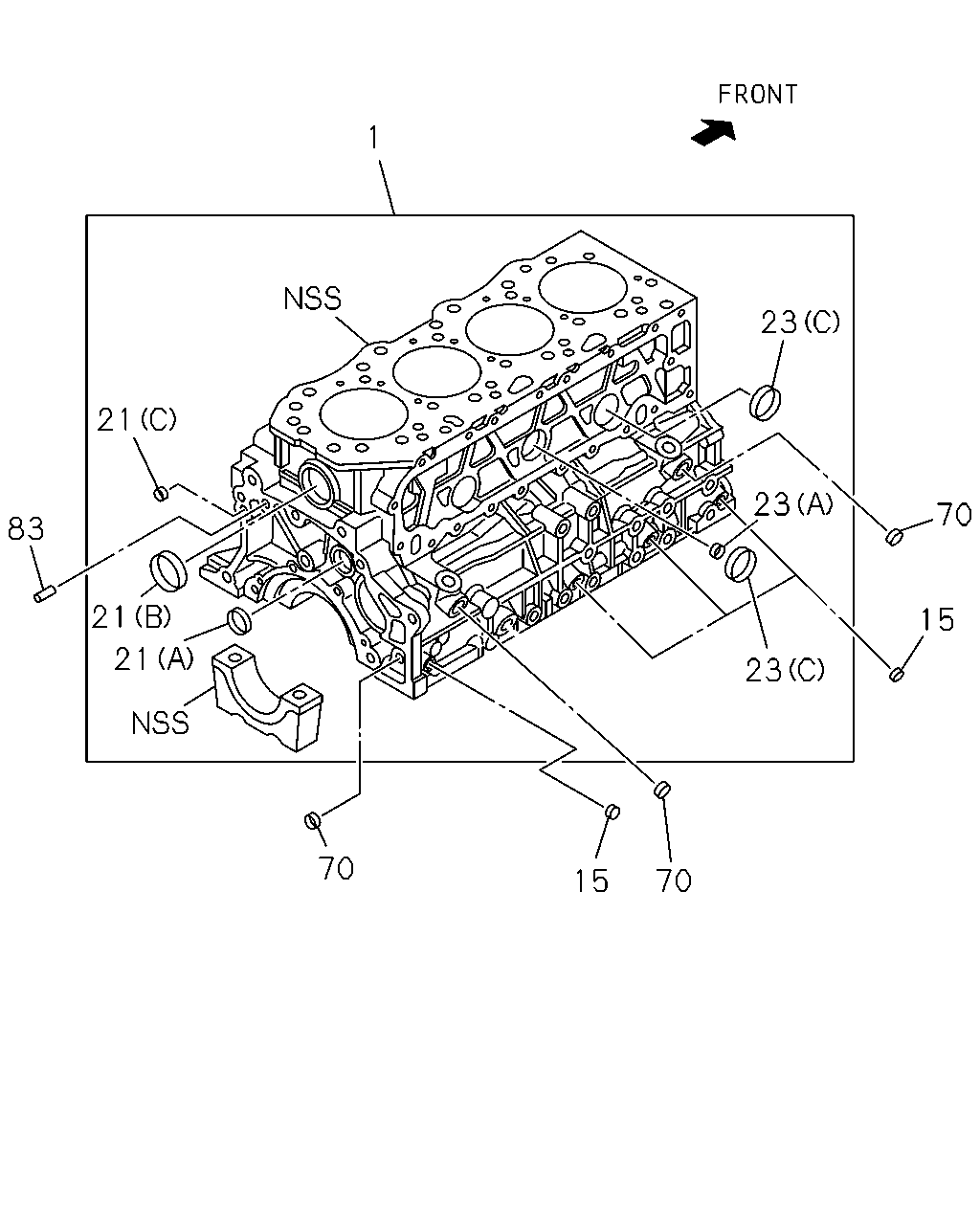

çizim 28850
1 23 21 23 70 83 21 15 21 23 70 15 70
BalonParca AdiParca NoAdetTipApplied Date
1 BLOCK ASM; CYL
EXC. ENGINE MADE IN THAILAND<6ZP> 		8-98240-635-1 01 1 1409-
1 BLOCK ASM; CYL
ENGINE MADE IN THAILAND<6ZP> 		8-98239-516-0 01 1 1305-
1 BLOCK ASM; CYL
ENGINE MADE IN THAILAND<6ZP> THA 		8-98208-506-0 01 1 1406-
1 BLOCK ASM; CYL
THA 		8-97386-617-5 01 1 0803-1104
1 BLOCK ASM; CYL
EXC. ENGINE MADE IN THAILAND<6ZP> THA 		8-97386-617-5 01 1 1105-1209
1 BLOCK ASM; CYL 8-98240-635-1 01 1 1210-
15 PLUG; OIL GALLERY
ENGINE MADE IN THAILAND<6ZP> PT1/8 		1-09605-050-0 04 1 1109-
15 PLUG; OIL GALLERY
EXC. ENGINE MADE IN THAILAND<6ZP> PT1/8 		1-09605-050-0 04 1 0803-
21 CUP; SEALING,RR
ENGINE MADE IN THAILAND<6ZP> (C) OD=12.3 		5-09600-013-0 01 1 1406-1508
21 CUP; SEALING,RR
EXC. ENGINE MADE IN THAILAND<6ZP> (C) OD=12.3 		5-09600-013-0 01 1 1509-
21 CUP; SEALING,RR
ENGINE MADE IN THAILAND<6ZP> (A) OD=38 		5-11219-017-0 01 1 1406-1508
21 CUP; SEALING,RR
EXC. ENGINE MADE IN THAILAND<6ZP> (A) OD=38 		5-11219-017-0 01 1 1509-
21 CUP; SEALING,RR
ENGINE MADE IN THAILAND<6ZP> (B) OD=36 		5-11219-018-0 01 1 1406-1508
21 CUP; SEALING,RR
EXC. ENGINE MADE IN THAILAND<6ZP> (B) OD=36 		5-11219-018-0 01 1 1509-
21 CUP; SEALING,RR
(C) OD=12.3 		5-09600-013-0 01 1 0803-1405
21 CUP; SEALING,RR
EXC. ENGINE MADE IN THAILAND<6ZP> (C) OD=12.3 		5-09600-013-0 01 1 1406-1508
21 CUP; SEALING,RR
(A) OD=38 		5-11219-017-0 01 1 0803-1405
21 CUP; SEALING,RR
EXC. ENGINE MADE IN THAILAND<6ZP> (A) OD=38 		5-11219-017-0 01 1 1406-1508
21 CUP; SEALING,RR
(B) OD=36 		5-11219-018-0 01 1 0803-1405
23 CUP; SEALING,C/BL FRT & RR
ENGINE MADE IN THAILAND<6ZP> (A) OD=18 		5-11219-008-0 02 1 1406-1508
23 CUP; SEALING,C/BL FRT & RR
EXC. ENGINE MADE IN THAILAND<6ZP> (A) OD=18 		5-11219-008-0 02 1 1509-
23 CUP; SEALING,C/BL FRT & RR
ENGINE MADE IN THAILAND<6ZP> (D) OD=32 		5-11219-015-0 04 1 1406-1508
23 CUP; SEALING,C/BL FRT & RR
EXC. ENGINE MADE IN THAILAND<6ZP> (D) OD=32 		5-11219-015-0 04 1 1509-
23 CUP; SEALING,C/BL FRT & RR
ENGINE MADE IN THAILAND<6ZP> (B) OD=45 		8-97036-550-1 03 1 1406-1508
23 CUP; SEALING,C/BL FRT & RR
EXC. ENGINE MADE IN THAILAND<6ZP> (B) OD=45 		8-97036-550-1 03 1 1509-
23 CUP; SEALING,C/BL FRT & RR
(A) OD=18 		5-11219-008-0 02 1 0803-1405
23 CUP; SEALING,C/BL FRT & RR
EXC. ENGINE MADE IN THAILAND<6ZP> (A) OD=18 		5-11219-008-0 02 1 1406-1508
23 CUP; SEALING,C/BL FRT & RR
(D) OD=32 		5-11219-015-0 04 1 0803-1405
23 CUP; SEALING,C/BL FRT & RR
EXC. ENGINE MADE IN THAILAND<6ZP> (D) OD=32 		5-11219-015-0 04 1 1406-1508
23 CUP; SEALING,C/BL FRT & RR
EXC. ENGINE MADE IN THAILAND<6ZP> (C) OD=36 		5-11219-018-0 02 1 0803-
23 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0803-1405
23 CUP; SEALING,C/BL FRT & RR
EXC. ENGINE MADE IN THAILAND<6ZP> (B) OD=45 		8-97036-550-1 03 1 1406-1508
70 CUP; SEALING,FRT & RR
EXC. ENGINE MADE IN THAILAND<6ZP> OD=16 		5-11129-006-0 06 1 0803-
83 PIN; FLYWHEEL HSG
ENGINE MADE IN THAILAND<6ZP> OD=10 L=32 THA 		9-08161-032-0 01 1 1109-
83 PIN; FLYWHEEL HSG
EXC. ENGINE MADE IN THAILAND<6ZP> OD=10 L=32 THA 		9-08161-032-0 01 1 0803-
