0-11 — CYLINDER HEAD (#74372) — 65 parça

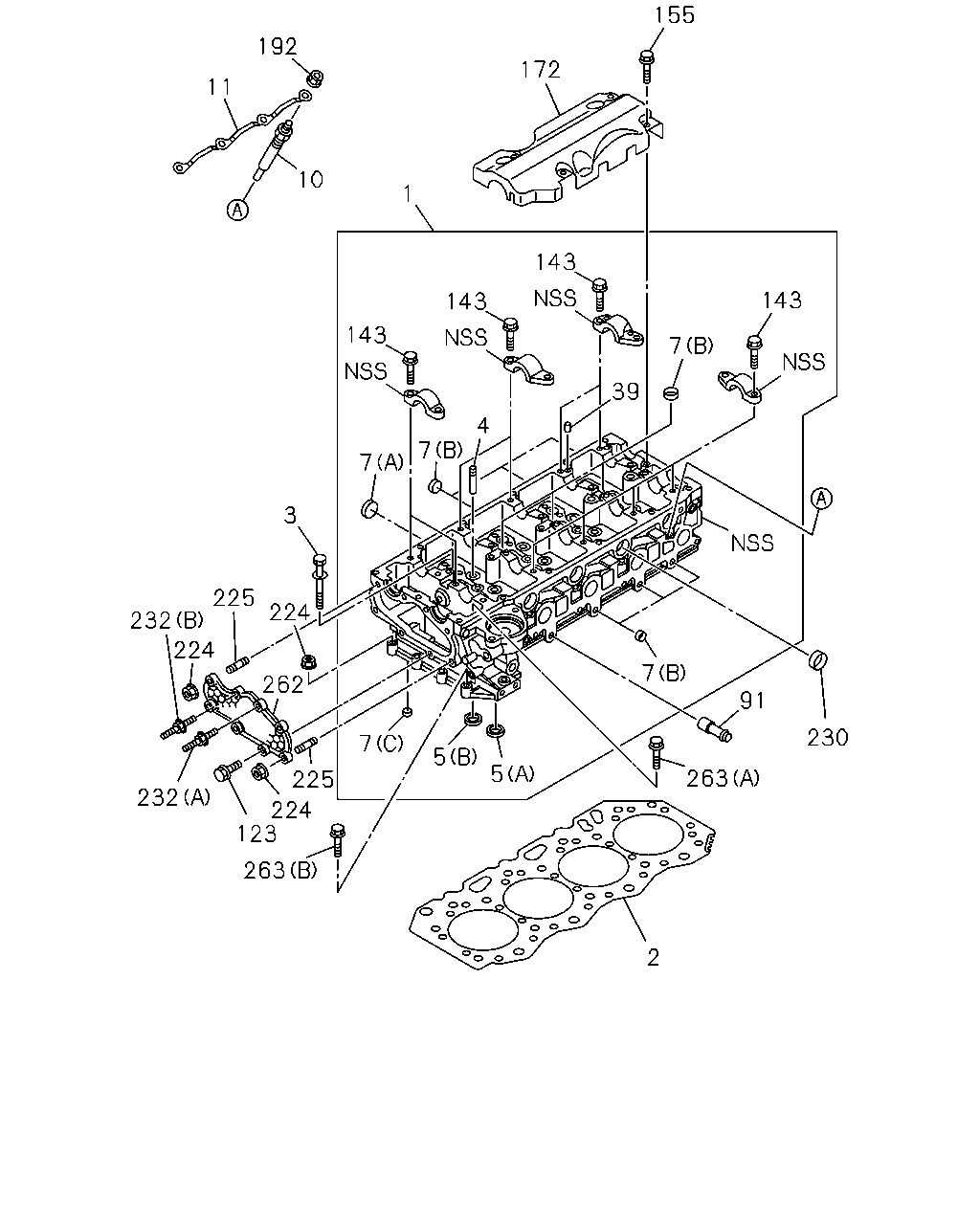

çizim 185589
155 192 172 11 10 1 143 143 143 143 7 39 4 7 7 3 225 232 224 224 7 262 91 7 230 225 5 5 263 232 224 123 263 2
BalonParca AdiParca NoAdetTipApplied Date
1 HEAD ASM; CYL
ENGINE MADE IN THAILAND<6ZP> 		8-98182-900-0 01 1 1105-1206
1 HEAD ASM; CYL
ENGINE MADE IN THAILAND<6ZP> 		8-98182-900-0 01 1 1207-1303
1 HEAD ASM; CYL
ENGINE MADE IN THAILAND<6ZP> 		8-98223-017-0 01 1 1304-
1 HEAD ASM; CYL
EXC. ENGINE MADE IN THAILAND<6ZP> 		8-97355-970-9 01 1 0803-1012
1 HEAD ASM; CYL 8-98175-606-1 01 1 1101-1104
1 HEAD ASM; CYL
EXC. ENGINE MADE IN THAILAND<6ZP> 		8-98175-606-1 01 1 1105-1301
1 HEAD ASM; CYL
EXC. ENGINE MADE IN THAILAND<6ZP> 		8-98223-019-2 01 1 1302-
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.05 1-NOTCH THA 		8-97328-866-2 01 1 1109-1304
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.05 1-NOTCH THA 		8-98241-037-0 01 1 1305-1411
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE MADE IN THAILAND<6ZP> T=1.14 1-NOTCH 		8-98291-683-0 01 1 1412-
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.10 2-NOTCH THA 		8-97328-867-2 01 1 1109-1304
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.10 2-NOTCH THA 		8-98241-038-0 01 1 1305-1411
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE MADE IN THAILAND<6ZP> T=1.19 2-NOTCH 		8-98291-684-0 01 1 1412-
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.15 3-NOTCH THA 		8-97328-868-2 01 1 1109-1304
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.15 3-NOTCH THA 		8-98241-039-0 01 1 1305-1411
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE MADE IN THAILAND<6ZP> T=1.24 3-NOTCH 		8-98291-685-0 01 1 1412-
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.05 1-NOTCH THA 		8-97328-866-2 01 1 0803-0901
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.05 1-NOTCH 		8-98135-953-0 01 1 0902-1006
3 BOLT; CYL HD TO BLOCK
EXC. ENGINE MADE IN THAILAND<6ZP> M11X114 		8-97144-583-2 18 1 0803-1108
3 BOLT; CYL HD TO BLOCK
EXC. ENGINE MADE IN THAILAND<6ZP> M11X114 		8-97144-583-2 18 1 1108-1108
3 BOLT; CYL HD TO BLOCK
M11X114 W/WASHER 		8-98201-019-0 18 1 1109-
4 GUIDE; VLV
ENGINE MADE IN THAILAND<6ZP> L=42 		8-94239-423-0 16 1 1105-
4 GUIDE; VLV
EXC. ENGINE MADE IN THAILAND<6ZP> L=42 		8-94239-423-0 16 1 0803-
5 SEAT; VLV INSERT
EXC. ENGINE MADE IN THAILAND<6ZP> (A) INLET ID=29 OD=35 		8-97311-378-0 08 1 0803-
5 SEAT; VLV INSERT
EXC. ENGINE MADE IN THAILAND<6ZP> (B) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 0803-
5 SEAT; VLV INSERT
ENGINE MADE IN THAILAND<6ZP> (A) INLET THA 		8-97944-904-1 08 1 1105-
5 SEAT; VLV INSERT
ENGINE MADE IN THAILAND<6ZP> (B) EXHAUST THA 		8-97944-905-1 08 1 1105-
7 CUP; SEALING,CYL HEAD
ENGINE MADE IN THAILAND<6ZP> (A) OD=32 		1-09600-012-2 02 1 1105-
7 CUP; SEALING,CYL HEAD
ENGINE MADE IN THAILAND<6ZP> (B) OD=18 		5-11219-008-0 13 1 1105-
7 CUP; SEALING,CYL HEAD
ENGINE MADE IN THAILAND<6ZP> (C) OD=14 		5-11219-011-0 07 1 1105-
7 CUP; SEALING,CYL HEAD
EXC. ENGINE MADE IN THAILAND<6ZP> (A) OD=32 		1-09600-012-2 02 1 0803-
7 CUP; SEALING,CYL HEAD
EXC. ENGINE MADE IN THAILAND<6ZP> (B) OD=18 		5-11219-008-0 13 1 0803-
7 CUP; SEALING,CYL HEAD
EXC. ENGINE MADE IN THAILAND<6ZP> (C) OD=14 		5-11219-011-0 07 1 0803-
10 PLUG; GLOW
EXC. ENGINE MADE IN THAILAND<6ZP> NGK 		8-94390-777-6 04 1 0803-
11 CONNECTOR; GLOW PLUG
ENGINE MADE IN THAILAND<6ZP> 		8-98014-335-0 01 1 1109-
11 CONNECTOR; GLOW PLUG
EXC. ENGINE MADE IN THAILAND<6ZP> 		8-98014-335-0 01 1 0803-
39 DOWEL; CAP,CM/SHF
EXC. ENGINE MADE IN THAILAND<6ZP> 		8-97329-129-1 20 1 0803-
91 PIPE; HTR
ENGINE MADE IN THAILAND<6ZP> THA 		8-94343-211-1 01 1 1109-
91 PIPE; HTR
EXC. ENGINE MADE IN THAILAND<6ZP> THA 		8-94343-211-1 01 1 0803-
123 BOLT; COVER
ENGINE MADE IN THAILAND<6ZP> M8X20 FLANGE THA 		0-28050-820-0 04 1 1109-
123 BOLT; COVER
EXC. ENGINE MADE IN THAILAND<6ZP> M8X20 FLANGE THA 		8-97366-632-0 04 1 0803-
143 BOLT; FIX
ENGINE MADE IN THAILAND<6ZP> M8X40 FLANGE THA 		0-28650-840-0 20 1 1109-
143 BOLT; FIX
EXC. ENGINE MADE IN THAILAND<6ZP> M8X40 FLANGE THA 		0-28650-840-0 20 1 0803-
155 BOLT; BAFFLE PLATE
ENGINE MADE IN THAILAND<6ZP> M6X10 HEX SOCKET THA 		0-58330-610-0 04 1 1109-
155 BOLT; BAFFLE PLATE
EXC. ENGINE MADE IN THAILAND<6ZP> M6X10 HEX SOCKET THA 		0-58330-610-0 04 1 0803-
172 PLATE; BAFFLE,CYL HD
ENGINE MADE IN THAILAND<6ZP> THA 		8-98049-103-0 01 1 1109-
172 PLATE; BAFFLE,CYL HD
EXC. ENGINE MADE IN THAILAND<6ZP> 		8-98016-865-0 01 1 0803-
192 NUT; GLOW PLUG
EXC. ENGINE MADE IN THAILAND<6ZP> M4 FLANGE 		8-97368-853-0 04 1 0803-
224 NUT; COVER
ENGINE MADE IN THAILAND<6ZP> M8 FLANGE THA 		0-91180-208-0 04 1 1109-
224 NUT; COVER
EXC. ENGINE MADE IN THAILAND<6ZP> M8 FLANGE THA 		0-91180-208-0 04 1 0803-
225 STUD; COVER
ENGINE MADE IN THAILAND<6ZP> M8X20 L=31 THA 		8-97945-022-0 02 1 1109-
225 STUD; COVER
EXC. ENGINE MADE IN THAILAND<6ZP> M8X15.5 L=33.5 		8-98017-062-0 02 1 0803-
230 GASKET; SLEEVE,INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ENGINE MADE IN THAILAND<6ZP> THA 		8-97943-955-0 04 1 1109-
230 GASKET; SLEEVE,INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE MADE IN THAILAND<6ZP> OD=30 		1-09639-034-0 04 1 0803-
232 STUD; CAM,CARRIER
ENGINE MADE IN THAILAND<6ZP> (B) M6X12 M8X17 L=37 THA 		8-97375-460-0 01 1 1109-
232 STUD; CAM,CARRIER
ENGINE MADE IN THAILAND<6ZP> (A) M8X15 M8X17 L=40 THA 		8-98166-373-0 01 1 1109-
232 STUD; CAM,CARRIER
EXC. ENGINE MADE IN THAILAND<6ZP> (A) M8X15 M8X17 L=40 		8-97366-633-0 01 1 0803-1006
232 STUD; CAM,CARRIER
EXC. ENGINE MADE IN THAILAND<6ZP> (A) M8X15 M8X17 L=40 THA 		8-98166-373-0 01 1 1007-
232 STUD; CAM,CARRIER
EXC. ENGINE MADE IN THAILAND<6ZP> (B) M6X12 M8X17 L=37 THA 		8-97375-460-0 01 1 0803-
262 COVER; CYL HEAD
ENGINE MADE IN THAILAND<6ZP> THA 		8-97355-516-4 01 1 1109-
262 COVER; CYL HEAD
EXC. ENGINE MADE IN THAILAND<6ZP> THA 		8-97355-516-4 01 1 0803-
263 BOLT; CYL HD
ENGINE MADE IN THAILAND<6ZP> (B) M8X60 FLANGE THA 		0-28050-860-0 01 1 1109-
263 BOLT; CYL HD
ENGINE MADE IN THAILAND<6ZP> (A) M8X35 FLANGE THA 		0-28650-835-0 03 1 1109-
263 BOLT; CYL HD
EXC. ENGINE MADE IN THAILAND<6ZP> (A) M8X60 FLANGE THA 		0-28050-860-0 01 1 0803-
263 BOLT; CYL HD
EXC. ENGINE MADE IN THAILAND<6ZP> (B) M8X35 FLANGE THA 		0-28650-835-0 03 1 0803-
