9-01 — TOOLS (#74368) — 59 parça

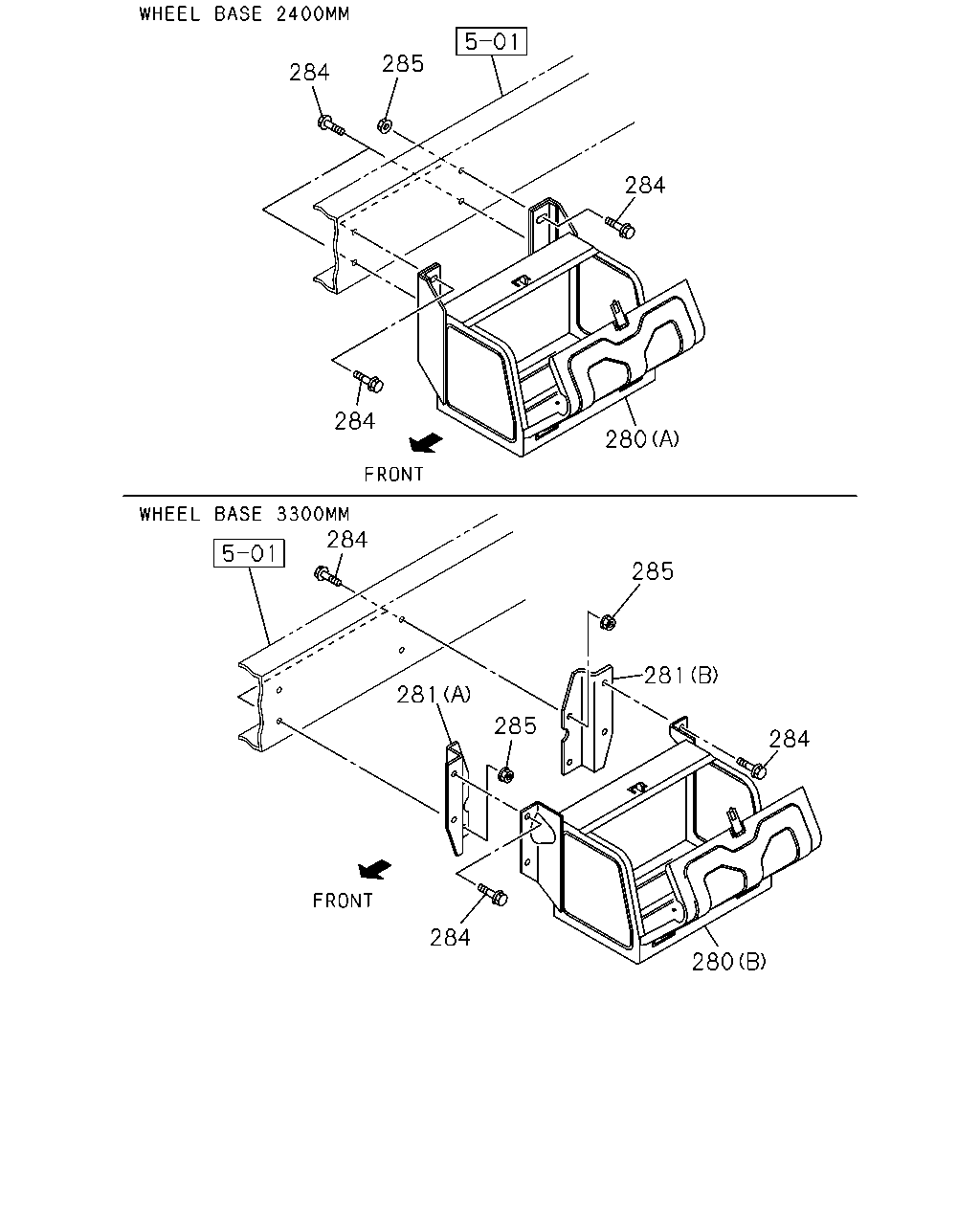

çizim 14402
285 284 284 284 280 284 285 281 281 285 284 284 280
BalonParca AdiParca NoAdetTipApplied Date A B C
280 BOX; TOOL
WHEEL BASE 2400MM(24W) TOOL & STORAGE BOX<VK2> (A) 		8-98054-885-0 01 1 0804- ●
280 BOX; TOOL
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (B) 		8-97384-079-0 01 1 0804- ●
280 BOX; TOOL
TOOL & STORAGE BOX<VK2> (B) 		8-97384-079-0 01 1 0804- ●
281 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (B) 		8-98045-642-1 01 1 0804- ●
281 BRACKET; TOOL BOX
TOOL & STORAGE BOX<VK2> (B) 		8-98045-642-1 01 1 0804- ●
281 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (A) 		8-98046-374-1 01 1 0804-0901 ●
281 BRACKET; TOOL BOX
TOOL & STORAGE BOX<VK2> (A) 		8-98046-374-1 01 1 0804-0901 ●
281 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (A) 		8-98130-709-0 01 1 0902- ●
281 BRACKET; TOOL BOX
TOOL & STORAGE BOX<VK2> (A) 		8-98130-709-0 01 1 0902- ●
284 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> M10X30 FLANGE SOU 		0-28651-030-0 04 1 0804- ● ●
284 BOLT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> M10X30 FLANGE SOU 		0-28651-030-0 04 1 0804- ●
284 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> M10X30 FLANGE SOU 		0-28651-030-0 04 1 0804- ●
285 NUT; TOOL BOX
WHEEL BASE 2400MM(24W) TOOL & STORAGE BOX<VK2> M10 FLANGE SOU 		0-91180-110-0 02 1 0804- ●
285 NUT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> M10 FLANGE SOU 		0-91180-110-0 04 1 0804- ●
285 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> M10 FLANGE SOU 		0-91180-110-0 04 1 0804- ●

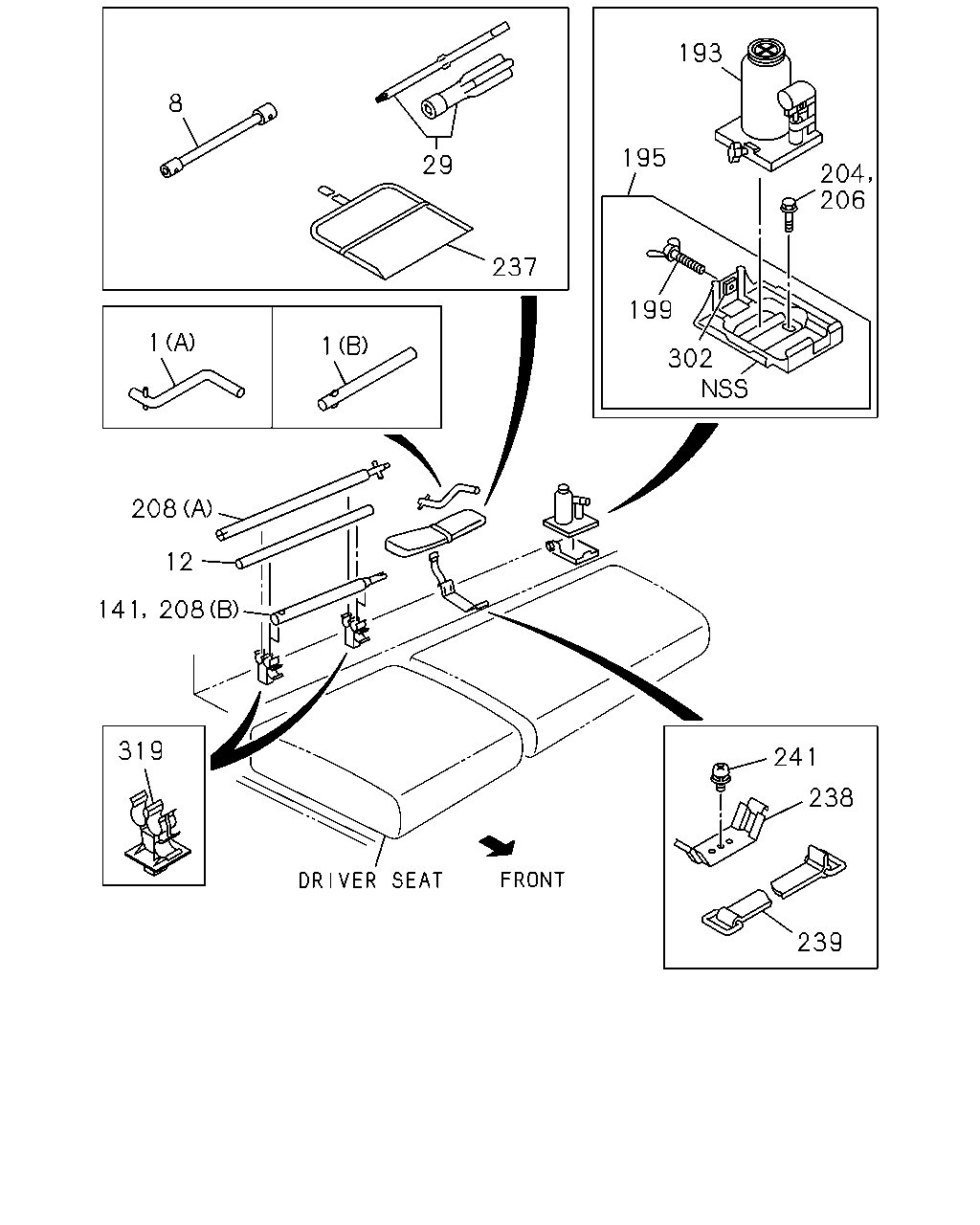

çizim 14598
193 8 195 29 204 206 237 199 1 1 302 208 12 208 141 319 241 238 239
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HANDLE; SPARE TIRE CARRIER
(A) 		8-97218-985-0 01 1 0804- ●
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W) (A) 		8-97218-985-0 01 1 0804- ●
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) (B) L=280 		1-85515-007-0 01 1 0804-1108 ●
1 HANDLE; SPARE TIRE CARRIER
(B) L=280 		1-85515-007-0 01 1 0804-1108 ●
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) (B) L=280 		8-98181-251-0 01 1 1109- ●
1 HANDLE; SPARE TIRE CARRIER
(B) L=280 		8-98181-251-0 01 1 1109- ●
8 WRENCH; WHEEL
B=41X19 L=330 SOU 		8-94386-490-1 01 1 0804- ● ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-97332-988-0 01 1 0804-1001 ●
12 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) OD=25 L=590 		8-97332-988-0 01 1 0804-1001 ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 SOU 		1-85116-011-0 01 1 1002-1407 ●
12 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) OD=25 L=480 SOU 		1-85116-011-0 01 1 1002-1407 ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 SOU 		8-98257-407-0 01 1 1408- ●
12 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) OD=25 L=480 SOU 		8-98257-407-0 01 1 1408- ●
29 DRIVER; SCREW
<+>,<-> L=160 SOU 		8-94242-798-1 01 1 0804- ● ● ●
141 HANDLE; WRENCH
L=580 		1-85515-005-1 01 1 0804-1108 ●
141 HANDLE; WRENCH
L=580 		8-98181-249-0 01 1 1109- ●
193 JACK ASM
4TON 		8-98090-823-0 01 1 0804-1311 ●
193 JACK ASM
4TON 		8-98239-828-0 01 1 1312- ●
193 JACK ASM
4TON 		8-98012-285-0 01 1 0804- ● ●
195 BRACKET; JACK 8-97589-376-2 01 1 0809- ●
195 BRACKET; JACK 8-98033-737-1 01 1 0804-0808 ● ●
195 BRACKET; JACK 8-98033-737-2 01 1 0809- ●
195 BRACKET; JACK 8-94262-068-3 01 1 0804- ●
199 BOLT; JACK
M8X30 WING 		8-98005-536-0 01 1 0809- ●
199 BOLT; JACK
M8X50 WING 		8-98005-537-0 01 1 0804-0808 ● ●
199 BOLT; JACK
M8X50 WING 		8-98005-537-0 01 1 0809- ●
199 BOLT; JACK
M8X50 WING SOU 		8-94279-136-0 01 1 0804- ●
204 BOLT; BRKT,JACK
M8X25 FLANGE SOU 		0-28650-825-0 01 1 0804- ● ●
206 SCREW; OIL JACK BRKT
M6X16 		0-38050-616-0 01 1 0804- ●
208 HANDLE; JACK
(A) L=642 		8-97217-800-0 01 1 0804-1108 ●
208 HANDLE; JACK
WHEEL BASE 2400MM(24W) (A) L=642 		8-97217-800-0 01 1 0804-1108 ●
208 HANDLE; JACK
(A) L=642 		8-98181-477-0 01 1 1109- ●
208 HANDLE; JACK
WHEEL BASE 2400MM(24W) (A) L=642 		8-98181-477-0 01 1 1109- ●
208 HANDLE; JACK
WHEEL BASE 3300MM(33W) (B) L=580 		1-85515-005-1 01 1 0804-1108 ●
208 HANDLE; JACK
WHEEL BASE 3300MM(33W) (B) L=580 		8-98181-249-0 01 1 1109- ●
237 BAG; TOOL
SOU 		8-97130-903-1 01 1 0804- ● ● ●
238 SUPPORT; TOOL BAG
SOU 		8-97994-977-0 01 1 0804- ● ●
239 BAND; TOOL BAG
L=100 SOU 		5-73997-026-1 01 1 0804- ● ● ●
241 SCREW; TOOL BAG SUPPORT
M6X16 		0-38050-616-0 01 1 0804- ● ●
302 NUT; JACK BRKT 8-98021-556-0 01 1 0804- ● ●
302 NUT; JACK BRKT
SOU 		8-94279-522-0 01 1 0804- ●
319 CLIP; TOOL BAR
SOU 		8-97853-077-2 02 1 0804- ● ● ●

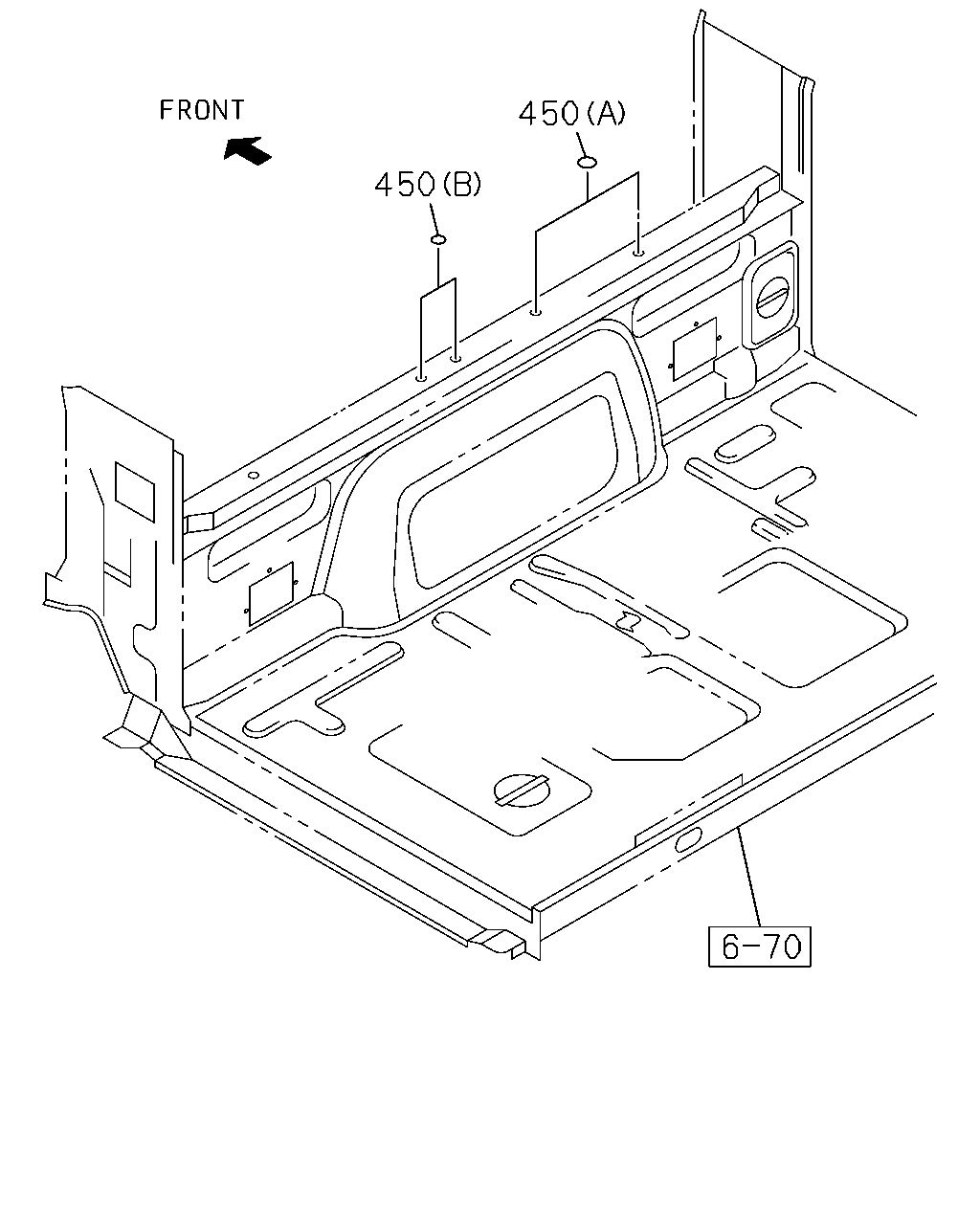

çizim 185556
450 450
BalonParca AdiParca NoAdetTipApplied Date A B C
450 SEAL; HOLE
(A) OD=36 T=0.05 BLACK SOU 		5-76777-035-0 02 1 0804- ●
450 SEAL; HOLE
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0804- ●
