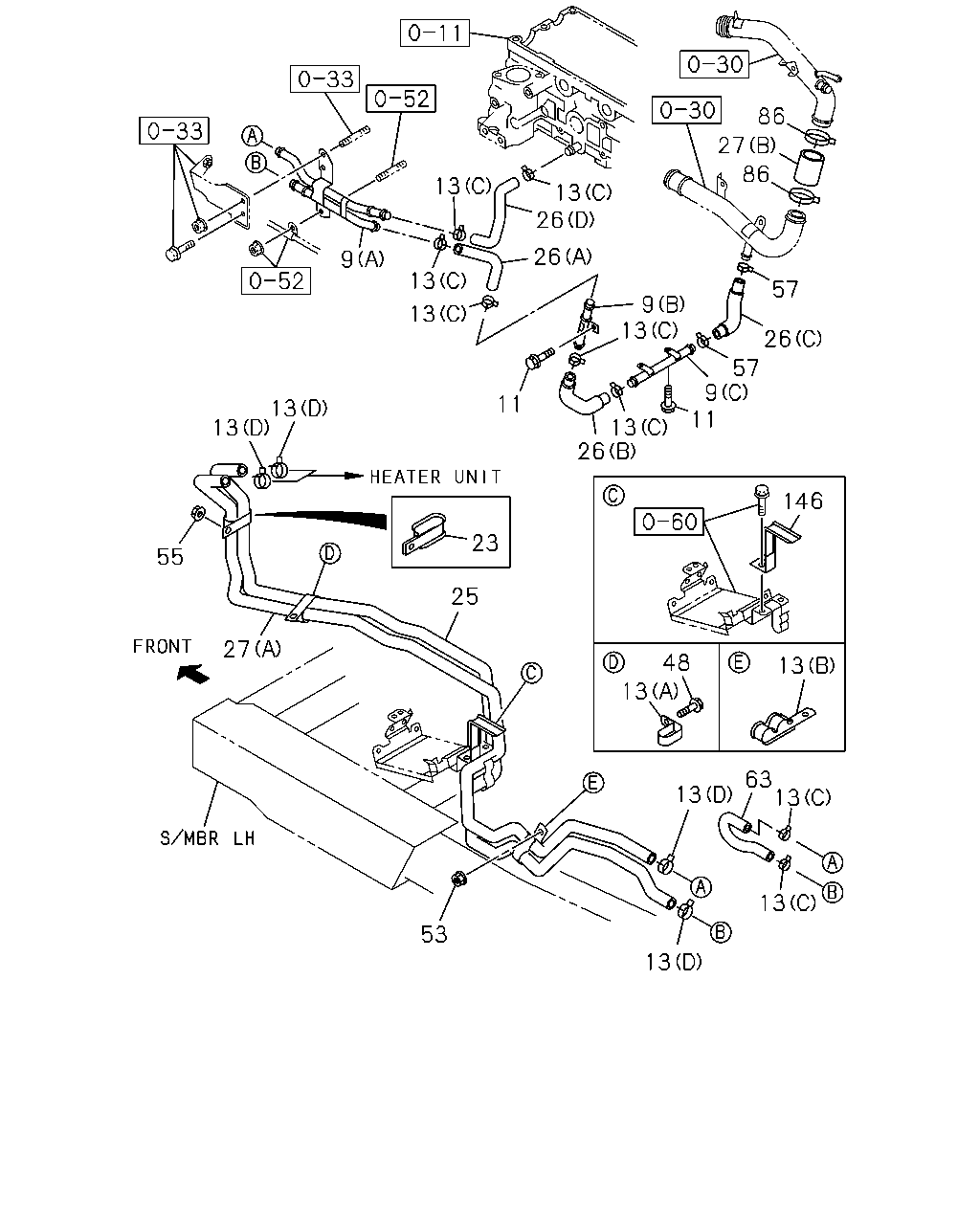

8-45 — HEATER PIPING (#74358) — 62 parça

86 27 86 13 13 26 26 9 13 57 9 13 13 26 57 9 11 11 13 13 13 26 146 23 55 25 27 48 13 13 63 13 13 13 53 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98180-418-2	01	1	1207-	●	●	●
9	PIPE; HTR (B)	8-97381-481-3	01	1	0804-	●	●	●
9	PIPE; HTR (C)	8-97383-035-1	01	1	0804-	●	●	●
9	PIPE; HTR (A)	8-98028-829-1	01	1	0804-	●	●	●
11	BOLT; HTR PIPE M8X16 FLANGE SOU	0-28050-816-0	03	1	0804-	●	●	●
13	CLIP; HTR HOSE (C) ID=20.8	8-94125-862-1	06	1	0804-	●	●	●
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) ID=22	8-97359-141-0	04	1	0804-1206	●	●	●
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) ID=22	8-97359-141-0	04	1	1207-	●	●	●
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) ID=22	8-97359-141-0	04	1	1207-	●	●	●
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=14	8-98029-678-0	01	1	0804-	●	●	●
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98040-023-0	01	1	0804-	●	●	●
13	CLIP; HTR HOSE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=20.8	8-94125-862-1	02	1	0804-	●	●	●
23	CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18	8-97359-144-0	01	1	0804-1205	●	●	●
23	CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18	8-98166-023-0	01	1	1206-	●	●	●
25	HOSE; WATER,ENG TO HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98085-568-2	01	1	0804-1206	●	●	●
26	HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98085-567-2	01	1	1207-	●	●	●
26	HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F)	8-98085-568-2	01	1	1207-	●	●	●
26	HOSE; HTR (A)	0-03516-240-0	01	1	0804-0910	●	●	●
26	HOSE; HTR (A)	8-98143-868-0	01	1	0911-	●	●	●
26	HOSE; HTR (D)	8-97383-048-1	01	1	0804-	●	●	●
26	HOSE; HTR (B)	8-98000-099-1	01	1	0804-	●	●	●
26	HOSE; HTR (C)	8-98000-101-2	01	1	0804-	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE (B)	8-98009-701-0	01	1	0804-	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98085-567-2	01	1	0804-1206	●	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE SOU	0-28050-612-0	01	1	0804-	●	●	●
53	NUT; HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE SOU	0-91180-106-0	01	1	0804-	●	●	●
55	NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE SOU	0-91180-106-0	01	1	0804-	●	●	●
57	CLIP; HOSE ID=20.8	8-94125-862-1	02	1	0804-	●	●	●
63	HOSE; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98015-119-3	01	1	0804-	●	●	●
86	CLIP; HTR HOSE ID=40.5 SOU	8-97313-472-0	02	1	0804-	●	●	●
146	BRACKET; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98060-001-0	01	1	0804-	●	●	●

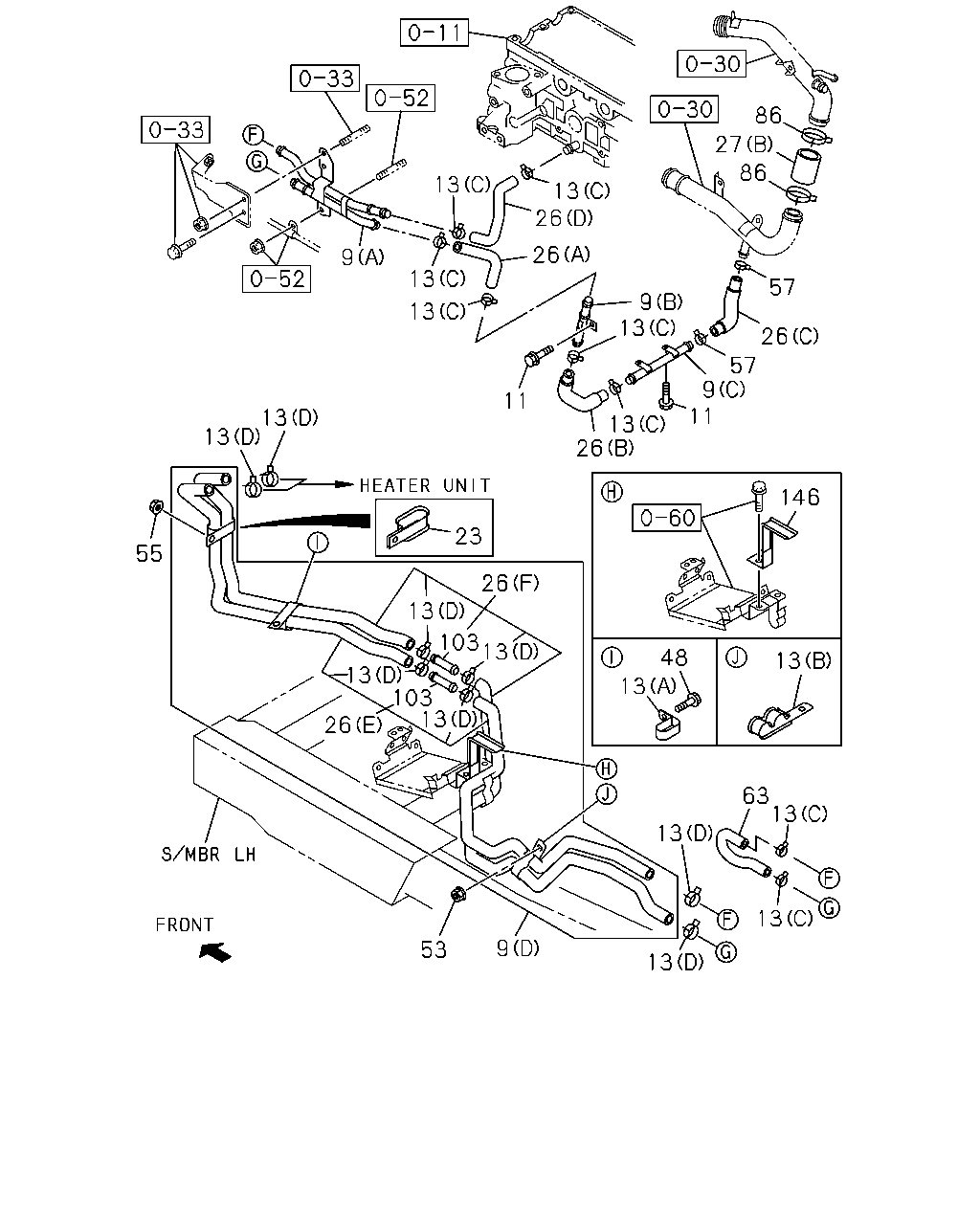

86 27 86 57 26 57 9 11 13 26 11 9 13 26 26 13 13 13 13 9 13 13 55 23 13 26 13 103 103 13 13 26 48 13 13 146 13 13 63 13 13 9 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98180-418-2	01	1	1207-	●	●	●
9	PIPE; HTR (B)	8-97381-481-3	01	1	0804-	●	●	●
9	PIPE; HTR (C)	8-97383-035-1	01	1	0804-	●	●	●
9	PIPE; HTR (A)	8-98028-829-1	01	1	0804-	●	●	●
11	BOLT; HTR PIPE M8X16 FLANGE SOU	0-28050-816-0	03	1	0804-	●	●	●
13	CLIP; HTR HOSE (C) ID=20.8	8-94125-862-1	06	1	0804-	●	●	●
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) ID=22	8-97359-141-0	04	1	0804-1206	●	●	●
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) ID=22	8-97359-141-0	04	1	1207-	●	●	●
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) ID=22	8-97359-141-0	04	1	1207-	●	●	●
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=14	8-98029-678-0	01	1	0804-	●	●	●
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98040-023-0	01	1	0804-	●	●	●
13	CLIP; HTR HOSE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=20.8	8-94125-862-1	02	1	0804-	●	●	●
23	CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18	8-97359-144-0	01	1	0804-1205	●	●	●
23	CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18	8-98166-023-0	01	1	1206-	●	●	●
26	HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98085-567-2	01	1	1207-	●	●	●
26	HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F)	8-98085-568-2	01	1	1207-	●	●	●
26	HOSE; HTR (A)	0-03516-240-0	01	1	0804-0910	●	●	●
26	HOSE; HTR (A)	8-98143-868-0	01	1	0911-	●	●	●
26	HOSE; HTR (D)	8-97383-048-1	01	1	0804-	●	●	●
26	HOSE; HTR (B)	8-98000-099-1	01	1	0804-	●	●	●
26	HOSE; HTR (C)	8-98000-101-2	01	1	0804-	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE (B)	8-98009-701-0	01	1	0804-	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98085-567-2	01	1	0804-1206	●	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE SOU	0-28050-612-0	01	1	0804-	●	●	●
53	NUT; HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE SOU	0-91180-106-0	01	1	0804-	●	●	●
55	NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE SOU	0-91180-106-0	01	1	0804-	●	●	●
57	CLIP; HOSE ID=20.8	8-94125-862-1	02	1	0804-	●	●	●
63	HOSE; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98015-119-3	01	1	0804-	●	●	●
86	CLIP; HTR HOSE ID=40.5 SOU	8-97313-472-0	02	1	0804-	●	●	●
103	CONNECTOR; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	9-09703-048-0	02	1	1207-	●	●	●
146	BRACKET; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98060-001-0	01	1	0804-	●	●	●
