50967 - TFR/TFS(EUROPE)-RHD
▶
3 - Brakes, Brake System
▶
3-60 - BRAKE PIPING; VACUUM
▶
3-60 — BRAKE PIPING; VACUUM
(#74351) — 25 parça
Tümü
A - TFB5SF
B - TFB5WF
C - TFS5SF
D - TFS5WF
◀

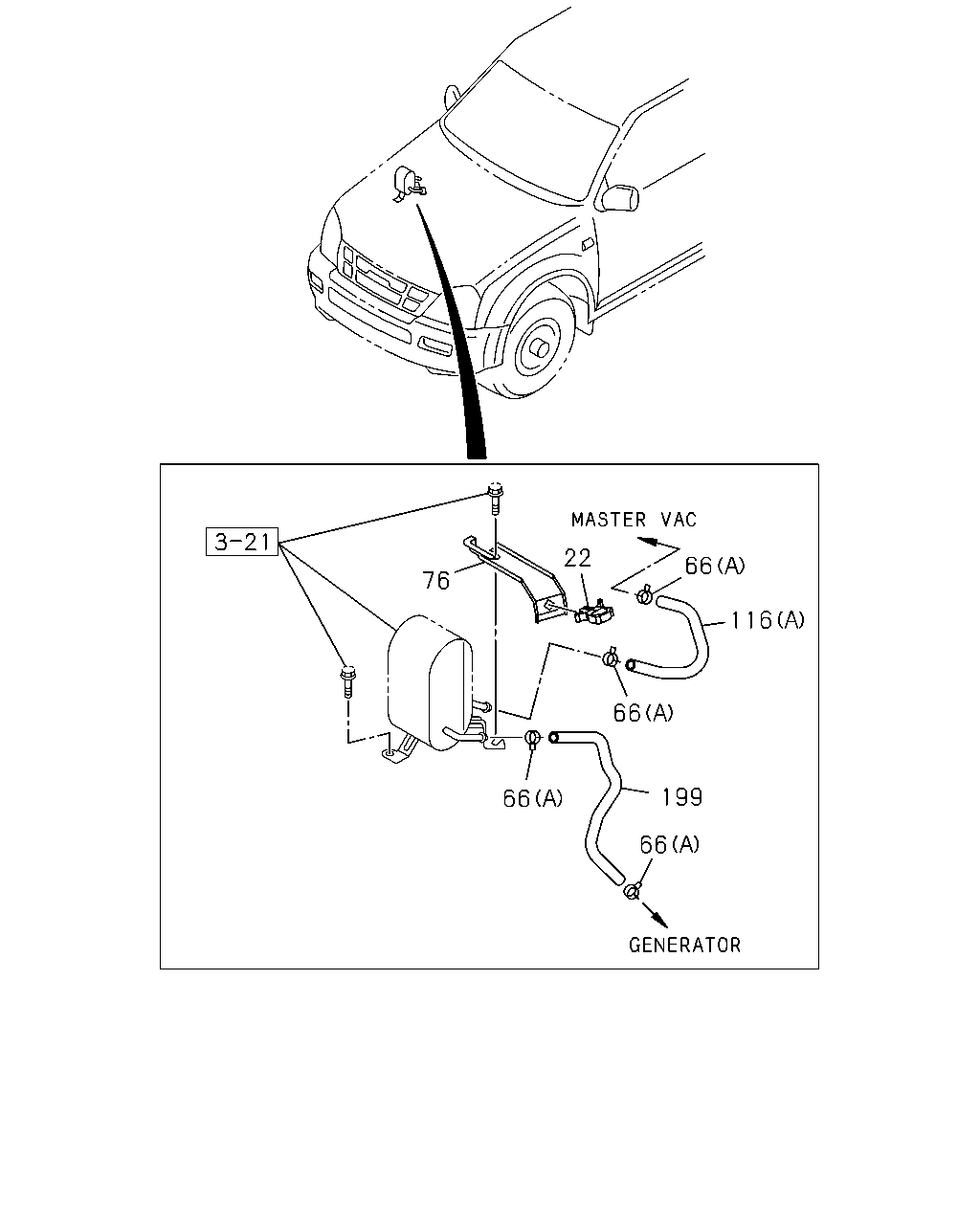

[360A] -'06/9 (14 parça)

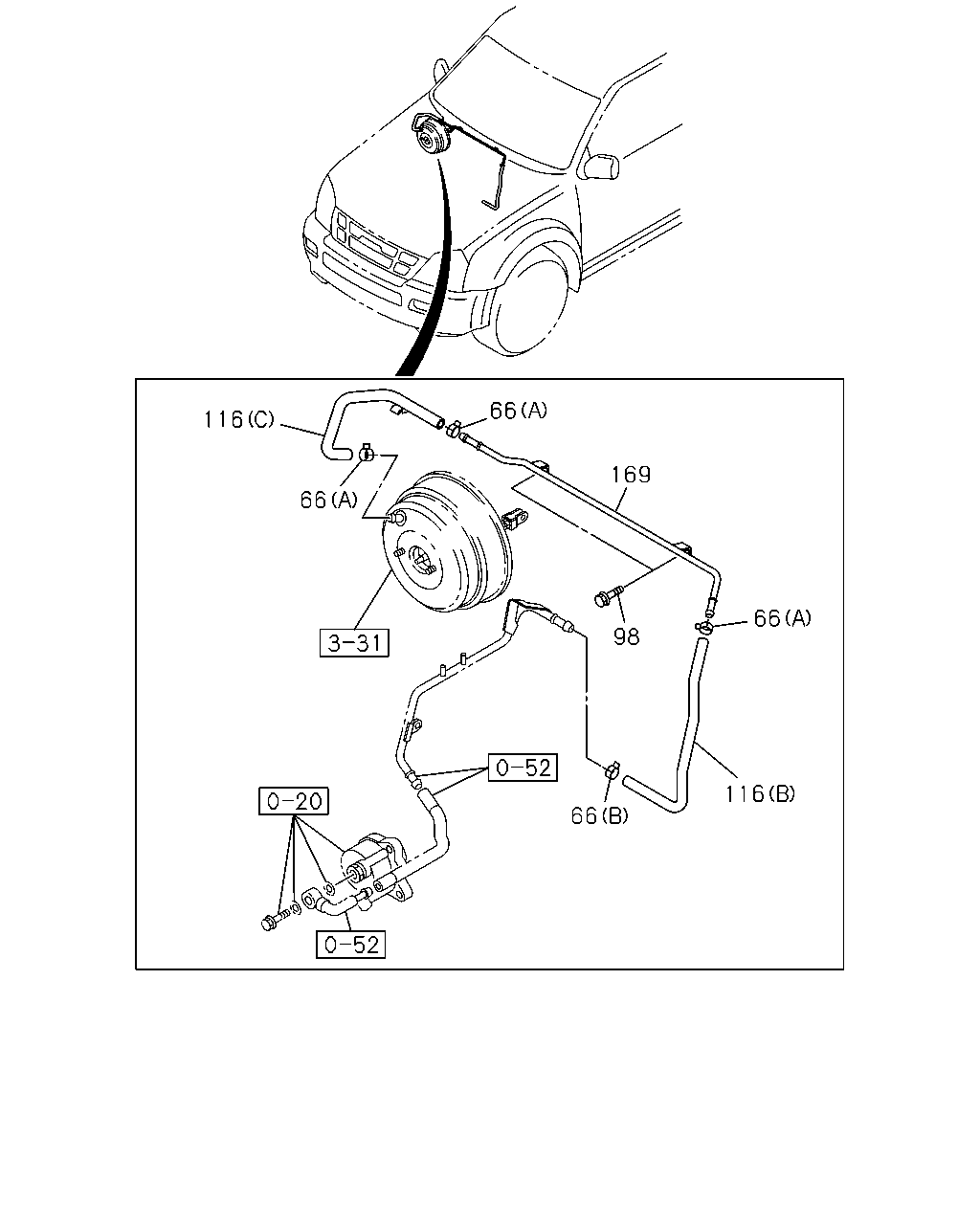

[360A] '06/10- (11 parça)
▶
22
66
76
116
66
199
66
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
22
04.681 CLIP; HOSE,VAC TANK
03.162
8-97089-536-0
01
1
0307-0609
●
●
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
04.681 (A) ID=15.5
8-94367-944-0
02
1
0307-0604
●
●
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
04.681 (A) ID=15.5
8-94367-944-0
02
1
0307-0604
●
●
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
(A) ID=15.5
8-98035-872-0
02
1
0605-0609
●
●
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
(A) ID=15.5
8-98035-872-0
02
1
0605-0609
●
●
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
(A) ID=15.5
8-98035-872-0
03
1
0610-
●
●
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
(B) ID=16
8-98036-539-0
01
1
0610-
●
●
●
●
76
04.930 BRACKET; VAC HOSE CLIP
8-97301-841-2
01
1
0307-0609
●
●
●
●
116
04.931 HOSE; VAC,M/VAC
(A)
8-97236-453-2
01
1
0307-0609
●
●
●
●
116
04.931 HOSE; VAC,M/VAC
(C)
8-97944-840-1
01
1
0610-
●
●
●
●
116
04.931 HOSE; VAC,M/VAC
(B)
8-97944-841-0
01
1
0610-
●
●
●
●
199
04.681 HOSE; VAC,VAC TANK TO VAC PUMP
8-97365-118-0
01
1
0307-0409
●
●
●
●
199
04.681 HOSE; VAC,VAC TANK TO VAC PUMP
4JH1-TC ENG(RDM)
8-97365-118-0
01
1
0410-0609
●
●
199
04.681 HOSE; VAC,VAC TANK TO VAC PUMP
4JA1-TC ENG(L4Z)
8-97385-746-0
01
1
0410-0609
●
●
●
●
66
116
169
66
66
98
116
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
66
04.930 CLIP; VAC HOSE,M/VAC
04.681 (A) ID=15.5
8-94367-944-0
02
1
0307-0604
●
●
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
04.681 (A) ID=15.5
8-94367-944-0
02
1
0307-0604
●
●
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
(A) ID=15.5
8-98035-872-0
02
1
0605-0609
●
●
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
(A) ID=15.5
8-98035-872-0
02
1
0605-0609
●
●
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
(A) ID=15.5
8-98035-872-0
03
1
0610-
●
●
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
(B) ID=16
8-98036-539-0
01
1
0610-
●
●
●
●
98
04.931 BOLT; VAC PIPE FIX
02.343 M6X16 FLANGE
0-28650-616-0
02
1
0610-
●
●
●
●
116
04.931 HOSE; VAC,M/VAC
(A)
8-97236-453-2
01
1
0307-0609
●
●
●
●
116
04.931 HOSE; VAC,M/VAC
(C)
8-97944-840-1
01
1
0610-
●
●
●
●
116
04.931 HOSE; VAC,M/VAC
(B)
8-97944-841-0
01
1
0610-
●
●
●
●
169
04.930 PIPE; VAC,BOOSTER SIDE
8-97944-847-1
01
1
0610-
●
●
●
●
