4-40 — STEERING UNIT (#7435) — 77 parça

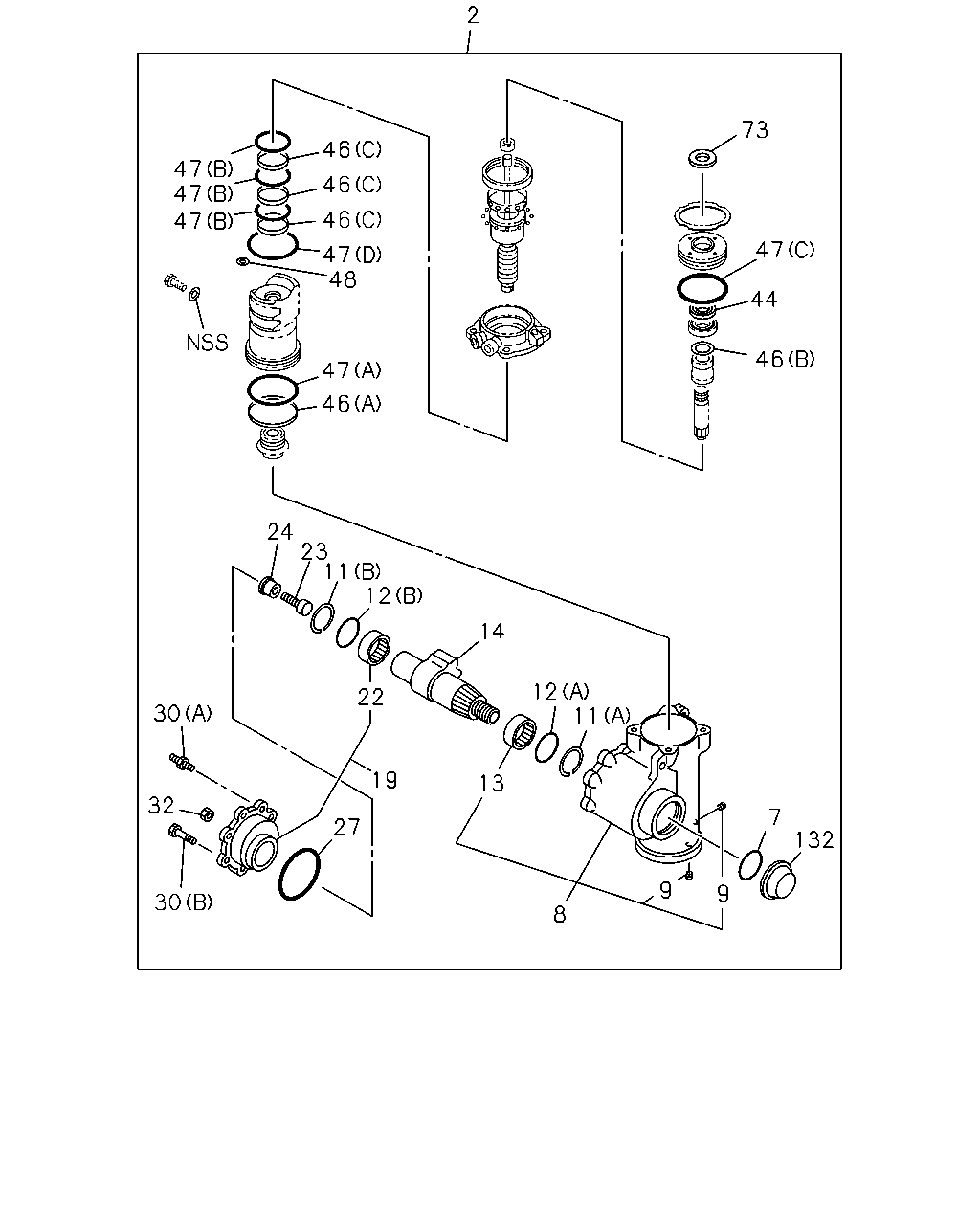

çizim 7528
2 73 46 47 47 47 46 46 47 47 48 44 46 47 46 24 23 11 12 14 12 11 22 30 19 13 32 7 27 132 9 9 30 8
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-85574-052-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44249-041-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44240-114-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: B = 1-44000-866-1 		1-44519-071-0 02 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-861-2 		1-44519-071-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44519-265-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44249-072-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-866-1 		1-44321-032-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-861-2 		1-44321-035-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44260-021-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44519-234-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44269-035-0 01 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: B = 1-44000-866-1 		1-44279-012-0 05 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-861-2 		1-44279-012-0 05 1 0202-
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-861-2 		1-44569-103-0 05 1 -0201
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44269-007-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44519-262-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44519-114-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44519-227-0 01 1 -

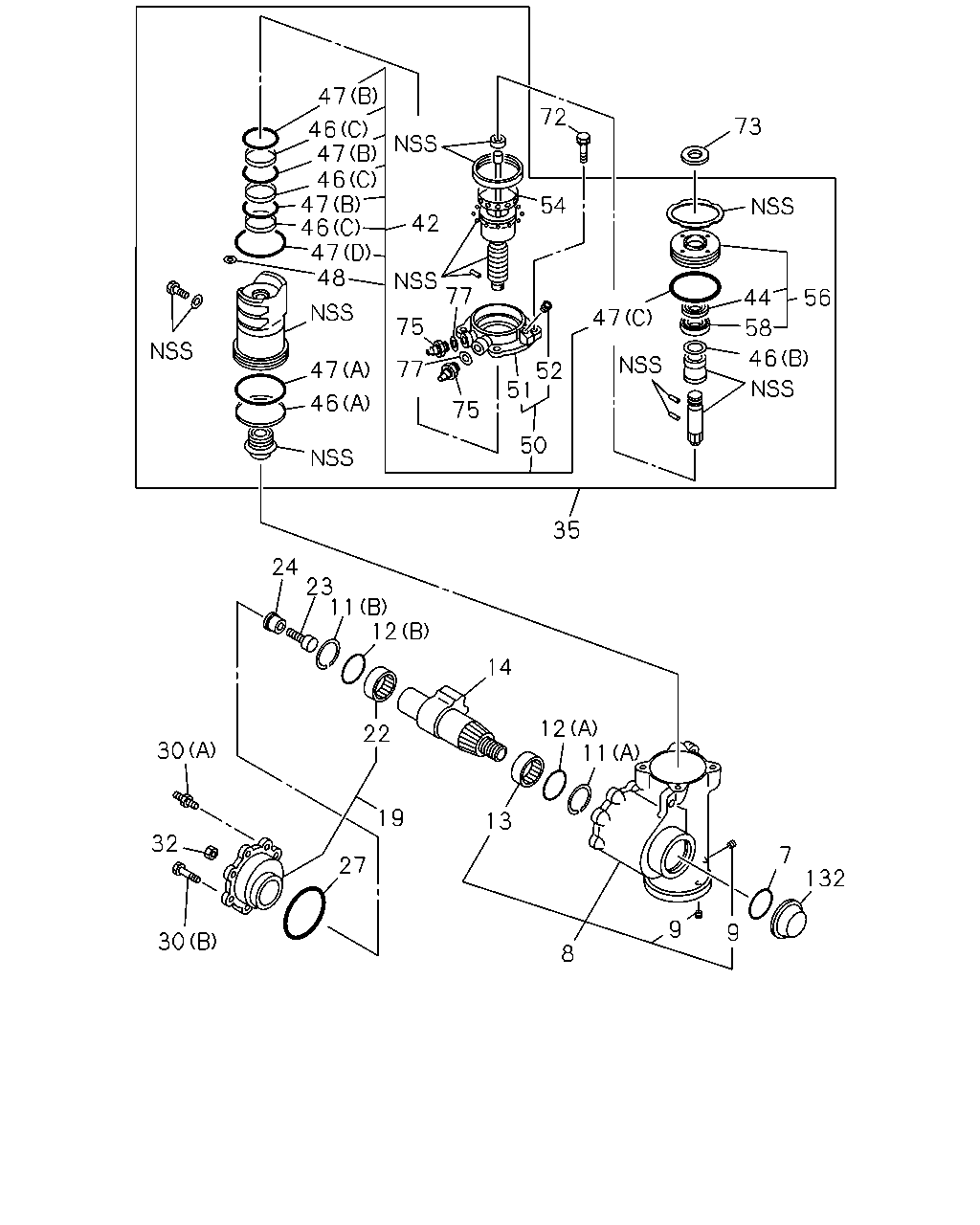

çizim 7529
47 72 73 46 47 46 47 46 47 48 54 42 77 56 44 47 75 58 46 77 47 52 51 46 75 50 35 24 23 11 12 14 12 11 22 30 19 13 32 7 27 132 9 9 30 8
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44249-041-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44240-114-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: B = 1-44000-866-1 		1-44519-071-0 02 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-861-2 		1-44519-071-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44519-265-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44249-072-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-866-1 		1-44321-032-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-861-2 		1-44321-035-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44260-021-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44519-234-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44269-035-0 01 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: B = 1-44000-866-1 		1-44279-012-0 05 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-861-2 		1-44279-012-0 05 1 0202-
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-861-2 		1-44569-103-0 05 1 -0201
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44269-007-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 1-44000-866-1 		1-44150-073-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-861-2 		1-44150-084-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44560-080-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44560-076-0 01 1 -
51 HOUSING; VALVE STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44561-020-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44259-029-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44259-017-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44519-114-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
M22X1.5 ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44259-035-1 02 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-866-1 		1-44519-227-0 01 1 -
