3-52 — BRAKE PIPING; OIL,FRONT (#74348) — 44 parça

9 9 6 6 1 1 5 8 5 8 8 8

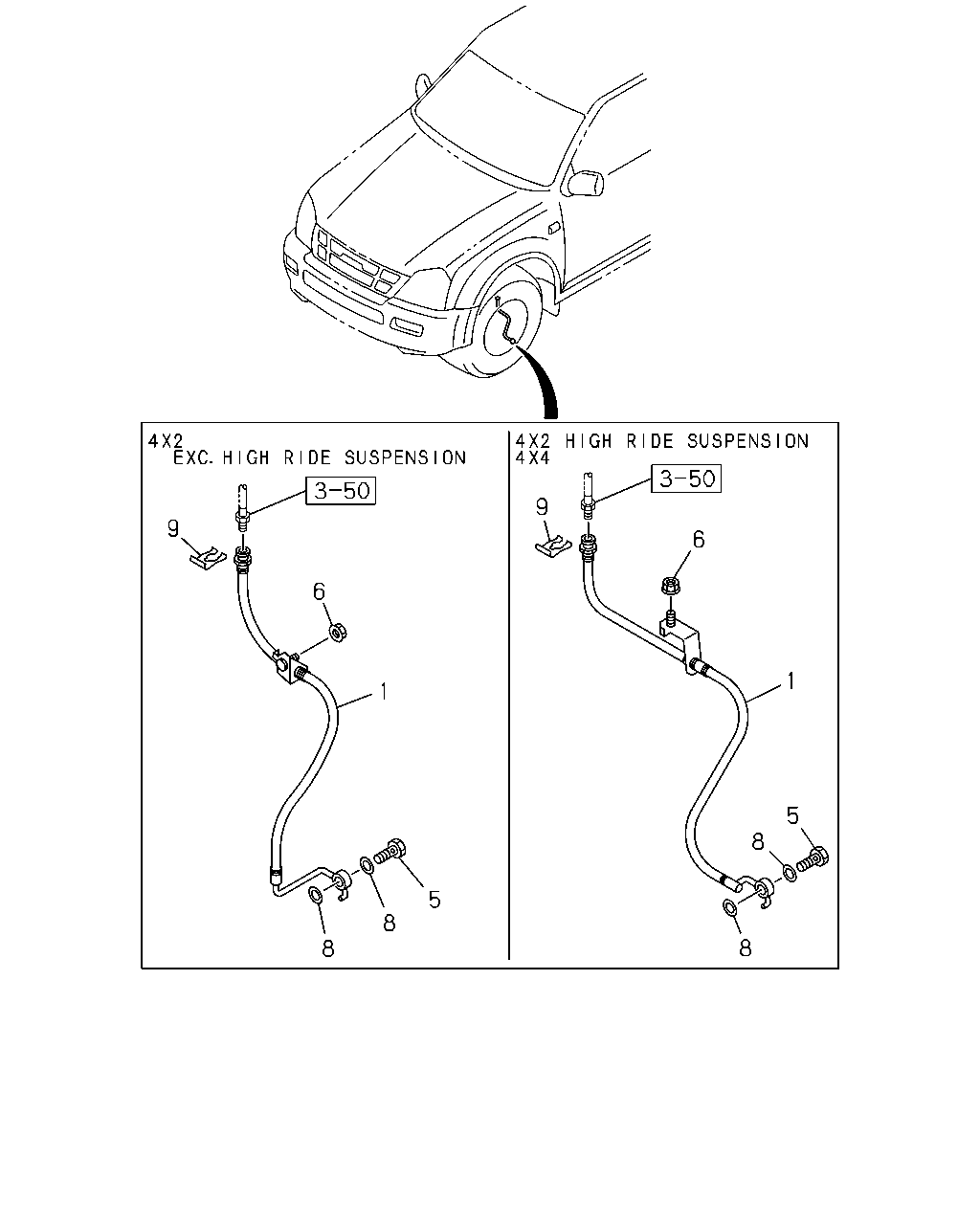

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.680 HOSE; FLEX,FRT BRK	8-97289-210-2	01	1	0307-0307	●	●
1	04.680 HOSE; FLEX,FRT BRK	8-97363-804-0	01	1	0308-0609	●	●
1	04.680 HOSE; FLEX,FRT BRK 4JK1-TCX ENG(LR0)	8-98008-257-0	01	1	0610-0806	●
1	04.680 HOSE; FLEX,FRT BRK 4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC)	8-98008-257-0	01	1	0610-0806		●
1	04.680 HOSE; FLEX,FRT BRK	8-98008-257-0	01	1	0807-0808	●
1	04.680 HOSE; FLEX,FRT BRK EXC. HIGH RIDE SUSPENSION(7YC)	8-98008-257-0	01	1	0807-0808		●
1	04.680 HOSE; FLEX,FRT BRK	8-98122-041-0	01	1	0809-	●
1	04.680 HOSE; FLEX,FRT BRK EXC. HIGH RIDE SUSPENSION(7YC)	8-98122-041-0	01	1	0809-		●
1	04.680 HOSE; FLEX,FRT BRK	8-97289-209-2	01	1	0307-0609	●	●
1	04.680 HOSE; FLEX,FRT BRK 4JK1-TCX ENG(LR0)	8-98008-256-0	01	1	0610-0806	●
1	04.680 HOSE; FLEX,FRT BRK 4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC)	8-98008-256-0	01	1	0610-0806		●
1	04.680 HOSE; FLEX,FRT BRK	8-98008-256-0	01	1	0807-0808	●
1	04.680 HOSE; FLEX,FRT BRK EXC. HIGH RIDE SUSPENSION(7YC)	8-98008-256-0	01	1	0807-0808		●
1	04.680 HOSE; FLEX,FRT BRK	8-98122-040-0	01	1	0809-	●
1	04.680 HOSE; FLEX,FRT BRK EXC. HIGH RIDE SUSPENSION(7YC)	8-98122-040-0	01	1	0809-		●
1	04.680 HOSE; FLEX,FRT BRK	8-97330-455-0	01	1	0307-0307			●	●
1	04.680 HOSE; FLEX,FRT BRK	8-97363-805-0	01	1	0308-0609			●	●
1	04.680 HOSE; FLEX,FRT BRK HIGH RIDE SUSPENSION(7YC)	8-98006-707-0	01	1	0610-0808		●
1	04.680 HOSE; FLEX,FRT BRK	8-98006-707-0	01	1	0610-0808			●	●
1	04.680 HOSE; FLEX,FRT BRK HIGH RIDE SUSPENSION(7YC)	8-98122-043-0	01	1	0809-		●
1	04.680 HOSE; FLEX,FRT BRK	8-98122-043-0	01	1	0809-			●	●
1	04.680 HOSE; FLEX,FRT BRK	8-97330-454-0	01	1	0307-0609			●	●
1	04.680 HOSE; FLEX,FRT BRK HIGH RIDE SUSPENSION(7YC)	8-98006-706-0	01	1	0610-0808		●
1	04.680 HOSE; FLEX,FRT BRK	8-98006-706-0	01	1	0610-0808			●	●
1	04.680 HOSE; FLEX,FRT BRK HIGH RIDE SUSPENSION(7YC)	8-98122-042-0	01	1	0809-		●
1	04.680 HOSE; FLEX,FRT BRK	8-98122-042-0	01	1	0809-			●	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK 04.665 M10X22	5-09675-017-0	02	1	0307-0609	●	●	●	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK M10X22	8-97359-818-0	02	1	0610-	●	●	●	●
6	04.686 NUT; FLEX HOSE,FRT BRK 01.062 M8 FLANGE	0-91180-108-0	02	1	0307-	●	●	●	●
8	04.681 GASKET; FLEX HOSE,FRT BRK 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	0307-	●	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	03	1	0307-0609	●	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	03	1	0610-	●	●	●	●

86 53

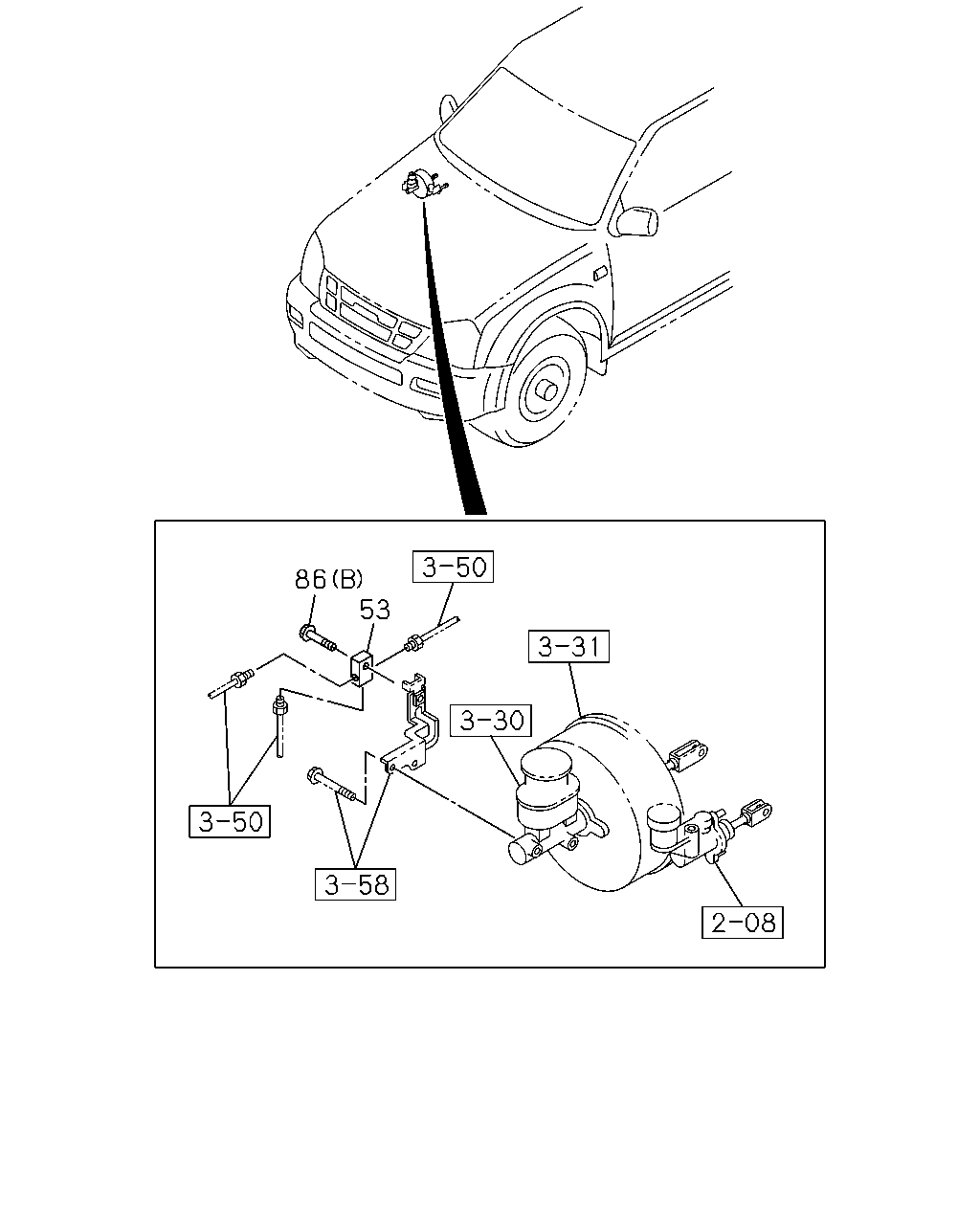

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
53	04.686 CONNECTOR; OIL PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94406-895-0	01	1	0307-0609	●	●	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98008-113-0	01	1	0610-	●	●	●	●
86	04.686 BOLT; BRK PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0307-0508	●	●	●	●
86	04.686 BOLT; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0307-0508	●	●	●	●
86	04.686 BOLT; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0509-	●	●	●	●
86	04.686 BOLT; BRK PIPE 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0509-	●	●	●	●

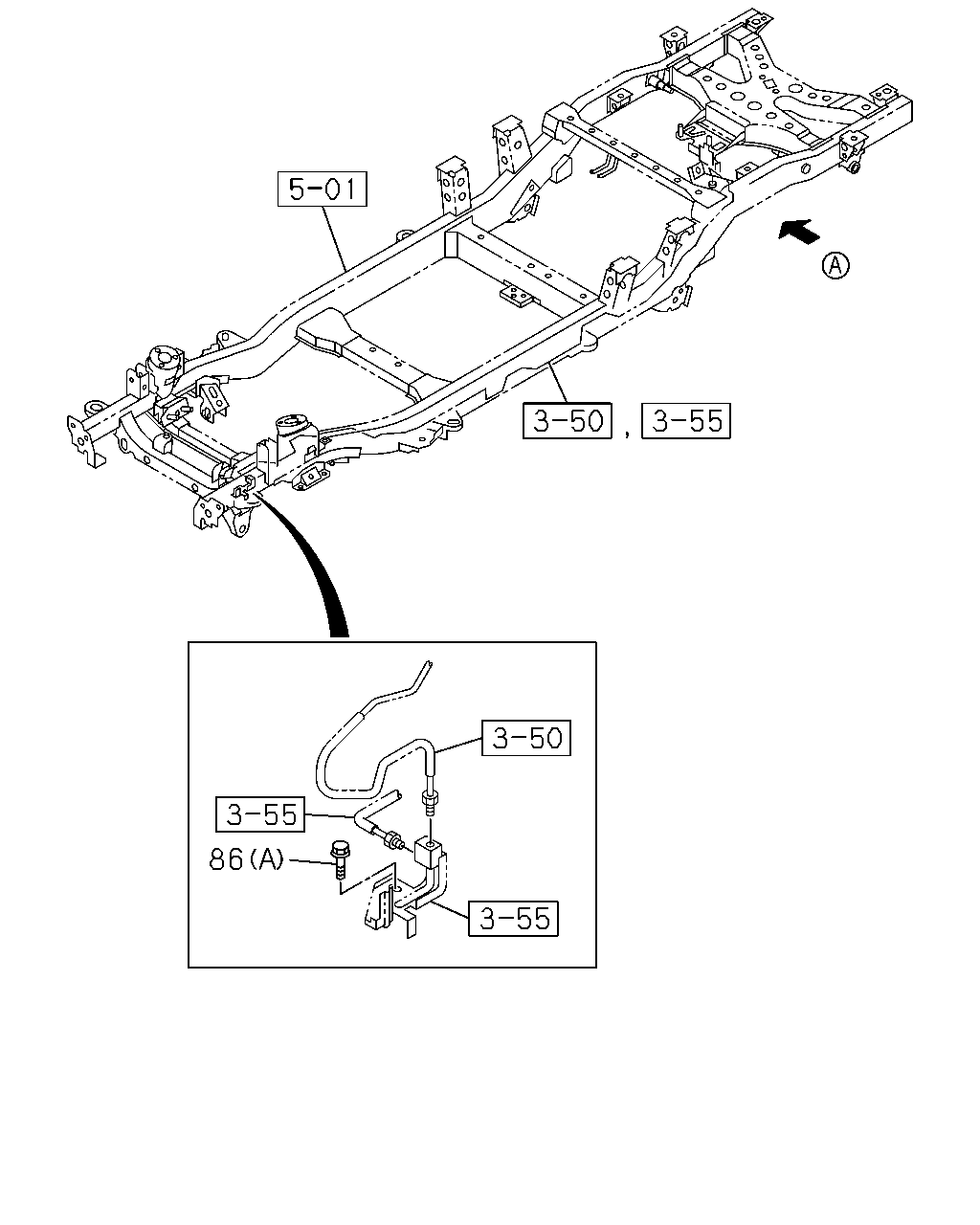

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
86	04.686 BOLT; BRK PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0307-0508	●	●	●	●
86	04.686 BOLT; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0307-0508	●	●	●	●
86	04.686 BOLT; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0509-	●	●	●	●
86	04.686 BOLT; BRK PIPE 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0509-	●	●	●	●

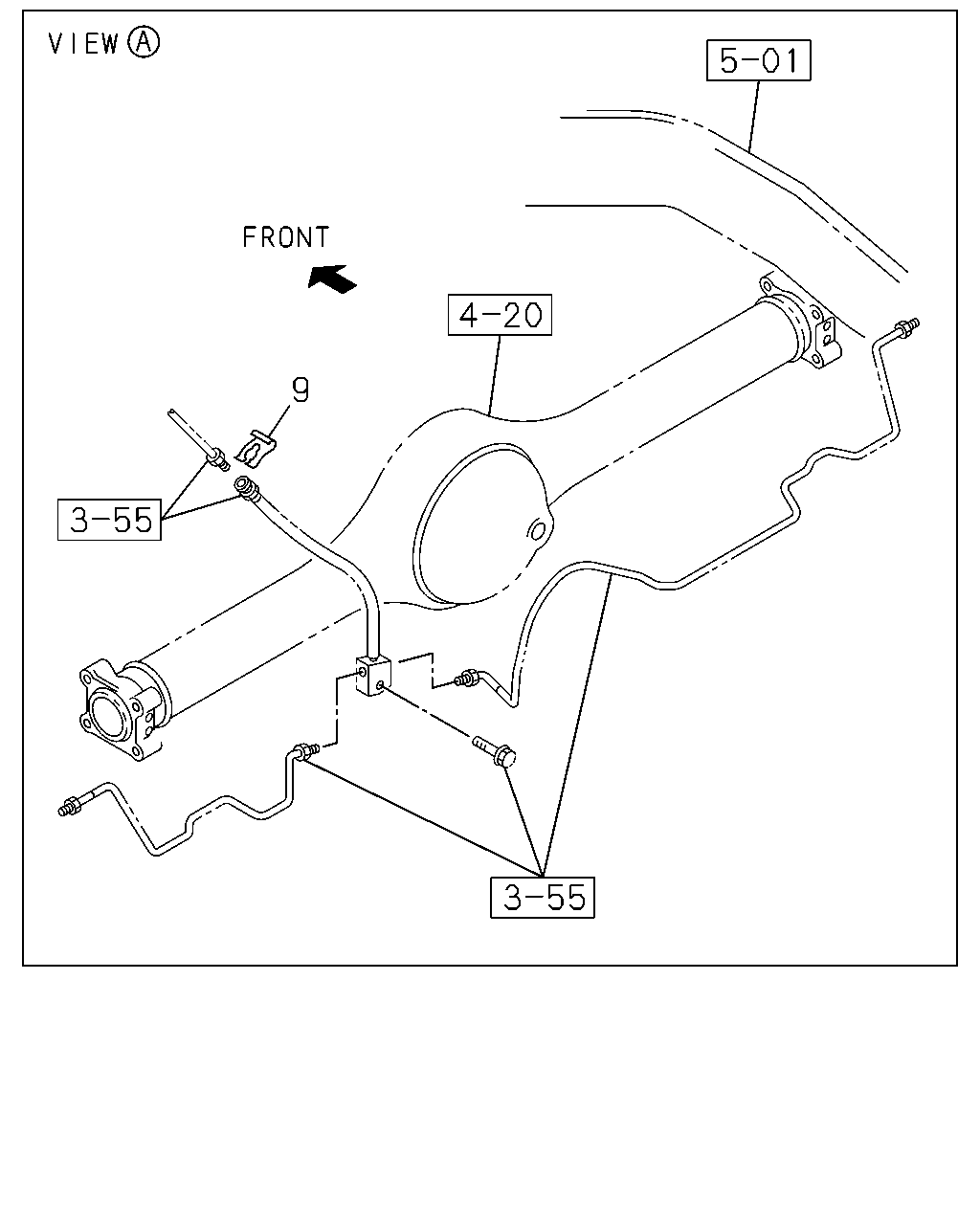

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
	9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	03	1	0307-0609	●	●	●	●
	9	04.686 CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	03	1	0610-	●	●	●	●
