3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#74347) — 610 parça

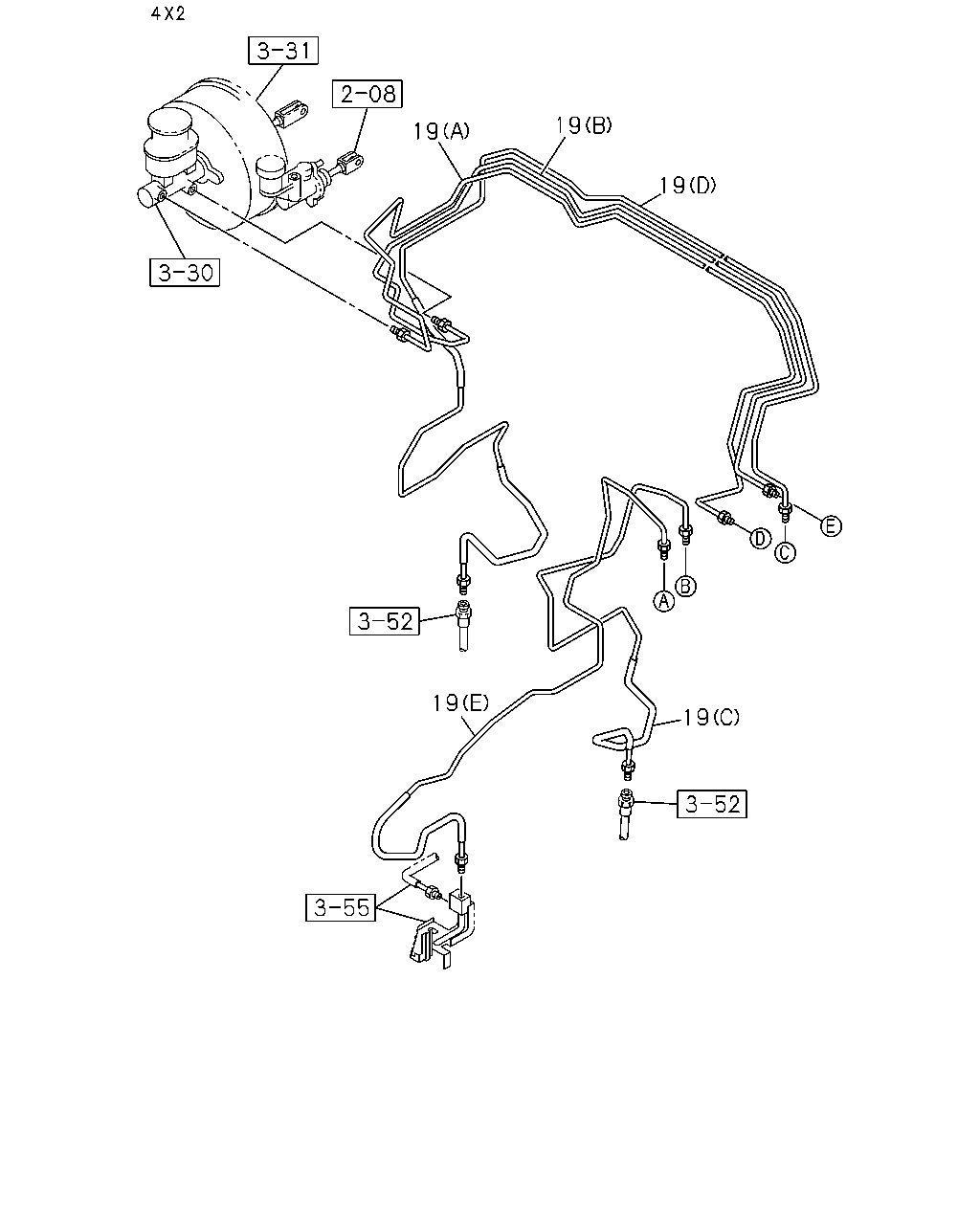

çizim 117648
19 19 19 19 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (N) 		8-97250-063-0 01 1 0307-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-604-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (N) 		8-98043-604-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (L) 		8-97215-327-2 01 1 0307-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (L) 		8-97944-672-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (L) 		8-97944-672-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97236-419-2 01 1 0307-0407 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97236-419-2 01 1 0408-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97944-791-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-791-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97355-530-3 01 1 0307-0407 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97355-530-3 01 1 0408-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97944-788-0 01 1 0610- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97355-529-3 01 1 0307-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-763-1 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-763-1 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-97355-527-3 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-97355-527-3 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-97944-700-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-700-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-97236-416-2 01 1 0307-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-635-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (J) 		8-97944-635-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-97355-526-3 01 1 0307-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-636-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (G) 		8-97944-636-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (M) 		8-97215-324-1 01 1 0307-0508 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) BRK WHL LK CONT LSPV<JR9> (M) 		8-97215-324-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (M) 		8-97215-324-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> (M) 		8-97944-779-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (M) 		8-97944-779-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (K) 		8-97363-996-0 01 1 0307-0508 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) BRK WHL LK CONT LSPV<JR9> (K) 		8-97363-996-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (K) 		8-97363-996-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> (K) 		8-97944-780-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (K) 		8-97944-780-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97261-907-2 01 1 0307-0407 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97261-907-2 01 1 0408-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97261-907-2 01 1 0408-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97261-907-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97261-907-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-787-0 01 1 0610- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97236-428-2 01 1 0307-0508 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97236-428-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97236-428-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97944-751-1 01 1 0610- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97215-322-1 01 1 0307-0407 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97215-322-1 01 1 0408-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97215-322-1 01 1 0408-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97215-322-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97215-322-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-97944-667-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-97944-667-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-97236-415-0 01 1 0307-0407 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-97236-415-0 01 1 0408-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-97236-415-0 01 1 0408-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-97236-415-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-97236-415-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-97944-789-0 01 1 0610- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (N) 		8-97250-065-2 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (N) 		8-97250-065-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (N) 		8-98043-606-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-606-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (L) 		8-97215-335-0 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (L) 		8-97215-335-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (L) 		8-97944-677-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (L) 		8-97944-677-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97355-356-0 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97355-356-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-855-1 01 1 0610-0709 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97944-855-1 01 1 0610-0709 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-855-1 01 1 0710- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97944-855-1 01 1 0710- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97365-221-0 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97365-221-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97236-427-2 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97236-427-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-752-1 01 1 0610-0709 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-752-1 01 1 0610-0709 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-752-1 01 1 0710- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-752-1 01 1 0710- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-97365-223-0 01 1 0307-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97944-664-0 01 1 0610- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-97236-414-1 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-97236-414-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-622-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-622-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-97309-497-2 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-97309-497-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-623-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-623-0 01 1 0610- ● ●

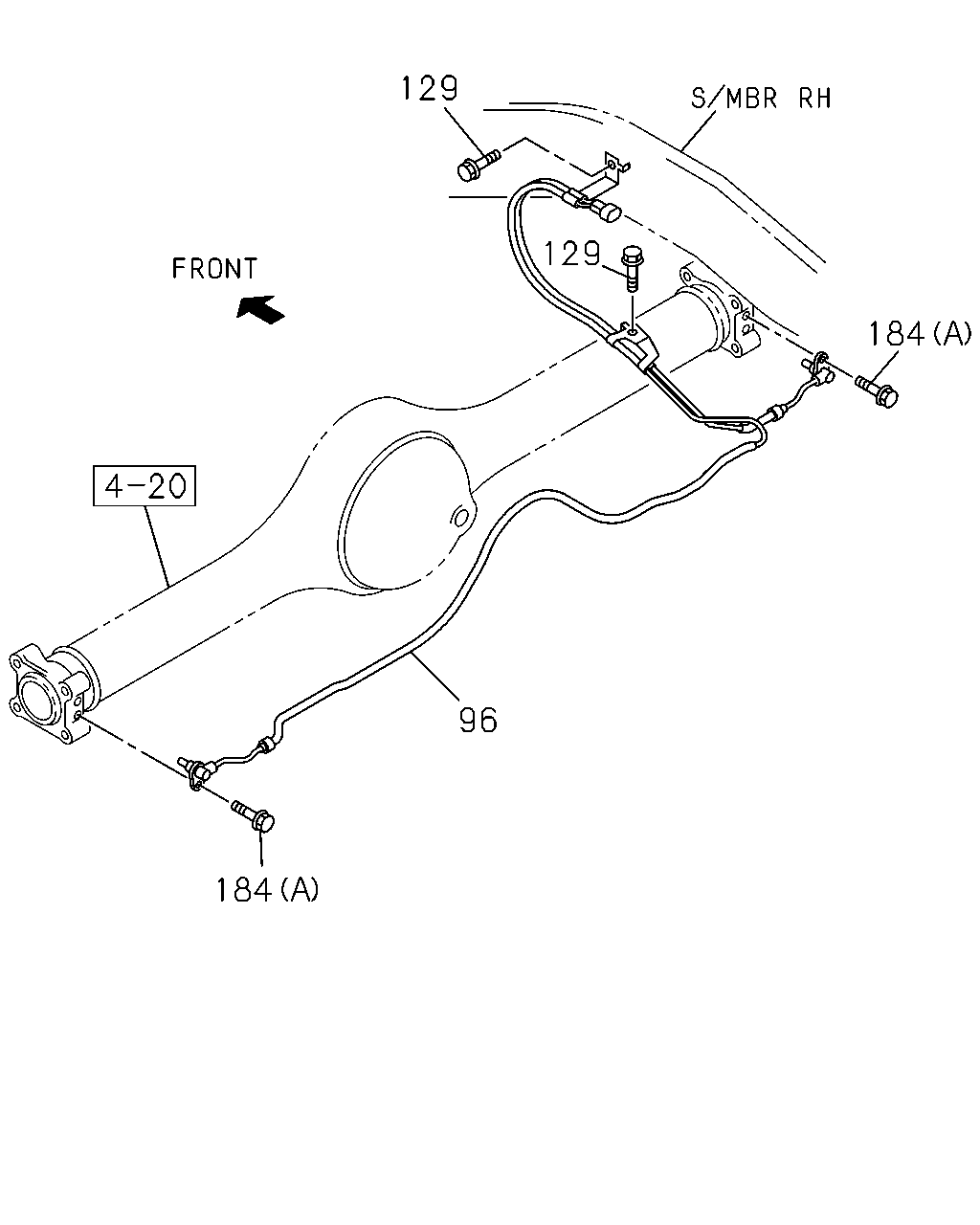

çizim 117651
129 129 184 96 184
BalonParca AdiParca NoAdetTipApplied Date A B C D
96 04.710 SENSOR; SPD,RR WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97362-459-0 01 1 0307-0609 ● ●
96 04.710 SENSOR; SPD,RR WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97387-991-1 01 1 0610- ●
96 04.710 SENSOR; SPD,RR WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-97387-991-1 01 1 0610- ●
96 04.710 SENSOR; SPD,RR WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97362-460-0 01 1 0307-0609 ● ●
96 04.710 SENSOR; SPD,RR WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-97387-992-1 01 1 0610- ●
96 04.710 SENSOR; SPD,RR WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97387-992-1 01 1 0610- ● ●
129 04.710 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0307- ● ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0307-0609 ● ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0307-0609 ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0610- ● ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0610- ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0610- ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (A) M6X16 FLANGE 		0-28650-616-0 02 1 0307- ● ● ● ●

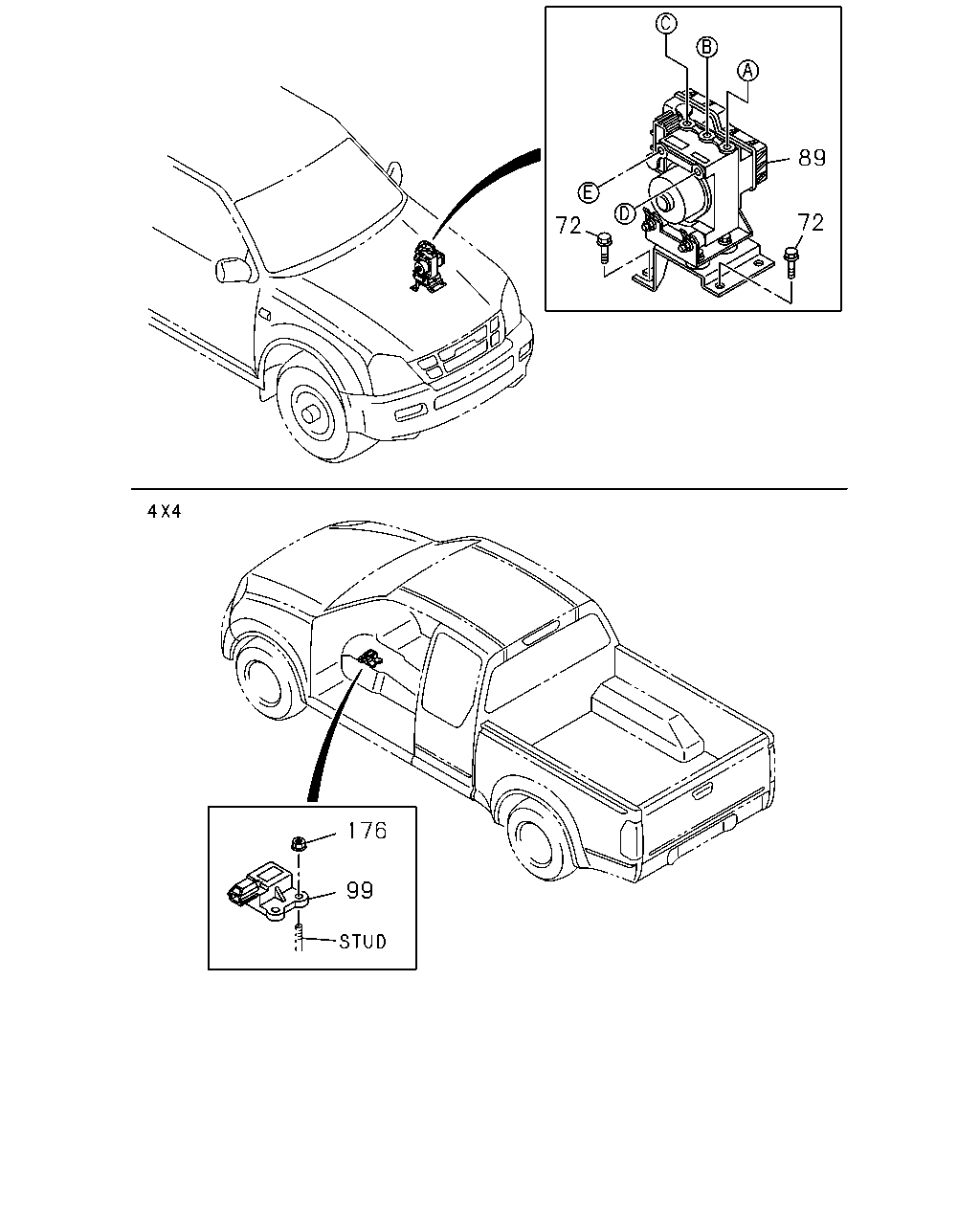

çizim 117657
89 72 72 176 99
BalonParca AdiParca NoAdetTipApplied Date A B C D
72 04.686 BOLT; BRKT TO BODY
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M6X16 FLANGE 		0-28650-616-0 03 1 0307- ● ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97329-787-0 01 1 0307-0505 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98004-194-0 01 1 0506-0609 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98008-783-0 01 1 0610-1007 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98008-783-0 01 1 1008- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98008-783-0 01 1 1008- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-98008-783-0 01 1 1008- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-969-0 01 1 0307-0502 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97379-144-0 01 1 0503-0508 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98004-195-0 01 1 0509-0609 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98008-784-0 01 1 0610-1007 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98008-784-0 01 1 1008- ● ●
99 04.710 SENSOR; DECELERATION
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97262-548-0 01 1 0307-0609 ● ●
99 04.710 SENSOR; DECELERATION
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98013-796-0 01 1 0610- ● ●
176 04.730 NUT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 01.540 M6 FLANGE 		0-91180-206-0 02 1 0307- ● ●

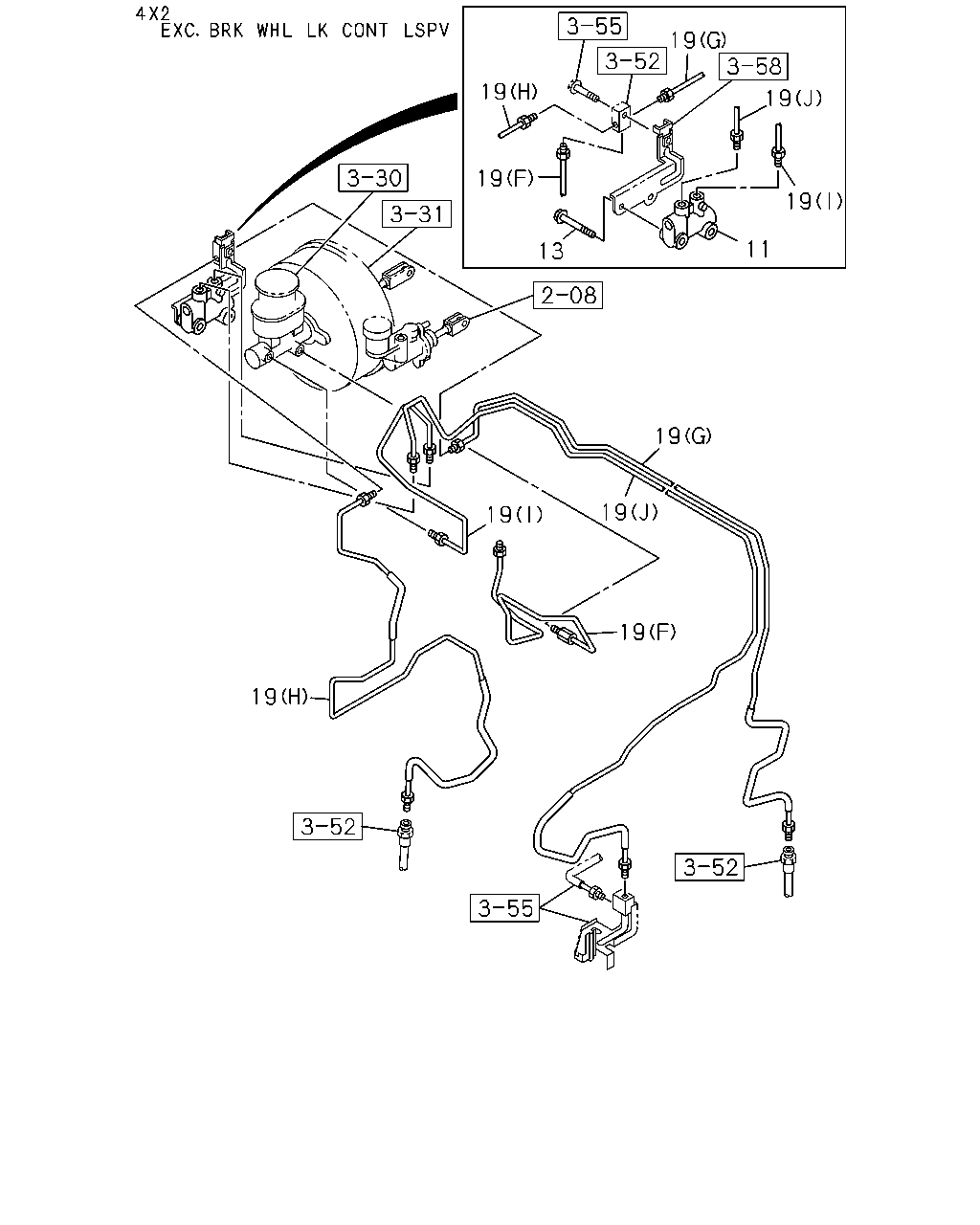

çizim 117658
19 19 19 19 19 11 13 19 19 19 19 19
BalonParca AdiParca NoAdetTipApplied Date A B C D

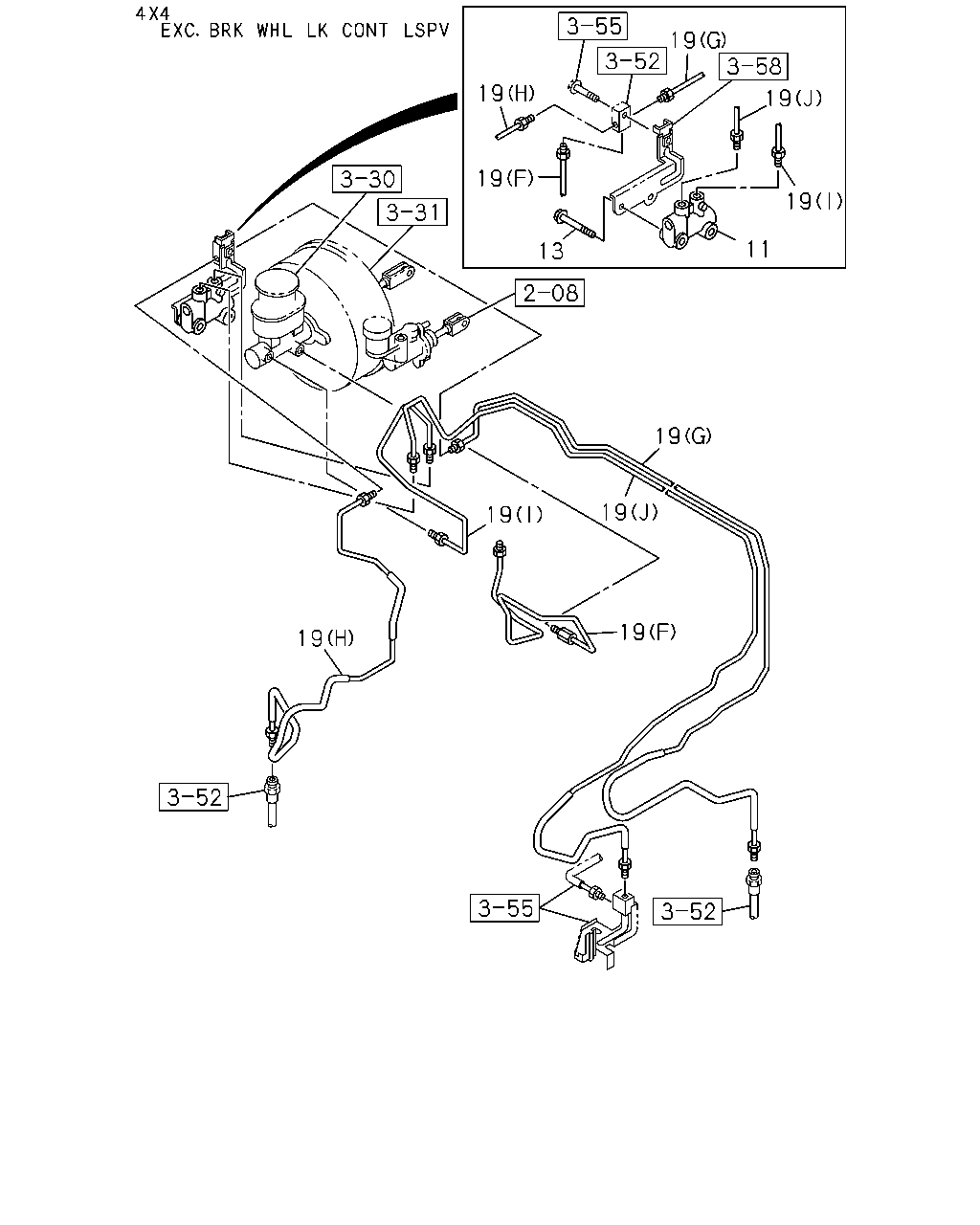

11 04.686 VALVE; BRK CONT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> 		8-97235-339-2 01 1 0307-0609 ● ●
11 04.686 VALVE; BRK CONT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> 		8-97333-079-0 01 1 0307-0609 ● ●
11 04.686 VALVE; BRK CONT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> 		8-97333-079-0 01 1 0610- ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> M8X45 FLANGE 		0-29260-845-0 02 1 0307- ● ● ● ●

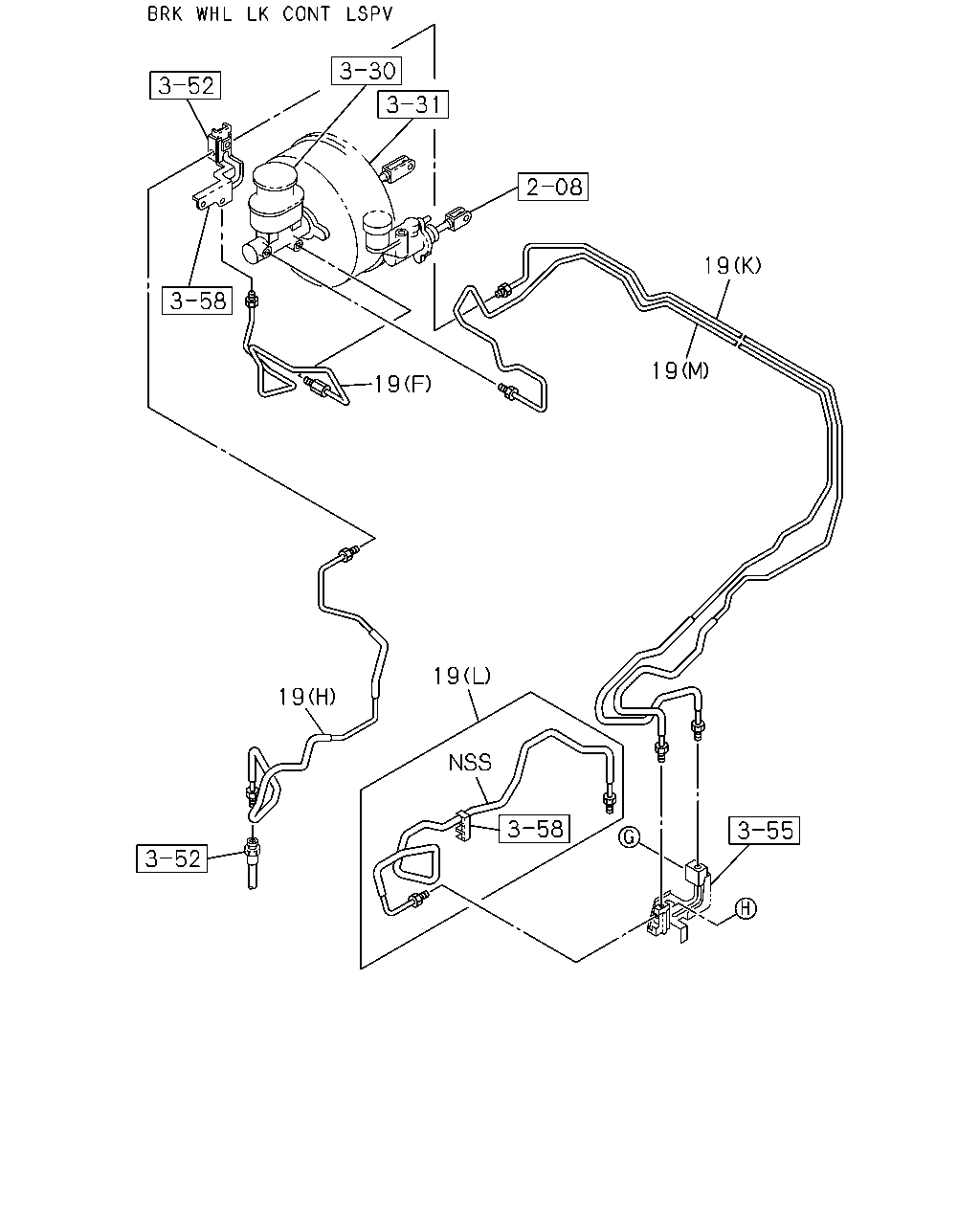

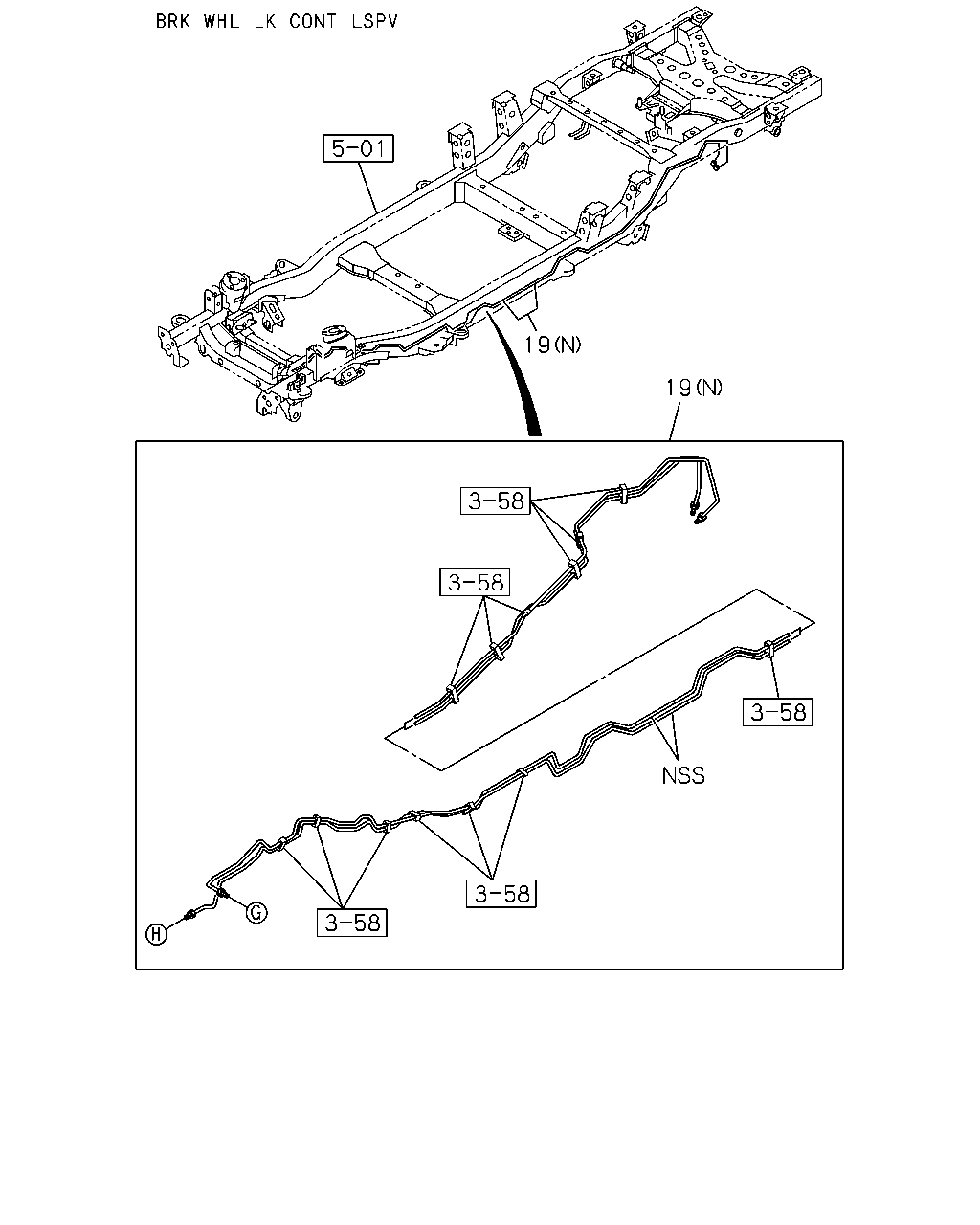

19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (N) 		8-97250-063-0 01 1 0307-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-604-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (N) 		8-98043-604-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (L) 		8-97215-327-2 01 1 0307-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (L) 		8-97944-672-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (L) 		8-97944-672-0 01 1 0610- ●

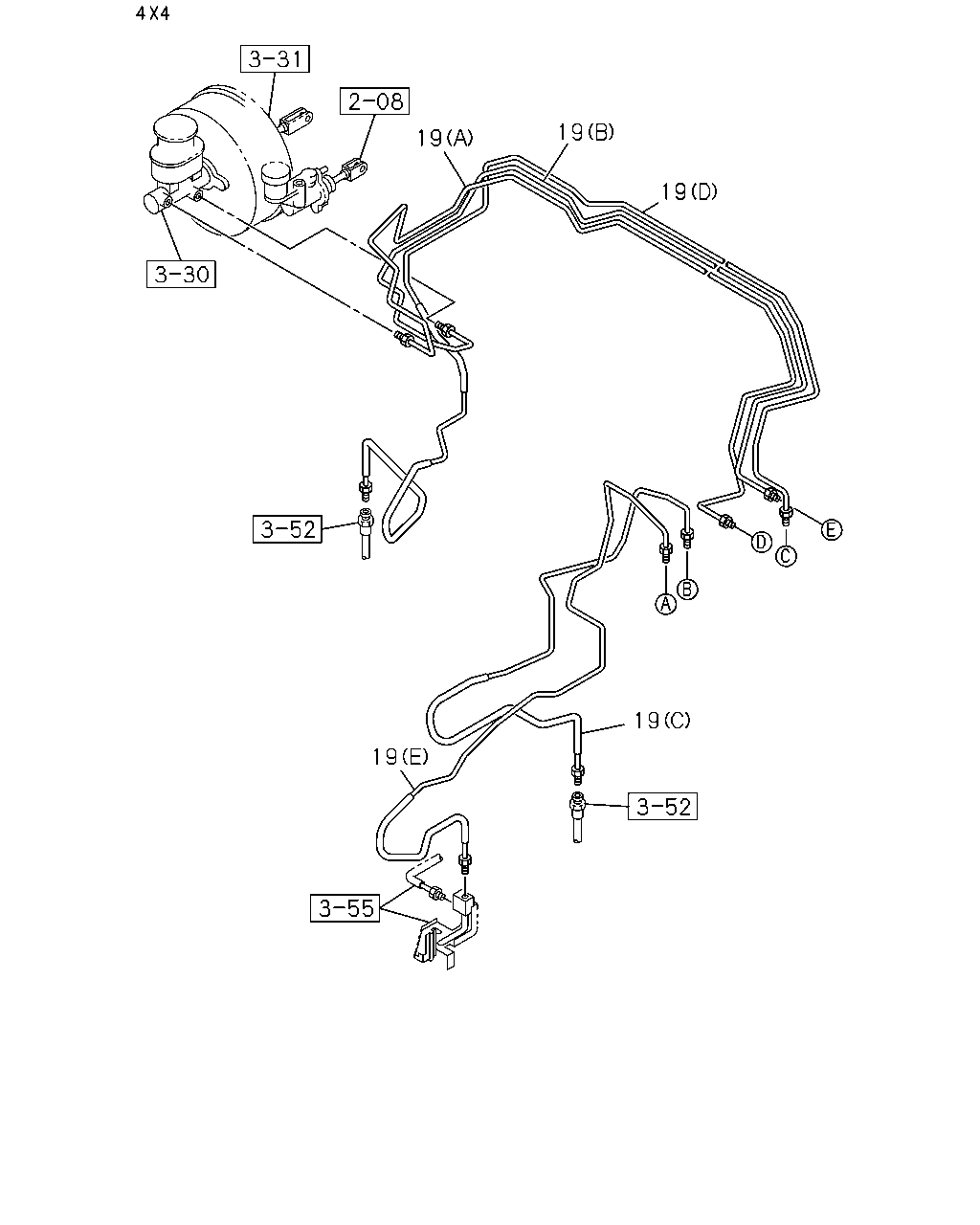

19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97236-419-2 01 1 0307-0407 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97236-419-2 01 1 0408-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97944-791-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-791-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97355-530-3 01 1 0307-0407 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97355-530-3 01 1 0408-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97944-788-0 01 1 0610- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97355-529-3 01 1 0307-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-763-1 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-763-1 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-97355-527-3 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-97355-527-3 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-97944-700-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-700-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-97236-416-2 01 1 0307-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-635-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (J) 		8-97944-635-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-97355-526-3 01 1 0307-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-636-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (G) 		8-97944-636-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (M) 		8-97215-324-1 01 1 0307-0508 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) BRK WHL LK CONT LSPV<JR9> (M) 		8-97215-324-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (M) 		8-97215-324-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> (M) 		8-97944-779-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (M) 		8-97944-779-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (K) 		8-97363-996-0 01 1 0307-0508 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) BRK WHL LK CONT LSPV<JR9> (K) 		8-97363-996-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (K) 		8-97363-996-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> (K) 		8-97944-780-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (K) 		8-97944-780-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97261-907-2 01 1 0307-0407 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97261-907-2 01 1 0408-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97261-907-2 01 1 0408-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97261-907-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97261-907-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-787-0 01 1 0610- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97236-428-2 01 1 0307-0508 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97236-428-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97236-428-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97944-751-1 01 1 0610- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97215-322-1 01 1 0307-0407 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97215-322-1 01 1 0408-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97215-322-1 01 1 0408-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97215-322-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97215-322-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-97944-667-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-97944-667-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-97236-415-0 01 1 0307-0407 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-97236-415-0 01 1 0408-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-97236-415-0 01 1 0408-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-97236-415-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-97236-415-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-97944-789-0 01 1 0610- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (N) 		8-97250-065-2 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (N) 		8-97250-065-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (N) 		8-98043-606-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-606-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (L) 		8-97215-335-0 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (L) 		8-97215-335-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (L) 		8-97944-677-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (L) 		8-97944-677-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97355-356-0 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97355-356-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-855-1 01 1 0610-0709 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97944-855-1 01 1 0610-0709 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-855-1 01 1 0710- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97944-855-1 01 1 0710- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97365-221-0 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97365-221-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97236-427-2 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97236-427-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-752-1 01 1 0610-0709 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-752-1 01 1 0610-0709 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-752-1 01 1 0710- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-752-1 01 1 0710- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-97365-223-0 01 1 0307-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97944-664-0 01 1 0610- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-97236-414-1 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-97236-414-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-622-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-622-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-97309-497-2 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-97309-497-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-623-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-623-0 01 1 0610- ● ●
çizim 117662
95 116 184 107 250 95 184 184 107
BalonParca AdiParca NoAdetTipApplied Date A B C D
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97236-103-2 01 1 0307-0609 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97387-987-1 01 1 0610- ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-97387-987-1 01 1 0610- ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97239-255-2 01 1 0307-0402 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4JA1-TC ENG(L4Z) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97239-255-2 01 1 0403-0609 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97387-988-1 01 1 0610- ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-97387-988-1 01 1 0610- ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97236-106-2 01 1 0307-0609 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-97387-990-1 01 1 0610- ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97387-990-1 01 1 0610- ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97236-104-2 01 1 0307-0508 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97236-104-2 01 1 0509-0609 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-97387-989-1 01 1 0610- ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97387-989-1 01 1 0610- ● ●
107 04.710 BOLT; WHEEL SPD SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 M6X10 FLANGE 		0-28050-610-0 02 1 0307- ● ● ● ●
116 04.686 NUT
4 WHEEL ANTI LOCK BRAKE<JE5> 01.540 M8 FLANGE 		0-91180-208-0 02 1 0307-0609 ● ●
116 04.686 NUT
4 WHEEL ANTI LOCK BRAKE<JE5> 01.540 M8 FLANGE 		0-91180-208-0 02 1 0610- ●
116 04.686 NUT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 01.540 M8 FLANGE 		0-91180-208-0 02 1 0610- ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0307-0609 ● ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0307-0609 ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0610- ● ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0610- ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0610- ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (A) M6X16 FLANGE 		0-28650-616-0 02 1 0307- ● ● ● ●
250 04.685 FINISHER; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 L=80 		5-71997-133-0 02 1 0307-0508 ● ●
250 04.685 FINISHER; HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 L=80 		5-71997-133-0 02 1 0509-0609 ● ●
250 04.685 FINISHER; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 02.559 L=80 		5-71997-133-0 01 1 0610- ●
250 04.685 FINISHER; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 L=80 		5-71997-133-0 01 1 0610- ● ●
çizim 117663
19 19 19 19 19 11 13 19 19 19 19 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
11 04.686 VALVE; BRK CONT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> 		8-97235-339-2 01 1 0307-0609 ● ●
11 04.686 VALVE; BRK CONT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> 		8-97333-079-0 01 1 0307-0609 ● ●
11 04.686 VALVE; BRK CONT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> 		8-97333-079-0 01 1 0610- ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> M8X45 FLANGE 		0-29260-845-0 02 1 0307- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (N) 		8-97250-063-0 01 1 0307-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-604-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (N) 		8-98043-604-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (L) 		8-97215-327-2 01 1 0307-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (L) 		8-97944-672-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (L) 		8-97944-672-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97236-419-2 01 1 0307-0407 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97236-419-2 01 1 0408-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97944-791-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-791-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97355-530-3 01 1 0307-0407 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97355-530-3 01 1 0408-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97944-788-0 01 1 0610- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97355-529-3 01 1 0307-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-763-1 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-763-1 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-97355-527-3 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-97355-527-3 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-97944-700-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-700-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-97236-416-2 01 1 0307-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-635-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (J) 		8-97944-635-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-97355-526-3 01 1 0307-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-636-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (G) 		8-97944-636-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (M) 		8-97215-324-1 01 1 0307-0508 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) BRK WHL LK CONT LSPV<JR9> (M) 		8-97215-324-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (M) 		8-97215-324-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> (M) 		8-97944-779-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (M) 		8-97944-779-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (K) 		8-97363-996-0 01 1 0307-0508 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) BRK WHL LK CONT LSPV<JR9> (K) 		8-97363-996-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (K) 		8-97363-996-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> (K) 		8-97944-780-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (K) 		8-97944-780-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97261-907-2 01 1 0307-0407 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97261-907-2 01 1 0408-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97261-907-2 01 1 0408-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97261-907-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97261-907-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-787-0 01 1 0610- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97236-428-2 01 1 0307-0508 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97236-428-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97236-428-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97944-751-1 01 1 0610- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97215-322-1 01 1 0307-0407 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97215-322-1 01 1 0408-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97215-322-1 01 1 0408-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97215-322-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97215-322-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-97944-667-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-97944-667-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-97236-415-0 01 1 0307-0407 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-97236-415-0 01 1 0408-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-97236-415-0 01 1 0408-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-97236-415-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-97236-415-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-97944-789-0 01 1 0610- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (N) 		8-97250-065-2 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (N) 		8-97250-065-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (N) 		8-98043-606-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-606-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (L) 		8-97215-335-0 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (L) 		8-97215-335-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (L) 		8-97944-677-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (L) 		8-97944-677-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97355-356-0 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97355-356-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-855-1 01 1 0610-0709 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97944-855-1 01 1 0610-0709 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-855-1 01 1 0710- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97944-855-1 01 1 0710- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97365-221-0 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97365-221-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97236-427-2 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97236-427-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-752-1 01 1 0610-0709 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-752-1 01 1 0610-0709 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-752-1 01 1 0710- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-752-1 01 1 0710- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-97365-223-0 01 1 0307-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97944-664-0 01 1 0610- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-97236-414-1 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-97236-414-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-622-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-622-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-97309-497-2 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-97309-497-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-623-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-623-0 01 1 0610- ● ●
çizim 117664
19 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (N) 		8-97250-063-0 01 1 0307-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-604-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (N) 		8-98043-604-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (L) 		8-97215-327-2 01 1 0307-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (L) 		8-97944-672-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (L) 		8-97944-672-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97236-419-2 01 1 0307-0407 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97236-419-2 01 1 0408-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97944-791-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-791-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97355-530-3 01 1 0307-0407 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97355-530-3 01 1 0408-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97944-788-0 01 1 0610- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97355-529-3 01 1 0307-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-763-1 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-763-1 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-97355-527-3 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-97355-527-3 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-97944-700-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-700-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-97236-416-2 01 1 0307-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-635-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (J) 		8-97944-635-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-97355-526-3 01 1 0307-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-636-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (G) 		8-97944-636-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (M) 		8-97215-324-1 01 1 0307-0508 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) BRK WHL LK CONT LSPV<JR9> (M) 		8-97215-324-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (M) 		8-97215-324-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> (M) 		8-97944-779-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (M) 		8-97944-779-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (K) 		8-97363-996-0 01 1 0307-0508 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) BRK WHL LK CONT LSPV<JR9> (K) 		8-97363-996-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (K) 		8-97363-996-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> (K) 		8-97944-780-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (K) 		8-97944-780-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97261-907-2 01 1 0307-0407 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97261-907-2 01 1 0408-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97261-907-2 01 1 0408-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97261-907-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97261-907-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-787-0 01 1 0610- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97236-428-2 01 1 0307-0508 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97236-428-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97236-428-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97944-751-1 01 1 0610- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97215-322-1 01 1 0307-0407 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97215-322-1 01 1 0408-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97215-322-1 01 1 0408-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97215-322-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97215-322-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-97944-667-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-97944-667-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-97236-415-0 01 1 0307-0407 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-97236-415-0 01 1 0408-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-97236-415-0 01 1 0408-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-97236-415-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-97236-415-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-97944-789-0 01 1 0610- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (N) 		8-97250-065-2 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (N) 		8-97250-065-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (N) 		8-98043-606-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-606-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (L) 		8-97215-335-0 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (L) 		8-97215-335-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (L) 		8-97944-677-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (L) 		8-97944-677-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97355-356-0 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97355-356-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-855-1 01 1 0610-0709 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97944-855-1 01 1 0610-0709 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-855-1 01 1 0710- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97944-855-1 01 1 0710- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97365-221-0 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97365-221-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97236-427-2 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97236-427-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-752-1 01 1 0610-0709 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-752-1 01 1 0610-0709 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-752-1 01 1 0710- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-752-1 01 1 0710- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-97365-223-0 01 1 0307-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97944-664-0 01 1 0610- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-97236-414-1 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-97236-414-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-622-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-622-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-97309-497-2 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-97309-497-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-623-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-623-0 01 1 0610- ● ●
çizim 117667
19 19 19 19 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (N) 		8-97250-063-0 01 1 0307-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-604-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (N) 		8-98043-604-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (L) 		8-97215-327-2 01 1 0307-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (L) 		8-97944-672-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (L) 		8-97944-672-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97236-419-2 01 1 0307-0407 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97236-419-2 01 1 0408-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97944-791-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-791-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97355-530-3 01 1 0307-0407 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97355-530-3 01 1 0408-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97944-788-0 01 1 0610- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97355-529-3 01 1 0307-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-763-1 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-763-1 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-97355-527-3 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-97355-527-3 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-97944-700-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-700-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-97236-416-2 01 1 0307-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-635-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (J) 		8-97944-635-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-97355-526-3 01 1 0307-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-636-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (G) 		8-97944-636-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (M) 		8-97215-324-1 01 1 0307-0508 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) BRK WHL LK CONT LSPV<JR9> (M) 		8-97215-324-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (M) 		8-97215-324-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> (M) 		8-97944-779-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (M) 		8-97944-779-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (K) 		8-97363-996-0 01 1 0307-0508 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) BRK WHL LK CONT LSPV<JR9> (K) 		8-97363-996-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (K) 		8-97363-996-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> (K) 		8-97944-780-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (K) 		8-97944-780-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97261-907-2 01 1 0307-0407 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97261-907-2 01 1 0408-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97261-907-2 01 1 0408-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97261-907-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97261-907-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-787-0 01 1 0610- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97236-428-2 01 1 0307-0508 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97236-428-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97236-428-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97944-751-1 01 1 0610- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97215-322-1 01 1 0307-0407 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97215-322-1 01 1 0408-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97215-322-1 01 1 0408-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97215-322-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97215-322-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-97944-667-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-97944-667-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-97236-415-0 01 1 0307-0407 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-97236-415-0 01 1 0408-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-97236-415-0 01 1 0408-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-97236-415-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-97236-415-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-97944-789-0 01 1 0610- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (N) 		8-97250-065-2 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (N) 		8-97250-065-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (N) 		8-98043-606-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-606-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (L) 		8-97215-335-0 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (L) 		8-97215-335-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (L) 		8-97944-677-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (L) 		8-97944-677-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97355-356-0 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97355-356-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-855-1 01 1 0610-0709 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97944-855-1 01 1 0610-0709 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-855-1 01 1 0710- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97944-855-1 01 1 0710- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97365-221-0 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97365-221-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97236-427-2 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97236-427-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-752-1 01 1 0610-0709 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-752-1 01 1 0610-0709 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-752-1 01 1 0710- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-752-1 01 1 0710- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-97365-223-0 01 1 0307-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97944-664-0 01 1 0610- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-97236-414-1 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-97236-414-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-622-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-622-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-97309-497-2 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-97309-497-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-623-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-623-0 01 1 0610- ● ●
çizim 117669
19 19 19 19 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (N) 		8-97250-063-0 01 1 0307-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-604-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (N) 		8-98043-604-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (L) 		8-97215-327-2 01 1 0307-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (L) 		8-97944-672-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (L) 		8-97944-672-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97236-419-2 01 1 0307-0407 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97236-419-2 01 1 0408-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97944-791-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-791-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97355-530-3 01 1 0307-0407 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97355-530-3 01 1 0408-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97944-788-0 01 1 0610- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97355-529-3 01 1 0307-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-763-1 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-763-1 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-97355-527-3 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-97355-527-3 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-97944-700-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-700-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-97236-416-2 01 1 0307-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-635-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (J) 		8-97944-635-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-97355-526-3 01 1 0307-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-636-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (G) 		8-97944-636-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (M) 		8-97215-324-1 01 1 0307-0508 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) BRK WHL LK CONT LSPV<JR9> (M) 		8-97215-324-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (M) 		8-97215-324-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> (M) 		8-97944-779-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (M) 		8-97944-779-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (K) 		8-97363-996-0 01 1 0307-0508 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) BRK WHL LK CONT LSPV<JR9> (K) 		8-97363-996-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (K) 		8-97363-996-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> (K) 		8-97944-780-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (K) 		8-97944-780-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97261-907-2 01 1 0307-0407 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97261-907-2 01 1 0408-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97261-907-2 01 1 0408-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97261-907-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97261-907-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-787-0 01 1 0610- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97236-428-2 01 1 0307-0508 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97236-428-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97236-428-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97944-751-1 01 1 0610- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97215-322-1 01 1 0307-0407 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97215-322-1 01 1 0408-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97215-322-1 01 1 0408-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97215-322-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97215-322-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-97944-667-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-97944-667-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-97236-415-0 01 1 0307-0407 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-97236-415-0 01 1 0408-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-97236-415-0 01 1 0408-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-97236-415-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-97236-415-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-97944-789-0 01 1 0610- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (N) 		8-97250-065-2 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (N) 		8-97250-065-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (N) 		8-98043-606-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (N) 		8-98043-606-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (L) 		8-97215-335-0 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (L) 		8-97215-335-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (L) 		8-97944-677-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (L) 		8-97944-677-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97355-356-0 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97355-356-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-855-1 01 1 0610-0709 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97944-855-1 01 1 0610-0709 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (D) 		8-97944-855-1 01 1 0710- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97944-855-1 01 1 0710- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97365-221-0 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97365-221-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97236-427-2 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97236-427-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-752-1 01 1 0610-0709 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-752-1 01 1 0610-0709 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-752-1 01 1 0710- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-752-1 01 1 0710- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-97365-223-0 01 1 0307-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 		8-97944-664-0 01 1 0610- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-97236-414-1 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-97236-414-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-622-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-97944-622-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-97309-497-2 01 1 0307-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-97309-497-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-623-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-623-0 01 1 0610- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
