3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER (#74345) — 12 parça

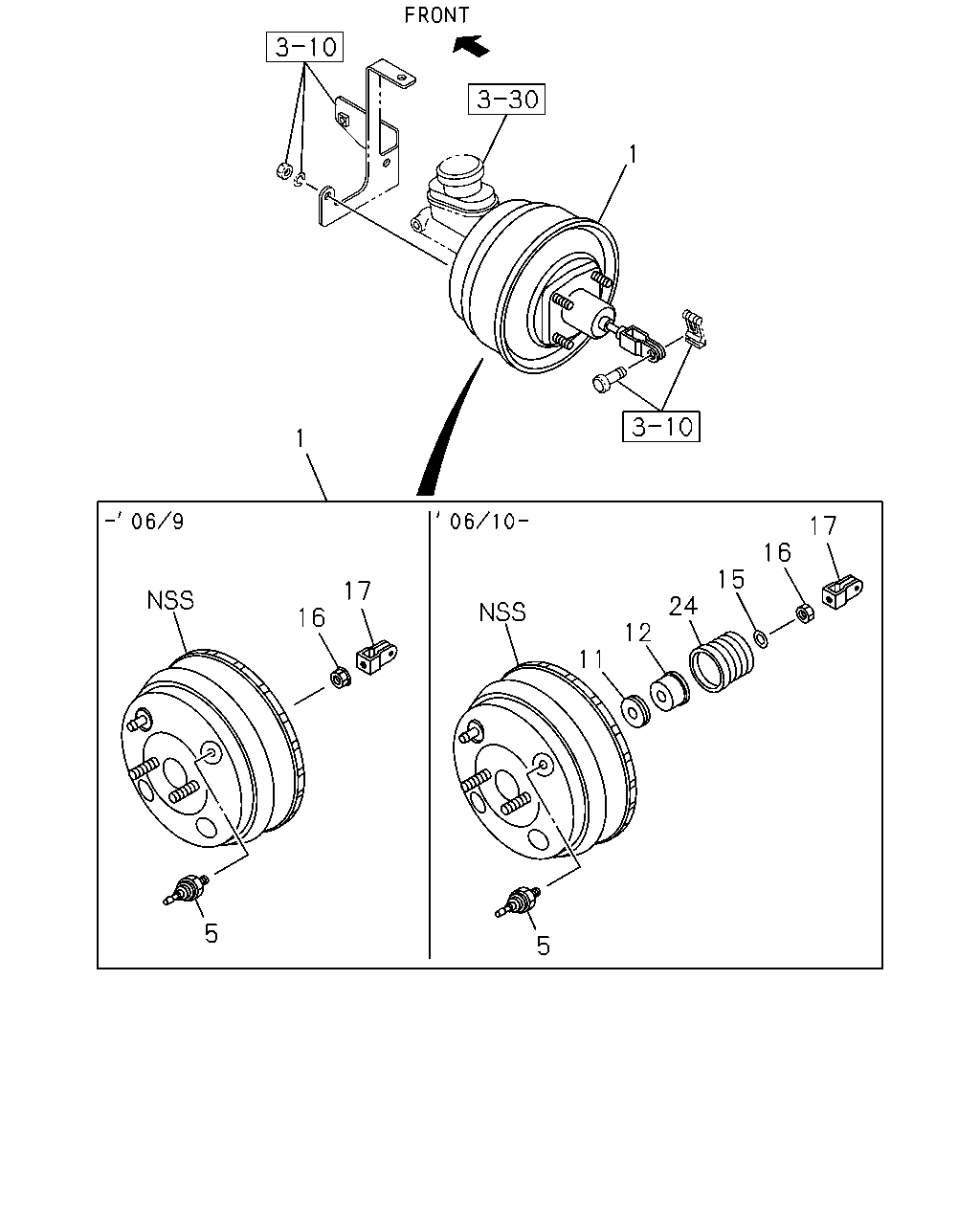

çizim 117647
1 1 17 16 15 17 24 16 12 11 5 5
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.901 MASTER VAC ASM; BRK 8-97365-516-0 01 1 0307-0609 ● ● ● ●
1 04.901 MASTER VAC ASM; BRK 8-98006-788-0 01 1 0610- ● ● ● ●
5 04.906 SWITCH; VAC,M/VAC 8-97301-656-0 01 1 0307-0609 ● ● ● ●
5 04.906 SWITCH; VAC,M/VAC 8-98081-668-0 01 1 0610- ● ● ● ●
11 04.906 FILTER; M/VAC 8-98048-044-0 01 1 0610- ● ● ● ●
12 04.906 SILENCER; M/VAC 8-97205-577-0 01 1 0610- ● ● ● ●
15 04.906 RETAINER; GUARD,M/VAC 8-98048-040-0 01 1 0610- ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC 8-97301-598-0 01 1 0307-0609 ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC 8-98048-038-0 01 1 0610- ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC 8-97365-745-0 01 1 0307-0609 ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC 8-98048-039-0 01 1 0610- ● ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC 8-98048-043-0 01 1 0610- ● ● ● ●
