◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50967 - TFR/TFS(EUROPE)-RHD ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#74342) — 163 parça

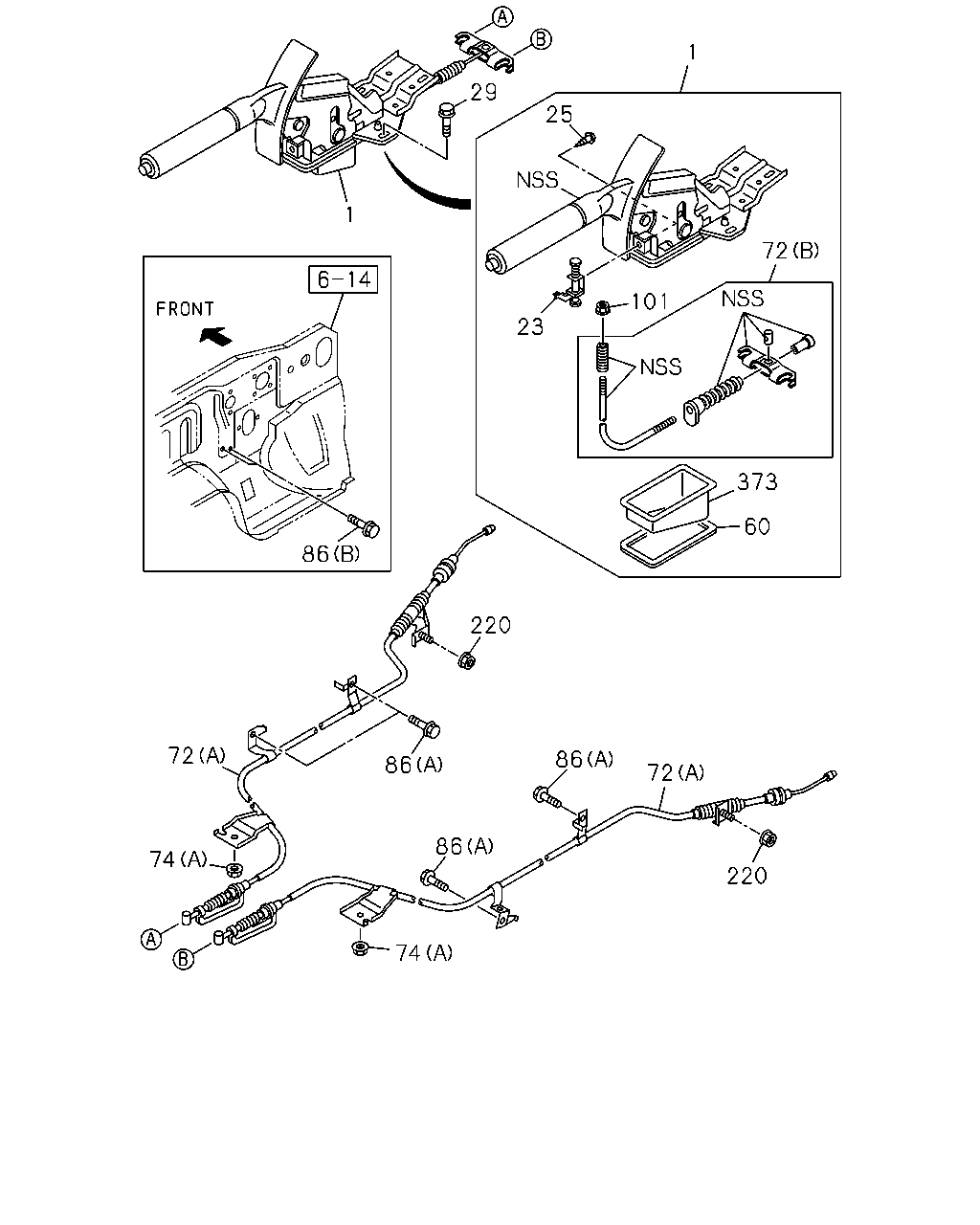

çizim 117645
1 29 25 1 72 101 23 373 60 86 220 72 86 86 72 86 74 220 74
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.592 STEM ASM; PARKING BRK
PARKING BRAKE FLOOR<7XW> 		8-97363-082-0 01 1 0307-0402 ● ● ●
1 04.592 STEM ASM; PARKING BRK 8-97363-082-0 01 1 0307-0402 ●
1 04.592 STEM ASM; PARKING BRK
PARKING BRAKE FLOOR<7XW> 		8-97363-082-0 01 1 0403-0508 ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
PARKING BRAKE FLOOR<7XW> 		8-97363-082-0 01 1 0509-0609 ● ● ●
1 04.592 STEM ASM; PARKING BRK 8-97363-082-0 01 1 0509-0609 ●
1 04.592 STEM ASM; PARKING BRK
PARKING BRAKE FLOOR<7XW> 		8-98007-034-0 01 1 0610- ● ●
1 04.592 STEM ASM; PARKING BRK 8-98007-034-0 01 1 0610- ● ●
1 04.592 STEM ASM; PARKING BRK
EXC. PARKING BRAKE FLOOR<7XW> 		8-97367-028-0 01 1 0307-0402 ● ● ●
1 04.592 STEM ASM; PARKING BRK
EXC. PARKING BRAKE FLOOR<7XW> 		8-97367-028-0 01 1 0403-0508 ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
EXC. PARKING BRAKE FLOOR<7XW> 		8-97367-028-0 01 1 0509-0609 ● ● ●
1 04.592 STEM ASM; PARKING BRK
EXC. PARKING BRAKE FLOOR<7XW> 		8-98007-032-0 01 1 0610- ● ●
23 04.589 SWITCH; PARKING BRK
PARKING BRAKE FLOOR<7XW> 		8-97301-436-0 01 1 0307-0402 ● ● ●
23 04.589 SWITCH; PARKING BRK 8-97301-436-0 01 1 0307-0402 ●
23 04.589 SWITCH; PARKING BRK
PARKING BRAKE FLOOR<7XW> 		8-97301-436-0 01 1 0403-0508 ● ● ● ●
23 04.589 SWITCH; PARKING BRK
PARKING BRAKE FLOOR<7XW> 		8-97301-436-0 01 1 0509-0609 ● ● ●
23 04.589 SWITCH; PARKING BRK 8-97301-436-0 01 1 0509-0609 ●
23 04.589 SWITCH; PARKING BRK
PARKING BRAKE FLOOR<7XW> 		8-98017-627-0 01 1 0610- ● ●
23 04.589 SWITCH; PARKING BRK 8-98017-627-0 01 1 0610- ● ●
23 04.589 SWITCH; PARKING BRK
EXC. PARKING BRAKE FLOOR<7XW> 		8-97032-276-0 01 1 0307-0402 ● ● ●
23 04.589 SWITCH; PARKING BRK
EXC. PARKING BRAKE FLOOR<7XW> 		8-97032-276-0 01 1 0403-0508 ● ● ● ●
23 04.589 SWITCH; PARKING BRK
EXC. PARKING BRAKE FLOOR<7XW> 		8-97032-276-0 01 1 0509-0609 ● ● ●
23 04.589 SWITCH; PARKING BRK
EXC. PARKING BRAKE FLOOR<7XW> 		8-98017-625-0 01 1 0610- ● ●
25 04.589 SCREW; SW,PARKING BRK 8-97103-556-0 01 1 0307-0609 ● ● ● ●
25 04.589 SCREW; SW,PARKING BRK 8-98017-655-0 01 1 0610- ● ● ● ●
29 04.595 BOLT; PARKING BRK LEVER TO BODY
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0307- ● ● ● ●
60 04.595 GASKET; PARKING BRK
PARKING BRAKE FLOOR<7XW> 		8-97355-931-0 01 1 0307-0402 ● ● ●
60 04.595 GASKET; PARKING BRK 8-97355-931-0 01 1 0307-0402 ●
60 04.595 GASKET; PARKING BRK
PARKING BRAKE FLOOR<7XW> 		8-97355-931-0 01 1 0403-0508 ● ● ● ●
60 04.595 GASKET; PARKING BRK
PARKING BRAKE FLOOR<7XW> 		8-97355-931-0 01 1 0509-0609 ● ● ●
60 04.595 GASKET; PARKING BRK 8-97355-931-0 01 1 0509-0609 ●
60 04.595 GASKET; PARKING BRK
PARKING BRAKE FLOOR<7XW> 		8-97355-931-0 01 1 0610- ● ●
60 04.595 GASKET; PARKING BRK 8-97355-931-0 01 1 0610- ● ●
72 04.779 CABLE; PARKING BRK
(A) 		8-97363-343-0 01 1 0307-0609 ● ●
72 04.779 CABLE; PARKING BRK
4JK1-TCX ENG(LR0) (A) 		8-98008-159-1 01 1 0610- ●
72 04.779 CABLE; PARKING BRK
4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98008-159-1 01 1 0610- ●
72 04.779 CABLE; PARKING BRK
(A) 		8-97368-066-0 01 1 0307-0609 ● ●
72 04.779 CABLE; PARKING BRK
4JK1-TCX ENG(LR0) (A) 		8-98008-158-1 01 1 0610- ●
72 04.779 CABLE; PARKING BRK
4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98008-158-1 01 1 0610- ●
72 04.779 CABLE; PARKING BRK
PARKING BRAKE FLOOR<7XW> (B) 		8-97374-294-0 01 1 0307-0402 ● ● ●
72 04.779 CABLE; PARKING BRK
(B) 		8-97374-294-0 01 1 0307-0402 ●
72 04.779 CABLE; PARKING BRK
PARKING BRAKE FLOOR<7XW> (B) 		8-97374-294-0 01 1 0403-0508 ● ● ● ●
72 04.779 CABLE; PARKING BRK
PARKING BRAKE FLOOR<7XW> (B) 		8-97374-294-0 01 1 0509-0609 ● ● ●
72 04.779 CABLE; PARKING BRK
(B) 		8-97374-294-0 01 1 0509-0609 ●
72 04.779 CABLE; PARKING BRK
PARKING BRAKE FLOOR<7XW> (B) 		8-98017-629-0 01 1 0610- ● ●
72 04.779 CABLE; PARKING BRK
(B) 		8-98017-629-0 01 1 0610- ● ●
72 04.779 CABLE; PARKING BRK
(A) 		8-97363-346-0 01 1 0307-0609 ● ●
72 04.779 CABLE; PARKING BRK
HIGH RIDE SUSPENSION(7YC) (A) 		8-98007-011-1 01 1 0610- ●
72 04.779 CABLE; PARKING BRK
(A) 		8-98007-011-1 01 1 0610- ● ●
72 04.779 CABLE; PARKING BRK
(A) 		8-97368-068-0 01 1 0307-0508 ● ●
72 04.779 CABLE; PARKING BRK
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (A) 		8-97368-068-0 01 1 0509-0609 ● ●
72 04.779 CABLE; PARKING BRK
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) (A) 		8-98007-010-1 01 1 0610- ●
72 04.779 CABLE; PARKING BRK
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) 		8-98007-010-1 01 1 0610- ● ●
74 04.785 NUT; CONT WIRE
(A) 		8-97136-404-0 02 1 0307-0609 ● ● ● ●
74 04.785 NUT; CONT WIRE
(A) 		8-98008-071-0 02 1 0610- ● ● ● ●
74 04.785 NUT; CONT WIRE
EXC. PARKING BRAKE FLOOR<7XW> (B) M6 LOCK NUT FLANGE 		0-91303-606-0 01 1 0307-0402 ● ● ●
74 04.785 NUT; CONT WIRE
EXC. PARKING BRAKE FLOOR<7XW> (B) M6 LOCK NUT FLANGE 		0-91303-606-0 01 1 0403-0508 ● ● ● ●
74 04.785 NUT; CONT WIRE
EXC. PARKING BRAKE FLOOR<7XW> (B) M6 LOCK NUT FLANGE 		0-91303-606-0 01 1 0509-0605 ● ● ●
74 04.785 NUT; CONT WIRE
EXC. PARKING BRAKE FLOOR<7XW> (B) M6 LOCK NUT FLANGE 		0-91380-006-0 01 1 0606-0609 ● ● ●
74 04.785 NUT; CONT WIRE
EXC. PARKING BRAKE FLOOR<7XW> (B) M6 LOCK NUT FLANGE 		0-91380-006-0 01 1 0610- ● ●
86 04.785 BOLT
03.162 (A) M6X20 FLANGE 		0-28650-620-0 04 1 0307- ● ● ● ●
86 04.785 BOLT
01.531 (B) M8X20 FLANGE 		0-28650-820-0 03 1 0307- ● ● ● ●
101 04.785 NUT; CABLE TO LEVER
PARKING BRAKE FLOOR<7XW> 		8-97355-929-0 01 1 0307-0402 ● ● ●
101 04.785 NUT; CABLE TO LEVER 8-97355-929-0 01 1 0307-0402 ●
101 04.785 NUT; CABLE TO LEVER
PARKING BRAKE FLOOR<7XW> 		8-97355-929-0 01 1 0403-0508 ● ● ● ●
101 04.785 NUT; CABLE TO LEVER
PARKING BRAKE FLOOR<7XW> 		8-97355-929-0 01 1 0509-0609 ● ● ●
101 04.785 NUT; CABLE TO LEVER 8-97355-929-0 01 1 0509-0609 ●
101 04.785 NUT; CABLE TO LEVER
PARKING BRAKE FLOOR<7XW> 		8-98017-654-0 01 1 0610- ● ●
101 04.785 NUT; CABLE TO LEVER 8-98017-654-0 01 1 0610- ● ●
220 04.785 NUT; CLIP,PARKING CONT CABLE
01.062 M6 FLANGE 		0-91180-106-0 02 1 0307- ● ● ● ●
373 04.594 COVER; BOTTOM,PARKING BRK LEVER
PARKING BRAKE FLOOR<7XW> 		8-97355-930-0 01 1 0307-0402 ● ● ●
373 04.594 COVER; BOTTOM,PARKING BRK LEVER 8-97355-930-0 01 1 0307-0402 ●
373 04.594 COVER; BOTTOM,PARKING BRK LEVER
PARKING BRAKE FLOOR<7XW> 		8-97355-930-0 01 1 0403-0508 ● ● ● ●
373 04.594 COVER; BOTTOM,PARKING BRK LEVER
PARKING BRAKE FLOOR<7XW> 		8-97355-930-0 01 1 0509-0609 ● ● ●
373 04.594 COVER; BOTTOM,PARKING BRK LEVER 8-97355-930-0 01 1 0509-0609 ●
373 04.594 COVER; BOTTOM,PARKING BRK LEVER
PARKING BRAKE FLOOR<7XW> 		8-97355-930-0 01 1 0610- ● ●
373 04.594 COVER; BOTTOM,PARKING BRK LEVER 8-97355-930-0 01 1 0610- ● ●

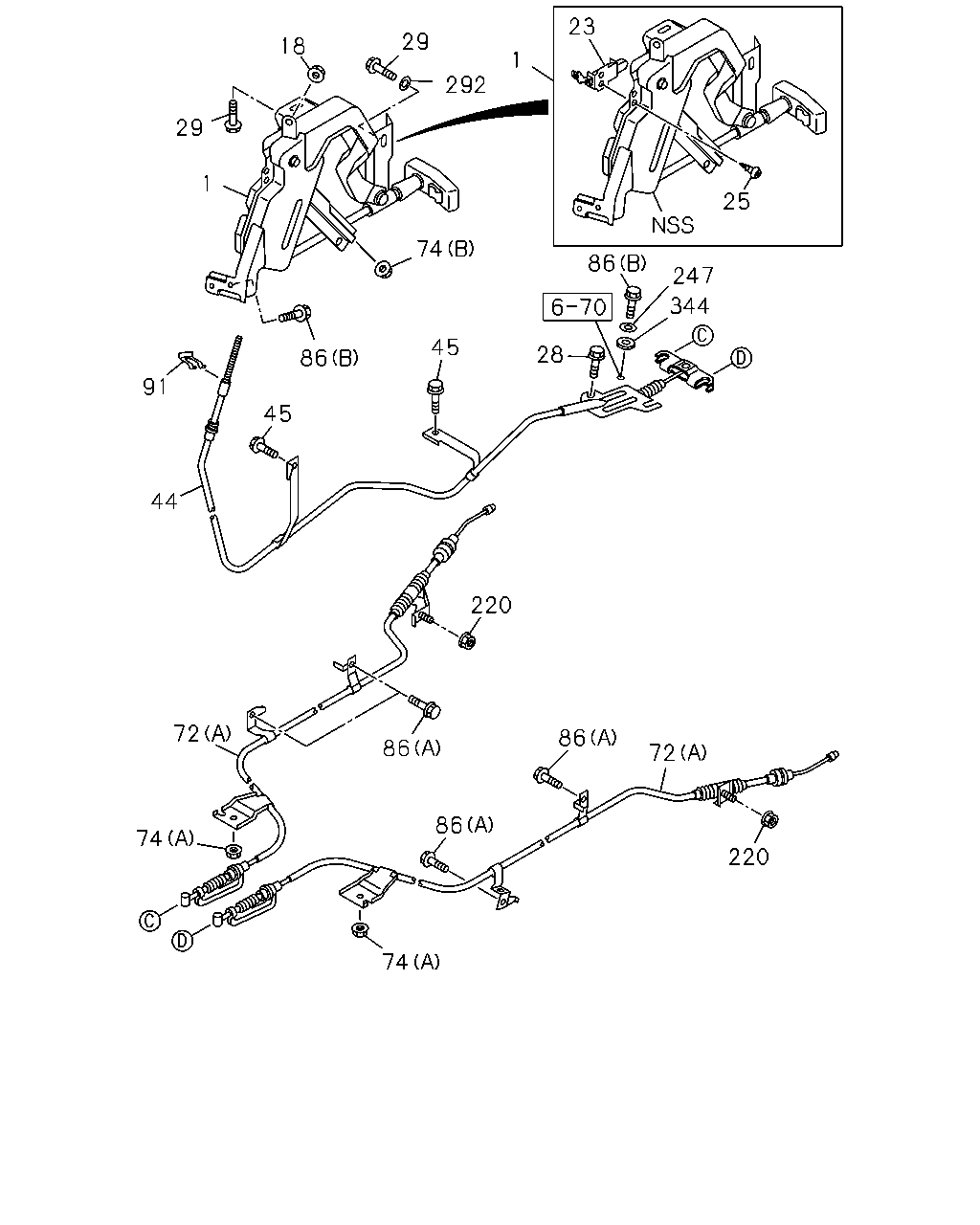

çizim 117666
23 29 18 1 292 29 1 25 74 86 247 344 45 28 86 91 45 44 220 72 86 86 72 86 74 220 74
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.592 STEM ASM; PARKING BRK
PARKING BRAKE FLOOR<7XW> 		8-97363-082-0 01 1 0307-0402 ● ● ●
1 04.592 STEM ASM; PARKING BRK 8-97363-082-0 01 1 0307-0402 ●
1 04.592 STEM ASM; PARKING BRK
PARKING BRAKE FLOOR<7XW> 		8-97363-082-0 01 1 0403-0508 ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
PARKING BRAKE FLOOR<7XW> 		8-97363-082-0 01 1 0509-0609 ● ● ●
1 04.592 STEM ASM; PARKING BRK 8-97363-082-0 01 1 0509-0609 ●
1 04.592 STEM ASM; PARKING BRK
PARKING BRAKE FLOOR<7XW> 		8-98007-034-0 01 1 0610- ● ●
1 04.592 STEM ASM; PARKING BRK 8-98007-034-0 01 1 0610- ● ●
1 04.592 STEM ASM; PARKING BRK
EXC. PARKING BRAKE FLOOR<7XW> 		8-97367-028-0 01 1 0307-0402 ● ● ●
1 04.592 STEM ASM; PARKING BRK
EXC. PARKING BRAKE FLOOR<7XW> 		8-97367-028-0 01 1 0403-0508 ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
EXC. PARKING BRAKE FLOOR<7XW> 		8-97367-028-0 01 1 0509-0609 ● ● ●
1 04.592 STEM ASM; PARKING BRK
EXC. PARKING BRAKE FLOOR<7XW> 		8-98007-032-0 01 1 0610- ● ●
18 04.589 NUT; STEM
EXC. PARKING BRAKE FLOOR<7XW> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0307-0402 ● ● ●
18 04.589 NUT; STEM
EXC. PARKING BRAKE FLOOR<7XW> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0403-0508 ● ● ● ●
18 04.589 NUT; STEM
EXC. PARKING BRAKE FLOOR<7XW> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0509-0609 ● ● ●
18 04.589 NUT; STEM
EXC. PARKING BRAKE FLOOR<7XW> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0610- ● ●
23 04.589 SWITCH; PARKING BRK
PARKING BRAKE FLOOR<7XW> 		8-97301-436-0 01 1 0307-0402 ● ● ●
23 04.589 SWITCH; PARKING BRK 8-97301-436-0 01 1 0307-0402 ●
23 04.589 SWITCH; PARKING BRK
PARKING BRAKE FLOOR<7XW> 		8-97301-436-0 01 1 0403-0508 ● ● ● ●
23 04.589 SWITCH; PARKING BRK
PARKING BRAKE FLOOR<7XW> 		8-97301-436-0 01 1 0509-0609 ● ● ●
23 04.589 SWITCH; PARKING BRK 8-97301-436-0 01 1 0509-0609 ●
23 04.589 SWITCH; PARKING BRK
PARKING BRAKE FLOOR<7XW> 		8-98017-627-0 01 1 0610- ● ●
23 04.589 SWITCH; PARKING BRK 8-98017-627-0 01 1 0610- ● ●
23 04.589 SWITCH; PARKING BRK
EXC. PARKING BRAKE FLOOR<7XW> 		8-97032-276-0 01 1 0307-0402 ● ● ●
23 04.589 SWITCH; PARKING BRK
EXC. PARKING BRAKE FLOOR<7XW> 		8-97032-276-0 01 1 0403-0508 ● ● ● ●
23 04.589 SWITCH; PARKING BRK
EXC. PARKING BRAKE FLOOR<7XW> 		8-97032-276-0 01 1 0509-0609 ● ● ●
23 04.589 SWITCH; PARKING BRK
EXC. PARKING BRAKE FLOOR<7XW> 		8-98017-625-0 01 1 0610- ● ●
25 04.589 SCREW; SW,PARKING BRK 8-97103-556-0 01 1 0307-0609 ● ● ● ●
25 04.589 SCREW; SW,PARKING BRK 8-98017-655-0 01 1 0610- ● ● ● ●
28 04.594 BOLT; HAND BRK LEVER
EXC. PARKING BRAKE FLOOR<7XW> 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0307-0402 ● ● ●
28 04.594 BOLT; HAND BRK LEVER
EXC. PARKING BRAKE FLOOR<7XW> 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0403-0508 ● ● ● ●
28 04.594 BOLT; HAND BRK LEVER
EXC. PARKING BRAKE FLOOR<7XW> 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0509-0609 ● ● ●
28 04.594 BOLT; HAND BRK LEVER
EXC. PARKING BRAKE FLOOR<7XW> 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0610- ● ●
29 04.595 BOLT; PARKING BRK LEVER TO BODY
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0307- ● ● ● ●
44 04.779 CABLE; PARKING BRK,FRT
EXC. PARKING BRAKE FLOOR<7XW> 		8-97352-408-1 01 1 0307-0402 ● ● ●
44 04.779 CABLE; PARKING BRK,FRT
EXC. PARKING BRAKE FLOOR<7XW> 		8-97352-408-1 01 1 0403-0508 ● ● ● ●
44 04.779 CABLE; PARKING BRK,FRT
EXC. PARKING BRAKE FLOOR<7XW> 		8-97352-408-1 01 1 0509-0609 ● ● ●
44 04.779 CABLE; PARKING BRK,FRT
EXC. PARKING BRAKE FLOOR<7XW> 		8-98006-946-0 01 1 0610- ● ●
45 04.785 BOLT; CABLE TO FLOOR
EXC. PARKING BRAKE FLOOR<7XW> 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0307-0402 ● ● ●
45 04.785 BOLT; CABLE TO FLOOR
EXC. PARKING BRAKE FLOOR<7XW> 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0403-0508 ● ● ● ●
45 04.785 BOLT; CABLE TO FLOOR
EXC. PARKING BRAKE FLOOR<7XW> 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0509-0609 ● ● ●
45 04.785 BOLT; CABLE TO FLOOR
EXC. PARKING BRAKE FLOOR<7XW> 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0610- ● ●
72 04.779 CABLE; PARKING BRK
(A) 		8-97363-343-0 01 1 0307-0609 ● ●
72 04.779 CABLE; PARKING BRK
4JK1-TCX ENG(LR0) (A) 		8-98008-159-1 01 1 0610- ●
72 04.779 CABLE; PARKING BRK
4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98008-159-1 01 1 0610- ●
72 04.779 CABLE; PARKING BRK
(A) 		8-97368-066-0 01 1 0307-0609 ● ●
72 04.779 CABLE; PARKING BRK
4JK1-TCX ENG(LR0) (A) 		8-98008-158-1 01 1 0610- ●
72 04.779 CABLE; PARKING BRK
4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98008-158-1 01 1 0610- ●
72 04.779 CABLE; PARKING BRK
PARKING BRAKE FLOOR<7XW> (B) 		8-97374-294-0 01 1 0307-0402 ● ● ●
72 04.779 CABLE; PARKING BRK
(B) 		8-97374-294-0 01 1 0307-0402 ●
72 04.779 CABLE; PARKING BRK
PARKING BRAKE FLOOR<7XW> (B) 		8-97374-294-0 01 1 0403-0508 ● ● ● ●
72 04.779 CABLE; PARKING BRK
PARKING BRAKE FLOOR<7XW> (B) 		8-97374-294-0 01 1 0509-0609 ● ● ●
72 04.779 CABLE; PARKING BRK
(B) 		8-97374-294-0 01 1 0509-0609 ●
72 04.779 CABLE; PARKING BRK
PARKING BRAKE FLOOR<7XW> (B) 		8-98017-629-0 01 1 0610- ● ●
72 04.779 CABLE; PARKING BRK
(B) 		8-98017-629-0 01 1 0610- ● ●
72 04.779 CABLE; PARKING BRK
(A) 		8-97363-346-0 01 1 0307-0609 ● ●
72 04.779 CABLE; PARKING BRK
HIGH RIDE SUSPENSION(7YC) (A) 		8-98007-011-1 01 1 0610- ●
72 04.779 CABLE; PARKING BRK
(A) 		8-98007-011-1 01 1 0610- ● ●
72 04.779 CABLE; PARKING BRK
(A) 		8-97368-068-0 01 1 0307-0508 ● ●
72 04.779 CABLE; PARKING BRK
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (A) 		8-97368-068-0 01 1 0509-0609 ● ●
72 04.779 CABLE; PARKING BRK
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) (A) 		8-98007-010-1 01 1 0610- ●
72 04.779 CABLE; PARKING BRK
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) 		8-98007-010-1 01 1 0610- ● ●
74 04.785 NUT; CONT WIRE
(A) 		8-97136-404-0 02 1 0307-0609 ● ● ● ●
74 04.785 NUT; CONT WIRE
(A) 		8-98008-071-0 02 1 0610- ● ● ● ●
74 04.785 NUT; CONT WIRE
EXC. PARKING BRAKE FLOOR<7XW> (B) M6 LOCK NUT FLANGE 		0-91303-606-0 01 1 0307-0402 ● ● ●
74 04.785 NUT; CONT WIRE
EXC. PARKING BRAKE FLOOR<7XW> (B) M6 LOCK NUT FLANGE 		0-91303-606-0 01 1 0403-0508 ● ● ● ●
74 04.785 NUT; CONT WIRE
EXC. PARKING BRAKE FLOOR<7XW> (B) M6 LOCK NUT FLANGE 		0-91303-606-0 01 1 0509-0605 ● ● ●
74 04.785 NUT; CONT WIRE
EXC. PARKING BRAKE FLOOR<7XW> (B) M6 LOCK NUT FLANGE 		0-91380-006-0 01 1 0606-0609 ● ● ●
74 04.785 NUT; CONT WIRE
EXC. PARKING BRAKE FLOOR<7XW> (B) M6 LOCK NUT FLANGE 		0-91380-006-0 01 1 0610- ● ●
86 04.785 BOLT
03.162 (A) M6X20 FLANGE 		0-28650-620-0 04 1 0307- ● ● ● ●
86 04.785 BOLT
01.531 (B) M8X20 FLANGE 		0-28650-820-0 03 1 0307- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. PARKING BRAKE FLOOR<7XW> 04.681 		5-09709-039-0 01 1 0307-0402 ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. PARKING BRAKE FLOOR<7XW> 04.681 		5-09709-039-0 01 1 0403-0508 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. PARKING BRAKE FLOOR<7XW> 04.681 		5-09709-039-0 01 1 0509-0609 ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. PARKING BRAKE FLOOR<7XW> 		8-98007-093-0 01 1 0610- ● ●
220 04.785 NUT; CLIP,PARKING CONT CABLE
01.062 M6 FLANGE 		0-91180-106-0 02 1 0307- ● ● ● ●
247 04.595 WASHER; PL
EXC. PARKING BRAKE FLOOR<7XW> 06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 0307-0402 ● ● ●
247 04.595 WASHER; PL
EXC. PARKING BRAKE FLOOR<7XW> 06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 0403-0508 ● ● ● ●
247 04.595 WASHER; PL
EXC. PARKING BRAKE FLOOR<7XW> 06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 0509-0606 ● ● ●
247 04.595 WASHER; PL
EXC. PARKING BRAKE FLOOR<7XW> ID=8.4 OD=22 		0-91610-708-0 01 1 0607-0609 ● ● ●
247 04.595 WASHER; PL
EXC. PARKING BRAKE FLOOR<7XW> ID=8.4 OD=22 		0-91610-708-0 01 1 0610- ● ●
292 04.589 WASHER; PARK BRK LEVER
EXC. PARKING BRAKE FLOOR<7XW> 01.276 ID=8.4 OD=18 		9-09164-608-0 01 1 0307-0402 ● ● ●
292 04.589 WASHER; PARK BRK LEVER
EXC. PARKING BRAKE FLOOR<7XW> 01.276 ID=8.4 OD=18 		9-09164-608-0 01 1 0403-0508 ● ● ● ●
292 04.589 WASHER; PARK BRK LEVER
EXC. PARKING BRAKE FLOOR<7XW> 01.276 ID=8.4 OD=18 		9-09164-608-0 01 1 0509-0606 ● ● ●
292 04.589 WASHER; PARK BRK LEVER
EXC. PARKING BRAKE FLOOR<7XW> 02.559 ID=8.4 OD=18 		0-91614-608-0 01 1 0607-0609 ● ● ●
292 04.589 WASHER; PARK BRK LEVER
EXC. PARKING BRAKE FLOOR<7XW> 02.559 ID=8.4 OD=18 		0-91614-608-0 01 1 0610- ● ●
344 04.595 GASKET; DASH LWR
EXC. PARKING BRAKE FLOOR<7XW> 04.591 		8-94334-899-1 01 1 0307-0402 ● ● ●
344 04.595 GASKET; DASH LWR
EXC. PARKING BRAKE FLOOR<7XW> 04.591 		8-94334-899-1 01 1 0403-0410 ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
