4-36 — POWER STEERING CONTROL; ENGINE SIDE (#7434) — 13 parça

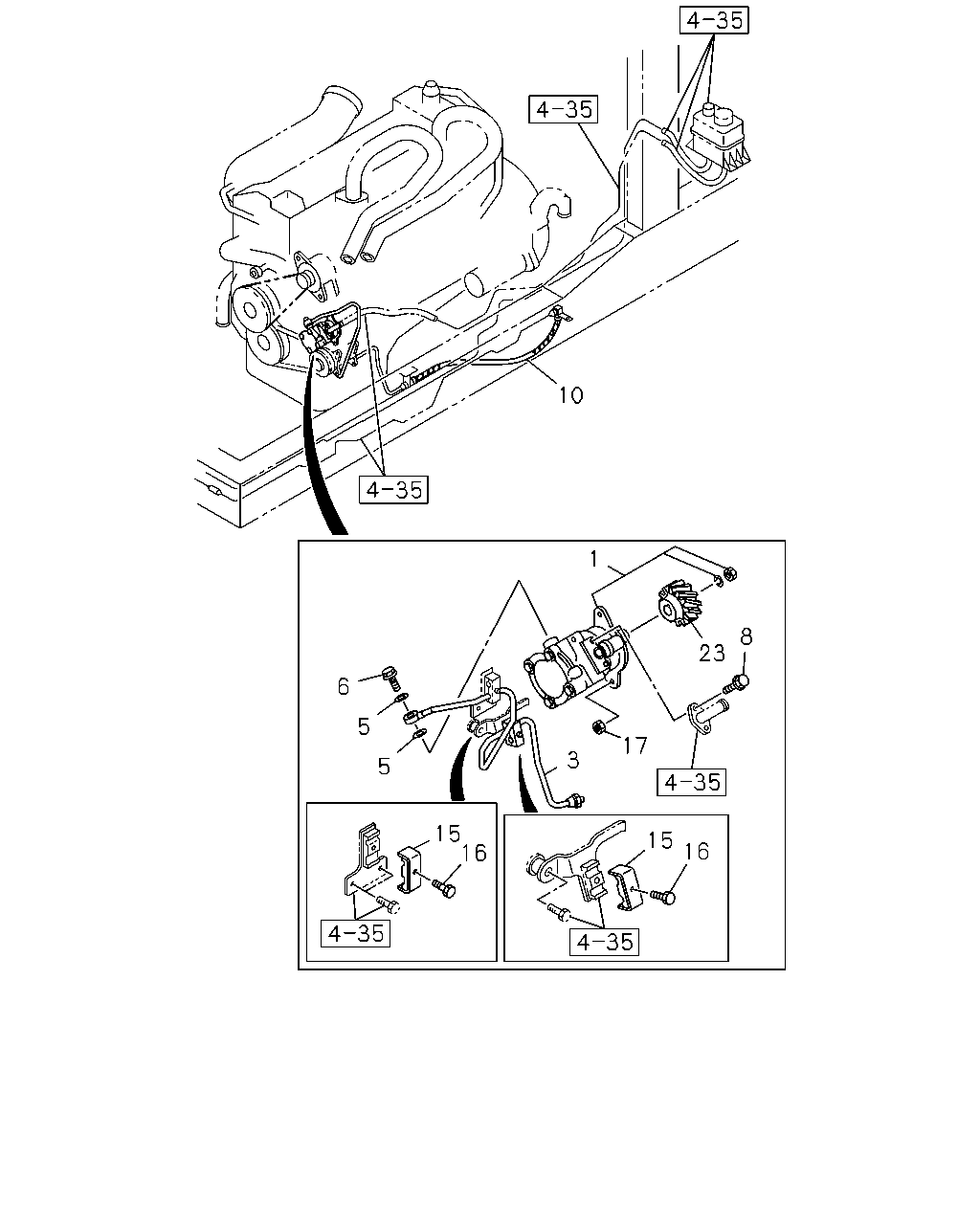

çizim 42353
10 1 8 23 6 5 17 3 5 15 16 15 16
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-563-0 01 1 9812-9912
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. STRG VARIABLE CONTROL<TFY> 		1-19500-563-2 01 1 0001-
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. EXC. STRG VARIABLE CONTROL<TFY> 		1-19500-447-2 01 1 0001-
3 PIPE; OIL,CHARGE,P/S 1-13313-637-1 01 1 9812-
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4 		1-09630-087-0 02 1 9812-
6 BOLT; EYE,P/S PIPE
M18X36 		1-09675-174-0 01 1 9812-
8 BOLT; OIL PIPE
M8X16 FLANGE 		0-28080-816-0 02 1 9812-
10 HOSE; FLEX,P/S OIL PUMP,INL
L=430 		0-09671-430-0 01 1 9812-
15 CLIP; OIL PIPE SUCTION 1-09701-195-2 02 1 9812-
16 BOLT; STAY,P/S OIL PUMP
M6X35 FLANGE 		0-28680-635-0 02 1 9812-
17 NUT; POWER STRG PUMP
M10 FLANGE 		0-91150-110-0 02 1 9812-
23 GEAR; OIL PUMP
Z=20 		1-19581-023-2 01 1 9812-9910
23 GEAR; OIL PUMP
Z=20 		1-19581-038-0 01 1 9911-
