3-02 — FRONT DISC BRAKE CALIPER (#74339) — 113 parça

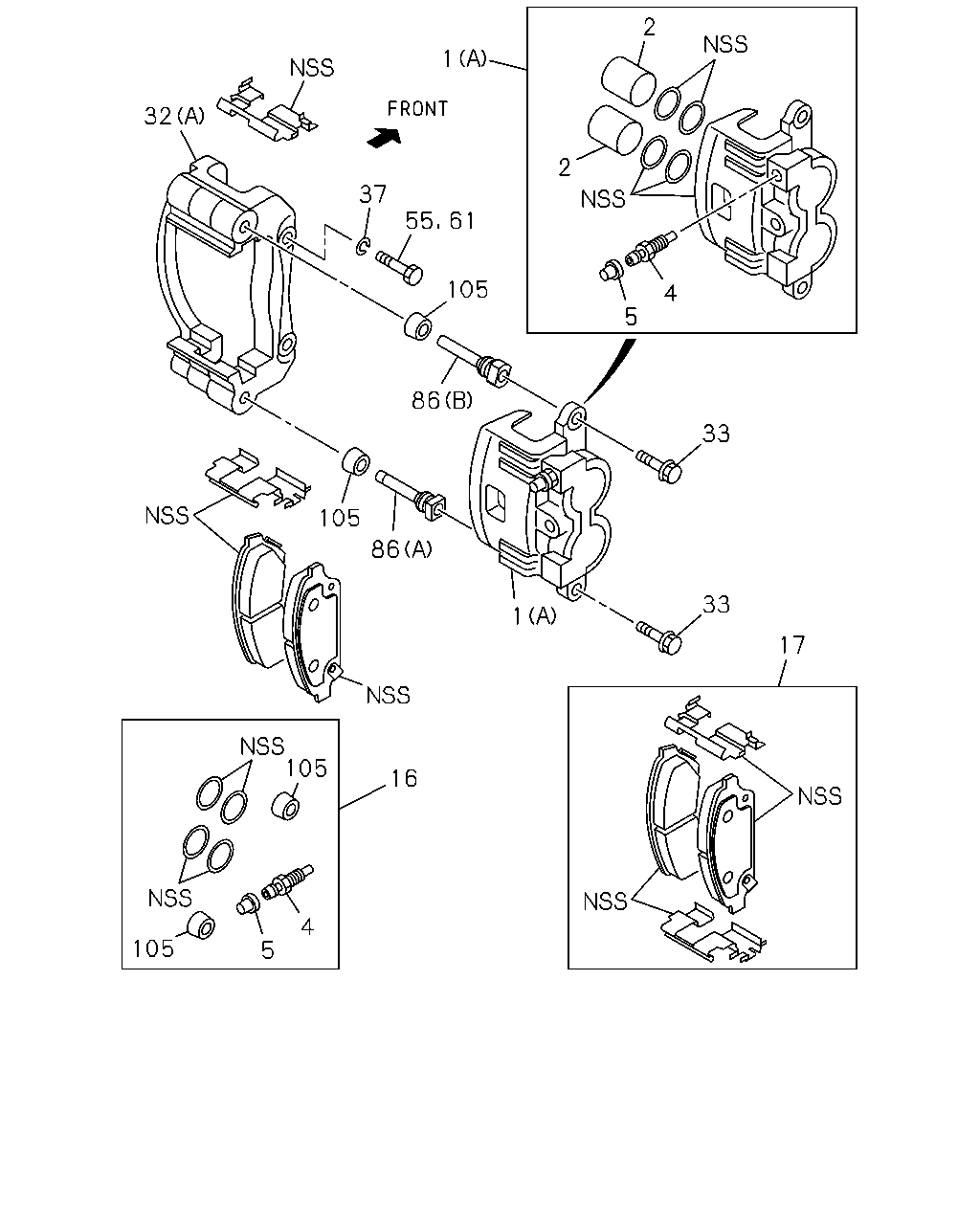

2 1 32 2 37 105 4 5 86 33 105 86 33 1 17 105 16 4 105 5 55 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.665 CALIPER; FRT DISC BRK (A)	8-97318-676-0	01	1	0307-0310	●	●
1	04.665 CALIPER; FRT DISC BRK (A)	8-97374-962-0	01	1	0311-0601	●	●
1	04.665 CALIPER; FRT DISC BRK (A)	8-98040-817-0	01	1	0602-0609	●	●
1	04.665 CALIPER; FRT DISC BRK (A)	8-98006-538-1	01	1	0610-0806	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK (B)	8-98077-997-0	01	1	0807-	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK (A)	8-97318-677-0	01	1	0307-0310	●	●
1	04.665 CALIPER; FRT DISC BRK (A)	8-97374-961-0	01	1	0311-0601	●	●
1	04.665 CALIPER; FRT DISC BRK (A)	8-98040-816-0	01	1	0602-0609	●	●
1	04.665 CALIPER; FRT DISC BRK (A)	8-98006-537-1	01	1	0610-0806	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK (B)	8-98077-996-0	01	1	0807-	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK (A)	8-97357-000-0	01	1	0307-0601			●	●
1	04.665 CALIPER; FRT DISC BRK (A)	8-98040-821-0	01	1	0602-0609			●	●
1	04.665 CALIPER; FRT DISC BRK (A)	8-97356-999-0	01	1	0307-0601			●	●
1	04.665 CALIPER; FRT DISC BRK (A)	8-98040-820-0	01	1	0602-0609			●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT	8-97328-224-0	04	1	0307-0601	●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT	8-98040-810-0	04	1	0602-0609	●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT	8-97328-606-0	04	1	0307-0601			●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT	8-98040-811-0	04	1	0602-0609			●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT	8-98040-811-0	04	1	0610-0806	●	●	●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT	8-98078-000-0	04	1	0807-	●	●	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT	8-97301-725-0	02	1	0307-0609	●	●	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT	8-98006-254-0	02	1	0610-0806	●	●	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT	8-98050-476-0	02	1	0807-	●	●	●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT	8-97301-726-0	02	1	0307-0806	●	●	●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT	8-98050-479-0	02	1	0807-	●	●	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-97318-674-0	01	1	0307-0601	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-98040-822-0	01	1	0602-0609	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-98018-762-1	01	1	0610-0806	●	●	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-98079-105-0	01	1	0807-	●	●	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-97356-996-0	01	1	0307-0601			●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-98040-823-0	01	1	0602-0609			●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-97368-251-0	01	1	0307-0609	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-98051-117-0	01	1	0610-0806	●	●	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-98079-104-0	01	1	0807-	●	●	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-97368-252-0	01	1	0307-0609			●	●
32	04.665 SUPPORT; FRT DISC BRK (A)	8-97301-729-0	02	1	0307-0609	●	●
32	04.665 SUPPORT; FRT DISC BRK (A)	8-97328-493-0	02	1	0307-0609			●	●
32	04.665 SUPPORT; FRT DISC BRK (A)	8-97328-493-0	02	1	0610-0701	●	●	●	●
32	04.665 SUPPORT; FRT DISC BRK (A)	8-98049-958-0	02	1	0702-0806	●	●	●	●
32	04.665 SUPPORT; FRT DISC BRK (B)	8-98078-168-0	02	1	0807-	●	●	●	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK	8-97301-730-0	04	1	0307-0609	●	●	●	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK	8-98006-255-0	04	1	0610-0806	●	●	●	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK	8-98078-192-0	04	1	0807-	●	●	●	●
37	04.665 WASHER; LK 05.422 ID=14.2	9-09150-814-0	04	1	0307-0604	●	●	●	●
37	04.665 WASHER; LK 06.174 ID=14.2	0-91510-814-0	04	1	0605-	●	●	●	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK 04.665	8-97331-945-0	02	1	0307-0609	●	●	●	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK	8-98037-731-0	02	1	0610-	●	●	●	●
61	04.665 BOLT; SUPPORT BRKT TO KNUCKLE	8-97331-945-0	02	1	0307-0609	●	●	●	●
61	04.665 BOLT; SUPPORT BRKT TO KNUCKLE 04.681	8-98037-731-0	02	1	0610-	●	●	●	●
86	04.665 PIN; GUIDE (A) LEADING	8-97301-728-0	02	1	0307-0609	●	●	●	●
86	04.665 PIN; GUIDE (A) LEADING	8-98006-256-0	02	1	0610-0806	●	●	●	●
86	04.665 PIN; GUIDE (C)	8-98078-175-0	02	1	0807-	●	●	●	●
86	04.665 PIN; GUIDE (B) TRAILING	8-97301-746-0	02	1	0307-0609	●	●	●	●
86	04.665 PIN; GUIDE (B) TRAILING	8-98006-257-0	02	1	0610-0806	●	●	●	●
105	04.665 BOOT; CALIPER	8-97328-229-0	04	1	0307-0806	●	●	●	●
105	04.665 BOOT; CALIPER	8-98078-193-0	04	1	0807-	●	●	●	●

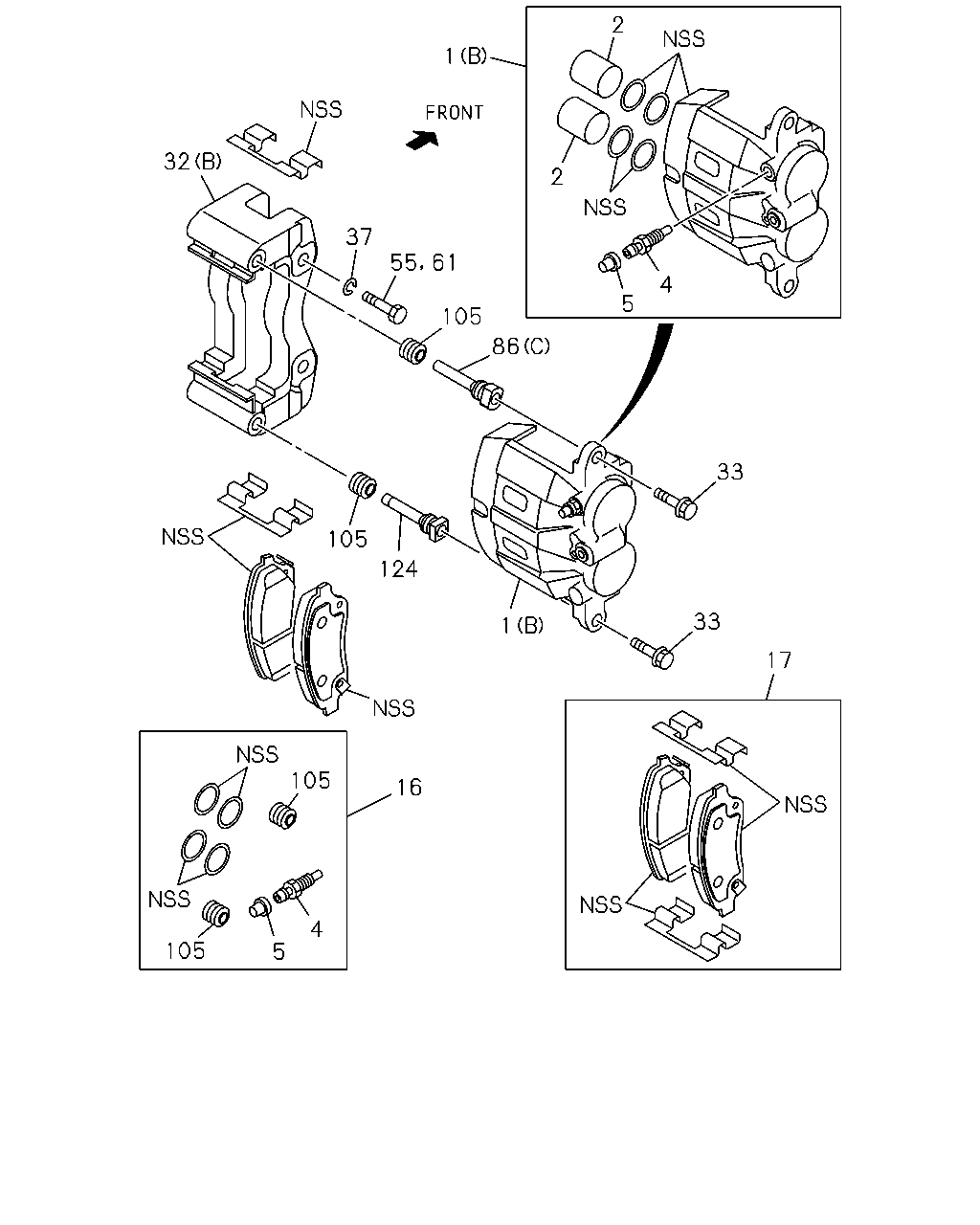

2 1 32 2 37 4 5 105 86 33 105 124 33 1 17 105 16 4 105 5 55 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.665 CALIPER; FRT DISC BRK (A)	8-97318-676-0	01	1	0307-0310	●	●
1	04.665 CALIPER; FRT DISC BRK (A)	8-97374-962-0	01	1	0311-0601	●	●
1	04.665 CALIPER; FRT DISC BRK (A)	8-98040-817-0	01	1	0602-0609	●	●
1	04.665 CALIPER; FRT DISC BRK (A)	8-98006-538-1	01	1	0610-0806	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK (B)	8-98077-997-0	01	1	0807-	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK (A)	8-97318-677-0	01	1	0307-0310	●	●
1	04.665 CALIPER; FRT DISC BRK (A)	8-97374-961-0	01	1	0311-0601	●	●
1	04.665 CALIPER; FRT DISC BRK (A)	8-98040-816-0	01	1	0602-0609	●	●
1	04.665 CALIPER; FRT DISC BRK (A)	8-98006-537-1	01	1	0610-0806	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK (B)	8-98077-996-0	01	1	0807-	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK (A)	8-97357-000-0	01	1	0307-0601			●	●
1	04.665 CALIPER; FRT DISC BRK (A)	8-98040-821-0	01	1	0602-0609			●	●
1	04.665 CALIPER; FRT DISC BRK (A)	8-97356-999-0	01	1	0307-0601			●	●
1	04.665 CALIPER; FRT DISC BRK (A)	8-98040-820-0	01	1	0602-0609			●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT	8-97328-224-0	04	1	0307-0601	●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT	8-98040-810-0	04	1	0602-0609	●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT	8-97328-606-0	04	1	0307-0601			●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT	8-98040-811-0	04	1	0602-0609			●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT	8-98040-811-0	04	1	0610-0806	●	●	●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT	8-98078-000-0	04	1	0807-	●	●	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT	8-97301-725-0	02	1	0307-0609	●	●	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT	8-98006-254-0	02	1	0610-0806	●	●	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT	8-98050-476-0	02	1	0807-	●	●	●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT	8-97301-726-0	02	1	0307-0806	●	●	●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT	8-98050-479-0	02	1	0807-	●	●	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-97318-674-0	01	1	0307-0601	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-98040-822-0	01	1	0602-0609	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-98018-762-1	01	1	0610-0806	●	●	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-98079-105-0	01	1	0807-	●	●	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-97356-996-0	01	1	0307-0601			●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-98040-823-0	01	1	0602-0609			●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-97368-251-0	01	1	0307-0609	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-98051-117-0	01	1	0610-0806	●	●	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-98079-104-0	01	1	0807-	●	●	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-97368-252-0	01	1	0307-0609			●	●
32	04.665 SUPPORT; FRT DISC BRK (A)	8-97301-729-0	02	1	0307-0609	●	●
32	04.665 SUPPORT; FRT DISC BRK (A)	8-97328-493-0	02	1	0307-0609			●	●
32	04.665 SUPPORT; FRT DISC BRK (A)	8-97328-493-0	02	1	0610-0701	●	●	●	●
32	04.665 SUPPORT; FRT DISC BRK (A)	8-98049-958-0	02	1	0702-0806	●	●	●	●
32	04.665 SUPPORT; FRT DISC BRK (B)	8-98078-168-0	02	1	0807-	●	●	●	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK	8-97301-730-0	04	1	0307-0609	●	●	●	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK	8-98006-255-0	04	1	0610-0806	●	●	●	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK	8-98078-192-0	04	1	0807-	●	●	●	●
37	04.665 WASHER; LK 05.422 ID=14.2	9-09150-814-0	04	1	0307-0604	●	●	●	●
37	04.665 WASHER; LK 06.174 ID=14.2	0-91510-814-0	04	1	0605-	●	●	●	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK 04.665	8-97331-945-0	02	1	0307-0609	●	●	●	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK	8-98037-731-0	02	1	0610-	●	●	●	●
61	04.665 BOLT; SUPPORT BRKT TO KNUCKLE	8-97331-945-0	02	1	0307-0609	●	●	●	●
61	04.665 BOLT; SUPPORT BRKT TO KNUCKLE 04.681	8-98037-731-0	02	1	0610-	●	●	●	●
86	04.665 PIN; GUIDE (A) LEADING	8-97301-728-0	02	1	0307-0609	●	●	●	●
86	04.665 PIN; GUIDE (A) LEADING	8-98006-256-0	02	1	0610-0806	●	●	●	●
86	04.665 PIN; GUIDE (C)	8-98078-175-0	02	1	0807-	●	●	●	●
86	04.665 PIN; GUIDE (B) TRAILING	8-97301-746-0	02	1	0307-0609	●	●	●	●
86	04.665 PIN; GUIDE (B) TRAILING	8-98006-257-0	02	1	0610-0806	●	●	●	●
105	04.665 BOOT; CALIPER	8-97328-229-0	04	1	0307-0806	●	●	●	●
105	04.665 BOOT; CALIPER	8-98078-193-0	04	1	0807-	●	●	●	●
124	04.665 PIN ASM; W/BUSH	8-98078-176-0	02	1	0807-	●	●	●	●
