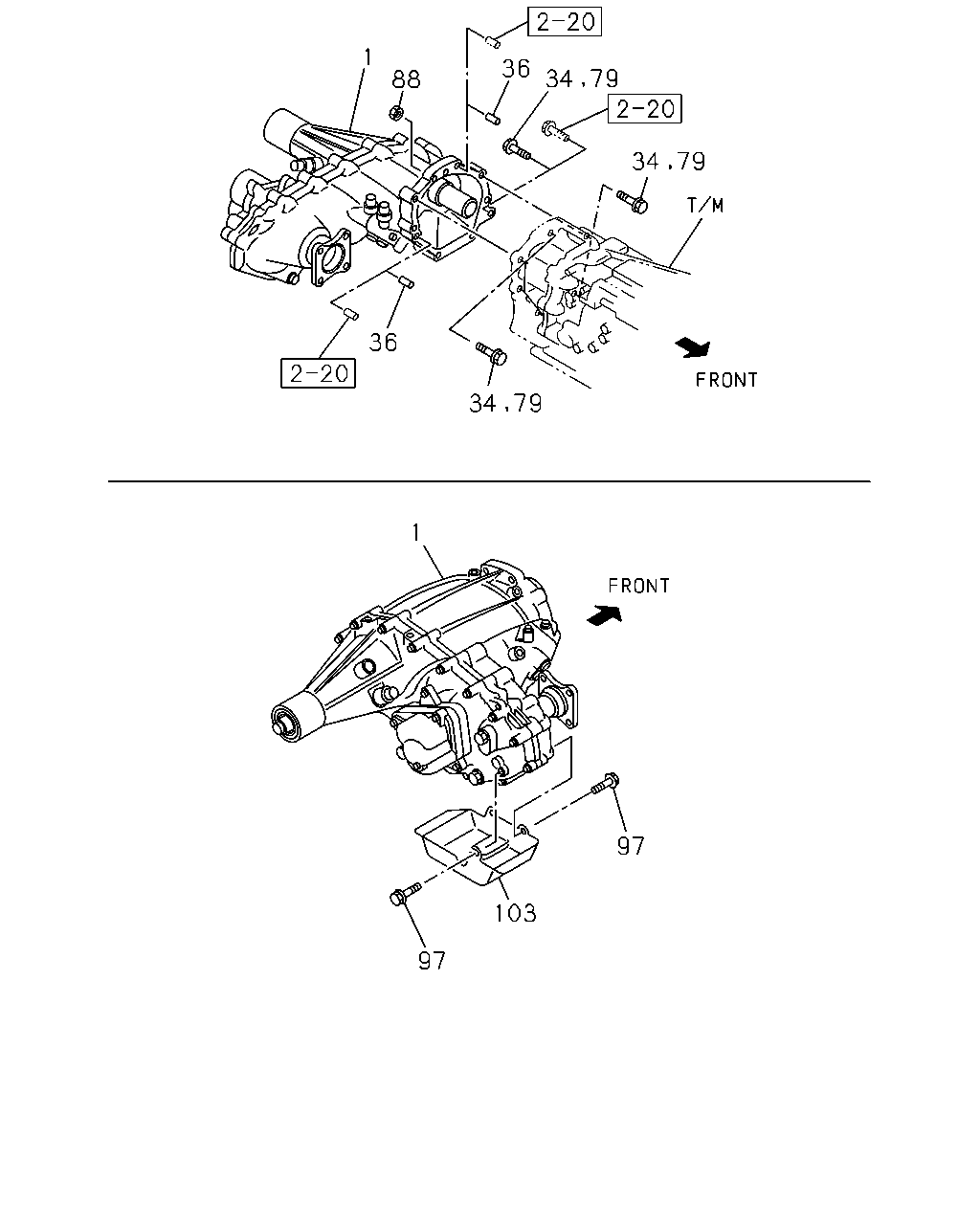

2-60 — TRANSFER (#74334) — 17 parça

1 36 88 36 1 97 103 97 34 79 34 79 34 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.505 TRANSFER ASM	8-97368-283-0	01	1	0307-0402	●	●
1	04.505 TRANSFER ASM	8-97376-877-0	01	1	0403-0609	●	●
1	04.505 TRANSFER ASM 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD)	8-98028-766-0	01	1	0610-	●	●
1	04.505 TRANSFER ASM 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ)	8-98028-765-0	01	1	0610-1007	●	●
1	04.505 TRANSFER ASM 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) IDENTIFICATION LABEL FOR KD<6UT>	8-98028-765-0	01	1	1008-	●	●
1	04.505 TRANSFER ASM 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ)	8-98028-765-0	01	1	1008-	●	●
34	04.510 BOLT; TRANSFER M/T MUA 5 SPEED 5G(RSP) M10X35 FLANGE	0-28051-035-0	06	1	0307-0609	●	●
34	04.510 BOLT; TRANSFER A/T 4 SPEED-JATCO(RMK) M10X35 FLANGE	0-28051-035-0	07	1	0307-0609		●
36	04.510 PIN; KNOCK,TRANSFER OD=10 L=20	8-97135-423-0	02	1	0307-0609	●	●
79	04.512 BOLT; STOPPER M/T MUA 5 SPEED 5H(MWQ) 04.510 M10X35 FLANGE	0-28051-035-0	06	1	0610-0703	●	●
79	04.512 BOLT; STOPPER 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) IDENTIFICATION LABEL FOR KD<6UT> 04.510 M10X35 FLANGE	0-28051-035-0	06	1	0704-1003	●	●
79	04.512 BOLT; STOPPER M/T MUA 5 SPEED 5H(MWQ) 04.510 M10X35 FLANGE	0-28051-035-0	06	1	0704-1003	●	●
79	04.512 BOLT; STOPPER M/T MUA 5 SPEED 5H(MWQ) 04.510 M10X35 FLANGE	0-28051-035-0	06	1	1004-1007	●	●
79	04.512 BOLT; STOPPER A/T AISIN(RMD) 04.510 M10X35 FLANGE	0-28051-035-0	07	1	0610-1007		●
88	04.512 NUT M/T MUA 5 SPEED 5G(RSP) 03.162 M10 FLANGE	0-91180-110-0	01	1	0307-0609	●	●
97	04.512 BOLT 01.531 M8X20 FLANGE	0-28650-820-0	03	1	0307-	●	●
103	04.510 GUARD; TRANSFER	8-97234-751-0	01	1	0307-	●	●
