2-55 — AUTO TRANS SHIFT CONTROL LEVER (#74332) — 134 parça

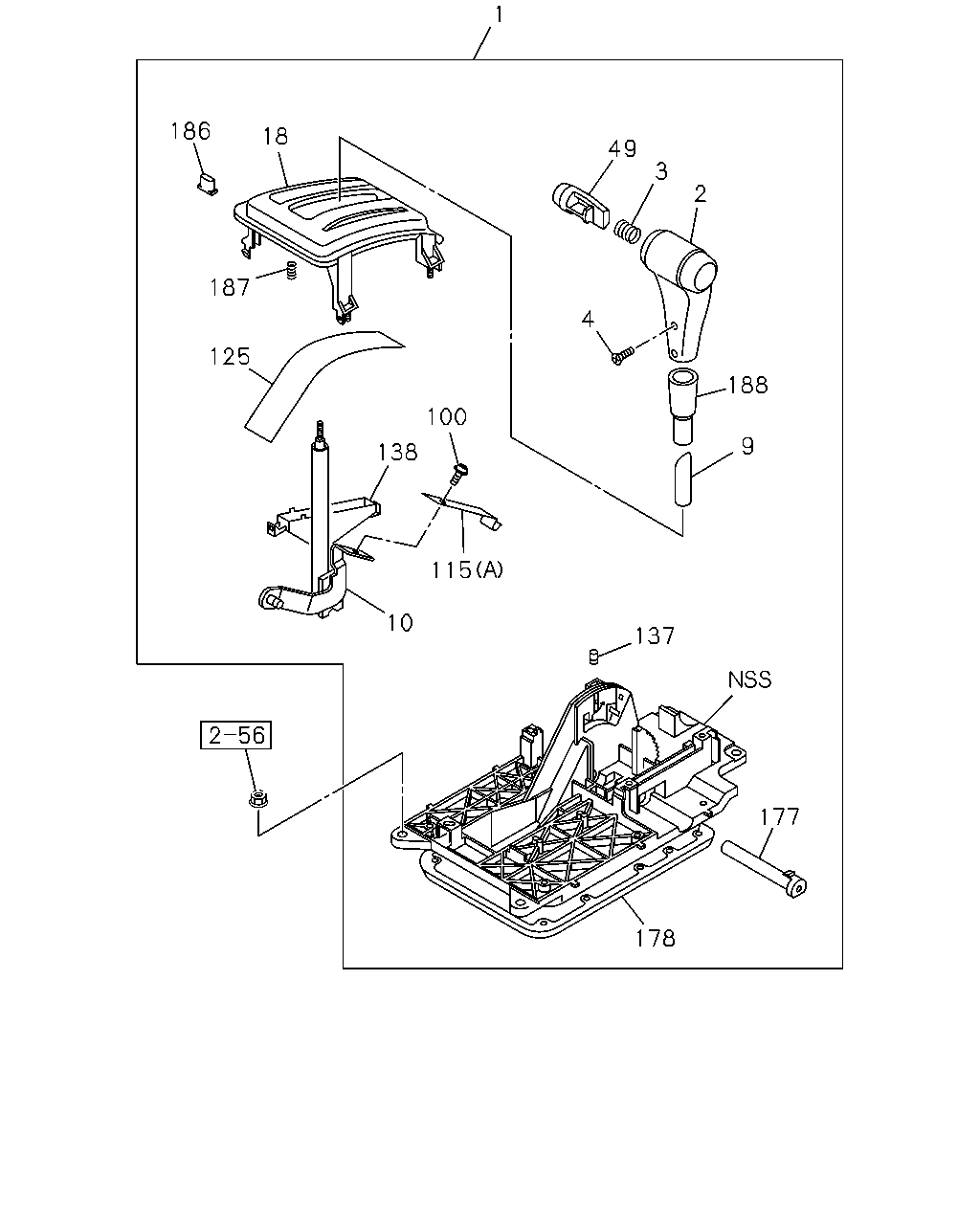

1 49 3 2 4 188 9 137 177 178 10 115 100 138 125 187 186 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.006 LEVER; SHIFT,A/T SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97298-467-4	01	1	0307-0511	●
1	04.006 LEVER; SHIFT,A/T SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97404-462-0	01	1	0512-0609	●
1	04.006 LEVER; SHIFT,A/T SHIFT KNOB LEATHER<VY7> LIGHT GRAY	8-97403-655-1	01	1	0610-1003		●
1	04.006 LEVER; SHIFT,A/T SHIFT KNOB LEATHER<VY7> LIGHT GRAY	8-97418-476-0	01	1	1004-		●
1	04.006 LEVER; SHIFT,A/T EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97298-775-3	01	1	0307-0511	●
1	04.006 LEVER; SHIFT,A/T EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97404-460-0	01	1	0512-0609	●
1	04.006 LEVER; SHIFT,A/T EXC. SHIFT KNOB LEATHER<VY7> LIGHT GRAY	8-97403-640-0	01	1	0610-1003		●
1	04.006 LEVER; SHIFT,A/T EXC. SHIFT KNOB LEATHER<VY7>	8-97418-601-0	01	1	1004-		●
2	04.006 KNOB ASM; AUTO CONT LEVER SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97393-975-0	01	1	0307-0609	●
2	04.006 KNOB ASM; AUTO CONT LEVER SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97408-715-0	01	1	0610-		●
2	04.006 KNOB ASM; AUTO CONT LEVER EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97393-976-0	01	1	0307-0609	●
2	04.006 KNOB ASM; AUTO CONT LEVER EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97396-836-0	01	1	0610-		●
3	04.008 SPRING; RETURN,KNOB	8-97332-979-0	01	1	0307-0609	●
3	04.008 SPRING; RETURN,KNOB	8-97332-979-0	01	1	0610-		●
4	04.006 SCREW; KNOB TO LEVER	8-97332-950-0	02	1	0307-0609	●
4	04.006 SCREW; KNOB TO LEVER	8-97332-950-0	02	1	0610-		●
9	04.006 SLEEVE; KNOB,SHIFT LEVER	8-97332-980-0	01	1	0307-0609	●
9	04.006 SLEEVE; KNOB,SHIFT LEVER	8-97332-980-0	01	1	0610-		●
10	04.006 LEVER; A/T CONT	8-97332-956-0	01	1	0307-0609	●
10	04.006 LEVER; A/T CONT	8-98032-564-0	01	1	0610-		●
18	04.020 COVER; INDICATOR,UPR DARK GRAY	8-97393-973-0	01	1	0307-0609	●
18	04.020 COVER; INDICATOR,UPR LIGHT GRAY	8-97407-874-0	01	1	0610-		●
49	04.006 BUTTON; PUSH,KNOB DARK GRAY	8-97393-974-0	01	1	0307-0609	●
49	04.006 BUTTON; PUSH,KNOB SHIFT KNOB LEATHER<VY7>	8-98032-538-0	01	1	0610-		●
49	04.006 BUTTON; PUSH,KNOB EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97396-835-0	01	1	0610-		●
100	04.012 SCREW	8-97332-953-0	01	1	0307-0609	●
100	04.012 SCREW	8-97332-953-0	01	1	0610-		●
115	04.008 PLATE; SPR,LEVER (A)	8-97332-936-0	01	1	0307-0609	●
115	04.008 PLATE; SPR,LEVER (A)	8-97332-936-0	01	1	0610-		●
115	04.008 PLATE; SPR,LEVER (B)	8-97332-939-0	01	1	0307-0609	●
125	04.020 COVER; SHIFT LEVER	8-97332-934-0	01	1	0307-0609	●
125	04.020 COVER; SHIFT LEVER EXC. SHIFT KNOB LEATHER<VY7>	8-97332-934-0	01	1	0610-		●
125	04.020 COVER; SHIFT LEVER SHIFT KNOB LEATHER<VY7>	8-98052-035-0	01	1	0610-		●
137	04.010 CUSHION	8-97332-938-0	03	1	0307-0609	●
137	04.010 CUSHION	8-97332-938-0	03	1	0610-		●
138	04.030 BOX; LAMP	8-97332-976-0	01	1	0307-0609	●
138	04.030 BOX; LAMP	8-98032-536-0	01	1	0610-		●
177	04.040 SHAFT; SHIFT LEVER,A/T	8-97332-952-0	01	1	0307-0609	●
177	04.040 SHAFT; SHIFT LEVER,A/T	8-97332-952-0	01	1	0610-		●
178	04.008 SHEET; SHIFT LEVER	8-97332-935-0	01	1	0307-0609	●
178	04.008 SHEET; SHIFT LEVER	8-97332-935-0	01	1	0610-		●
186	04.006 BUTTON; SHIFT LOCK DARK GRAY	8-97407-872-0	01	1	0610-		●
187	04.008 SPRING; RETURN,SHIFT	8-98032-566-0	01	1	0610-		●
188	04.008 COVER; KNOB SHIFT KNOB LEATHER<VY7>	8-98032-557-0	01	1	0610-		●

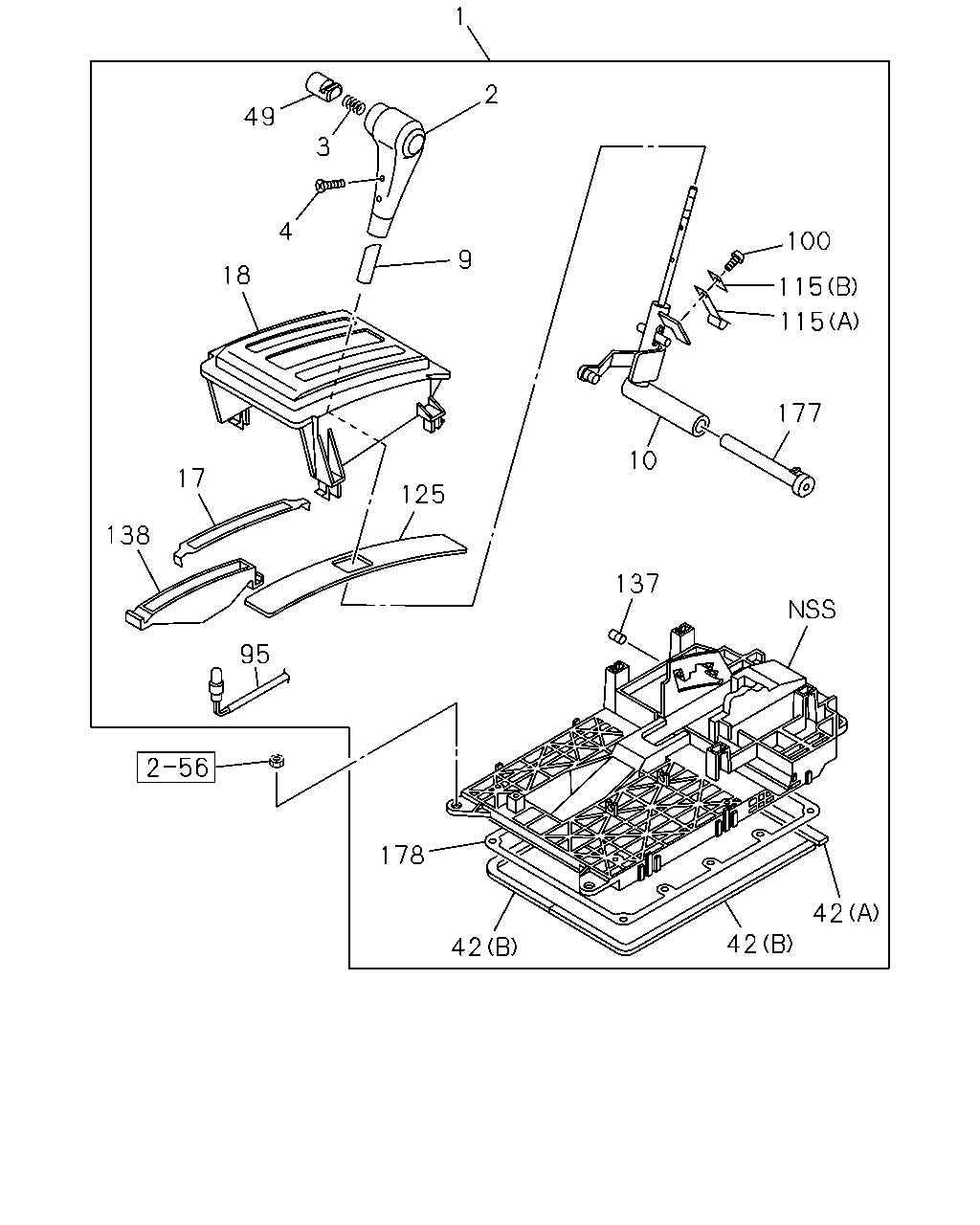

1 2 9 3 49 4 18 17 138 95 125 137 10 177 178 42 42 42 115 115 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.006 LEVER; SHIFT,A/T SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97298-467-4	01	1	0307-0511	●
1	04.006 LEVER; SHIFT,A/T SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97404-462-0	01	1	0512-0609	●
1	04.006 LEVER; SHIFT,A/T SHIFT KNOB LEATHER<VY7> LIGHT GRAY	8-97403-655-1	01	1	0610-1003		●
1	04.006 LEVER; SHIFT,A/T SHIFT KNOB LEATHER<VY7> LIGHT GRAY	8-97418-476-0	01	1	1004-		●
1	04.006 LEVER; SHIFT,A/T EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97298-775-3	01	1	0307-0511	●
1	04.006 LEVER; SHIFT,A/T EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97404-460-0	01	1	0512-0609	●
1	04.006 LEVER; SHIFT,A/T EXC. SHIFT KNOB LEATHER<VY7> LIGHT GRAY	8-97403-640-0	01	1	0610-1003		●
1	04.006 LEVER; SHIFT,A/T EXC. SHIFT KNOB LEATHER<VY7>	8-97418-601-0	01	1	1004-		●
2	04.006 KNOB ASM; AUTO CONT LEVER SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97393-975-0	01	1	0307-0609	●
2	04.006 KNOB ASM; AUTO CONT LEVER SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97408-715-0	01	1	0610-		●
2	04.006 KNOB ASM; AUTO CONT LEVER EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97393-976-0	01	1	0307-0609	●
2	04.006 KNOB ASM; AUTO CONT LEVER EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97396-836-0	01	1	0610-		●
3	04.008 SPRING; RETURN,KNOB	8-97332-979-0	01	1	0307-0609	●
3	04.008 SPRING; RETURN,KNOB	8-97332-979-0	01	1	0610-		●
4	04.006 SCREW; KNOB TO LEVER	8-97332-950-0	02	1	0307-0609	●
4	04.006 SCREW; KNOB TO LEVER	8-97332-950-0	02	1	0610-		●
9	04.006 SLEEVE; KNOB,SHIFT LEVER	8-97332-980-0	01	1	0307-0609	●
9	04.006 SLEEVE; KNOB,SHIFT LEVER	8-97332-980-0	01	1	0610-		●
10	04.006 LEVER; A/T CONT	8-97332-956-0	01	1	0307-0609	●
10	04.006 LEVER; A/T CONT	8-98032-564-0	01	1	0610-		●
17	04.020 PLATE; INDICATOR	8-97332-933-0	01	1	0307-0609	●
18	04.020 COVER; INDICATOR,UPR DARK GRAY	8-97393-973-0	01	1	0307-0609	●
18	04.020 COVER; INDICATOR,UPR LIGHT GRAY	8-97407-874-0	01	1	0610-		●
42	04.057 SEAL; RUBBER (A)	8-97332-954-0	01	1	0307-0511	●
42	04.057 SEAL; RUBBER (B)	8-97332-955-0	02	1	0307-0511	●
49	04.006 BUTTON; PUSH,KNOB DARK GRAY	8-97393-974-0	01	1	0307-0609	●
49	04.006 BUTTON; PUSH,KNOB SHIFT KNOB LEATHER<VY7>	8-98032-538-0	01	1	0610-		●
49	04.006 BUTTON; PUSH,KNOB EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97396-835-0	01	1	0610-		●
95	04.006 LAMP; INDICATOR	8-97332-977-0	01	1	0307-0609	●
100	04.012 SCREW	8-97332-953-0	01	1	0307-0609	●
100	04.012 SCREW	8-97332-953-0	01	1	0610-		●
115	04.008 PLATE; SPR,LEVER (A)	8-97332-936-0	01	1	0307-0609	●
115	04.008 PLATE; SPR,LEVER (A)	8-97332-936-0	01	1	0610-		●
115	04.008 PLATE; SPR,LEVER (B)	8-97332-939-0	01	1	0307-0609	●
125	04.020 COVER; SHIFT LEVER	8-97332-934-0	01	1	0307-0609	●
125	04.020 COVER; SHIFT LEVER EXC. SHIFT KNOB LEATHER<VY7>	8-97332-934-0	01	1	0610-		●
125	04.020 COVER; SHIFT LEVER SHIFT KNOB LEATHER<VY7>	8-98052-035-0	01	1	0610-		●
137	04.010 CUSHION	8-97332-938-0	03	1	0307-0609	●
137	04.010 CUSHION	8-97332-938-0	03	1	0610-		●
138	04.030 BOX; LAMP	8-97332-976-0	01	1	0307-0609	●
138	04.030 BOX; LAMP	8-98032-536-0	01	1	0610-		●
177	04.040 SHAFT; SHIFT LEVER,A/T	8-97332-952-0	01	1	0307-0609	●
177	04.040 SHAFT; SHIFT LEVER,A/T	8-97332-952-0	01	1	0610-		●
178	04.008 SHEET; SHIFT LEVER	8-97332-935-0	01	1	0307-0609	●
178	04.008 SHEET; SHIFT LEVER	8-97332-935-0	01	1	0610-		●

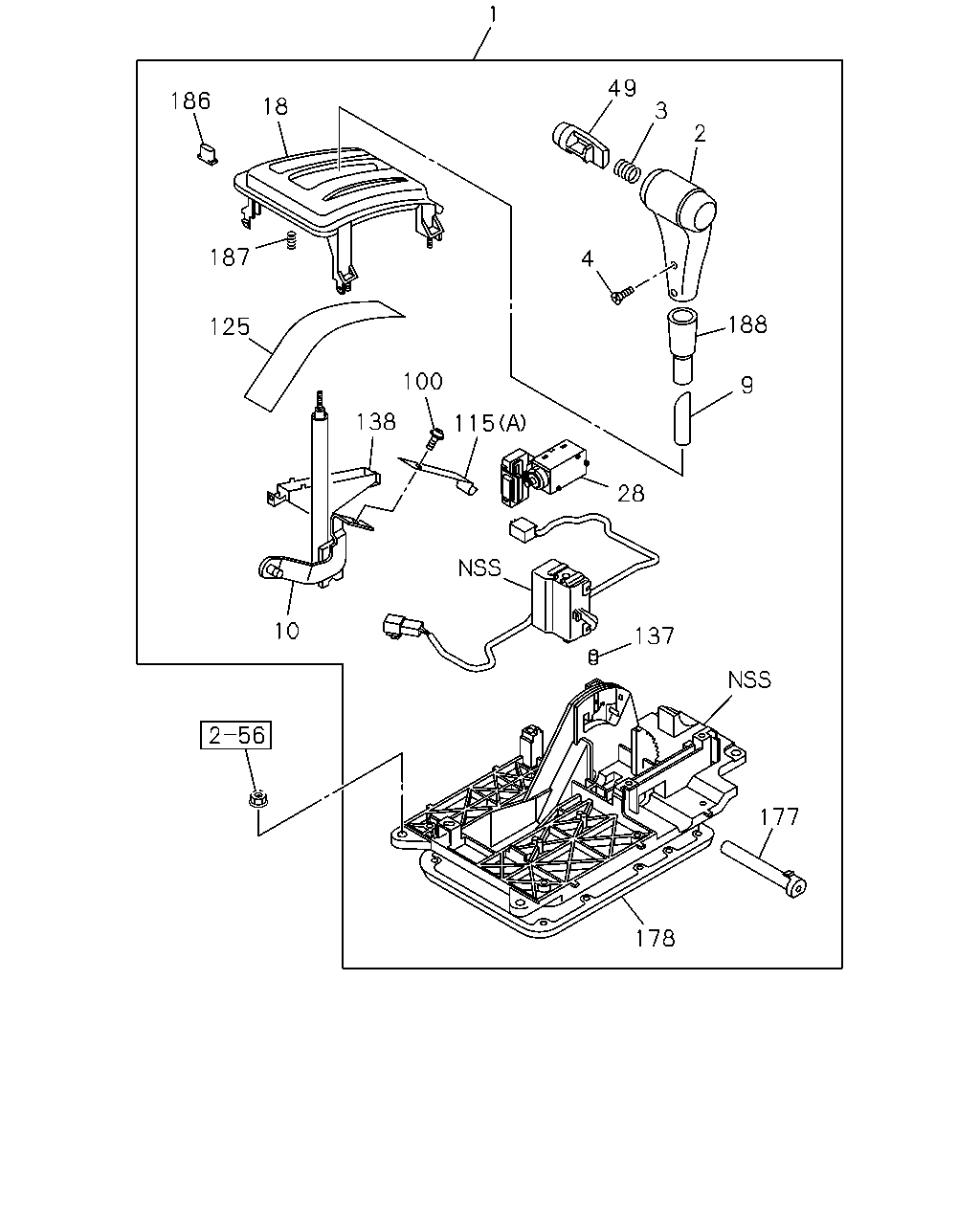

1 49 3 2 188 9 4 115 100 138 28 137 177 178 10 125 187 186 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.006 LEVER; SHIFT,A/T SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97298-467-4	01	1	0307-0511	●
1	04.006 LEVER; SHIFT,A/T SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97404-462-0	01	1	0512-0609	●
1	04.006 LEVER; SHIFT,A/T SHIFT KNOB LEATHER<VY7> LIGHT GRAY	8-97403-655-1	01	1	0610-1003		●
1	04.006 LEVER; SHIFT,A/T SHIFT KNOB LEATHER<VY7> LIGHT GRAY	8-97418-476-0	01	1	1004-		●
1	04.006 LEVER; SHIFT,A/T EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97298-775-3	01	1	0307-0511	●
1	04.006 LEVER; SHIFT,A/T EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97404-460-0	01	1	0512-0609	●
1	04.006 LEVER; SHIFT,A/T EXC. SHIFT KNOB LEATHER<VY7> LIGHT GRAY	8-97403-640-0	01	1	0610-1003		●
1	04.006 LEVER; SHIFT,A/T EXC. SHIFT KNOB LEATHER<VY7>	8-97418-601-0	01	1	1004-		●
2	04.006 KNOB ASM; AUTO CONT LEVER SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97393-975-0	01	1	0307-0609	●
2	04.006 KNOB ASM; AUTO CONT LEVER SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97408-715-0	01	1	0610-		●
2	04.006 KNOB ASM; AUTO CONT LEVER EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97393-976-0	01	1	0307-0609	●
2	04.006 KNOB ASM; AUTO CONT LEVER EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97396-836-0	01	1	0610-		●
3	04.008 SPRING; RETURN,KNOB	8-97332-979-0	01	1	0307-0609	●
3	04.008 SPRING; RETURN,KNOB	8-97332-979-0	01	1	0610-		●
4	04.006 SCREW; KNOB TO LEVER	8-97332-950-0	02	1	0307-0609	●
4	04.006 SCREW; KNOB TO LEVER	8-97332-950-0	02	1	0610-		●
9	04.006 SLEEVE; KNOB,SHIFT LEVER	8-97332-980-0	01	1	0307-0609	●
9	04.006 SLEEVE; KNOB,SHIFT LEVER	8-97332-980-0	01	1	0610-		●
10	04.006 LEVER; A/T CONT	8-97332-956-0	01	1	0307-0609	●
10	04.006 LEVER; A/T CONT	8-98032-564-0	01	1	0610-		●
18	04.020 COVER; INDICATOR,UPR DARK GRAY	8-97393-973-0	01	1	0307-0609	●
18	04.020 COVER; INDICATOR,UPR LIGHT GRAY	8-97407-874-0	01	1	0610-		●
28	04.006 SOLENOID ASM	8-98032-553-0	01	1	1004-		●
49	04.006 BUTTON; PUSH,KNOB DARK GRAY	8-97393-974-0	01	1	0307-0609	●
49	04.006 BUTTON; PUSH,KNOB SHIFT KNOB LEATHER<VY7>	8-98032-538-0	01	1	0610-		●
49	04.006 BUTTON; PUSH,KNOB EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97396-835-0	01	1	0610-		●
100	04.012 SCREW	8-97332-953-0	01	1	0307-0609	●
100	04.012 SCREW	8-97332-953-0	01	1	0610-		●
115	04.008 PLATE; SPR,LEVER (A)	8-97332-936-0	01	1	0307-0609	●
115	04.008 PLATE; SPR,LEVER (A)	8-97332-936-0	01	1	0610-		●
115	04.008 PLATE; SPR,LEVER (B)	8-97332-939-0	01	1	0307-0609	●
125	04.020 COVER; SHIFT LEVER	8-97332-934-0	01	1	0307-0609	●
125	04.020 COVER; SHIFT LEVER EXC. SHIFT KNOB LEATHER<VY7>	8-97332-934-0	01	1	0610-		●
125	04.020 COVER; SHIFT LEVER SHIFT KNOB LEATHER<VY7>	8-98052-035-0	01	1	0610-		●
137	04.010 CUSHION	8-97332-938-0	03	1	0307-0609	●
137	04.010 CUSHION	8-97332-938-0	03	1	0610-		●
138	04.030 BOX; LAMP	8-97332-976-0	01	1	0307-0609	●
138	04.030 BOX; LAMP	8-98032-536-0	01	1	0610-		●
177	04.040 SHAFT; SHIFT LEVER,A/T	8-97332-952-0	01	1	0307-0609	●
177	04.040 SHAFT; SHIFT LEVER,A/T	8-97332-952-0	01	1	0610-		●
178	04.008 SHEET; SHIFT LEVER	8-97332-935-0	01	1	0307-0609	●
178	04.008 SHEET; SHIFT LEVER	8-97332-935-0	01	1	0610-		●
186	04.006 BUTTON; SHIFT LOCK DARK GRAY	8-97407-872-0	01	1	0610-		●
187	04.008 SPRING; RETURN,SHIFT	8-98032-566-0	01	1	0610-		●
188	04.008 COVER; KNOB SHIFT KNOB LEATHER<VY7>	8-98032-557-0	01	1	0610-		●
