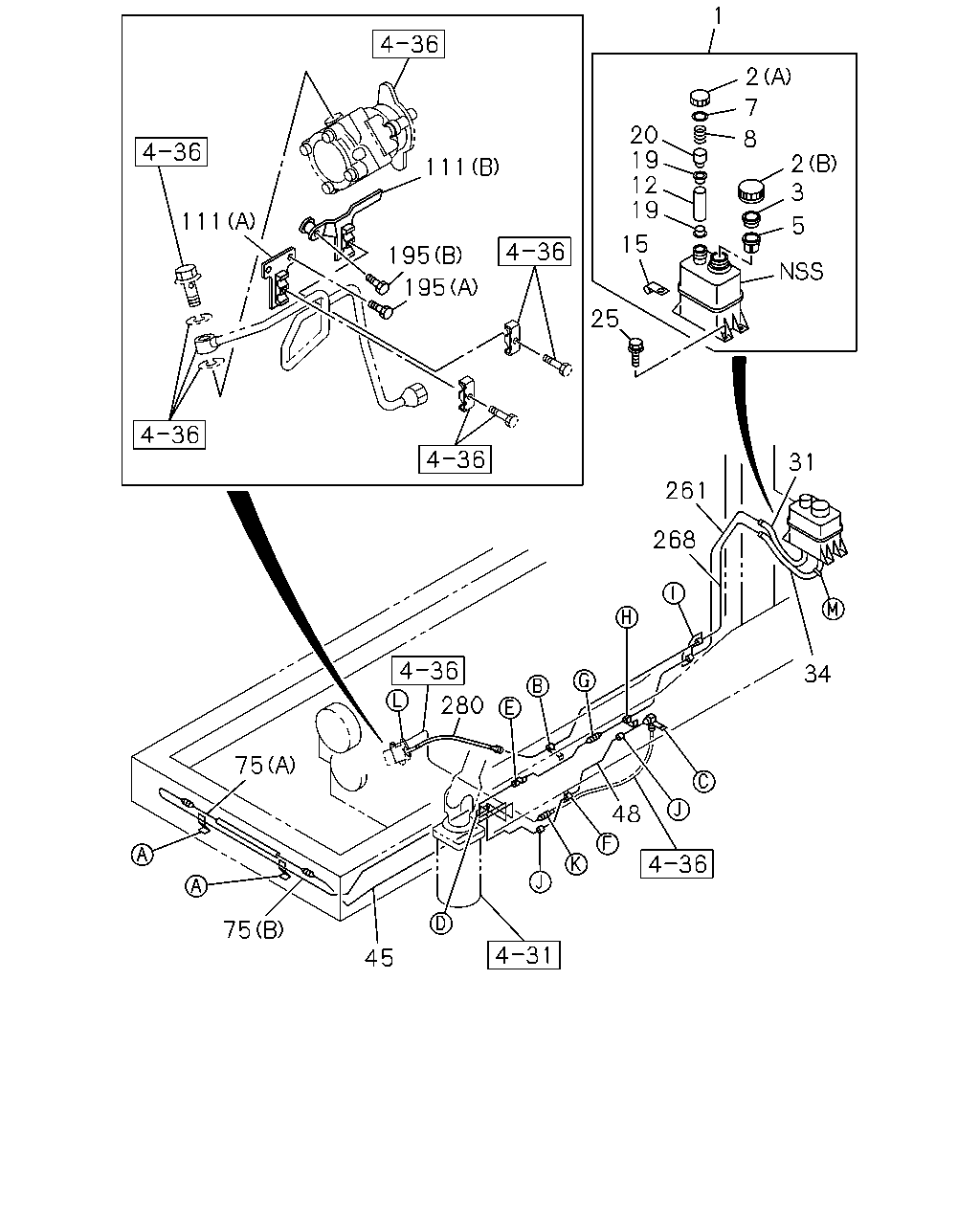

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#7433) — 133 parça

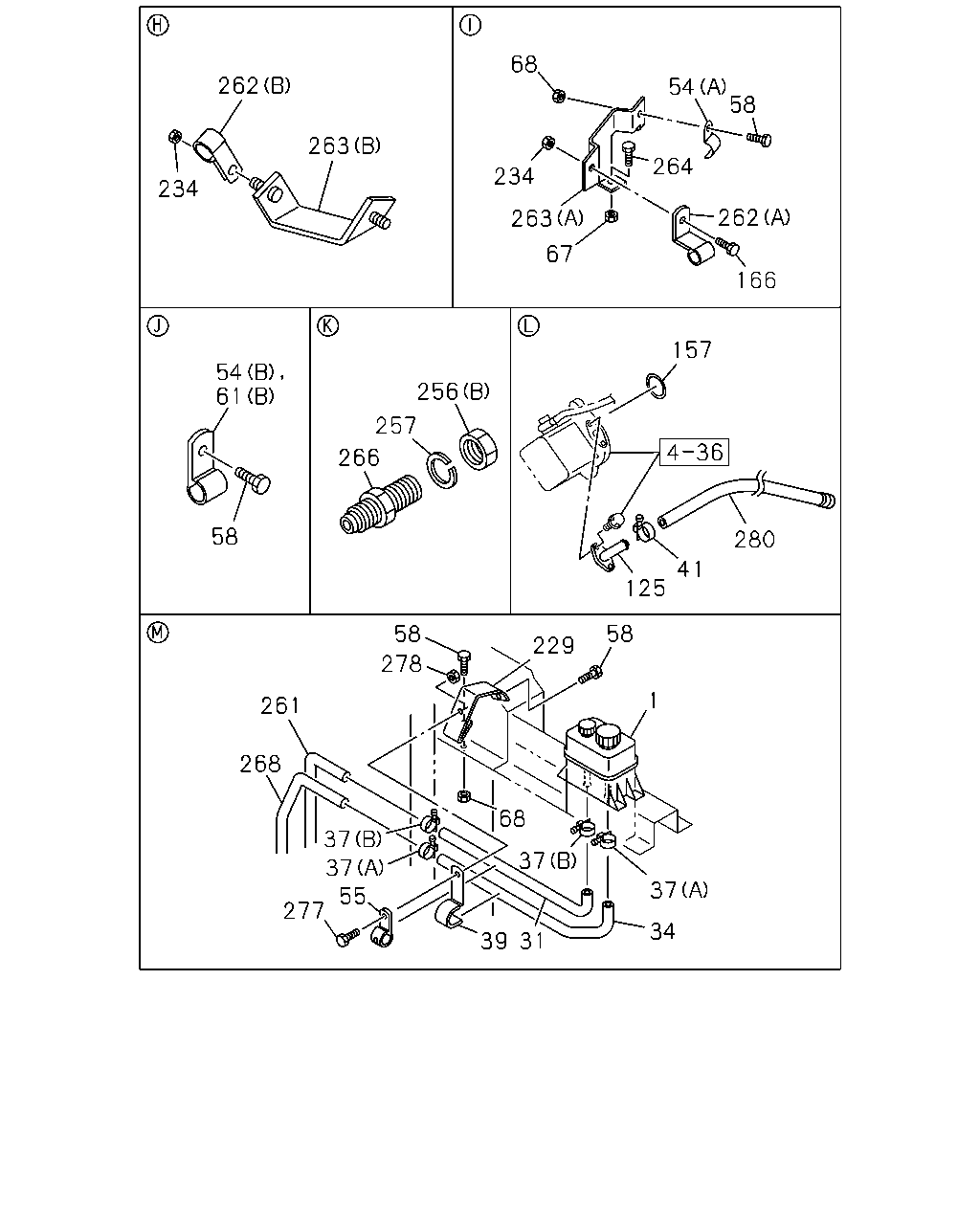

68 262 54 58 263 264 234 234 262 263 67 166 157 54 61 256 257 266 58 280 41 125 58 58 229 278 1 261 268 68 37 37 37 55 37 277 34 39 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	9812-
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	9812-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	9812-
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	02	1	9812-
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	9812-
39	CLIP; FLEX HOSE ID=32 L=75	1-09700-702-0	01	1	9812-
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	9812-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	9812-
54	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	01	1	9904-
55	CLIP; P/S RUBBER HOSE ID=28 L=30	1-09700-607-1	01	1	9812-
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	9812-
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9812-9903
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	9904-
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	02	1	9812-
58	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	02	1	9812-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9812-9903
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9812-9903
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9812-9903
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9904-9904
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9904-9904
61	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-
61	CLIP; OIL PIPE FULLER M/T<X9B>,ZF M/T<X9E> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-
61	CLIP; OIL PIPE (A) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9812-9903
61	CLIP; OIL PIPE (A) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	9904-
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	02	1	9812-
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	01	1	9812-
61	CLIP; OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	02	1	9905-
67	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9812-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	9812-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	9812-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	9812-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	9812-
166	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	9812-
166	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9812-
229	BRACKET; HOSE,POWER STRG	1-21464-407-1	01	1	9812-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	02	1	9812-
256	NUT; UNION (A) M22	9-09111-422-0	01	1	9812-
256	NUT; UNION (B) M22	9-09111-522-0	01	1	9812-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9812-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9812-
261	PIPE; OIL,UNION TO HOSE L=1034	1-21115-588-0	01	1	9812-0104
261	PIPE; OIL,UNION TO HOSE L=1031	1-21117-048-0	01	1	0105-
262	CLIP; P/S PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9812-
262	CLIP; P/S PIPE (B) ID=16 L=20	9-09525-535-0	01	1	9812-
263	BRACKET; P/S PIPE (A)	1-47476-483-2	01	1	9812-
263	BRACKET; P/S PIPE (B)	1-47477-597-3	01	1	9812-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28680-830-0	01	1	9812-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	9812-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE CAB UP +110MM<TGG> L=1305	1-21115-948-0	01	1	9812-0006
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE CAB UP +110MM<TGG> L=1315	1-21116-855-0	01	1	0007-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EXC. CAB UP +110MM<TGG>	1-21115-394-0	01	1	9812-0006
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EXC. CAB UP +110MM<TGG>	1-21116-854-0	01	1	0007-
277	BOLT; HOSE CLIP M10X25 FLANGE	0-28681-025-0	01	1	9812-
278	NUT; HOSE CLIP M10 FLANGE	0-91150-210-0	01	1	9812-
280	HOSE; P/S OIL PUMP,INL	1-21115-865-0	01	1	9812-

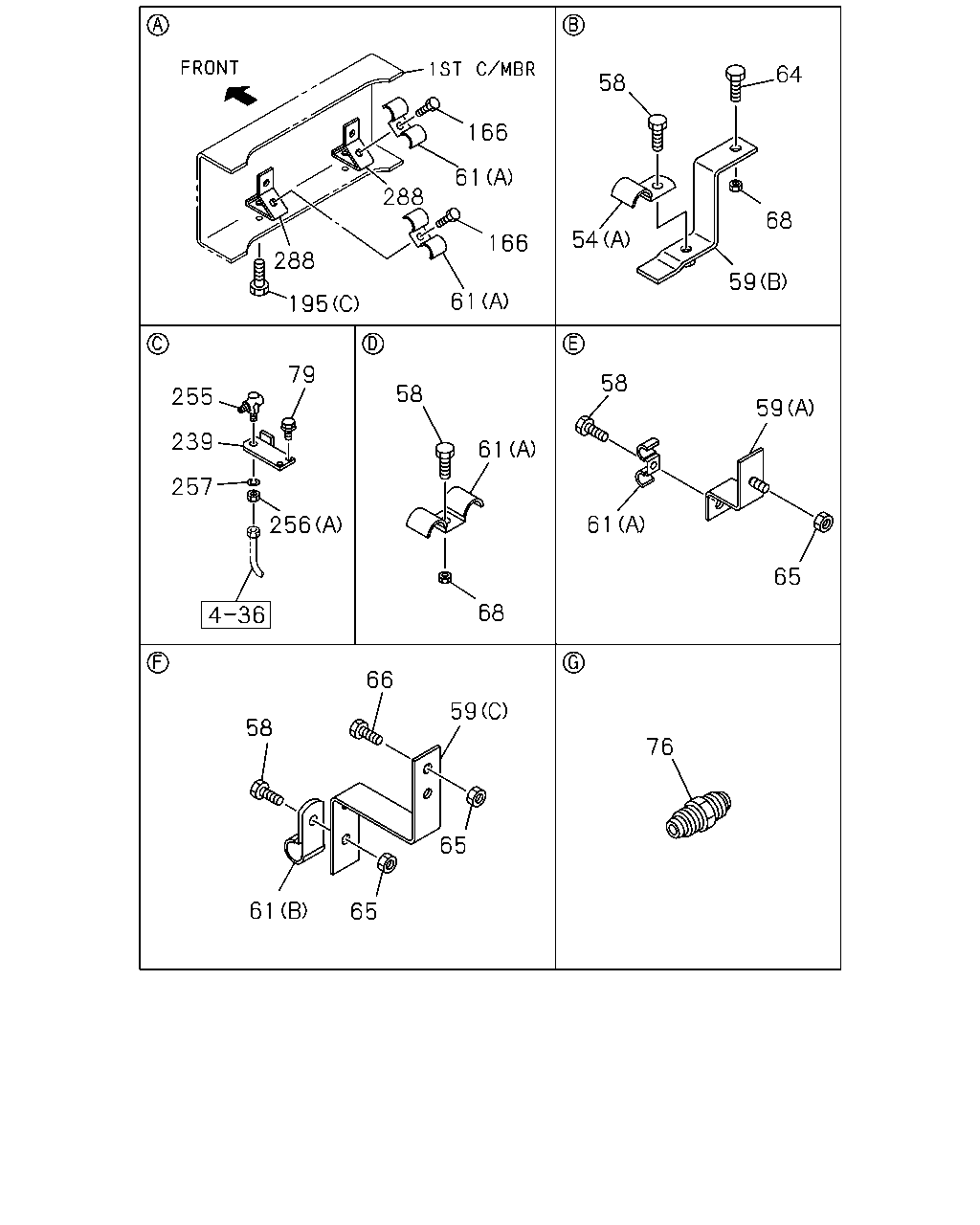

64 58 166 61 288 68 54 166 288 59 61 195 79 58 58 255 5 239 61 257 61 256 65 68 66 59 58 76 65 61 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	9812-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	9812-
54	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	01	1	9904-
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	9812-
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9812-9903
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	9904-
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	02	1	9812-
58	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	02	1	9812-
59	BRACKET; CLIP,OIL PIPE (C)	1-47475-963-1	01	1	9812-
59	BRACKET; CLIP,OIL PIPE (B)	1-47477-145-0	01	1	9812-
59	BRACKET; CLIP,OIL PIPE (A)	1-47477-235-0	01	1	9812-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9812-9903
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9812-9903
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9812-9903
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9904-9904
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9904-9904
61	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-
61	CLIP; OIL PIPE FULLER M/T<X9B>,ZF M/T<X9E> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-
61	CLIP; OIL PIPE (A) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9812-9903
61	CLIP; OIL PIPE (A) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	9904-
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	02	1	9812-
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	01	1	9812-
61	CLIP; OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	02	1	9905-
64	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	9812-0103
64	BOLT; CLIP BRKT M8X20 FLANGE	0-28080-820-0	01	1	0104-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9812-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9812-
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	9812-
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	9812-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	9812-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	9812-
76	UNION; OIL PIPE M22	9-09233-015-1	01	1	9812-
79	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9812-
166	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	9812-
166	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9812-
195	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	02	1	9812-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28181-035-0	01	1	9812-
195	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	02	1	9812-
239	BRACKET; FLEX HOSE	1-47476-679-4	01	1	9812-
255	UNION; FLEX HOSE M22 & M22 ELBOW	1-09654-163-1	01	1	9812-
256	NUT; UNION (A) M22	9-09111-422-0	01	1	9812-
256	NUT; UNION (B) M22	9-09111-522-0	01	1	9812-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9812-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9812-
288	BRACKET; CLIP,P/S	1-47477-621-1	02	1	9812-

1 2 7 20 19 12 19 8 2 3 111 111 5 15 195 195 25 31 261 268 34 280 75 48 75 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	9812-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-5	01	1	9812-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-3	01	1	9812-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	9812-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	9812-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	9812-
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	9812-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	9812-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	9812-
19	SEAT; OIL TANK	1-21262-001-0	02	1	9812-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	9812-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	9812-
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	9812-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	9812-
45	PIPE; OIL,P/S UNIT TO UNION	1-21115-570-0	01	1	9812-9903
45	PIPE; OIL,P/S UNIT TO UNION	1-21116-402-0	01	1	9904-0006
45	PIPE; OIL,P/S UNIT TO UNION	1-21116-848-0	01	1	0007-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21116-186-0	01	1	9812-
75	PIPE; OIL,P/S,UNION TO UNION (A)	1-21115-450-0	01	1	9812-0006
75	PIPE; OIL,P/S,UNION TO UNION (B)	1-21116-203-0	01	1	9812-9903
75	PIPE; OIL,P/S,UNION TO UNION (B)	1-21116-403-0	01	1	9904-
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	9812-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	9812-
195	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	02	1	9812-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28181-035-0	01	1	9812-
195	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	02	1	9812-
261	PIPE; OIL,UNION TO HOSE L=1034	1-21115-588-0	01	1	9812-0104
261	PIPE; OIL,UNION TO HOSE L=1031	1-21117-048-0	01	1	0105-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE CAB UP +110MM<TGG> L=1305	1-21115-948-0	01	1	9812-0006
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE CAB UP +110MM<TGG> L=1315	1-21116-855-0	01	1	0007-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EXC. CAB UP +110MM<TGG>	1-21115-394-0	01	1	9812-0006
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EXC. CAB UP +110MM<TGG>	1-21116-854-0	01	1	0007-
280	HOSE; P/S OIL PUMP,INL	1-21115-865-0	01	1	9812-
