◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50967 - TFR/TFS(EUROPE)-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-49 - AUTO TRANS INHIBITOR SWITCH ▶
2-49 — AUTO TRANS INHIBITOR SWITCH (#74328) — 59 parça

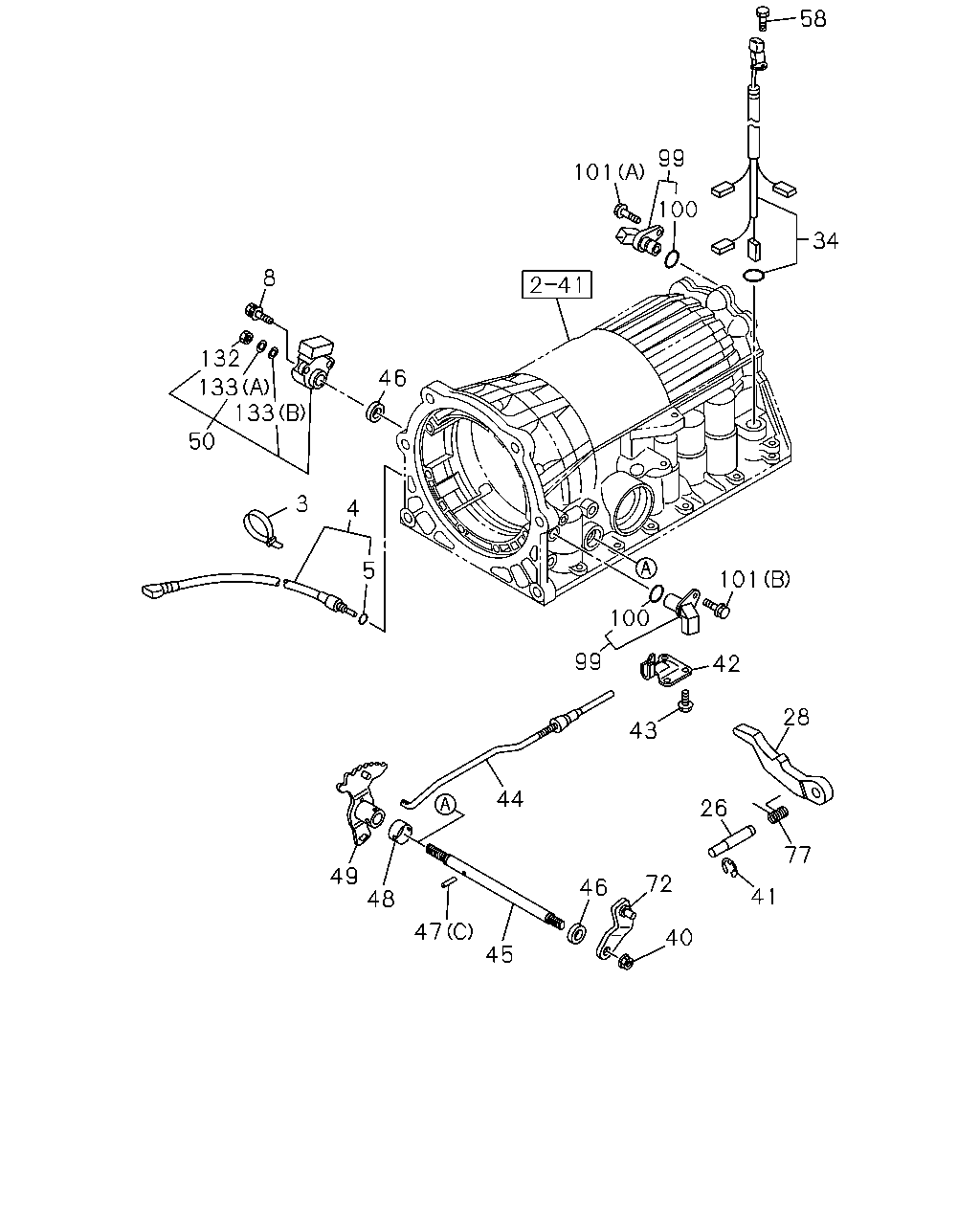

çizim 117534
58 99 101 100 34 8 132 46 133 133 50 3 4 5 101 100 99 42 28 43 44 26 77 49 48 72 46 41 47 40 45
BalonParca AdiParca NoAdetTipApplied Date A B
3 04.054 CLIP; INHIBITOR SW,A/T 8-94473-565-0 01 1 0610- ●
4 04.054 SENSOR; THERMO,A/T OIL
04.050 		8-97331-531-0 01 1 0610- ●
5 04.054 GASKET; OIL THERMO SENSOR,A/T 8-94479-726-0 01 1 0610- ●
8 04.054 BOLT; NEUTRAL START SW,A/T
M8X30 		8-97130-929-0 01 1 0610- ●
26 04.294 SHAFT; PARKING PAWL,A/T 8-97331-117-0 01 1 0307-0609 ●
26 04.294 SHAFT; PARKING PAWL,A/T 8-94479-975-0 01 1 0610- ●
28 04.294 PAWL; PARKING,A/T 8-97331-119-0 01 1 0307-0609 ●
28 04.294 PAWL; PARKING,A/T 8-97143-087-0 01 1 0610- ●
34 04.265 SOLENOID ASM; A/T 8-98050-495-0 01 1 0610- ●
40 04.037 NUT; LEVER TO SHAFT
03.162 M10 FLANGE 		0-91180-110-0 01 1 0307-0609 ●
40 04.037 NUT; LEVER TO SHAFT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0610- ●
41 04.290 RETAINER; SPR,SHAFT 5-34488-002-0 01 1 0610- ●
42 04.290 BRACKET; PARKING LOCK 8-97126-815-0 01 1 0610- ●
43 04.290 BOLT; BRKT
M6X14 		8-94479-978-0 03 1 0610- ●
44 04.290 ROD ASM; PARKING PAWL 8-98050-534-0 01 1 0610- ●
45 04.275 SHAFT; VALVE LEVER 8-97025-848-0 01 1 0610- ●
46 04.282 SEAL; OIL 8-97330-908-0 01 1 0307-0609 ●
46 04.282 SEAL; OIL
04.027 OD=22 		8-94479-740-0 02 1 0610- ●
47 04.275 PIN; ROLL SHAFT
(A) 		8-97331-125-0 01 1 0307-0609 ●
47 04.275 PIN; ROLL SHAFT
04.052 (C) D=4 		8-94257-081-0 01 1 0610- ●
47 04.275 PIN; ROLL SHAFT
(B) 		8-97331-126-0 01 1 0307-0609 ●
48 04.008 COVER; SLEEVE 8-97362-483-0 01 1 0610- ●
49 04.279 LEVER ASM; CAM 8-97331-535-0 01 1 0610- ●
50 04.054 SWITCH; NEUTRAL,A/T 8-97207-138-0 01 1 0610- ●
58 04.260 BOLT; SOLENOID TO A/T
04.050 M6X16 		8-94479-712-0 01 1 0610- ●
72 04.035 LEVER; SELECT CONT 8-97231-904-1 01 1 0307-0609 ●
72 04.035 LEVER; SELECT CONT 8-98005-235-0 01 1 0610- ●
77 04.295 SPRING; TORSION,PARKING BRK LK,A 8-94479-976-0 01 1 0610- ●
99 04.329 SENSOR; SPD 8-97027-383-0 02 1 1008- ●
99 04.329 SENSOR; SPD 8-97027-383-0 01 1 0610-1007 ●
100 04.239 GASKET; SPD SENSOR 8-97027-197-0 02 1 0610- ●
101 04.329 BOLT; SPD SENSOR
04.050 (A) M6X16 		8-94479-712-0 01 1 0610- ●
101 04.329 BOLT; SPD SENSOR
04.290 (B) M6X14 		8-94479-978-0 01 1 0610- ●
132 04.248 NUT; SWITCH
M16 		8-97354-883-0 01 1 0610- ●
133 04.248 WASHER; SWITCH
(B) 		8-97354-888-0 01 1 0610- ●
133 04.248 WASHER; SWITCH
(A) ID=16 		8-97354-889-0 01 1 0610- ●

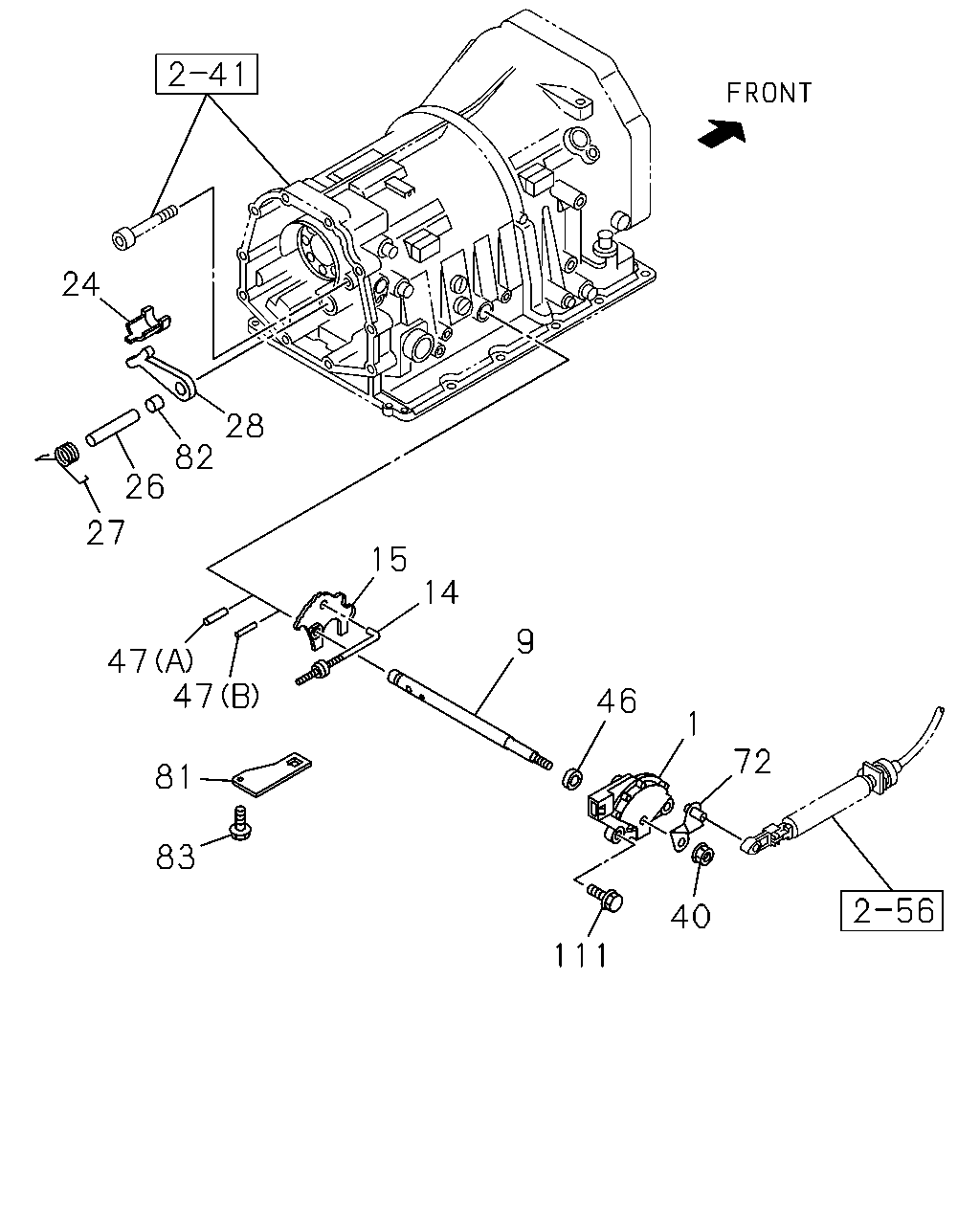

çizim 117630
24 28 82 26 27 15 14 9 47 47 46 1 72 81 83 40 111
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.054 SWITCH; INHIBITOR,A/T 8-97331-105-0 01 1 0307-0609 ●
9 04.275 SHAFT; MANUAL,A/T 8-97331-106-0 01 1 0307-0609 ●
14 04.290 ROD ASM; PARKING,A/T 8-97331-114-0 01 1 0307-0609 ●
15 04.275 PLATE; MANUAL SHAFT,A/T 8-97331-107-0 01 1 0307-0609 ●
24 04.290 SUPPORT; ACTUATOR,A/T 8-97331-116-0 01 1 0307-0609 ●
26 04.294 SHAFT; PARKING PAWL,A/T 8-97331-117-0 01 1 0307-0609 ●
26 04.294 SHAFT; PARKING PAWL,A/T 8-94479-975-0 01 1 0610- ●
27 04.295 SPRING; PAWL RETURN,A/T 8-97331-118-0 01 1 0307-0609 ●
28 04.294 PAWL; PARKING,A/T 8-97331-119-0 01 1 0307-0609 ●
28 04.294 PAWL; PARKING,A/T 8-97143-087-0 01 1 0610- ●
40 04.037 NUT; LEVER TO SHAFT
03.162 M10 FLANGE 		0-91180-110-0 01 1 0307-0609 ●
40 04.037 NUT; LEVER TO SHAFT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0610- ●
46 04.282 SEAL; OIL 8-97330-908-0 01 1 0307-0609 ●
46 04.282 SEAL; OIL
04.027 OD=22 		8-94479-740-0 02 1 0610- ●
47 04.275 PIN; ROLL SHAFT
(A) 		8-97331-125-0 01 1 0307-0609 ●
47 04.275 PIN; ROLL SHAFT
04.052 (C) D=4 		8-94257-081-0 01 1 0610- ●
47 04.275 PIN; ROLL SHAFT
(B) 		8-97331-126-0 01 1 0307-0609 ●
72 04.035 LEVER; SELECT CONT 8-97231-904-1 01 1 0307-0609 ●
72 04.035 LEVER; SELECT CONT 8-98005-235-0 01 1 0610- ●
81 04.293 SPRING; DETENT,MANUAL CONT PLATE 8-97331-113-0 01 1 0307-0609 ●
82 02.559 SPACER; DETENT SPRING 8-97330-950-0 01 1 0307-0609 ●
83 04.169 SCREW; DETENT SPRING,MANUAL CONT 8-97331-124-0 01 1 0307-0609 ●
111 02.559 BOLT; INHIBITOR SW 8-97331-127-0 02 1 0307-0609 ●
