◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50967 - TFR/TFS(EUROPE)-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#74312) — 43 parça

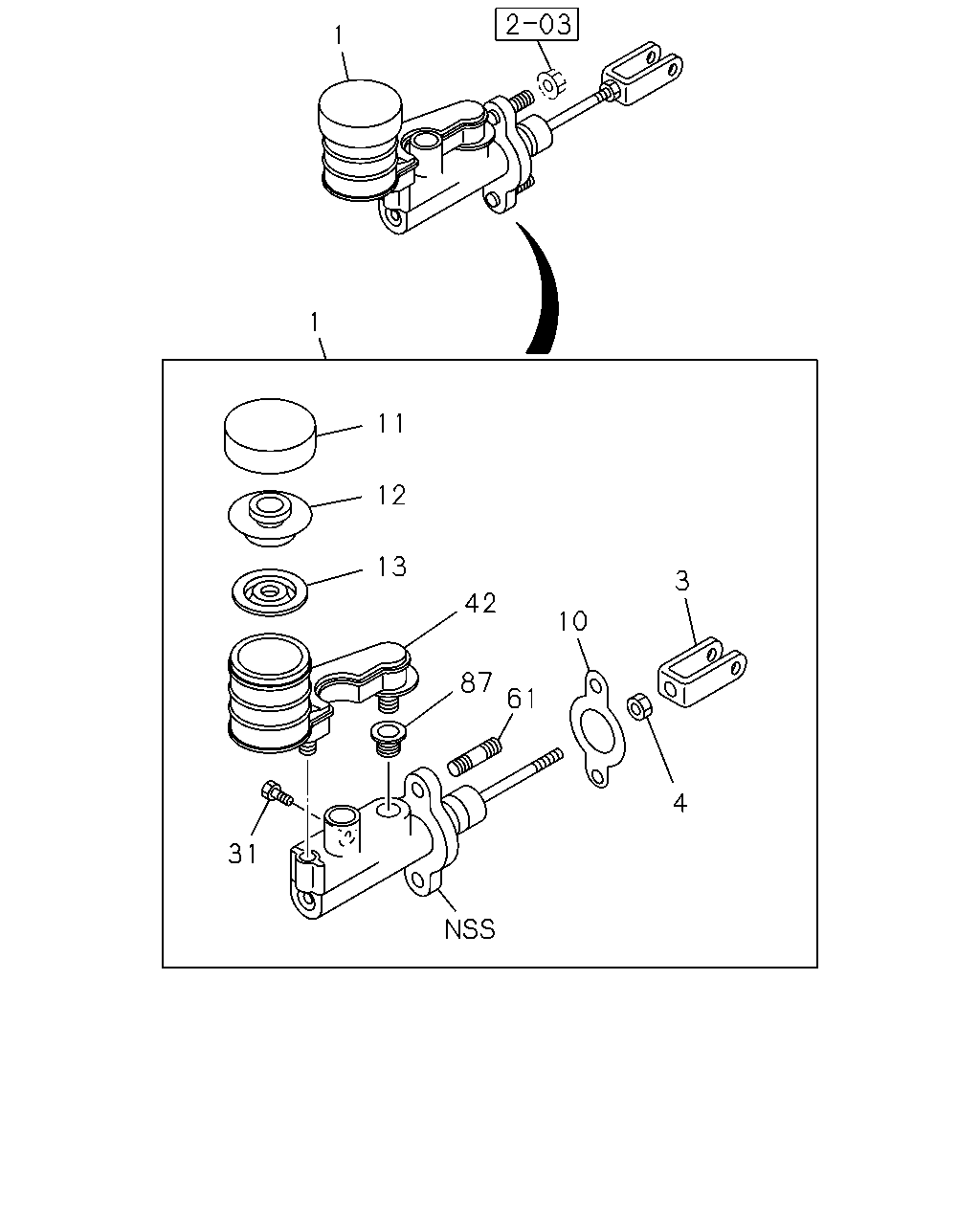

çizim 117501
1 1 11 12 13 3 42 10 87 61 4 31
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-97943-432-0 01 1 0307-0609 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-97944-509-1 01 1 0610- ● ●
3 00.777 JOINT; JAW,CLU M/CYL 8-94412-201-0 01 1 0307-0609 ●
3 00.777 JOINT; JAW,CLU M/CYL 8-97945-449-0 01 1 0610- ● ●
4 00.777 NUT; JAW JOINT
00.787 M8 		9-09111-408-0 01 1 0307-0512 ●
4 00.777 NUT; JAW JOINT
M8 		0-91111-508-0 01 1 0601-0609 ●
4 00.777 NUT; JAW JOINT
M8 		0-91111-508-0 01 1 0610- ● ●
10 00.777 GASKET; CLU M/CYL 8-97184-654-0 01 1 0307-0609 ●
10 00.777 GASKET; CLU M/CYL 8-97184-654-0 01 1 0610- ● ●
11 00.777 CAP; OUTER,CLU M/CYL 8-97942-836-0 01 1 0307-0609 ●
11 00.777 CAP; OUTER,CLU M/CYL 8-97942-836-0 01 1 0610- ● ●
12 00.775 CAP; INNER,OIL TANK,CLU M/CYL 8-94412-206-0 01 1 0307-0609 ●
12 00.775 CAP; INNER,OIL TANK,CLU M/CYL 8-94412-206-0 01 1 0610- ● ●
13 00.777 GASKET; OIL TANK 8-94412-205-0 01 1 0307-0609 ●
13 00.777 GASKET; OIL TANK 8-94412-205-0 01 1 0610- ● ●
31 00.777 BOLT; JOINT,CLU M/CYL 8-97942-992-0 01 1 0307-0609 ●
31 00.777 BOLT; JOINT,CLU M/CYL 8-97945-452-0 01 1 0610- ● ●
42 00.777 TANK; OIL,CLU 8-97942-835-0 01 1 0307-0609 ●
42 00.777 TANK; OIL,CLU 8-97945-451-0 01 1 0610- ● ●
61 00.777 BOLT; STUD 8-97945-450-0 02 1 0610- ● ●
87 00.777 GROMMET; CLU M/CYL 8-97942-834-0 01 1 0307-0609 ●
87 00.777 GROMMET; CLU M/CYL 8-97942-834-0 01 1 0610- ● ●
çizim 117607
1 1 11 12 3 13 10 42 87 4 31
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-97943-432-0 01 1 0307-0609 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-97944-509-1 01 1 0610- ● ●
3 00.777 JOINT; JAW,CLU M/CYL 8-94412-201-0 01 1 0307-0609 ●
3 00.777 JOINT; JAW,CLU M/CYL 8-97945-449-0 01 1 0610- ● ●
4 00.777 NUT; JAW JOINT
00.787 M8 		9-09111-408-0 01 1 0307-0512 ●
4 00.777 NUT; JAW JOINT
M8 		0-91111-508-0 01 1 0601-0609 ●
4 00.777 NUT; JAW JOINT
M8 		0-91111-508-0 01 1 0610- ● ●
10 00.777 GASKET; CLU M/CYL 8-97184-654-0 01 1 0307-0609 ●
10 00.777 GASKET; CLU M/CYL 8-97184-654-0 01 1 0610- ● ●
11 00.777 CAP; OUTER,CLU M/CYL 8-97942-836-0 01 1 0307-0609 ●
11 00.777 CAP; OUTER,CLU M/CYL 8-97942-836-0 01 1 0610- ● ●
12 00.775 CAP; INNER,OIL TANK,CLU M/CYL 8-94412-206-0 01 1 0307-0609 ●
12 00.775 CAP; INNER,OIL TANK,CLU M/CYL 8-94412-206-0 01 1 0610- ● ●
13 00.777 GASKET; OIL TANK 8-94412-205-0 01 1 0307-0609 ●
13 00.777 GASKET; OIL TANK 8-94412-205-0 01 1 0610- ● ●
31 00.777 BOLT; JOINT,CLU M/CYL 8-97942-992-0 01 1 0307-0609 ●
31 00.777 BOLT; JOINT,CLU M/CYL 8-97945-452-0 01 1 0610- ● ●
42 00.777 TANK; OIL,CLU 8-97942-835-0 01 1 0307-0609 ●
42 00.777 TANK; OIL,CLU 8-97945-451-0 01 1 0610- ● ●
87 00.777 GROMMET; CLU M/CYL 8-97942-834-0 01 1 0307-0609 ●
87 00.777 GROMMET; CLU M/CYL 8-97942-834-0 01 1 0610- ● ●
