4-31 — STEERING COLUMN AND SHAFT (#7431) — 31 parça

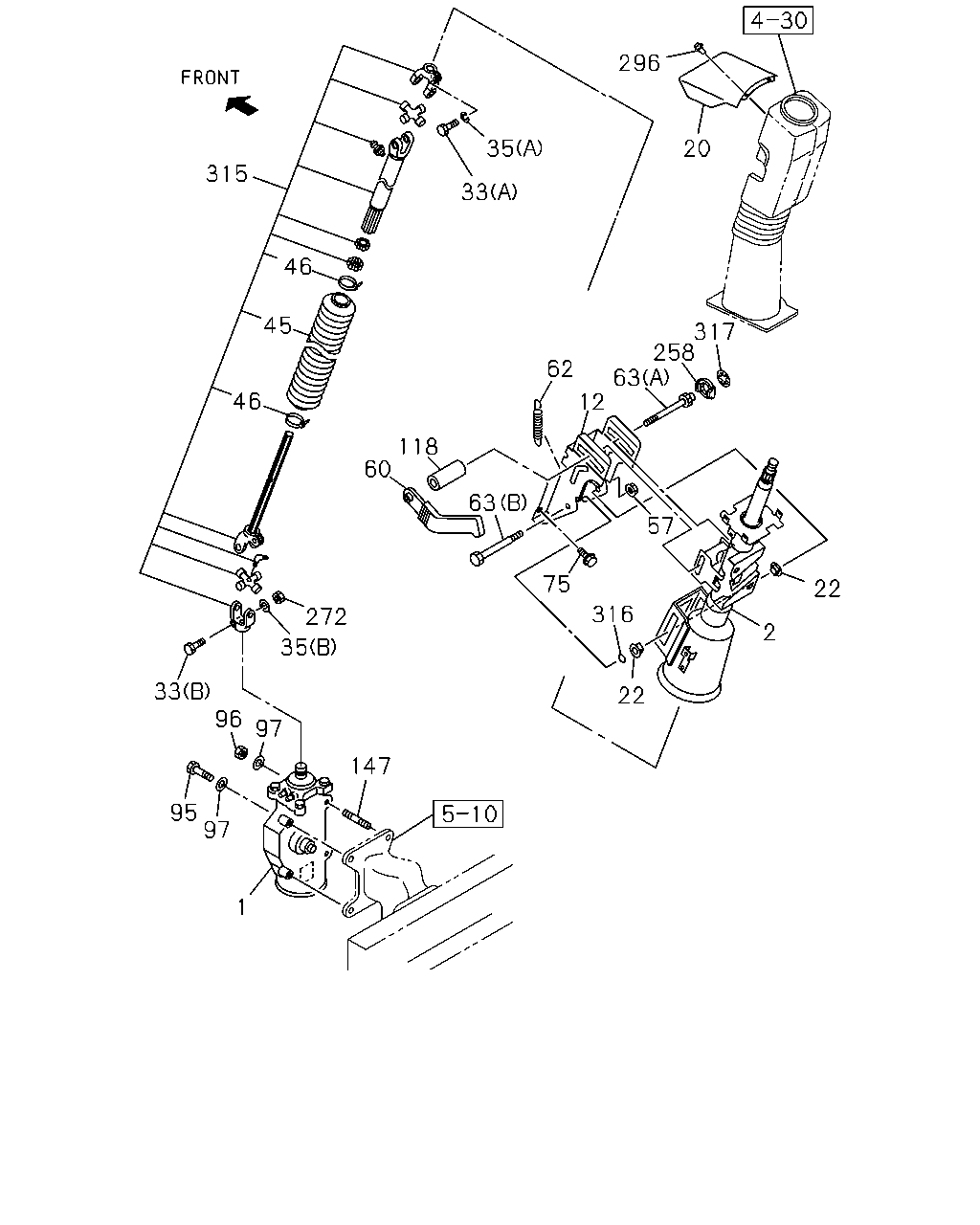

çizim 44297
296 35 20 315 33 46 317 258 63 12 45 62 46 118 60 63 57 75 22 316 272 2 35 33 96 22 97 147 95 97 1
BalonParca AdiParca NoAdetTipApplied Date
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-861-2 01 1 9812-9912
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. STRG VARIABLE CONTROL<TFY> 		1-44000-861-2 01 1 0001-
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. STRG VARIABLE CONTROL<TFY> 		1-44000-866-1 01 1 0001-
2 SHAFT ASM; STRG 1-44130-689-0 01 1 9812-
12 BRACKET; LWR,STRG COLUMN 1-44227-143-0 01 1 9812-
20 COVER; STRG SHAFT 1-72438-121-3 01 1 9812-
22 BUSHING; STRG COLUMN 1-44227-150-0 02 1 9812-
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-489-0 01 1 9812-
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-153-0 01 1 9812-
35 WASHER; LK,STRG SHAFT
(A) 		1-44139-154-0 01 1 9812-
35 WASHER; LK,STRG SHAFT
(B) ID=10.2 		9-09150-810-0 01 1 9812-
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 9812-
46 CLIP; BOOT 1-44139-156-0 02 1 9812-
57 NUT; ADJ BOLT 1-44227-151-0 01 1 9812-
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 9812-
62 SPRING; LK,LEVER 1-44227-153-0 02 1 9812-
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 9812-
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 9812-
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 9812-
95 BOLT; STRG UNIT
M18X65 		1-09000-583-0 03 1 9812-
96 NUT; STRG UNIT
M18 		9-99110-518-0 01 1 9812-
97 WASHER; PL,STRG UNIT
ID=18 		9-09851-862-0 04 1 9812-
118 NUT; LEVER,TILT BOLT 1-44227-146-0 01 1 9812-
147 STUD; STRG UNIT
M18X49 L=76 		1-09300-107-0 01 1 9812-
258 STOPPER; STRG COLUMN,TILT & TELESCOPIC 1-44227-147-0 01 1 9812-
272 NUT; SHAFT TO YOKE
M10 		9-09110-510-0 01 1 9812-
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 9812-
315 JOINT; SPLINE
CAB UP +110MM<TGG> 		1-44135-345-0 01 1 9812-
315 JOINT; SPLINE
EXC. CAB UP +110MM<TGG> 		1-44135-343-0 01 1 9812-
316 RING 1-44227-152-0 01 1 9812-
317 NUT; PUSH 1-44227-148-0 01 1 9812-
