◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50967 - TFR/TFS(EUROPE)-RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#74307) — 118 parça

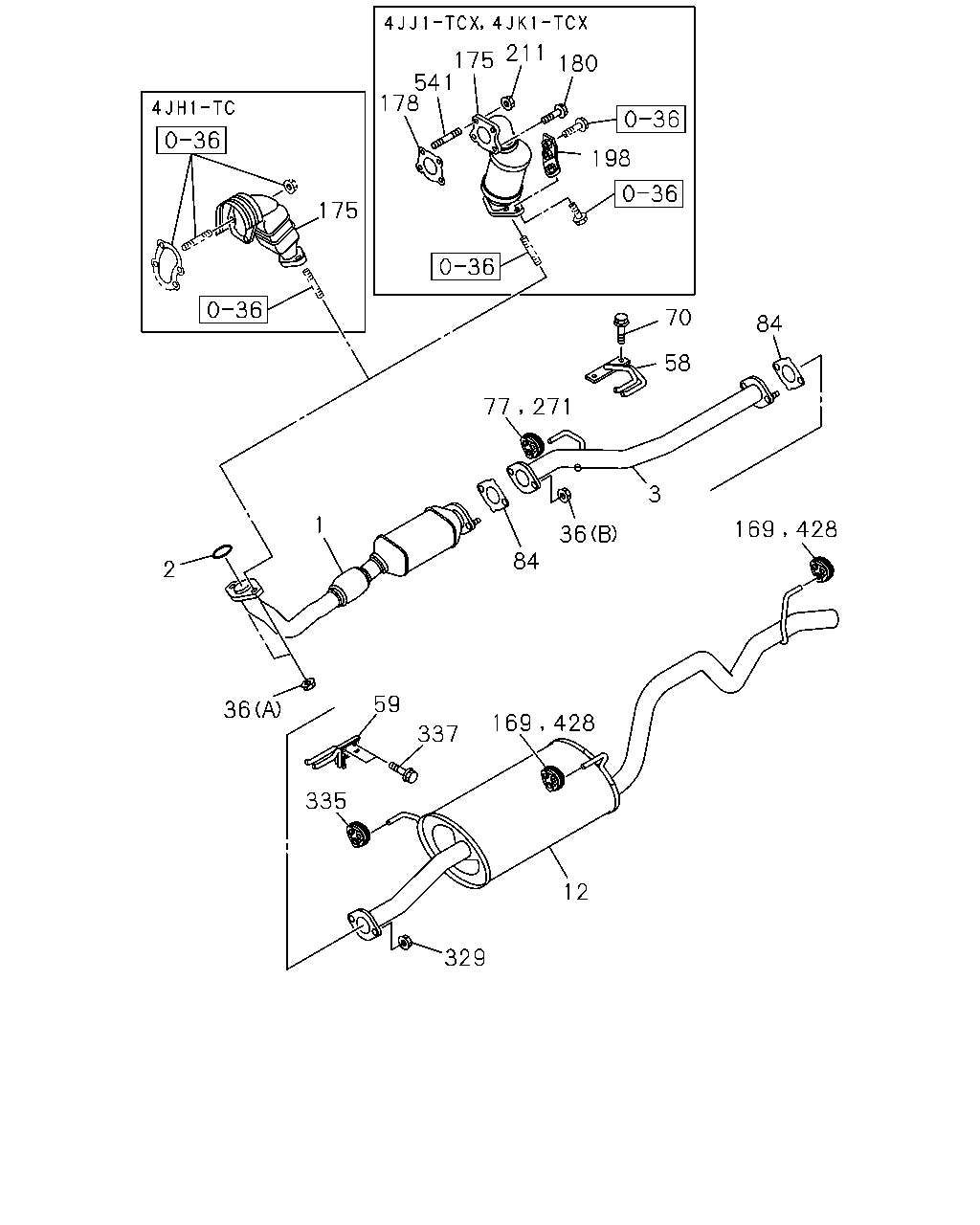

çizim 117603
211 175 541 178 180 198 175 70 84 58 3 1 36 84 2 59 36 337 335 12 329 77 271 169 428 169 428
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.609 PIPE; EXH
4X2(TFB***) 		8-97357-404-0 01 1 0307-0609 ●
1 03.609 PIPE; EXH
4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97380-259-1 01 1 0610-0910 ●
1 03.609 PIPE; EXH
4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98154-908-0 01 1 0911- ●
1 03.609 PIPE; EXH
4X4(TFS***) 		8-97357-405-0 01 1 0307-0508 ● ● ● ●
1 03.609 PIPE; EXH
4X4(TFS***) 		8-97357-405-0 01 1 0509-0609 ● ●
1 03.609 PIPE; EXH
4X4(TFS***) 		8-97380-260-1 01 1 0610-0910 ● ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) HIGH RIDE SUSPENSION(7YC) 		8-97380-260-1 01 1 0610-0910 ●
1 03.609 PIPE; EXH
4X4(TFS***) 		8-98155-099-0 01 1 0911- ● ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) HIGH RIDE SUSPENSION(7YC) 		8-98155-099-0 01 1 0911- ●
2 03.611 GASKET; PIPE TO MANIF 8-97069-287-0 01 1 0307-0509 ● ●
2 03.611 GASKET; PIPE TO MANIF 8-98017-270-0 01 1 0510-0609 ● ●
2 03.611 GASKET; PIPE TO MANIF 8-98017-270-0 01 1 0610- ● ●
3 03.609 PIPE; EXH,CENTER
4X4(TFS***) 		8-97316-563-0 01 1 0307-0508 ● ● ● ●
3 03.609 PIPE; EXH,CENTER
4X4(TFS***) 		8-97316-563-0 01 1 0509-0609 ● ●
3 03.609 PIPE; EXH,CENTER
4X4(TFS***) 		8-98029-203-0 01 1 0610- ● ●
3 03.609 PIPE; EXH,CENTER
4X2 CREW CAB(TFB*W*) HIGH RIDE SUSPENSION(7YC) 		8-98029-203-0 01 1 0610- ●
12 03.701 SILENCER ASM; EXH 8-97316-565-0 01 1 0307-0609 ● ●
12 03.701 SILENCER ASM; EXH 8-97380-267-1 01 1 0610- ● ●
36 03.613 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 02 1 0307-0609 ● ●
36 03.613 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 02 1 0610- ● ●
36 03.613 NUT; EXH PIPE
4X4(TFS***) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0307-0508 ● ● ● ●
36 03.613 NUT; EXH PIPE
4X4(TFS***) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0509-0609 ● ●
36 03.613 NUT; EXH PIPE
4X4(TFS***) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0610- ● ●
36 03.613 NUT; EXH PIPE
4X2 CREW CAB(TFB*W*) HIGH RIDE SUSPENSION(7YC) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0610- ●
58 03.613 BRACKET; EXH PIPE,RR 8-97368-450-0 01 1 0307-0609 ● ●
58 03.613 BRACKET; EXH PIPE,RR 8-97368-450-0 01 1 0610- ● ●
59 03.704 BRACKET; EXH SILENCER,FRT 8-97365-312-0 01 1 0307-0609 ● ●
59 03.704 BRACKET; EXH SILENCER,FRT 8-97365-312-0 01 1 0610- ● ●
70 03.706 BOLT; BRKT
03.690 M10X28 W/LK&PL WASHER 		8-97104-788-1 02 1 0307-0608 ● ●
70 03.706 BOLT; BRKT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 0609-0609 ● ●
70 03.706 BOLT; BRKT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 0610- ● ●
77 03.613 RUBBER; CUSHION,BRKT
03.706 		8-97289-169-0 01 1 0307-0609 ● ●
77 03.613 RUBBER; CUSHION,BRKT
03.706 		8-97289-169-0 01 1 0610-1007 ● ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 0307-0609 ● ●
84 03.611 GASKET; EXH PIPE
4X4(TFS***) ID=65 		8-97263-052-0 01 1 0307-0609 ● ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 0610- ● ●
84 03.611 GASKET; EXH PIPE
4X4(TFS***) ID=65 		8-97263-052-0 01 1 0610- ● ●
84 03.611 GASKET; EXH PIPE
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65 		8-97263-052-0 01 1 0610- ●
169 03.706 RING; DAMPER,EXH PIPE 8-97289-169-0 01 1 1008- ● ●
169 03.706 RING; DAMPER,EXH PIPE 8-97289-169-0 02 1 0307-0609 ● ●
169 03.706 RING; DAMPER,EXH PIPE 8-97289-169-0 02 1 0610-1007 ● ●
175 03.685 CONVERTER; CATALYST 8-97329-347-1 01 1 0307-0609 ●
175 03.685 CONVERTER; CATALYST 8-98038-425-0 01 1 0610-0909 ● ●
175 03.685 CONVERTER; CATALYST 8-98153-895-0 01 1 0910-1007 ● ●
175 03.685 CONVERTER; CATALYST 8-98156-386-0 01 1 1008- ● ●
178 03.611 GASKET; CONV TO MANIF 8-98011-532-0 01 1 0610-1007 ● ●
178 03.611 GASKET; CONV TO MANIF 8-98132-538-0 01 1 1008- ● ●
180 03.708 BOLT; CONV TO PIPE
03.417 M8X23 FLANGE 		8-97378-077-0 02 1 1008- ● ●
198 03.685 BRACKET; CONV MTG 8-98020-516-1 01 1 0610- ● ●
211 03.685 NUT; CONV
03.342 M8 FLANGE 		8-97379-384-0 04 1 0610-1007 ● ●
211 03.685 NUT; CONV
03.342 M8 FLANGE 		8-97379-384-0 02 1 1008- ● ●
271 03.704 RUBBER; HANGER,RR PIPE
03.706 		8-97289-169-0 01 1 1008- ● ●
329 03.613 NUT; EXH PIPE TO PIPE
03.162 M10 FLANGE 		0-91180-110-0 02 1 0307-0609 ● ●
329 03.613 NUT; EXH PIPE TO PIPE
03.162 M10 FLANGE 		0-91180-110-0 02 1 0610- ● ●
335 03.706 RUBBER; SUPPORT,SILENCER 8-97289-169-0 01 1 0307-0609 ● ●
335 03.706 RUBBER; SUPPORT,SILENCER 8-97289-169-0 01 1 0610- ● ●
337 03.706 BOLT; RUBBER,SUPPORT
03.690 M10X28 W/LK&PL WASHER 		8-97104-788-1 02 1 0307-0608 ● ●
337 03.706 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 0609- ● ●
428 03.704 RUBBER; MTG,CLAMP,EXH PIPE
03.706 		8-97289-169-0 01 1 1008- ● ●
541 03.708 STUD; CONV TO PIPE
03.601 M8X25 L=36 		8-97378-062-0 04 1 0610-1007 ● ●
541 03.708 STUD; CONV TO PIPE
03.601 M8X25 L=36 		8-97378-062-0 02 1 1008- ● ●

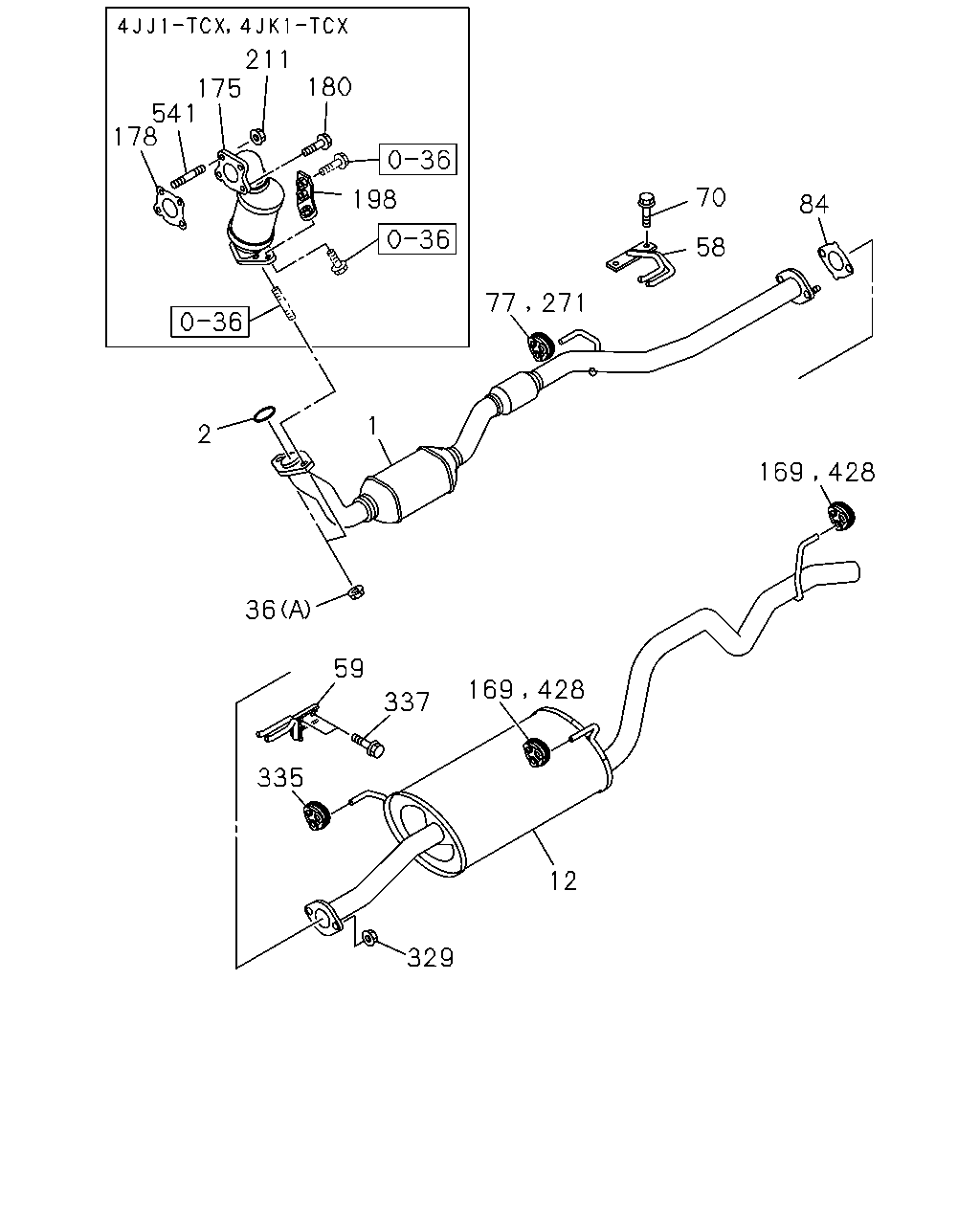

çizim 117604
211 175 541 178 180 70 198 84 58 1 2 36 59 337 335 12 329 77 271 169 428 169 428
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.609 PIPE; EXH
4X2(TFB***) 		8-97357-404-0 01 1 0307-0609 ●
1 03.609 PIPE; EXH
4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97380-259-1 01 1 0610-0910 ●
1 03.609 PIPE; EXH
4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98154-908-0 01 1 0911- ●
1 03.609 PIPE; EXH
4X4(TFS***) 		8-97357-405-0 01 1 0307-0508 ● ● ● ●
1 03.609 PIPE; EXH
4X4(TFS***) 		8-97357-405-0 01 1 0509-0609 ● ●
1 03.609 PIPE; EXH
4X4(TFS***) 		8-97380-260-1 01 1 0610-0910 ● ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) HIGH RIDE SUSPENSION(7YC) 		8-97380-260-1 01 1 0610-0910 ●
1 03.609 PIPE; EXH
4X4(TFS***) 		8-98155-099-0 01 1 0911- ● ●
1 03.609 PIPE; EXH
4X2 CREW CAB(TFB*W*) HIGH RIDE SUSPENSION(7YC) 		8-98155-099-0 01 1 0911- ●
2 03.611 GASKET; PIPE TO MANIF 8-97069-287-0 01 1 0307-0509 ● ●
2 03.611 GASKET; PIPE TO MANIF 8-98017-270-0 01 1 0510-0609 ● ●
2 03.611 GASKET; PIPE TO MANIF 8-98017-270-0 01 1 0610- ● ●
12 03.701 SILENCER ASM; EXH 8-97316-565-0 01 1 0307-0609 ● ●
12 03.701 SILENCER ASM; EXH 8-97380-267-1 01 1 0610- ● ●
36 03.613 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 02 1 0307-0609 ● ●
36 03.613 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 02 1 0610- ● ●
36 03.613 NUT; EXH PIPE
4X4(TFS***) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0307-0508 ● ● ● ●
36 03.613 NUT; EXH PIPE
4X4(TFS***) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0509-0609 ● ●
36 03.613 NUT; EXH PIPE
4X4(TFS***) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0610- ● ●
36 03.613 NUT; EXH PIPE
4X2 CREW CAB(TFB*W*) HIGH RIDE SUSPENSION(7YC) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0610- ●
58 03.613 BRACKET; EXH PIPE,RR 8-97368-450-0 01 1 0307-0609 ● ●
58 03.613 BRACKET; EXH PIPE,RR 8-97368-450-0 01 1 0610- ● ●
59 03.704 BRACKET; EXH SILENCER,FRT 8-97365-312-0 01 1 0307-0609 ● ●
59 03.704 BRACKET; EXH SILENCER,FRT 8-97365-312-0 01 1 0610- ● ●
70 03.706 BOLT; BRKT
03.690 M10X28 W/LK&PL WASHER 		8-97104-788-1 02 1 0307-0608 ● ●
70 03.706 BOLT; BRKT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 0609-0609 ● ●
70 03.706 BOLT; BRKT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 0610- ● ●
77 03.613 RUBBER; CUSHION,BRKT
03.706 		8-97289-169-0 01 1 0307-0609 ● ●
77 03.613 RUBBER; CUSHION,BRKT
03.706 		8-97289-169-0 01 1 0610-1007 ● ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 0307-0609 ● ●
84 03.611 GASKET; EXH PIPE
4X4(TFS***) ID=65 		8-97263-052-0 01 1 0307-0609 ● ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 0610- ● ●
84 03.611 GASKET; EXH PIPE
4X4(TFS***) ID=65 		8-97263-052-0 01 1 0610- ● ●
84 03.611 GASKET; EXH PIPE
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) ID=65 		8-97263-052-0 01 1 0610- ●
169 03.706 RING; DAMPER,EXH PIPE 8-97289-169-0 01 1 1008- ● ●
169 03.706 RING; DAMPER,EXH PIPE 8-97289-169-0 02 1 0307-0609 ● ●
169 03.706 RING; DAMPER,EXH PIPE 8-97289-169-0 02 1 0610-1007 ● ●
175 03.685 CONVERTER; CATALYST 8-97329-347-1 01 1 0307-0609 ●
175 03.685 CONVERTER; CATALYST 8-98038-425-0 01 1 0610-0909 ● ●
175 03.685 CONVERTER; CATALYST 8-98153-895-0 01 1 0910-1007 ● ●
175 03.685 CONVERTER; CATALYST 8-98156-386-0 01 1 1008- ● ●
178 03.611 GASKET; CONV TO MANIF 8-98011-532-0 01 1 0610-1007 ● ●
178 03.611 GASKET; CONV TO MANIF 8-98132-538-0 01 1 1008- ● ●
180 03.708 BOLT; CONV TO PIPE
03.417 M8X23 FLANGE 		8-97378-077-0 02 1 1008- ● ●
198 03.685 BRACKET; CONV MTG 8-98020-516-1 01 1 0610- ● ●
211 03.685 NUT; CONV
03.342 M8 FLANGE 		8-97379-384-0 04 1 0610-1007 ● ●
211 03.685 NUT; CONV
03.342 M8 FLANGE 		8-97379-384-0 02 1 1008- ● ●
271 03.704 RUBBER; HANGER,RR PIPE
03.706 		8-97289-169-0 01 1 1008- ● ●
329 03.613 NUT; EXH PIPE TO PIPE
03.162 M10 FLANGE 		0-91180-110-0 02 1 0307-0609 ● ●
329 03.613 NUT; EXH PIPE TO PIPE
03.162 M10 FLANGE 		0-91180-110-0 02 1 0610- ● ●
335 03.706 RUBBER; SUPPORT,SILENCER 8-97289-169-0 01 1 0307-0609 ● ●
335 03.706 RUBBER; SUPPORT,SILENCER 8-97289-169-0 01 1 0610- ● ●
337 03.706 BOLT; RUBBER,SUPPORT
03.690 M10X28 W/LK&PL WASHER 		8-97104-788-1 02 1 0307-0608 ● ●
337 03.706 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 0609- ● ●
428 03.704 RUBBER; MTG,CLAMP,EXH PIPE
03.706 		8-97289-169-0 01 1 1008- ● ●
541 03.708 STUD; CONV TO PIPE
03.601 M8X25 L=36 		8-97378-062-0 04 1 0610-1007 ● ●
541 03.708 STUD; CONV TO PIPE
03.601 M8X25 L=36 		8-97378-062-0 02 1 1008- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
