Sayfa 1-41 - Isuzu EPC

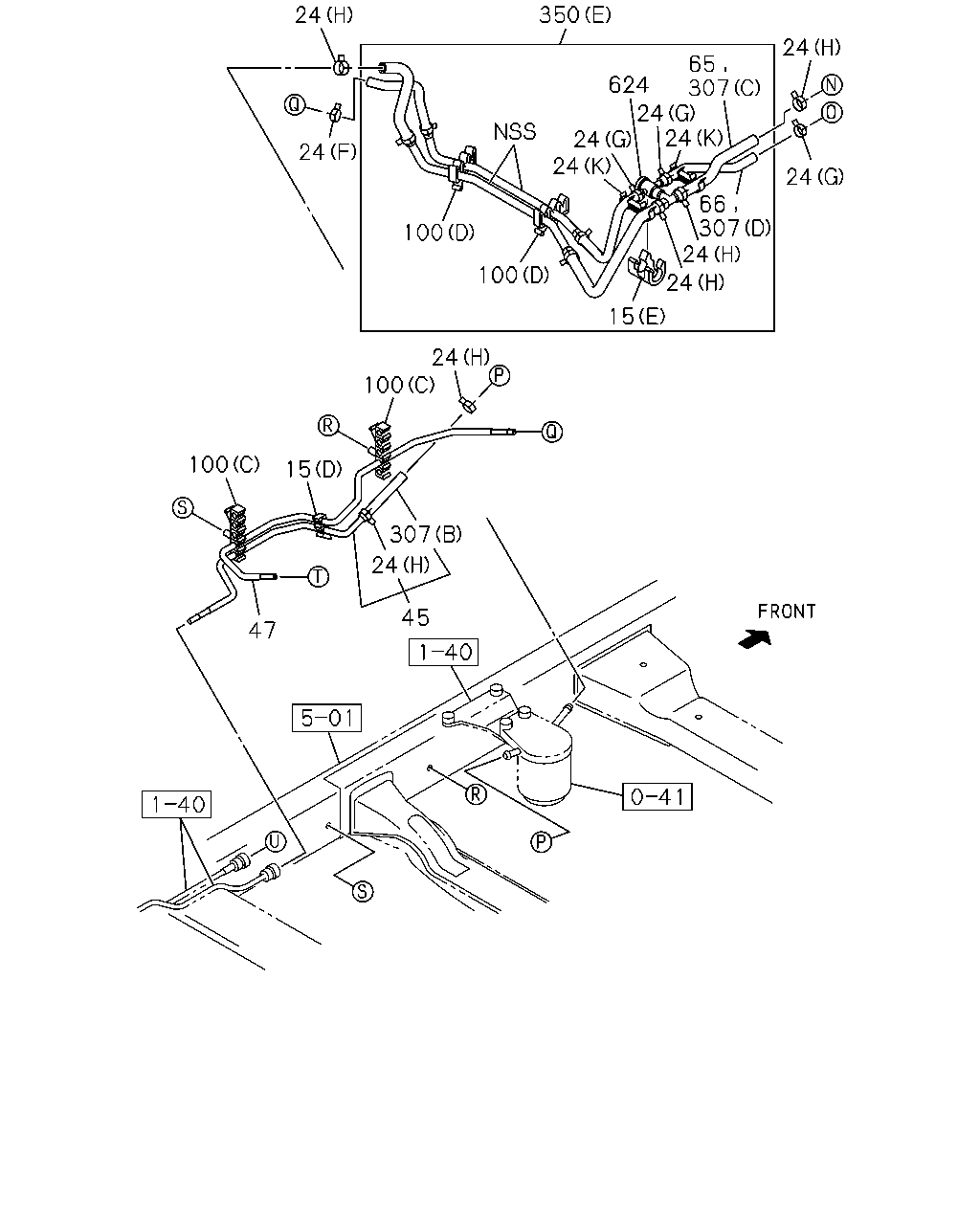

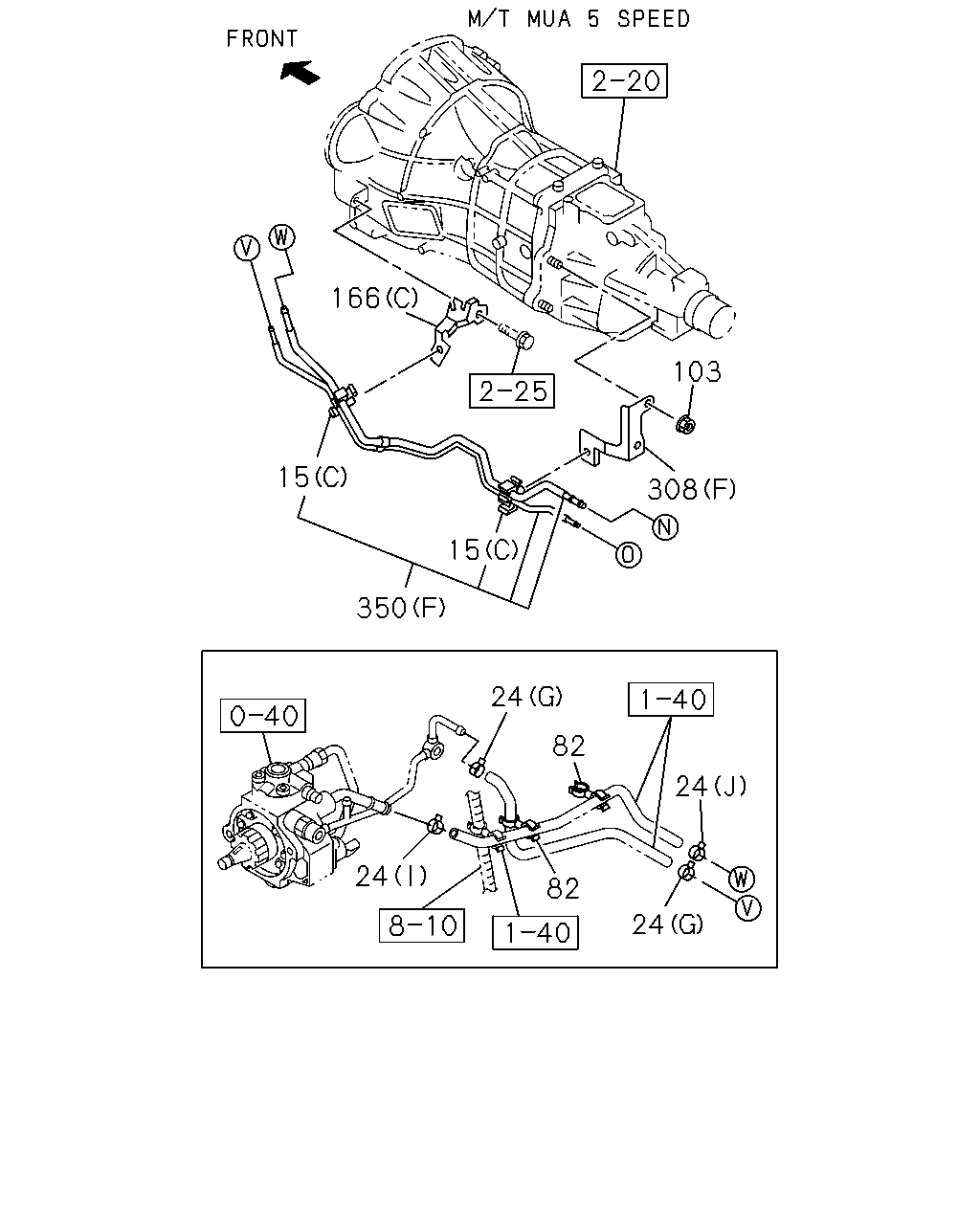

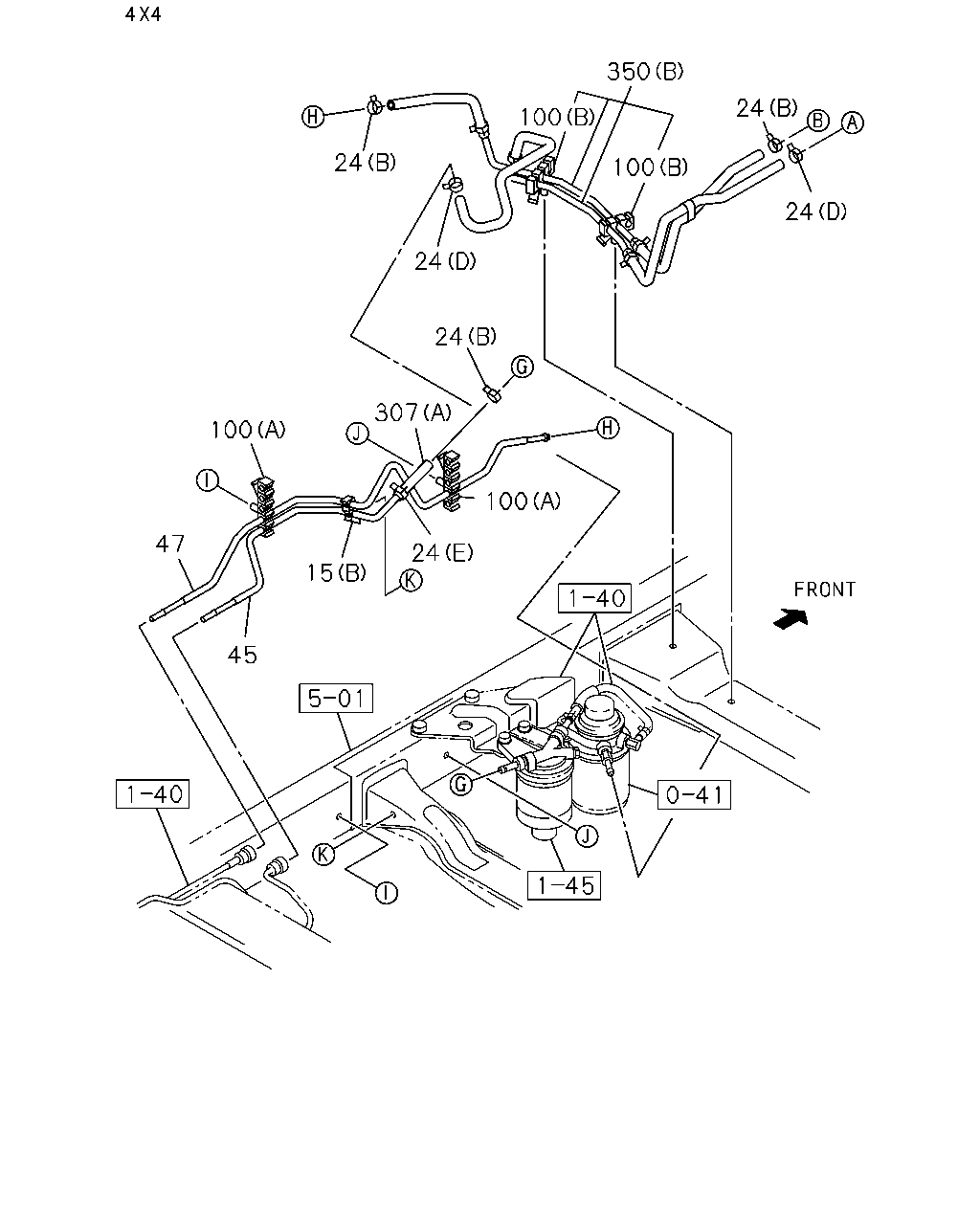

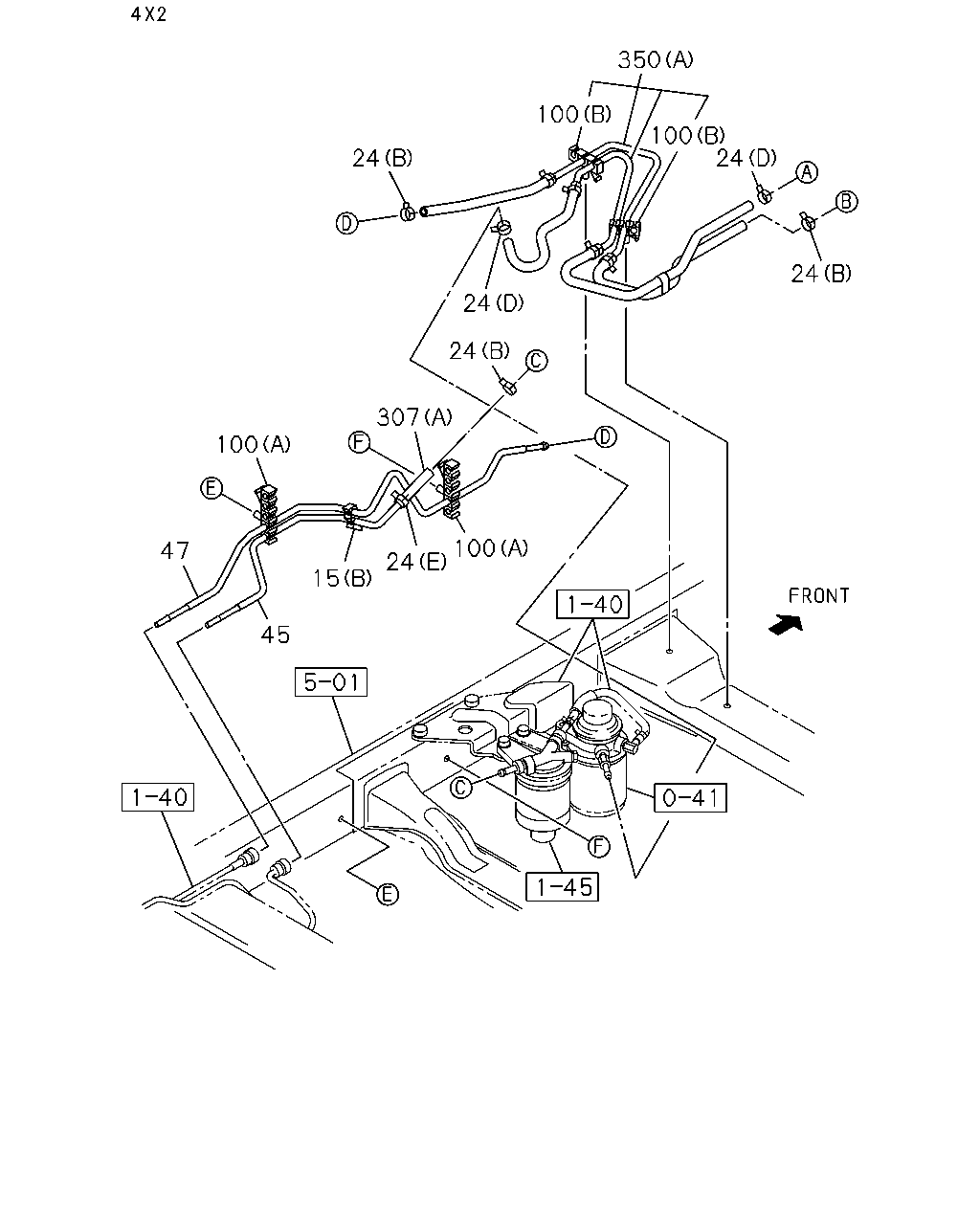

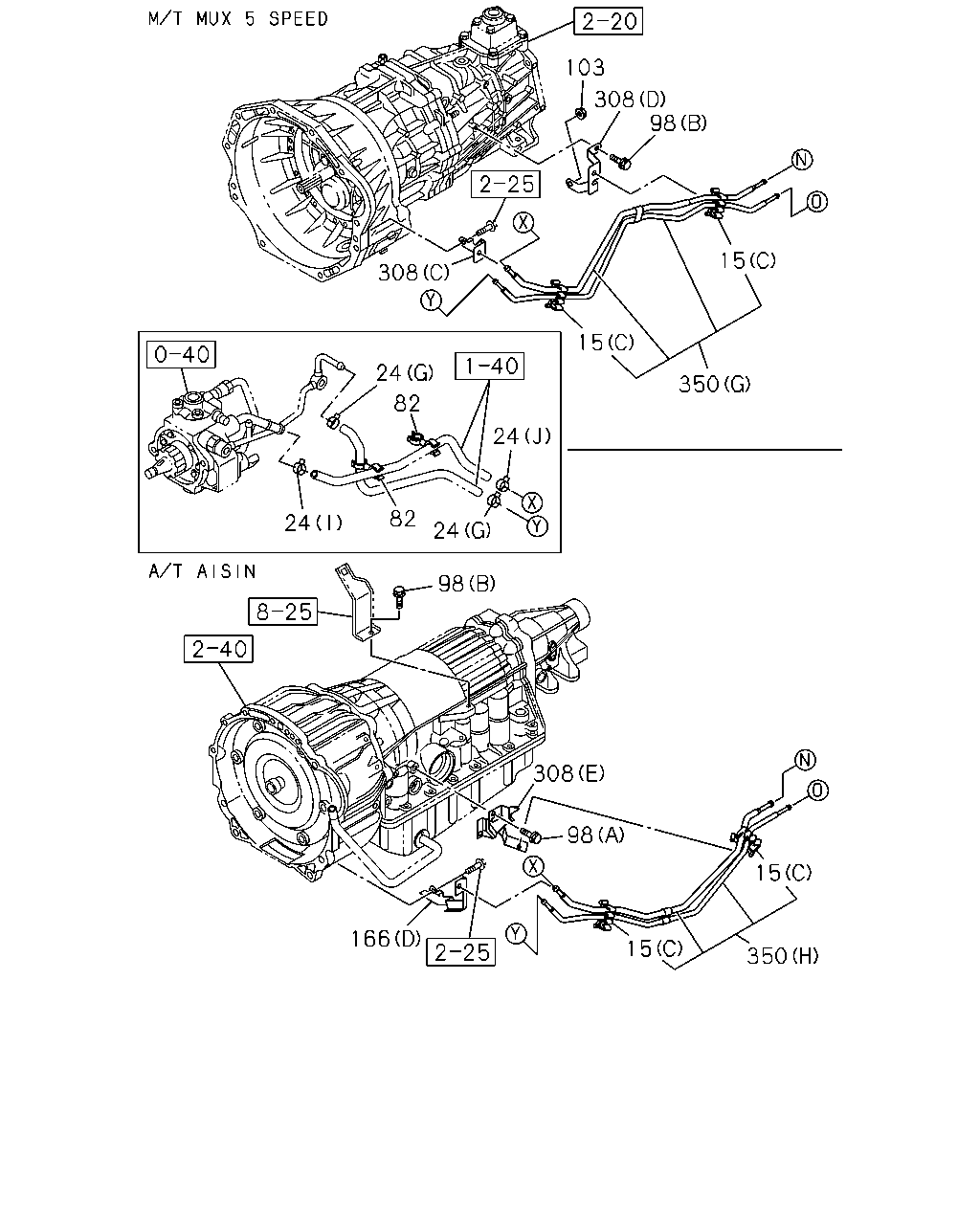

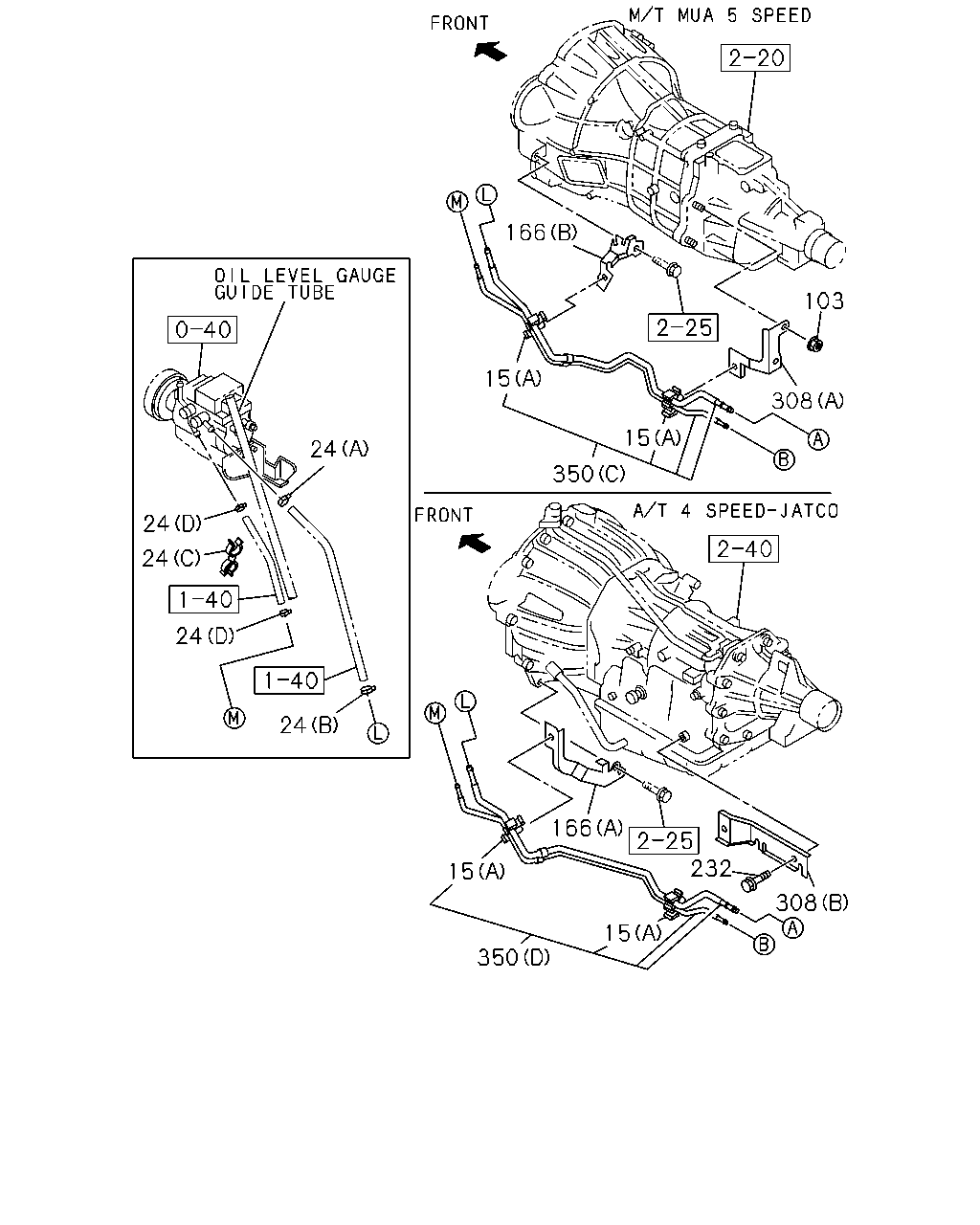

1-41 — FUEL PIPING; CHASSIS (#74305) — 376 parça

24 350 24 65 624 307 24 24 24 24 24 24 66 307 24 24 100 100 15 24 100 100 15 307 24 45 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
15	03.162 CLIP; FUEL PIPE (E)	8-98179-603-0	01	1	1012-	●	●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0307-0609			●	●
15	03.162 CLIP; FUEL PIPE (B)	8-97251-126-0	01	1	0307-0609			●	●
15	03.162 CLIP; FUEL PIPE (D)	8-97251-125-0	01	1	0610-	●	●
15	03.162 CLIP; FUEL PIPE (C)	8-97944-137-0	02	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE 4X4(TFS***) (K)	8-98174-541-0	02	1	1012-	●	●
24	03.162 CLIP; FUEL HOSE 02.589 (C) ID=13 & 16.5	8-94169-028-0	01	1	0307-0609			●	●
24	03.162 CLIP; FUEL HOSE (H) ID=14.2	8-98035-873-0	01	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE (D) ID=12	8-97148-892-1	04	1	0307-0609			●	●
24	03.162 CLIP; FUEL HOSE (G) ID=11.5	8-98008-096-0	03	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE (A) ID=17.8	8-97351-697-0	01	1	0307-0609			●	●
24	03.162 CLIP; FUEL HOSE (I) ID=17.8	8-97944-611-0	01	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE (E) ID=17.8	8-97356-077-0	01	1	0307-0609			●	●
24	03.162 CLIP; FUEL HOSE 01.762 (J) ID=16	8-98030-682-0	01	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-97368-293-0	04	1	0307-0609			●	●
24	03.162 CLIP; FUEL HOSE (H) ID=14.2	8-98035-873-0	03	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE 03.330 (F) ID=11.5	8-98051-892-0	01	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE 4X4(TFS***) (G) ID=11.5	8-98008-096-0	02	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) (G) ID=11.5	8-98008-096-0	02	1	0610-	●
24	03.162 CLIP; FUEL HOSE 4X4(TFS***) (H) ID=14.2	8-98035-873-0	02	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) (H) ID=14.2	8-98035-873-0	02	1	0610-	●
45	03.163 PIPE; FUEL,DELIVERY	8-97250-551-2	01	1	0307-0609			●	●
45	03.163 PIPE; FUEL,DELIVERY	8-97944-626-1	01	1	0610-	●	●
47	03.163 PIPE; FUEL,RETURN	8-97363-681-0	01	1	0307-0609			●	●
47	03.163 PIPE; FUEL,RETURN	8-98051-783-1	01	1	0610-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-135-0	01	1	1008-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4X4(TFS***)	8-97944-133-0	01	1	1008-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4X2 CREW CAB(TFBW) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC)	8-97944-133-0	01	1	1008-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC)	8-98060-821-0	01	1	1008-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4X4(TFS***)	8-97944-134-0	01	1	1008-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4X2 CREW CAB(TFBW) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC)	8-97944-134-0	01	1	1008-	●
100	03.162 CLIP; FUEL PIPE (B)	8-97249-907-0	02	1	0307-0508			●	●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) (B)	8-97249-907-0	02	1	0509-0609			●	●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) (B)	8-97249-907-0	02	1	0509-0609			●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) (D) ID=10.3X3	8-98051-899-0	02	1	0610-	●	●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) (D) ID=10.3X3	8-98051-899-0	02	1	0610-	●
100	03.162 CLIP; FUEL PIPE (A)	8-97251-129-0	02	1	0307-0609			●	●
100	03.162 CLIP; FUEL PIPE (C)	8-97251-128-0	02	1	0610-	●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN (A) L=100 SERVICED BY L=3000	0-01662-300-0	01	1	0307-0609			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN (B) L=150 SERVICED BY L=3000	0-01658-300-0	01	1	0610-	●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97944-135-0	01	1	0610-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (D)	8-97944-136-0	01	1	0610-0702	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (D)	8-98060-821-0	01	1	0703-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X4(TFS***) (C)	8-97944-133-0	01	1	0610-1007	●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2 CREW CAB(TFBW) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (C)	8-97944-133-0	01	1	0610-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X4(TFS***) (D)	8-97944-134-0	01	1	0610-1007	●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2 CREW CAB(TFBW) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (D)	8-97944-134-0	01	1	0610-1007	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-98179-684-0	01	1	1012-	●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-97946-518-0	01	1	0807-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-98177-460-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-97946-526-0	01	1	0807-1011	●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2 CREW CAB(TFBW) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (E)	8-97946-526-0	01	1	0807-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2 CREW CAB(TFBW) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (E)	8-98177-463-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET (C)	8-97215-362-4	01	1	0307-0609			●
350	03.163 PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5G(RSP) (C)	8-97215-362-4	01	1	0307-0609				●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) (G)	8-97944-729-1	01	1	0610-		●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) (A)	8-97363-650-0	01	1	0307-0609			●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-98051-786-0	01	1	0610-0702	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-98060-307-0	01	1	0703-0806	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (B)	8-97363-662-0	01	1	0307-0508	●	●	●	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (B)	8-97363-662-0	01	1	0509-0609			●	●
350	03.163 PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H(MWQ) (F)	8-97944-716-1	01	1	0610-	●
350	03.163 PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO(RMK) (D)	8-97309-212-3	01	1	0307-0609				●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-98051-790-0	01	1	0610-0806	●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2 CREW CAB(TFBW) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (E)	8-98051-790-0	01	1	0610-0806	●
350	03.163 PIPE; FUEL,DEL & RET 4X4 CREW CAB(TFSW) A/T AISIN(RMD) (H)	8-97944-726-1	01	1	0610-		●
624	03.164 VALVE; 1 WAY,FUEL 4X4(TFS***)	8-97375-919-0	01	1	0610-	●	●
624	03.164 VALVE; 1 WAY,FUEL 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ)	8-97375-919-0	01	1	0610-	●

166 103 15 308 15 350 24 82 24 24 82 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
15	03.162 CLIP; FUEL PIPE (E)	8-98179-603-0	01	1	1012-	●	●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0307-0609			●	●
15	03.162 CLIP; FUEL PIPE (B)	8-97251-126-0	01	1	0307-0609			●	●
15	03.162 CLIP; FUEL PIPE (D)	8-97251-125-0	01	1	0610-	●	●
15	03.162 CLIP; FUEL PIPE (C)	8-97944-137-0	02	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE 4X4(TFS***) (K)	8-98174-541-0	02	1	1012-	●	●
24	03.162 CLIP; FUEL HOSE 02.589 (C) ID=13 & 16.5	8-94169-028-0	01	1	0307-0609			●	●
24	03.162 CLIP; FUEL HOSE (H) ID=14.2	8-98035-873-0	01	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE (D) ID=12	8-97148-892-1	04	1	0307-0609			●	●
24	03.162 CLIP; FUEL HOSE (G) ID=11.5	8-98008-096-0	03	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE (A) ID=17.8	8-97351-697-0	01	1	0307-0609			●	●
24	03.162 CLIP; FUEL HOSE (I) ID=17.8	8-97944-611-0	01	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE (E) ID=17.8	8-97356-077-0	01	1	0307-0609			●	●
24	03.162 CLIP; FUEL HOSE 01.762 (J) ID=16	8-98030-682-0	01	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-97368-293-0	04	1	0307-0609			●	●
24	03.162 CLIP; FUEL HOSE (H) ID=14.2	8-98035-873-0	03	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE 03.330 (F) ID=11.5	8-98051-892-0	01	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE 4X4(TFS***) (G) ID=11.5	8-98008-096-0	02	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) (G) ID=11.5	8-98008-096-0	02	1	0610-	●
24	03.162 CLIP; FUEL HOSE 4X4(TFS***) (H) ID=14.2	8-98035-873-0	02	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) (H) ID=14.2	8-98035-873-0	02	1	0610-	●
82	03.163 CLIP; FUEL HOSE 04.104 ID=11.8 & ID=18.6	8-97333-094-0	02	1	0610-	●	●
103	03.130 NUT; BRKT 06.168 M10 FLANGE	8-94242-425-0	02	1	0307-0508			●
103	03.130 NUT; BRKT M/T MUA 5 SPEED 5G(RSP) 06.168 M10 FLANGE	8-94242-425-0	02	1	0307-0508				●
103	03.130 NUT; BRKT M/T MUA 5 SPEED 5G(RSP) 06.168 M10 FLANGE	8-94242-425-0	02	1	0509-0609			●	●
103	03.130 NUT; BRKT M/T MUA 5 SPEED 5H(MWQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0610-	●
103	03.130 NUT; BRKT 4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) 01.062 M6 FLANGE	0-91180-106-0	01	1	0610-		●
166	03.162 PROTECTOR; FUEL HOSE (B)	8-97215-311-3	01	1	0307-0508			●
166	03.162 PROTECTOR; FUEL HOSE M/T MUA 5 SPEED 5G(RSP) (B)	8-97215-311-3	01	1	0307-0508				●
166	03.162 PROTECTOR; FUEL HOSE M/T MUA 5 SPEED 5G(RSP) (B)	8-97215-311-3	01	1	0509-0609			●	●
166	03.162 PROTECTOR; FUEL HOSE M/T MUA 5 SPEED 5H(MWQ) (C)	8-97944-738-0	01	1	0610-	●
166	03.162 PROTECTOR; FUEL HOSE A/T 4 SPEED-JATCO(RMK) (A)	8-97215-314-2	01	1	0307-0609				●
166	03.162 PROTECTOR; FUEL HOSE 4X4 CREW CAB(TFSW) A/T AISIN(RMD) (D)	8-97944-739-0	01	1	0610-		●
308	03.162 BRACKET; FUEL PIPE (A)	8-97215-294-1	01	1	0307-0508			●
308	03.162 BRACKET; FUEL PIPE M/T MUA 5 SPEED 5G(RSP) (A)	8-97215-294-1	01	1	0307-0508				●
308	03.162 BRACKET; FUEL PIPE M/T MUA 5 SPEED 5G(RSP) (A)	8-97215-294-1	01	1	0509-0609			●	●
308	03.162 BRACKET; FUEL PIPE M/T MUA 5 SPEED 5H(MWQ) (F)	8-97944-746-0	01	1	0610-	●
308	03.162 BRACKET; FUEL PIPE A/T 4 SPEED-JATCO(RMK) (B)	8-97328-217-0	01	1	0307-0609				●
308	03.162 BRACKET; FUEL PIPE 4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) (C)	8-97944-743-0	01	1	0610-		●
308	03.162 BRACKET; FUEL PIPE 4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) (D)	8-97944-747-0	01	1	0610-		●
308	03.162 BRACKET; FUEL PIPE 4X4 CREW CAB(TFSW) A/T AISIN(RMD) (E)	8-97944-741-0	01	1	0610-		●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-98179-684-0	01	1	1012-	●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-97946-518-0	01	1	0807-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-98177-460-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-97946-526-0	01	1	0807-1011	●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2 CREW CAB(TFBW) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (E)	8-97946-526-0	01	1	0807-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2 CREW CAB(TFBW) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (E)	8-98177-463-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET (C)	8-97215-362-4	01	1	0307-0609			●
350	03.163 PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5G(RSP) (C)	8-97215-362-4	01	1	0307-0609				●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) (G)	8-97944-729-1	01	1	0610-		●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) (A)	8-97363-650-0	01	1	0307-0609			●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-98051-786-0	01	1	0610-0702	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-98060-307-0	01	1	0703-0806	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (B)	8-97363-662-0	01	1	0307-0508	●	●	●	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (B)	8-97363-662-0	01	1	0509-0609			●	●
350	03.163 PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H(MWQ) (F)	8-97944-716-1	01	1	0610-	●
350	03.163 PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO(RMK) (D)	8-97309-212-3	01	1	0307-0609				●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-98051-790-0	01	1	0610-0806	●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2 CREW CAB(TFBW) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (E)	8-98051-790-0	01	1	0610-0806	●
350	03.163 PIPE; FUEL,DEL & RET 4X4 CREW CAB(TFSW) A/T AISIN(RMD) (H)	8-97944-726-1	01	1	0610-		●

103 308 98 15 308 15 24 350 82 24 82 24 24 98 308 98 15 166 15 350

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
15	03.162 CLIP; FUEL PIPE (E)	8-98179-603-0	01	1	1012-	●	●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0307-0609			●	●
15	03.162 CLIP; FUEL PIPE (B)	8-97251-126-0	01	1	0307-0609			●	●
15	03.162 CLIP; FUEL PIPE (D)	8-97251-125-0	01	1	0610-	●	●
15	03.162 CLIP; FUEL PIPE (C)	8-97944-137-0	02	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE 4X4(TFS***) (K)	8-98174-541-0	02	1	1012-	●	●
24	03.162 CLIP; FUEL HOSE 02.589 (C) ID=13 & 16.5	8-94169-028-0	01	1	0307-0609			●	●
24	03.162 CLIP; FUEL HOSE (H) ID=14.2	8-98035-873-0	01	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE (D) ID=12	8-97148-892-1	04	1	0307-0609			●	●
24	03.162 CLIP; FUEL HOSE (G) ID=11.5	8-98008-096-0	03	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE (A) ID=17.8	8-97351-697-0	01	1	0307-0609			●	●
24	03.162 CLIP; FUEL HOSE (I) ID=17.8	8-97944-611-0	01	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE (E) ID=17.8	8-97356-077-0	01	1	0307-0609			●	●
24	03.162 CLIP; FUEL HOSE 01.762 (J) ID=16	8-98030-682-0	01	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-97368-293-0	04	1	0307-0609			●	●
24	03.162 CLIP; FUEL HOSE (H) ID=14.2	8-98035-873-0	03	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE 03.330 (F) ID=11.5	8-98051-892-0	01	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE 4X4(TFS***) (G) ID=11.5	8-98008-096-0	02	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) (G) ID=11.5	8-98008-096-0	02	1	0610-	●
24	03.162 CLIP; FUEL HOSE 4X4(TFS***) (H) ID=14.2	8-98035-873-0	02	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) (H) ID=14.2	8-98035-873-0	02	1	0610-	●
82	03.163 CLIP; FUEL HOSE 04.104 ID=11.8 & ID=18.6	8-97333-094-0	02	1	0610-	●	●
98	03.162 BOLT; BRKT,FUEL PIPE 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0610-		●
98	03.162 BOLT; BRKT,FUEL PIPE 4X4 CREW CAB(TFSW) A/T AISIN(RMD) 03.671 (A) M6X10 FLANGE	0-28050-610-0	01	1	0610-		●
103	03.130 NUT; BRKT 06.168 M10 FLANGE	8-94242-425-0	02	1	0307-0508			●
103	03.130 NUT; BRKT M/T MUA 5 SPEED 5G(RSP) 06.168 M10 FLANGE	8-94242-425-0	02	1	0307-0508				●
103	03.130 NUT; BRKT M/T MUA 5 SPEED 5G(RSP) 06.168 M10 FLANGE	8-94242-425-0	02	1	0509-0609			●	●
103	03.130 NUT; BRKT M/T MUA 5 SPEED 5H(MWQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0610-	●
103	03.130 NUT; BRKT 4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) 01.062 M6 FLANGE	0-91180-106-0	01	1	0610-		●
166	03.162 PROTECTOR; FUEL HOSE (B)	8-97215-311-3	01	1	0307-0508			●
166	03.162 PROTECTOR; FUEL HOSE M/T MUA 5 SPEED 5G(RSP) (B)	8-97215-311-3	01	1	0307-0508				●
166	03.162 PROTECTOR; FUEL HOSE M/T MUA 5 SPEED 5G(RSP) (B)	8-97215-311-3	01	1	0509-0609			●	●
166	03.162 PROTECTOR; FUEL HOSE M/T MUA 5 SPEED 5H(MWQ) (C)	8-97944-738-0	01	1	0610-	●
166	03.162 PROTECTOR; FUEL HOSE A/T 4 SPEED-JATCO(RMK) (A)	8-97215-314-2	01	1	0307-0609				●
166	03.162 PROTECTOR; FUEL HOSE 4X4 CREW CAB(TFSW) A/T AISIN(RMD) (D)	8-97944-739-0	01	1	0610-		●
308	03.162 BRACKET; FUEL PIPE (A)	8-97215-294-1	01	1	0307-0508			●
308	03.162 BRACKET; FUEL PIPE M/T MUA 5 SPEED 5G(RSP) (A)	8-97215-294-1	01	1	0307-0508				●
308	03.162 BRACKET; FUEL PIPE M/T MUA 5 SPEED 5G(RSP) (A)	8-97215-294-1	01	1	0509-0609			●	●
308	03.162 BRACKET; FUEL PIPE M/T MUA 5 SPEED 5H(MWQ) (F)	8-97944-746-0	01	1	0610-	●
308	03.162 BRACKET; FUEL PIPE A/T 4 SPEED-JATCO(RMK) (B)	8-97328-217-0	01	1	0307-0609				●
308	03.162 BRACKET; FUEL PIPE 4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) (C)	8-97944-743-0	01	1	0610-		●
308	03.162 BRACKET; FUEL PIPE 4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) (D)	8-97944-747-0	01	1	0610-		●
308	03.162 BRACKET; FUEL PIPE 4X4 CREW CAB(TFSW) A/T AISIN(RMD) (E)	8-97944-741-0	01	1	0610-		●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-98179-684-0	01	1	1012-	●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-97946-518-0	01	1	0807-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-98177-460-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-97946-526-0	01	1	0807-1011	●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2 CREW CAB(TFBW) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (E)	8-97946-526-0	01	1	0807-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2 CREW CAB(TFBW) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (E)	8-98177-463-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET (C)	8-97215-362-4	01	1	0307-0609			●
350	03.163 PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5G(RSP) (C)	8-97215-362-4	01	1	0307-0609				●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) (G)	8-97944-729-1	01	1	0610-		●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) (A)	8-97363-650-0	01	1	0307-0609			●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-98051-786-0	01	1	0610-0702	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-98060-307-0	01	1	0703-0806	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (B)	8-97363-662-0	01	1	0307-0508	●	●	●	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (B)	8-97363-662-0	01	1	0509-0609			●	●
350	03.163 PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H(MWQ) (F)	8-97944-716-1	01	1	0610-	●
350	03.163 PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO(RMK) (D)	8-97309-212-3	01	1	0307-0609				●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-98051-790-0	01	1	0610-0806	●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2 CREW CAB(TFBW) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (E)	8-98051-790-0	01	1	0610-0806	●
350	03.163 PIPE; FUEL,DEL & RET 4X4 CREW CAB(TFSW) A/T AISIN(RMD) (H)	8-97944-726-1	01	1	0610-		●

350 24 100 24 100 24 24 24 307 100 100 47 24 15 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
15	03.162 CLIP; FUEL PIPE (E)	8-98179-603-0	01	1	1012-	●	●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0307-0609			●	●
15	03.162 CLIP; FUEL PIPE (B)	8-97251-126-0	01	1	0307-0609			●	●
15	03.162 CLIP; FUEL PIPE (D)	8-97251-125-0	01	1	0610-	●	●
15	03.162 CLIP; FUEL PIPE (C)	8-97944-137-0	02	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE 4X4(TFS***) (K)	8-98174-541-0	02	1	1012-	●	●
24	03.162 CLIP; FUEL HOSE 02.589 (C) ID=13 & 16.5	8-94169-028-0	01	1	0307-0609			●	●
24	03.162 CLIP; FUEL HOSE (H) ID=14.2	8-98035-873-0	01	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE (D) ID=12	8-97148-892-1	04	1	0307-0609			●	●
24	03.162 CLIP; FUEL HOSE (G) ID=11.5	8-98008-096-0	03	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE (A) ID=17.8	8-97351-697-0	01	1	0307-0609			●	●
24	03.162 CLIP; FUEL HOSE (I) ID=17.8	8-97944-611-0	01	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE (E) ID=17.8	8-97356-077-0	01	1	0307-0609			●	●
24	03.162 CLIP; FUEL HOSE 01.762 (J) ID=16	8-98030-682-0	01	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-97368-293-0	04	1	0307-0609			●	●
24	03.162 CLIP; FUEL HOSE (H) ID=14.2	8-98035-873-0	03	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE 03.330 (F) ID=11.5	8-98051-892-0	01	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE 4X4(TFS***) (G) ID=11.5	8-98008-096-0	02	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) (G) ID=11.5	8-98008-096-0	02	1	0610-	●
24	03.162 CLIP; FUEL HOSE 4X4(TFS***) (H) ID=14.2	8-98035-873-0	02	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) (H) ID=14.2	8-98035-873-0	02	1	0610-	●
45	03.163 PIPE; FUEL,DELIVERY	8-97250-551-2	01	1	0307-0609			●	●
45	03.163 PIPE; FUEL,DELIVERY	8-97944-626-1	01	1	0610-	●	●
47	03.163 PIPE; FUEL,RETURN	8-97363-681-0	01	1	0307-0609			●	●
47	03.163 PIPE; FUEL,RETURN	8-98051-783-1	01	1	0610-	●	●
100	03.162 CLIP; FUEL PIPE (B)	8-97249-907-0	02	1	0307-0508			●	●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) (B)	8-97249-907-0	02	1	0509-0609			●	●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) (B)	8-97249-907-0	02	1	0509-0609			●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) (D) ID=10.3X3	8-98051-899-0	02	1	0610-	●	●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) (D) ID=10.3X3	8-98051-899-0	02	1	0610-	●
100	03.162 CLIP; FUEL PIPE (A)	8-97251-129-0	02	1	0307-0609			●	●
100	03.162 CLIP; FUEL PIPE (C)	8-97251-128-0	02	1	0610-	●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN (A) L=100 SERVICED BY L=3000	0-01662-300-0	01	1	0307-0609			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN (B) L=150 SERVICED BY L=3000	0-01658-300-0	01	1	0610-	●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97944-135-0	01	1	0610-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (D)	8-97944-136-0	01	1	0610-0702	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (D)	8-98060-821-0	01	1	0703-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X4(TFS***) (C)	8-97944-133-0	01	1	0610-1007	●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2 CREW CAB(TFBW) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (C)	8-97944-133-0	01	1	0610-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X4(TFS***) (D)	8-97944-134-0	01	1	0610-1007	●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2 CREW CAB(TFBW) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (D)	8-97944-134-0	01	1	0610-1007	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-98179-684-0	01	1	1012-	●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-97946-518-0	01	1	0807-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-98177-460-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-97946-526-0	01	1	0807-1011	●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2 CREW CAB(TFBW) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (E)	8-97946-526-0	01	1	0807-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2 CREW CAB(TFBW) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (E)	8-98177-463-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET (C)	8-97215-362-4	01	1	0307-0609			●
350	03.163 PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5G(RSP) (C)	8-97215-362-4	01	1	0307-0609				●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) (G)	8-97944-729-1	01	1	0610-		●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) (A)	8-97363-650-0	01	1	0307-0609			●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-98051-786-0	01	1	0610-0702	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-98060-307-0	01	1	0703-0806	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (B)	8-97363-662-0	01	1	0307-0508	●	●	●	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (B)	8-97363-662-0	01	1	0509-0609			●	●
350	03.163 PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H(MWQ) (F)	8-97944-716-1	01	1	0610-	●
350	03.163 PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO(RMK) (D)	8-97309-212-3	01	1	0307-0609				●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-98051-790-0	01	1	0610-0806	●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2 CREW CAB(TFBW) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (E)	8-98051-790-0	01	1	0610-0806	●
350	03.163 PIPE; FUEL,DEL & RET 4X4 CREW CAB(TFSW) A/T AISIN(RMD) (H)	8-97944-726-1	01	1	0610-		●

166 103 15 308 15 24 350 24 24 24 24 166 232 15 308 15 350

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
15	03.162 CLIP; FUEL PIPE (E)	8-98179-603-0	01	1	1012-	●	●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0307-0609			●	●
15	03.162 CLIP; FUEL PIPE (B)	8-97251-126-0	01	1	0307-0609			●	●
15	03.162 CLIP; FUEL PIPE (D)	8-97251-125-0	01	1	0610-	●	●
15	03.162 CLIP; FUEL PIPE (C)	8-97944-137-0	02	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE 4X4(TFS***) (K)	8-98174-541-0	02	1	1012-	●	●
24	03.162 CLIP; FUEL HOSE 02.589 (C) ID=13 & 16.5	8-94169-028-0	01	1	0307-0609			●	●
24	03.162 CLIP; FUEL HOSE (H) ID=14.2	8-98035-873-0	01	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE (D) ID=12	8-97148-892-1	04	1	0307-0609			●	●
24	03.162 CLIP; FUEL HOSE (G) ID=11.5	8-98008-096-0	03	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE (A) ID=17.8	8-97351-697-0	01	1	0307-0609			●	●
24	03.162 CLIP; FUEL HOSE (I) ID=17.8	8-97944-611-0	01	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE (E) ID=17.8	8-97356-077-0	01	1	0307-0609			●	●
24	03.162 CLIP; FUEL HOSE 01.762 (J) ID=16	8-98030-682-0	01	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-97368-293-0	04	1	0307-0609			●	●
24	03.162 CLIP; FUEL HOSE (H) ID=14.2	8-98035-873-0	03	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE 03.330 (F) ID=11.5	8-98051-892-0	01	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE 4X4(TFS***) (G) ID=11.5	8-98008-096-0	02	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) (G) ID=11.5	8-98008-096-0	02	1	0610-	●
24	03.162 CLIP; FUEL HOSE 4X4(TFS***) (H) ID=14.2	8-98035-873-0	02	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) (H) ID=14.2	8-98035-873-0	02	1	0610-	●
103	03.130 NUT; BRKT 06.168 M10 FLANGE	8-94242-425-0	02	1	0307-0508			●
103	03.130 NUT; BRKT M/T MUA 5 SPEED 5G(RSP) 06.168 M10 FLANGE	8-94242-425-0	02	1	0307-0508				●
103	03.130 NUT; BRKT M/T MUA 5 SPEED 5G(RSP) 06.168 M10 FLANGE	8-94242-425-0	02	1	0509-0609			●	●
103	03.130 NUT; BRKT M/T MUA 5 SPEED 5H(MWQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0610-	●
103	03.130 NUT; BRKT 4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) 01.062 M6 FLANGE	0-91180-106-0	01	1	0610-		●
166	03.162 PROTECTOR; FUEL HOSE (B)	8-97215-311-3	01	1	0307-0508			●
166	03.162 PROTECTOR; FUEL HOSE M/T MUA 5 SPEED 5G(RSP) (B)	8-97215-311-3	01	1	0307-0508				●
166	03.162 PROTECTOR; FUEL HOSE M/T MUA 5 SPEED 5G(RSP) (B)	8-97215-311-3	01	1	0509-0609			●	●
166	03.162 PROTECTOR; FUEL HOSE M/T MUA 5 SPEED 5H(MWQ) (C)	8-97944-738-0	01	1	0610-	●
166	03.162 PROTECTOR; FUEL HOSE A/T 4 SPEED-JATCO(RMK) (A)	8-97215-314-2	01	1	0307-0609				●
166	03.162 PROTECTOR; FUEL HOSE 4X4 CREW CAB(TFSW) A/T AISIN(RMD) (D)	8-97944-739-0	01	1	0610-		●
232	03.162 BOLT; CLIP,PIPE A/T 4 SPEED-JATCO(RMK) M6X12 FLANGE	0-28050-612-0	01	1	0307-0609				●
308	03.162 BRACKET; FUEL PIPE (A)	8-97215-294-1	01	1	0307-0508			●
308	03.162 BRACKET; FUEL PIPE M/T MUA 5 SPEED 5G(RSP) (A)	8-97215-294-1	01	1	0307-0508				●
308	03.162 BRACKET; FUEL PIPE M/T MUA 5 SPEED 5G(RSP) (A)	8-97215-294-1	01	1	0509-0609			●	●
308	03.162 BRACKET; FUEL PIPE M/T MUA 5 SPEED 5H(MWQ) (F)	8-97944-746-0	01	1	0610-	●
308	03.162 BRACKET; FUEL PIPE A/T 4 SPEED-JATCO(RMK) (B)	8-97328-217-0	01	1	0307-0609				●
308	03.162 BRACKET; FUEL PIPE 4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) (C)	8-97944-743-0	01	1	0610-		●
308	03.162 BRACKET; FUEL PIPE 4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) (D)	8-97944-747-0	01	1	0610-		●
308	03.162 BRACKET; FUEL PIPE 4X4 CREW CAB(TFSW) A/T AISIN(RMD) (E)	8-97944-741-0	01	1	0610-		●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-98179-684-0	01	1	1012-	●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-97946-518-0	01	1	0807-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-98177-460-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-97946-526-0	01	1	0807-1011	●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2 CREW CAB(TFBW) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (E)	8-97946-526-0	01	1	0807-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2 CREW CAB(TFBW) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (E)	8-98177-463-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET (C)	8-97215-362-4	01	1	0307-0609			●
350	03.163 PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5G(RSP) (C)	8-97215-362-4	01	1	0307-0609				●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) (G)	8-97944-729-1	01	1	0610-		●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) (A)	8-97363-650-0	01	1	0307-0609			●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-98051-786-0	01	1	0610-0702	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-98060-307-0	01	1	0703-0806	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (B)	8-97363-662-0	01	1	0307-0508	●	●	●	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (B)	8-97363-662-0	01	1	0509-0609			●	●
350	03.163 PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H(MWQ) (F)	8-97944-716-1	01	1	0610-	●
350	03.163 PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO(RMK) (D)	8-97309-212-3	01	1	0307-0609				●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-98051-790-0	01	1	0610-0806	●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2 CREW CAB(TFBW) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (E)	8-98051-790-0	01	1	0610-0806	●
350	03.163 PIPE; FUEL,DEL & RET 4X4 CREW CAB(TFSW) A/T AISIN(RMD) (H)	8-97944-726-1	01	1	0610-		●

350 100 100 24 24 24 24 24 307 100 100 24 47 15 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
15	03.162 CLIP; FUEL PIPE (E)	8-98179-603-0	01	1	1012-	●	●
15	03.162 CLIP; FUEL PIPE (A)	8-97249-907-0	02	1	0307-0609			●	●
15	03.162 CLIP; FUEL PIPE (B)	8-97251-126-0	01	1	0307-0609			●	●
15	03.162 CLIP; FUEL PIPE (D)	8-97251-125-0	01	1	0610-	●	●
15	03.162 CLIP; FUEL PIPE (C)	8-97944-137-0	02	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE 4X4(TFS***) (K)	8-98174-541-0	02	1	1012-	●	●
24	03.162 CLIP; FUEL HOSE 02.589 (C) ID=13 & 16.5	8-94169-028-0	01	1	0307-0609			●	●
24	03.162 CLIP; FUEL HOSE (H) ID=14.2	8-98035-873-0	01	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE (D) ID=12	8-97148-892-1	04	1	0307-0609			●	●
24	03.162 CLIP; FUEL HOSE (G) ID=11.5	8-98008-096-0	03	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE (A) ID=17.8	8-97351-697-0	01	1	0307-0609			●	●
24	03.162 CLIP; FUEL HOSE (I) ID=17.8	8-97944-611-0	01	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE (E) ID=17.8	8-97356-077-0	01	1	0307-0609			●	●
24	03.162 CLIP; FUEL HOSE 01.762 (J) ID=16	8-98030-682-0	01	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-97368-293-0	04	1	0307-0609			●	●
24	03.162 CLIP; FUEL HOSE (H) ID=14.2	8-98035-873-0	03	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE 03.330 (F) ID=11.5	8-98051-892-0	01	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE 4X4(TFS***) (G) ID=11.5	8-98008-096-0	02	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) (G) ID=11.5	8-98008-096-0	02	1	0610-	●
24	03.162 CLIP; FUEL HOSE 4X4(TFS***) (H) ID=14.2	8-98035-873-0	02	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) (H) ID=14.2	8-98035-873-0	02	1	0610-	●
45	03.163 PIPE; FUEL,DELIVERY	8-97250-551-2	01	1	0307-0609			●	●
45	03.163 PIPE; FUEL,DELIVERY	8-97944-626-1	01	1	0610-	●	●
47	03.163 PIPE; FUEL,RETURN	8-97363-681-0	01	1	0307-0609			●	●
47	03.163 PIPE; FUEL,RETURN	8-98051-783-1	01	1	0610-	●	●
100	03.162 CLIP; FUEL PIPE (B)	8-97249-907-0	02	1	0307-0508			●	●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) (B)	8-97249-907-0	02	1	0509-0609			●	●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) (B)	8-97249-907-0	02	1	0509-0609			●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) (D) ID=10.3X3	8-98051-899-0	02	1	0610-	●	●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) (D) ID=10.3X3	8-98051-899-0	02	1	0610-	●
100	03.162 CLIP; FUEL PIPE (A)	8-97251-129-0	02	1	0307-0609			●	●
100	03.162 CLIP; FUEL PIPE (C)	8-97251-128-0	02	1	0610-	●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN (A) L=100 SERVICED BY L=3000	0-01662-300-0	01	1	0307-0609			●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN (B) L=150 SERVICED BY L=3000	0-01658-300-0	01	1	0610-	●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97944-135-0	01	1	0610-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (D)	8-97944-136-0	01	1	0610-0702	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (D)	8-98060-821-0	01	1	0703-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X4(TFS***) (C)	8-97944-133-0	01	1	0610-1007	●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2 CREW CAB(TFBW) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (C)	8-97944-133-0	01	1	0610-1007	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X4(TFS***) (D)	8-97944-134-0	01	1	0610-1007	●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN 4X2 CREW CAB(TFBW) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (D)	8-97944-134-0	01	1	0610-1007	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-98179-684-0	01	1	1012-	●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-97946-518-0	01	1	0807-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-98177-460-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-97946-526-0	01	1	0807-1011	●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2 CREW CAB(TFBW) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (E)	8-97946-526-0	01	1	0807-1011	●
350	03.163 PIPE; FUEL,DEL & RET 4X2 CREW CAB(TFBW) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (E)	8-98177-463-0	01	1	1012-	●
350	03.163 PIPE; FUEL,DEL & RET (C)	8-97215-362-4	01	1	0307-0609			●
350	03.163 PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5G(RSP) (C)	8-97215-362-4	01	1	0307-0609				●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) (G)	8-97944-729-1	01	1	0610-		●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) (A)	8-97363-650-0	01	1	0307-0609			●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-98051-786-0	01	1	0610-0702	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-98060-307-0	01	1	0703-0806	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (B)	8-97363-662-0	01	1	0307-0508	●	●	●	●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (B)	8-97363-662-0	01	1	0509-0609			●	●
350	03.163 PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H(MWQ) (F)	8-97944-716-1	01	1	0610-	●
350	03.163 PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO(RMK) (D)	8-97309-212-3	01	1	0307-0609				●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-98051-790-0	01	1	0610-0806	●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2 CREW CAB(TFBW) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (E)	8-98051-790-0	01	1	0610-0806	●
350	03.163 PIPE; FUEL,DEL & RET 4X4 CREW CAB(TFSW) A/T AISIN(RMD) (H)	8-97944-726-1	01	1	0610-		●

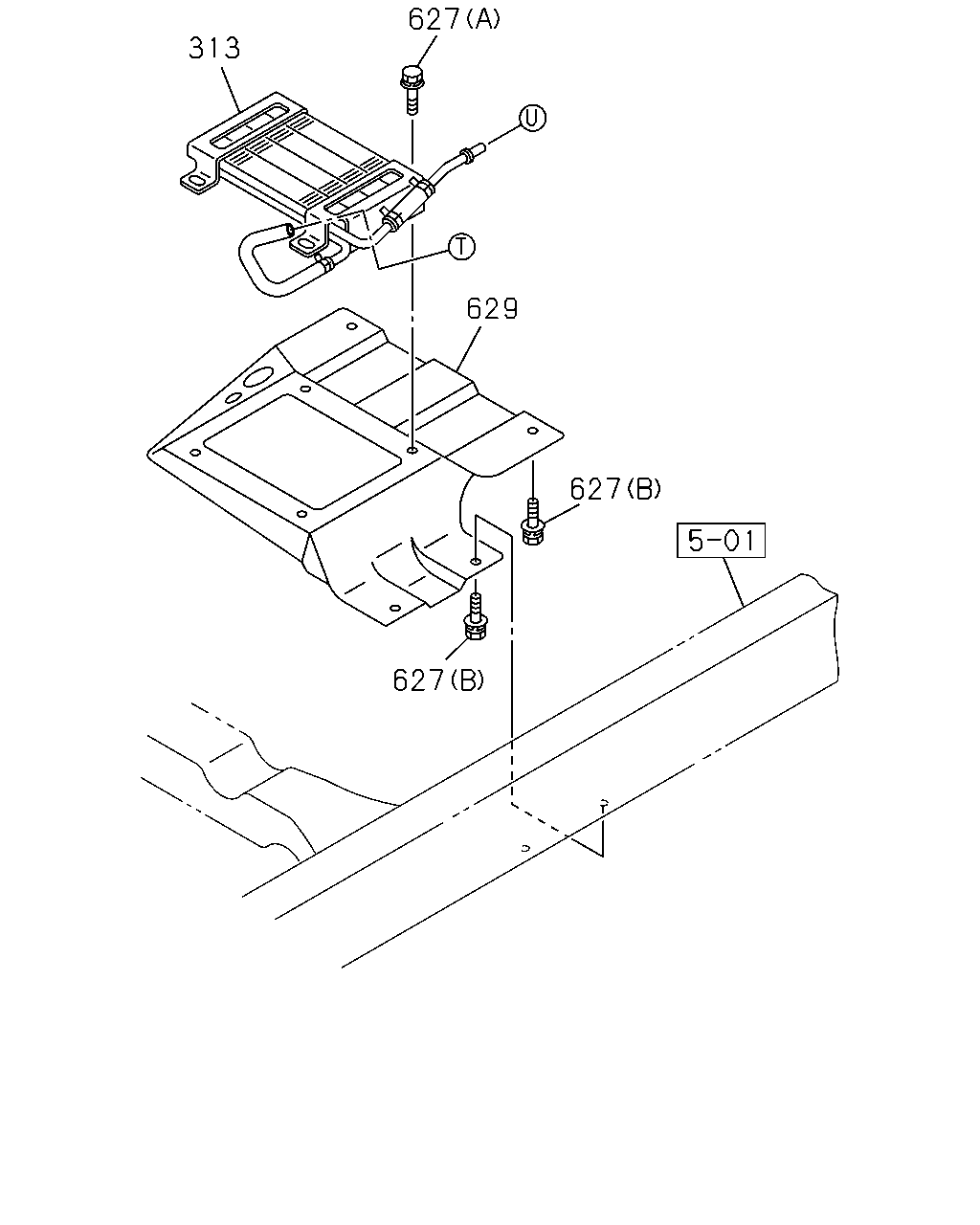

627 313 629 627 627

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
313	03.163 COOLER ASM; FUEL	8-97946-973-0	01	1	0807-	●	●
313	03.163 COOLER ASM; FUEL	8-97945-750-0	01	1	0610-0806	●	●
627	03.162 BOLT; FUEL CLR (A) M6X20 FLANGE	0-28650-620-0	04	1	0610-	●	●
627	03.162 BOLT; FUEL CLR 01.267 (B) M10X28 W/LK&PL WASHER	8-97945-706-0	04	1	0610-	●	●
629	03.162 BRACKET; FUEL CLR M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ)	8-97945-577-0	01	1	0610-	●	●
629	03.162 BRACKET; FUEL CLR 4X4 CREW CAB(TFSW) A/T AISIN(RMD)	8-97945-578-0	01	1	0610-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
