0-80 — INJECTION PUMP (#74295) — 10 parça

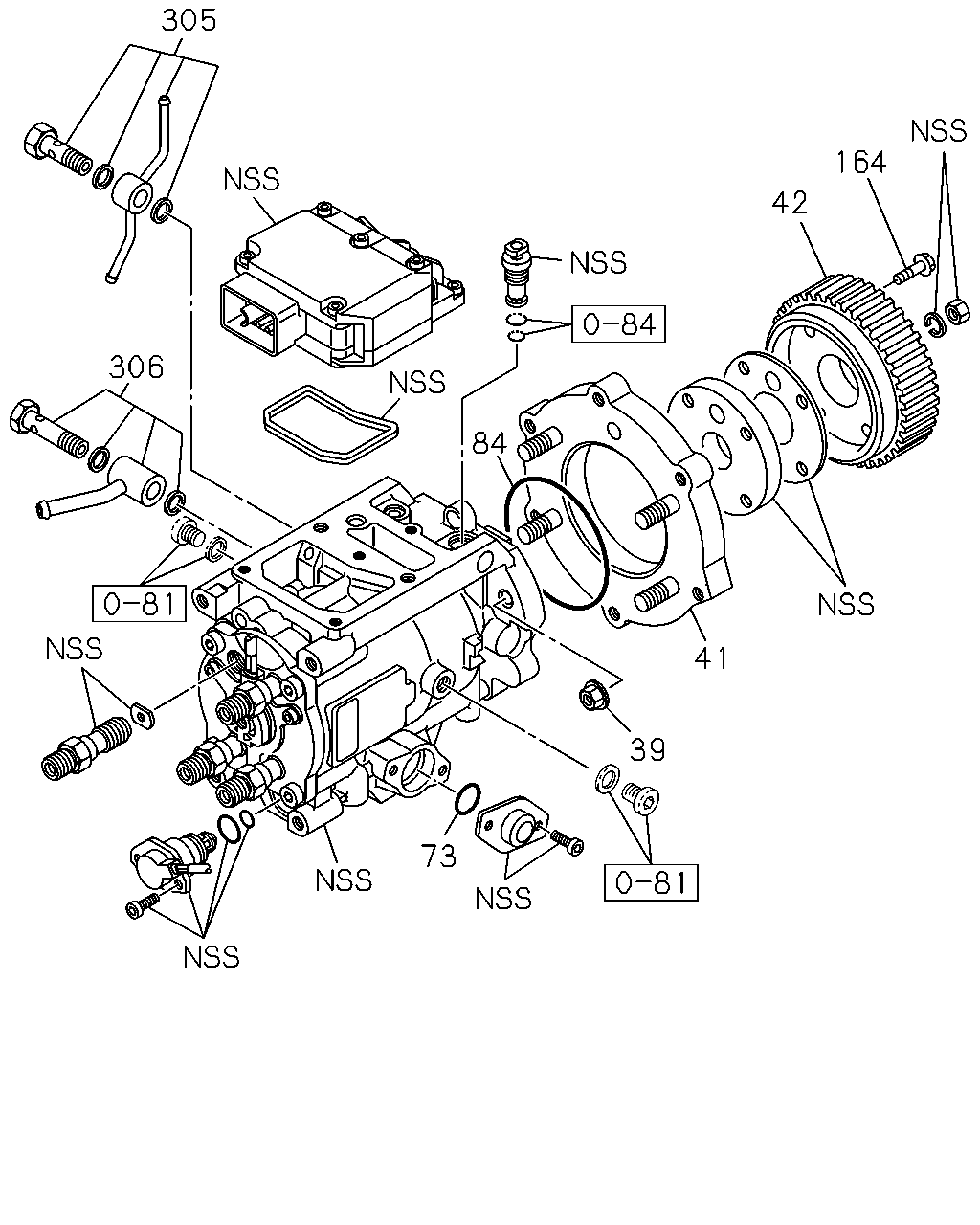

çizim 117584
305 164 42 306 84 41 39 73
BalonParca AdiParca NoAdetTipApplied Date
39 03.340 NUT; MTG BRKT FIX
04.785, M10 FLANGE ASM PART: A = 8-97249-238-4, 97249238, B = 8-97326-739-3, 97326739 		0-91150-110-0 04 1 -
41 03.306 BRACKET; INJ PUMP HSG
ASM PART: B = 8-97326-739-3, 97326739 		8-97306-662-2 01 1 -
41 03.306 BRACKET; INJ PUMP HSG
ASM PART: A = 8-97249-238-4, 97249238 		8-97306-663-2 01 1 -
42 03.330 GEAR; DRIVE,INJ PUMP
ASM PART: B = 8-97326-739-3, 97326739 		8-97240-051-2 01 1 -
42 03.330 GEAR; DRIVE,INJ PUMP
ASM PART: A = 8-97249-238-4, 97249238 		8-97264-974-0 01 1 -
73 03.306 GASKET; COVER TO HSG
ASM PART: A = 8-97249-238-4, 97249238, B = 8-97326-739-3, 97326739 		8-97369-694-0 01 1 -
84 03.306 GASKET; BRKT TO HSG
ASM PART: A = 8-97249-238-4, 97249238, B = 8-97326-739-3, 97326739 		8-97263-129-0 01 1 -
164 03.306 BOLT; GEAR TO COUPLING
01.531, M8X25 FLANGE ASM PART: A = 8-97249-238-4, 97249238, B = 8-97326-739-3, 97326739 		0-28080-825-0 04 1 -
305 03.300 PIPE ASM; OUTLET,INJ PUMP
ASM PART: A = 8-97249-238-4, 97249238, B = 8-97326-739-3, 97326739 		8-97317-181-1 01 1 -
306 03.300 PIPE ASM; INLET,INJ PUMP
ASM PART: A = 8-97249-238-4, 97249238, B = 8-97326-739-3, 97326739 		8-97317-182-1 01 1 -
