◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50967 - TFR/TFS(EUROPE)-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#74292) — 50 parça

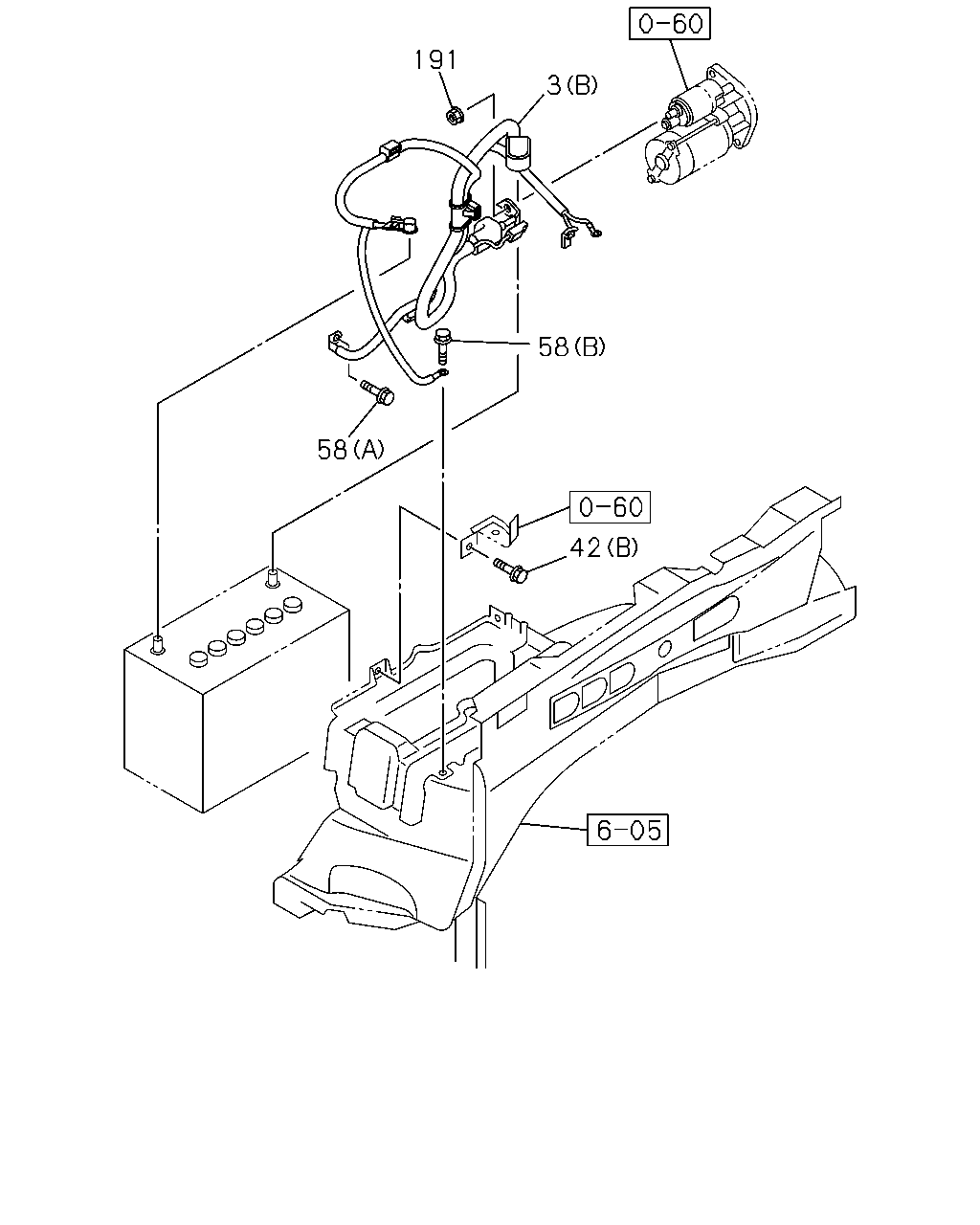

çizim 117509
191 3 58 58 42
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X2(TFB***) (A) 		8-97362-312-0 01 1 0307-0405 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) EXC. SHIFT ON THE FLY<NR4> (A) 		8-97362-312-0 01 1 0307-0405 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X2(TFB***) (A) 		8-97383-724-0 01 1 0406-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) EXC. SHIFT ON THE FLY<NR4> (A) 		8-97383-724-0 01 1 0406-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X2(TFB***) (A) 		8-98005-203-0 01 1 0502-0609 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) EXC. SHIFT ON THE FLY<NR4> (A) 		8-98005-203-0 01 1 0502-0609 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(B) 		8-98007-622-1 01 1 0610- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) SHIFT ON THE FLY<NR4> (A) 		8-97362-313-0 01 1 0307-0405 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) SHIFT ON THE FLY<NR4> (A) 		8-97383-725-0 01 1 0406-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) SHIFT ON THE FLY<NR4> (A) 		8-98005-204-0 01 1 0502-0609 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) SHIFT ON THE FLY<NR4> (A) 		8-97307-438-2 01 1 0307-0405 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) SHIFT ON THE FLY<NR4> (A) 		8-97380-856-0 01 1 0406-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) SHIFT ON THE FLY<NR4> (A) 		8-98005-202-0 01 1 0502-0609 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) EXC. SHIFT ON THE FLY<NR4> (A) 		8-97307-437-2 01 1 0307-0405 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) EXC. SHIFT ON THE FLY<NR4> (A) 		8-97380-855-0 01 1 0406-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) EXC. SHIFT ON THE FLY<NR4> (A) 		8-98005-201-0 01 1 0502-0609 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
(A) M6X16 FLANGE 		0-28650-616-0 02 1 0307-0609 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
(B) M6X16 FLANGE 		0-28650-616-0 01 1 0610- ● ●
58 02.343 BOLT; CABLE,BATTERY
(A) M10X20 FLANGE 		0-28651-020-0 01 1 0307-0609 ● ●
58 02.343 BOLT; CABLE,BATTERY
(A) M10X20 FLANGE 		0-28651-020-0 01 1 0610- ● ●
58 02.343 BOLT; CABLE,BATTERY
(B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 0307-0609 ● ●
58 02.343 BOLT; CABLE,BATTERY
(B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 0610- ● ●
191 08.155 NUT; STARTER
01.062 M8 FLANGE 		0-91180-108-0 01 1 0307-0609 ● ●
191 08.155 NUT; STARTER
01.062 M8 FLANGE 		0-91180-108-0 01 1 0610- ● ●

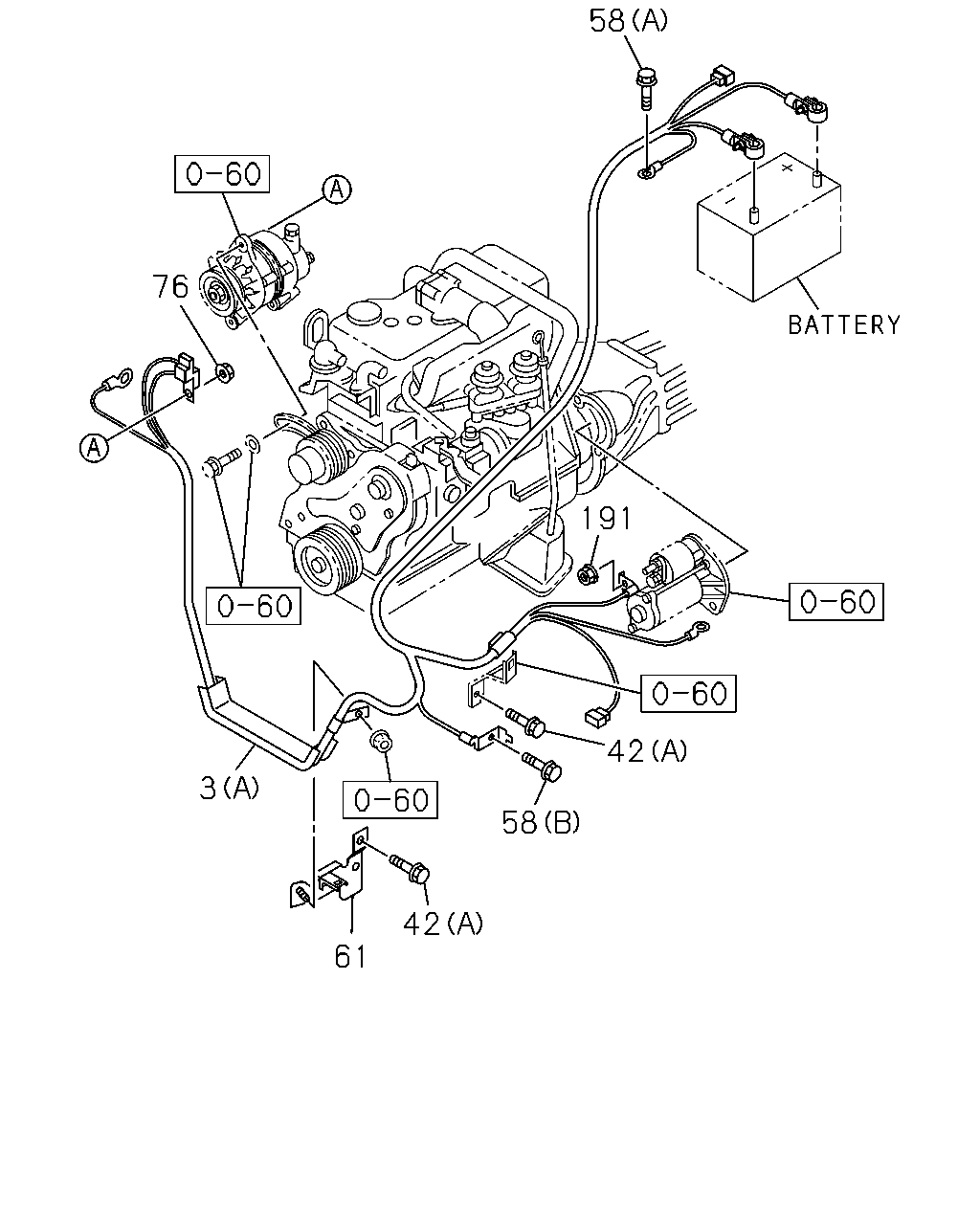

çizim 117580
58 76 191 42 3 58 42 61
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X2(TFB***) (A) 		8-97362-312-0 01 1 0307-0405 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) EXC. SHIFT ON THE FLY<NR4> (A) 		8-97362-312-0 01 1 0307-0405 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X2(TFB***) (A) 		8-97383-724-0 01 1 0406-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) EXC. SHIFT ON THE FLY<NR4> (A) 		8-97383-724-0 01 1 0406-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X2(TFB***) (A) 		8-98005-203-0 01 1 0502-0609 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) EXC. SHIFT ON THE FLY<NR4> (A) 		8-98005-203-0 01 1 0502-0609 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(B) 		8-98007-622-1 01 1 0610- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) SHIFT ON THE FLY<NR4> (A) 		8-97362-313-0 01 1 0307-0405 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) SHIFT ON THE FLY<NR4> (A) 		8-97383-725-0 01 1 0406-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) SHIFT ON THE FLY<NR4> (A) 		8-98005-204-0 01 1 0502-0609 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) SHIFT ON THE FLY<NR4> (A) 		8-97307-438-2 01 1 0307-0405 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) SHIFT ON THE FLY<NR4> (A) 		8-97380-856-0 01 1 0406-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) SHIFT ON THE FLY<NR4> (A) 		8-98005-202-0 01 1 0502-0609 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) EXC. SHIFT ON THE FLY<NR4> (A) 		8-97307-437-2 01 1 0307-0405 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) EXC. SHIFT ON THE FLY<NR4> (A) 		8-97380-855-0 01 1 0406-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) EXC. SHIFT ON THE FLY<NR4> (A) 		8-98005-201-0 01 1 0502-0609 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
(A) M6X16 FLANGE 		0-28650-616-0 02 1 0307-0609 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
(B) M6X16 FLANGE 		0-28650-616-0 01 1 0610- ● ●
58 02.343 BOLT; CABLE,BATTERY
(A) M10X20 FLANGE 		0-28651-020-0 01 1 0307-0609 ● ●
58 02.343 BOLT; CABLE,BATTERY
(A) M10X20 FLANGE 		0-28651-020-0 01 1 0610- ● ●
58 02.343 BOLT; CABLE,BATTERY
(B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 0307-0609 ● ●
58 02.343 BOLT; CABLE,BATTERY
(B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 0610- ● ●
61 02.333 BRACKET; BATTERY CABLE 8-97260-935-2 01 1 0307-0609 ● ●
76 02.343 NUT; BATTERY CABLE
01.062 M8 FLANGE 		0-91180-108-0 01 1 0307-0609 ● ●
191 08.155 NUT; STARTER
01.062 M8 FLANGE 		0-91180-108-0 01 1 0307-0609 ● ●
191 08.155 NUT; STARTER
01.062 M8 FLANGE 		0-91180-108-0 01 1 0610- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
