◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50967 - TFR/TFS(EUROPE)-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#74291) — 302 parça

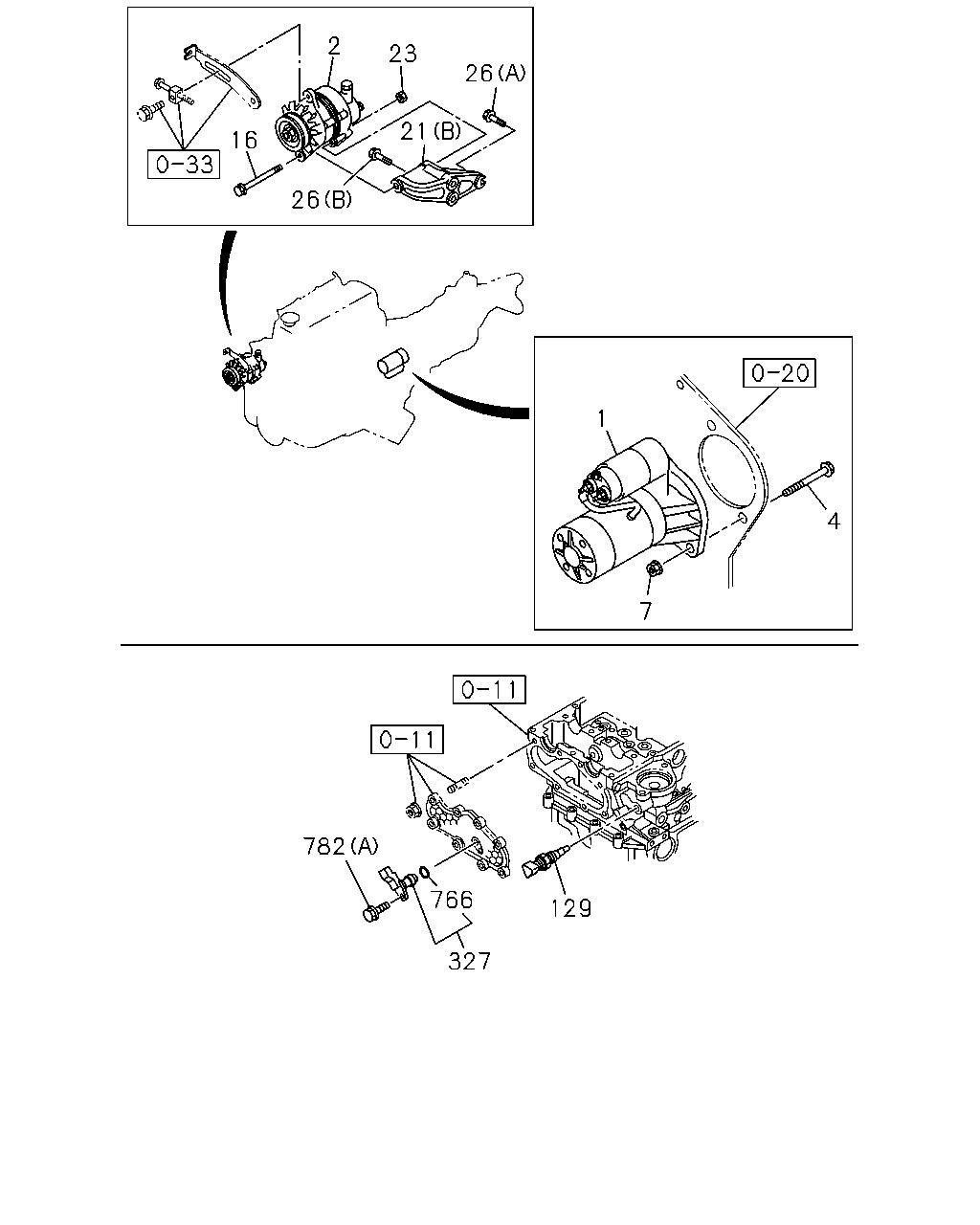

çizim 117486
2 23 26 21 16 26 1 4 7 782 766 129 327
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-97365-824-0 01 1 0307-0604 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-198-0 01 1 0605-0609 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 0610-1402 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. IDENTIFICATION LABEL FOR KD<6UT> 12V 2.3KW 		8-98028-199-0 01 1 1403- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1403- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97327-218-1 01 1 0307-0609 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-97369-716-1 01 1 0610-1004 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98153-004-0 01 1 1005-1012 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98153-004-0 01 1 1101-1106 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98196-585-0 01 1 1107-1211 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98229-071-1 01 1 1212-1402 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. IDENTIFICATION LABEL FOR KD<6UT> 12V 90A 		8-98229-071-1 01 1 1403- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98229-071-1 01 1 1403- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97245-850-2 01 1 0307-0609 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98006-084-0 01 1 0610-1012 ●
4 02.042 BOLT; STARTER
M12X60 FLANGE 		0-28051-260-0 02 1 0307-0609 ● ●
4 02.042 BOLT; STARTER
M12X60 		8-97161-846-1 02 1 0610-1402 ● ●
4 02.042 BOLT; STARTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X60 		8-97161-846-1 02 1 1403- ●
4 02.042 BOLT; STARTER
M12X60 		8-97161-846-1 02 1 1403- ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 0307-0609 ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 0610-1402 ● ●
7 02.042 NUT; STARTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> M12 FLANGE 		0-91180-112-0 02 1 1403- ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1403- ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28056-013-0 01 1 0307-0609 ● ●
16 02.277 BOLT; GEN
M10X125 FLANGE 		8-97226-470-1 01 1 0610-1402 ● ●
16 02.277 BOLT; GEN
EXC. IDENTIFICATION LABEL FOR KD<6UT> M10X125 FLANGE 		8-97226-470-1 01 1 1403- ●
16 02.277 BOLT; GEN
M10X125 FLANGE 		8-97226-470-1 01 1 1403- ●
21 02.277 BRACKET; GEN
(A) 		8-94437-276-2 01 1 0307-0402 ● ●
21 02.277 BRACKET; GEN
(A) 		8-97912-659-0 01 1 0403-0609 ● ●
21 02.277 BRACKET; GEN
(B) 		8-97356-020-1 01 1 0610- ● ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 0307-0609 ● ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 0610-1402 ● ●
23 02.277 NUT; GEN
EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.085 M10 FLANGE 		0-91180-210-0 01 1 1403- ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 1403- ●
26 02.277 BOLT; GEN BRKT
(A) M10X35 FLANGE 		0-28651-035-0 01 1 0610- ● ●
26 02.277 BOLT; GEN BRKT
03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 0610- ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 0610- ● ●
327 02.361 SENSOR; CAMSHAFT POSITION
03.670 		8-97324-402-1 01 1 0307-0609 ● ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 0610- ● ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 0610- ● ●
782 02.510 BOLT; SENSOR
04.439 (A) M6X16 FLANGE 		0-28680-616-0 01 1 0307-0601 ● ●
782 02.510 BOLT; SENSOR
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 0602-0609 ● ●
782 02.510 BOLT; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0610- ● ●
782 02.510 BOLT; SENSOR
09.242 (A) M6X16 FLANGE 		0-28050-616-0 01 1 0610- ● ●

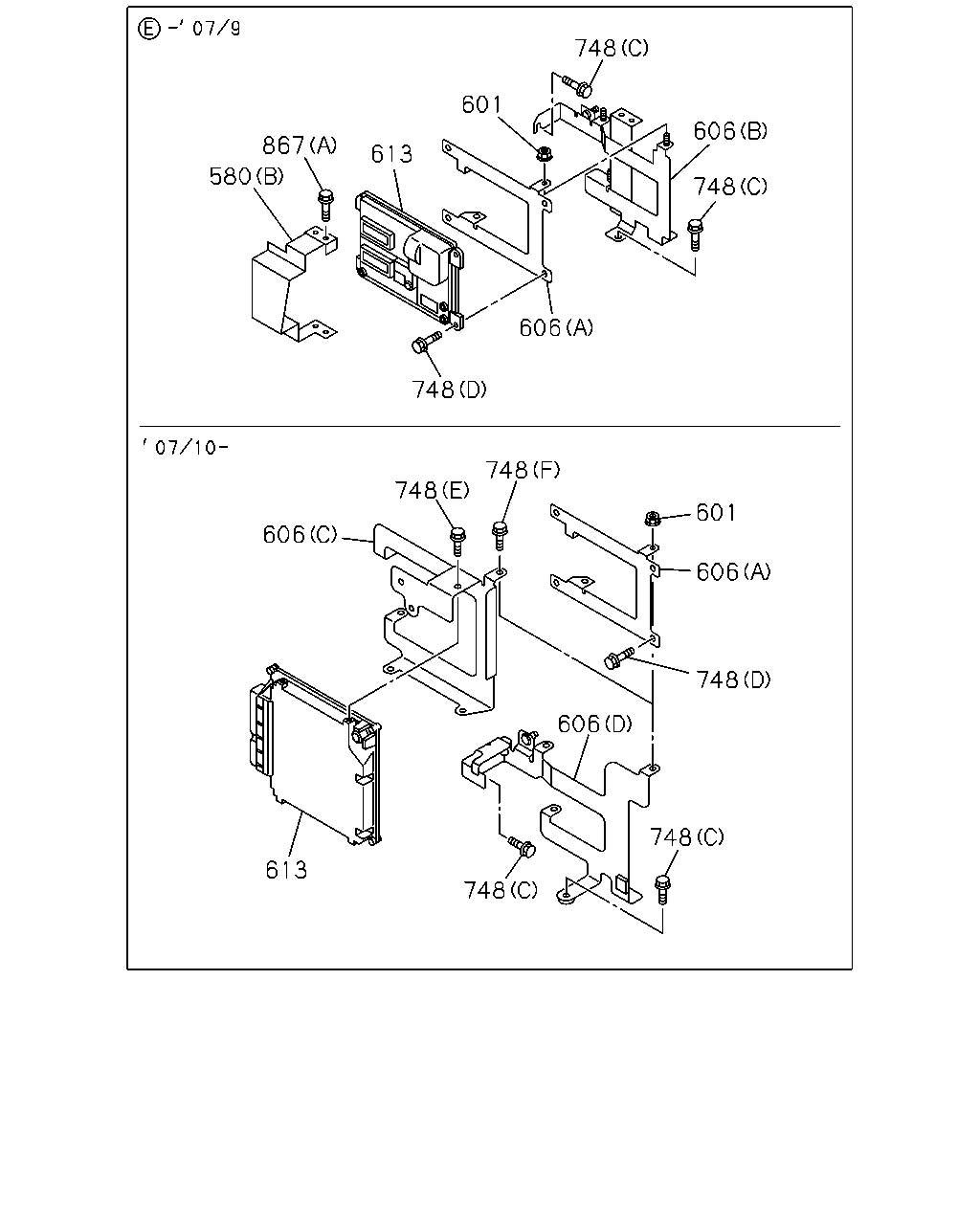

çizim 117492
748 601 606 867 613 580 748 606 748 748 748 601 606 606 748 606 748 613 748
BalonParca AdiParca NoAdetTipApplied Date A B C D
580 04.115 COVER; CONT UNIT
(A) 		8-97319-493-1 01 1 0307-0609 ● ●
580 04.115 COVER; CONT UNIT
(B) 		8-98008-108-1 01 1 0610-0709 ● ●
601 03.670 NUT; UNIT
EXC. ELECTRONIC CONTROL<K20> 01.062 M6 FLANGE 		0-91180-106-0 03 1 0801-0802 ● ●
601 03.670 NUT; UNIT
01.062 M6 FLANGE 		0-91180-106-0 03 1 0610-0709 ● ●
606 03.680 BRACKET; CONT UNIT
EXC. ELECTRONIC CONTROL<K20> (A) 		8-97364-729-2 01 1 0801-0802 ● ●
606 03.680 BRACKET; CONT UNIT
(A) 		8-97364-729-2 01 1 0610-0709 ● ●
606 03.680 BRACKET; CONT UNIT
(C) 		8-98064-201-2 01 1 0710-0712 ● ●
606 03.680 BRACKET; CONT UNIT
ELECTRONIC CONTROL<K20> (C) 		8-98064-201-2 01 1 0801-0809 ● ●
606 03.680 BRACKET; CONT UNIT
(C) 		8-98113-306-0 01 1 0810- ● ●
606 03.680 BRACKET; CONT UNIT
(B) 		8-98008-109-0 01 1 0610-0709 ● ●
606 03.680 BRACKET; CONT UNIT
ELECTRONIC CONTROL<K20> (D) 		8-98064-823-0 01 1 0710-0809 ● ●
606 03.680 BRACKET; CONT UNIT
(D) 		8-98064-823-0 01 1 0810- ● ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98017-344-8 01 1 0801-0802 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EXC. ELECTRONIC CONTROL<K20> 		8-98017-343-8 01 1 0801-0802 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EXC. ELECTRONIC CONTROL<K20> 		8-98017-345-8 01 1 0801-0802 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98017-346-8 01 1 0801-0802 ●
613 03.670 CONTROL UNIT; ENG 8-97361-894-1 01 1 0307-0609 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EXC. AUTO CRUISE CONT<K30> 		8-98017-348-8 01 1 0610-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EXC. AUTO CRUISE CONT<K30> 		8-98057-409-3 01 1 0710-0712 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EXC. AUTO CRUISE CONT<K30> 		8-98057-409-3 01 1 0801-0802 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EXC. AUTO CRUISE CONT<K30> 		8-98057-409-3 01 1 0803-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EXC. AUTO CRUISE CONT<K30> 		8-98126-965-0 01 1 0810-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EXC. AUTO CRUISE CONT<K30> 		8-98152-093-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EXC. AUTO CRUISE CONT<K30> 		8-98160-145-2 01 1 1008- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) 		8-97361-883-1 01 1 0307-0609 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> 		8-98017-343-8 01 1 0610-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> 		8-98057-405-3 01 1 0710-0712 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> AUTO CRUISE CONT<K30> 		8-98057-405-3 01 1 0801-0802 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> 		8-98057-405-3 01 1 0803-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> 		8-98126-961-0 01 1 0810-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> 		8-98152-089-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> 		8-98160-141-2 01 1 1008- ●
613 03.670 CONTROL UNIT; ENG
4X4 CREW CAB(TFS*W*) A/T 4 SPEED-JATCO(RMK) 		8-97361-882-1 01 1 0307-0609 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EXC. AUTO CRUISE CONT<K30> 		8-98017-344-8 01 1 0610-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EXC. AUTO CRUISE CONT<K30> 		8-98057-406-3 01 1 0710-0712 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> EXC. AUTO CRUISE CONT<K30> 		8-98057-406-3 01 1 0801-0802 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EXC. AUTO CRUISE CONT<K30> 		8-98057-406-3 01 1 0803-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EXC. AUTO CRUISE CONT<K30> 		8-98126-962-0 01 1 0810-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EXC. AUTO CRUISE CONT<K30> 		8-98152-090-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EXC. AUTO CRUISE CONT<K30> 		8-98160-142-2 01 1 1008- ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> 		8-98017-345-8 01 1 0610-0709 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> 		8-98057-407-3 01 1 0710-0712 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) ELECTRONIC CONTROL<K20> AUTO CRUISE CONT<K30> 		8-98057-407-3 01 1 0801-0802 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> 		8-98057-407-3 01 1 0803-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> 		8-98126-963-0 01 1 0810-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> 		8-98152-091-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> 		8-98160-143-2 01 1 1008- ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EXC. AUTO CRUISE CONT<K30> 		8-98017-346-8 01 1 0610-0709 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EXC. AUTO CRUISE CONT<K30> 		8-98057-408-3 01 1 0710-0712 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) ELECTRONIC CONTROL<K20> EXC. AUTO CRUISE CONT<K30> 		8-98057-408-3 01 1 0801-0802 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EXC. AUTO CRUISE CONT<K30> 		8-98057-408-3 01 1 0803-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EXC. AUTO CRUISE CONT<K30> 		8-98126-964-0 01 1 0810-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EXC. AUTO CRUISE CONT<K30> 		8-98152-092-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EXC. AUTO CRUISE CONT<K30> 		8-98160-144-2 01 1 1008- ●
748 02.500 BOLT; CONT UNIT
EXC. ELECTRONIC CONTROL<K20> 01.428 (D) M6X25 HEX SOCKET 		0-58330-625-0 04 1 0801-0802 ● ●
748 02.500 BOLT; CONT UNIT
(A) M6X10 FLANGE 		0-28080-610-0 02 1 0307-0601 ● ●
748 02.500 BOLT; CONT UNIT
03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0602-0609 ● ●
748 02.500 BOLT; CONT UNIT
03.162 (C) M6X20 FLANGE 		0-28650-620-0 03 1 0610- ● ●
748 02.500 BOLT; CONT UNIT
(B) 		8-97362-298-0 02 1 0307-0609 ● ●
748 02.500 BOLT; CONT UNIT
01.428 (D) M6X25 HEX SOCKET 		0-58330-625-0 04 1 0610-0709 ● ●
748 02.500 BOLT; CONT UNIT
02.343 (E) M6X16 FLANGE 		0-28650-616-0 03 1 0710-0712 ● ●
748 02.500 BOLT; CONT UNIT
ELECTRONIC CONTROL<K20> 02.343 (E) M6X16 FLANGE 		0-28650-616-0 03 1 0801-0809 ● ●
748 02.500 BOLT; CONT UNIT
02.343 (E) M6X16 FLANGE 		0-28650-616-0 03 1 0810- ● ●
748 02.500 BOLT; CONT UNIT
ELECTRONIC CONTROL<K20> (F) 		8-98064-377-0 03 1 0710-0802 ● ●
748 02.500 BOLT; CONT UNIT
(F) 		8-98064-377-0 03 1 0803- ● ●
867 02.559 BOLT
06.500 (A) 		8-94474-206-0 04 1 0610-0709 ● ●
867 02.559 BOLT
ISUZU BRAND<7WL> 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 0610- ● ●

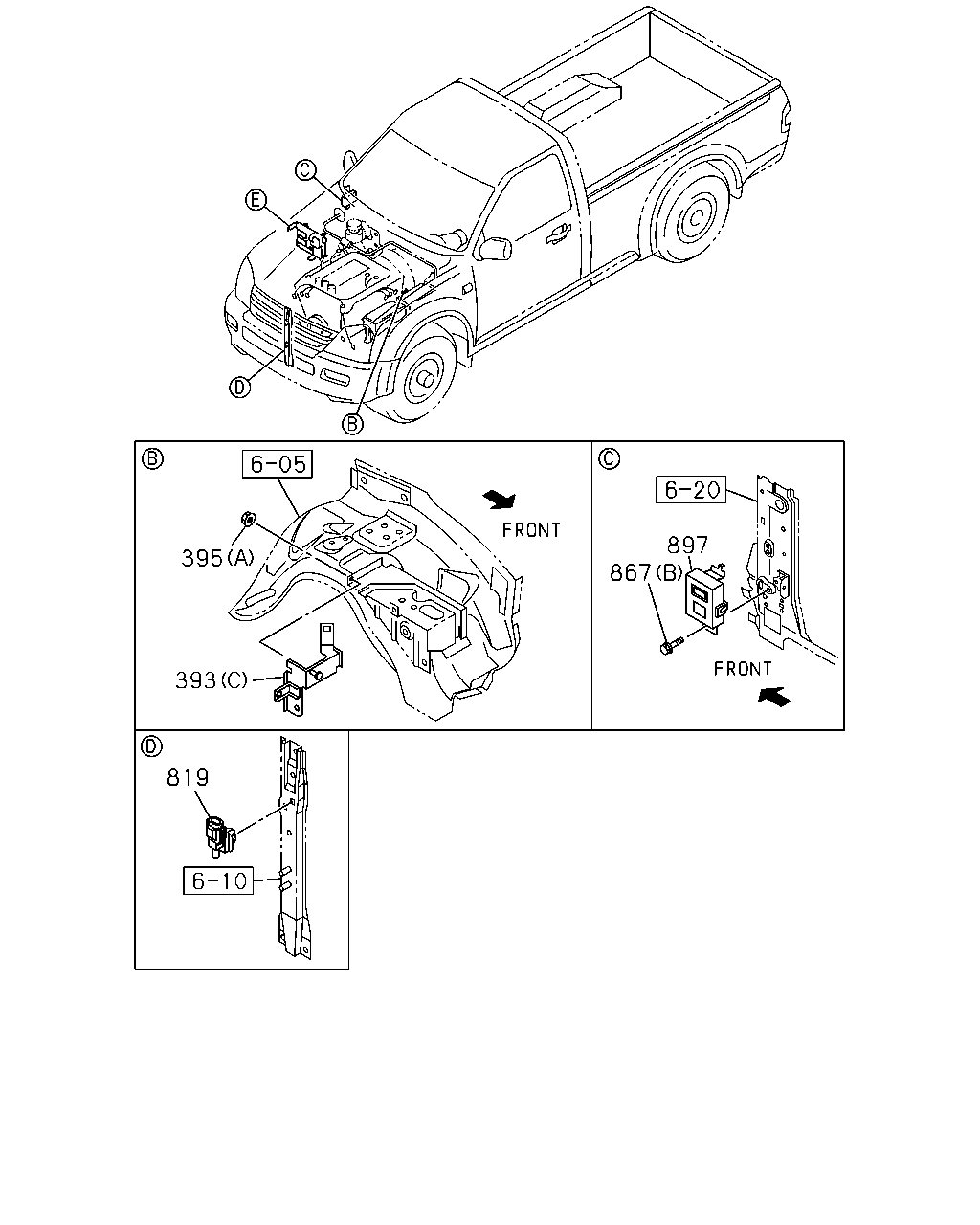

çizim 117495
897 867 395 393 819
BalonParca AdiParca NoAdetTipApplied Date A B C D
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-97236-163-1 01 1 0307-0608 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-98050-823-0 01 1 0609-0609 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-98050-833-0 01 1 0610- ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-97241-143-1 01 1 0307-0608 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98050-827-0 01 1 0609-0609 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-98050-884-0 01 1 0610- ● ●
395 02.343 NUT; BRKT FIX
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0307-0603 ● ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0604-0609 ● ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0610- ● ●
395 02.343 NUT; BRKT FIX
16.320 (B) M6 FLANGE 		8-97943-101-0 01 1 0307-0609 ● ●
819 01.150 SENSOR; MASS AIR FLOW (MAF)
OUTSIDE TEMPERATURE GAGE<UJH> 		8-98008-687-0 01 1 0610- ● ●
867 02.559 BOLT
06.500 (A) 		8-94474-206-0 04 1 0610-0709 ● ●
867 02.559 BOLT
ISUZU BRAND<7WL> 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 0610- ● ●
897 02.510 DRM
ISUZU BRAND<7WL> 		8-98031-641-1 01 1 0610-0711 ● ●
897 02.510 DRM
ISUZU BRAND<7WL> 		8-98090-009-0 01 1 0712-1002 ● ●
897 02.510 DRM
ISUZU BRAND<7WL> 		8-98166-134-3 01 1 1003- ● ●

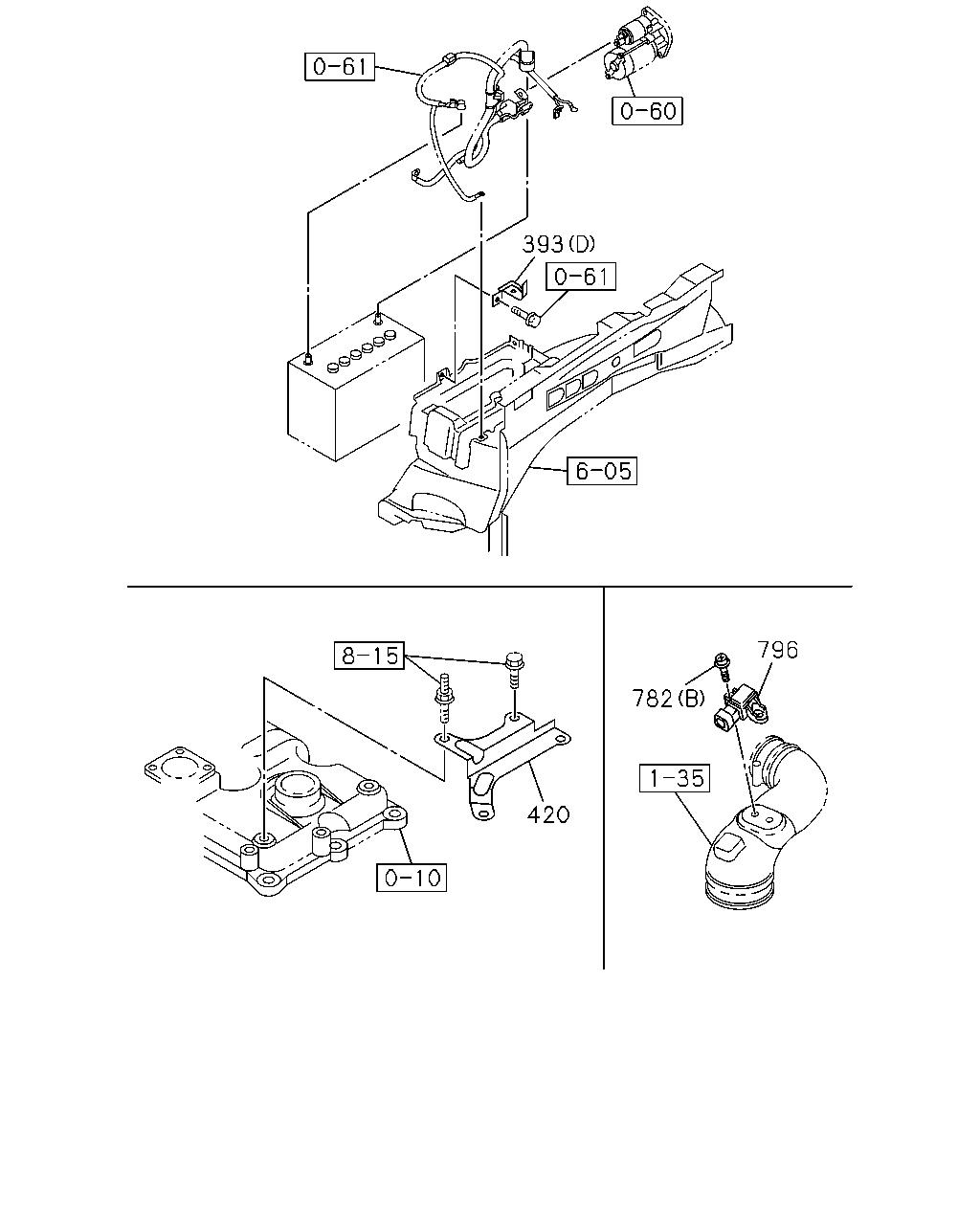

çizim 117504
393 796 782 420
BalonParca AdiParca NoAdetTipApplied Date A B C D
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-97236-163-1 01 1 0307-0608 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-98050-823-0 01 1 0609-0609 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-98050-833-0 01 1 0610- ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-97241-143-1 01 1 0307-0608 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98050-827-0 01 1 0609-0609 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-98050-884-0 01 1 0610- ● ●
420 02.183 BRACKET; HARNESS 8-98011-538-0 01 1 0610- ● ●
782 02.510 BOLT; SENSOR
04.439 (A) M6X16 FLANGE 		0-28680-616-0 01 1 0307-0601 ● ●
782 02.510 BOLT; SENSOR
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 0602-0609 ● ●
782 02.510 BOLT; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0610- ● ●
782 02.510 BOLT; SENSOR
09.242 (A) M6X16 FLANGE 		0-28050-616-0 01 1 0610- ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 0610- ● ●

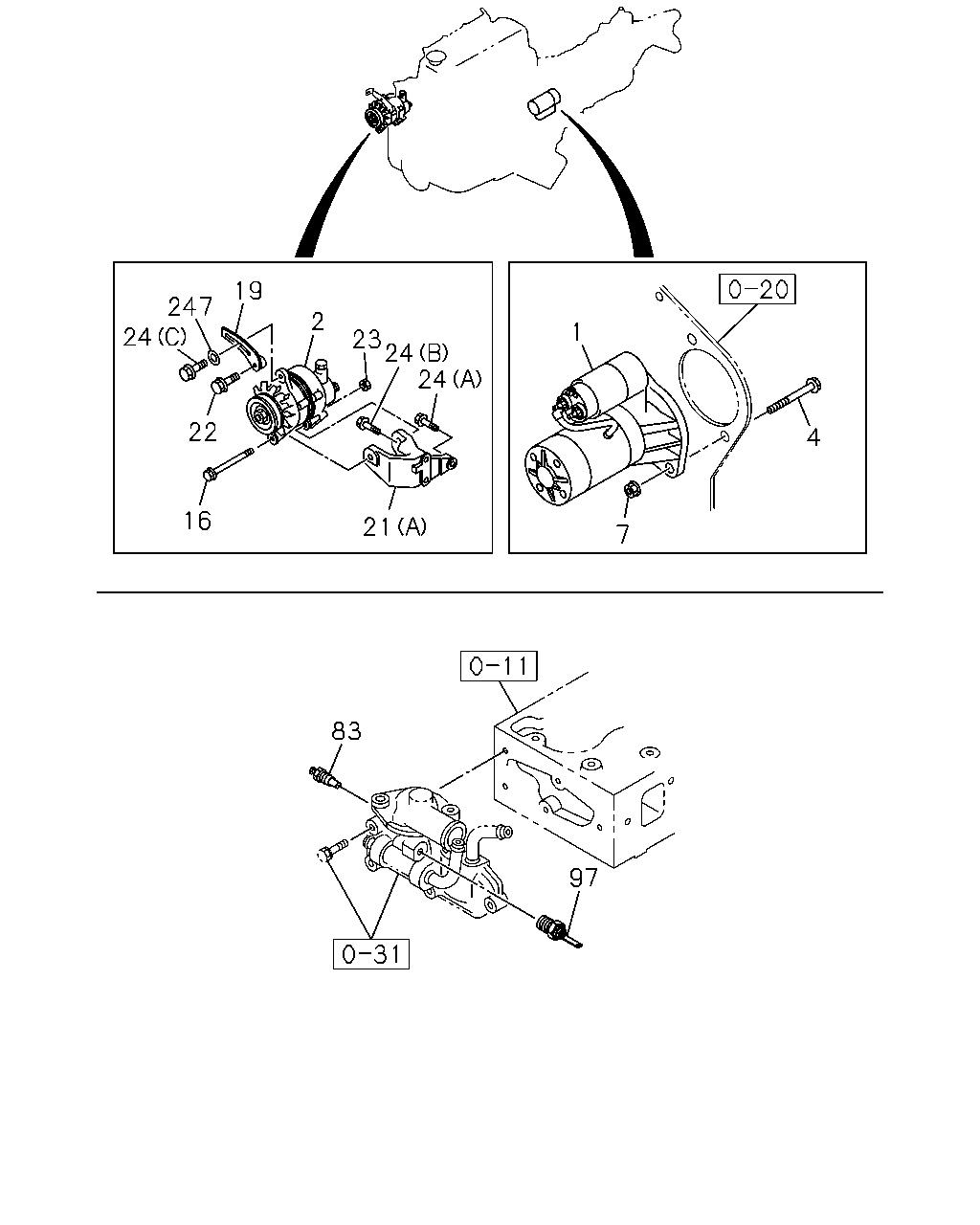

çizim 117575
19 247 24 2 1 23 24 24 22 4 16 21 7 83 97
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-97365-824-0 01 1 0307-0604 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-198-0 01 1 0605-0609 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 0610-1402 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. IDENTIFICATION LABEL FOR KD<6UT> 12V 2.3KW 		8-98028-199-0 01 1 1403- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1403- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97327-218-1 01 1 0307-0609 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-97369-716-1 01 1 0610-1004 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98153-004-0 01 1 1005-1012 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98153-004-0 01 1 1101-1106 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98196-585-0 01 1 1107-1211 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98229-071-1 01 1 1212-1402 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. IDENTIFICATION LABEL FOR KD<6UT> 12V 90A 		8-98229-071-1 01 1 1403- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98229-071-1 01 1 1403- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97245-850-2 01 1 0307-0609 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98006-084-0 01 1 0610-1012 ●
4 02.042 BOLT; STARTER
M12X60 FLANGE 		0-28051-260-0 02 1 0307-0609 ● ●
4 02.042 BOLT; STARTER
M12X60 		8-97161-846-1 02 1 0610-1402 ● ●
4 02.042 BOLT; STARTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X60 		8-97161-846-1 02 1 1403- ●
4 02.042 BOLT; STARTER
M12X60 		8-97161-846-1 02 1 1403- ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 0307-0609 ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 0610-1402 ● ●
7 02.042 NUT; STARTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> M12 FLANGE 		0-91180-112-0 02 1 1403- ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1403- ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28056-013-0 01 1 0307-0609 ● ●
16 02.277 BOLT; GEN
M10X125 FLANGE 		8-97226-470-1 01 1 0610-1402 ● ●
16 02.277 BOLT; GEN
EXC. IDENTIFICATION LABEL FOR KD<6UT> M10X125 FLANGE 		8-97226-470-1 01 1 1403- ●
16 02.277 BOLT; GEN
M10X125 FLANGE 		8-97226-470-1 01 1 1403- ●
19 02.277 BRACKET; GEN 8-97306-546-0 01 1 0307-0609 ● ●
21 02.277 BRACKET; GEN
(A) 		8-94437-276-2 01 1 0307-0402 ● ●
21 02.277 BRACKET; GEN
(A) 		8-97912-659-0 01 1 0403-0609 ● ●
21 02.277 BRACKET; GEN
(B) 		8-97356-020-1 01 1 0610- ● ●
22 09.008 BOLT; GEN
M8X25 W/LK WASHER 		0-50540-825-0 01 1 0307-0609 ● ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 0307-0609 ● ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 0610-1402 ● ●
23 02.277 NUT; GEN
EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.085 M10 FLANGE 		0-91180-210-0 01 1 1403- ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 1403- ●
24 02.277 BOLT; GEN BRKT
(C) M8X40 FLANGE 		0-28050-840-0 01 1 0307-0609 ● ●
24 02.277 BOLT; GEN BRKT
09.171 (A) M10X35 W/LK WASHER 		0-50041-035-0 01 1 0307-0402 ● ●
24 02.277 BOLT; GEN BRKT
09.171 (A) M10X35 W/LK WASHER 		0-50541-035-0 01 1 0403-0609 ● ●
24 02.277 BOLT; GEN BRKT
(B) M10X70 W/LK WASHER 		0-50041-070-0 02 1 0307-0609 ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0307-0609 ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0307-0609 ● ●
97 01.150 SWITCH; THERMO,EGR CONT 8-97069-786-1 01 1 0307-0609 ● ●
247 02.277 WASHER; PL,BRKT,GEN
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 0307-0606 ● ●
247 02.277 WASHER; PL,BRKT,GEN
ID=8.4 OD=22 		0-91614-708-0 01 1 0607-0609 ● ●

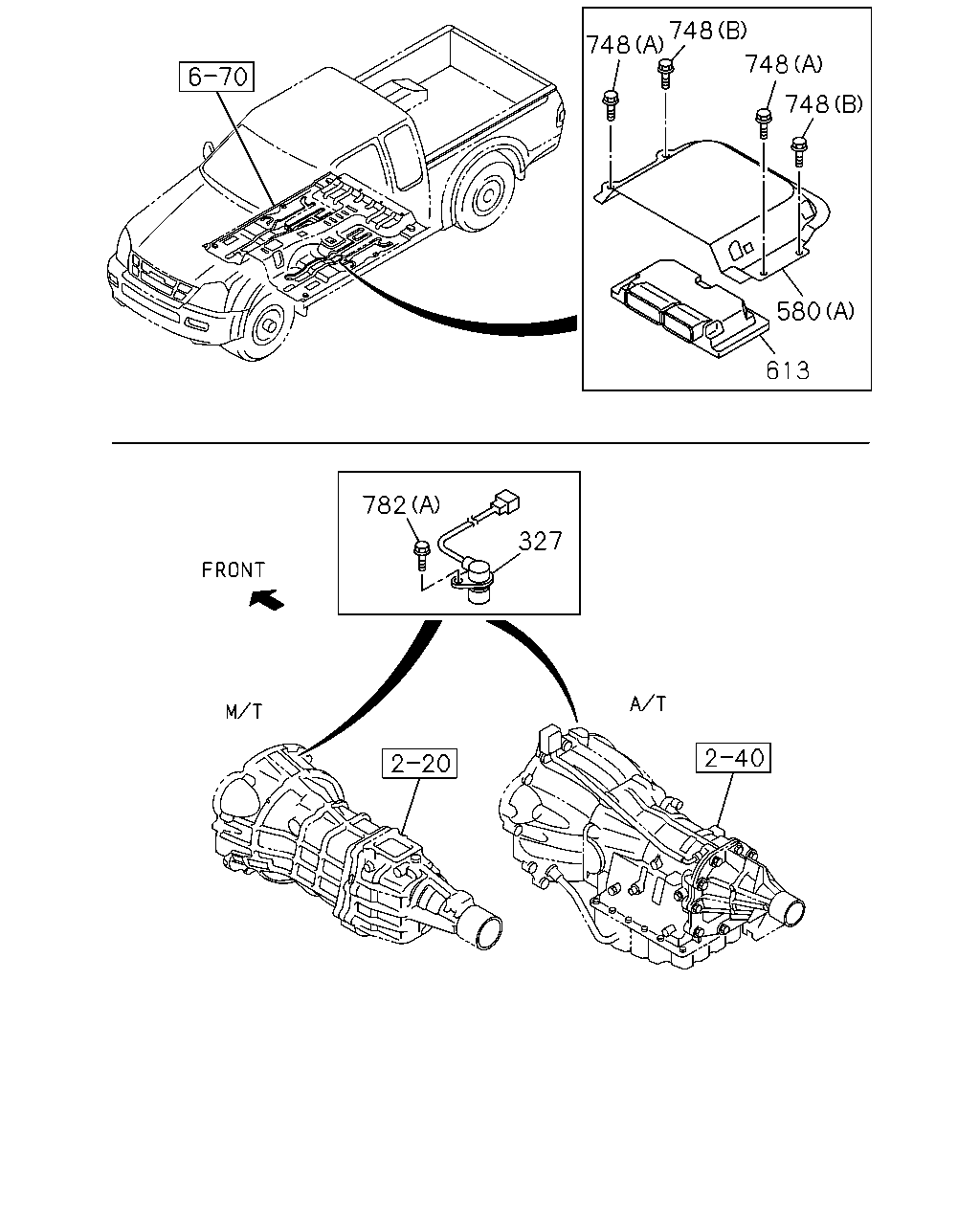

çizim 117577
748 748 748 748 580 613 782 327
BalonParca AdiParca NoAdetTipApplied Date A B C D
327 02.361 SENSOR; CAMSHAFT POSITION
03.670 		8-97324-402-1 01 1 0307-0609 ● ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 0610- ● ●
580 04.115 COVER; CONT UNIT
(A) 		8-97319-493-1 01 1 0307-0609 ● ●
580 04.115 COVER; CONT UNIT
(B) 		8-98008-108-1 01 1 0610-0709 ● ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98017-344-8 01 1 0801-0802 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EXC. ELECTRONIC CONTROL<K20> 		8-98017-343-8 01 1 0801-0802 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EXC. ELECTRONIC CONTROL<K20> 		8-98017-345-8 01 1 0801-0802 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98017-346-8 01 1 0801-0802 ●
613 03.670 CONTROL UNIT; ENG 8-97361-894-1 01 1 0307-0609 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EXC. AUTO CRUISE CONT<K30> 		8-98017-348-8 01 1 0610-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EXC. AUTO CRUISE CONT<K30> 		8-98057-409-3 01 1 0710-0712 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EXC. AUTO CRUISE CONT<K30> 		8-98057-409-3 01 1 0801-0802 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EXC. AUTO CRUISE CONT<K30> 		8-98057-409-3 01 1 0803-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EXC. AUTO CRUISE CONT<K30> 		8-98126-965-0 01 1 0810-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EXC. AUTO CRUISE CONT<K30> 		8-98152-093-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EXC. AUTO CRUISE CONT<K30> 		8-98160-145-2 01 1 1008- ●
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) 		8-97361-883-1 01 1 0307-0609 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> 		8-98017-343-8 01 1 0610-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> 		8-98057-405-3 01 1 0710-0712 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> AUTO CRUISE CONT<K30> 		8-98057-405-3 01 1 0801-0802 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> 		8-98057-405-3 01 1 0803-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> 		8-98126-961-0 01 1 0810-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> 		8-98152-089-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> 		8-98160-141-2 01 1 1008- ●
613 03.670 CONTROL UNIT; ENG
4X4 CREW CAB(TFS*W*) A/T 4 SPEED-JATCO(RMK) 		8-97361-882-1 01 1 0307-0609 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EXC. AUTO CRUISE CONT<K30> 		8-98017-344-8 01 1 0610-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EXC. AUTO CRUISE CONT<K30> 		8-98057-406-3 01 1 0710-0712 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> EXC. AUTO CRUISE CONT<K30> 		8-98057-406-3 01 1 0801-0802 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EXC. AUTO CRUISE CONT<K30> 		8-98057-406-3 01 1 0803-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EXC. AUTO CRUISE CONT<K30> 		8-98126-962-0 01 1 0810-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EXC. AUTO CRUISE CONT<K30> 		8-98152-090-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EXC. AUTO CRUISE CONT<K30> 		8-98160-142-2 01 1 1008- ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> 		8-98017-345-8 01 1 0610-0709 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> 		8-98057-407-3 01 1 0710-0712 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) ELECTRONIC CONTROL<K20> AUTO CRUISE CONT<K30> 		8-98057-407-3 01 1 0801-0802 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> 		8-98057-407-3 01 1 0803-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> 		8-98126-963-0 01 1 0810-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> 		8-98152-091-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> 		8-98160-143-2 01 1 1008- ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EXC. AUTO CRUISE CONT<K30> 		8-98017-346-8 01 1 0610-0709 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EXC. AUTO CRUISE CONT<K30> 		8-98057-408-3 01 1 0710-0712 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) ELECTRONIC CONTROL<K20> EXC. AUTO CRUISE CONT<K30> 		8-98057-408-3 01 1 0801-0802 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EXC. AUTO CRUISE CONT<K30> 		8-98057-408-3 01 1 0803-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EXC. AUTO CRUISE CONT<K30> 		8-98126-964-0 01 1 0810-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EXC. AUTO CRUISE CONT<K30> 		8-98152-092-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EXC. AUTO CRUISE CONT<K30> 		8-98160-144-2 01 1 1008- ●
748 02.500 BOLT; CONT UNIT
EXC. ELECTRONIC CONTROL<K20> 01.428 (D) M6X25 HEX SOCKET 		0-58330-625-0 04 1 0801-0802 ● ●
748 02.500 BOLT; CONT UNIT
(A) M6X10 FLANGE 		0-28080-610-0 02 1 0307-0601 ● ●
748 02.500 BOLT; CONT UNIT
03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0602-0609 ● ●
748 02.500 BOLT; CONT UNIT
03.162 (C) M6X20 FLANGE 		0-28650-620-0 03 1 0610- ● ●
748 02.500 BOLT; CONT UNIT
(B) 		8-97362-298-0 02 1 0307-0609 ● ●
748 02.500 BOLT; CONT UNIT
01.428 (D) M6X25 HEX SOCKET 		0-58330-625-0 04 1 0610-0709 ● ●
748 02.500 BOLT; CONT UNIT
02.343 (E) M6X16 FLANGE 		0-28650-616-0 03 1 0710-0712 ● ●
748 02.500 BOLT; CONT UNIT
ELECTRONIC CONTROL<K20> 02.343 (E) M6X16 FLANGE 		0-28650-616-0 03 1 0801-0809 ● ●
748 02.500 BOLT; CONT UNIT
02.343 (E) M6X16 FLANGE 		0-28650-616-0 03 1 0810- ● ●
748 02.500 BOLT; CONT UNIT
ELECTRONIC CONTROL<K20> (F) 		8-98064-377-0 03 1 0710-0802 ● ●
748 02.500 BOLT; CONT UNIT
(F) 		8-98064-377-0 03 1 0803- ● ●
782 02.510 BOLT; SENSOR
04.439 (A) M6X16 FLANGE 		0-28680-616-0 01 1 0307-0601 ● ●
782 02.510 BOLT; SENSOR
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 0602-0609 ● ●
782 02.510 BOLT; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0610- ● ●
782 02.510 BOLT; SENSOR
09.242 (A) M6X16 FLANGE 		0-28050-616-0 01 1 0610- ● ●

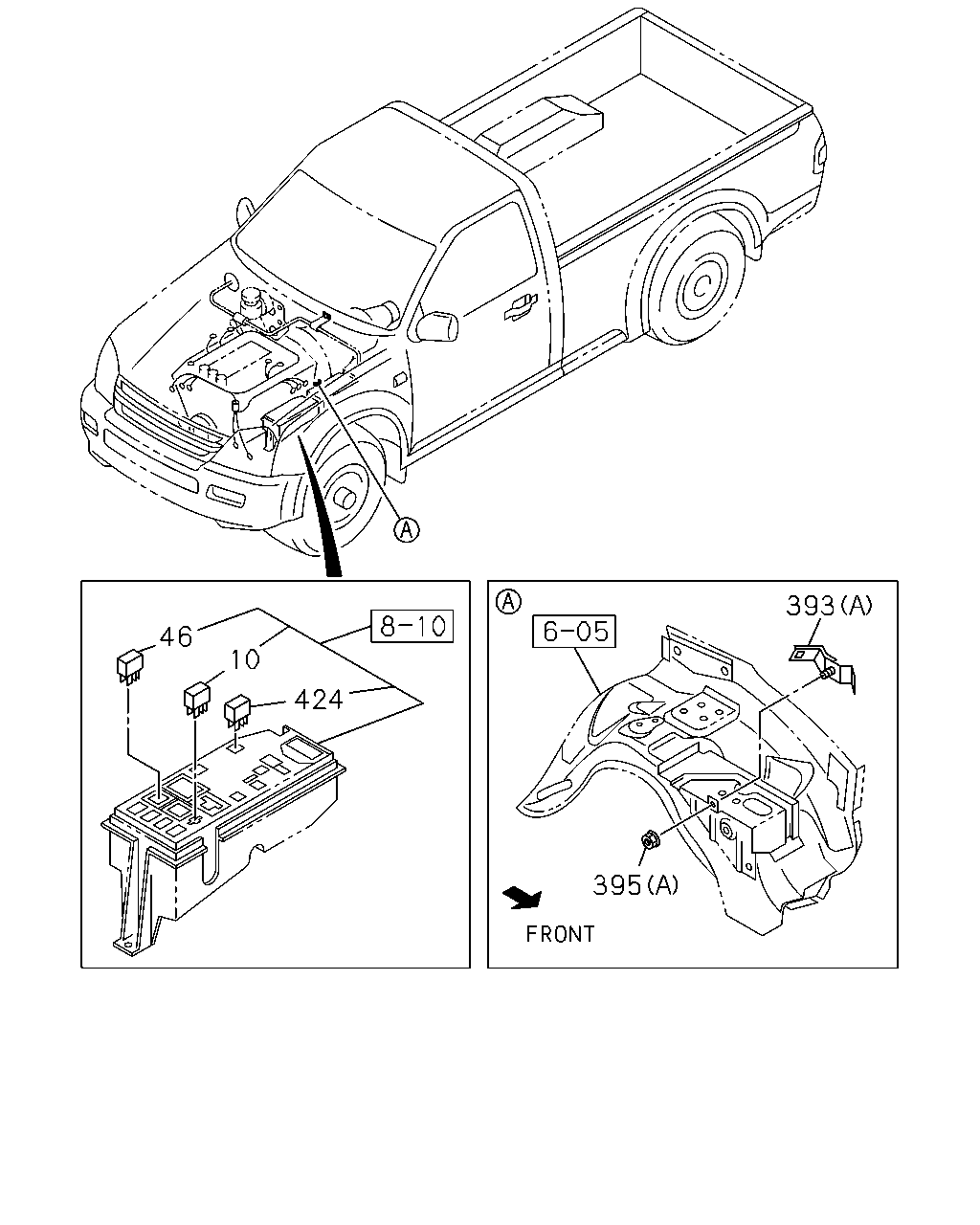

çizim 117578
393 46 10 424 395
BalonParca AdiParca NoAdetTipApplied Date A B C D
10 02.100 RELAY; STARTER
12V YAZAKI 		8-97309-295-0 01 1 0307-0609 ● ●
10 02.100 RELAY; STARTER
12V YAZAKI 		8-97309-295-0 01 1 0610-0910 ●
10 02.100 RELAY; STARTER
M/T MUX 5 SPEED 5S(MZJ) 12V YAZAKI 		8-97309-295-0 01 1 0610-0910 ●
10 02.100 RELAY; STARTER
A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> 12V YAZAKI 		8-97309-295-0 01 1 0610-0910 ●
10 02.100 RELAY; STARTER
12V YAZAKI 		8-98146-837-0 01 1 0911- ●
10 02.100 RELAY; STARTER
M/T MUX 5 SPEED 5S(MZJ) 12V YAZAKI 		8-98146-837-0 01 1 0911- ●
10 02.100 RELAY; STARTER
A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> 12V YAZAKI 		8-98146-837-0 01 1 0911- ●
46 02.510 RELAY; GLOW PLUG
02.100 12V YAZAKI 		8-97309-295-0 01 1 0307-0609 ● ●
46 02.510 RELAY; GLOW PLUG
02.100 12V YAZAKI 		8-97309-295-0 01 1 0610-0910 ●
46 02.510 RELAY; GLOW PLUG
M/T MUX 5 SPEED 5S(MZJ) 02.100 12V YAZAKI 		8-97309-295-0 01 1 0610-0910 ●
46 02.510 RELAY; GLOW PLUG
A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> 02.100 12V YAZAKI 		8-97309-295-0 01 1 0610-0910 ●
46 02.510 RELAY; GLOW PLUG
02.100 12V YAZAKI 		8-98146-837-0 01 1 0911- ●
46 02.510 RELAY; GLOW PLUG
M/T MUX 5 SPEED 5S(MZJ) 02.100 12V YAZAKI 		8-98146-837-0 01 1 0911- ●
46 02.510 RELAY; GLOW PLUG
A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> 02.100 12V YAZAKI 		8-98146-837-0 01 1 0911- ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-97236-163-1 01 1 0307-0608 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-98050-823-0 01 1 0609-0609 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-98050-833-0 01 1 0610- ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-97241-143-1 01 1 0307-0608 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98050-827-0 01 1 0609-0609 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-98050-884-0 01 1 0610- ● ●
395 02.343 NUT; BRKT FIX
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0307-0603 ● ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0604-0609 ● ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0610- ● ●
395 02.343 NUT; BRKT FIX
16.320 (B) M6 FLANGE 		8-97943-101-0 01 1 0307-0609 ● ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0406-0609 ● ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0610- ●
424 02.510 RELAY; SAFETY,STARTER
M/T MUX 5 SPEED 5S(MZJ) 02.485 12V YAZAKI 		8-97309-292-0 01 1 0610- ●
424 02.510 RELAY; SAFETY,STARTER
A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> 02.485 12V YAZAKI 		8-97309-292-0 01 1 0610- ●
çizim 117579
393 395
BalonParca AdiParca NoAdetTipApplied Date A B C D
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-97236-163-1 01 1 0307-0608 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-98050-823-0 01 1 0609-0609 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-98050-833-0 01 1 0610- ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-97241-143-1 01 1 0307-0608 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98050-827-0 01 1 0609-0609 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-98050-884-0 01 1 0610- ● ●
395 02.343 NUT; BRKT FIX
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0307-0603 ● ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0604-0609 ● ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0610- ● ●
395 02.343 NUT; BRKT FIX
16.320 (B) M6 FLANGE 		8-97943-101-0 01 1 0307-0609 ● ●

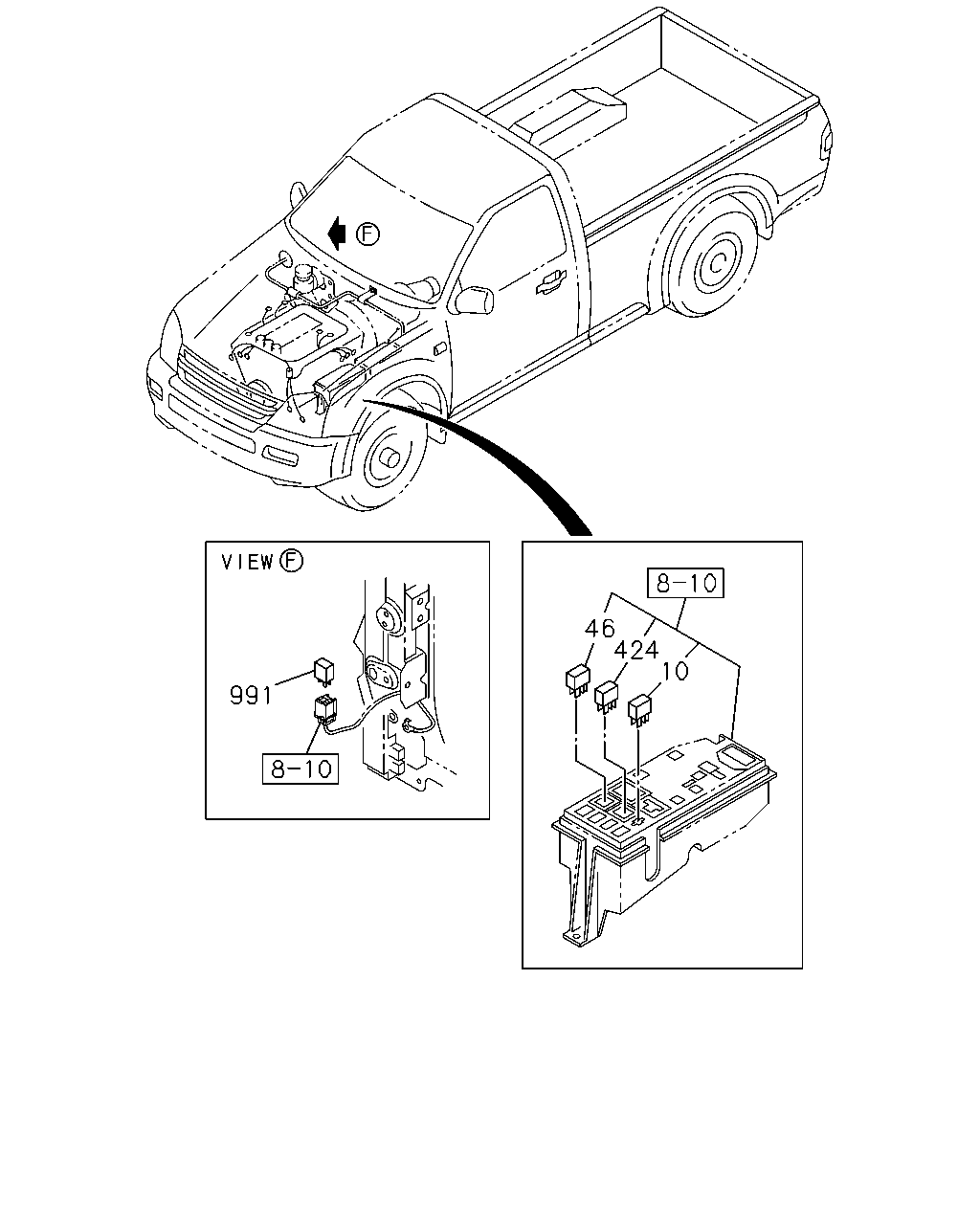

çizim 117728
46 424 10 991
BalonParca AdiParca NoAdetTipApplied Date A B C D
10 02.100 RELAY; STARTER
12V YAZAKI 		8-97309-295-0 01 1 0307-0609 ● ●
10 02.100 RELAY; STARTER
12V YAZAKI 		8-97309-295-0 01 1 0610-0910 ●
10 02.100 RELAY; STARTER
M/T MUX 5 SPEED 5S(MZJ) 12V YAZAKI 		8-97309-295-0 01 1 0610-0910 ●
10 02.100 RELAY; STARTER
A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> 12V YAZAKI 		8-97309-295-0 01 1 0610-0910 ●
10 02.100 RELAY; STARTER
12V YAZAKI 		8-98146-837-0 01 1 0911- ●
10 02.100 RELAY; STARTER
M/T MUX 5 SPEED 5S(MZJ) 12V YAZAKI 		8-98146-837-0 01 1 0911- ●
10 02.100 RELAY; STARTER
A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> 12V YAZAKI 		8-98146-837-0 01 1 0911- ●
46 02.510 RELAY; GLOW PLUG
02.100 12V YAZAKI 		8-97309-295-0 01 1 0307-0609 ● ●
46 02.510 RELAY; GLOW PLUG
02.100 12V YAZAKI 		8-97309-295-0 01 1 0610-0910 ●
46 02.510 RELAY; GLOW PLUG
M/T MUX 5 SPEED 5S(MZJ) 02.100 12V YAZAKI 		8-97309-295-0 01 1 0610-0910 ●
46 02.510 RELAY; GLOW PLUG
A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> 02.100 12V YAZAKI 		8-97309-295-0 01 1 0610-0910 ●
46 02.510 RELAY; GLOW PLUG
02.100 12V YAZAKI 		8-98146-837-0 01 1 0911- ●
46 02.510 RELAY; GLOW PLUG
M/T MUX 5 SPEED 5S(MZJ) 02.100 12V YAZAKI 		8-98146-837-0 01 1 0911- ●
46 02.510 RELAY; GLOW PLUG
A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> 02.100 12V YAZAKI 		8-98146-837-0 01 1 0911- ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0406-0609 ● ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0610- ●
424 02.510 RELAY; SAFETY,STARTER
M/T MUX 5 SPEED 5S(MZJ) 02.485 12V YAZAKI 		8-97309-292-0 01 1 0610- ●
424 02.510 RELAY; SAFETY,STARTER
A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> 02.485 12V YAZAKI 		8-97309-292-0 01 1 0610- ●
991 02.100 RELAY; STARTER CUT
02.485 12V YAZAKI 		8-97309-292-0 01 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
