◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50967 - TFR/TFS(EUROPE)-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-51 - OIL PUMP AND OIL STRAINER ▶
0-51 — OIL PUMP AND OIL STRAINER (#74287) — 55 parça

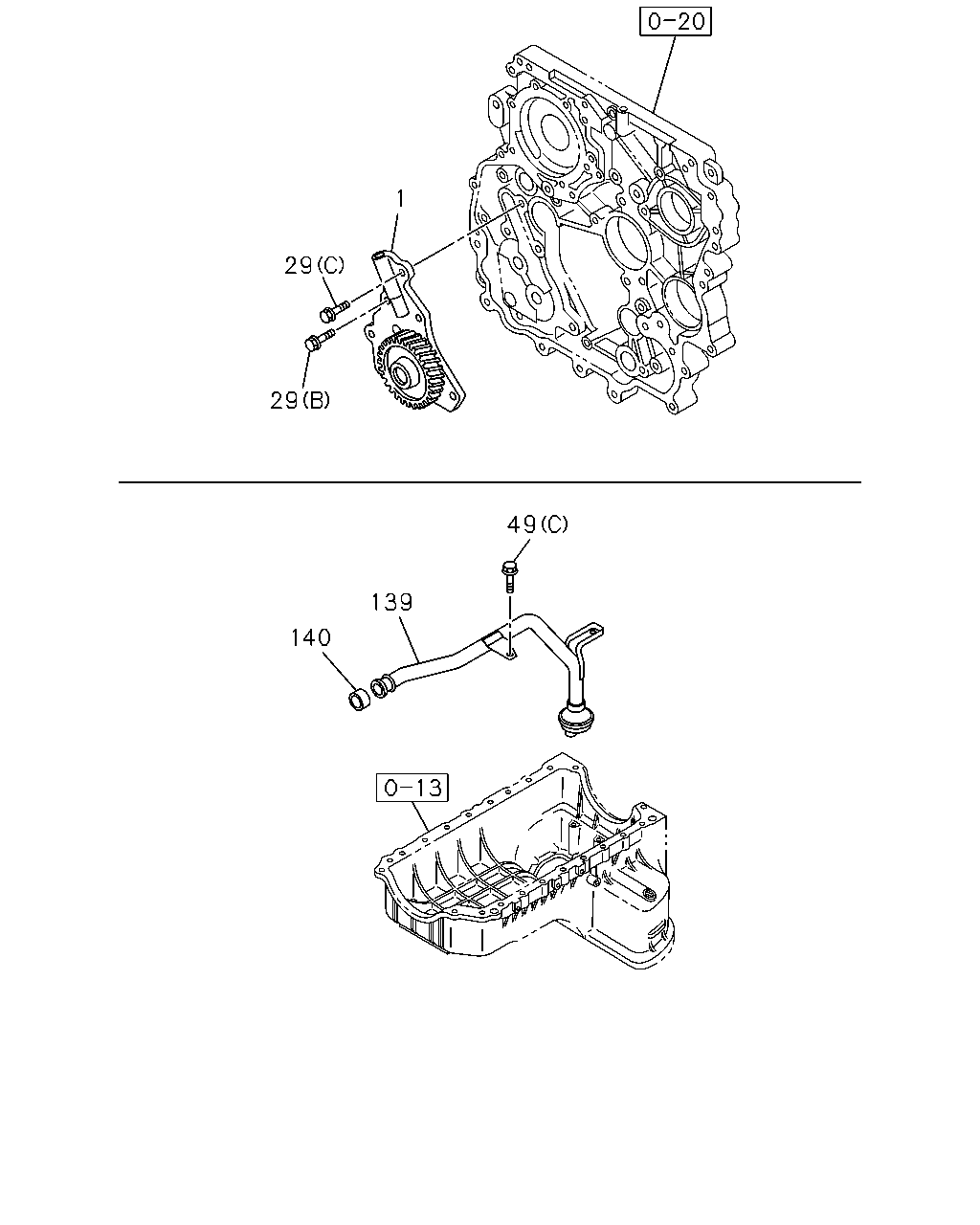

çizim 117476
1 29 29 49 139 140
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.652 PUMP ASM; OIL 8-97069-738-3 01 1 0307-0402 ●
1 01.652 PUMP ASM; OIL 8-97944-159-0 01 1 0403-0510 ●
1 01.652 PUMP ASM; OIL 8-97944-429-0 01 1 0511-0609 ●
1 01.652 PUMP ASM; OIL 8-98011-503-3 01 1 0610-0905 ● ●
1 01.652 PUMP ASM; OIL 8-98128-134-0 01 1 0906-1303 ● ●
1 01.652 PUMP ASM; OIL 8-98232-624-1 01 1 1304- ● ●
1 01.652 PUMP ASM; OIL 8-97308-112-2 01 1 0307-0402 ●
1 01.652 PUMP ASM; OIL 8-97941-852-2 01 1 0403-0510 ●
1 01.652 PUMP ASM; OIL 8-97944-430-0 01 1 0511-0609 ●
29 01.652 BOLT; OIL PUMP
01.531 (A) M8X25 FLANGE 		0-28080-825-0 02 1 0307-0402 ● ●
29 01.652 BOLT; OIL PUMP
03.275 (A) M8X25 FLANGE 		0-28050-825-0 02 1 0403-0609 ● ●
29 01.652 BOLT; OIL PUMP
00.206 (B) M8X30 FLANGE 		0-28050-830-0 04 1 0610- ● ●
29 01.652 BOLT; OIL PUMP
09.173 (C) M8X45 FLANGE 		0-28050-845-0 02 1 0610- ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
(B) M8X25 FLANGE 		0-28080-825-0 02 1 0307-0601 ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
03.275 (B) M8X25 FLANGE 		0-28050-825-0 02 1 0602-0609 ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 0610- ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
03.415 (A) M8X35 FLANGE 		0-28080-835-0 02 1 0307-0601 ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
03.162 (A) M8X35 FLANGE 		0-28050-835-0 02 1 0602-0609 ● ●
139 01.639 PIPE; OIL STRAINER
4X2(TFB***) 		8-97312-134-3 01 1 0610-0809 ●
139 01.639 PIPE; OIL STRAINER
4X2(TFB***) 		8-98127-247-0 01 1 0810- ●
139 01.639 PIPE; OIL STRAINER
4X4(TFS***) 		8-97354-753-3 01 1 0610-0809 ●
139 01.639 PIPE; OIL STRAINER 8-97354-753-3 01 1 0610-0809 ●
139 01.639 PIPE; OIL STRAINER
4X4(TFS***) 		8-98127-248-0 01 1 0810- ●
139 01.639 PIPE; OIL STRAINER 8-98127-248-0 01 1 0810- ●
140 01.639 GASKET; OIL STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97356-150-0 01 1 0610- ● ●
çizim 117568
1 29 1 21 21 45 2 5 121 19 35 42 49 49
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.652 PUMP ASM; OIL 8-97069-738-3 01 1 0307-0402 ●
1 01.652 PUMP ASM; OIL 8-97944-159-0 01 1 0403-0510 ●
1 01.652 PUMP ASM; OIL 8-97944-429-0 01 1 0511-0609 ●
1 01.652 PUMP ASM; OIL 8-98011-503-3 01 1 0610-0905 ● ●
1 01.652 PUMP ASM; OIL 8-98128-134-0 01 1 0906-1303 ● ●
1 01.652 PUMP ASM; OIL 8-98232-624-1 01 1 1304- ● ●
1 01.652 PUMP ASM; OIL 8-97308-112-2 01 1 0307-0402 ●
1 01.652 PUMP ASM; OIL 8-97941-852-2 01 1 0403-0510 ●
1 01.652 PUMP ASM; OIL 8-97944-430-0 01 1 0511-0609 ●
2 01.609 SEAT; SPR 5-13165-004-0 01 1 0307-0609 ● ●
5 01.609 SPRING; COIL 8-97036-834-0 01 1 0307-0609 ● ●
19 01.639 GEAR SET; OIL PUMP 8-94384-778-1 01 1 0307-0609 ● ●
21 01.655 GASKET; OIL PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A) ID=27.7 		1-09623-170-0 01 1 0307-0402 ●
21 01.655 GASKET; OIL PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A) ID=27.7 		1-09623-170-0 01 1 0403-0609 ● ●
21 01.655 GASKET; OIL PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=31.2 		1-09623-220-0 01 1 0307-0402 ●
21 01.655 GASKET; OIL PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=31.2 		1-09623-220-0 01 1 0403-0609 ● ●
29 01.652 BOLT; OIL PUMP
01.531 (A) M8X25 FLANGE 		0-28080-825-0 02 1 0307-0402 ● ●
29 01.652 BOLT; OIL PUMP
03.275 (A) M8X25 FLANGE 		0-28050-825-0 02 1 0403-0609 ● ●
29 01.652 BOLT; OIL PUMP
00.206 (B) M8X30 FLANGE 		0-28050-830-0 04 1 0610- ● ●
29 01.652 BOLT; OIL PUMP
09.173 (C) M8X45 FLANGE 		0-28050-845-0 02 1 0610- ● ●
35 01.657 COVER; OIL PUMP 8-97203-876-0 01 1 0307-0609 ● ●
42 01.656 STRAINER; OIL,OIL PUMP
01.657 		8-97089-824-0 01 1 0307-0609 ●
42 01.656 STRAINER; OIL,OIL PUMP
01.657 		8-97036-839-0 01 1 0307-0609 ●
45 01.609 PIN; SPLIT,RELIEF VLV
06.022 L=30 		9-08104-030-0 01 1 0307-0609 ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
(B) M8X25 FLANGE 		0-28080-825-0 02 1 0307-0601 ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
03.275 (B) M8X25 FLANGE 		0-28050-825-0 02 1 0602-0609 ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 0610- ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
03.415 (A) M8X35 FLANGE 		0-28080-835-0 02 1 0307-0601 ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
03.162 (A) M8X35 FLANGE 		0-28050-835-0 02 1 0602-0609 ● ●
121 01.639 VALVE; RELIEF,OIL PUMP
01.837 		8-94235-567-1 01 1 0307-0609 ● ●
