◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50967 - TFR/TFS(EUROPE)-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶
0-50 — OIL COOLER AND OIL FILTER (#74286) — 49 parça

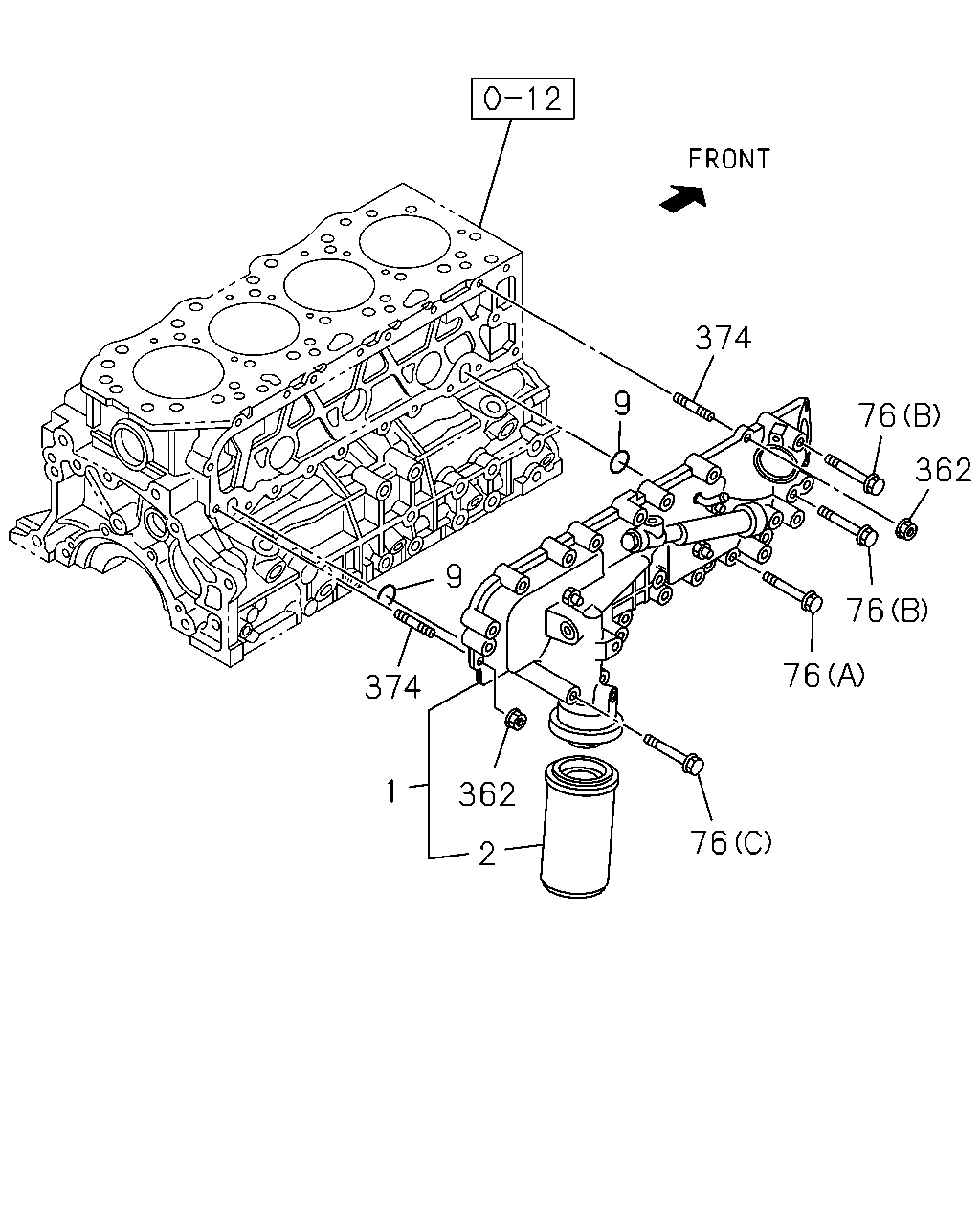

çizim 117493
374 9 76 362 9 76 76 374 1 362 76 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.540 FILTER & COOLER ASM; OIL 8-97287-474-1 01 1 0307-0310 ●
1 01.540 FILTER & COOLER ASM; OIL 8-97373-137-0 01 1 0311-0402 ●
1 01.540 FILTER & COOLER ASM; OIL 8-97287-474-1 01 1 0403-0609 ●
1 01.540 FILTER & COOLER ASM; OIL 8-98011-506-4 01 1 0610- ● ●
1 01.540 FILTER & COOLER ASM; OIL 8-97334-438-1 01 1 0307-0609 ●
2 01.836 ELEMENT; OIL FILTER 8-97309-927-0 01 1 0307-0609 ● ●
2 01.836 ELEMENT; OIL FILTER 8-97358-720-0 01 1 0610- ● ●
9 01.840 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97288-938-0 01 1 0307-0609 ● ●
9 01.840 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=26.2 		9-09566-226-0 02 1 0610- ● ●
76 01.840 BOLT; OIL FILTER
09.173 (A) M8X45 FLANGE 		0-28050-845-0 14 1 0610- ● ●
76 01.840 BOLT; OIL FILTER
00.206 (B) M8X70 FLANGE 		0-28050-870-0 02 1 0610- ● ●
76 01.840 BOLT; OIL FILTER
03.275 (C) M8X110 FLANGE 		0-28055-811-0 02 1 0610- ● ●
362 01.837 NUT; OIL FILTER
07.633 M8 FLANGE 		0-91150-108-0 02 1 0307-0402 ● ●
362 01.837 NUT; OIL FILTER
01.062 M8 FLANGE 		0-91180-108-0 02 1 0403-0609 ● ●
362 01.837 NUT; OIL FILTER
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610- ● ●
374 01.840 STUD; OIL FILTER
03.901 M8X25 L=37 		9-04110-825-0 02 1 0307-0402 ● ●
374 01.840 STUD; OIL FILTER
03.275 M8X25 L=37 		0-41010-825-0 02 1 0403-0609 ● ●
374 01.840 STUD; OIL FILTER
02.510 M8X20 L=32 		0-41010-820-0 02 1 0610- ● ●

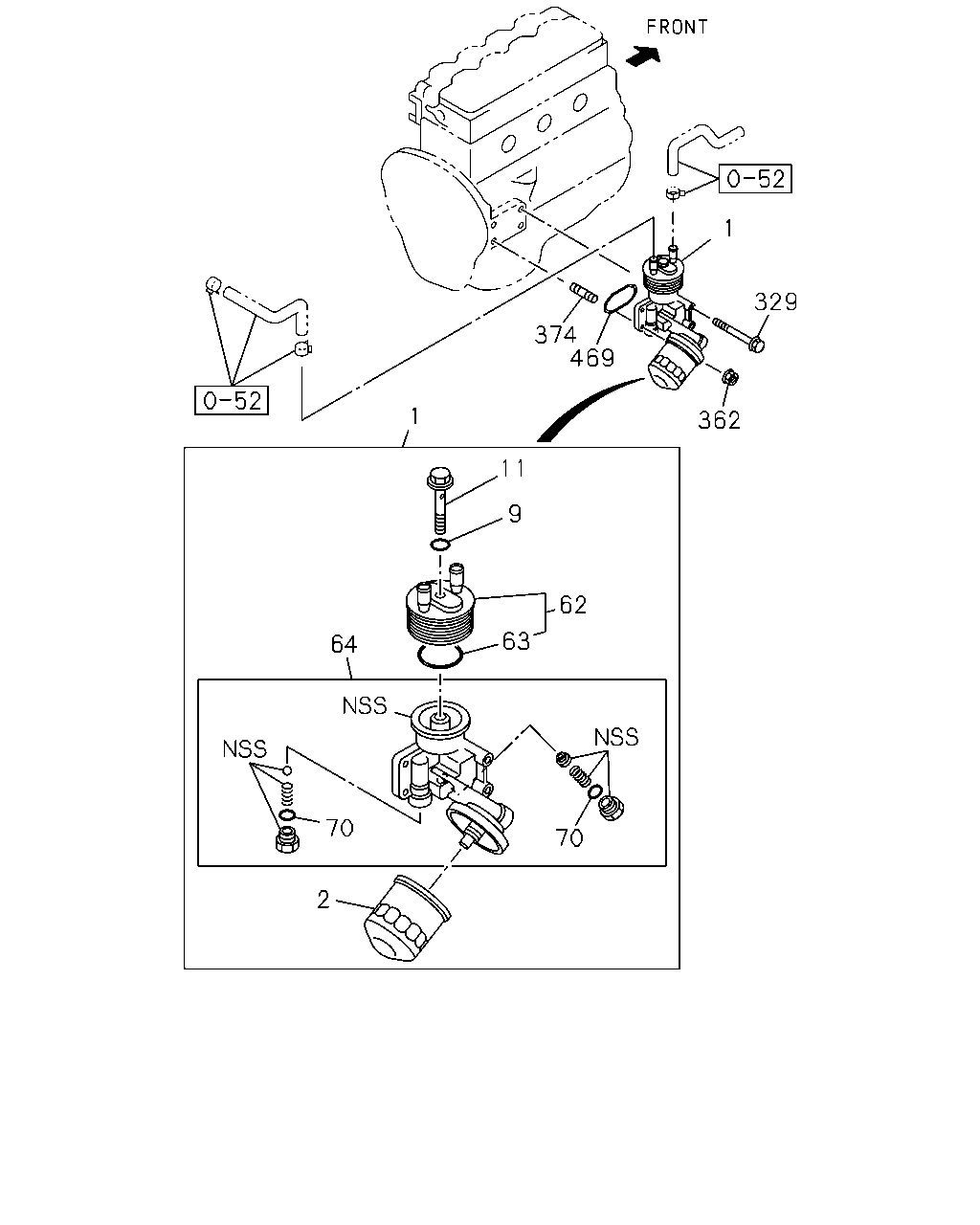

çizim 117564
1 329 374 469 1 362 11 9 62 63 64 70 70 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.540 FILTER & COOLER ASM; OIL 8-97287-474-1 01 1 0307-0310 ●
1 01.540 FILTER & COOLER ASM; OIL 8-97373-137-0 01 1 0311-0402 ●
1 01.540 FILTER & COOLER ASM; OIL 8-97287-474-1 01 1 0403-0609 ●
1 01.540 FILTER & COOLER ASM; OIL 8-98011-506-4 01 1 0610- ● ●
1 01.540 FILTER & COOLER ASM; OIL 8-97334-438-1 01 1 0307-0609 ●
2 01.836 ELEMENT; OIL FILTER 8-97309-927-0 01 1 0307-0609 ● ●
2 01.836 ELEMENT; OIL FILTER 8-97358-720-0 01 1 0610- ● ●
9 01.840 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97288-938-0 01 1 0307-0609 ● ●
9 01.840 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=26.2 		9-09566-226-0 02 1 0610- ● ●
11 01.840 BOLT; CENTER 8-97288-935-0 01 1 0307-0609 ●
11 01.840 BOLT; CENTER 8-97352-702-0 01 1 0307-0609 ●
62 01.540 COOLER ASM; OIL 8-97943-622-0 01 1 0307-0609 ●
62 01.540 COOLER ASM; OIL 8-97352-701-0 01 1 0307-0609 ●
63 01.550 GASKET; COOLER TO BRKT 8-94450-917-0 01 1 0307-0609 ● ●
64 01.540 BODY; OIL FILTER & OIL COOLER 8-97942-933-0 01 1 0403-0609 ●
64 01.540 BODY; OIL FILTER & OIL COOLER 8-97942-933-0 01 1 0307-0308 ● ●
64 01.540 BODY; OIL FILTER & OIL COOLER 8-97942-933-0 01 1 0309-0310 ●
64 01.540 BODY; OIL FILTER & OIL COOLER 8-97373-138-0 01 1 0309-0310 ●
64 01.540 BODY; OIL FILTER & OIL COOLER 8-97373-138-0 01 1 0311-0402 ● ●
64 01.540 BODY; OIL FILTER & OIL COOLER 8-97373-138-0 01 1 0403-0609 ●
70 01.844 GASKET; PLUG,OIL FILTER 8-97914-706-0 02 1 0307-0609 ● ●
329 01.840 BOLT; OIL FILTER
01.062 M8X95 FLANGE 		1-09044-075-1 02 1 0307-0402 ● ●
329 01.840 BOLT; OIL FILTER
M8X95 FLANGE 		8-97920-201-0 02 1 0403-0609 ● ●
362 01.837 NUT; OIL FILTER
07.633 M8 FLANGE 		0-91150-108-0 02 1 0307-0402 ● ●
362 01.837 NUT; OIL FILTER
01.062 M8 FLANGE 		0-91180-108-0 02 1 0403-0609 ● ●
362 01.837 NUT; OIL FILTER
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610- ● ●
374 01.840 STUD; OIL FILTER
03.901 M8X25 L=37 		9-04110-825-0 02 1 0307-0402 ● ●
374 01.840 STUD; OIL FILTER
03.275 M8X25 L=37 		0-41010-825-0 02 1 0403-0609 ● ●
374 01.840 STUD; OIL FILTER
02.510 M8X20 L=32 		0-41010-820-0 02 1 0610- ● ●
469 01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 01.844 		8-97065-983-0 01 1 0307-0402 ● ●
469 01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97912-548-0 01 1 0403-0609 ● ●
