0-40 — FUEL INJECTION SYSTEM (#74284) — 254 parça

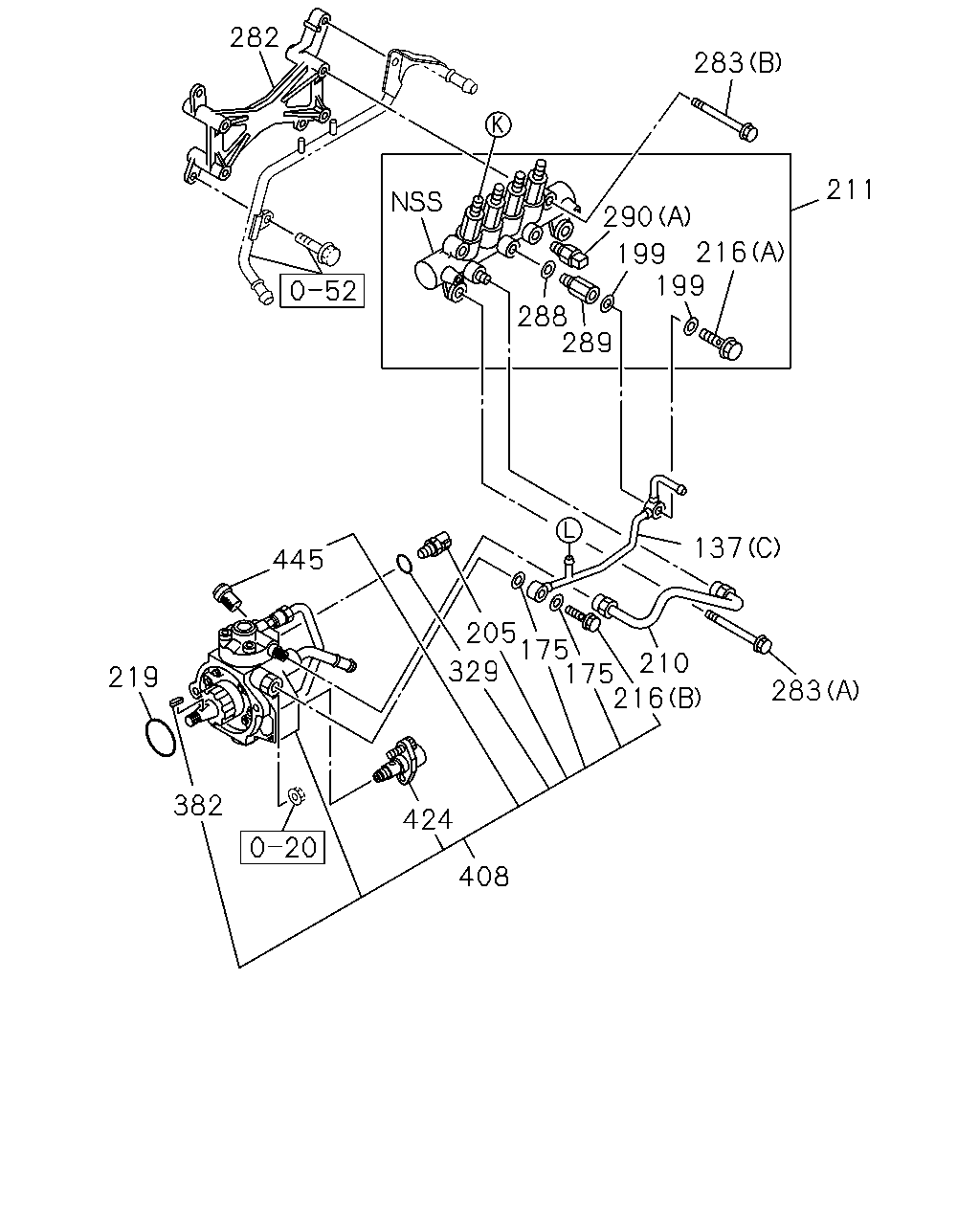

çizim 117482
282 290 288 289 199 199 216 211 283 205 329 445 219 382 424 408 175 175 216 210 137 283
BalonParca AdiParca NoAdetTipApplied Date A B C D
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 0610- ● ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 0610- ● ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-97357-916-4 01 1 0610- ● ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-97372-938-3 01 1 0610- ● ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 0610- ● ●
199 03.332 GASKET; EYE BOLT 8-97602-218-0 02 1 0610- ● ●
205 03.320 SENSOR; FUEL TEMP
03.162 		8-97216-283-0 01 1 0610-0611 ● ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 0612- ● ●
210 03.330 PIPE; INJ,C/R 8-97388-902-0 01 1 0610- ● ●
211 03.331 RAIL ASM; COMMON 8-98011-888-0 01 1 0610-0708 ● ●
211 03.331 RAIL ASM; COMMON 8-98052-238-1 01 1 0709- ● ●
216 03.162 BOLT; EYE
(B) 		8-98056-937-0 01 1 0610-0809 ● ●
216 03.162 BOLT; EYE
03.280 (B) 		9-88130-088-0 01 1 0810- ● ●
216 03.162 BOLT; EYE
(A) 		8-98043-033-0 01 1 0610- ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 0610- ● ●
282 03.163 BRACKET; COMMON RAIL 8-98011-890-1 01 1 0610- ● ●
283 03.330 BOLT; COMMON RAIL
00.206 (A) M8X70 FLANGE 		0-28050-870-0 02 1 0610- ● ●
283 03.330 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 0610- ● ●
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0610- ● ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 0610- ● ●
290 03.331 SENSOR; PRESS
(A) 		8-97318-684-0 01 1 0610-0708 ● ●
290 03.331 SENSOR; PRESS
(A) 		8-98014-320-0 01 1 0709-1208 ● ●
290 03.331 SENSOR; PRESS
(A) 		8-98181-616-0 01 1 1209- ● ●
290 03.331 SENSOR; PRESS
(B) 		8-98020-514-0 01 1 0610- ● ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 0710- ● ●
382 03.162 KEY; DRIVE SHAFT 8-97375-384-0 01 1 1008- ● ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-97311-373-9 01 1 0610-1007 ● ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-98155-988-1 01 1 1008- ● ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER 		8-98145-453-0 01 1 0610-0809 ● ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER 		8-98145-453-0 01 1 0810-0905 ● ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-455-0 01 1 0906- ● ●
445 03.330 SCREW; FILTER,INLET 8-98209-778-0 01 1 1008- ● ●

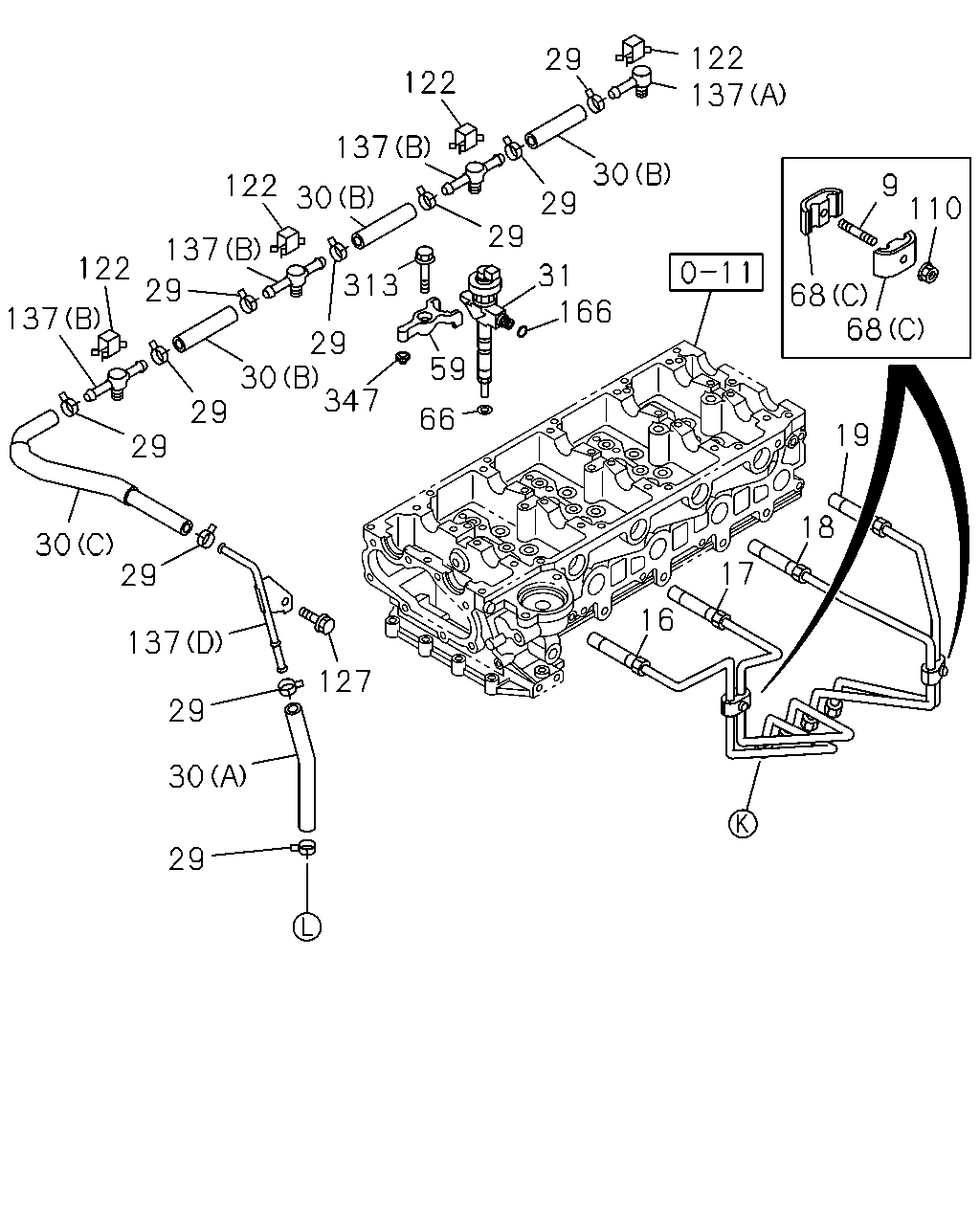

çizim 117503
122 137 29 122 137 30 9 110 122 30 29 29 137 122 31 166 313 29 68 68 137 29 30 347 59 29 66 19 29 18 30 29 17 16 137 127 29 30 29
BalonParca AdiParca NoAdetTipApplied Date A B C D
9 03.340 STUD; CLIP
03.162 M6X25 L=36 		8-97214-234-1 02 1 0610- ● ●
16 03.330 PIPE; INJ NO.1 8-97300-013-4 01 1 0307-0609 ●
16 03.330 PIPE; INJ NO.1 8-97255-017-2 01 1 0307-0609 ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 0610- ● ●
17 03.330 PIPE; INJ NO.2 8-97300-014-4 01 1 0307-0609 ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 0610- ● ●
17 03.330 PIPE; INJ NO.2 8-97255-018-2 01 1 0307-0609 ●
18 03.330 PIPE; INJ NO.3 8-97300-015-4 01 1 0307-0609 ●
18 03.330 PIPE; INJ NO.3 8-97255-019-2 01 1 0307-0609 ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 0610- ● ●
19 03.330 PIPE; INJ NO.4 8-97300-016-4 01 1 0307-0609 ●
19 03.330 PIPE; INJ NO.4 8-97255-020-2 01 1 0307-0609 ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 0610- ● ●
29 03.162 CLIP; HOSE
03.163 ID=11 		8-97173-219-0 02 1 0307-0609 ● ●
29 03.162 CLIP; HOSE
ID=10.5 		8-97944-126-0 10 1 0610- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-97364-773-0 01 1 0307-0609 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=130 		0-01804-130-0 01 1 0610-0611 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=130 		8-98053-692-0 01 1 0612- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 0610-0611 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=96 		8-98053-693-0 03 1 0612- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) L=150 		8-97362-306-2 01 1 0610-0810 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) 		8-98112-034-0 01 1 0811- ● ●
31 03.332 NOZZLE ASM; INJ 8-97300-942-1 04 1 0307-0502 ●
31 03.332 NOZZLE ASM; INJ 8-97382-947-0 04 1 0503-0609 ●
31 03.332 NOZZLE ASM; INJ 8-98011-605-5 04 1 0610- ●
31 03.332 NOZZLE ASM; INJ 8-97306-020-1 04 1 0307-0502 ●
31 03.332 NOZZLE ASM; INJ 8-97382-948-0 04 1 0503-0609 ●
31 03.332 NOZZLE ASM; INJ 8-98011-604-5 04 1 0610- ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 0307-0402 ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97920-006-0 04 1 0403-0609 ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98011-528-2 04 1 0610-0710 ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 0711- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0307-0609 ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-98057-731-0 04 1 0610-0701 ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-98077-165-0 04 1 0702-1012 ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-98181-540-0 04 1 1101- ● ●
68 03.162 CLIP; INJ PIPE
(A) 		1-09701-132-1 04 1 0307-0609 ● ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-481-0 04 1 0610- ● ●
68 03.162 CLIP; INJ PIPE
(B) 		8-97224-041-1 01 1 0307-0609 ● ●
110 03.330 NUT; CLIP
04.594 M6 FLANGE 		0-91150-106-0 02 1 0307-0402 ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0403-0609 ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0610- ● ●
122 03.162 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 0610- ● ●
127 03.162 BOLT; CLIP LEAK OFF PIPE
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0610- ● ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 0610- ● ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 0610- ● ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-97357-916-4 01 1 0610- ● ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-97372-938-3 01 1 0610- ● ●
166 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.332 ID=11 OD=14.8 		9-09566-111-0 04 1 0610- ● ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-97372-144-0 04 1 0610-0707 ● ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-98095-575-0 04 1 0708- ● ●
347 03.332 PIN 8-97383-286-0 04 1 0610-1012 ● ●
347 03.332 PIN 8-98165-035-0 04 1 1101- ● ●

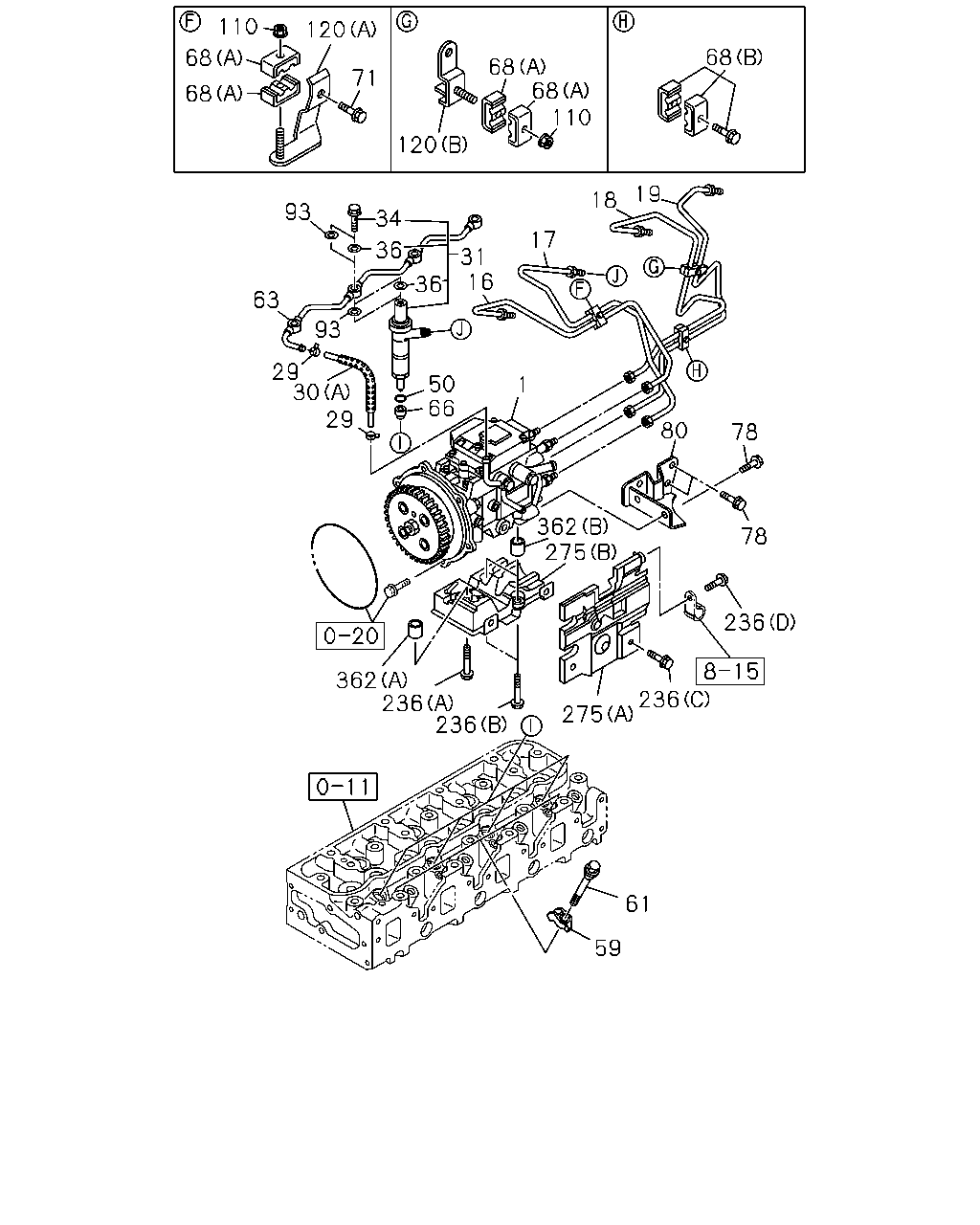

çizim 117565
110 120 68 68 68 68 110 71 68 120 19 18 93 34 17 36 31 16 36 63 93 29 30 29 50 66 1 80 78 362 275 78 236 236 362 236 236 275 61 59
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97249-238-4 01 1 0307-0609 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97326-739-3 01 1 0307-0609 ●
16 03.330 PIPE; INJ NO.1 8-97300-013-4 01 1 0307-0609 ●
16 03.330 PIPE; INJ NO.1 8-97255-017-2 01 1 0307-0609 ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 0610- ● ●
17 03.330 PIPE; INJ NO.2 8-97300-014-4 01 1 0307-0609 ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 0610- ● ●
17 03.330 PIPE; INJ NO.2 8-97255-018-2 01 1 0307-0609 ●
18 03.330 PIPE; INJ NO.3 8-97300-015-4 01 1 0307-0609 ●
18 03.330 PIPE; INJ NO.3 8-97255-019-2 01 1 0307-0609 ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 0610- ● ●
19 03.330 PIPE; INJ NO.4 8-97300-016-4 01 1 0307-0609 ●
19 03.330 PIPE; INJ NO.4 8-97255-020-2 01 1 0307-0609 ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 0610- ● ●
29 03.162 CLIP; HOSE
03.163 ID=11 		8-97173-219-0 02 1 0307-0609 ● ●
29 03.162 CLIP; HOSE
ID=10.5 		8-97944-126-0 10 1 0610- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-97364-773-0 01 1 0307-0609 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=130 		0-01804-130-0 01 1 0610-0611 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=130 		8-98053-692-0 01 1 0612- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 0610-0611 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=96 		8-98053-693-0 03 1 0612- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) L=150 		8-97362-306-2 01 1 0610-0810 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) 		8-98112-034-0 01 1 0811- ● ●
31 03.332 NOZZLE ASM; INJ 8-97300-942-1 04 1 0307-0502 ●
31 03.332 NOZZLE ASM; INJ 8-97382-947-0 04 1 0503-0609 ●
31 03.332 NOZZLE ASM; INJ 8-98011-605-5 04 1 0610- ●
31 03.332 NOZZLE ASM; INJ 8-97306-020-1 04 1 0307-0502 ●
31 03.332 NOZZLE ASM; INJ 8-97382-948-0 04 1 0503-0609 ●
31 03.332 NOZZLE ASM; INJ 8-98011-604-5 04 1 0610- ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
03.306 		8-94320-307-0 04 1 0307-0609 ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE 8-97084-347-0 08 1 0307-0502 ● ●
50 03.332 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97287-402-1 04 1 0307-0402 ● ●
50 03.332 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97912-615-0 04 1 0403-0609 ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 0307-0402 ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97920-006-0 04 1 0403-0609 ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98011-528-2 04 1 0610-0710 ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 0711- ● ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER 8-94468-020-2 04 1 0307-0402 ● ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER 8-97920-028-0 04 1 0403-0609 ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-94467-727-3 01 1 0307-0402 ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97920-247-0 01 1 0403-0609 ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0307-0609 ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-98057-731-0 04 1 0610-0701 ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-98077-165-0 04 1 0702-1012 ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-98181-540-0 04 1 1101- ● ●
68 03.162 CLIP; INJ PIPE
(A) 		1-09701-132-1 04 1 0307-0609 ● ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-481-0 04 1 0610- ● ●
68 03.162 CLIP; INJ PIPE
(B) 		8-97224-041-1 01 1 0307-0609 ● ●
71 03.162 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0307-0402 ● ●
71 03.162 BOLT; BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0403-0609 ● ●
78 03.330 BOLT; BRKT TO C/BL
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0307-0402 ●
78 03.330 BOLT; BRKT TO C/BL
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0403-0609 ●
78 03.330 BOLT; BRKT TO C/BL
02.664 M8X20 FLANGE 		0-28680-820-0 03 1 0307-0311 ●
78 03.330 BOLT; BRKT TO C/BL
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0312-0402 ●
78 03.330 BOLT; BRKT TO C/BL
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0403-0609 ●
78 03.330 BOLT; BRKT TO C/BL
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0307-0311 ●
80 03.306 BRACKET; PUMP 8-97328-484-0 01 1 0307-0609 ●
80 03.306 BRACKET; PUMP 8-97287-698-3 01 1 0307-0609 ●
93 03.162 GASKET; LEAK OFF PIPE
03.332 		8-97084-347-0 08 1 0503-0609 ● ●
110 03.330 NUT; CLIP
04.594 M6 FLANGE 		0-91150-106-0 02 1 0307-0402 ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0403-0609 ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0610- ● ●
120 03.330 BRACKET; INJ PIPE
(C) 		8-97255-534-0 01 1 0307-0609 ●
120 03.330 BRACKET; INJ PIPE
(D) 		8-97310-508-0 01 1 0307-0609 ●
120 03.330 BRACKET; INJ PIPE
(A) 		8-97313-942-1 01 1 0307-0609 ●
120 03.330 BRACKET; INJ PIPE
(B) 		8-97313-943-1 01 1 0307-0609 ●
236 03.335 BOLT; COVER
01.540 (E) M10X20 FLANGE 		0-28181-020-0 01 1 0307-0601 ●
236 03.335 BOLT; COVER
03.417 (E) M10X20 FLANGE 		0-28151-020-0 01 1 0602-0609 ●
236 03.335 BOLT; COVER
16.716 (F) M8X25 		8-94493-360-1 01 1 0307-0609 ●
236 03.335 BOLT; COVER
00.206 (C) M8X10 FLANGE 		0-28080-810-0 02 1 0307-0402 ●
236 03.335 BOLT; COVER
03.407 (C) M8X10 FLANGE 		0-28050-810-0 02 1 0403-0609 ●
236 03.335 BOLT; COVER
09.171 (A) M10X45 FLANGE 		0-28181-045-0 01 1 0307-0601 ●
236 03.335 BOLT; COVER
09.181 (A) M10X45 FLANGE 		0-28151-045-0 01 1 0602-0609 ●
236 03.335 BOLT; COVER
08.900 (B) M10X50 FLANGE 		0-28181-050-0 02 1 0307-0601 ●
236 03.335 BOLT; COVER
02.042 (B) M10X50 FLANGE 		0-28151-050-0 02 1 0602-0609 ●
236 03.335 BOLT; COVER
02.664 (D) M8X20 FLANGE 		0-28680-820-0 01 1 0307-0402 ●
236 03.335 BOLT; COVER
01.531 (D) M8X20 FLANGE 		0-28650-820-0 01 1 0403-0609 ●
275 03.335 COVER; INJ PUMP
(C) 		8-97329-015-1 01 1 0307-0609 ●
275 03.335 COVER; INJ PUMP
(A) 		8-97329-014-0 01 1 0307-0609 ●
275 03.335 COVER; INJ PUMP
(B) 		8-97329-016-0 01 1 0307-0609 ●
362 03.330 PIPE; GUIDE
(A) 		8-97287-007-0 01 1 0307-0609 ●
362 03.330 PIPE; GUIDE
(B) 		8-97287-008-0 02 1 0307-0609 ●

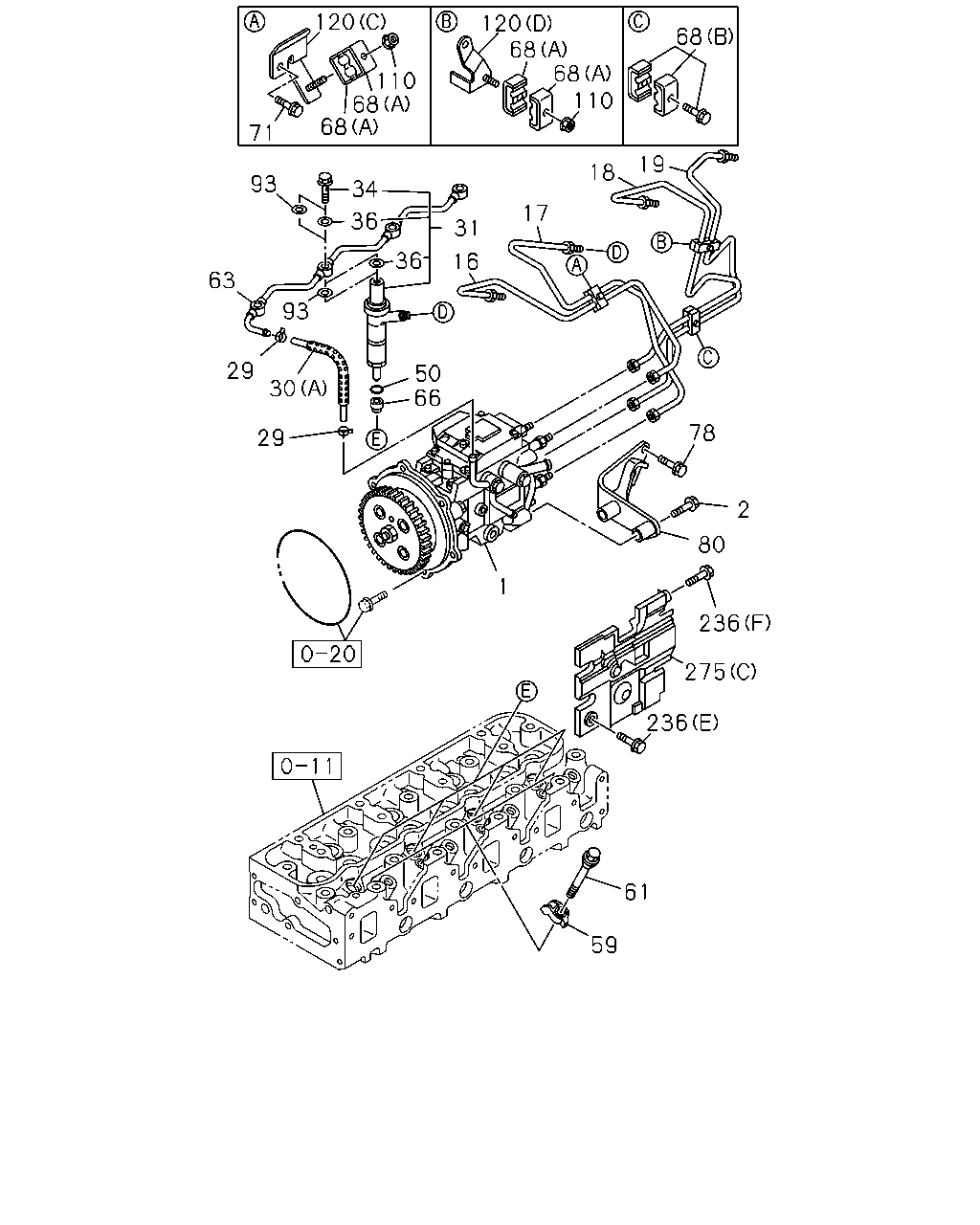

çizim 117567
120 120 68 68 110 68 110 68 68 71 19 18 93 34 17 36 31 36 16 63 93 29 50 66 30 78 29 2 80 1 236 275 236 61 59
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97249-238-4 01 1 0307-0609 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97326-739-3 01 1 0307-0609 ●
2 03.330 BOLT; INJ PUMP
01.540 M8X45 FLANGE 		0-28080-845-0 02 1 0307-0402 ●
2 03.330 BOLT; INJ PUMP
09.173 M8X45 FLANGE 		0-28050-845-0 02 1 0403-0609 ●
16 03.330 PIPE; INJ NO.1 8-97300-013-4 01 1 0307-0609 ●
16 03.330 PIPE; INJ NO.1 8-97255-017-2 01 1 0307-0609 ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 0610- ● ●
17 03.330 PIPE; INJ NO.2 8-97300-014-4 01 1 0307-0609 ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 0610- ● ●
17 03.330 PIPE; INJ NO.2 8-97255-018-2 01 1 0307-0609 ●
18 03.330 PIPE; INJ NO.3 8-97300-015-4 01 1 0307-0609 ●
18 03.330 PIPE; INJ NO.3 8-97255-019-2 01 1 0307-0609 ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 0610- ● ●
19 03.330 PIPE; INJ NO.4 8-97300-016-4 01 1 0307-0609 ●
19 03.330 PIPE; INJ NO.4 8-97255-020-2 01 1 0307-0609 ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 0610- ● ●
29 03.162 CLIP; HOSE
03.163 ID=11 		8-97173-219-0 02 1 0307-0609 ● ●
29 03.162 CLIP; HOSE
ID=10.5 		8-97944-126-0 10 1 0610- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-97364-773-0 01 1 0307-0609 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=130 		0-01804-130-0 01 1 0610-0611 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=130 		8-98053-692-0 01 1 0612- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 0610-0611 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=96 		8-98053-693-0 03 1 0612- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) L=150 		8-97362-306-2 01 1 0610-0810 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) 		8-98112-034-0 01 1 0811- ● ●
31 03.332 NOZZLE ASM; INJ 8-97300-942-1 04 1 0307-0502 ●
31 03.332 NOZZLE ASM; INJ 8-97382-947-0 04 1 0503-0609 ●
31 03.332 NOZZLE ASM; INJ 8-98011-605-5 04 1 0610- ●
31 03.332 NOZZLE ASM; INJ 8-97306-020-1 04 1 0307-0502 ●
31 03.332 NOZZLE ASM; INJ 8-97382-948-0 04 1 0503-0609 ●
31 03.332 NOZZLE ASM; INJ 8-98011-604-5 04 1 0610- ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
03.306 		8-94320-307-0 04 1 0307-0609 ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE 8-97084-347-0 08 1 0307-0502 ● ●
50 03.332 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97287-402-1 04 1 0307-0402 ● ●
50 03.332 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97912-615-0 04 1 0403-0609 ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 0307-0402 ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97920-006-0 04 1 0403-0609 ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98011-528-2 04 1 0610-0710 ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 0711- ● ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER 8-94468-020-2 04 1 0307-0402 ● ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER 8-97920-028-0 04 1 0403-0609 ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-94467-727-3 01 1 0307-0402 ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97920-247-0 01 1 0403-0609 ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0307-0609 ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-98057-731-0 04 1 0610-0701 ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-98077-165-0 04 1 0702-1012 ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-98181-540-0 04 1 1101- ● ●
68 03.162 CLIP; INJ PIPE
(A) 		1-09701-132-1 04 1 0307-0609 ● ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-481-0 04 1 0610- ● ●
68 03.162 CLIP; INJ PIPE
(B) 		8-97224-041-1 01 1 0307-0609 ● ●
71 03.162 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0307-0402 ● ●
71 03.162 BOLT; BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0403-0609 ● ●
78 03.330 BOLT; BRKT TO C/BL
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0307-0402 ●
78 03.330 BOLT; BRKT TO C/BL
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0403-0609 ●
78 03.330 BOLT; BRKT TO C/BL
02.664 M8X20 FLANGE 		0-28680-820-0 03 1 0307-0311 ●
78 03.330 BOLT; BRKT TO C/BL
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0312-0402 ●
78 03.330 BOLT; BRKT TO C/BL
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0403-0609 ●
78 03.330 BOLT; BRKT TO C/BL
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0307-0311 ●
80 03.306 BRACKET; PUMP 8-97328-484-0 01 1 0307-0609 ●
80 03.306 BRACKET; PUMP 8-97287-698-3 01 1 0307-0609 ●
93 03.162 GASKET; LEAK OFF PIPE
03.332 		8-97084-347-0 08 1 0503-0609 ● ●
110 03.330 NUT; CLIP
04.594 M6 FLANGE 		0-91150-106-0 02 1 0307-0402 ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0403-0609 ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0610- ● ●
120 03.330 BRACKET; INJ PIPE
(C) 		8-97255-534-0 01 1 0307-0609 ●
120 03.330 BRACKET; INJ PIPE
(D) 		8-97310-508-0 01 1 0307-0609 ●
120 03.330 BRACKET; INJ PIPE
(A) 		8-97313-942-1 01 1 0307-0609 ●
120 03.330 BRACKET; INJ PIPE
(B) 		8-97313-943-1 01 1 0307-0609 ●
236 03.335 BOLT; COVER
01.540 (E) M10X20 FLANGE 		0-28181-020-0 01 1 0307-0601 ●
236 03.335 BOLT; COVER
03.417 (E) M10X20 FLANGE 		0-28151-020-0 01 1 0602-0609 ●
236 03.335 BOLT; COVER
16.716 (F) M8X25 		8-94493-360-1 01 1 0307-0609 ●
236 03.335 BOLT; COVER
00.206 (C) M8X10 FLANGE 		0-28080-810-0 02 1 0307-0402 ●
236 03.335 BOLT; COVER
03.407 (C) M8X10 FLANGE 		0-28050-810-0 02 1 0403-0609 ●
236 03.335 BOLT; COVER
09.171 (A) M10X45 FLANGE 		0-28181-045-0 01 1 0307-0601 ●
236 03.335 BOLT; COVER
09.181 (A) M10X45 FLANGE 		0-28151-045-0 01 1 0602-0609 ●
236 03.335 BOLT; COVER
08.900 (B) M10X50 FLANGE 		0-28181-050-0 02 1 0307-0601 ●
236 03.335 BOLT; COVER
02.042 (B) M10X50 FLANGE 		0-28151-050-0 02 1 0602-0609 ●
236 03.335 BOLT; COVER
02.664 (D) M8X20 FLANGE 		0-28680-820-0 01 1 0307-0402 ●
236 03.335 BOLT; COVER
01.531 (D) M8X20 FLANGE 		0-28650-820-0 01 1 0403-0609 ●
275 03.335 COVER; INJ PUMP
(C) 		8-97329-015-1 01 1 0307-0609 ●
275 03.335 COVER; INJ PUMP
(A) 		8-97329-014-0 01 1 0307-0609 ●
275 03.335 COVER; INJ PUMP
(B) 		8-97329-016-0 01 1 0307-0609 ●

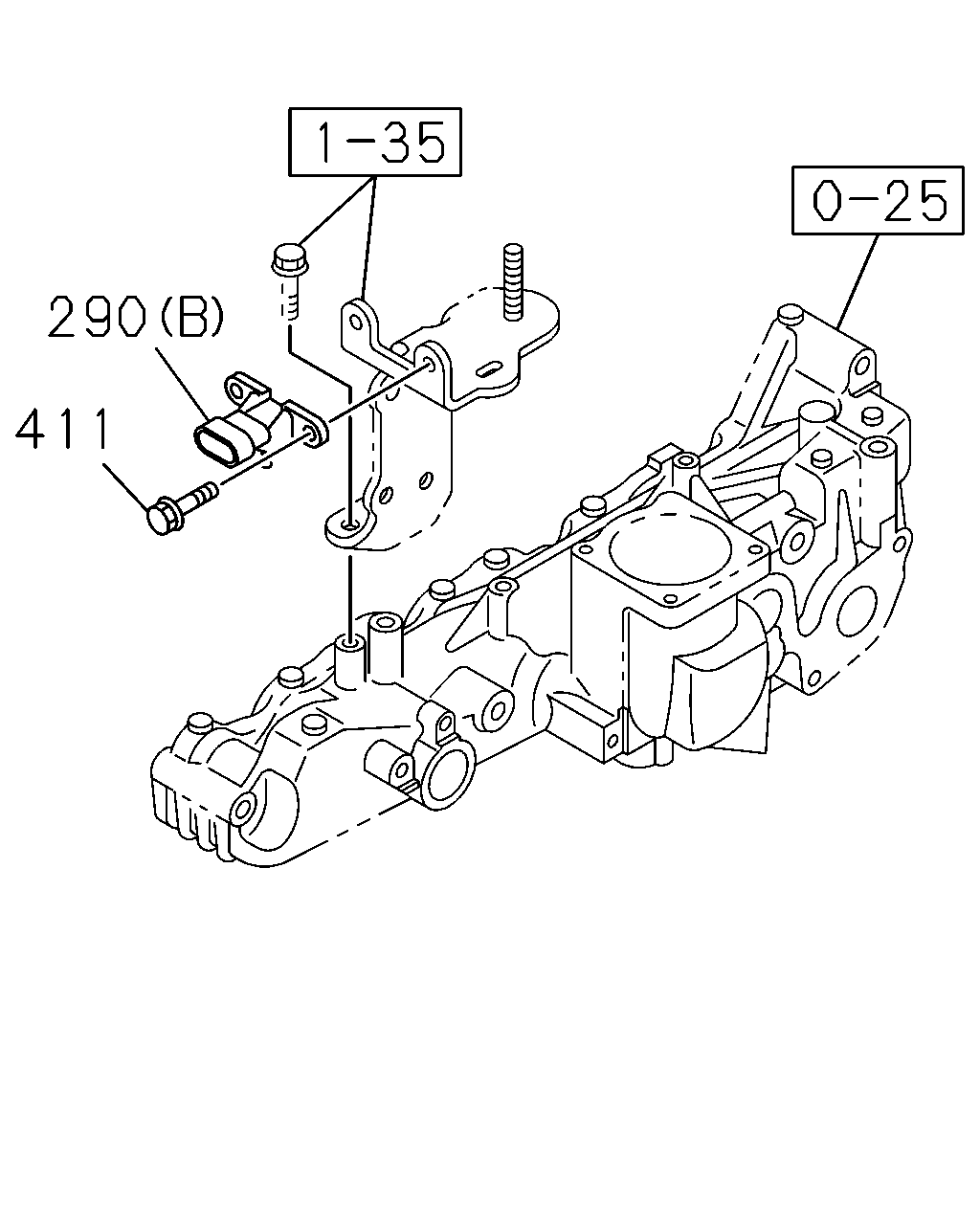

çizim 117723
290 411
BalonParca AdiParca NoAdetTipApplied Date A B C D
290 03.331 SENSOR; PRESS
(A) 		8-97318-684-0 01 1 0610-0708 ● ●
290 03.331 SENSOR; PRESS
(A) 		8-98014-320-0 01 1 0709-1208 ● ●
290 03.331 SENSOR; PRESS
(A) 		8-98181-616-0 01 1 1209- ● ●
290 03.331 SENSOR; PRESS
(B) 		8-98020-514-0 01 1 0610- ● ●
411 03.331 BOLT; SENSOR
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0610- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
