Sayfa 0-36 - Isuzu EPC

0-36 — TURBOCHARGER SYSTEM (#74282) — 285 parça

116 116 485 118 488 118 118 380 118 118 485 488 116 118 118 487 241 426 118 488 488 11 118 486 485

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0307-0609	●	●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	0610-			●	●
116	03.342 BOLT; WATER PIPE 03.670 (B) M6X20 FLANGE	0-28080-620-0	02	1	0307-0601	●
116	03.342 BOLT; WATER PIPE 00.386 (B) M6X20 FLANGE	0-28050-620-0	02	1	0602-0609	●
116	03.342 BOLT; WATER PIPE 02.500 (C) M6X10 FLANGE	0-28080-610-0	02	1	0307-0402	●	●
116	03.342 BOLT; WATER PIPE 03.671 (C) M6X10 FLANGE	0-28050-610-0	02	1	0403-0609	●	●
116	03.342 BOLT; WATER PIPE 00.685 (A) M6X12 W/LK WASHER	0-50040-612-0	01	1	0307-0402	●	●
116	03.342 BOLT; WATER PIPE (A) M6X12 W/LK WASHER	0-50540-612-0	01	1	0403-0609	●	●
116	03.342 BOLT; WATER PIPE 08.900 (D) M8X12 FLANGE	0-28080-812-0	02	1	0307-0402		●
116	03.342 BOLT; WATER PIPE 02.343 (D) M8X12 FLANGE	0-28050-812-0	02	1	0403-0609		●
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	14	1	0307-0609	●	●
118	03.342 CLIP; WATER HOSE (B) ID=12.8	8-97944-125-0	06	1	0610-			●	●
118	03.342 CLIP; WATER HOSE 08.846 (C) ID=20.8	8-97944-127-0	06	1	0610-			●	●
241	01.531 BOLT 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0307-0402	●	●
241	01.531 BOLT 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0403-0609	●	●
380	03.417 HOSE; RUBBER,PIPE TO PIPE 01.097 L=150 SERVICED BY L=3000	0-03559-300-0	01	1	0307-0609	●	●
426	03.616 BRACKET; VLV	8-97308-580-0	01	1	0307-0609	●	●

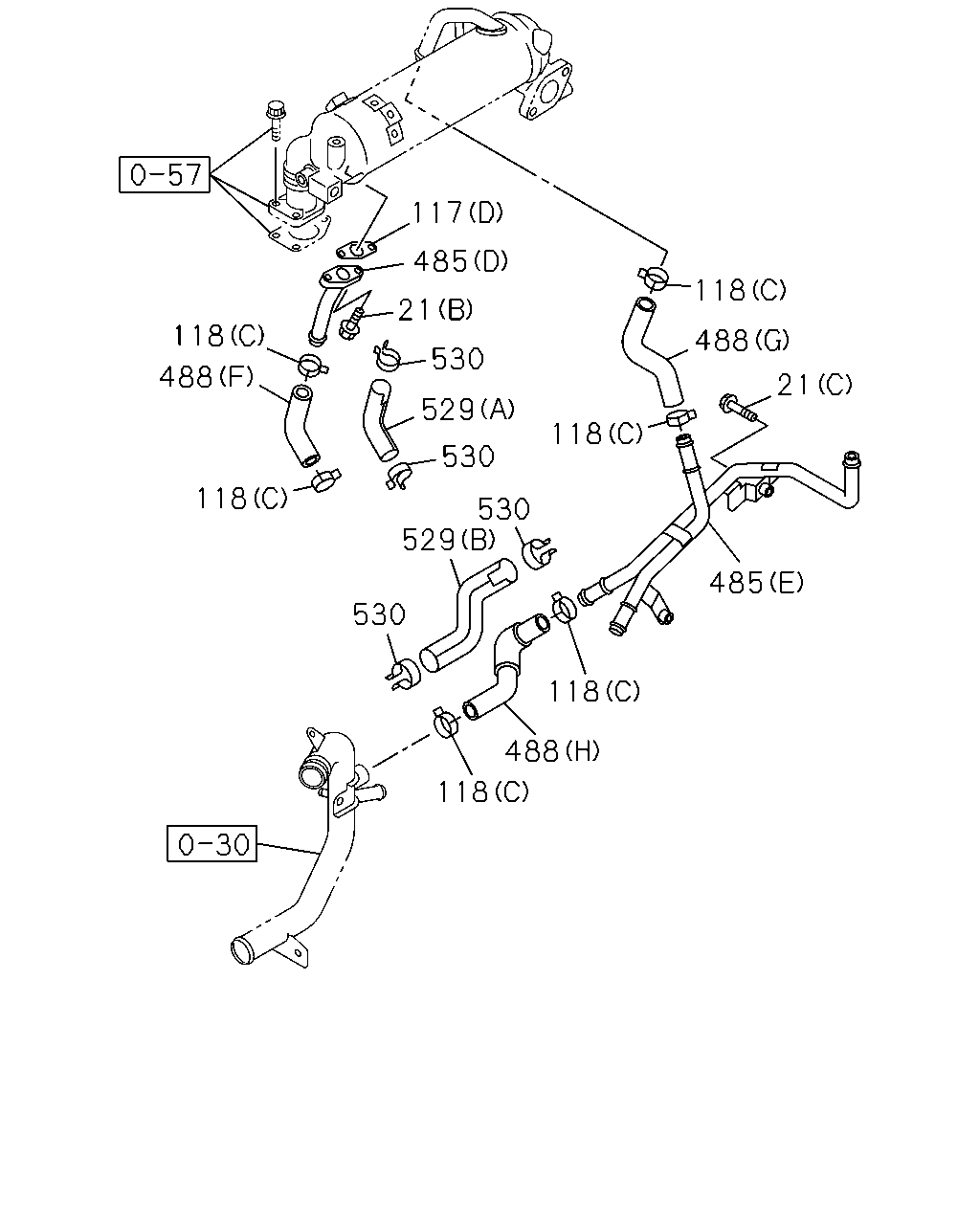

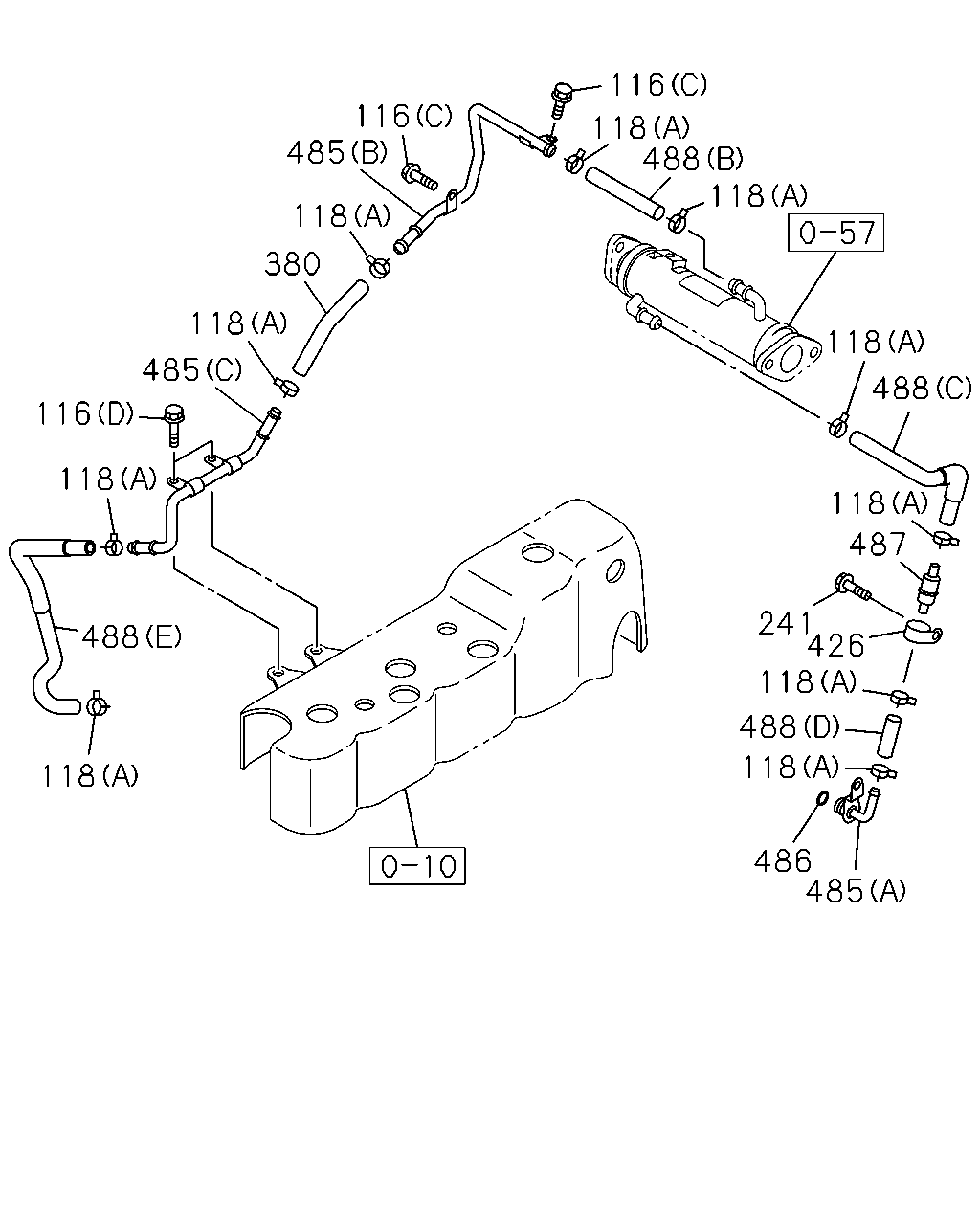

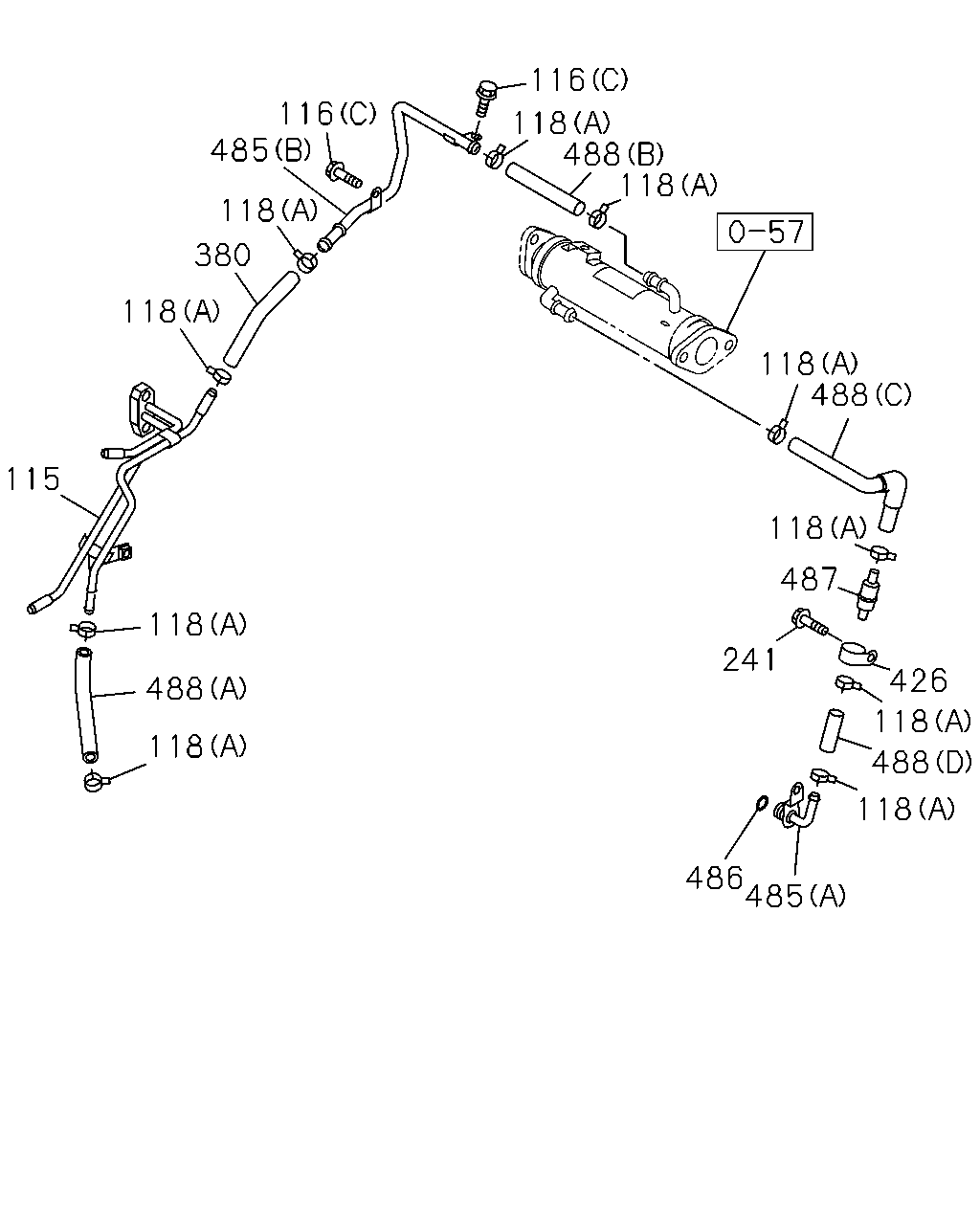

485	01.097 PIPE; WATER EGR (A)	8-97249-188-2	01	1	0307-0609	●	●
485	01.097 PIPE; WATER EGR (D)	8-98011-517-0	01	1	0610-1007			●	●
485	01.097 PIPE; WATER EGR (B)	8-97313-795-1	01	1	0307-0609	●	●
485	01.097 PIPE; WATER EGR (E)	8-98011-520-2	01	1	0610-			●	●
485	01.097 PIPE; WATER EGR (C)	8-97353-795-1	01	1	0307-0609		●
486	03.342 GASKET; WATER PIPE 01.531	8-97264-168-0	01	1	0307-0609	●	●
487	03.342 VALVE ASM; THRMO	8-97254-150-0	01	1	0307-0609	●	●
488	03.163 HOSE; RUBBER 01.097 (A) L=90 SERVICED BY L=3000	0-03559-300-0	01	1	0307-0609	●
488	03.163 HOSE; RUBBER (F)	8-98011-632-1	01	1	0610-			●	●
488	03.163 HOSE; RUBBER 01.097 (D) L=70 SERVICED BY L=3000	0-03559-300-0	01	1	0307-0609	●	●
488	03.163 HOSE; RUBBER (G)	8-98011-633-1	01	1	0610-			●	●
488	03.163 HOSE; RUBBER 01.097 (B) L=130 SERVICED BY L=3000	0-03559-300-0	01	1	0307-0609	●	●
488	03.163 HOSE; RUBBER (H)	8-98031-860-0	01	1	0610-			●	●
488	03.163 HOSE; RUBBER (C)	8-97249-211-1	01	1	0307-0408	●	●
488	03.163 HOSE; RUBBER (C)	8-97383-706-0	01	1	0409-0609	●	●
488	03.163 HOSE; RUBBER (E)	8-97329-993-1	01	1	0307-0609		●

117 485 118 21 118 488 530 488 21 529 118 530 118 530 529 485 530 118 488 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
21	03.358 BOLT; PIPE 04.866 (A) M6X40 FLANGE	0-28050-640-0	02	1	0610-1007			●	●
21	03.358 BOLT; PIPE 01.652 (A) M6X45 FLANGE	0-28050-645-0	02	1	1008-			●	●
21	03.358 BOLT; PIPE 03.162 (B) M6X20 FLANGE	0-28650-620-0	02	1	0610-1007			●	●
21	03.358 BOLT; PIPE 00.685 (C) M8X40 FLANGE	0-28650-840-0	02	1	0610-			●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.374 (C)	8-94321-135-1	04	1	0307-0311	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.374 (C)	8-94321-135-1	01	1	0312-0609	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (D)	8-97262-117-0	01	1	0610-1007			●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) T=2.5	8-94472-584-1	01	1	0307-0402		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) T=2.5	8-97920-063-0	01	1	0403-0609		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=12.2	9-09571-412-0	04	1	0307-0609		●
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	14	1	0307-0609	●	●
118	03.342 CLIP; WATER HOSE (B) ID=12.8	8-97944-125-0	06	1	0610-			●	●
118	03.342 CLIP; WATER HOSE 08.846 (C) ID=20.8	8-97944-127-0	06	1	0610-			●	●
485	01.097 PIPE; WATER EGR (A)	8-97249-188-2	01	1	0307-0609	●	●
485	01.097 PIPE; WATER EGR (D)	8-98011-517-0	01	1	0610-1007			●	●
485	01.097 PIPE; WATER EGR (B)	8-97313-795-1	01	1	0307-0609	●	●
485	01.097 PIPE; WATER EGR (E)	8-98011-520-2	01	1	0610-			●	●
485	01.097 PIPE; WATER EGR (C)	8-97353-795-1	01	1	0307-0609		●
488	03.163 HOSE; RUBBER 01.097 (A) L=90 SERVICED BY L=3000	0-03559-300-0	01	1	0307-0609	●
488	03.163 HOSE; RUBBER (F)	8-98011-632-1	01	1	0610-			●	●
488	03.163 HOSE; RUBBER 01.097 (D) L=70 SERVICED BY L=3000	0-03559-300-0	01	1	0307-0609	●	●
488	03.163 HOSE; RUBBER (G)	8-98011-633-1	01	1	0610-			●	●
488	03.163 HOSE; RUBBER 01.097 (B) L=130 SERVICED BY L=3000	0-03559-300-0	01	1	0307-0609	●	●
488	03.163 HOSE; RUBBER (H)	8-98031-860-0	01	1	0610-			●	●
488	03.163 HOSE; RUBBER (C)	8-97249-211-1	01	1	0307-0408	●	●
488	03.163 HOSE; RUBBER (C)	8-97383-706-0	01	1	0409-0609	●	●
488	03.163 HOSE; RUBBER (E)	8-97329-993-1	01	1	0307-0609		●
529	03.374 INSULATOR; HOSE (A)	8-98031-883-0	01	1	0610-			●	●
529	03.374 INSULATOR; HOSE (B)	8-98031-884-0	01	1	0610-			●	●
530	03.374 CLIP; INSULATOR 01.540	8-97101-337-0	04	1	0610-			●	●

118 119 118 138 115 117 117 120 117 138 117 137 117 118 118 231 1 12 2 11 18 9 14 116 66 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

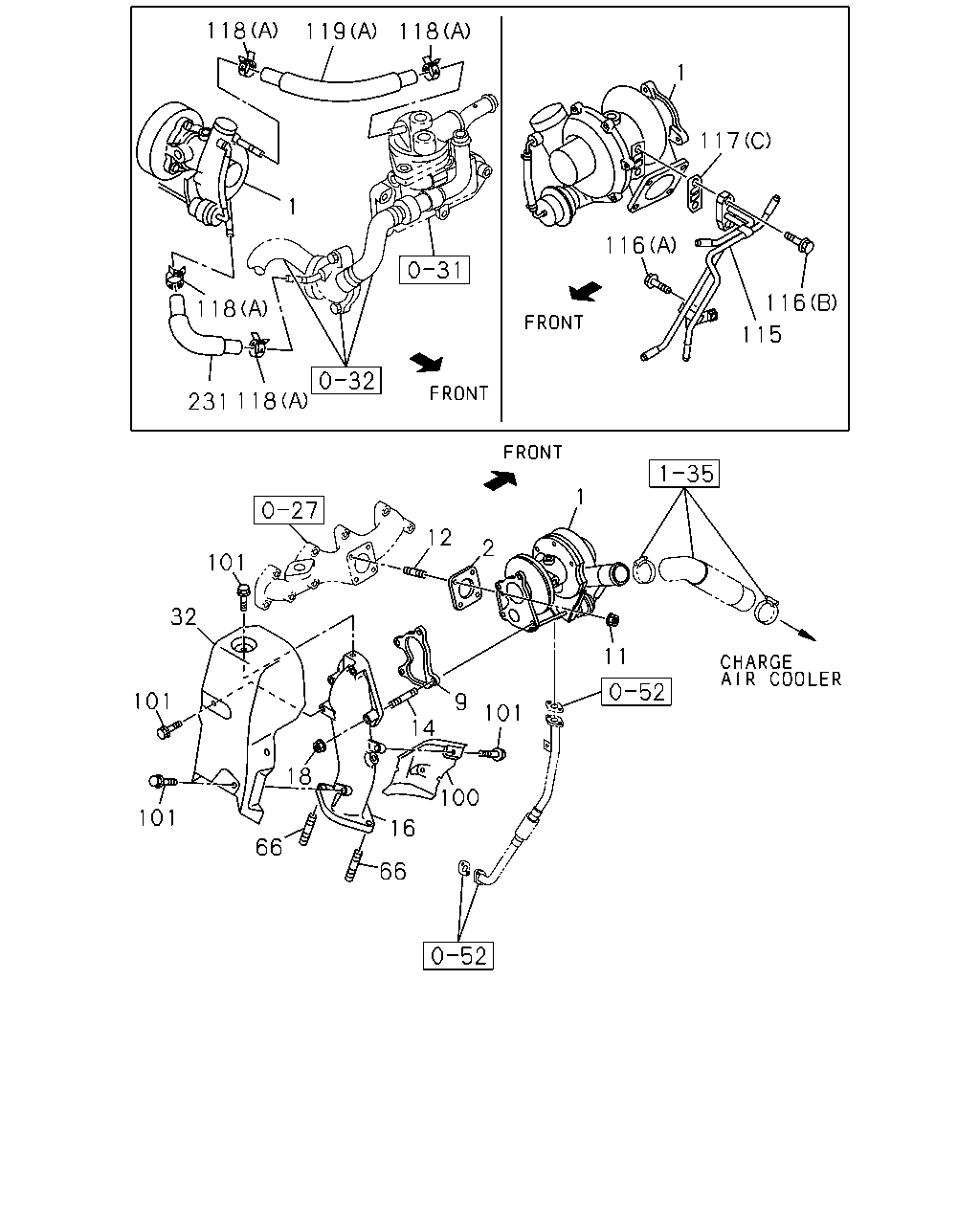

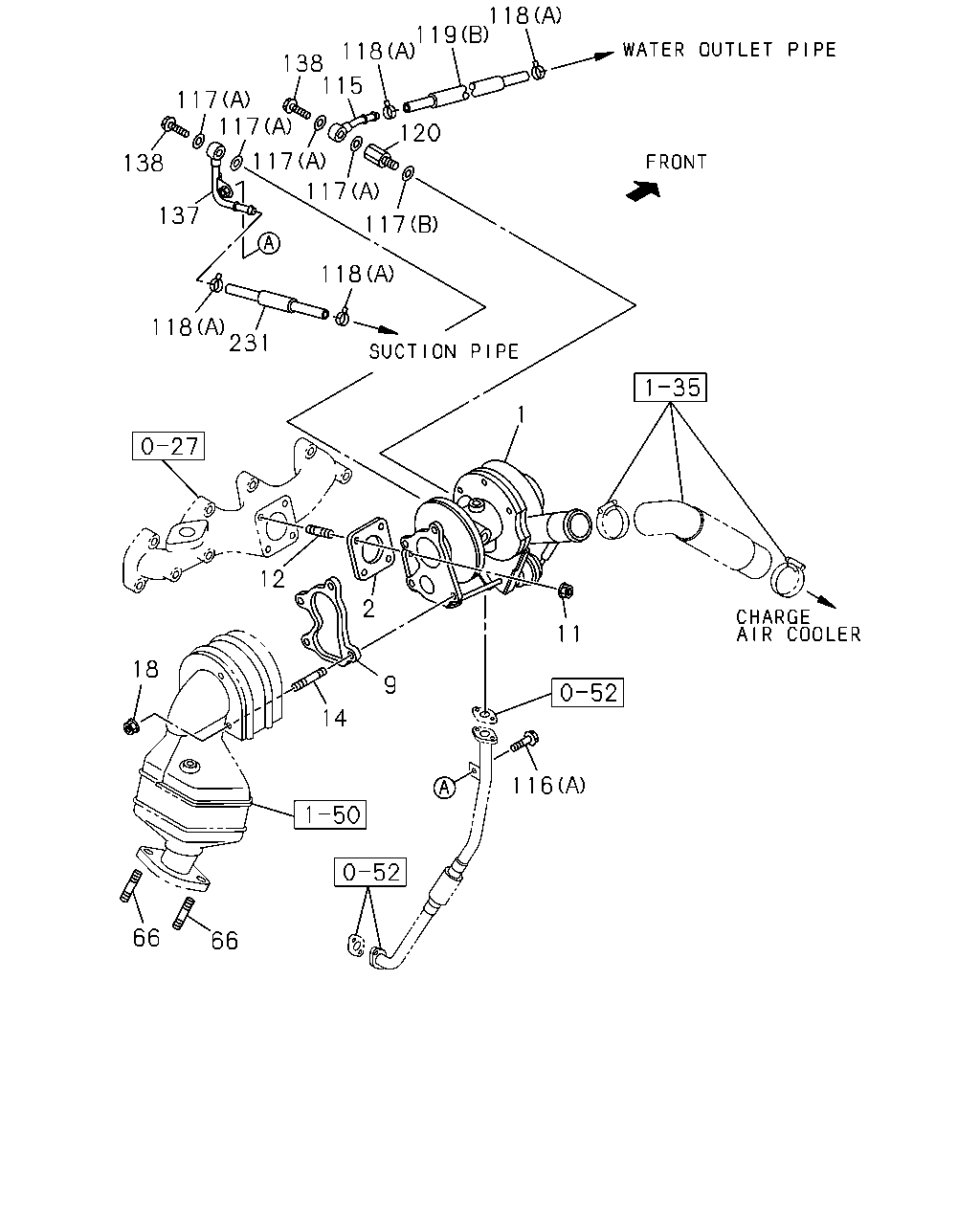

1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97329-588-1	01	1	0307-0609	●
1	03.342 TURBOCHARGER ASM	8-98011-530-7	01	1	0610-1007			●
1	03.342 TURBOCHARGER ASM	8-98132-070-3	01	1	1008-			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97354-423-4	01	1	0307-0609		●
1	03.342 TURBOCHARGER ASM	8-98011-529-7	01	1	0610-1007				●
1	03.342 TURBOCHARGER ASM	8-98132-069-2	01	1	1008-				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97315-266-0	01	1	0307-0402	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97912-716-0	01	1	0403-0609	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94433-605-0	01	1	0307-0402		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97912-697-0	01	1	0403-0609		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97912-697-0	01	1	0610-1007			●	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98132-073-0	01	1	1008-			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97139-726-0	01	1	0307-0402	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97912-775-0	01	1	0403-0609	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94433-604-0	01	1	0307-0402		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97912-694-0	01	1	0403-0609		●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0307-0609	●	●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	0610-			●	●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	0307-0409	●	●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0410-0609	●	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0610-			●	●
12	03.342 STUD; TURBOCHARGER 03.604 M8X30 L=41	8-97378-064-0	02	1	0610-			●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X41 L=52	8-97188-452-0	04	1	0307-0411	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X43 L=54	8-97104-507-1	04	1	0412-0607	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X43 L=54	8-97378-067-0	04	1	0608-0609	●	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0307-0609	●	●
66	03.342 STUD; EXH PIPE 03.613 M10X38 L=53	5-09302-007-0	02	1	0307-0402	●	●
66	03.342 STUD; EXH PIPE M10X30 L=45	0-49241-030-0	02	1	0403-0609	●	●
66	03.342 STUD; EXH PIPE M10X22 L=43	0-43211-022-0	02	1	0610-			●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-97354-090-0	01	1	0307-0609	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT 01.097	8-97063-234-0	01	1	0307-0402		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-97920-034-0	01	1	0403-0609		●
116	03.342 BOLT; WATER PIPE 03.670 (B) M6X20 FLANGE	0-28080-620-0	02	1	0307-0601	●
116	03.342 BOLT; WATER PIPE 00.386 (B) M6X20 FLANGE	0-28050-620-0	02	1	0602-0609	●
116	03.342 BOLT; WATER PIPE 02.500 (C) M6X10 FLANGE	0-28080-610-0	02	1	0307-0402	●	●
116	03.342 BOLT; WATER PIPE 03.671 (C) M6X10 FLANGE	0-28050-610-0	02	1	0403-0609	●	●
116	03.342 BOLT; WATER PIPE 00.685 (A) M6X12 W/LK WASHER	0-50040-612-0	01	1	0307-0402	●	●
116	03.342 BOLT; WATER PIPE (A) M6X12 W/LK WASHER	0-50540-612-0	01	1	0403-0609	●	●
116	03.342 BOLT; WATER PIPE 08.900 (D) M8X12 FLANGE	0-28080-812-0	02	1	0307-0402		●
116	03.342 BOLT; WATER PIPE 02.343 (D) M8X12 FLANGE	0-28050-812-0	02	1	0403-0609		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.374 (C)	8-94321-135-1	04	1	0307-0311	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.374 (C)	8-94321-135-1	01	1	0312-0609	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (D)	8-97262-117-0	01	1	0610-1007			●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) T=2.5	8-94472-584-1	01	1	0307-0402		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) T=2.5	8-97920-063-0	01	1	0403-0609		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=12.2	9-09571-412-0	04	1	0307-0609		●
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	14	1	0307-0609	●	●
118	03.342 CLIP; WATER HOSE (B) ID=12.8	8-97944-125-0	06	1	0610-			●	●
118	03.342 CLIP; WATER HOSE 08.846 (C) ID=20.8	8-97944-127-0	06	1	0610-			●	●
119	03.342 HOSE; WATER,TURBOCHARGER (A)	8-97350-445-0	01	1	0307-0609	●
119	03.342 HOSE; WATER,TURBOCHARGER (D)	8-97369-590-1	01	1	0610-			●	●
119	03.342 HOSE; WATER,TURBOCHARGER (B) L=250 W/INSULATOR	8-94340-669-1	01	1	0307-0402		●
119	03.342 HOSE; WATER,TURBOCHARGER (B) L=250 W/INSULATOR	8-97912-688-1	01	1	0403-0609		●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (C) L=210 SERVICED BY L=3000	0-03559-300-0	01	1	0610-1007			●	●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (C) L=170 SERVICED BY L=3000	0-03559-300-0	01	1	1008-			●	●
120	01.097 ADAPTER; WATER	8-94472-583-0	01	1	0307-0402		●
120	01.097 ADAPTER; WATER	8-97920-062-0	01	1	0403-0609		●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97086-342-0	01	1	0307-0402		●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97920-035-0	01	1	0403-0609		●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	0307-0609		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97325-123-0	01	1	0307-0609	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT L=160 W/INSULATOR	8-94325-255-0	01	1	0307-0402		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT L=160 W/INSULATOR	8-97912-684-0	01	1	0403-0609		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT 01.097 L=210 SERVICED BY L=3000	0-03559-300-0	01	1	0610-			●	●

101 217 527 32 21 458 217 414 526 463 217 1 66 118 12 2 119 11 118 118 118 119 118 231 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

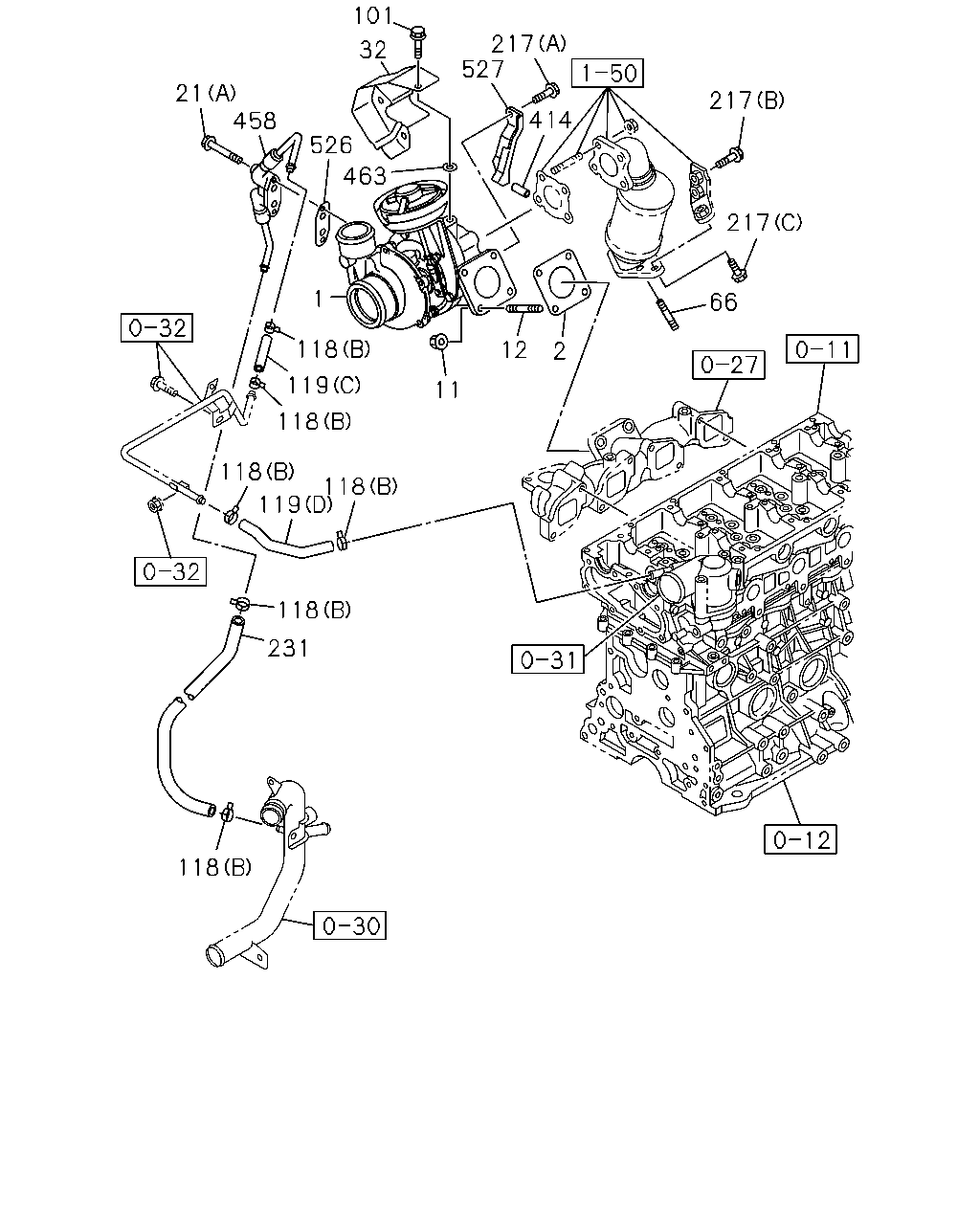

1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97329-588-1	01	1	0307-0609	●
1	03.342 TURBOCHARGER ASM	8-98011-530-7	01	1	0610-1007			●
1	03.342 TURBOCHARGER ASM	8-98132-070-3	01	1	1008-			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97354-423-4	01	1	0307-0609		●
1	03.342 TURBOCHARGER ASM	8-98011-529-7	01	1	0610-1007				●
1	03.342 TURBOCHARGER ASM	8-98132-069-2	01	1	1008-				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97315-266-0	01	1	0307-0402	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97912-716-0	01	1	0403-0609	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94433-605-0	01	1	0307-0402		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97912-697-0	01	1	0403-0609		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97912-697-0	01	1	0610-1007			●	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98132-073-0	01	1	1008-			●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0307-0609	●	●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	0610-			●	●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	0307-0409	●	●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0410-0609	●	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0610-			●	●
12	03.342 STUD; TURBOCHARGER 03.604 M8X30 L=41	8-97378-064-0	02	1	0610-			●	●
21	03.358 BOLT; PIPE 04.866 (A) M6X40 FLANGE	0-28050-640-0	02	1	0610-1007			●	●
21	03.358 BOLT; PIPE 01.652 (A) M6X45 FLANGE	0-28050-645-0	02	1	1008-			●	●
21	03.358 BOLT; PIPE 03.162 (B) M6X20 FLANGE	0-28650-620-0	02	1	0610-1007			●	●
21	03.358 BOLT; PIPE 00.685 (C) M8X40 FLANGE	0-28650-840-0	02	1	0610-			●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER 03.602	8-97300-338-1	01	1	0307-0609	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-98057-857-0	01	1	0610-1007			●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-98156-389-0	01	1	1008-			●	●
66	03.342 STUD; EXH PIPE 03.613 M10X38 L=53	5-09302-007-0	02	1	0307-0402	●	●
66	03.342 STUD; EXH PIPE M10X30 L=45	0-49241-030-0	02	1	0403-0609	●	●
66	03.342 STUD; EXH PIPE M10X22 L=43	0-43211-022-0	02	1	0610-			●	●
101	03.602 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	06	1	0307-0402	●
101	03.602 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	06	1	0403-0609	●
101	03.602 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0610-			●	●
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	14	1	0307-0609	●	●
118	03.342 CLIP; WATER HOSE (B) ID=12.8	8-97944-125-0	06	1	0610-			●	●
118	03.342 CLIP; WATER HOSE 08.846 (C) ID=20.8	8-97944-127-0	06	1	0610-			●	●
119	03.342 HOSE; WATER,TURBOCHARGER (A)	8-97350-445-0	01	1	0307-0609	●
119	03.342 HOSE; WATER,TURBOCHARGER (D)	8-97369-590-1	01	1	0610-			●	●
119	03.342 HOSE; WATER,TURBOCHARGER (B) L=250 W/INSULATOR	8-94340-669-1	01	1	0307-0402		●
119	03.342 HOSE; WATER,TURBOCHARGER (B) L=250 W/INSULATOR	8-97912-688-1	01	1	0403-0609		●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (C) L=210 SERVICED BY L=3000	0-03559-300-0	01	1	0610-1007			●	●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (C) L=170 SERVICED BY L=3000	0-03559-300-0	01	1	1008-			●	●
217	03.417 BOLT; BRKT 04.686 (A) M8X60 FLANGE	0-28050-860-0	01	1	0610-1007			●	●
217	03.417 BOLT; BRKT 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1008-			●	●
217	03.417 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0610-			●	●
217	03.417 BOLT; BRKT 03.670 (A) M8X18 FLANGE	8-97378-076-0	01	1	0610-			●	●
217	03.417 BOLT; BRKT (C) M8X28 FLANGE	8-98041-363-0	01	1	0610-			●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97325-123-0	01	1	0307-0609	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT L=160 W/INSULATOR	8-94325-255-0	01	1	0307-0402		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT L=160 W/INSULATOR	8-97912-684-0	01	1	0403-0609		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT 01.097 L=210 SERVICED BY L=3000	0-03559-300-0	01	1	0610-			●	●
414	03.602 SPACER	8-98059-266-0	01	1	0610-1007			●	●
458	03.373 PIPE; WATER,TURBOCHARGER	8-98031-001-0	01	1	0610-1007			●	●
458	03.373 PIPE; WATER,TURBOCHARGER	8-98132-035-2	01	1	1008-			●	●
463	03.602 WASHER; PL,HEAT PROTECTOR 02.277 ID=8.4 OD=22	0-91614-708-0	01	1	0610-1007			●	●
526	03.342 GASKET; PLATE 01.519	8-97352-985-0	01	1	0610-			●	●
527	03.373 BRACKET; TURBOCHARGER	8-98011-536-1	01	1	0610-1007			●	●
527	03.373 BRACKET; TURBOCHARGER	8-98156-388-0	01	1	1008-			●	●

116 116 485 118 488 118 118 380 118 118 488 115 118 487 118 241 426 488 118 118 488 118 486 485

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-97354-090-0	01	1	0307-0609	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT 01.097	8-97063-234-0	01	1	0307-0402		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-97920-034-0	01	1	0403-0609		●
116	03.342 BOLT; WATER PIPE 03.670 (B) M6X20 FLANGE	0-28080-620-0	02	1	0307-0601	●
116	03.342 BOLT; WATER PIPE 00.386 (B) M6X20 FLANGE	0-28050-620-0	02	1	0602-0609	●
116	03.342 BOLT; WATER PIPE 02.500 (C) M6X10 FLANGE	0-28080-610-0	02	1	0307-0402	●	●
116	03.342 BOLT; WATER PIPE 03.671 (C) M6X10 FLANGE	0-28050-610-0	02	1	0403-0609	●	●
116	03.342 BOLT; WATER PIPE 00.685 (A) M6X12 W/LK WASHER	0-50040-612-0	01	1	0307-0402	●	●
116	03.342 BOLT; WATER PIPE (A) M6X12 W/LK WASHER	0-50540-612-0	01	1	0403-0609	●	●
116	03.342 BOLT; WATER PIPE 08.900 (D) M8X12 FLANGE	0-28080-812-0	02	1	0307-0402		●
116	03.342 BOLT; WATER PIPE 02.343 (D) M8X12 FLANGE	0-28050-812-0	02	1	0403-0609		●
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	14	1	0307-0609	●	●
118	03.342 CLIP; WATER HOSE (B) ID=12.8	8-97944-125-0	06	1	0610-			●	●
118	03.342 CLIP; WATER HOSE 08.846 (C) ID=20.8	8-97944-127-0	06	1	0610-			●	●
241	01.531 BOLT 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0307-0402	●	●
241	01.531 BOLT 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0403-0609	●	●
380	03.417 HOSE; RUBBER,PIPE TO PIPE 01.097 L=150 SERVICED BY L=3000	0-03559-300-0	01	1	0307-0609	●	●
426	03.616 BRACKET; VLV	8-97308-580-0	01	1	0307-0609	●	●
485	01.097 PIPE; WATER EGR (A)	8-97249-188-2	01	1	0307-0609	●	●
485	01.097 PIPE; WATER EGR (D)	8-98011-517-0	01	1	0610-1007			●	●
485	01.097 PIPE; WATER EGR (B)	8-97313-795-1	01	1	0307-0609	●	●
485	01.097 PIPE; WATER EGR (E)	8-98011-520-2	01	1	0610-			●	●
485	01.097 PIPE; WATER EGR (C)	8-97353-795-1	01	1	0307-0609		●
486	03.342 GASKET; WATER PIPE 01.531	8-97264-168-0	01	1	0307-0609	●	●
487	03.342 VALVE ASM; THRMO	8-97254-150-0	01	1	0307-0609	●	●
488	03.163 HOSE; RUBBER 01.097 (A) L=90 SERVICED BY L=3000	0-03559-300-0	01	1	0307-0609	●
488	03.163 HOSE; RUBBER (F)	8-98011-632-1	01	1	0610-			●	●
488	03.163 HOSE; RUBBER 01.097 (D) L=70 SERVICED BY L=3000	0-03559-300-0	01	1	0307-0609	●	●
488	03.163 HOSE; RUBBER (G)	8-98011-633-1	01	1	0610-			●	●
488	03.163 HOSE; RUBBER 01.097 (B) L=130 SERVICED BY L=3000	0-03559-300-0	01	1	0307-0609	●	●
488	03.163 HOSE; RUBBER (H)	8-98031-860-0	01	1	0610-			●	●
488	03.163 HOSE; RUBBER (C)	8-97249-211-1	01	1	0307-0408	●	●
488	03.163 HOSE; RUBBER (C)	8-97383-706-0	01	1	0409-0609	●	●
488	03.163 HOSE; RUBBER (E)	8-97329-993-1	01	1	0307-0609		●

118 119 118 1 117 1 116 116 118 115 118 231 1 12 2 101 32 11 101 9 101 14 18 100 101 16 66 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97329-588-1	01	1	0307-0609	●
1	03.342 TURBOCHARGER ASM	8-98011-530-7	01	1	0610-1007			●
1	03.342 TURBOCHARGER ASM	8-98132-070-3	01	1	1008-			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97354-423-4	01	1	0307-0609		●
1	03.342 TURBOCHARGER ASM	8-98011-529-7	01	1	0610-1007				●
1	03.342 TURBOCHARGER ASM	8-98132-069-2	01	1	1008-				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97315-266-0	01	1	0307-0402	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97912-716-0	01	1	0403-0609	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94433-605-0	01	1	0307-0402		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97912-697-0	01	1	0403-0609		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97912-697-0	01	1	0610-1007			●	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98132-073-0	01	1	1008-			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97139-726-0	01	1	0307-0402	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97912-775-0	01	1	0403-0609	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94433-604-0	01	1	0307-0402		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97912-694-0	01	1	0403-0609		●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0307-0609	●	●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	0610-			●	●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	0307-0409	●	●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0410-0609	●	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0610-			●	●
12	03.342 STUD; TURBOCHARGER 03.604 M8X30 L=41	8-97378-064-0	02	1	0610-			●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X41 L=52	8-97188-452-0	04	1	0307-0411	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X43 L=54	8-97104-507-1	04	1	0412-0607	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X43 L=54	8-97378-067-0	04	1	0608-0609	●	●
16	03.609 ADAPTER; EXH PIPE 03.440	8-97139-725-0	01	1	0307-0402	●
16	03.609 ADAPTER; EXH PIPE 03.440	8-97913-293-0	01	1	0403-0609	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0307-0609	●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER 03.602	8-97300-338-1	01	1	0307-0609	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-98057-857-0	01	1	0610-1007			●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-98156-389-0	01	1	1008-			●	●
66	03.342 STUD; EXH PIPE 03.613 M10X38 L=53	5-09302-007-0	02	1	0307-0402	●	●
66	03.342 STUD; EXH PIPE M10X30 L=45	0-49241-030-0	02	1	0403-0609	●	●
66	03.342 STUD; EXH PIPE M10X22 L=43	0-43211-022-0	02	1	0610-			●	●
100	03.417 PROTECTOR; HEAT,EXH MANIF	8-97038-109-1	01	1	0307-0609	●
101	03.602 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	06	1	0307-0402	●
101	03.602 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	06	1	0403-0609	●
101	03.602 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0610-			●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-97354-090-0	01	1	0307-0609	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT 01.097	8-97063-234-0	01	1	0307-0402		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-97920-034-0	01	1	0403-0609		●
116	03.342 BOLT; WATER PIPE 03.670 (B) M6X20 FLANGE	0-28080-620-0	02	1	0307-0601	●
116	03.342 BOLT; WATER PIPE 00.386 (B) M6X20 FLANGE	0-28050-620-0	02	1	0602-0609	●
116	03.342 BOLT; WATER PIPE 02.500 (C) M6X10 FLANGE	0-28080-610-0	02	1	0307-0402	●	●
116	03.342 BOLT; WATER PIPE 03.671 (C) M6X10 FLANGE	0-28050-610-0	02	1	0403-0609	●	●
116	03.342 BOLT; WATER PIPE 00.685 (A) M6X12 W/LK WASHER	0-50040-612-0	01	1	0307-0402	●	●
116	03.342 BOLT; WATER PIPE (A) M6X12 W/LK WASHER	0-50540-612-0	01	1	0403-0609	●	●
116	03.342 BOLT; WATER PIPE 08.900 (D) M8X12 FLANGE	0-28080-812-0	02	1	0307-0402		●
116	03.342 BOLT; WATER PIPE 02.343 (D) M8X12 FLANGE	0-28050-812-0	02	1	0403-0609		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.374 (C)	8-94321-135-1	04	1	0307-0311	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.374 (C)	8-94321-135-1	01	1	0312-0609	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (D)	8-97262-117-0	01	1	0610-1007			●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) T=2.5	8-94472-584-1	01	1	0307-0402		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) T=2.5	8-97920-063-0	01	1	0403-0609		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=12.2	9-09571-412-0	04	1	0307-0609		●
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	14	1	0307-0609	●	●
118	03.342 CLIP; WATER HOSE (B) ID=12.8	8-97944-125-0	06	1	0610-			●	●
118	03.342 CLIP; WATER HOSE 08.846 (C) ID=20.8	8-97944-127-0	06	1	0610-			●	●
119	03.342 HOSE; WATER,TURBOCHARGER (A)	8-97350-445-0	01	1	0307-0609	●
119	03.342 HOSE; WATER,TURBOCHARGER (D)	8-97369-590-1	01	1	0610-			●	●
119	03.342 HOSE; WATER,TURBOCHARGER (B) L=250 W/INSULATOR	8-94340-669-1	01	1	0307-0402		●
119	03.342 HOSE; WATER,TURBOCHARGER (B) L=250 W/INSULATOR	8-97912-688-1	01	1	0403-0609		●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (C) L=210 SERVICED BY L=3000	0-03559-300-0	01	1	0610-1007			●	●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (C) L=170 SERVICED BY L=3000	0-03559-300-0	01	1	1008-			●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97325-123-0	01	1	0307-0609	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT L=160 W/INSULATOR	8-94325-255-0	01	1	0307-0402		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT L=160 W/INSULATOR	8-97912-684-0	01	1	0403-0609		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT 01.097 L=210 SERVICED BY L=3000	0-03559-300-0	01	1	0610-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
