4-20 — REAR AXLE CASE AND SHAFT (#7428) — 129 parça

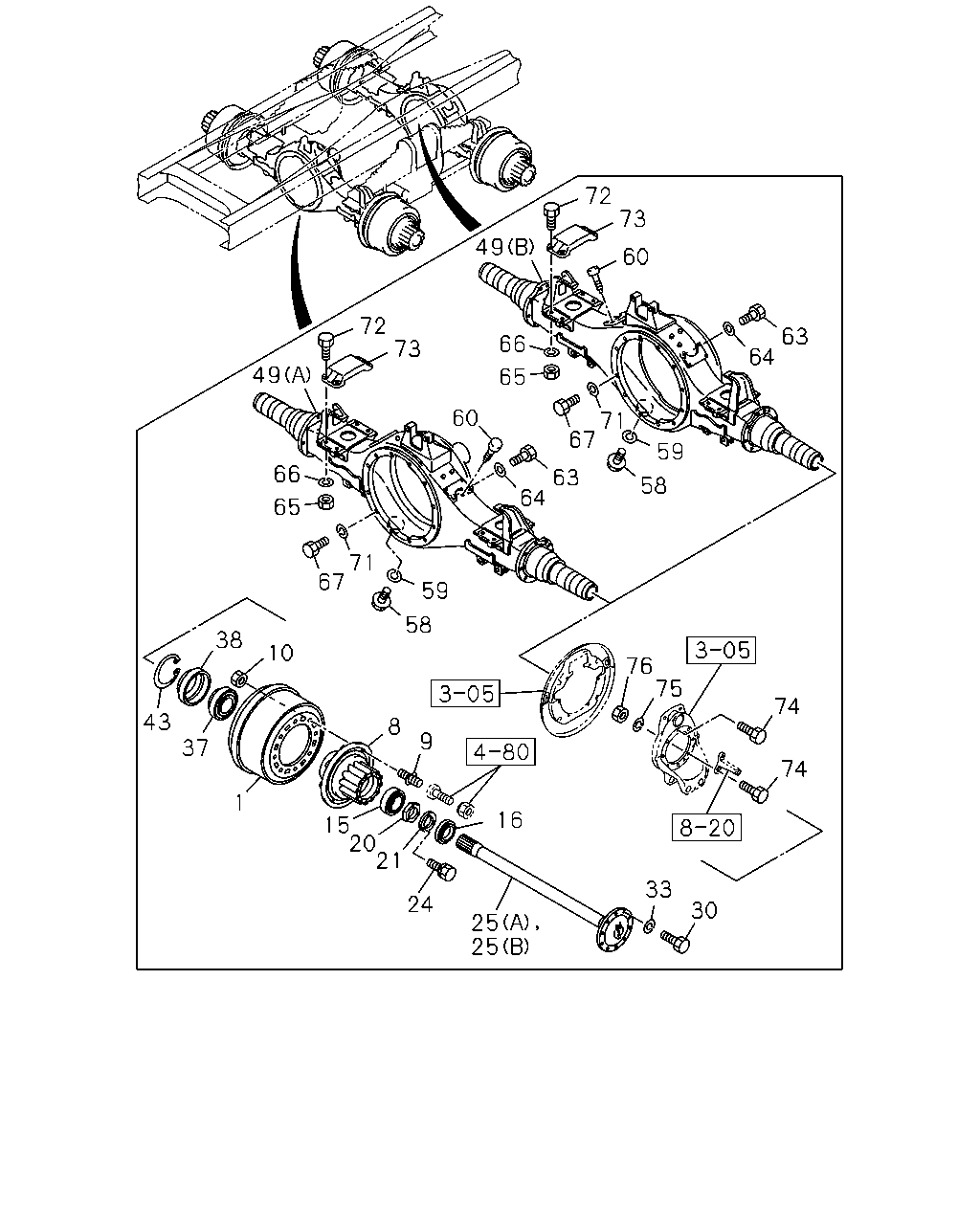

72 73 49 60 72 73 63 64 66 49 65 71 67 60 59 66 63 64 58 65 71 67 59 58 38 10 76 75 74 43 8 37 74 1 16 15 20 21 33 24 30 25 25 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRUM; BRK,RR	1-42315-220-4	02	1	9812-9901
1	DRUM; BRK,RR	1-42315-220-4	02	1	9812-9901
1	DRUM; BRK,RR EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62)	1-42315-220-4	02	1	9902-
1	DRUM; BRK,RR EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62)	1-42315-220-4	02	1	9902-
1	DRUM; BRK,RR WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62)	1-42315-194-4	02	1	9902-
1	DRUM; BRK,RR WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62)	1-42315-194-4	02	1	9902-
8	HUB; RR AXLE	1-42331-143-0	02	1	9812-9901
8	HUB; RR AXLE	1-42331-143-0	02	1	9812-9901
8	HUB; RR AXLE INTERNATIONAL STANDARD ISO<B3V> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62)	1-42311-085-0	02	1	9902-
8	HUB; RR AXLE INTERNATIONAL STANDARD ISO<B3V> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62)	1-42311-085-0	02	1	9902-
8	HUB; RR AXLE EXC. INTERNATIONAL STANDARD ISO<B3V>,WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62)	1-42331-143-0	02	1	9902-
8	HUB; RR AXLE EXC. INTERNATIONAL STANDARD ISO<B3V>,WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62)	1-42331-143-0	02	1	9902-
8	HUB; RR AXLE WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62)	1-42311-104-0	02	1	9902-
8	HUB; RR AXLE WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62)	1-42311-104-0	02	1	9902-
9	PIN; WHEEL,RR AXLE M22X57,M22X53.5 RH THREAD	1-42337-055-0	20	1	9812-9901
9	PIN; WHEEL,RR AXLE M22X57,M22X53.5 RH THREAD	1-42337-055-0	20	1	9812-9901
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO<B3V>,WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62), DISCWHEEL AL<SDM> M22X57,M22X53.5 RH THREAD	1-42337-055-0	20	1	9902-9908
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO<B3V>,WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62), DISCWHEEL AL<SDM> M22X57,M22X53.5 RH THREAD	1-42337-055-0	20	1	9902-9908
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO<B3V>,WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) M22X57,M22X53.5 RH THREAD	1-42337-055-0	20	1	9909-
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO<B3V>,WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) M22X57,M22X53.5 RH THREAD	1-42337-055-0	20	1	9909-
9	PIN; WHEEL,RR AXLE DISC WHEEL AL<SDM> M22X79.8,M22X53.5 RH THREAD	1-42337-027-0	20	1	9902-9903
9	PIN; WHEEL,RR AXLE DISC WHEEL AL<SDM> M22X79.8,M22X53.5 RH THREAD	1-42337-027-0	20	1	9902-9903
9	PIN; WHEEL,RR AXLE DISC WHEEL AL<SDM> EXC. REAR AXLE RT260<C2B> M22X79.8,M22X53.5 RH THREAD	1-42337-027-0	20	1	9904-
9	PIN; WHEEL,RR AXLE DISC WHEEL AL<SDM> EXC. REAR AXLE RT260<C2B> M22X79.8,M22X53.5 RH THREAD	1-42337-027-0	20	1	9904-
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO<B3V> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL AL<SDM> M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	20	1	9902-
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO<B3V> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL AL<SDM> M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	20	1	9902-
9	PIN; WHEEL,RR AXLE REAR AXLE RT260<C2B> DISC WHEEL AL<SDM> M20X53.5 LH THREAD,M22X51.5 RH THREAD	1-42332-119-0	08	1	9904-
9	PIN; WHEEL,RR AXLE REAR AXLE RT260<C2B> DISC WHEEL AL<SDM> M20X53.5 LH THREAD,M22X51.5 RH THREAD	1-42332-119-0	08	1	9904-
9	PIN; WHEEL,RR AXLE REAR AXLE RT260<C2B> DISC WHEEL AL<SDM> M20X53.5,M22X51.5 RH THREAD	1-42331-119-0	08	1	9904-
9	PIN; WHEEL,RR AXLE REAR AXLE RT260<C2B> DISC WHEEL AL<SDM> M20X53.5,M22X51.5 RH THREAD	1-42331-119-0	08	1	9904-
9	PIN; WHEEL,RR AXLE WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-0	08	1	9902-9903
9	PIN; WHEEL,RR AXLE WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-0	08	1	9902-9903
9	PIN; WHEEL,RR AXLE WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) EXC. DISC WHEEL AL<SDM> M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-0	08	1	9904-
9	PIN; WHEEL,RR AXLE WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) EXC. DISC WHEEL AL<SDM> M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-0	08	1	9904-
9	PIN; WHEEL,RR AXLE WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) M20X34.5,M22X51.5 RH THREAD	1-42331-110-0	08	1	9902-9903
9	PIN; WHEEL,RR AXLE WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) M20X34.5,M22X51.5 RH THREAD	1-42331-110-0	08	1	9902-9903
9	PIN; WHEEL,RR AXLE WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) EXC. DISC WHEEL AL<SDM> M20X34.5,M22X51.5 RH THREAD	1-42331-110-0	08	1	9904-
9	PIN; WHEEL,RR AXLE WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) EXC. DISC WHEEL AL<SDM> M20X34.5,M22X51.5 RH THREAD	1-42331-110-0	08	1	9904-
10	NUT; WHEEL PIN,RR AXLE M22	1-09400-071-0	20	1	9812-9901
10	NUT; WHEEL PIN,RR AXLE M22	1-09400-071-0	20	1	9812-9901
10	NUT; WHEEL PIN,RR AXLE EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) M22	1-09400-071-0	20	1	9902-
10	NUT; WHEEL PIN,RR AXLE EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) M22	1-09400-071-0	20	1	9902-
10	NUT; WHEEL PIN,RR AXLE WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) M22 FLANGE	1-09440-055-0	16	1	9902-9904
10	NUT; WHEEL PIN,RR AXLE WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) M22 FLANGE	1-09440-055-0	16	1	9902-9904
10	NUT; WHEEL PIN,RR AXLE WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) M22 FLANGE	1-09440-065-0	16	1	9905-
10	NUT; WHEEL PIN,RR AXLE WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) M22 FLANGE	1-09440-065-0	16	1	9905-
15	BEARING; HUB OUTER,RR AXLE KOYO	1-09812-232-0	02	1	9812-
15	BEARING; HUB OUTER,RR AXLE KOYO	1-09812-232-0	02	1	9812-
16	SEAL; OIL,RR HUB,OUTER NOK	1-09625-226-1	02	1	9812-0102
16	SEAL; OIL,RR HUB,OUTER NOK	1-09625-226-1	02	1	9812-0102
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	9812-
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	9812-
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	9812-
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	9812-
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	9812-
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	9812-
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	9812-
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	9812-
25	SHAFT; AXLE,RR (A) L=976	1-42171-356-0	01	1	9812-
25	SHAFT; AXLE,RR (A) L=976	1-42171-356-0	01	1	9812-
25	SHAFT; AXLE,RR (B) L=1106	1-42171-357-0	01	1	9812-
25	SHAFT; AXLE,RR (B) L=1106	1-42171-357-0	01	1	9812-
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	9812-
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	9812-
33	WASHER; AXLE SHAFT ID=14.2	9-09150-814-0	20	1	9812-
33	WASHER; AXLE SHAFT ID=14.2	9-09150-814-0	20	1	9812-
37	BEARING; HUB INNER,RR AXLE KOYO	1-09812-233-0	02	1	9812-
37	BEARING; HUB INNER,RR AXLE KOYO	1-09812-233-0	02	1	9812-
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	9812-
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	9812-
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	9812-
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	9812-
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	9812-
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	9812-
49	CASE; RR AXLE (A)	1-42160-107-0	01	1	9812-9901
49	CASE; RR AXLE EXC. REAR AXLE RT260<C2B>,LOAD SENSING PROPORTIONING VALVE<JR7>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-42160-107-0	01	1	9902-9912
49	CASE; RR AXLE EXC. REAR AXLE RT260<C2B>,LOAD SENSING PROPORTIONING VALVE<JR7>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-42160-934-1	01	1	0001-
49	CASE; RR AXLE (B)	1-42160-124-1	01	1	9812-9901
49	CASE; RR AXLE EXC. REAR AXLE RT260<C2B> (B)	1-42160-124-1	01	1	9902-9912
49	CASE; RR AXLE EXC. REAR AXLE RT260<C2B> (B)	1-42160-979-1	01	1	0001-
49	CASE; RR AXLE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. REAR AXLE RT260<C2B>,LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-42160-551-0	01	1	9902-9912
49	CASE; RR AXLE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. REAR AXLE RT260<C2B>,LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-42160-939-1	01	1	0001-
49	CASE; RR AXLE LOAD SENSING PROPORTIONING VALVE<JR7> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. REAR AXLE RT260<C2B> (A)	1-42160-550-0	01	1	9902-9912
49	CASE; RR AXLE LOAD SENSING PROPORTIONING VALVE<JR7> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. REAR AXLE RT260<C2B> (A)	1-42160-938-1	01	1	0001-
49	CASE; RR AXLE LOAD SENSING PROPORTIONING VALVE<JR7> EXC. REAR AXLE RT260<C2B>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-42160-106-0	01	1	9902-9912
49	CASE; RR AXLE LOAD SENSING PROPORTIONING VALVE<JR7> EXC. REAR AXLE RT260<C2B>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-42160-933-1	01	1	0001-
49	CASE; RR AXLE LOAD SENSING PROPORTIONING VALVE<JR7> EXC. REAR AXLE RT260<C2B>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-42190-216-0	01	1	0007-0007
49	CASE; RR AXLE REAR AXLE RT260<C2B> (B)	1-42160-121-1	01	1	9902-9912
49	CASE; RR AXLE REAR AXLE RT260<C2B> (B)	1-42160-978-1	01	1	0001-
49	CASE; RR AXLE REAR AXLE RT260<C2B> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-42160-716-0	01	1	9902-9912
49	CASE; RR AXLE REAR AXLE RT260<C2B> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-42160-940-1	01	1	0001-
49	CASE; RR AXLE REAR AXLE RT260<C2B> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-42160-120-0	01	1	9902-9906
49	CASE; RR AXLE EXC. REAR AXLE RT260<C2B>,LOAD SENSING PROPORTIONING VALVE<JR7>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-42160-120-0	01	1	9907-9912
49	CASE; RR AXLE EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-42160-935-1	01	1	0001-
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	9812-
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	9812-
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	9812-
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	9812-
60	BREATHER; RR AXLE CASE	1-09893-011-1	02	1	9812-
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	9812-
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	9812-
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	9812-
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	9812-
65	NUT M14	9-99110-514-0	08	1	9812-
65	NUT M14	9-99110-514-0	08	1	9812-
66	WASHER; LK ID=14.2	9-09150-814-0	08	1	9812-
66	WASHER; LK ID=14.2	9-09150-814-0	08	1	9812-
67	BOLT; FINAL DRIVE SETTING M16X70	9-91066-670-0	04	1	9812-
67	BOLT; FINAL DRIVE SETTING M16X70	9-91066-670-0	04	1	9812-
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	07	1	9812-9901
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	08	1	9902-
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	08	1	9812-9901
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	07	1	9902-
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-816-0	12	1	9812-
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-816-0	12	1	9812-
72	BOLT; PAD FIX M14X45	9-92061-445-0	08	1	9812-
72	BOLT; PAD FIX M14X45	9-92061-445-0	08	1	9812-
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	9812-
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	9812-
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	14	1	9812-
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	14	1	9812-
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	16	1	9812-
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	16	1	9812-
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	9812-
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	9812-

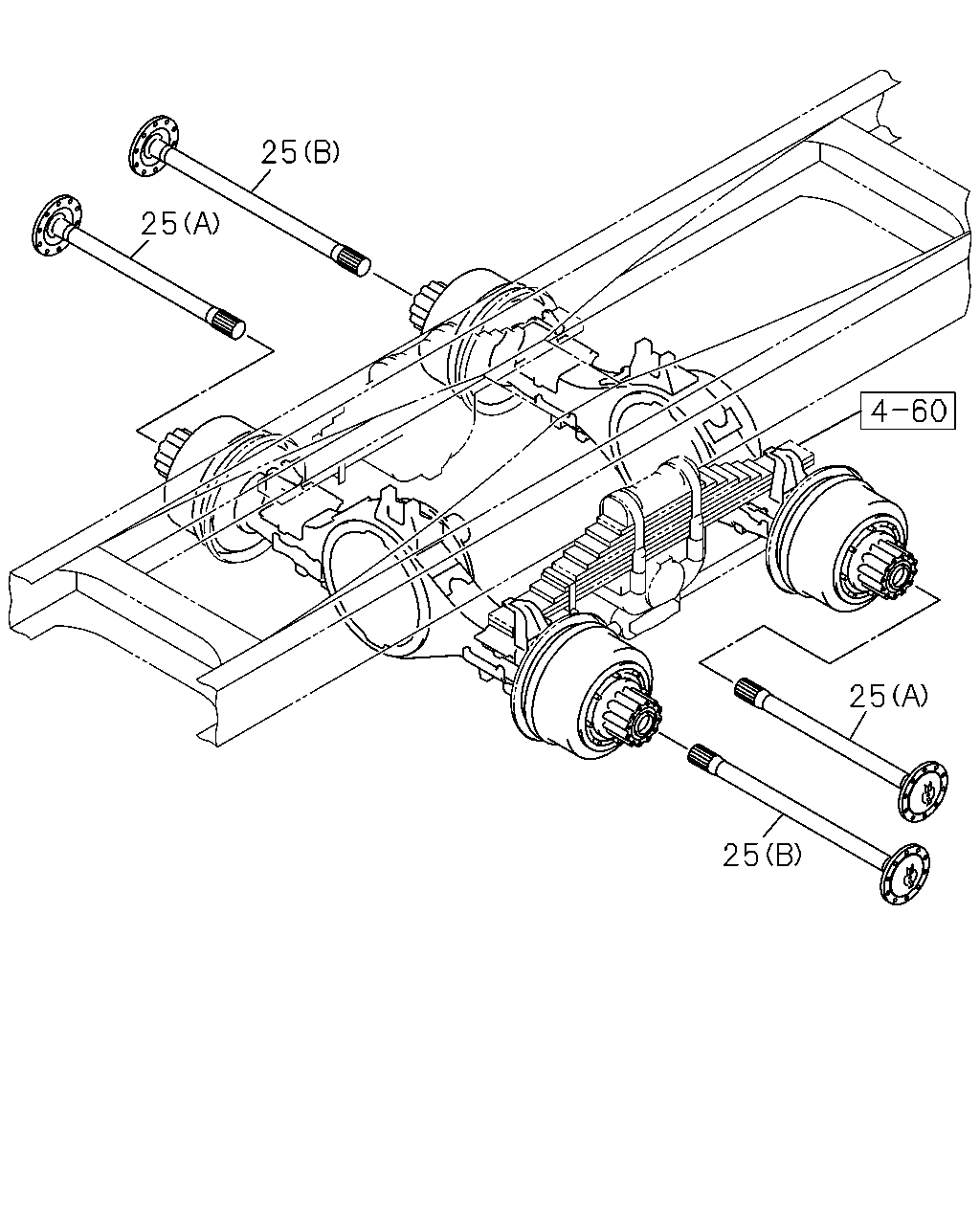

25 25 25 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	SHAFT; AXLE,RR (A) L=976	1-42171-356-0	01	1	9812-
25	SHAFT; AXLE,RR (A) L=976	1-42171-356-0	01	1	9812-
25	SHAFT; AXLE,RR (B) L=1106	1-42171-357-0	01	1	9812-
25	SHAFT; AXLE,RR (B) L=1106	1-42171-357-0	01	1	9812-
