0-28 — VENTILATION SYSTEM (#74276) — 10 parça

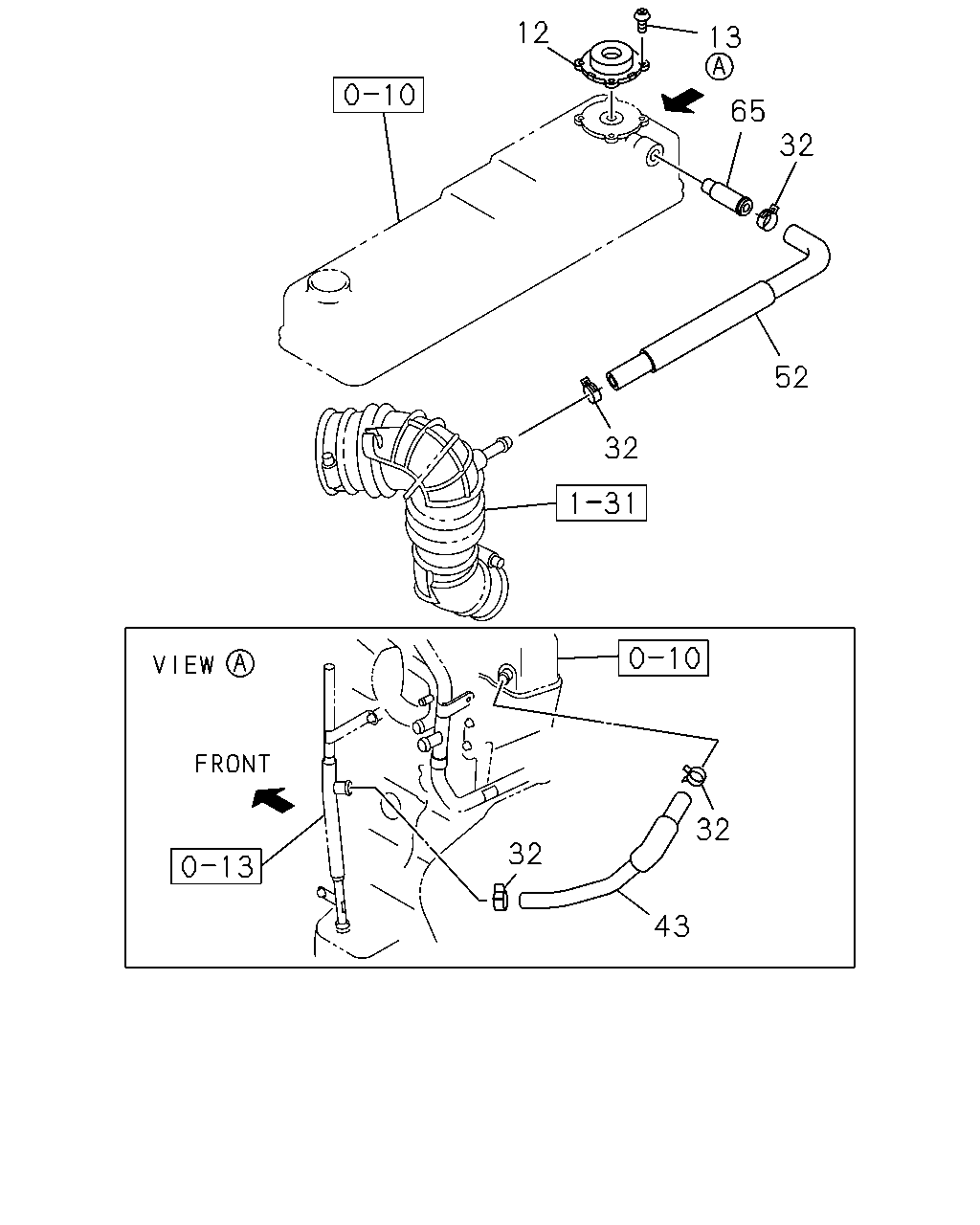

çizim 117548
12 13 65 32 52 32 32 32 43
BalonParca AdiParca NoAdetTipApplied Date A B
12 01.745 VENTILATOR; AIR
03.415 		8-97119-887-0 01 1 0307-0402 ● ●
12 01.745 VENTILATOR; AIR 8-97912-555-0 01 1 0403-0609 ● ●
13 00.386 SCREW; VENTILATOR TO HD COVER
06.321 M4X8 W/LK WASHER 		9-03910-408-0 04 1 0307-0605 ● ●
13 00.386 SCREW; VENTILATOR TO HD COVER
00.662 M4X8 W/LK WASHER 		0-36220-408-0 04 1 0606-0609 ● ●
32 03.417 CLIP; VENT HOSE
03.265 ID=20.4 		8-94121-113-0 04 1 0307-0609 ● ●
43 03.278 HOSE; PCV 8-97249-210-2 01 1 0307-0609 ●
43 03.278 HOSE; PCV 8-97304-253-1 01 1 0307-0609 ●
52 03.278 HOSE; PCV 8-97349-608-0 01 1 0307-0609 ● ●
65 01.762 PIPE; BREATHER 8-94250-615-1 01 1 0307-0402 ● ●
65 01.762 PIPE; BREATHER 8-97912-665-0 01 1 0403-0609 ● ●
