0-22 — ENGINE MOUNTING (#74273) — 120 parça

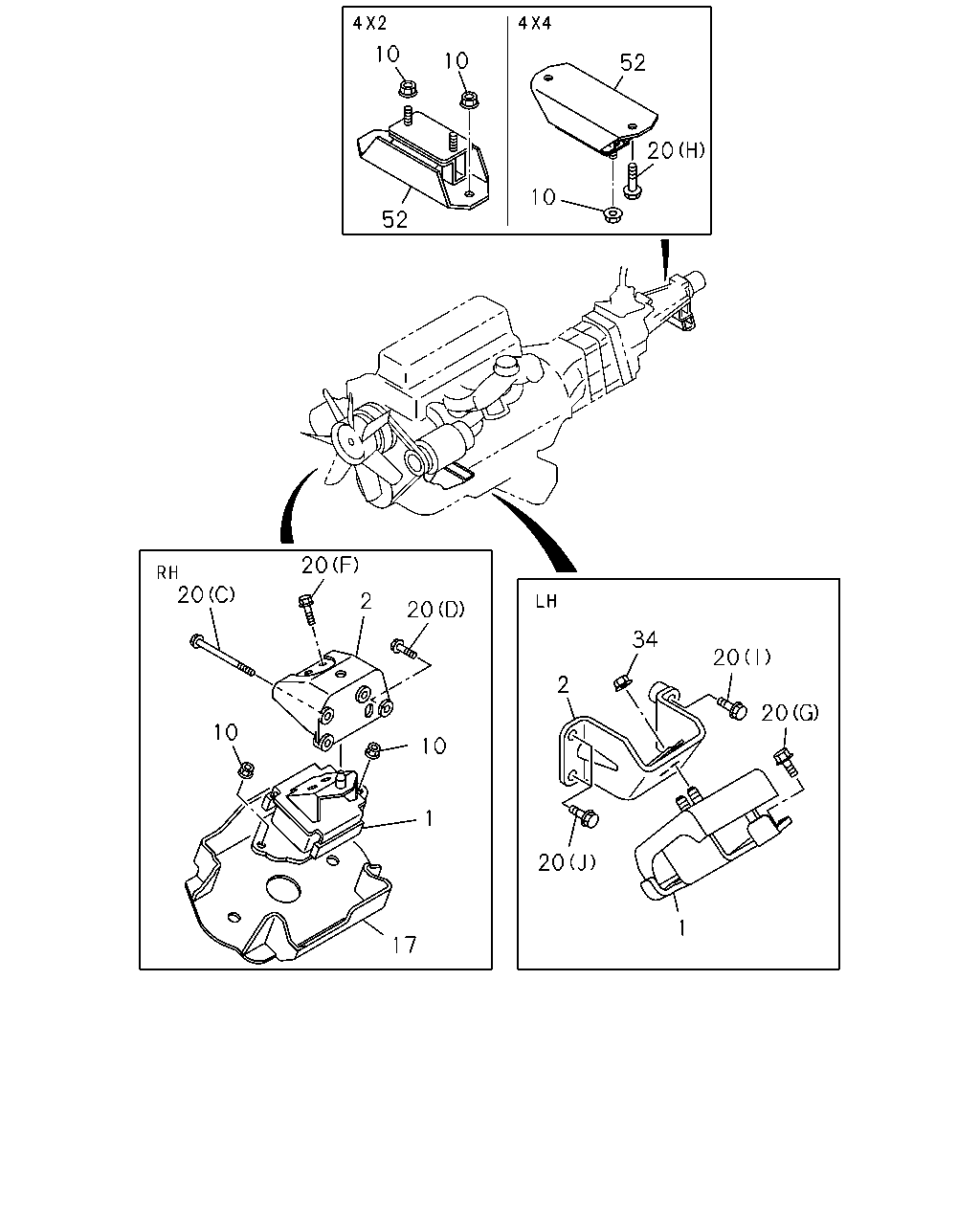

10 10 52 20 10 52 20 20 2 20 34 20 2 20 10 10 1 20 1 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.027 RUBBER; ENG FOOT,FRT	8-97367-274-0	01	1	0307-0609	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97367-272-0	01	1	0307-0609	●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97363-543-0	01	1	0610-			●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97367-273-0	01	1	0307-0609		●
1	00.027 RUBBER; ENG FOOT,FRT	8-97367-273-0	01	1	0610-			●	●
2	00.029 FOOT; ENG	8-97310-947-1	01	1	0307-0609	●
2	00.029 FOOT; ENG	8-97355-476-0	01	1	0610-			●	●
2	00.029 FOOT; ENG	8-97943-686-0	01	1	0307-0609	●	●
2	00.029 FOOT; ENG	8-97355-478-1	01	1	0610-			●	●
2	00.029 FOOT; ENG	8-97308-036-2	01	1	0307-0609		●
10	04.085 NUT; MTG RUBBER M10 FLANGE	0-91180-210-0	02	1	0307-0609	●	●
10	04.085 NUT; MTG RUBBER M10 FLANGE	0-91180-210-0	02	1	0307-0609	●	●
10	04.085 NUT; MTG RUBBER 4X2(TFB***) M10 FLANGE	0-91180-210-0	02	1	0307-0609	●
10	04.085 NUT; MTG RUBBER M10 FLANGE	0-91180-210-0	02	1	0610-			●	●
10	04.085 NUT; MTG RUBBER M10 FLANGE	0-91180-210-0	02	1	0610-			●	●
10	04.085 NUT; MTG RUBBER 4X2(TFB***) M10 FLANGE	0-91180-210-0	02	1	0610-			●
17	00.027 COVER; CUSHION RUBBER,FRT	8-97352-343-0	01	1	0307-0609	●	●
17	00.027 COVER; CUSHION RUBBER,FRT	8-97352-343-0	01	1	0610-			●	●
17	00.027 COVER; CUSHION RUBBER,FRT	8-97352-344-1	01	1	0307-0609		●
17	00.027 COVER; CUSHION RUBBER,FRT	8-97352-344-1	01	1	0610-			●	●
20	00.029 BOLT; ENG FOOT 02.277 (J) M10X22 W/LK WASHER	0-50041-022-0	03	1	0307-0609	●
20	00.029 BOLT; ENG FOOT (G) M10X20 FLANGE	0-28051-020-0	01	1	0610-			●	●
20	00.029 BOLT; ENG FOOT 09.171 (I) M10X35 W/LK WASHER	0-50041-035-0	01	1	0307-0402	●
20	00.029 BOLT; ENG FOOT 09.171 (I) M10X35 W/LK WASHER	0-50541-035-0	01	1	0403-0609	●
20	00.029 BOLT; ENG FOOT 03.613 (H) M10X40 FLANGE	0-28651-040-0	01	1	0610-			●	●
20	00.029 BOLT; ENG FOOT (F) M10X30 FLANGE	0-28651-030-0	02	1	0307-0609	●
20	00.029 BOLT; ENG FOOT (F) M10X30 FLANGE	0-28651-030-0	04	1	0610-			●	●
20	00.029 BOLT; ENG FOOT (G) M10X25 FLANGE	0-28651-025-0	02	1	0307-0609	●	●
20	00.029 BOLT; ENG FOOT (D) M10X25 FLANGE	0-28651-025-0	02	1	0610-			●	●
20	00.029 BOLT; ENG FOOT (C) M10X80 FLANGE	0-28081-080-0	01	1	0307-0402	●	●
20	00.029 BOLT; ENG FOOT 09.173 (C) M10X80 FLANGE	0-28051-080-0	01	1	0403-0609	●	●
20	00.029 BOLT; ENG FOOT 09.173 (C) M10X80 FLANGE	0-28051-080-0	01	1	0610-			●	●
20	00.029 BOLT; ENG FOOT 03.405 (D) M10X25 FLANGE	0-28681-025-0	03	1	0307-0402	●	●
20	00.029 BOLT; ENG FOOT (D) M10X25 FLANGE	0-28651-025-0	03	1	0403-0609	●	●
20	00.029 BOLT; ENG FOOT (D) M10X25 FLANGE	0-28651-025-0	01	1	0610-			●	●
20	00.029 BOLT; ENG FOOT 4X4(TFS***) (H) M10X35 FLANGE	0-28751-035-0	02	1	0307-0609	●	●	●	●
20	00.029 BOLT; ENG FOOT 4X4(TFS***) (J) M10X35 FLANGE	0-28751-035-0	02	1	0610-			●
20	00.029 BOLT; ENG FOOT A/T AISIN(RMD) (J) M10X35 FLANGE	0-28751-035-0	02	1	0610-				●
20	00.029 BOLT; ENG FOOT (F) M10X30 FLANGE	0-28651-030-0	04	1	0307-0609		●
20	00.029 BOLT; ENG FOOT (I) M10X30 FLANGE	0-28651-030-0	02	1	0610-			●	●
20	00.029 BOLT; ENG FOOT 09.198 (B) M10X100 FLANGE	0-28081-000-0	01	1	0307-0402		●
20	00.029 BOLT; ENG FOOT 09.181 (B) M10X100 FLANGE	0-28051-000-0	01	1	0403-0609		●
20	00.029 BOLT; ENG FOOT 09.181 (B) M10X100 FLANGE	0-28051-000-0	01	1	0610-			●	●
20	00.029 BOLT; ENG FOOT (E) M14X45 FLANGE	0-28881-445-0	01	1	0307-0402		●
20	00.029 BOLT; ENG FOOT (E) M14X45 FLANGE	0-28851-445-0	01	1	0403-0609		●
20	00.029 BOLT; ENG FOOT (E) M14X45 FLANGE	0-28851-445-0	01	1	0610-			●	●
20	00.029 BOLT; ENG FOOT 01.652 (A) M10X25 W/LK WASHER	0-50041-025-0	02	1	0307-0512		●
20	00.029 BOLT; ENG FOOT 04.439 (A) M10X25 W/LK WASHER	0-50541-025-0	02	1	0601-0609		●
20	00.029 BOLT; ENG FOOT M/T MUX 5 SPEED 5S(MZJ) 01.060 (A) M8X35 FLANGE	0-28650-835-0	04	1	0610-				●
34	00.002 NUT; RUBBER TO ENG 08.917 M10 FLANGE	0-91150-210-0	02	1	0307-0402	●
34	00.002 NUT; RUBBER TO ENG 04.085 M10 FLANGE	0-91180-210-0	02	1	0403-0609	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***)	8-97367-278-0	01	1	0307-0402	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP)	8-97367-632-0	01	1	0403-0408	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP)	8-97371-778-0	01	1	0409-0609	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ)	8-98051-338-0	01	1	0610-			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***)	8-97367-276-0	01	1	0307-0402	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***)	8-97367-630-0	01	1	0403-0408	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***)	8-97371-777-0	01	1	0409-0609	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD)	8-98051-336-0	01	1	0610-			●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR M/T MUX 5 SPEED 5S(MZJ)	8-98051-349-0	01	1	0610-				●

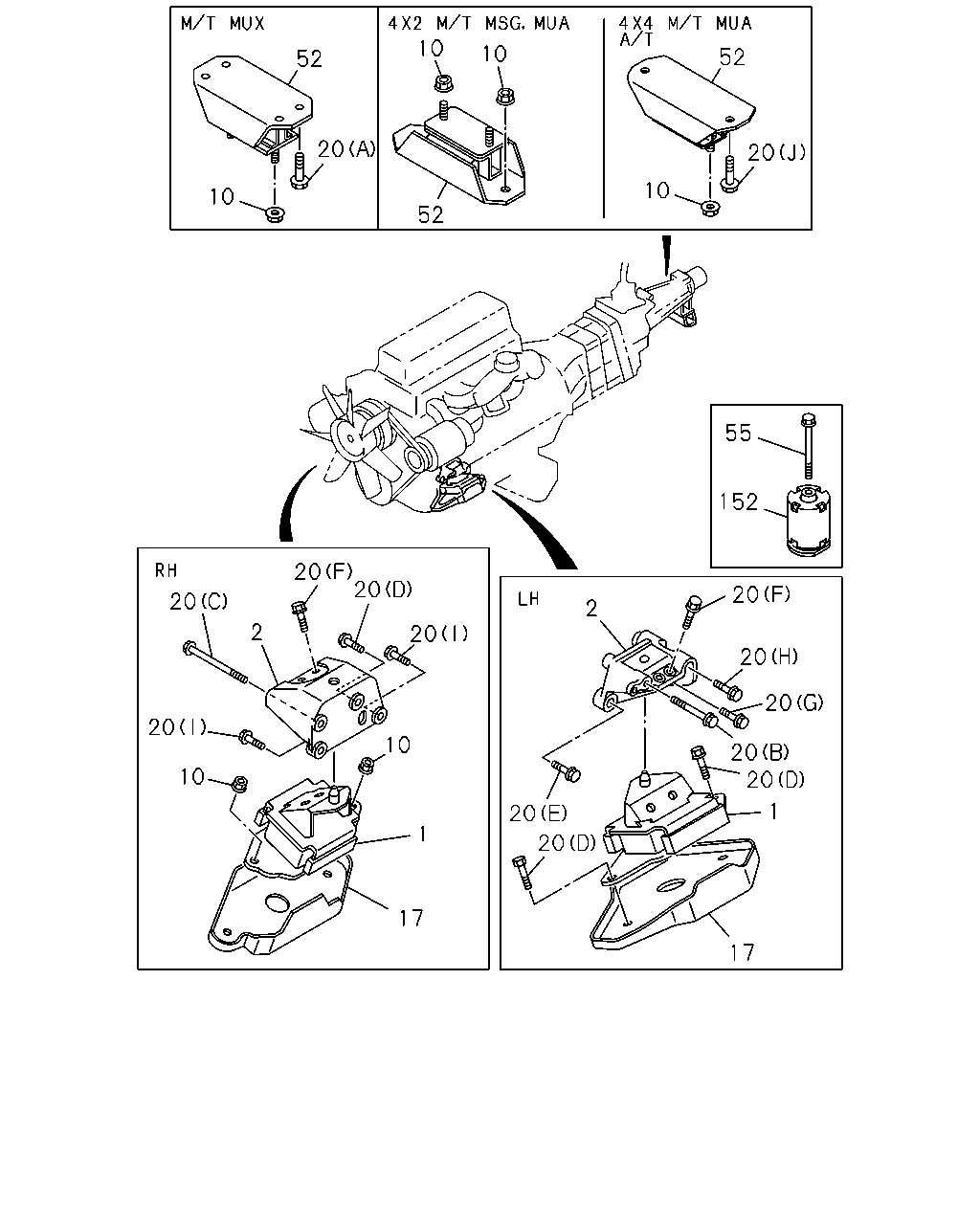

10 10 52 52 20 20 10 10 52 55 152 20 20 20 20 2 2 20 20 20 20 10 20 20 10 1 20 1 20 17 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.027 RUBBER; ENG FOOT,FRT	8-97367-274-0	01	1	0307-0609	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97367-272-0	01	1	0307-0609	●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97363-543-0	01	1	0610-			●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97367-273-0	01	1	0307-0609		●
1	00.027 RUBBER; ENG FOOT,FRT	8-97367-273-0	01	1	0610-			●	●
2	00.029 FOOT; ENG	8-97310-947-1	01	1	0307-0609	●
2	00.029 FOOT; ENG	8-97355-476-0	01	1	0610-			●	●
2	00.029 FOOT; ENG	8-97943-686-0	01	1	0307-0609	●	●
2	00.029 FOOT; ENG	8-97355-478-1	01	1	0610-			●	●
2	00.029 FOOT; ENG	8-97308-036-2	01	1	0307-0609		●
10	04.085 NUT; MTG RUBBER M10 FLANGE	0-91180-210-0	02	1	0307-0609	●	●
10	04.085 NUT; MTG RUBBER M10 FLANGE	0-91180-210-0	02	1	0307-0609	●	●
10	04.085 NUT; MTG RUBBER 4X2(TFB***) M10 FLANGE	0-91180-210-0	02	1	0307-0609	●
10	04.085 NUT; MTG RUBBER M10 FLANGE	0-91180-210-0	02	1	0610-			●	●
10	04.085 NUT; MTG RUBBER M10 FLANGE	0-91180-210-0	02	1	0610-			●	●
10	04.085 NUT; MTG RUBBER 4X2(TFB***) M10 FLANGE	0-91180-210-0	02	1	0610-			●
17	00.027 COVER; CUSHION RUBBER,FRT	8-97352-343-0	01	1	0307-0609	●	●
17	00.027 COVER; CUSHION RUBBER,FRT	8-97352-343-0	01	1	0610-			●	●
17	00.027 COVER; CUSHION RUBBER,FRT	8-97352-344-1	01	1	0307-0609		●
17	00.027 COVER; CUSHION RUBBER,FRT	8-97352-344-1	01	1	0610-			●	●
20	00.029 BOLT; ENG FOOT 02.277 (J) M10X22 W/LK WASHER	0-50041-022-0	03	1	0307-0609	●
20	00.029 BOLT; ENG FOOT (G) M10X20 FLANGE	0-28051-020-0	01	1	0610-			●	●
20	00.029 BOLT; ENG FOOT 09.171 (I) M10X35 W/LK WASHER	0-50041-035-0	01	1	0307-0402	●
20	00.029 BOLT; ENG FOOT 09.171 (I) M10X35 W/LK WASHER	0-50541-035-0	01	1	0403-0609	●
20	00.029 BOLT; ENG FOOT 03.613 (H) M10X40 FLANGE	0-28651-040-0	01	1	0610-			●	●
20	00.029 BOLT; ENG FOOT (F) M10X30 FLANGE	0-28651-030-0	02	1	0307-0609	●
20	00.029 BOLT; ENG FOOT (F) M10X30 FLANGE	0-28651-030-0	04	1	0610-			●	●
20	00.029 BOLT; ENG FOOT (G) M10X25 FLANGE	0-28651-025-0	02	1	0307-0609	●	●
20	00.029 BOLT; ENG FOOT (D) M10X25 FLANGE	0-28651-025-0	02	1	0610-			●	●
20	00.029 BOLT; ENG FOOT (C) M10X80 FLANGE	0-28081-080-0	01	1	0307-0402	●	●
20	00.029 BOLT; ENG FOOT 09.173 (C) M10X80 FLANGE	0-28051-080-0	01	1	0403-0609	●	●
20	00.029 BOLT; ENG FOOT 09.173 (C) M10X80 FLANGE	0-28051-080-0	01	1	0610-			●	●
20	00.029 BOLT; ENG FOOT 03.405 (D) M10X25 FLANGE	0-28681-025-0	03	1	0307-0402	●	●
20	00.029 BOLT; ENG FOOT (D) M10X25 FLANGE	0-28651-025-0	03	1	0403-0609	●	●
20	00.029 BOLT; ENG FOOT (D) M10X25 FLANGE	0-28651-025-0	01	1	0610-			●	●
20	00.029 BOLT; ENG FOOT 4X4(TFS***) (H) M10X35 FLANGE	0-28751-035-0	02	1	0307-0609	●	●	●	●
20	00.029 BOLT; ENG FOOT 4X4(TFS***) (J) M10X35 FLANGE	0-28751-035-0	02	1	0610-			●
20	00.029 BOLT; ENG FOOT A/T AISIN(RMD) (J) M10X35 FLANGE	0-28751-035-0	02	1	0610-				●
20	00.029 BOLT; ENG FOOT (F) M10X30 FLANGE	0-28651-030-0	04	1	0307-0609		●
20	00.029 BOLT; ENG FOOT (I) M10X30 FLANGE	0-28651-030-0	02	1	0610-			●	●
20	00.029 BOLT; ENG FOOT 09.198 (B) M10X100 FLANGE	0-28081-000-0	01	1	0307-0402		●
20	00.029 BOLT; ENG FOOT 09.181 (B) M10X100 FLANGE	0-28051-000-0	01	1	0403-0609		●
20	00.029 BOLT; ENG FOOT 09.181 (B) M10X100 FLANGE	0-28051-000-0	01	1	0610-			●	●
20	00.029 BOLT; ENG FOOT (E) M14X45 FLANGE	0-28881-445-0	01	1	0307-0402		●
20	00.029 BOLT; ENG FOOT (E) M14X45 FLANGE	0-28851-445-0	01	1	0403-0609		●
20	00.029 BOLT; ENG FOOT (E) M14X45 FLANGE	0-28851-445-0	01	1	0610-			●	●
20	00.029 BOLT; ENG FOOT 01.652 (A) M10X25 W/LK WASHER	0-50041-025-0	02	1	0307-0512		●
20	00.029 BOLT; ENG FOOT 04.439 (A) M10X25 W/LK WASHER	0-50541-025-0	02	1	0601-0609		●
20	00.029 BOLT; ENG FOOT M/T MUX 5 SPEED 5S(MZJ) 01.060 (A) M8X35 FLANGE	0-28650-835-0	04	1	0610-				●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***)	8-97367-278-0	01	1	0307-0402	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP)	8-97367-632-0	01	1	0403-0408	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MUA 5 SPEED 5G(RSP)	8-97371-778-0	01	1	0409-0609	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ)	8-98051-338-0	01	1	0610-			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***)	8-97367-276-0	01	1	0307-0402	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***)	8-97367-630-0	01	1	0403-0408	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***)	8-97371-777-0	01	1	0409-0609	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD)	8-98051-336-0	01	1	0610-			●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR M/T MUX 5 SPEED 5S(MZJ)	8-98051-349-0	01	1	0610-				●
55	00.002 BOLT; BRKT,ENG MTG,RR A/T AISIN(RMD) M10X120	8-98051-536-0	01	1	0610-				●
152	00.027 DAMPER; DYNAMIC,ENG MTG A/T AISIN(RMD)	8-97373-873-0	01	1	0610-				●
