0-14 — CAMSHAFT AND VALVE (#74270) — 177 parça

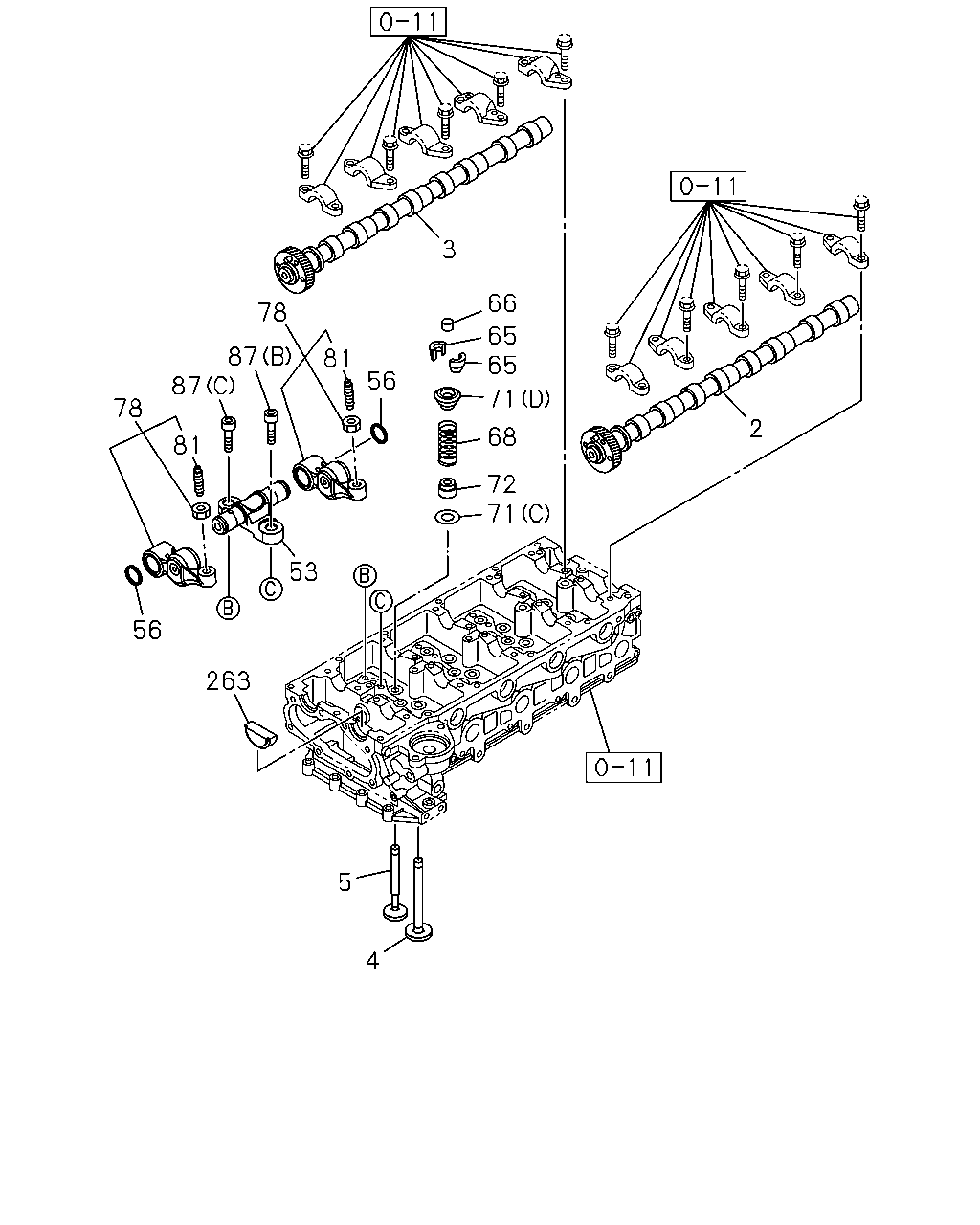

11 11 3 66 78 65 65 87 87 81 56 71 78 2 68 81 72 71 53 56 263 11 5 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	00.519 CAMSHAFT; INL	8-97328-642-8	01	1	0610-	●	●
3	00.519 CAMSHAFT; EXH	8-97328-644-8	01	1	0610-	●	●
4	00.296 VALVE; INL	8-97131-729-2	04	1	0307-0609			●	●
4	00.296 VALVE; INL	8-97309-675-1	08	1	0610-	●	●
5	00.297 VALVE; EXH	8-97043-861-2	04	1	0307-0609			●	●
5	00.297 VALVE; EXH	8-97309-677-1	08	1	0610-	●	●
11	00.533 BOLT; THRUST PLATE TO C/BL M12X47	8-94433-407-0	01	1	0307-0402			●	●
11	00.533 BOLT; THRUST PLATE TO C/BL M12X47	8-97916-384-0	01	1	0403-0609			●	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	0307-0402			●	●
53	00.353 SHAFT; ROCKER ARM	8-97915-833-0	01	1	0403-0609			●	●
53	00.353 SHAFT; ROCKER ARM INLET	8-97364-809-2	04	1	0610-	●	●
53	00.353 SHAFT; ROCKER ARM EXHAUST	8-97364-811-2	04	1	0610-	●	●
56	00.349 RING; SNAP,ROCKER ARM	8-98109-470-0	16	1	0803-	●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	0307-0609			●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	0307-0609			●	●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	0610-	●	●
66	00.303 CAP; VLV STEM END	8-98029-870-1	16	1	0610-0910	●	●
66	00.303 CAP; VLV STEM END	8-98147-945-0	16	1	0911-	●	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	0307-0402			●	●
68	00.303 SPRING; VLV OD=30.6	8-97912-651-0	08	1	0403-0609			●	●
68	00.303 SPRING; VLV H=49 NATURAL	8-97311-669-0	16	1	0610-	●	●
71	00.309 SEAT; SPR (B) LOWER OD=34	5-12563-001-0	08	1	0307-0402			●	●
71	00.309 SEAT; SPR (B) LOWER OD=34	8-97912-652-0	08	1	0403-0609			●	●
71	00.309 SEAT; SPR (D) OD=29.5	8-97311-668-0	16	1	0610-	●	●
71	00.309 SEAT; SPR (A) UPPER OD=32.8	8-94133-731-2	08	1	0307-0609			●	●
71	00.309 SEAT; SPR (C) OD=31	8-97144-584-0	16	1	0610-	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97120-307-0	08	1	0307-0402			●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97921-229-0	08	1	0403-0609			●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97328-647-0	16	1	0610-	●	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	0307-0402			●	●
78	00.333 ARM; ROCKER	8-97915-831-1	08	1	0403-0609			●	●
78	00.333 ARM; ROCKER	8-98029-537-6	16	1	0610-	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=22	8-98029-893-0	16	1	1103-	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	0307-0402			●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-97915-832-0	08	1	0403-0609			●	●
87	00.349 BOLT; ROCKER SHAFT (A) M10X60	8-94433-302-0	01	1	0307-0402			●	●
87	00.349 BOLT; ROCKER SHAFT (A) M10X60	8-97915-838-0	01	1	0403-0609			●	●
87	00.349 BOLT; ROCKER SHAFT (B) M8X25 HEX SOCKET	0-58330-825-0	08	1	0610-	●	●
87	00.349 BOLT; ROCKER SHAFT (C) M8X40 HEX SOCKET	0-58330-840-0	08	1	0610-	●	●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97947-079-0	04	1	0610-	●	●

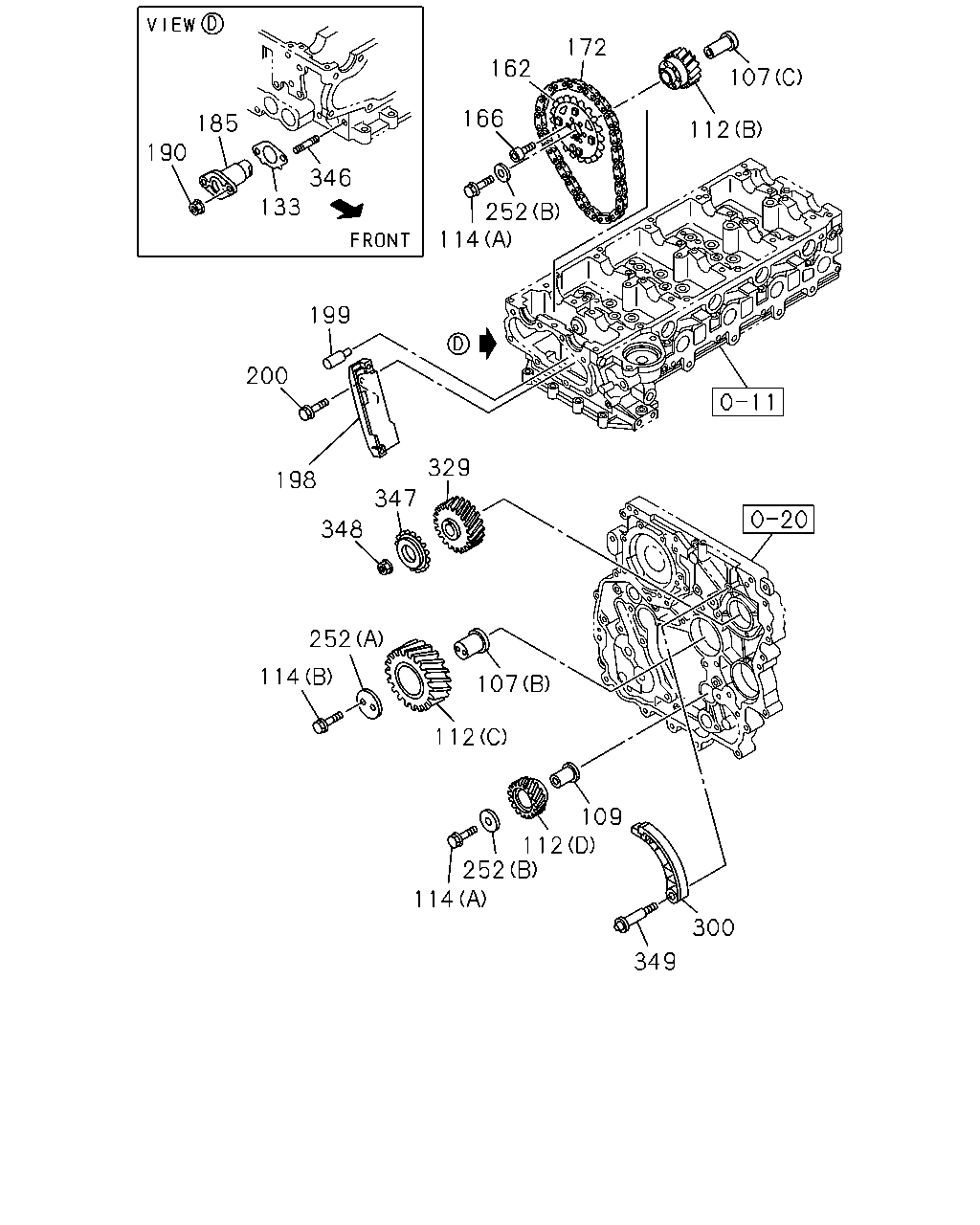

190 185 133 346 199 200 198 347 329 348 252 114 112 107 114 112 252 109 349 300 114 252 166 162 172 112 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
107	00.724 SHAFT; IDLE GEAR (A)	8-97240-021-0	01	1	0307-0309			●	●
107	00.724 SHAFT; IDLE GEAR (A)	8-97943-224-0	01	1	0310-0609			●	●
107	00.724 SHAFT; IDLE GEAR (B)	8-97312-315-2	01	1	0610-	●	●
107	00.724 SHAFT; IDLE GEAR (C)	8-97312-322-1	01	1	0610-	●	●
109	00.724 SHAFT; IDLE GEAR	8-97240-023-1	01	1	0307-0308			●	●
109	00.724 SHAFT; IDLE GEAR	8-97943-225-0	01	1	0309-0609			●	●
109	00.724 SHAFT; IDLE GEAR	8-97312-319-1	01	1	0610-	●	●
112	00.724 GEAR; IDLE (A) Z=43	8-97240-014-1	01	1	0307-0402			●	●
112	00.724 GEAR; IDLE (A) Z=43	8-97942-752-1	01	1	0403-0609			●	●
112	00.724 GEAR; IDLE (C) Z=80	8-97312-200-1	01	1	0610-0611	●	●
112	00.724 GEAR; IDLE (C) Z=80	8-98021-050-2	01	1	0612-	●	●
112	00.724 GEAR; IDLE (B) Z=35	8-97312-306-2	01	1	0610-0610	●	●
112	00.724 GEAR; IDLE (B) Z=35	8-98021-053-3	01	1	0611-	●	●
112	00.724 GEAR; IDLE (D) Z=34	8-97312-470-1	01	1	0610-0612	●	●
112	00.724 GEAR; IDLE (D) Z=34	8-98021-052-1	01	1	0701-	●	●
114	00.724 BOLT; IDLE GEAR (B) M10X60 FLANGE	0-28061-060-0	02	1	0610-	●	●
114	00.724 BOLT; IDLE GEAR (A) M12X60 FLANGE	0-28161-260-0	02	1	0610-	●	●
133	00.356 GASKET; CHAIN TENSIONER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97312-336-0	01	1	0610-	●	●
162	00.736 SPROCKET; IDLE	8-97312-331-1	01	1	0610-	●	●
166	00.724 BOLT; SPROCKET TO LAYSHAFT M6X16 HEX SOCKET	0-58330-616-0	06	1	0610-	●	●
172	00.724 CHAIN; TIMING,CM/SHF	8-97945-067-0	01	1	0610-0908	●	●
172	00.724 CHAIN; TIMING,CM/SHF	8-98119-279-1	01	1	0909-	●	●
185	00.724 TENSIONER; CHAIN	8-97945-068-1	01	1	0610-	●	●
190	00.724 NUT; CHAIN TENSIONER 01.540 M6 FLANGE	0-91180-206-0	02	1	0610-	●	●
198	00.724 GUIDE; TIMING CHAIN	8-97945-069-0	01	1	0610-1009	●	●
198	00.724 GUIDE; TIMING CHAIN	8-98173-188-0	01	1	1010-	●	●
199	00.724 JET; OIL,TIMING CHAIN	8-97356-061-1	01	1	0610-	●	●
200	00.724 BOLT; CHAIN GUIDE,LWR 01.064 M8X20	1-09070-120-1	02	1	0610-	●	●
252	00.724 FLANGE; IDLE SHAFT (A)	8-97312-316-1	01	1	0610-	●	●
252	00.724 FLANGE; IDLE SHAFT (B)	8-97312-323-1	02	1	0610-	●	●
300	00.724 LEVER; TENSION,TIMING CHAIN	8-97945-070-0	01	1	0610-0809	●	●
300	00.724 LEVER; TENSION,TIMING CHAIN	8-98119-278-1	01	1	0810-	●	●
329	00.724 GEAR; INJ PUMP Z=44	8-97312-298-3	01	1	0610-	●	●
346	00.429 STUD; CHAIN 01.062 M6X18 L=27	0-41010-618-0	02	1	0610-	●	●
347	00.429 SPROCKET; I/PUMP	8-97312-330-1	01	1	0610-	●	●
348	00.429 NUT; SPROCKET M14 FLANGE	8-97312-423-2	01	1	0610-	●	●
349	00.429 PIVOT; CHAIN LEVER	8-97312-328-0	01	1	0610-	●	●

55 87 86 84 78 78 78 56 78 78 78 85 95 86 83 53 54 54 81 78 84 78 56 55 65 71 68 72 71 88 5 4 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
4	00.296 VALVE; INL	8-97131-729-2	04	1	0307-0609			●	●
4	00.296 VALVE; INL	8-97309-675-1	08	1	0610-	●	●
5	00.297 VALVE; EXH	8-97043-861-2	04	1	0307-0609			●	●
5	00.297 VALVE; EXH	8-97309-677-1	08	1	0610-	●	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	0307-0402			●	●
53	00.353 SHAFT; ROCKER ARM	8-97915-833-0	01	1	0403-0609			●	●
53	00.353 SHAFT; ROCKER ARM INLET	8-97364-809-2	04	1	0610-	●	●
53	00.353 SHAFT; ROCKER ARM EXHAUST	8-97364-811-2	04	1	0610-	●	●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	0307-0402			●	●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-97915-840-0	06	1	0403-0609			●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	0307-0402			●	●
55	00.356 PLUG; ROCKER SHAFT END	8-97915-834-0	02	1	0403-0609			●	●
56	00.349 RING; SNAP,ROCKER ARM	8-98109-470-0	16	1	0803-	●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	0307-0609			●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	0307-0609			●	●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	0610-	●	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	0307-0402			●	●
68	00.303 SPRING; VLV OD=30.6	8-97912-651-0	08	1	0403-0609			●	●
68	00.303 SPRING; VLV H=49 NATURAL	8-97311-669-0	16	1	0610-	●	●
71	00.309 SEAT; SPR (B) LOWER OD=34	5-12563-001-0	08	1	0307-0402			●	●
71	00.309 SEAT; SPR (B) LOWER OD=34	8-97912-652-0	08	1	0403-0609			●	●
71	00.309 SEAT; SPR (D) OD=29.5	8-97311-668-0	16	1	0610-	●	●
71	00.309 SEAT; SPR (A) UPPER OD=32.8	8-94133-731-2	08	1	0307-0609			●	●
71	00.309 SEAT; SPR (C) OD=31	8-97144-584-0	16	1	0610-	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97120-307-0	08	1	0307-0402			●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97921-229-0	08	1	0403-0609			●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97328-647-0	16	1	0610-	●	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	0307-0402			●	●
78	00.333 ARM; ROCKER	8-97915-831-1	08	1	0403-0609			●	●
78	00.333 ARM; ROCKER	8-98029-537-6	16	1	0610-	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=22	8-98029-893-0	16	1	1103-	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	0307-0402			●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-97915-832-0	08	1	0403-0609			●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	0307-0512			●	●
83	00.787 NUT; ADJ SCREW,LK 00.777 M8	0-91111-508-0	08	1	0601-0609			●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	0307-0402			●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-97915-836-1	04	1	0403-0609			●	●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	02	1	0307-0402			●	●
85	00.349 BOLT; BRKT M10X60 L=82	8-97915-839-0	02	1	0403-0609			●	●
85	00.349 BOLT; BRKT M8X37 & M10X60 L=104	8-94437-493-1	01	1	0307-0402			●	●
85	00.349 BOLT; BRKT M10X60 L=104	8-97915-841-0	01	1	0403-0609			●	●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	0307-0609			●	●
87	00.349 BOLT; ROCKER SHAFT (A) M10X60	8-94433-302-0	01	1	0307-0402			●	●
87	00.349 BOLT; ROCKER SHAFT (A) M10X60	8-97915-838-0	01	1	0403-0609			●	●
87	00.349 BOLT; ROCKER SHAFT (B) M8X25 HEX SOCKET	0-58330-825-0	08	1	0610-	●	●
87	00.349 BOLT; ROCKER SHAFT (C) M8X40 HEX SOCKET	0-58330-840-0	08	1	0610-	●	●
88	00.426 ROD; PUSH	8-94143-203-0	08	1	0307-0407			●
88	00.426 ROD; PUSH	8-97378-496-0	08	1	0408-0609			●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	0307-0609				●
89	00.459 TAPPET; VLV	8-94438-305-1	08	1	0307-0609			●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	0307-0402			●	●
95	00.376 SPRING; ROCKER SHAFT	8-97915-837-1	03	1	0403-0609			●	●

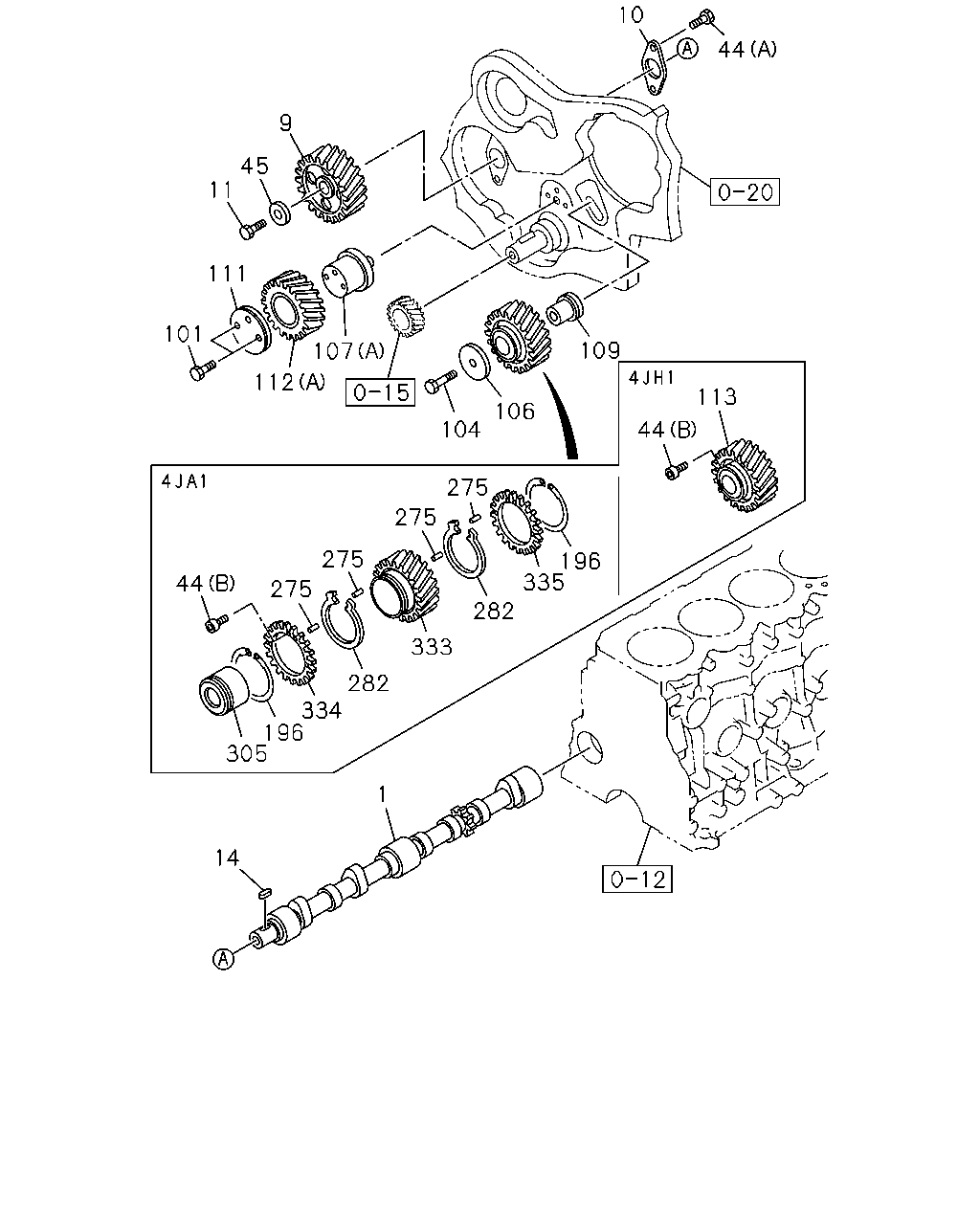

10 44 9 45 11 111 101 109 107 112 113 106 104 44 275 275 275 196 335 44 275 282 333 282 334 196 305 1 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.519 CAMSHAFT	8-97287-657-0	01	1	0307-0402			●	●
1	00.519 CAMSHAFT	8-97943-025-0	01	1	0403-0411			●	●
1	00.519 CAMSHAFT	8-97912-633-0	01	1	0412-0501			●	●
1	00.519 CAMSHAFT	8-97943-025-0	01	1	0502-0602			●	●
1	00.519 CAMSHAFT	8-97287-657-1	01	1	0603-0609			●	●
9	00.736 GEAR; CM/SHF Z=60	8-97240-012-2	01	1	0307-0402			●	●
9	00.736 GEAR; CM/SHF Z=60	8-97942-764-0	01	1	0403-0609			●	●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	0307-0609			●	●
11	00.533 BOLT; THRUST PLATE TO C/BL M12X47	8-94433-407-0	01	1	0307-0402			●	●
11	00.533 BOLT; THRUST PLATE TO C/BL M12X47	8-97916-384-0	01	1	0403-0609			●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	0307-0609			●	●
44	00.738 BOLT 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0307-0402			●	●
44	00.738 BOLT 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0403-0609			●	●
44	00.738 BOLT (B) M6X30 HEX SOCKET	9-05820-630-0	01	1	0307-0402			●	●
44	00.738 BOLT (B) M6X30 HEX SOCKET	9-05820-630-0	01	1	0403-0609			●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	0307-0402			●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	8-97918-881-0	01	1	0403-0609			●	●
101	00.724 BOLT; THRUST COLLAR M8X53 FLANGE	8-97223-999-0	02	1	0307-0609			●	●
104	00.724 BOLT; SHAFT IDLE M12X77	8-94129-384-1	01	1	0307-0609			●	●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	0307-0402			●	●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	8-97918-881-0	01	1	0403-0609			●	●
107	00.724 SHAFT; IDLE GEAR (A)	8-97240-021-0	01	1	0307-0309			●	●
107	00.724 SHAFT; IDLE GEAR (A)	8-97943-224-0	01	1	0310-0609			●	●
107	00.724 SHAFT; IDLE GEAR (B)	8-97312-315-2	01	1	0610-	●	●
107	00.724 SHAFT; IDLE GEAR (C)	8-97312-322-1	01	1	0610-	●	●
109	00.724 SHAFT; IDLE GEAR	8-97240-023-1	01	1	0307-0308			●	●
109	00.724 SHAFT; IDLE GEAR	8-97943-225-0	01	1	0309-0609			●	●
109	00.724 SHAFT; IDLE GEAR	8-97312-319-1	01	1	0610-	●	●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94171-289-0	01	1	0307-0402			●	●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-97942-734-0	01	1	0403-0609			●	●
112	00.724 GEAR; IDLE (A) Z=43	8-97240-014-1	01	1	0307-0402			●	●
112	00.724 GEAR; IDLE (A) Z=43	8-97942-752-1	01	1	0403-0609			●	●
112	00.724 GEAR; IDLE (C) Z=80	8-97312-200-1	01	1	0610-0611	●	●
112	00.724 GEAR; IDLE (C) Z=80	8-98021-050-2	01	1	0612-	●	●
112	00.724 GEAR; IDLE (B) Z=35	8-97312-306-2	01	1	0610-0610	●	●
112	00.724 GEAR; IDLE (B) Z=35	8-98021-053-3	01	1	0611-	●	●
112	00.724 GEAR; IDLE (D) Z=34	8-97312-470-1	01	1	0610-0612	●	●
112	00.724 GEAR; IDLE (D) Z=34	8-98021-052-1	01	1	0701-	●	●
113	00.724 GEAR; IDLE	8-97942-755-1	01	1	0307-0609				●
196	00.724 RING; SNAP	8-97245-684-1	02	1	0509-			●
275	00.724 PIN; IDLE GEAR OD=5 L=7.5	8-97245-683-0	04	1	0307-0609			●
282	00.738 SPRING; GEAR	8-97245-337-0	02	1	0307-			●
305	00.724 BEARING; IDLE GEAR	8-97240-019-1	01	1	0307-			●
333	00.724 GEAR; IDLE,MAIN Z=52	8-97240-018-2	01	1	0307-0508			●
333	00.724 GEAR; IDLE,MAIN Z=52	8-97240-018-2	01	1	0509-0609			●	●
334	00.724 GEAR; IDLE,FRT Z=52	8-97264-988-1	01	1	0307-0609			●
335	00.724 GEAR; IDLE,RR Z=52	8-97245-231-1	01	1	0307-0508			●
335	00.724 GEAR; IDLE,RR Z=52	8-97245-231-1	01	1	0509-0609			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
