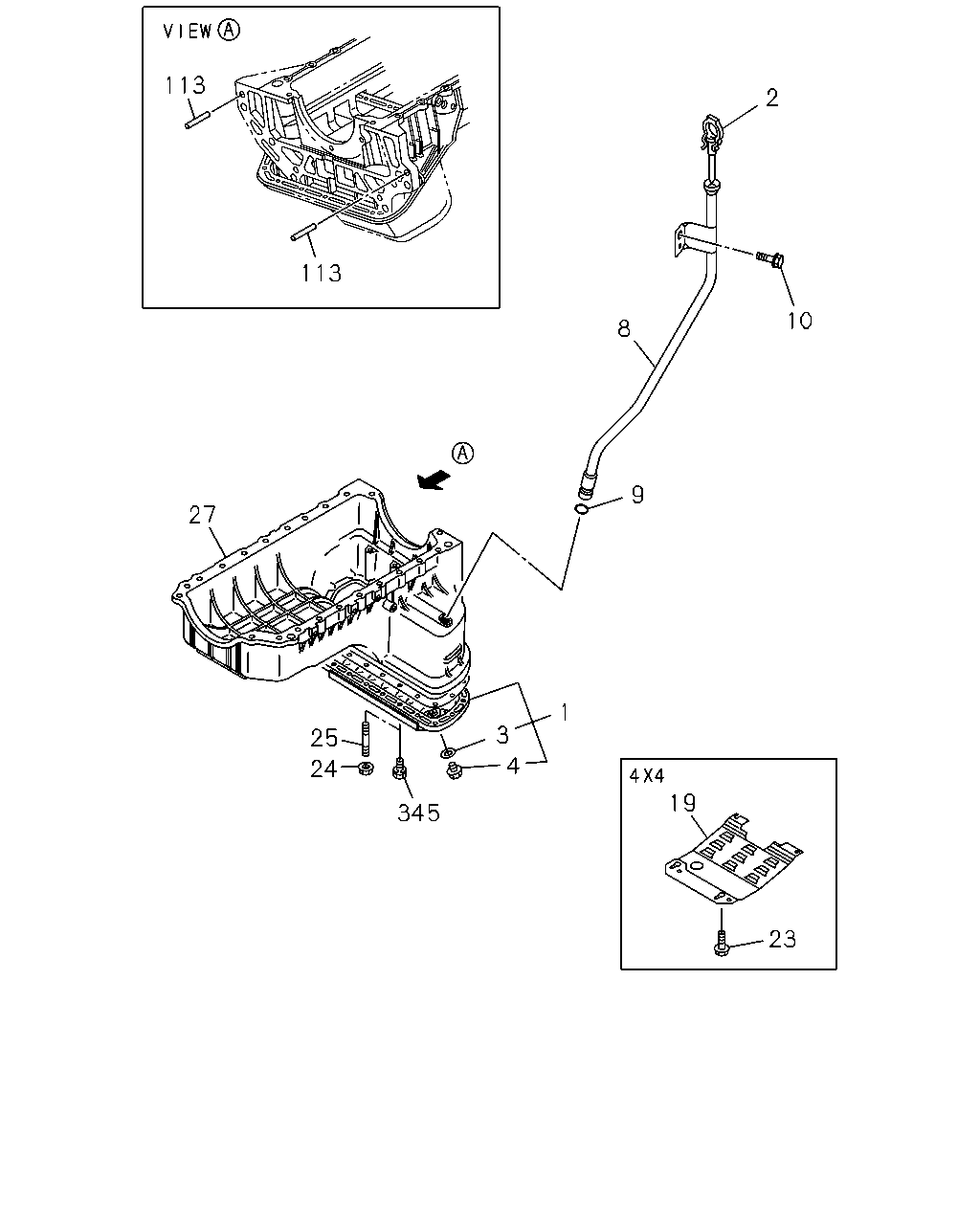

0-13 — OIL PAN AND LEVEL GAUGE (#74269) — 118 parça

113 2 113 10 8 9 27 1 3 25 4 24 19 345 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.426 PAN ASM; OIL	8-97248-860-1	01	1	0307-0609	●
1	01.426 PAN ASM; OIL 4X2(TFB***)	8-98011-499-0	01	1	0610-1007		●
1	01.426 PAN ASM; OIL 4X2(TFB***)	8-98156-371-0	01	1	1008-		●
1	01.426 PAN ASM; OIL	8-97248-862-1	01	1	0307-0609			●
1	01.426 PAN ASM; OIL 4X4(TFS***)	8-98013-383-1	01	1	0610-1007		●
1	01.426 PAN ASM; OIL	8-98013-383-1	01	1	0610-1007				●
1	01.426 PAN ASM; OIL 4X4(TFS***)	8-98156-373-0	01	1	1008-		●
1	01.426 PAN ASM; OIL	8-98156-373-0	01	1	1008-				●
2	01.516 GAUGE; OIL LEVEL	8-97085-167-0	01	1	0307-0609	●		●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-98053-833-1	01	1	0610-		●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***)	8-98053-834-1	01	1	0610-		●
2	01.516 GAUGE; OIL LEVEL	8-98053-834-1	01	1	0610-				●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0307-0609	●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0610-		●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0307-0609	●		●
4	01.453 PLUG; DRAIN,OIL M14X14	8-97329-621-0	01	1	0610-		●		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97302-689-0	01	1	0307-0609	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98011-973-1	01	1	0610-		●		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97249-184-0	01	1	0307-0609			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0307-0609	●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 OD=15.8	8-98034-629-0	01	1	0610-		●		●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0307-0402	●		●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0403-0609	●		●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0610-		●		●
19	01.426 PLATE; OIL PAN FRT 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> ISUZU BRAND<7WL>	8-98116-061-0	01	1	0807-0809		●		●
19	01.426 PLATE; OIL PAN FRT 4X4(TFS***) ISUZU BRAND<7WL>	8-98116-061-0	01	1	0810-		●		●
23	01.428 BOLT; OIL PAN 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> ISUZU BRAND<7WL> 01.267 M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	0807-0809		●		●
23	01.428 BOLT; OIL PAN 4X4(TFS***) ISUZU BRAND<7WL> 01.267 M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	0810-		●		●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	15	1	0307-0402	●		●
23	01.428 BOLT; OIL PAN M6X13	8-97916-379-0	15	1	0403-0609	●		●
24	01.453 NUT; OIL PAN M6 W/LK WASHER	8-97137-836-0	02	1	0307-0609	●		●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91180-208-0	02	1	0610-		●		●
25	01.453 STUD; OIL PAN 01.428 M6X12 L=21	9-04110-612-0	02	1	0307-0402	●		●
25	01.453 STUD; OIL PAN M6X12 L=21	0-41010-612-0	02	1	0403-0609	●		●
25	01.453 STUD; OIL PAN M8X16 L=28	0-41010-816-0	02	1	0610-		●		●
27	01.426 CRANKCASE	8-97358-796-0	01	1	0307-0609	●		●
27	01.426 CRANKCASE 4X2(TFB***)	8-98013-794-1	01	1	0610-		●
27	01.426 CRANKCASE 4X4(TFS***)	8-97370-514-3	01	1	0610-		●
27	01.426 CRANKCASE 4X4(TFS***) A/T AISIN(RMD)	8-97370-514-3	01	1	0610-				●
27	01.426 CRANKCASE M/T MUX 5 SPEED 5S(MZJ)	8-98011-498-2	01	1	0610-				●
113	01.453 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	0307-0402	●		●
113	01.453 PIN; STRAIGHT L=31	8-97920-964-1	02	1	0403-0609	●		●
113	01.453 PIN; STRAIGHT M/T MUX 5 SPEED 5S(MZJ) 08.939 OD=10 L=32	9-08161-032-0	02	1	0610-				●
345	01.516 BOLT; SENSOR,OIL LEVEL 4X2(TFB***) 02.343 M8X12 FLANGE	0-28050-812-0	21	1	0610-		●
345	01.516 BOLT; SENSOR,OIL LEVEL 4X4(TFS***) 02.343 M8X12 FLANGE	0-28050-812-0	17	1	0610-		●
345	01.516 BOLT; SENSOR,OIL LEVEL 02.343 M8X12 FLANGE	0-28050-812-0	17	1	0610-				●

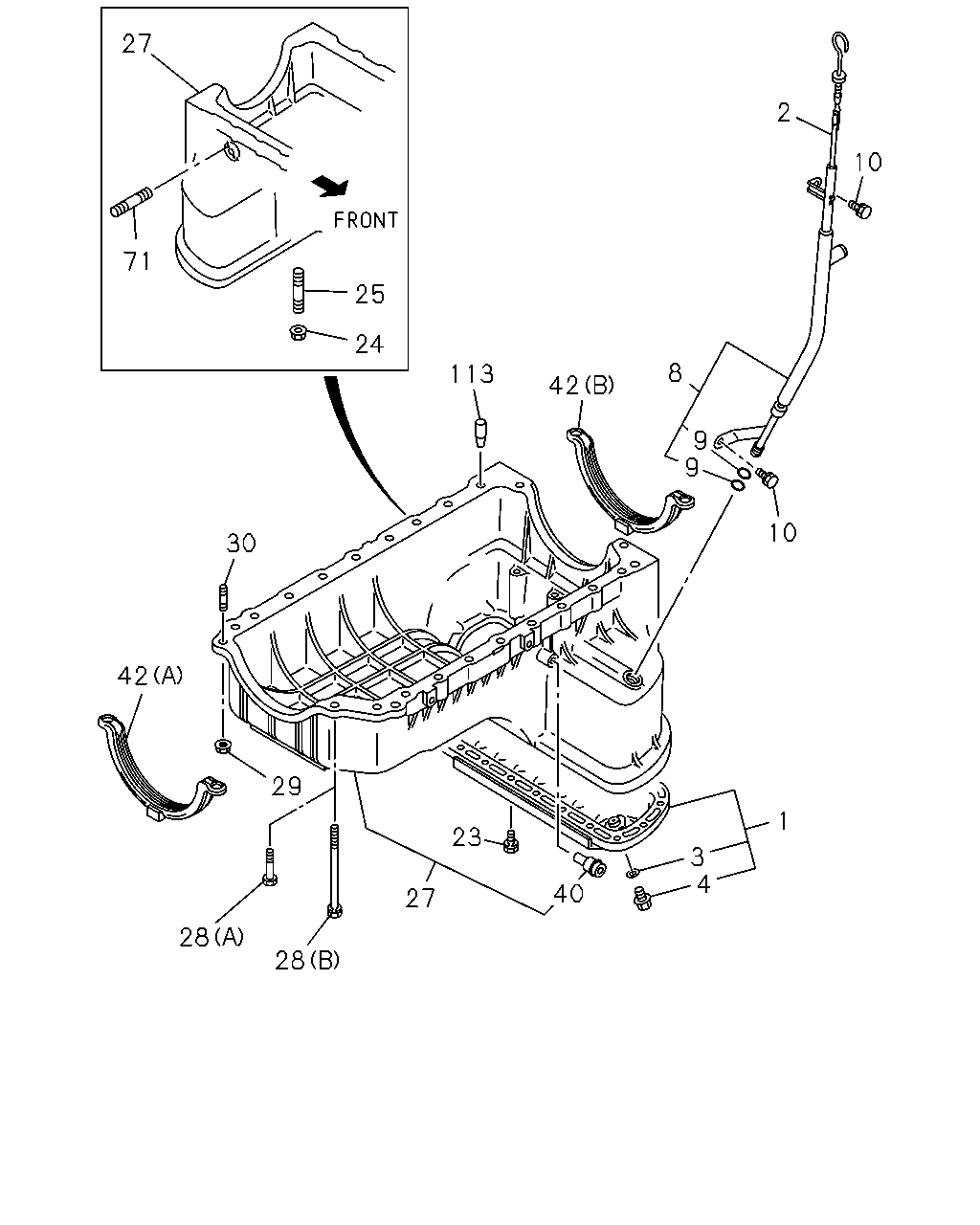

27 2 10 71 25 24 8 113 42 9 9 10 30 42 29 1 23 3 4 40 27 28 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.426 PAN ASM; OIL	8-97248-860-1	01	1	0307-0609	●
1	01.426 PAN ASM; OIL 4X2(TFB***)	8-98011-499-0	01	1	0610-1007		●
1	01.426 PAN ASM; OIL 4X2(TFB***)	8-98156-371-0	01	1	1008-		●
1	01.426 PAN ASM; OIL	8-97248-862-1	01	1	0307-0609			●
1	01.426 PAN ASM; OIL 4X4(TFS***)	8-98013-383-1	01	1	0610-1007		●
1	01.426 PAN ASM; OIL	8-98013-383-1	01	1	0610-1007				●
1	01.426 PAN ASM; OIL 4X4(TFS***)	8-98156-373-0	01	1	1008-		●
1	01.426 PAN ASM; OIL	8-98156-373-0	01	1	1008-				●
2	01.516 GAUGE; OIL LEVEL	8-97085-167-0	01	1	0307-0609	●		●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-98053-833-1	01	1	0610-		●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***)	8-98053-834-1	01	1	0610-		●
2	01.516 GAUGE; OIL LEVEL	8-98053-834-1	01	1	0610-				●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0307-0609	●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0610-		●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0307-0609	●		●
4	01.453 PLUG; DRAIN,OIL M14X14	8-97329-621-0	01	1	0610-		●		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97302-689-0	01	1	0307-0609	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98011-973-1	01	1	0610-		●		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97249-184-0	01	1	0307-0609			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0307-0609	●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 OD=15.8	8-98034-629-0	01	1	0610-		●		●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0307-0402	●		●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0403-0609	●		●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0610-		●		●
23	01.428 BOLT; OIL PAN 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> ISUZU BRAND<7WL> 01.267 M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	0807-0809		●		●
23	01.428 BOLT; OIL PAN 4X4(TFS***) ISUZU BRAND<7WL> 01.267 M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	0810-		●		●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	15	1	0307-0402	●		●
23	01.428 BOLT; OIL PAN M6X13	8-97916-379-0	15	1	0403-0609	●		●
24	01.453 NUT; OIL PAN M6 W/LK WASHER	8-97137-836-0	02	1	0307-0609	●		●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91180-208-0	02	1	0610-		●		●
25	01.453 STUD; OIL PAN 01.428 M6X12 L=21	9-04110-612-0	02	1	0307-0402	●		●
25	01.453 STUD; OIL PAN M6X12 L=21	0-41010-612-0	02	1	0403-0609	●		●
25	01.453 STUD; OIL PAN M8X16 L=28	0-41010-816-0	02	1	0610-		●		●
27	01.426 CRANKCASE	8-97358-796-0	01	1	0307-0609	●		●
27	01.426 CRANKCASE 4X2(TFB***)	8-98013-794-1	01	1	0610-		●
27	01.426 CRANKCASE 4X4(TFS***)	8-97370-514-3	01	1	0610-		●
27	01.426 CRANKCASE 4X4(TFS***) A/T AISIN(RMD)	8-97370-514-3	01	1	0610-				●
27	01.426 CRANKCASE M/T MUX 5 SPEED 5S(MZJ)	8-98011-498-2	01	1	0610-				●
28	01.780 BOLT; CRANKCASE TO C/BL (B) M8X120 FLANGE	0-28085-812-0	01	1	0307-0402	●		●
28	01.780 BOLT; CRANKCASE TO C/BL (B) M8X120 FLANGE	0-28055-812-0	01	1	0403-0609	●		●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 (A) M8X32 W/LK WASHER	0-50040-832-0	19	1	0307-0402	●		●
28	01.780 BOLT; CRANKCASE TO C/BL 01.060 (A) M8X35 FLANGE	0-28650-835-0	19	1	0403-0609	●		●
29	01.426 NUT; CRANKCASE 07.633 M8 FLANGE	0-91150-108-0	02	1	0307-0402	●		●
29	01.426 NUT; CRANKCASE 01.062 M8 FLANGE	0-91180-108-0	02	1	0403-0609	●		●
30	01.780 STUD; CRANKCASE 08.981 M8X35 L=47	9-04110-835-0	02	1	0307-0402	●		●
30	01.780 STUD; CRANKCASE M8X35 L=47	0-41010-835-0	02	1	0403-0609	●		●
40	01.426 NIPPLE; OIL RETURN HOSE VAC PUMP 01.531	5-11369-038-0	01	1	0307-0609	●		●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) FRONT	8-97120-933-0	01	1	0307-0609	●		●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) REAR	8-97123-342-0	01	1	0307-0609	●		●
71	01.428 STUD; OIL DRAIN PIPE M8X18 L=30	9-04110-818-0	02	1	0307-0402	●		●
71	01.428 STUD; OIL DRAIN PIPE M8X18 L=30	0-41010-818-0	02	1	0403-0609	●		●
113	01.453 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	0307-0402	●		●
113	01.453 PIN; STRAIGHT L=31	8-97920-964-1	02	1	0403-0609	●		●
113	01.453 PIN; STRAIGHT M/T MUX 5 SPEED 5S(MZJ) 08.939 OD=10 L=32	9-08161-032-0	02	1	0610-				●

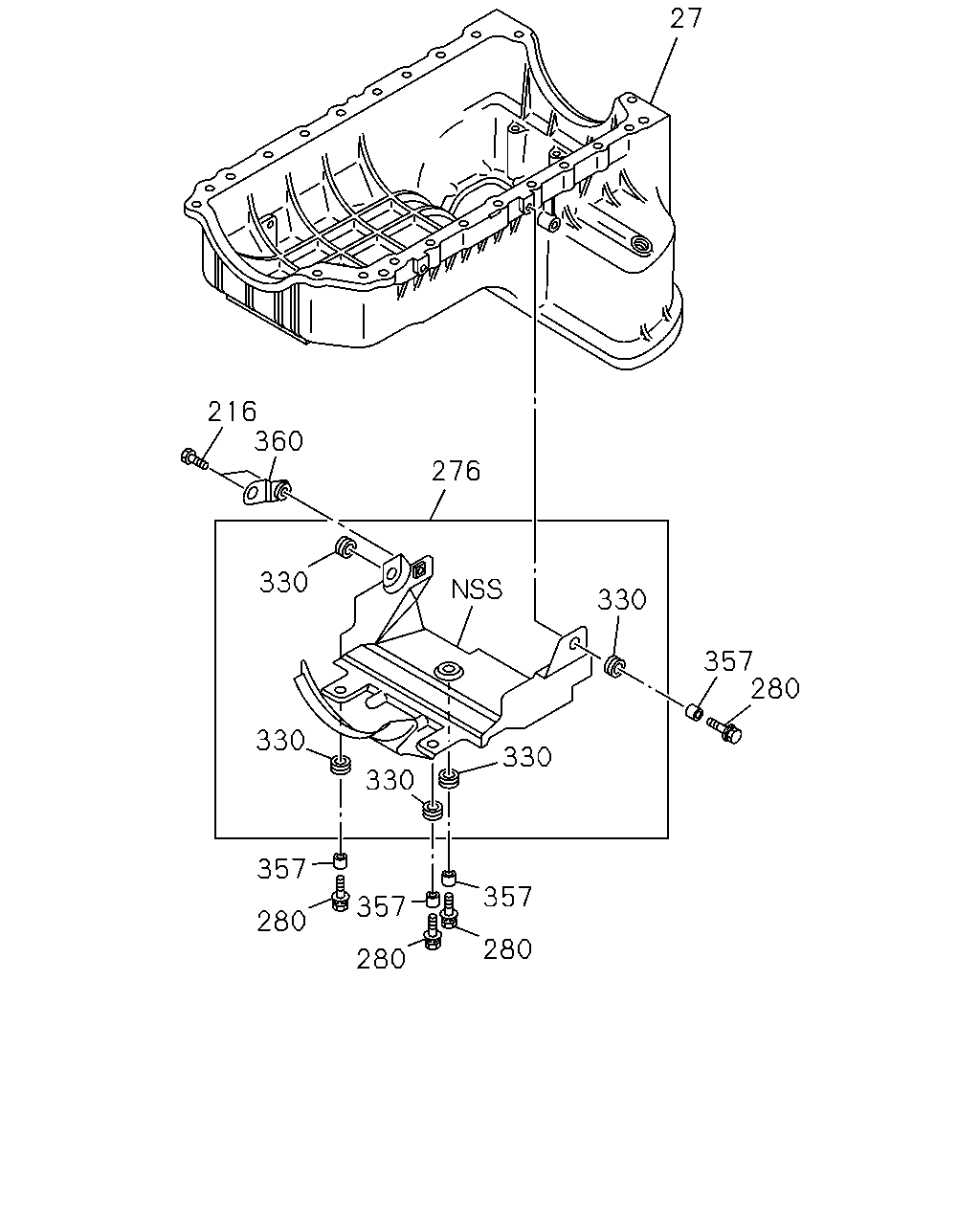

27 216 360 276 330 330 357 280 330 330 330 357 357 357 280 280 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
27	01.426 CRANKCASE	8-97358-796-0	01	1	0307-0609	●		●
27	01.426 CRANKCASE 4X2(TFB***)	8-98013-794-1	01	1	0610-		●
27	01.426 CRANKCASE 4X4(TFS***)	8-97370-514-3	01	1	0610-		●
27	01.426 CRANKCASE 4X4(TFS***) A/T AISIN(RMD)	8-97370-514-3	01	1	0610-				●
27	01.426 CRANKCASE M/T MUX 5 SPEED 5S(MZJ)	8-98011-498-2	01	1	0610-				●
216	01.429 BOLT; BRKT 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0307-0402	●		●
216	01.429 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0403-0609	●		●
216	01.429 BOLT; BRKT 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0307-0609	●		●
276	01.516 COVER; CRANKCASE	8-97324-158-3	01	1	0307-0309	●		●
276	01.516 COVER; CRANKCASE	8-97373-085-0	01	1	0310-0609	●		●
280	01.430 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	04	1	0307-0309	●		●
280	01.430 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	0310-0609	●		●
330	01.516 RUBBER; MTG,CRANKCASE COVER 00.034 OD=22	8-94140-428-1	05	1	0307-0309	●		●
330	01.516 RUBBER; MTG,CRANKCASE COVER 00.034 OD=22	8-94140-428-1	03	1	0310-0609	●		●
357	01.516 BUSHING; COVER	8-97361-926-0	04	1	0307-0308	●		●
357	01.516 BUSHING; COVER	8-97371-498-0	04	1	0309-0309	●		●
357	01.516 BUSHING; COVER	8-97371-498-0	03	1	0310-0609	●		●
360	01.750 BRACKET; CRANK CASE	8-97329-650-1	01	1	0307-0609	●		●
