0-12 — CYLINDER BLOCK (#74268) — 176 parça

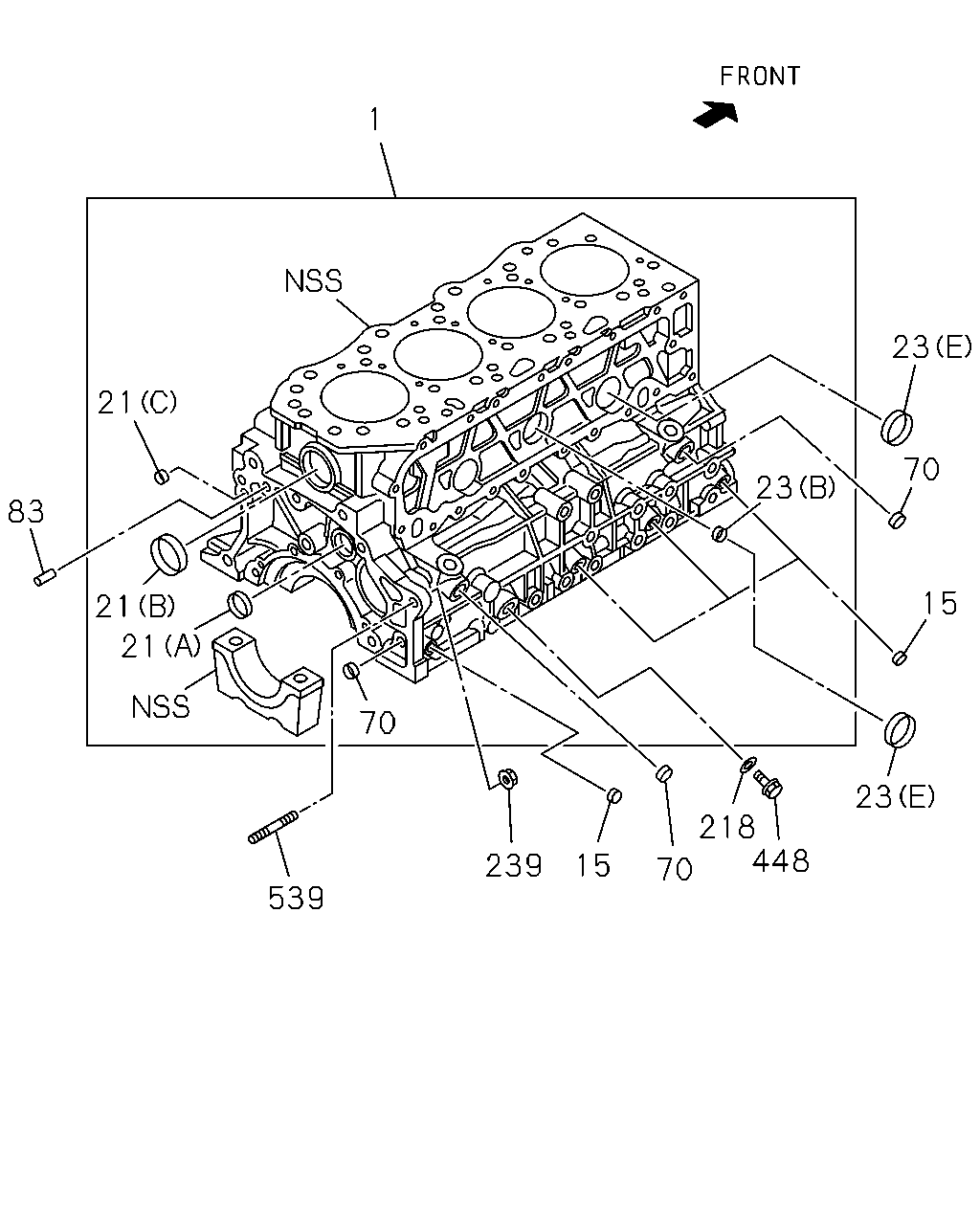

1 23 21 23 70 83 15 21 21 70 23 218 448 239 15 70 539

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.033 BLOCK ASM; CYL	8-97249-021-1	01	1	0307-0310	●
1	00.033 BLOCK ASM; CYL	8-97374-139-0	01	1	0311-0402	●
1	00.033 BLOCK ASM; CYL	8-97940-934-4	01	1	0403-0609	●
1	00.033 BLOCK ASM; CYL	8-98013-824-2	01	1	0610-1209		●	●
1	00.033 BLOCK ASM; CYL	8-98231-833-0	01	1	1210-1302		●	●
1	00.033 BLOCK ASM; CYL	8-98223-994-0	01	1	1303-		●	●
1	00.033 BLOCK ASM; CYL	8-97257-264-2	01	1	0307-0402				●
1	00.033 BLOCK ASM; CYL	8-97943-940-1	01	1	0403-0609				●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	0307-0609	●			●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	0610-		●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0307-0609	●			●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0610-		●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0307-0609	●			●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0610-		●	●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	0610-		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	03	1	0307-0609	●			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	0610-		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	0307-0609	●			●
23	00.034 CUP; SEALING,C/BL FRT & RR (E) OD=36	5-11219-018-0	02	1	0610-		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0307-0402	●			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=45	1-09600-005-2	03	1	0403-0609	●			●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=45	8-97036-550-1	03	1	0610-		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	02	1	0307-0609				●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	0610-		●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	0307-0609	●			●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	06	1	0610-		●	●
83	00.685 PIN; FLYWHEEL HSG 08.939 OD=10 L=32	9-08161-032-0	01	1	0610-		●
83	00.685 PIN; FLYWHEEL HSG A/T AISIN(RMD) 08.939 OD=10 L=32	9-08161-032-0	01	1	0610-			●
218	01.531 GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0610-		●	●
239	02.100 NUT; STUD,C/BL 03.162 M10 FLANGE	0-91180-110-0	01	1	0610-		●
239	02.100 NUT; STUD,C/BL A/T AISIN(RMD) 03.162 M10 FLANGE	0-91180-110-0	01	1	0610-			●
448	00.034 PLUG; C/BL	8-97379-656-1	01	1	0610-		●	●
539	01.428 STUD; REAMER 00.862 M10X40 L=75.5	8-97371-842-1	01	1	0610-		●
539	01.428 STUD; REAMER A/T AISIN(RMD) 00.862 M10X40 L=75.5	8-97371-842-1	01	1	0610-			●

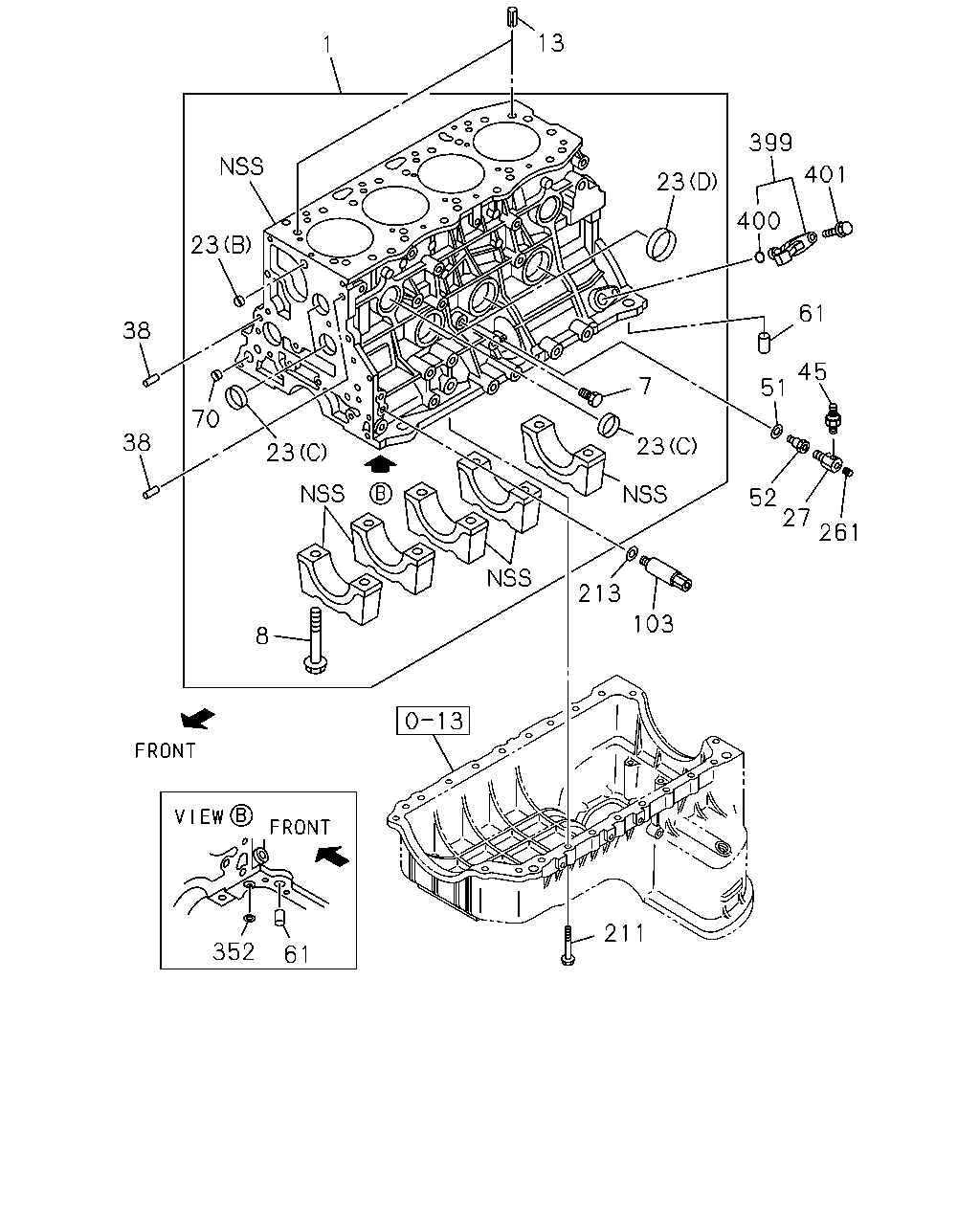

13 1 399 401 23 400 23 61 38 45 7 51 70 38 23 23 52 27 261 213 103 8 13 211 352 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.033 BLOCK ASM; CYL	8-97249-021-1	01	1	0307-0310	●
1	00.033 BLOCK ASM; CYL	8-97374-139-0	01	1	0311-0402	●
1	00.033 BLOCK ASM; CYL	8-97940-934-4	01	1	0403-0609	●
1	00.033 BLOCK ASM; CYL	8-98013-824-2	01	1	0610-1209		●	●
1	00.033 BLOCK ASM; CYL	8-98231-833-0	01	1	1210-1302		●	●
1	00.033 BLOCK ASM; CYL	8-98223-994-0	01	1	1303-		●	●
1	00.033 BLOCK ASM; CYL	8-97257-264-2	01	1	0307-0402				●
1	00.033 BLOCK ASM; CYL	8-97943-940-1	01	1	0403-0609				●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0307-0609	●			●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0610-		●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	0307-0402	●			●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-97941-068-0	10	1	0403-0609	●			●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	0610-		●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0307-0609	●			●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0610-		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	03	1	0307-0609	●			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	0610-		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	0307-0609	●			●
23	00.034 CUP; SEALING,C/BL FRT & RR (E) OD=36	5-11219-018-0	02	1	0610-		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0307-0402	●			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=45	1-09600-005-2	03	1	0403-0609	●			●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=45	8-97036-550-1	03	1	0610-		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	02	1	0307-0609				●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	0610-		●	●
27	01.531 NIPPLE; OIL GALLERY	8-97231-967-3	01	1	0307-0503				●
27	01.531 NIPPLE; OIL GALLERY	8-98005-299-0	01	1	0504-0609				●
27	01.531 NIPPLE; OIL GALLERY	8-98005-299-1	01	1	0610-		●	●
38	00.206 PIN; TIMING GEAR CASE 00.669 OD=10 L=20	9-08151-020-0	02	1	0610-		●	●
45	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	0610-		●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	0307-0402	●			●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-97912-498-0	01	1	0403-0609	●			●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-97912-498-0	01	1	0610-		●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	0307-0412	●			●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-97943-174-0	01	1	0501-0609	●			●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-97943-174-0	01	1	0610-0703		●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-98084-434-0	01	1	0704-		●	●
61	00.206 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	01	1	0307-0402	●			●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20	9-08151-020-0	01	1	0403-0609	●			●
61	00.206 PIN; STRAIGHT 01.453 L=31	8-97920-964-1	02	1	0610-		●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	0307-0609	●			●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	06	1	0610-		●	●
103	01.531 NIPPLE; OIL FEED	8-97316-983-4	01	1	0610-		●	●
211	01.428 BOLT; CRANKCASE 00.206 M8X30 FLANGE	0-28050-830-0	05	1	0610-		●	●
211	01.428 BOLT; CRANKCASE 06.216 M8X25 FLANGE	0-28650-825-0	14	1	0610-		●	●
211	01.428 BOLT; CRANKCASE 00.685 M8X40 FLANGE	0-28650-840-0	01	1	0610-		●	●
213	01.531 GASKET; NIPPLE,OIL FEED 08.955 ID=10.2 OD=16.0	9-09571-410-0	01	1	0610-		●	●
261	00.034 PLUG; OIL PRESS UNIT 01.531 PT1/8	1-09605-050-0	01	1	0307-0609				●
261	00.034 PLUG; OIL PRESS UNIT 01.531 PT1/8	1-09605-050-0	01	1	0610-		●	●
352	01.429 GASKET; C/BL TO CRANKCASE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09566-116-0	01	1	0610-		●	●
399	00.724 SENSOR; CRANKSHAFT POSITION 02.361	8-97312-108-1	01	1	0610-		●	●
400	00.724 GASKET; CRANKSHAFT POSITION SENS ID=14.2 OD=18.8	8-97369-404-0	01	1	0610-		●	●
401	00.724 BOLT; SENSOR 09.242 M6X16 FLANGE	0-28050-616-0	01	1	0610-		●	●

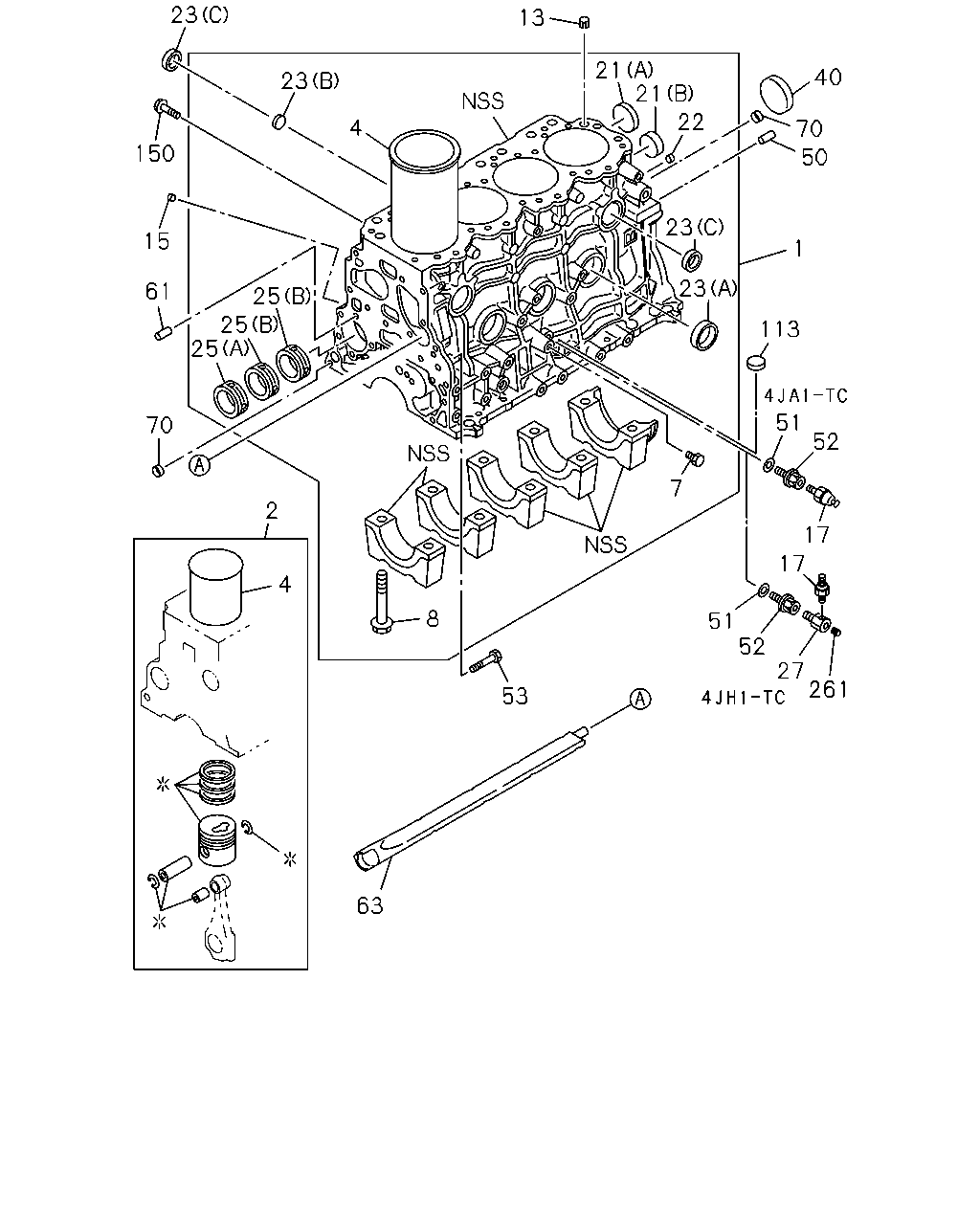

23 13 21 21 22 40 23 4 70 50 150 23 23 15 1 61 25 25 25 113 51 70 52 7 2 17 17 4 8 51 52 27 261 53 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.033 BLOCK ASM; CYL	8-97249-021-1	01	1	0307-0310	●
1	00.033 BLOCK ASM; CYL	8-97374-139-0	01	1	0311-0402	●
1	00.033 BLOCK ASM; CYL	8-97940-934-4	01	1	0403-0609	●
1	00.033 BLOCK ASM; CYL	8-98013-824-2	01	1	0610-1209		●	●
1	00.033 BLOCK ASM; CYL	8-98231-833-0	01	1	1210-1302		●	●
1	00.033 BLOCK ASM; CYL	8-98223-994-0	01	1	1303-		●	●
1	00.033 BLOCK ASM; CYL	8-97257-264-2	01	1	0307-0402				●
1	00.033 BLOCK ASM; CYL	8-97943-940-1	01	1	0403-0609				●
2	00.030 LINER SET; ENG CYL GRADE=1	5-87814-132-1	04	1	0307-0609	●
2	00.030 LINER SET; ENG CYL GRADE=2	5-87814-133-1	04	1	0307-0609	●
2	00.030 LINER SET; ENG CYL GRADE=3	5-87814-134-1	04	1	0307-0609	●
2	00.030 LINER SET; ENG CYL GRADE=4	5-87814-135-1	04	1	0307-0609	●
2	00.030 LINER SET; ENG CYL GRADE=1	5-87814-090-2	04	1	0307-0609				●
2	00.030 LINER SET; ENG CYL GRADE=2	5-87814-091-2	04	1	0307-0609				●
2	00.030 LINER SET; ENG CYL GRADE=3	5-87814-092-2	04	1	0307-0609				●
2	00.030 LINER SET; ENG CYL GRADE=4	5-87814-093-2	04	1	0307-0609				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-691-0	04	1	0307-0609	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-692-0	04	1	0307-0609	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-693-0	04	1	0307-0609	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-694-0	04	1	0307-0609	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-695-0	04	1	0307-0609	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-696-0	04	1	0307-0609	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-697-0	04	1	0307-0609	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-698-0	04	1	0307-0609	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-699-0	04	1	0307-0609				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-700-0	04	1	0307-0609				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-701-0	04	1	0307-0609				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-702-0	04	1	0307-0609				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-703-0	04	1	0307-0609				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-704-0	04	1	0307-0609				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-705-0	04	1	0307-0609				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-706-0	04	1	0307-0609				●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0307-0609	●			●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0610-		●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	0307-0402	●			●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-97941-068-0	10	1	0403-0609	●			●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	0610-		●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0307-0609	●			●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0610-		●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	0307-0609	●			●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	0610-		●	●
17	01.800 SWITCH; OIL PRESSURE	9-82720-209-2	01	1	0307-0609	●			●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0307-0609	●			●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0610-		●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0307-0609	●			●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0610-		●	●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	0610-		●	●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12.3	5-09600-013-0	01	1	0307-0609	●			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	03	1	0307-0609	●			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	0610-		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	0307-0609	●			●
23	00.034 CUP; SEALING,C/BL FRT & RR (E) OD=36	5-11219-018-0	02	1	0610-		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0307-0402	●			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=45	1-09600-005-2	03	1	0403-0609	●			●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=45	8-97036-550-1	03	1	0610-		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	02	1	0307-0609				●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	0610-		●	●
25	00.539 METAL; CM/SHF (B)	8-94427-201-2	02	1	0307-0402	●			●
25	00.539 METAL; CM/SHF (B)	8-97942-174-1	02	1	0403-0609	●			●
25	00.539 METAL; CM/SHF (A)	8-94427-206-2	01	1	0307-0402	●			●
25	00.539 METAL; CM/SHF (A)	8-97942-173-1	01	1	0403-0609	●			●
27	01.531 NIPPLE; OIL GALLERY	8-97231-967-3	01	1	0307-0503				●
27	01.531 NIPPLE; OIL GALLERY	8-98005-299-0	01	1	0504-0609				●
27	01.531 NIPPLE; OIL GALLERY	8-98005-299-1	01	1	0610-		●	●
40	00.034 CUP; SEALING,C/BL RR 00.253 OD=56	8-94250-514-1	01	1	0307-0609	●			●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	0307-0609	●			●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	0307-0402	●			●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-97912-498-0	01	1	0403-0609	●			●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-97912-498-0	01	1	0610-		●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	0307-0412	●			●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-97943-174-0	01	1	0501-0609	●			●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-97943-174-0	01	1	0610-0703		●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-98084-434-0	01	1	0704-		●	●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	0307-0402	●			●
53	00.862 BOLT; REAMER M10X52	8-97916-382-0	01	1	0403-0609	●			●
61	00.206 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	01	1	0307-0402	●			●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20	9-08151-020-0	01	1	0403-0609	●			●
61	00.206 PIN; STRAIGHT 01.453 L=31	8-97920-964-1	02	1	0610-		●	●
63	01.153 DUCT; WATER,C/BL	8-94419-436-2	01	1	0307-0402	●
63	01.153 DUCT; WATER,C/BL	8-97912-496-0	01	1	0403-0609	●
63	01.153 DUCT; WATER,C/BL	8-94456-794-3	01	1	0307-0402				●
63	01.153 DUCT; WATER,C/BL	8-97920-058-0	01	1	0403-0609				●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	0307-0609	●			●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	06	1	0610-		●	●
113	00.034 CUP; SEALING OD=15.6	5-11129-003-0	01	1	0307-0310	●			●
113	00.034 CUP; SEALING OD=15.6	5-11129-003-0	01	1	0311-0402				●
150	02.313 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	04	1	0307-0402	●			●
150	02.313 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	04	1	0403-0609	●			●
261	00.034 PLUG; OIL PRESS UNIT 01.531 PT1/8	1-09605-050-0	01	1	0307-0609				●
261	00.034 PLUG; OIL PRESS UNIT 01.531 PT1/8	1-09605-050-0	01	1	0610-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
