◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50967 - TFR/TFS(EUROPE)-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#74265) — 108 parça

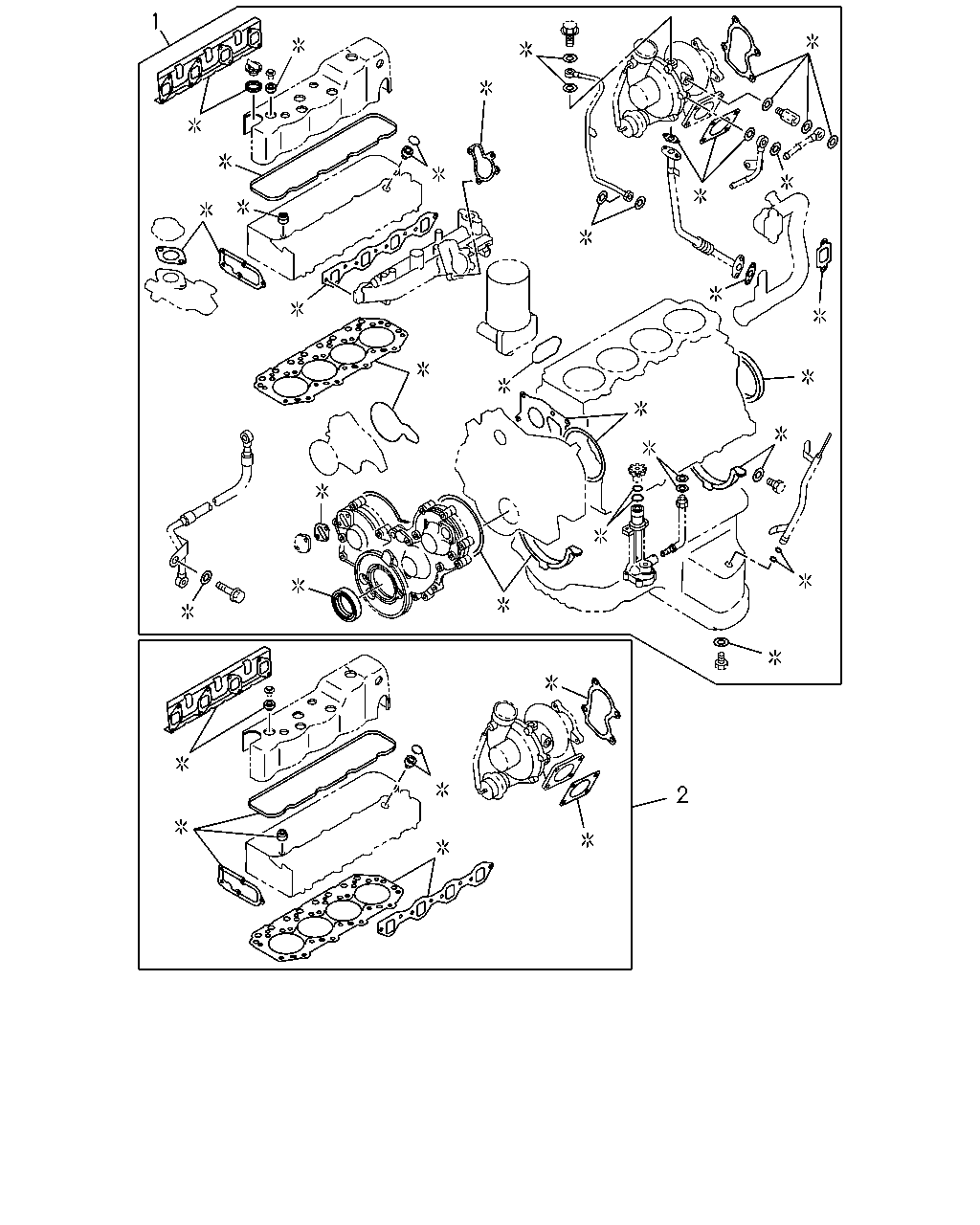

çizim 117535
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-643-1 01 1 0610-1007 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-740-1 01 1 1008-1011 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-227-0 01 1 1012-1309 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-927-0 01 1 1310- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-644-1 01 1 0610-1007 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-741-1 01 1 1008-1011 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-228-0 01 1 1012-1309 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-928-0 01 1 1310- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-645-1 01 1 0610-1007 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-742-1 01 1 1008-1011 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-229-0 01 1 1012-1309 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-929-0 01 1 1310- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87814-408-1 01 1 0307-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87814-409-1 01 1 0307-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87814-410-1 01 1 0307-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-398-1 01 1 0307-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-399-1 01 1 0307-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-400-1 01 1 0307-0609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-646-0 01 1 0610-1007 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-743-0 01 1 1008-1011 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-230-0 01 1 1012-1309 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-903-0 01 1 1310- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-647-0 01 1 0610-1007 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-744-0 01 1 1008-1011 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-231-0 01 1 1012-1309 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-904-0 01 1 1310- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-648-0 01 1 0610-1007 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-745-0 01 1 1008-1011 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-232-0 01 1 1012-1309 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-905-0 01 1 1310- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87814-125-2 01 1 0307-0609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87814-126-2 01 1 0307-0609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87814-127-2 01 1 0307-0609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-145-2 01 1 0307-0609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-146-2 01 1 0307-0609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-147-2 01 1 0307-0609 ●

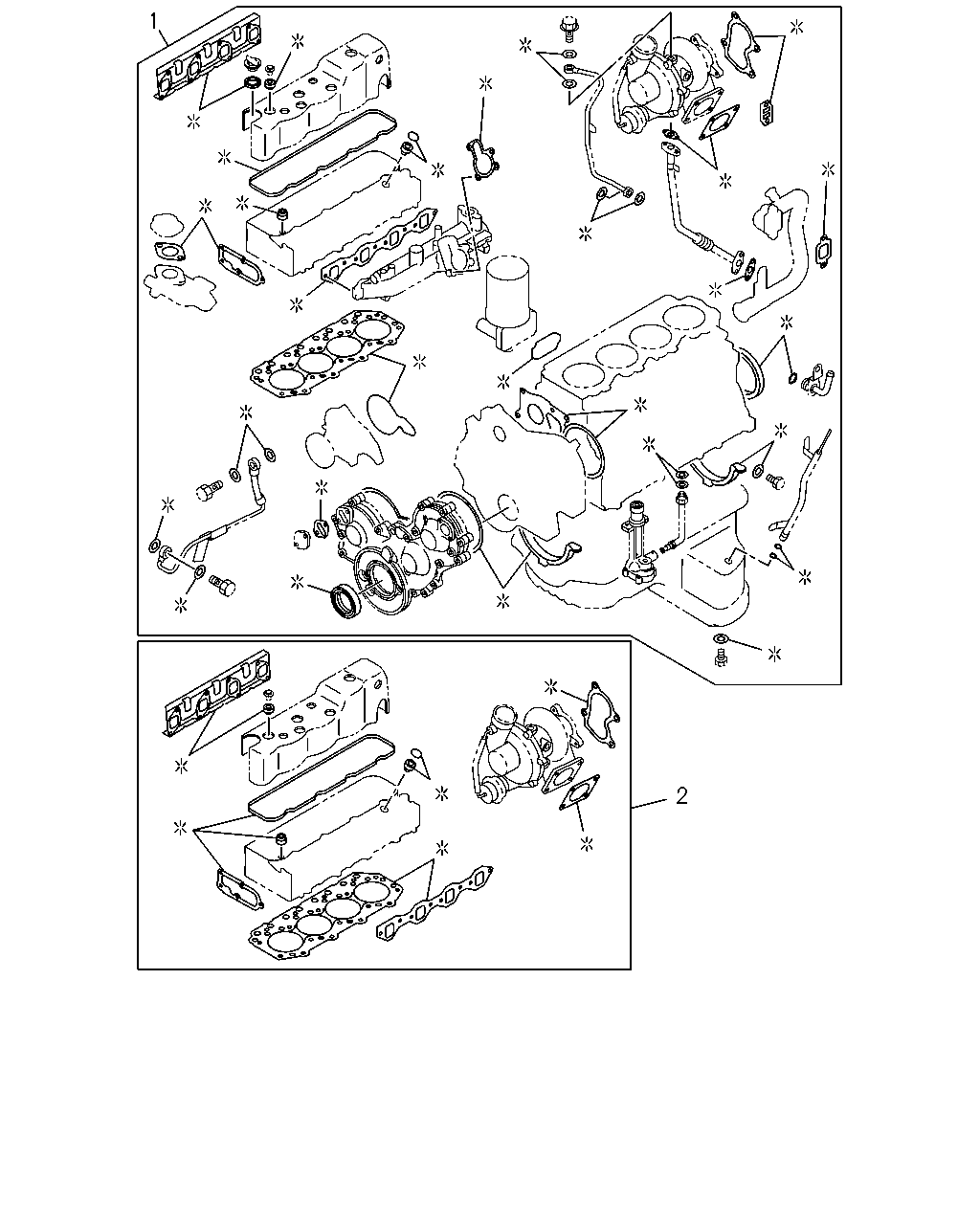

çizim 117538
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-643-1 01 1 0610-1007 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-740-1 01 1 1008-1011 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-227-0 01 1 1012-1309 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-927-0 01 1 1310- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-644-1 01 1 0610-1007 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-741-1 01 1 1008-1011 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-228-0 01 1 1012-1309 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-928-0 01 1 1310- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-645-1 01 1 0610-1007 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-742-1 01 1 1008-1011 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-229-0 01 1 1012-1309 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-929-0 01 1 1310- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87814-408-1 01 1 0307-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87814-409-1 01 1 0307-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87814-410-1 01 1 0307-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-398-1 01 1 0307-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-399-1 01 1 0307-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-400-1 01 1 0307-0609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-646-0 01 1 0610-1007 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-743-0 01 1 1008-1011 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-230-0 01 1 1012-1309 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-903-0 01 1 1310- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-647-0 01 1 0610-1007 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-744-0 01 1 1008-1011 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-231-0 01 1 1012-1309 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-904-0 01 1 1310- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-648-0 01 1 0610-1007 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-745-0 01 1 1008-1011 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-232-0 01 1 1012-1309 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-905-0 01 1 1310- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87814-125-2 01 1 0307-0609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87814-126-2 01 1 0307-0609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87814-127-2 01 1 0307-0609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-145-2 01 1 0307-0609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-146-2 01 1 0307-0609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-147-2 01 1 0307-0609 ●

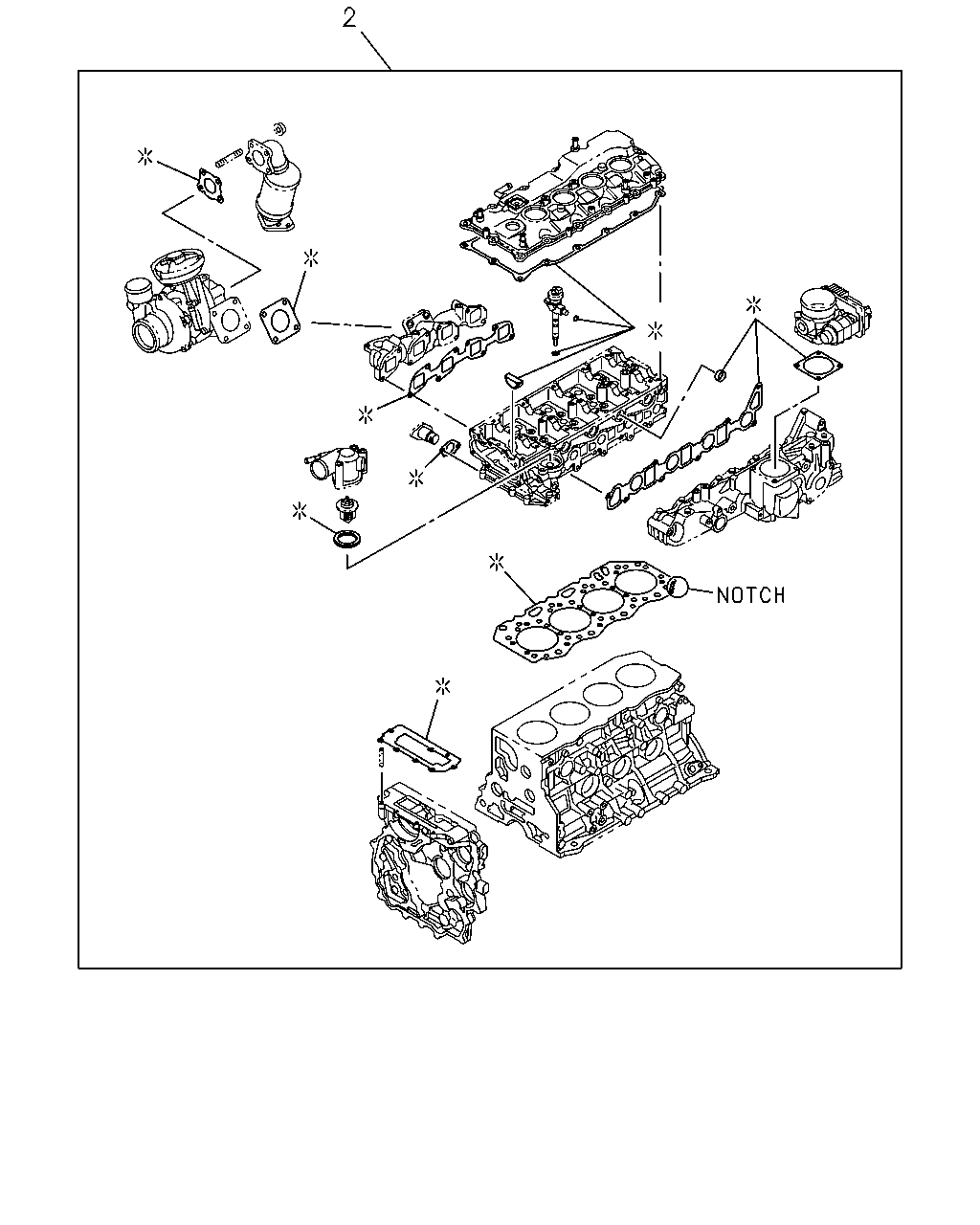

çizim 117733
2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-646-0 01 1 0610-1007 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-743-0 01 1 1008-1011 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-230-0 01 1 1012-1309 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-903-0 01 1 1310- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-647-0 01 1 0610-1007 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-744-0 01 1 1008-1011 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-231-0 01 1 1012-1309 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-904-0 01 1 1310- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-648-0 01 1 0610-1007 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-745-0 01 1 1008-1011 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-232-0 01 1 1012-1309 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-905-0 01 1 1310- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87814-125-2 01 1 0307-0609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87814-126-2 01 1 0307-0609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87814-127-2 01 1 0307-0609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-145-2 01 1 0307-0609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-146-2 01 1 0307-0609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-147-2 01 1 0307-0609 ●

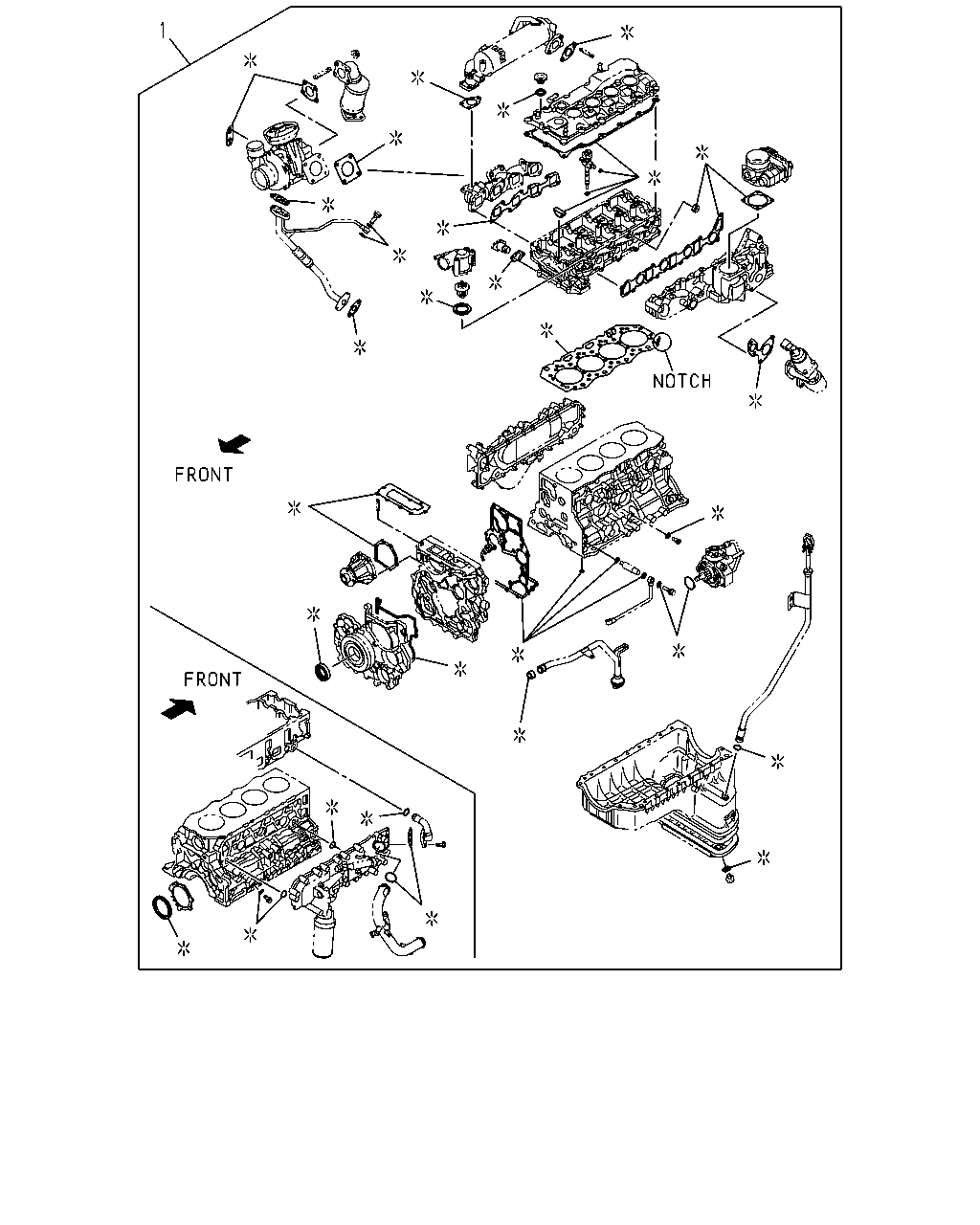

çizim 117737
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-643-1 01 1 0610-1007 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-740-1 01 1 1008-1011 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-227-0 01 1 1012-1309 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-927-0 01 1 1310- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-644-1 01 1 0610-1007 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-741-1 01 1 1008-1011 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-228-0 01 1 1012-1309 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-928-0 01 1 1310- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-645-1 01 1 0610-1007 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-742-1 01 1 1008-1011 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-229-0 01 1 1012-1309 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-929-0 01 1 1310- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87814-408-1 01 1 0307-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87814-409-1 01 1 0307-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87814-410-1 01 1 0307-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-398-1 01 1 0307-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-399-1 01 1 0307-0609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-400-1 01 1 0307-0609 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
