◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50967 - TFR/TFS(EUROPE)-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-01 - PARTIAL ENGINE ▶
0-01 — PARTIAL ENGINE (#74264) — 16 parça

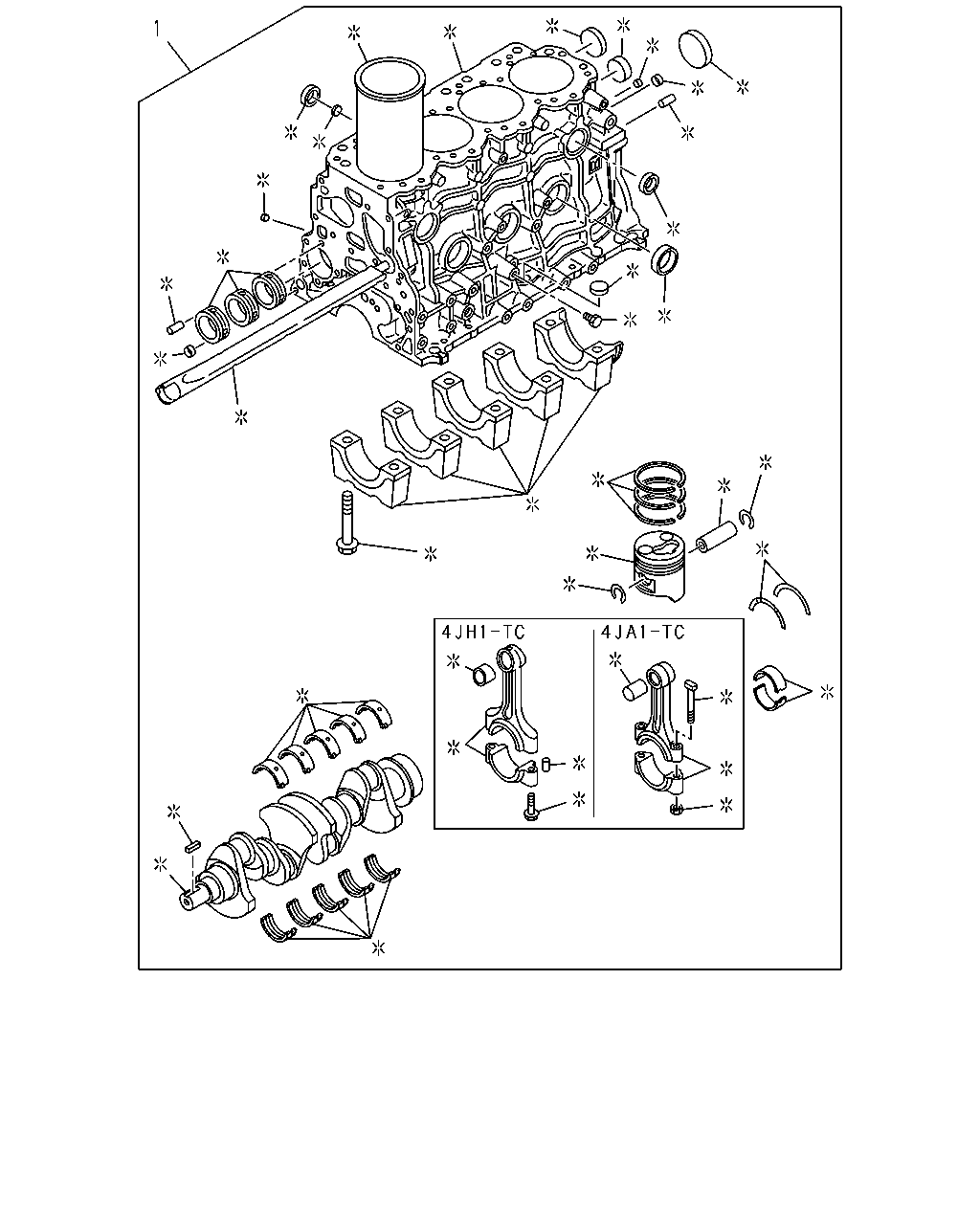

çizim 117546
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.033 ENGINE ASM; PARTIAL 5-87311-038-5 01 1 0610- ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-037-1 01 1 0610-1111 ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-128-3 01 1 1112- ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-604-1 01 1 0307-0310 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-717-1 01 1 0311-0609 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-611-3 01 1 0307-0402 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-611-4 01 1 0403-0508 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-611-5 01 1 0509-0609 ●

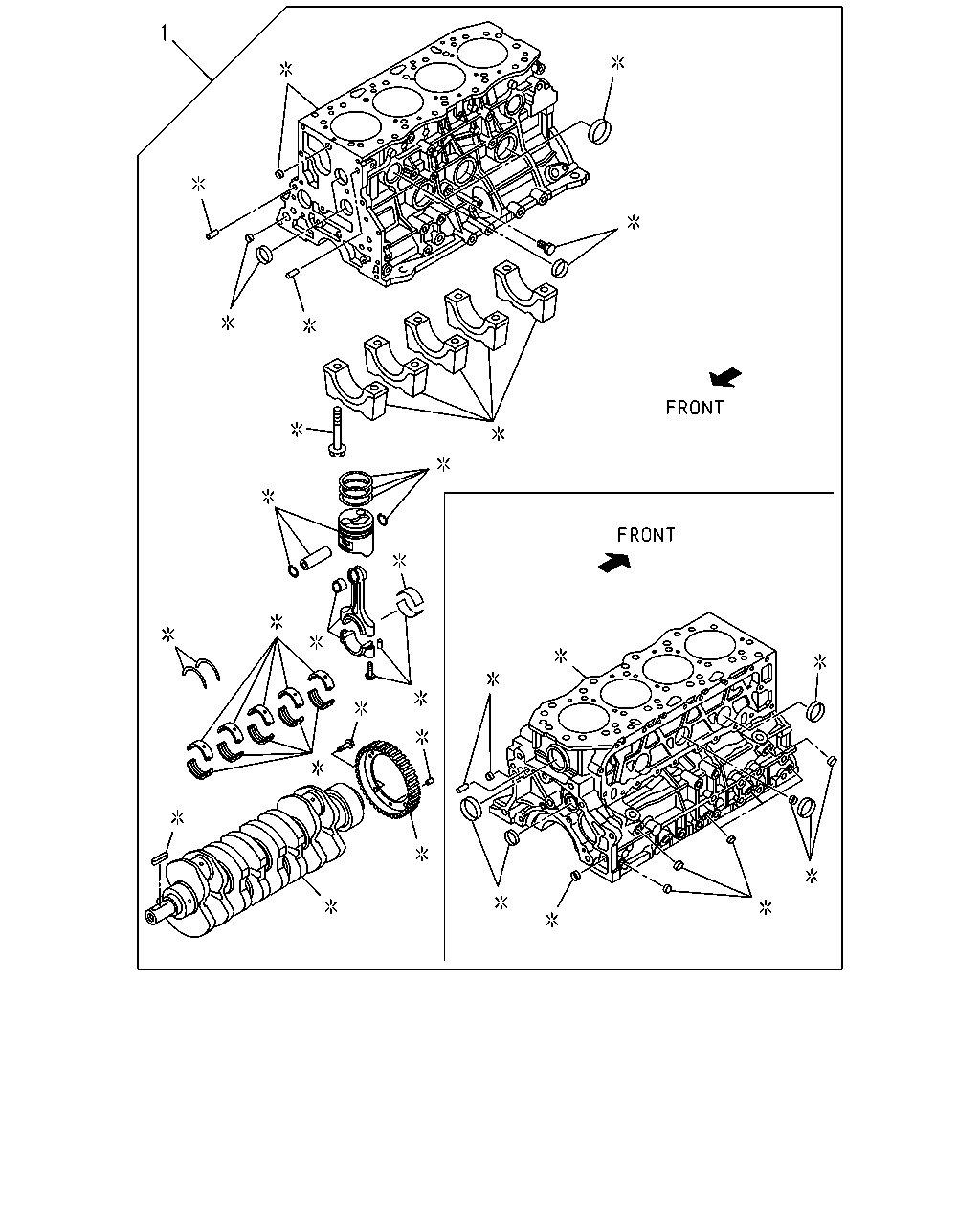

çizim 117726
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.033 ENGINE ASM; PARTIAL 5-87311-038-5 01 1 0610- ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-037-1 01 1 0610-1111 ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-128-3 01 1 1112- ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-604-1 01 1 0307-0310 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-717-1 01 1 0311-0609 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-611-3 01 1 0307-0402 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-611-4 01 1 0403-0508 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-611-5 01 1 0509-0609 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
