9-31 — REAR BODY; FLOOR AND FENDER (#74261) — 35 parça

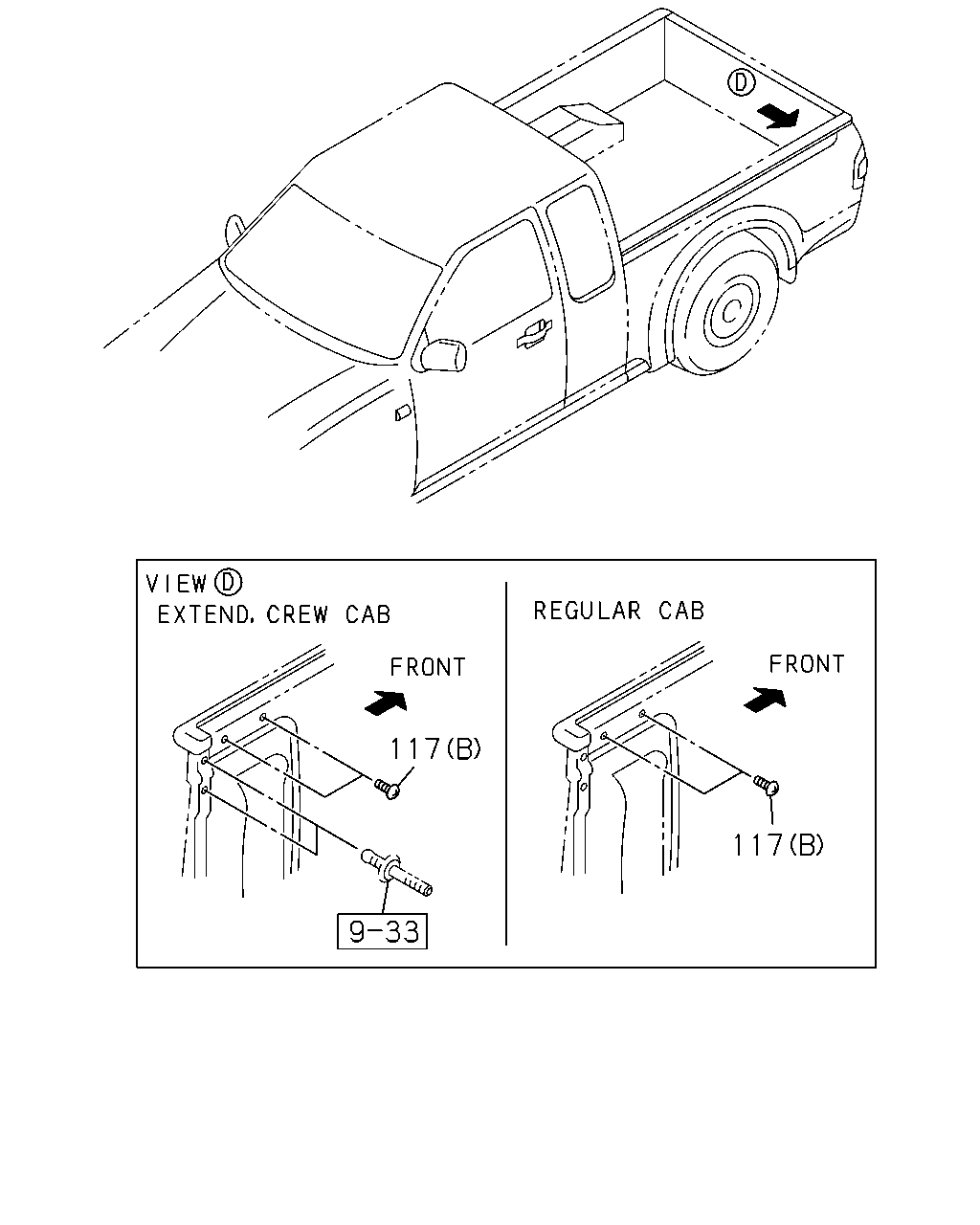

çizim 153310

117 117

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
	117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 02.559 (A) M8X25 FLANGE	0-28680-825-0	04	1	0306-0410	●	●	●	●	●
	117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 02.559 (A) M8X25 FLANGE	0-28680-825-0	04	1	0306-0410	●	●		●
	117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 02.559 (A) M8X25 FLANGE	0-28680-825-0	04	1	0411-0511	●	●	●	●	●	●
	117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 02.559 (A) M8X25 FLANGE	0-28680-825-0	04	1	0411-0511	●	●		●		●
	117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	0512-	●	●	●	●	●	●
	117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	0512-	●	●		●		●
	117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 01.269 (B) M8X16.5	1-09104-027-1	04	1	0306-0410	●	●	●	●	●
	117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 01.269 (B) M8X16.5	1-09104-027-1	04	1	0411-0611	●	●	●	●	●	●
	117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5	8-98058-001-0	04	1	0612-	●	●	●	●	●	●
	117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0306-0410		●
	117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0411-0511		●				●
	117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0512-		●				●

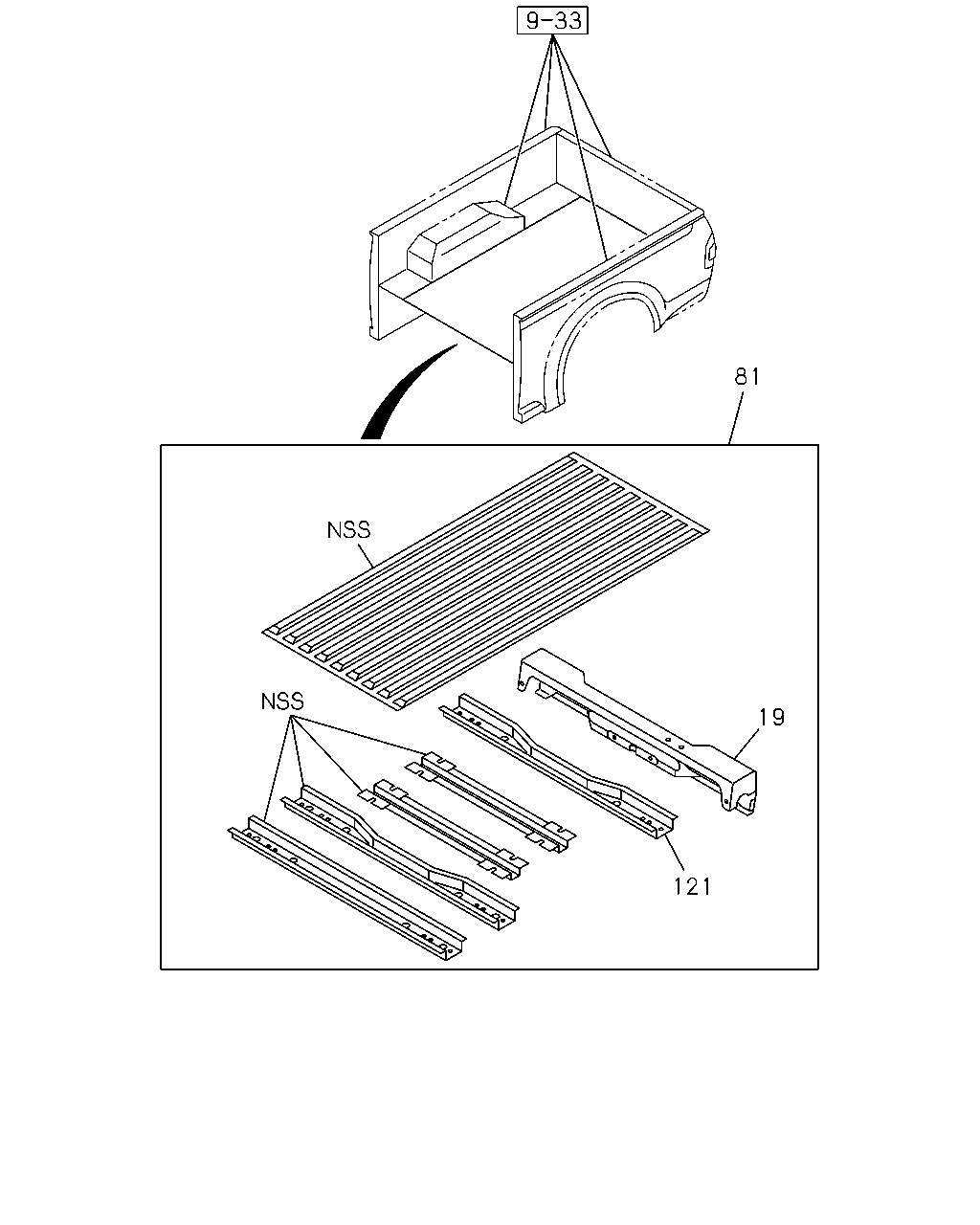

çizim 153332

81 19 121

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
	19	17.208 BOLSTER; RR END,RR BODY REAR BODY DBL WALL CTR PULL(E63)	8-97236-648-7	01	1	0306-	●		●	●	●
	19	17.208 BOLSTER; RR END,RR BODY REAR BODY DBL WALL CTR PULL(E63)	8-97251-570-7	01	1	0306-0410		●
	19	17.208 BOLSTER; RR END,RR BODY REAR BODY DBL WALL CTR PULL(E63)	8-97251-570-7	01	1	0411-		●				●
	81	17.400 FLOOR ASM; RR BODY REAR BODY DBL WALL CTR PULL(E63)	8-97236-640-5	01	1	0306-	●			●
	81	17.400 FLOOR ASM; RR BODY REAR BODY DBL WALL CTR PULL(E63)	8-97236-639-5	01	1	0306-0410		●
	81	17.400 FLOOR ASM; RR BODY REAR BODY DBL WALL CTR PULL(E63)	8-97236-639-5	01	1	0411-		●				●
	81	17.400 FLOOR ASM; RR BODY REAR BODY DBL WALL CTR PULL(E63)	8-93333-729-7	01	1	0306-			●		●
	121	17.208 BOLSTER; RR BODY REAR BODY DBL WALL CTR PULL(E63)	8-97236-647-2	01	1	0411-	●	●	●	●	●	●

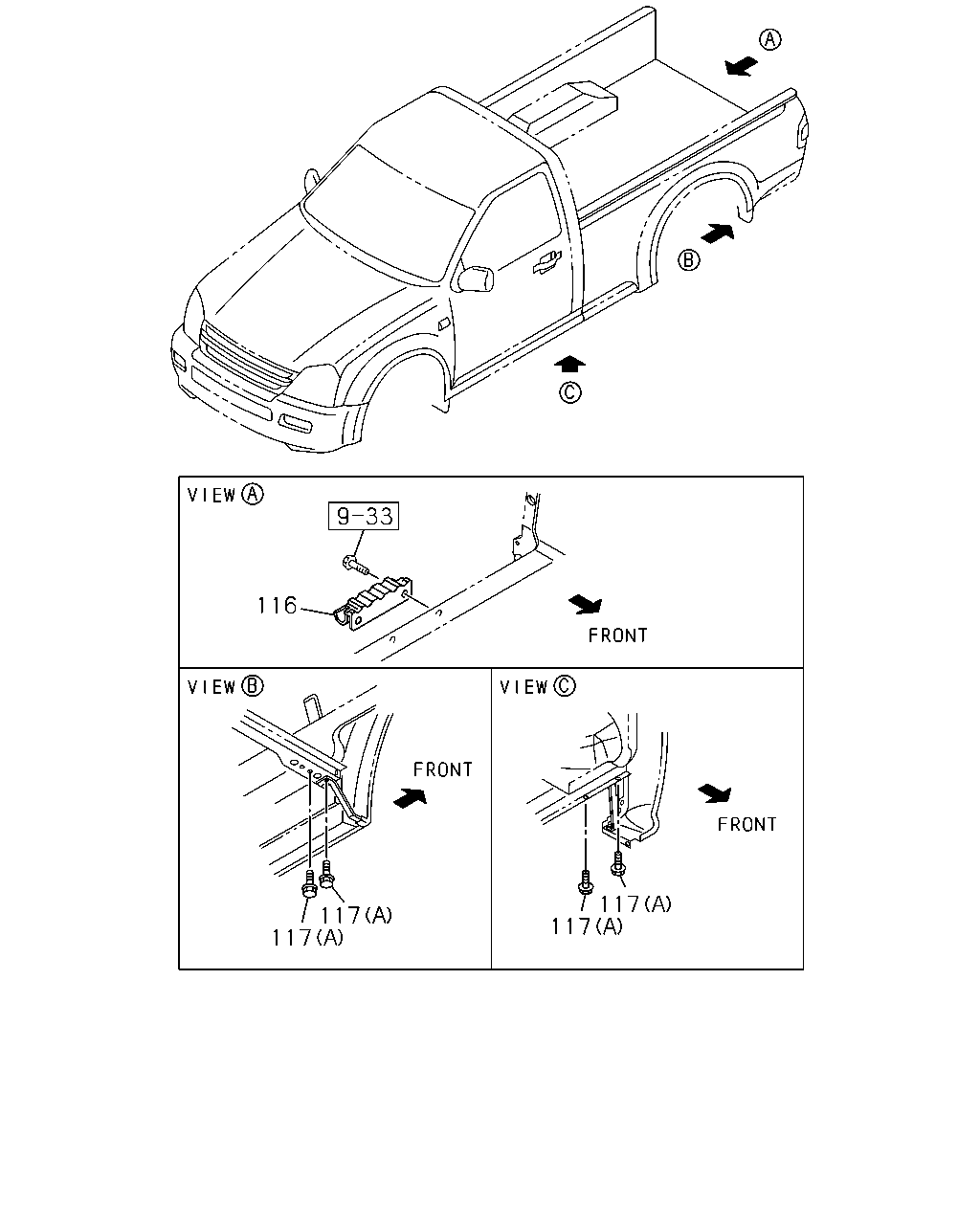

çizim 153335

116 117 117 117 117

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
	116	17.400 SUPPORT; RR BODY,SILL REAR BODY DBL WALL CTR PULL(E63)	8-97289-528-0	01	1	0306-0410		●
	116	17.400 SUPPORT; RR BODY,SILL REAR BODY DBL WALL CTR PULL(E63)	8-97289-528-0	01	1	0411-0611		●				●
	116	17.400 SUPPORT; RR BODY,SILL REAR BODY DBL WALL CTR PULL(E63)	8-98053-898-0	01	1	0612-		●				●
	117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 02.559 (A) M8X25 FLANGE	0-28680-825-0	04	1	0306-0410	●	●	●	●	●
	117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 02.559 (A) M8X25 FLANGE	0-28680-825-0	04	1	0306-0410	●	●		●
	117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 02.559 (A) M8X25 FLANGE	0-28680-825-0	04	1	0411-0511	●	●	●	●	●	●
	117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 02.559 (A) M8X25 FLANGE	0-28680-825-0	04	1	0411-0511	●	●		●		●
	117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	0512-	●	●	●	●	●	●
	117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	0512-	●	●		●		●
	117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 01.269 (B) M8X16.5	1-09104-027-1	04	1	0306-0410	●	●	●	●	●
	117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 01.269 (B) M8X16.5	1-09104-027-1	04	1	0411-0611	●	●	●	●	●	●
	117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5	8-98058-001-0	04	1	0612-	●	●	●	●	●	●
	117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0306-0410		●
	117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0411-0511		●				●
	117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0512-		●				●
