9-30 — REAR BODY ASM AND MOUNTING (#74260) — 77 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

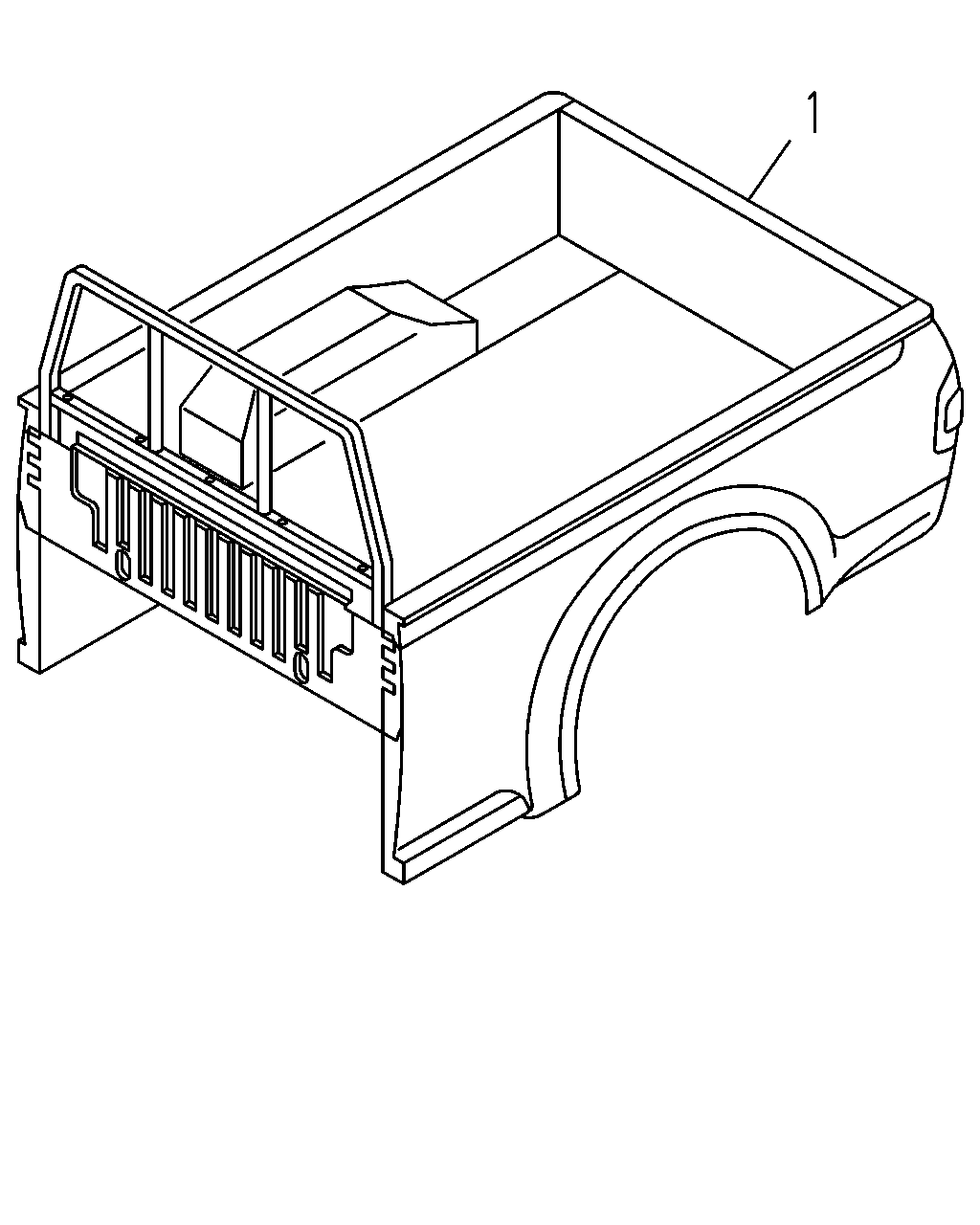

1	17.090 BODY ASM; REAR OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89>	8-98090-600-0	01	1	0610-	●
1	17.090 BODY ASM; REAR REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89>	8-98090-600-0	01	1	0610-		●
1	17.090 BODY ASM; REAR OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>	8-98090-595-0	01	1	0610-	●
1	17.090 BODY ASM; REAR REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>	8-98090-595-0	01	1	0610-		●
1	17.090 BODY ASM; REAR REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OVER FENDER<B74>	8-98090-601-0	01	1	0610-	●
1	17.090 BODY ASM; REAR REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,GUARD FRAME BARCARGO TIE DOWN<V89>	8-98090-596-0	01	1	0610-	●
1	17.090 BODY ASM; REAR OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89>	8-98090-614-0	01	1	0610-			●
1	17.090 BODY ASM; REAR REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89>	8-98090-614-0	01	1	0610-				●
1	17.090 BODY ASM; REAR OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>	8-98090-610-0	01	1	0610-			●
1	17.090 BODY ASM; REAR REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>	8-98090-610-0	01	1	0610-				●
1	17.090 BODY ASM; REAR REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OVER FENDER<B74>	8-98090-611-0	01	1	0610-			●
1	17.090 BODY ASM; REAR REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,GUARD FRAME BARCARGO TIE DOWN<V89>	8-98090-606-0	01	1	0610-			●
1	17.090 BODY ASM; REAR BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ>	8-98098-135-0	01	1	0710-0809					●
1	17.090 BODY ASM; REAR BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89>	8-98098-135-0	01	1	0810-1007					●
1	17.090 BODY ASM; REAR BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OVER FENDER<B74>	8-98098-135-0	01	1	1008-					●
1	17.090 BODY ASM; REAR REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> EXC. BODY SIDE MOLDING(B84)	8-98098-134-0	01	1	0710-0809					●
1	17.090 BODY ASM; REAR REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. BODY SIDE MOLDING(B84)	8-98098-134-0	01	1	0810-1007					●
1	17.090 BODY ASM; REAR REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OVER FENDER<B74>,BODY SIDE MOLDING(B84)	8-98098-134-0	01	1	1008-					●
1	17.090 BODY ASM; REAR BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ>	8-98098-137-0	01	1	0710-0809						●
1	17.090 BODY ASM; REAR BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89>	8-98098-137-0	01	1	0810-1007						●
1	17.090 BODY ASM; REAR OVER FENDER<B74> BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89>	8-98098-137-0	01	1	1008-					●
1	17.090 BODY ASM; REAR BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89>	8-98098-137-0	01	1	1008-						●
1	17.090 BODY ASM; REAR REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> EXC. BODY SIDE MOLDING(B84)	8-98098-136-0	01	1	0710-0809						●
1	17.090 BODY ASM; REAR REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. BODY SIDE MOLDING(B84)	8-98098-136-0	01	1	0810-1007						●
1	17.090 BODY ASM; REAR OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. BODY SIDE MOLDING(B84)	8-98098-136-0	01	1	1008-					●
1	17.090 BODY ASM; REAR REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. BODY SIDE MOLDING(B84)	8-98098-136-0	01	1	1008-						●
1	17.090 BODY ASM; REAR BODY SIDE MOLDING(B84) GUARD FRAME BAR CARGO TIE DOWN<V89> REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>	8-97359-925-0	01	1	0306-0609	●
1	17.090 BODY ASM; REAR BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,GUARD FRAME BARCARGO TIE DOWN<V89>	8-97359-921-0	01	1	0306-0609	●
1	17.090 BODY ASM; REAR GUARD FRAME BAR CARGO TIE DOWN<V89> REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,BODY SIDE MOLDING(B84)	8-97359-924-0	01	1	0306-0609	●
1	17.090 BODY ASM; REAR REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,BODY SIDE MOLDING(B84),GUARD FRAME BAR CARGO TIE DOW N<V89>	8-97359-920-0	01	1	0306-0609	●
1	17.090 BODY ASM; REAR OVER FENDER<B74> BODY SIDE MOLDING(B84) GUARD FRAME BAR CARGO TIE DOWN<V89> REAR BODY DBL WALL CTR PULL(E63)	8-97359-927-0	01	1	0306-0609	●	●
1	17.090 BODY ASM; REAR OVER FENDER<B74> BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>	8-97359-922-0	01	1	0306-0609	●	●
1	17.090 BODY ASM; REAR OVER FENDER<B74> GUARD FRAME BAR CARGO TIE DOWN<V89> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84)	8-97359-923-0	01	1	0306-0609	●	●
1	17.090 BODY ASM; REAR OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),GUARD FRAME BAR CARGO TIE DOWN<V89>	8-97359-919-0	01	1	0306-0609	●	●
1	17.090 BODY ASM; REAR BODY SIDE MOLDING(B84) GUARD FRAME BAR CARGO TIE DOWN<V89> REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>	8-97359-917-0	01	1	0306-0609					●
1	17.090 BODY ASM; REAR BODY SIDE MOLDING(B84) GUARD FRAME BAR CARGO TIE DOWN<V89> REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>	8-98098-135-0	01	1	0610-0709					●
1	17.090 BODY ASM; REAR GUARD FRAME BAR CARGO TIE DOWN<V89> REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,BODY SIDE MOLDING(B84)	8-97350-024-0	01	1	0306-0609					●
1	17.090 BODY ASM; REAR GUARD FRAME BAR CARGO TIE DOWN<V89> REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,GUARD FRAME BARCARGO TIE DOWN<V89>	8-98098-134-0	01	1	0610-0709					●
1	17.090 BODY ASM; REAR BODY SIDE MOLDING(B84) GUARD FRAME BAR CARGO TIE DOWN<V89> REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>	8-97359-937-0	01	1	0306-0609			●
1	17.090 BODY ASM; REAR BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,GUARD FRAME BARCARGO TIE DOWN<V89>	8-97359-930-0	01	1	0306-0609			●
1	17.090 BODY ASM; REAR GUARD FRAME BAR CARGO TIE DOWN<V89> REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,BODY SIDE MOLDING(B84)	8-97359-936-0	01	1	0306-0609			●
1	17.090 BODY ASM; REAR OVER FENDER<B74> BODY SIDE MOLDING(B84) GUARD FRAME BAR CARGO TIE DOWN<V89> REAR BODY DBL WALL CTR PULL(E63)	8-97359-938-0	01	1	0306-0609			●	●
1	17.090 BODY ASM; REAR OVER FENDER<B74> BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>	8-97359-931-0	01	1	0306-0609			●	●
1	17.090 BODY ASM; REAR OVER FENDER<B74> GUARD FRAME BAR CARGO TIE DOWN<V89> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84)	8-97359-940-0	01	1	0306-0609			●	●
1	17.090 BODY ASM; REAR OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),GUARD FRAME BAR CARGO TIE DOWN<V89>	8-97359-935-0	01	1	0306-0609			●	●
1	17.090 BODY ASM; REAR REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,BODY SIDE MOLDING(B84),GUARD FRAME BAR CARGO TIE DOW N<V89>	8-97359-928-0	01	1	0306-0609			●
1	17.090 BODY ASM; REAR OVER FENDER<B74> BODY SIDE MOLDING(B84) GUARD FRAME BAR CARGO TIE DOWN<V89> REAR BODY DBL WALL CTR PULL(E63)	8-98098-137-0	01	1	0411-0709						●
1	17.090 BODY ASM; REAR OVER FENDER<B74> GUARD FRAME BAR CARGO TIE DOWN<V89> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84)	8-98098-136-0	01	1	0411-0709						●

71 70 70 13 70 71 70 13 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

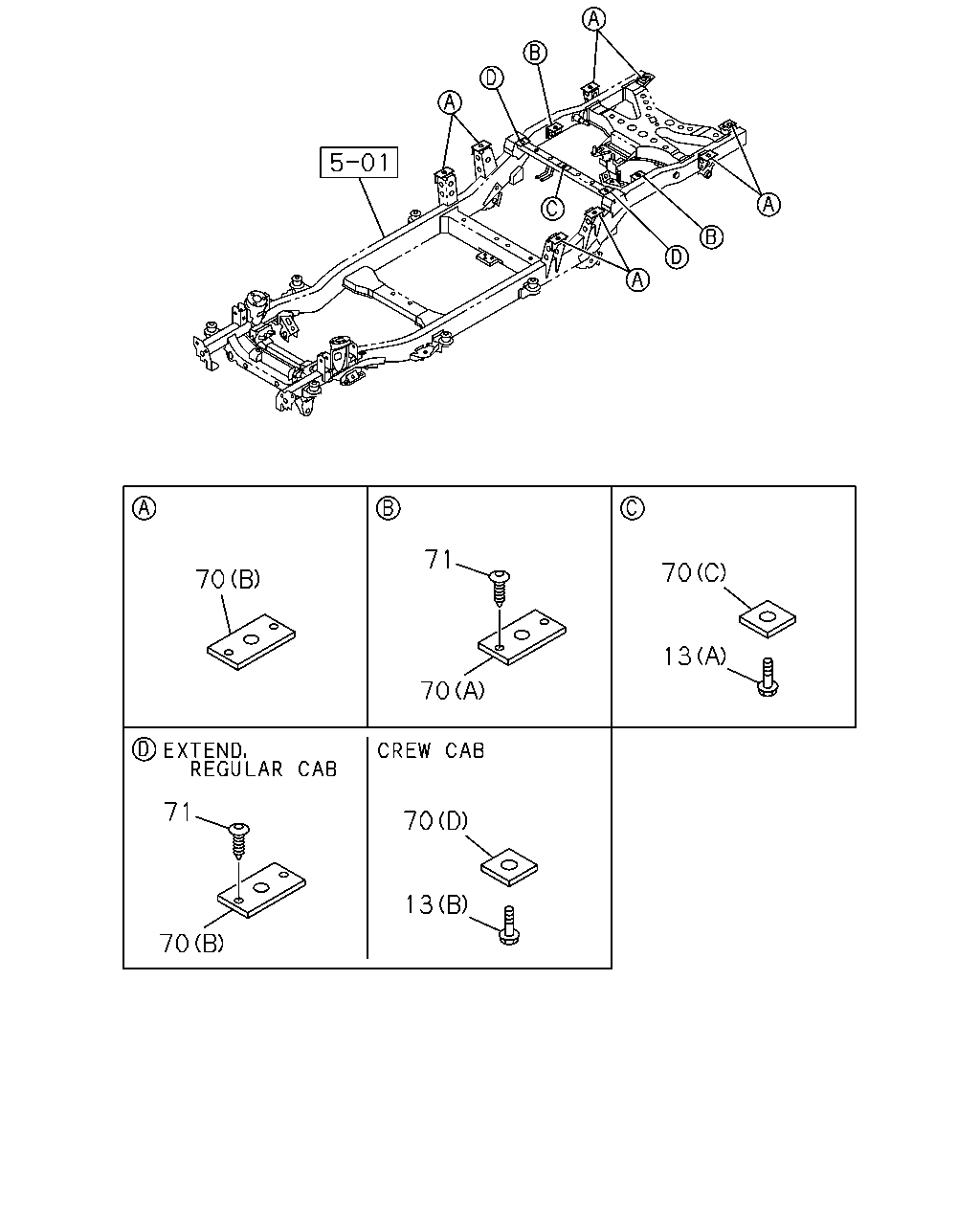

13	09.008 BOLT; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (A) M12X50 FLANGE	8-97310-611-2	06	1	0306-0512	●	●
13	09.008 BOLT; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (A) M12X50 FLANGE	8-98030-678-0	06	1	0601-	●	●
13	09.008 BOLT; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (A) M12X50 FLANGE	8-97310-611-2	08	1	0306-0410					●
13	09.008 BOLT; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (A) M12X50 FLANGE	8-97310-611-2	08	1	0411-0512					●	●
13	09.008 BOLT; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (A) M12X50 FLANGE	8-98030-678-0	08	1	0601-					●	●
13	09.008 BOLT; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (A) M12X50 FLANGE	8-97310-611-2	04	1	0306-0512			●	●
13	09.008 BOLT; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (A) M12X50 FLANGE	8-98030-678-0	04	1	0601-			●	●
13	09.008 BOLT; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (B) M12X50 FLANGE	8-97354-201-0	02	1	0306-0611			●	●
13	09.008 BOLT; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (B) M12X35 FLANGE	8-98056-126-0	02	1	0612-			●	●
70	08.214 CUSHION; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (A)	8-97367-344-0	02	1	0306-0410	●	●	●	●	●
70	08.214 CUSHION; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (A)	8-97367-344-0	02	1	0411-0709	●	●	●	●	●	●
70	08.214 CUSHION; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (A)	8-98090-513-0	02	1	0710-	●	●	●	●	●	●
70	08.214 CUSHION; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (C)	8-97367-343-0	03	1	0306-0410	●	●			●
70	08.214 CUSHION; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (C)	8-97367-343-0	03	1	0411-0709	●	●			●	●
70	08.214 CUSHION; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (C)	8-98090-512-0	03	1	0710-	●	●			●	●
70	08.214 CUSHION; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (B)	8-97367-342-0	06	1	0306-0709	●	●
70	08.214 CUSHION; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (B)	8-98090-511-0	06	1	0710-	●	●
70	08.214 CUSHION; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (B)	8-97367-342-0	08	1	0306-0410					●
70	08.214 CUSHION; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (B)	8-97367-342-0	08	1	0411-0709					●	●
70	08.214 CUSHION; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (B)	8-98090-511-0	08	1	0710-					●	●
70	08.214 CUSHION; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (D)	8-97367-341-0	02	1	0306-0709			●	●
70	08.214 CUSHION; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (D)	8-98090-510-0	02	1	0710-			●	●
70	08.214 CUSHION; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (B)	8-97367-342-0	04	1	0306-0709			●	●
70	08.214 CUSHION; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (B)	8-98090-511-0	04	1	0710-			●	●
70	08.214 CUSHION; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (C)	8-97367-343-0	01	1	0306-0709			●	●
70	08.214 CUSHION; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (C)	8-98090-512-0	01	1	0710-			●	●
71	08.214 CLIP; CUSHION REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=6 OD=16 L=18	8-94178-705-0	06	1	0306-0410	●	●			●
71	08.214 CLIP; CUSHION REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=6 OD=16 L=18	8-94178-705-0	06	1	0411-	●	●			●	●
71	08.214 CLIP; CUSHION REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=6 OD=16 L=18	8-94178-705-0	04	1	0306-			●	●
