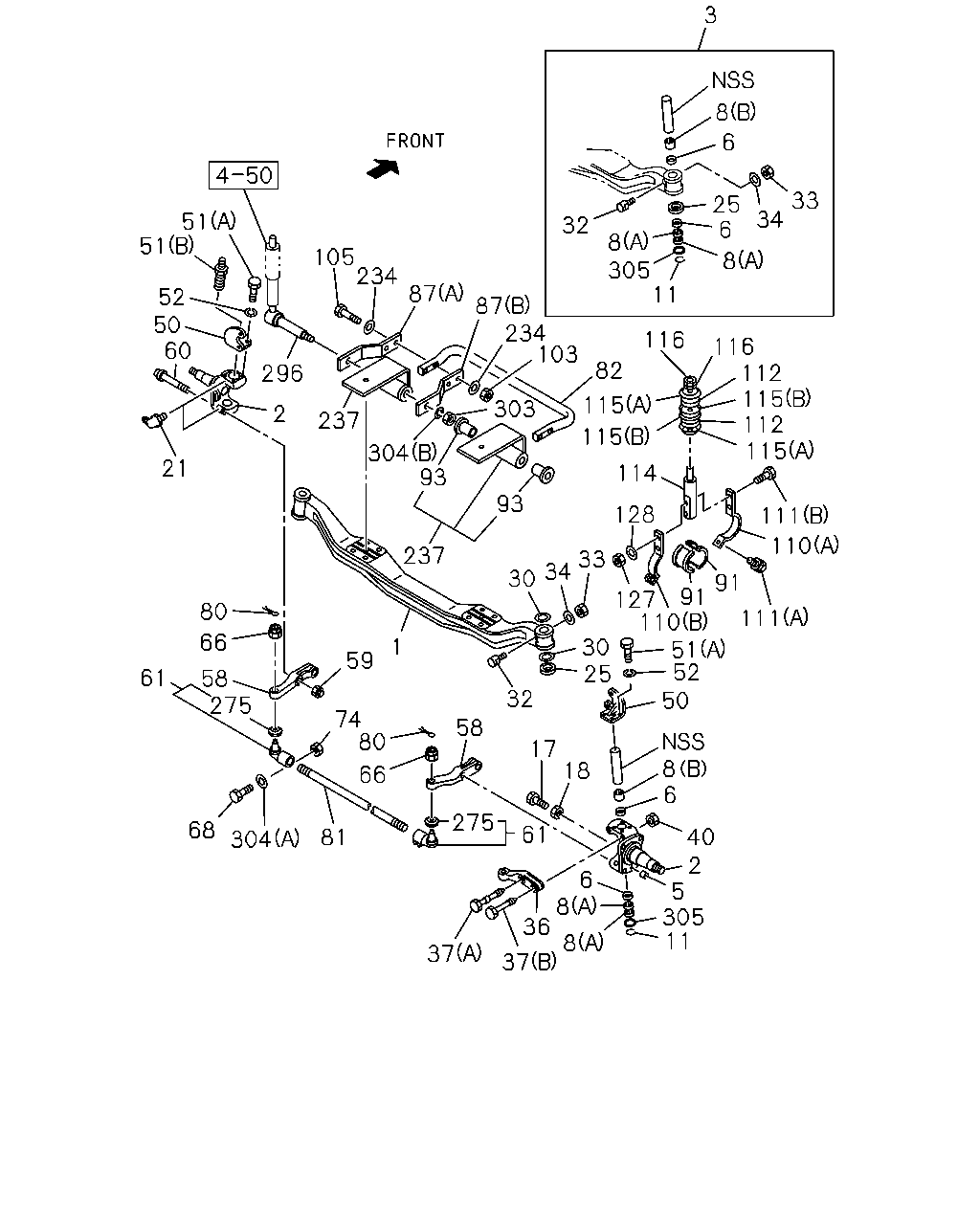

4-10 — FRONT AXLE (#7426) — 91 parça

3 8 6 33 34 25 6 51 32 8 305 11 51 105 234 8 87 52 50 60 87 234 103 116 116 112 115 112 115 82 296 303 115 2 237 115 304 93 21 114 93 128 111 110 237 33 34 30 91 127 91 110 51 52 50 80 111 66 30 25 1 59 61 58 275 32 74 80 58 8 6 17 18 66 275 68 61 40 2 5 305 11 81 304 6 8 36 8 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-107-4	01	1	9812-
2	KNUCKLE; FRT AXLE	1-43132-079-0	01	1	9812-
2	KNUCKLE; FRT AXLE	1-43131-079-0	01	1	9812-
3	KING PIN SET	1-87830-738-0	02	1	9812-
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	9812-
6	SEAL; KING PIN	9-09926-024-0	04	1	9812-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	9812-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	9812-
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	9812-
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	9812-9912
17	BOLT; STOPPER KNUCKLE EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL AL<SDM>,BRAKE LINING MATERIAL NON ASBESTOS<SKR>,BRAKE REGULATION ECE<TDV>,TI RE FRT 12.00R20<72X> M18X43	1-09009-065-0	02	1	0001-
17	BOLT; STOPPER KNUCKLE BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL AL<SDM>,TIRE FRT 12.00R20<72X> M18X43	1-09009-065-0	02	1	0001-
17	BOLT; STOPPER KNUCKLE BRAKE LINING MATERIAL NON ASBESTOS<SKR> BRAKE REGULATION ECE<TDV> TIRE FRT 12.00R20<72X> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL AL<SDM> M18X53	1-09009-066-0	02	1	0001-
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	9812-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	9812-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	9812-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	9812-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	9812-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	9812-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	9812-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	9812-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	9812-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	9812-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	9812-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	9812-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	9812-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	9812-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	9812-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	9812-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	9812-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	9812-
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	9812-
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9812-
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9812-
36	ARM; KNUCKLE	1-43133-063-1	01	1	9812-
37	BOLT; KNUCKLE ARM (B) M22X179	1-09000-578-1	01	1	9812-
37	BOLT; KNUCKLE ARM (A) M22X167	9-09806-847-3	01	1	9812-
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	9812-
50	BRACKET; POWER CHAMBER	1-43145-010-3	01	1	9812-
50	BRACKET; POWER CHAMBER	1-43145-009-3	01	1	9812-
51	BOLT; POWER CHAMBER BRKT (A) M12X60	0-10806-260-0	02	1	9812-0004
51	BOLT; POWER CHAMBER BRKT (A) M12X60 FLANGE	0-28081-260-0	02	1	0005-
51	BOLT; POWER CHAMBER BRKT (B) M12X28	0-20801-228-0	06	1	9812-0004
51	BOLT; POWER CHAMBER BRKT (B) M12X25 FLANGE	0-28681-225-0	06	1	0005-
52	WASHER; LK,POWER CHAMBER BRKT ID=12.2	9-09150-512-0	08	1	9812-0004
58	ARM; TIE ROD	1-43135-042-0	01	1	9812-9912
58	ARM; TIE ROD EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL AL<SDM>,BRAKE LINING MATERIAL NON ASBESTOS<SKR>,BRAKE REGULATION ECE<TDV>,TI RE FRT 12.00R20<72X>	1-43135-042-1	01	1	0001-
58	ARM; TIE ROD BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL AL<SDM>,TIRE FRT 12.00R20<72X>	1-43135-042-1	01	1	0001-
58	ARM; TIE ROD	1-43134-042-0	01	1	9812-9912
58	ARM; TIE ROD EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL AL<SDM>,BRAKE LINING MATERIAL NON ASBESTOS<SKR>,BRAKE REGULATION ECE<TDV>,TI RE FRT 12.00R20<72X>	1-43134-042-1	01	1	0001-
58	ARM; TIE ROD BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL AL<SDM>,TIRE FRT 12.00R20<72X>	1-43134-042-1	01	1	0001-
58	ARM; TIE ROD BRAKE LINING MATERIAL NON ASBESTOS<SKR> BRAKE REGULATION ECE<TDV> TIRE FRT 12.00R20<72X> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL AL<SDM>	1-43134-049-2	01	1	0001-
58	ARM; TIE ROD BRAKE LINING MATERIAL NON ASBESTOS<SKR> BRAKE REGULATION ECE<TDV> TIRE FRT 12.00R20<72X> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL AL<SDM>	1-43135-049-2	01	1	0001-
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	9812-
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	9812-
61	ROD END; TIE ROD	1-43150-737-1	01	1	9812-9812
61	ROD END; TIE ROD	1-43150-802-0	01	1	9901-
61	ROD END; TIE ROD	1-43150-736-1	01	1	9812-9812
61	ROD END; TIE ROD	1-43150-801-0	01	1	9901-
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	9812-
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	9812-
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	9812-
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	9812-
81	ROD; TIE	1-43151-118-0	01	1	9812-
82	BAR; STAB,FRT SUSP	1-51771-134-0	01	1	9812-
87	BRACKET; STABILIZER (A)	1-51781-083-1	02	1	9812-
87	BRACKET; STABILIZER (B)	1-51781-084-1	02	1	9812-
91	BUSHING; RUBBER,STAB BAR	1-51779-079-0	04	1	9812-
93	BUSHING; STABILIZER	1-51689-015-1	04	1	9812-
103	NUT; BRKT FIX M14	9-99110-514-0	04	1	9812-
105	BOLT; BRKT FIX M14X70	9-91061-470-0	04	1	9812-
110	CLAMP; STAB TO ROD (A)	1-51789-027-2	02	1	9812-
110	CLAMP; STAB TO ROD (B)	1-51789-028-1	02	1	9812-
111	BOLT; CLAMP TO ROD (A) M12X30	0-20801-230-0	02	1	9812-
111	BOLT; CLAMP TO ROD (B) M12X50	0-20801-250-0	04	1	9812-
112	BUSHING; ROD	9-51631-039-0	04	1	9812-
114	ROD; STAB BAR	1-51773-072-2	02	1	9812-
115	WASHER; CENTER,STAB TO FRAME (A) ID=16.5	9-51631-040-0	04	1	9812-
115	WASHER; CENTER,STAB TO FRAME (B) ID=20.8	9-51631-041-0	04	1	9812-
116	NUT; LK,STAB TO FRAME M14	9-99111-414-0	04	1	9812-
127	NUT; CLAMP M12	9-99110-412-0	06	1	9812-
128	WASHER; LK,CLAMP ID=12.2	9-09150-512-0	06	1	9812-
234	WASHER; STAB ID=15	9-09651-069-0	08	1	9812-
237	SUPPORT; STAB BAR	1-51681-662-0	02	1	9812-
275	BOOT; ROD END,TIE	1-43159-078-0	02	1	9812-9812
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	9901-
296	PIN; STAB	1-51682-145-2	02	1	9812-
303	NUT; PIN M20	9-99110-520-0	02	1	9812-
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	9812-
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	9812-
305	COVER; KNUCKLE	1-43175-021-0	02	1	9812-
