8-80 — WINDSHIELD WIPER AND WASHER (#74257) — 195 parça

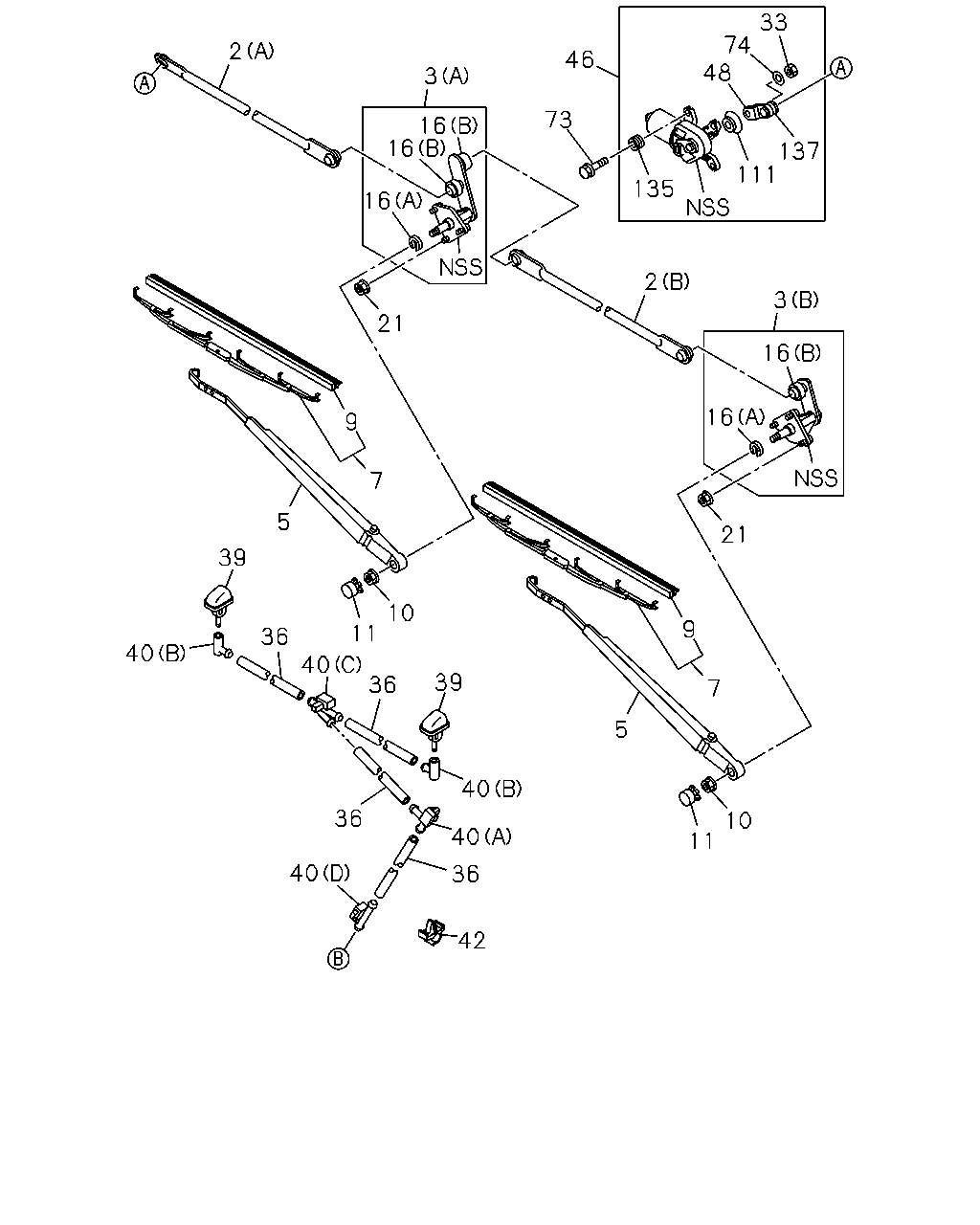

çizim 153279
33 74 48 2 46 3 73 16 16 137 111 135 16 2 3 21 16 16 9 7 5 21 39 10 9 11 36 40 40 36 39 7 5 40 36 10 40 11 40 36 42
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 16.063 LINK; FRT WIPER
(A) 		8-97352-434-0 01 1 0306-0410 ● ● ● ● ●
2 16.063 LINK; FRT WIPER
(A) 		8-97352-434-0 01 1 0411- ● ● ● ● ● ●
2 16.063 LINK; FRT WIPER
(B) 		8-97352-435-0 01 1 0306-0410 ● ● ● ● ●
2 16.063 LINK; FRT WIPER
(B) 		8-97352-435-0 01 1 0411- ● ● ● ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
(B) 		8-97349-891-0 01 1 0306-0410 ● ● ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
(B) 		8-97349-891-0 01 1 0411-0609 ● ● ● ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
(B) 		8-98057-714-0 01 1 0610- ● ● ● ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
(A) 		8-97352-433-1 01 1 0306-0410 ● ● ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
(A) 		8-97352-433-1 01 1 0411-0609 ● ● ● ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
(A) 		8-98057-713-0 01 1 0610- ● ● ● ● ● ●
5 16.063 ARM; WIPER 8-97351-482-0 01 1 0306-0410 ● ● ● ● ●
5 16.063 ARM; WIPER 8-97351-482-0 01 1 0411- ● ● ● ● ● ●
5 16.063 ARM; WIPER 8-97351-483-0 01 1 0306-0410 ● ● ● ● ●
5 16.063 ARM; WIPER 8-97351-483-0 01 1 0411- ● ● ● ● ● ●
7 16.062 BLADE; WIPER 8-97351-484-0 01 1 0306-0410 ● ● ● ● ●
7 16.062 BLADE; WIPER 8-97351-484-0 01 1 0411- ● ● ● ● ● ●
7 16.062 BLADE; WIPER 8-97351-485-0 01 1 0306-0410 ● ● ● ● ●
7 16.062 BLADE; WIPER 8-97351-485-0 01 1 0411- ● ● ● ● ● ●
9 16.062 RUBBER; FRT WIPER BLADE
L=550 		8-97349-901-0 01 1 0306-0410 ● ● ● ● ●
9 16.062 RUBBER; FRT WIPER BLADE
L=550 		8-97349-901-0 01 1 0411- ● ● ● ● ● ●
9 16.062 RUBBER; FRT WIPER BLADE
L=475 		8-97349-904-0 01 1 0306-0410 ● ● ● ● ●
9 16.062 RUBBER; FRT WIPER BLADE
L=475 		8-97349-904-0 01 1 0411- ● ● ● ● ● ●
10 16.063 NUT; WIPER ARM TO WIPER PIVOT
07.347 M10 FLANGE 		8-94144-220-0 02 1 0306-0410 ● ● ● ● ●
10 16.063 NUT; WIPER ARM TO WIPER PIVOT
07.347 M10 FLANGE 		8-94144-220-0 02 1 0411-0610 ● ● ● ● ● ●
10 16.063 NUT; WIPER ARM TO WIPER PIVOT
M10 FLANGE 		8-98049-367-0 02 1 0611- ● ● ● ● ● ●
11 16.063 COVER; WIPER ARM
10.147 		8-94367-999-0 02 1 0306-0410 ● ● ● ● ●
11 16.063 COVER; WIPER ARM
10.147 		8-94367-999-0 02 1 0411- ● ● ● ● ● ●
16 16.063 SEAL; BALL JOINT
10.159 (B) 		8-97025-889-0 03 1 0306-0410 ● ● ● ● ●
16 16.063 SEAL; BALL JOINT
10.159 (B) 		8-97025-889-0 03 1 0411- ● ● ● ● ● ●
16 16.063 SEAL; BALL JOINT
(A) 		8-97349-894-0 02 1 0306-0410 ● ● ● ● ●
16 16.063 SEAL; BALL JOINT
(A) 		8-97349-894-0 02 1 0411- ● ● ● ● ● ●
21 16.063 NUT; WIPER LINK PIVOT
10.147 M6 W/DISHED WASHER 		8-94423-325-0 06 1 0306-0410 ● ● ● ● ●
21 16.063 NUT; WIPER LINK PIVOT
10.147 M6 W/DISHED WASHER 		8-94423-325-0 06 1 0411-0509 ● ● ● ● ● ●
21 16.063 NUT; WIPER LINK PIVOT
04.594 M6 FLANGE 		0-91150-106-0 06 1 0510-0603 ● ● ● ● ● ●
21 16.063 NUT; WIPER LINK PIVOT
01.062 M6 FLANGE 		0-91180-106-0 06 1 0604- ● ● ● ● ● ●
33 16.064 NUT; MOTOR TO ARM 8-97349-898-0 01 1 0306-0410 ● ● ● ● ●
33 16.064 NUT; MOTOR TO ARM 8-97349-898-0 01 1 0411- ● ● ● ● ● ●
36 16.065 HOSE; WASHER
SERVICED BY L=10000 		8-97349-607-0 01 1 0306-0410 ● ● ● ● ●
36 16.065 HOSE; WASHER
SERVICED BY L=10000 		8-97349-607-0 01 1 0411- ● ● ● ● ● ●
39 16.065 NOZZLE; WINDSHIELD WASHER 8-97238-519-0 02 1 0306-0410 ● ● ● ● ●
39 16.065 NOZZLE; WINDSHIELD WASHER 8-97238-519-0 02 1 0411-0609 ● ● ● ● ● ●
39 16.065 NOZZLE; WINDSHIELD WASHER 8-98008-112-0 02 1 0610- ● ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
10.155 (A) 		8-94335-627-0 01 1 0306-0410 ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
10.155 (A) 		8-94335-627-0 01 1 0411-0709 ● ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(B) 		8-97178-847-0 02 1 0306-0410 ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(B) 		8-97178-847-0 02 1 0411- ● ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(C) 		8-97215-337-0 01 1 0306-0410 ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(C) 		8-97215-337-0 01 1 0411- ● ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(D) 		8-97314-270-0 01 1 0306-0410 ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(D) 		8-97314-270-0 01 1 0411-0709 ● ● ● ● ● ●
42 16.065 CLIP; WASHER HOSE
10.156 ID=5.8 L=8 		8-94155-681-0 02 1 0306-0410 ● ● ● ● ●
42 16.065 CLIP; WASHER HOSE
10.156 ID=5.8 L=8 		8-94155-681-0 02 1 0411-0609 ● ● ● ● ● ●
42 16.065 CLIP; WASHER HOSE
10.156 ID=5.8 L=8 		8-94155-681-0 03 1 0610- ● ● ● ● ● ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER 8-97364-370-0 01 1 0306-0410 ● ● ● ● ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER 8-97364-370-0 01 1 0411-0609 ● ● ● ● ● ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER 8-98057-622-0 01 1 0610- ● ● ● ● ● ●
48 16.063 ARM; WIPER MOTOR 8-97349-895-0 01 1 0306-0410 ● ● ● ● ●
48 16.063 ARM; WIPER MOTOR 8-97349-895-0 01 1 0411-0609 ● ● ● ● ● ●
48 16.063 ARM; WIPER MOTOR 8-98057-654-0 01 1 0610- ● ● ● ● ● ●
73 16.063 BOLT
M6X33 W/PL WASHER 		8-97164-266-0 04 1 0306-0410 ● ● ● ● ●
73 16.063 BOLT
M6X33 W/PL WASHER 		8-97164-266-0 04 1 0411-0609 ● ● ● ● ● ●
73 16.063 BOLT
M6X33 W/PL WASHER 		8-98048-997-0 04 1 0610- ● ● ● ● ● ●
74 16.063 WASHER; ARM TO MOTOR 8-97349-897-0 01 1 0306-0410 ● ● ● ● ●
74 16.063 WASHER; ARM TO MOTOR 8-97349-897-0 01 1 0411- ● ● ● ● ● ●
111 16.064 SEAL; FRT WIPER MOTOR TO BRKT 8-97349-896-0 01 1 0306-0410 ● ● ● ● ●
111 16.064 SEAL; FRT WIPER MOTOR TO BRKT 8-97349-896-0 01 1 0411- ● ● ● ● ● ●
135 16.250 RUBBER; CUSHION,WIPER MOTOR
10.152 		8-94387-088-0 04 1 0306-0410 ● ● ● ● ●
135 16.250 RUBBER; CUSHION,WIPER MOTOR
10.152 		8-94387-088-0 04 1 0411-0609 ● ● ● ● ● ●
135 16.250 RUBBER; CUSHION,WIPER MOTOR 8-98057-655-0 04 1 0610- ● ● ● ● ● ●
137 16.063 SEAL; JOINT,WIPER MOTOR
10.159 		8-97025-889-0 01 1 0306-0410 ● ● ● ● ●
137 16.063 SEAL; JOINT,WIPER MOTOR
10.159 		8-97025-889-0 01 1 0411- ● ● ● ● ● ●

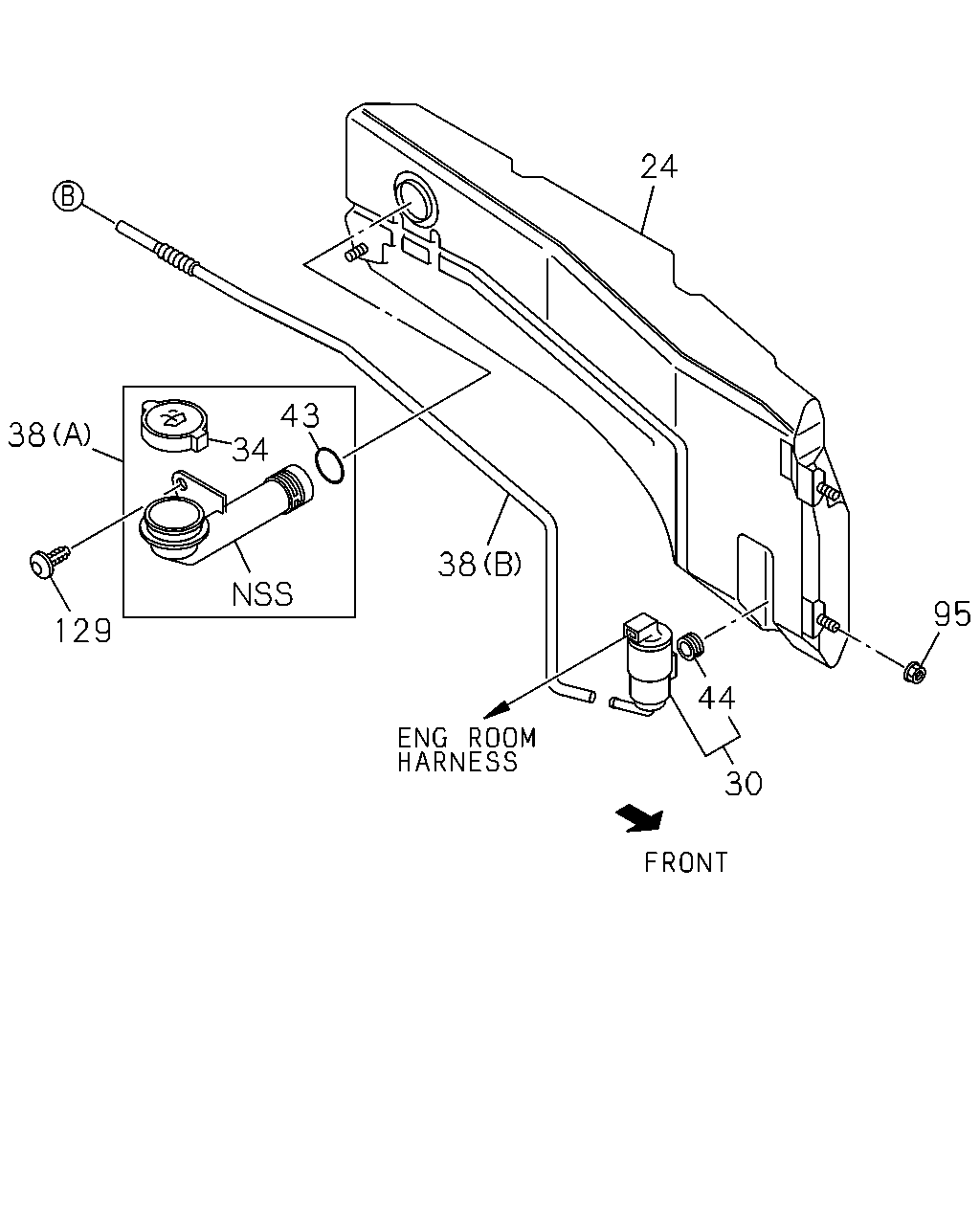

çizim 153320
24 43 34 38 38 95 129 44 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
24 16.065 TANK ASM; WASHER 8-97314-347-0 01 1 0306-0410 ● ● ● ● ●
24 16.065 TANK ASM; WASHER 8-97314-347-0 01 1 0411-0609 ● ● ● ● ● ●
24 16.065 TANK ASM; WASHER 8-98057-609-0 01 1 0610- ● ● ● ● ● ●
30 16.065 MOTOR ASM; FRT WASHER TANK 8-97314-350-0 01 1 0306-0410 ● ● ● ● ●
30 16.065 MOTOR ASM; FRT WASHER TANK 8-97314-350-0 01 1 0411- ● ● ● ● ● ●
34 16.065 CAP; WASHER TANK 8-97349-905-0 01 1 0306-0410 ● ● ● ● ●
34 16.065 CAP; WASHER TANK 8-97349-905-0 01 1 0411- ● ● ● ● ● ●
38 16.065 HOSE; JOINT,TANK
(A) 		8-97310-064-1 01 1 0306-0410 ● ● ● ● ●
38 16.065 HOSE; JOINT,TANK
(A) 		8-97310-064-1 01 1 0411- ● ● ● ● ● ●
38 16.065 HOSE; JOINT,TANK
(B) 		8-97361-901-0 01 1 0306-0410 ● ● ● ● ●
38 16.065 HOSE; JOINT,TANK
(B) 		8-97361-901-0 01 1 0411-0504 ● ● ● ● ● ●
38 16.065 HOSE; JOINT,TANK
(B) 		8-98011-321-0 01 1 0505- ● ● ● ● ● ●
38 16.065 HOSE; JOINT,TANK
(C) 		8-98051-635-0 01 1 0610-0709 ● ● ● ● ● ●
43 16.065 RUBBER; GASKET,TANK 8-97349-906-0 01 1 0306-0410 ● ● ● ● ●
43 16.065 RUBBER; GASKET,TANK 8-97349-906-0 01 1 0411- ● ● ● ● ● ●
44 16.065 GASKET; MOTOR TO TANK
10.154 		8-94352-050-0 01 1 0306-0410 ● ● ● ● ●
44 16.065 GASKET; MOTOR TO TANK
10.154 		8-94352-050-0 01 1 0411- ● ● ● ● ● ●
95 16.065 NUT; WASHER TANK
07.833 M6 W/DISHED WASHER 		8-94170-192-0 03 1 0306-0410 ● ● ● ● ●
95 16.065 NUT; WASHER TANK
07.833 M6 W/DISHED WASHER 		8-94170-192-0 03 1 0411-0610 ● ● ● ● ● ●
95 16.065 NUT; WASHER TANK
M6 W/DISHED WASHER 		8-98049-368-0 03 1 0611- ● ● ● ● ● ●
129 16.065 CLIP; JOINT HOSE
16.800 L=19 BLACK 		8-94363-776-0 01 1 0306-0410 ● ● ● ● ●
129 16.065 CLIP; JOINT HOSE
16.800 L=19 BLACK 		8-94363-776-0 01 1 0411- ● ● ● ● ● ●

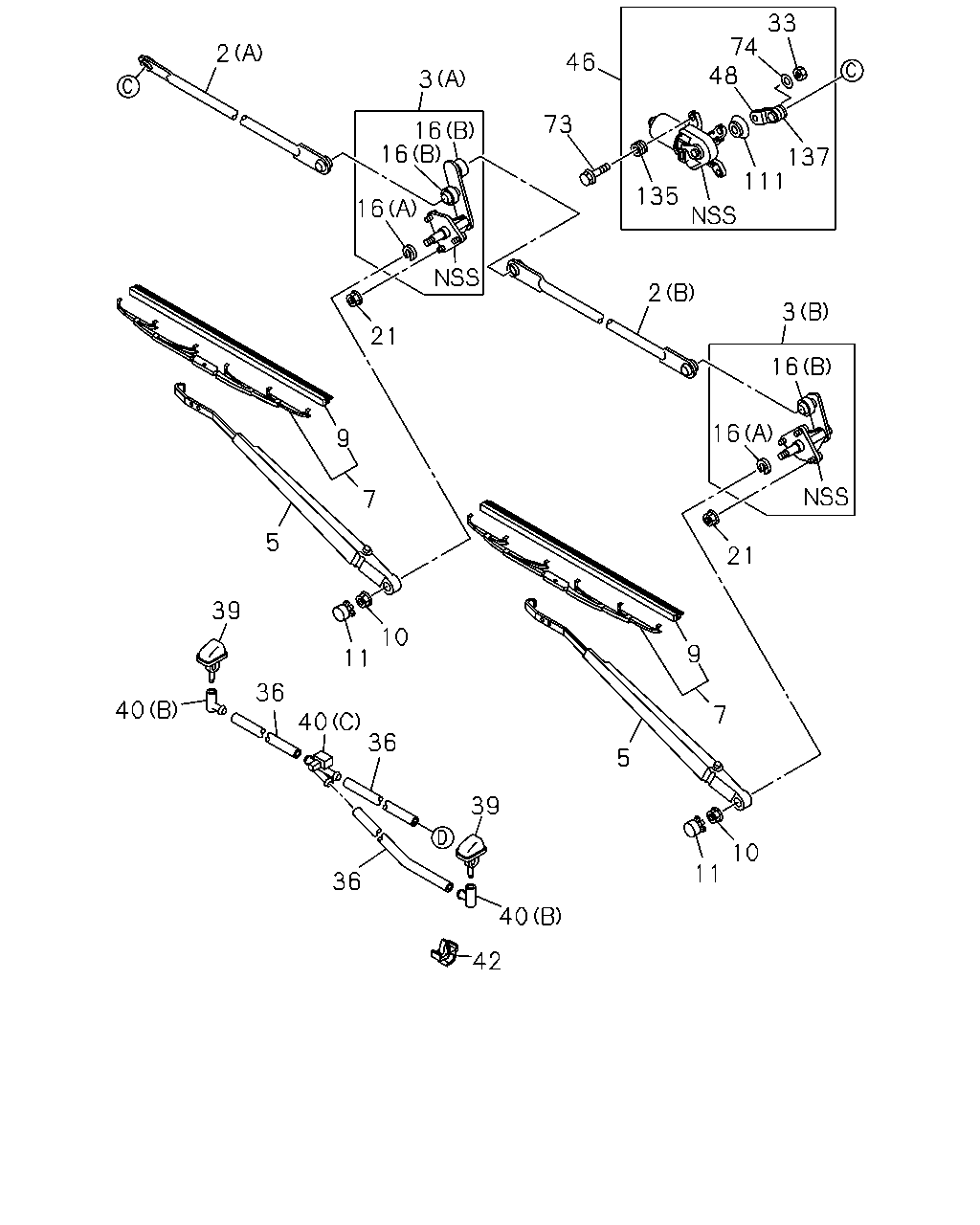

çizim 153491
33 74 48 2 46 3 73 16 16 137 111 135 16 2 3 21 16 16 9 7 5 21 39 10 9 11 36 40 7 40 36 5 39 10 11 36 40 42
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 16.063 LINK; FRT WIPER
(A) 		8-97352-434-0 01 1 0306-0410 ● ● ● ● ●
2 16.063 LINK; FRT WIPER
(A) 		8-97352-434-0 01 1 0411- ● ● ● ● ● ●
2 16.063 LINK; FRT WIPER
(B) 		8-97352-435-0 01 1 0306-0410 ● ● ● ● ●
2 16.063 LINK; FRT WIPER
(B) 		8-97352-435-0 01 1 0411- ● ● ● ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
(B) 		8-97349-891-0 01 1 0306-0410 ● ● ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
(B) 		8-97349-891-0 01 1 0411-0609 ● ● ● ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
(B) 		8-98057-714-0 01 1 0610- ● ● ● ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
(A) 		8-97352-433-1 01 1 0306-0410 ● ● ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
(A) 		8-97352-433-1 01 1 0411-0609 ● ● ● ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
(A) 		8-98057-713-0 01 1 0610- ● ● ● ● ● ●
5 16.063 ARM; WIPER 8-97351-482-0 01 1 0306-0410 ● ● ● ● ●
5 16.063 ARM; WIPER 8-97351-482-0 01 1 0411- ● ● ● ● ● ●
5 16.063 ARM; WIPER 8-97351-483-0 01 1 0306-0410 ● ● ● ● ●
5 16.063 ARM; WIPER 8-97351-483-0 01 1 0411- ● ● ● ● ● ●
7 16.062 BLADE; WIPER 8-97351-484-0 01 1 0306-0410 ● ● ● ● ●
7 16.062 BLADE; WIPER 8-97351-484-0 01 1 0411- ● ● ● ● ● ●
7 16.062 BLADE; WIPER 8-97351-485-0 01 1 0306-0410 ● ● ● ● ●
7 16.062 BLADE; WIPER 8-97351-485-0 01 1 0411- ● ● ● ● ● ●
9 16.062 RUBBER; FRT WIPER BLADE
L=550 		8-97349-901-0 01 1 0306-0410 ● ● ● ● ●
9 16.062 RUBBER; FRT WIPER BLADE
L=550 		8-97349-901-0 01 1 0411- ● ● ● ● ● ●
9 16.062 RUBBER; FRT WIPER BLADE
L=475 		8-97349-904-0 01 1 0306-0410 ● ● ● ● ●
9 16.062 RUBBER; FRT WIPER BLADE
L=475 		8-97349-904-0 01 1 0411- ● ● ● ● ● ●
10 16.063 NUT; WIPER ARM TO WIPER PIVOT
07.347 M10 FLANGE 		8-94144-220-0 02 1 0306-0410 ● ● ● ● ●
10 16.063 NUT; WIPER ARM TO WIPER PIVOT
07.347 M10 FLANGE 		8-94144-220-0 02 1 0411-0610 ● ● ● ● ● ●
10 16.063 NUT; WIPER ARM TO WIPER PIVOT
M10 FLANGE 		8-98049-367-0 02 1 0611- ● ● ● ● ● ●
11 16.063 COVER; WIPER ARM
10.147 		8-94367-999-0 02 1 0306-0410 ● ● ● ● ●
11 16.063 COVER; WIPER ARM
10.147 		8-94367-999-0 02 1 0411- ● ● ● ● ● ●
16 16.063 SEAL; BALL JOINT
10.159 (B) 		8-97025-889-0 03 1 0306-0410 ● ● ● ● ●
16 16.063 SEAL; BALL JOINT
10.159 (B) 		8-97025-889-0 03 1 0411- ● ● ● ● ● ●
16 16.063 SEAL; BALL JOINT
(A) 		8-97349-894-0 02 1 0306-0410 ● ● ● ● ●
16 16.063 SEAL; BALL JOINT
(A) 		8-97349-894-0 02 1 0411- ● ● ● ● ● ●
21 16.063 NUT; WIPER LINK PIVOT
10.147 M6 W/DISHED WASHER 		8-94423-325-0 06 1 0306-0410 ● ● ● ● ●
21 16.063 NUT; WIPER LINK PIVOT
10.147 M6 W/DISHED WASHER 		8-94423-325-0 06 1 0411-0509 ● ● ● ● ● ●
21 16.063 NUT; WIPER LINK PIVOT
04.594 M6 FLANGE 		0-91150-106-0 06 1 0510-0603 ● ● ● ● ● ●
21 16.063 NUT; WIPER LINK PIVOT
01.062 M6 FLANGE 		0-91180-106-0 06 1 0604- ● ● ● ● ● ●
33 16.064 NUT; MOTOR TO ARM 8-97349-898-0 01 1 0306-0410 ● ● ● ● ●
33 16.064 NUT; MOTOR TO ARM 8-97349-898-0 01 1 0411- ● ● ● ● ● ●
36 16.065 HOSE; WASHER
SERVICED BY L=10000 		8-97349-607-0 01 1 0306-0410 ● ● ● ● ●
36 16.065 HOSE; WASHER
SERVICED BY L=10000 		8-97349-607-0 01 1 0411- ● ● ● ● ● ●
39 16.065 NOZZLE; WINDSHIELD WASHER 8-97238-519-0 02 1 0306-0410 ● ● ● ● ●
39 16.065 NOZZLE; WINDSHIELD WASHER 8-97238-519-0 02 1 0411-0609 ● ● ● ● ● ●
39 16.065 NOZZLE; WINDSHIELD WASHER 8-98008-112-0 02 1 0610- ● ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
10.155 (A) 		8-94335-627-0 01 1 0306-0410 ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
10.155 (A) 		8-94335-627-0 01 1 0411-0709 ● ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(B) 		8-97178-847-0 02 1 0306-0410 ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(B) 		8-97178-847-0 02 1 0411- ● ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(C) 		8-97215-337-0 01 1 0306-0410 ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(C) 		8-97215-337-0 01 1 0411- ● ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(D) 		8-97314-270-0 01 1 0306-0410 ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(D) 		8-97314-270-0 01 1 0411-0709 ● ● ● ● ● ●
42 16.065 CLIP; WASHER HOSE
10.156 ID=5.8 L=8 		8-94155-681-0 02 1 0306-0410 ● ● ● ● ●
42 16.065 CLIP; WASHER HOSE
10.156 ID=5.8 L=8 		8-94155-681-0 02 1 0411-0609 ● ● ● ● ● ●
42 16.065 CLIP; WASHER HOSE
10.156 ID=5.8 L=8 		8-94155-681-0 03 1 0610- ● ● ● ● ● ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER 8-97364-370-0 01 1 0306-0410 ● ● ● ● ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER 8-97364-370-0 01 1 0411-0609 ● ● ● ● ● ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER 8-98057-622-0 01 1 0610- ● ● ● ● ● ●
48 16.063 ARM; WIPER MOTOR 8-97349-895-0 01 1 0306-0410 ● ● ● ● ●
48 16.063 ARM; WIPER MOTOR 8-97349-895-0 01 1 0411-0609 ● ● ● ● ● ●
48 16.063 ARM; WIPER MOTOR 8-98057-654-0 01 1 0610- ● ● ● ● ● ●
73 16.063 BOLT
M6X33 W/PL WASHER 		8-97164-266-0 04 1 0306-0410 ● ● ● ● ●
73 16.063 BOLT
M6X33 W/PL WASHER 		8-97164-266-0 04 1 0411-0609 ● ● ● ● ● ●
73 16.063 BOLT
M6X33 W/PL WASHER 		8-98048-997-0 04 1 0610- ● ● ● ● ● ●
74 16.063 WASHER; ARM TO MOTOR 8-97349-897-0 01 1 0306-0410 ● ● ● ● ●
74 16.063 WASHER; ARM TO MOTOR 8-97349-897-0 01 1 0411- ● ● ● ● ● ●
111 16.064 SEAL; FRT WIPER MOTOR TO BRKT 8-97349-896-0 01 1 0306-0410 ● ● ● ● ●
111 16.064 SEAL; FRT WIPER MOTOR TO BRKT 8-97349-896-0 01 1 0411- ● ● ● ● ● ●
135 16.250 RUBBER; CUSHION,WIPER MOTOR
10.152 		8-94387-088-0 04 1 0306-0410 ● ● ● ● ●
135 16.250 RUBBER; CUSHION,WIPER MOTOR
10.152 		8-94387-088-0 04 1 0411-0609 ● ● ● ● ● ●
135 16.250 RUBBER; CUSHION,WIPER MOTOR 8-98057-655-0 04 1 0610- ● ● ● ● ● ●
137 16.063 SEAL; JOINT,WIPER MOTOR
10.159 		8-97025-889-0 01 1 0306-0410 ● ● ● ● ●
137 16.063 SEAL; JOINT,WIPER MOTOR
10.159 		8-97025-889-0 01 1 0411- ● ● ● ● ● ●

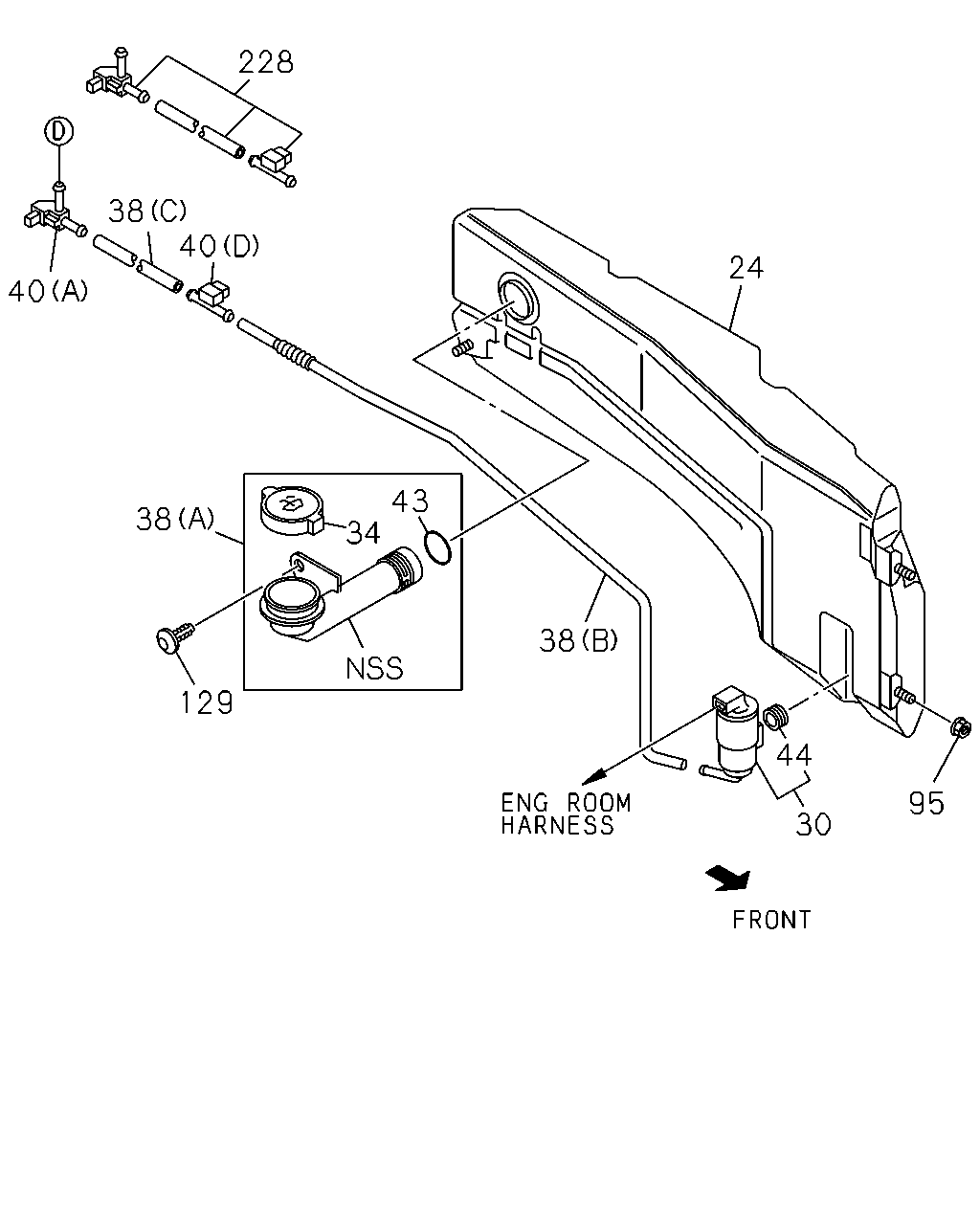

çizim 153507
228 38 40 24 40 43 34 38 38 129 44 95 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
24 16.065 TANK ASM; WASHER 8-97314-347-0 01 1 0306-0410 ● ● ● ● ●
24 16.065 TANK ASM; WASHER 8-97314-347-0 01 1 0411-0609 ● ● ● ● ● ●
24 16.065 TANK ASM; WASHER 8-98057-609-0 01 1 0610- ● ● ● ● ● ●
30 16.065 MOTOR ASM; FRT WASHER TANK 8-97314-350-0 01 1 0306-0410 ● ● ● ● ●
30 16.065 MOTOR ASM; FRT WASHER TANK 8-97314-350-0 01 1 0411- ● ● ● ● ● ●
34 16.065 CAP; WASHER TANK 8-97349-905-0 01 1 0306-0410 ● ● ● ● ●
34 16.065 CAP; WASHER TANK 8-97349-905-0 01 1 0411- ● ● ● ● ● ●
38 16.065 HOSE; JOINT,TANK
(A) 		8-97310-064-1 01 1 0306-0410 ● ● ● ● ●
38 16.065 HOSE; JOINT,TANK
(A) 		8-97310-064-1 01 1 0411- ● ● ● ● ● ●
38 16.065 HOSE; JOINT,TANK
(B) 		8-97361-901-0 01 1 0306-0410 ● ● ● ● ●
38 16.065 HOSE; JOINT,TANK
(B) 		8-97361-901-0 01 1 0411-0504 ● ● ● ● ● ●
38 16.065 HOSE; JOINT,TANK
(B) 		8-98011-321-0 01 1 0505- ● ● ● ● ● ●
38 16.065 HOSE; JOINT,TANK
(C) 		8-98051-635-0 01 1 0610-0709 ● ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
10.155 (A) 		8-94335-627-0 01 1 0306-0410 ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
10.155 (A) 		8-94335-627-0 01 1 0411-0709 ● ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(B) 		8-97178-847-0 02 1 0306-0410 ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(B) 		8-97178-847-0 02 1 0411- ● ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(C) 		8-97215-337-0 01 1 0306-0410 ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(C) 		8-97215-337-0 01 1 0411- ● ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(D) 		8-97314-270-0 01 1 0306-0410 ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(D) 		8-97314-270-0 01 1 0411-0709 ● ● ● ● ● ●
43 16.065 RUBBER; GASKET,TANK 8-97349-906-0 01 1 0306-0410 ● ● ● ● ●
43 16.065 RUBBER; GASKET,TANK 8-97349-906-0 01 1 0411- ● ● ● ● ● ●
44 16.065 GASKET; MOTOR TO TANK
10.154 		8-94352-050-0 01 1 0306-0410 ● ● ● ● ●
44 16.065 GASKET; MOTOR TO TANK
10.154 		8-94352-050-0 01 1 0411- ● ● ● ● ● ●
95 16.065 NUT; WASHER TANK
07.833 M6 W/DISHED WASHER 		8-94170-192-0 03 1 0306-0410 ● ● ● ● ●
95 16.065 NUT; WASHER TANK
07.833 M6 W/DISHED WASHER 		8-94170-192-0 03 1 0411-0610 ● ● ● ● ● ●
95 16.065 NUT; WASHER TANK
M6 W/DISHED WASHER 		8-98049-368-0 03 1 0611- ● ● ● ● ● ●
129 16.065 CLIP; JOINT HOSE
16.800 L=19 BLACK 		8-94363-776-0 01 1 0306-0410 ● ● ● ● ●
129 16.065 CLIP; JOINT HOSE
16.800 L=19 BLACK 		8-94363-776-0 01 1 0411- ● ● ● ● ● ●
228 16.065 HOSE ASM; WASHER 8-98115-892-0 01 1 0710- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
