Sayfa 8-75 - Isuzu EPC

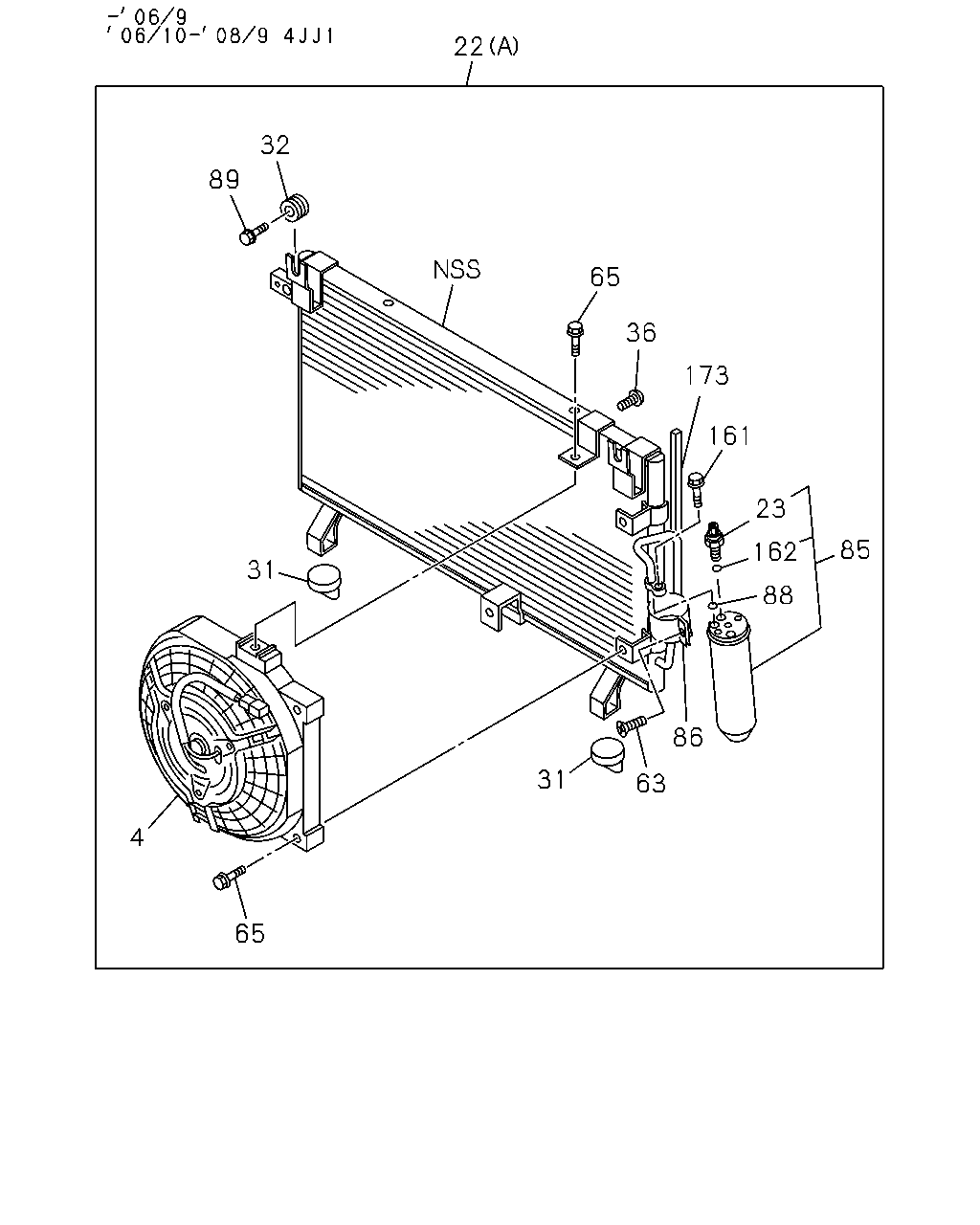

8-75 — CONDENSER (#74256) — 177 parça

22 32 89 65 36 173 161 23 85 162 31 88 86 31 63 4 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
4	09.216 MOTOR ASM; FAN AIR CONDITIONER MANUAL CONT(C60)	8-97356-646-0	01	1	0306-0410	●	●	●	●	●
4	09.216 MOTOR ASM; FAN AIR CONDITIONER MANUAL CONT(C60)	8-97356-646-0	01	1	0411-0609	●	●	●	●	●	●
4	09.216 MOTOR ASM; FAN 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97356-646-0	01	1	0610-0809				●	●	●
22	09.190 CONDENSER ASM; A/C 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98071-119-0	01	1	0710-0710	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98071-119-0	01	1	0711-0809	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98071-119-0	01	1	0810-1007	●	●	●
22	09.190 CONDENSER ASM; A/C 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98071-119-0	01	1	0810-1007				●	●	●
22	09.190 CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-98071-119-0	01	1	1008-1201	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-98176-436-1	01	1	1202-	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-97368-122-0	01	1	0306-0410	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-97368-122-0	01	1	0411-0508	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-98000-109-0	01	1	0509-0607	●	●	●
22	09.190 CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONT(C60) EXC. FACE LIFT MODEL<TX7> (A)	8-98000-109-0	01	1	0509-0607				●	●	●
22	09.190 CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-98039-414-0	01	1	0608-0609	●	●	●
22	09.190 CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONT(C60) EXC. FACE LIFT MODEL<TX7> (A)	8-98039-414-0	01	1	0608-0609				●	●	●
22	09.190 CONDENSER ASM; A/C 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98058-683-0	01	1	0610-0703	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98071-119-0	01	1	0704-0709	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONT(C60) FACE LIFT MODEL<TX7> (A)	8-98008-516-0	01	1	0509-0607				●	●	●
22	09.190 CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONT(C60) FACE LIFT MODEL<TX7> (A)	8-98039-416-0	01	1	0608-0609				●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98035-605-0	01	1	0610-0612				●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98071-121-0	01	1	0701-0809				●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60)	8-97375-560-0	01	1	0710-0710	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60)	8-97375-560-0	01	1	0711-0809	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60)	8-97375-560-0	01	1	0810-1007	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97375-560-0	01	1	0810-1007				●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97375-560-0	01	1	1008-	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97381-465-0	01	1	0306-0410	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97381-465-0	01	1	0411-0508	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97380-449-0	01	1	0509-0607	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97381-465-0	01	1	0608-0609	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97381-465-0	01	1	0610-0809				●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60)	8-97375-560-0	01	1	0610-0709	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97333-319-0	02	1	0306-0410	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97333-319-0	02	1	0411-0809	●	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-319-0	02	1	0810-1007	●	●	●
31	09.190 RUBBER; MTG,CONDENSER 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-319-0	02	1	0810-1007				●	●	●
31	09.190 RUBBER; MTG,CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97333-319-0	02	1	1008-	●	●	●	●	●	●
32	09.190 GROMMET; CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97333-320-0	02	1	0306-0410	●	●	●	●	●
32	09.190 GROMMET; CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97333-320-0	02	1	0411-0809	●	●	●	●	●	●
32	09.190 GROMMET; CONDENSER 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-320-0	02	1	0810-1007	●	●	●
32	09.190 GROMMET; CONDENSER 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-320-0	02	1	0810-1007				●	●	●
32	09.190 GROMMET; CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97333-320-0	02	1	1008-	●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) M4X25	8-98071-148-0	06	1	0710-0710	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) M4X25	8-98071-148-0	06	1	0711-0809	●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) M4X25	8-98071-148-0	06	1	0810-1007	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M4X25	8-98071-148-0	06	1	0810-1007				●	●	●
36	09.190 SCREW; PLATE TO CONDENSER AIR CONDITIONER MANUAL CONT(C60) M4X25	8-98071-148-0	06	1	1008-	●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) M4X25	8-98071-148-0	06	1	0704-0709	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M4X25	8-98071-148-0	09	1	0701-0809				●	●	●
63	09.175 BOLT; RECEIVER TANK 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X16	8-98071-146-0	03	1	0701-0703				●	●	●
63	09.175 BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60) M6X16	8-98071-146-0	03	1	0704-0809	●	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) M6X16	8-98071-146-0	03	1	0810-1007	●	●	●
63	09.175 BOLT; RECEIVER TANK 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X16	8-98071-146-0	03	1	0810-1007				●	●	●
63	09.175 BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60) M6X16	8-98071-146-0	03	1	1008-	●	●	●	●	●	●
65	09.216 BOLT; SHROUD AIR CONDITIONER MANUAL CONT(C60) M6X16	8-97356-647-0	04	1	0306-0410	●	●	●	●	●
65	09.216 BOLT; SHROUD AIR CONDITIONER MANUAL CONT(C60) M6X16	8-97356-647-0	04	1	0411-0609	●	●	●	●	●	●
65	09.216 BOLT; SHROUD 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X16	8-97356-647-0	04	1	0610-0612				●	●	●
65	09.216 BOLT; SHROUD 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X18	8-98071-145-0	04	1	0701-0809				●	●	●
85	09.172 DRYER; RECEIVER 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60)	8-98065-910-0	01	1	0710-0710	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60)	8-98065-910-0	01	1	0711-0809	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60)	8-98065-910-0	01	1	0810-1007	●	●	●
85	09.172 DRYER; RECEIVER 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98065-910-0	01	1	0810-1007				●	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60)	8-98065-910-0	01	1	1008-1201	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60)	8-98189-134-0	01	1	1202-	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60)	8-97368-338-0	01	1	0306-0410	●	●	●	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60)	8-97368-338-0	01	1	0411-0508	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60)	8-97380-448-2	01	1	0509-0607	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60)	8-97368-338-0	01	1	0608-0609	●	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60) EXC. FACE LIFT MODEL<TX7>	8-97368-338-0	01	1	0608-0609				●	●	●
85	09.172 DRYER; RECEIVER 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60)	8-98065-910-0	01	1	0610-0709	●	●	●	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60) FACE LIFT MODEL<TX7>	8-98049-143-0	01	1	0608-0609				●	●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98042-541-0	01	1	0610-0809				●	●	●
86	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60)	8-97333-318-0	01	1	0306-0410	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60)	8-97333-318-0	01	1	0411-0508	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60)	8-97380-437-0	01	1	0509-0809	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60)	8-97380-437-0	01	1	0810-1007	●	●	●
86	09.196 BRACKET; RECEIVER DRYER 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97380-437-0	01	1	0810-1007				●	●	●
86	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60)	8-97380-437-0	01	1	1008-	●	●	●	●	●	●
88	09.190 GASKET; PRESSURE SW AIR CONDITIONER MANUAL CONT(C60)	8-97333-321-0	01	1	0306-0410	●	●	●	●	●
88	09.190 GASKET; PRESSURE SW AIR CONDITIONER MANUAL CONT(C60)	8-97333-321-0	01	1	0411-	●	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY AIR CONDITIONER MANUAL CONT(C60) M6X35	8-97333-317-0	02	1	0306-0410	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY AIR CONDITIONER MANUAL CONT(C60) M6X35	8-97333-317-0	02	1	0411-0612	●	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) M6X35	8-97333-317-0	02	1	0701-0703	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X35	8-98071-149-0	02	1	0701-0703				●	●	●
89	09.190 BOLT; CONDENSER TO BODY AIR CONDITIONER MANUAL CONT(C60) M6X35	8-98071-149-0	02	1	0704-	●	●	●	●	●	●
161	02.559 BOLT; PIPE AIR CONDITIONER MANUAL CONT(C60) 09.175 M6X16	8-98071-146-0	01	1	0911-	●	●	●	●	●	●
161	02.559 BOLT; PIPE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X20	8-98071-147-0	01	1	0701-0703				●	●	●
161	02.559 BOLT; PIPE AIR CONDITIONER MANUAL CONT(C60) M6X20	8-98071-147-0	01	1	0704-0910	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER AIR CONDITIONER MANUAL CONT(C60) 09.190	8-97333-321-0	01	1	0306-0410	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER AIR CONDITIONER MANUAL CONT(C60) 09.190	8-97333-321-0	01	1	0411-	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98034-693-0	02	1	0610-0703				●	●	●
173	09.190 INSULATOR; CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-98034-693-0	02	1	0704-	●	●	●	●	●	●

22 32 89 36 173 161 23 85 162 88 31 86 63 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
22	09.190 CONDENSER ASM; A/C 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98071-119-0	01	1	0710-0710	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98071-119-0	01	1	0711-0809	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98071-119-0	01	1	0810-1007	●	●	●
22	09.190 CONDENSER ASM; A/C 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98071-119-0	01	1	0810-1007				●	●	●
22	09.190 CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-98071-119-0	01	1	1008-1201	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-98176-436-1	01	1	1202-	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-97368-122-0	01	1	0306-0410	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-97368-122-0	01	1	0411-0508	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-98000-109-0	01	1	0509-0607	●	●	●
22	09.190 CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONT(C60) EXC. FACE LIFT MODEL<TX7> (A)	8-98000-109-0	01	1	0509-0607				●	●	●
22	09.190 CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-98039-414-0	01	1	0608-0609	●	●	●
22	09.190 CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONT(C60) EXC. FACE LIFT MODEL<TX7> (A)	8-98039-414-0	01	1	0608-0609				●	●	●
22	09.190 CONDENSER ASM; A/C 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98058-683-0	01	1	0610-0703	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98071-119-0	01	1	0704-0709	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONT(C60) FACE LIFT MODEL<TX7> (A)	8-98008-516-0	01	1	0509-0607				●	●	●
22	09.190 CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONT(C60) FACE LIFT MODEL<TX7> (A)	8-98039-416-0	01	1	0608-0609				●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98035-605-0	01	1	0610-0612				●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98071-121-0	01	1	0701-0809				●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60)	8-97375-560-0	01	1	0710-0710	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60)	8-97375-560-0	01	1	0711-0809	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60)	8-97375-560-0	01	1	0810-1007	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97375-560-0	01	1	0810-1007				●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97375-560-0	01	1	1008-	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97381-465-0	01	1	0306-0410	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97381-465-0	01	1	0411-0508	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97380-449-0	01	1	0509-0607	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97381-465-0	01	1	0608-0609	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97381-465-0	01	1	0610-0809				●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60)	8-97375-560-0	01	1	0610-0709	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97333-319-0	02	1	0306-0410	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97333-319-0	02	1	0411-0809	●	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-319-0	02	1	0810-1007	●	●	●
31	09.190 RUBBER; MTG,CONDENSER 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-319-0	02	1	0810-1007				●	●	●
31	09.190 RUBBER; MTG,CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97333-319-0	02	1	1008-	●	●	●	●	●	●
32	09.190 GROMMET; CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97333-320-0	02	1	0306-0410	●	●	●	●	●
32	09.190 GROMMET; CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97333-320-0	02	1	0411-0809	●	●	●	●	●	●
32	09.190 GROMMET; CONDENSER 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-320-0	02	1	0810-1007	●	●	●
32	09.190 GROMMET; CONDENSER 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-320-0	02	1	0810-1007				●	●	●
32	09.190 GROMMET; CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97333-320-0	02	1	1008-	●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) M4X25	8-98071-148-0	06	1	0710-0710	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) M4X25	8-98071-148-0	06	1	0711-0809	●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) M4X25	8-98071-148-0	06	1	0810-1007	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M4X25	8-98071-148-0	06	1	0810-1007				●	●	●
36	09.190 SCREW; PLATE TO CONDENSER AIR CONDITIONER MANUAL CONT(C60) M4X25	8-98071-148-0	06	1	1008-	●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) M4X25	8-98071-148-0	06	1	0704-0709	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M4X25	8-98071-148-0	09	1	0701-0809				●	●	●
63	09.175 BOLT; RECEIVER TANK 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X16	8-98071-146-0	03	1	0701-0703				●	●	●
63	09.175 BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60) M6X16	8-98071-146-0	03	1	0704-0809	●	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) M6X16	8-98071-146-0	03	1	0810-1007	●	●	●
63	09.175 BOLT; RECEIVER TANK 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X16	8-98071-146-0	03	1	0810-1007				●	●	●
63	09.175 BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60) M6X16	8-98071-146-0	03	1	1008-	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60)	8-98065-910-0	01	1	0710-0710	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60)	8-98065-910-0	01	1	0711-0809	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60)	8-98065-910-0	01	1	0810-1007	●	●	●
85	09.172 DRYER; RECEIVER 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98065-910-0	01	1	0810-1007				●	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60)	8-98065-910-0	01	1	1008-1201	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60)	8-98189-134-0	01	1	1202-	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60)	8-97368-338-0	01	1	0306-0410	●	●	●	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60)	8-97368-338-0	01	1	0411-0508	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60)	8-97380-448-2	01	1	0509-0607	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60)	8-97368-338-0	01	1	0608-0609	●	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60) EXC. FACE LIFT MODEL<TX7>	8-97368-338-0	01	1	0608-0609				●	●	●
85	09.172 DRYER; RECEIVER 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60)	8-98065-910-0	01	1	0610-0709	●	●	●	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60) FACE LIFT MODEL<TX7>	8-98049-143-0	01	1	0608-0609				●	●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98042-541-0	01	1	0610-0809				●	●	●
86	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60)	8-97333-318-0	01	1	0306-0410	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60)	8-97333-318-0	01	1	0411-0508	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60)	8-97380-437-0	01	1	0509-0809	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60)	8-97380-437-0	01	1	0810-1007	●	●	●
86	09.196 BRACKET; RECEIVER DRYER 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97380-437-0	01	1	0810-1007				●	●	●
86	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60)	8-97380-437-0	01	1	1008-	●	●	●	●	●	●
88	09.190 GASKET; PRESSURE SW AIR CONDITIONER MANUAL CONT(C60)	8-97333-321-0	01	1	0306-0410	●	●	●	●	●
88	09.190 GASKET; PRESSURE SW AIR CONDITIONER MANUAL CONT(C60)	8-97333-321-0	01	1	0411-	●	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY AIR CONDITIONER MANUAL CONT(C60) M6X35	8-97333-317-0	02	1	0306-0410	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY AIR CONDITIONER MANUAL CONT(C60) M6X35	8-97333-317-0	02	1	0411-0612	●	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) M6X35	8-97333-317-0	02	1	0701-0703	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X35	8-98071-149-0	02	1	0701-0703				●	●	●
89	09.190 BOLT; CONDENSER TO BODY AIR CONDITIONER MANUAL CONT(C60) M6X35	8-98071-149-0	02	1	0704-	●	●	●	●	●	●
161	02.559 BOLT; PIPE AIR CONDITIONER MANUAL CONT(C60) 09.175 M6X16	8-98071-146-0	01	1	0911-	●	●	●	●	●	●
161	02.559 BOLT; PIPE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X20	8-98071-147-0	01	1	0701-0703				●	●	●
161	02.559 BOLT; PIPE AIR CONDITIONER MANUAL CONT(C60) M6X20	8-98071-147-0	01	1	0704-0910	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER AIR CONDITIONER MANUAL CONT(C60) 09.190	8-97333-321-0	01	1	0306-0410	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER AIR CONDITIONER MANUAL CONT(C60) 09.190	8-97333-321-0	01	1	0411-	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98034-693-0	02	1	0610-0703				●	●	●
173	09.190 INSULATOR; CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-98034-693-0	02	1	0704-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
