8-60 — HEATER UNIT; FRONT (#74251) — 104 parça

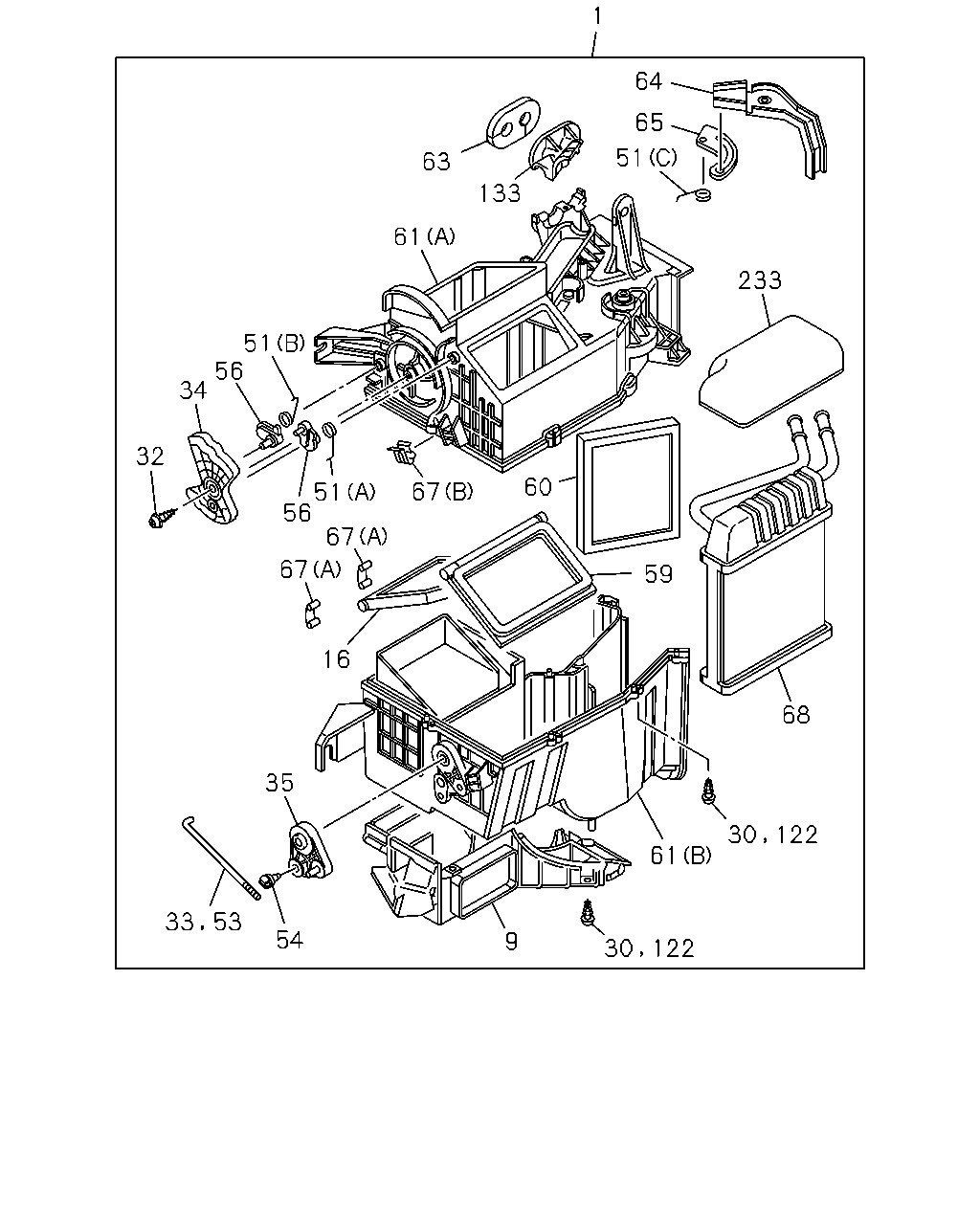

çizim 153323
1 64 65 51 63 133 61 233 51 56 34 32 60 67 51 56 67 67 59 16 68 35 61 54 9 30 122 30 122 33 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 08.845 HEATER UNIT
PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> 		8-97234-554-0 01 1 0306-0309 ● ● ● ● ●
1 08.845 HEATER UNIT
PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> 		8-97369-316-0 01 1 0310-0410 ● ● ● ● ●
1 08.845 HEATER UNIT
PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> 		8-97369-316-0 01 1 0411-0609 ● ● ● ● ● ●
1 08.845 HEATER UNIT 8-97369-316-0 01 1 0610-0612 ● ● ●
1 08.845 HEATER UNIT
PARKING BRAKE FLOOR<7XW> 		8-97369-316-0 01 1 0610-0612 ●
1 08.845 HEATER UNIT
PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> 		8-97369-316-0 01 1 0610-0612 ● ●
1 08.845 HEATER UNIT 8-98071-338-0 01 1 0701-0709 ● ● ●
1 08.845 HEATER UNIT
PARKING BRAKE FLOOR<7XW> 		8-98071-338-0 01 1 0701-0709 ●
1 08.845 HEATER UNIT
PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> 		8-98071-338-0 01 1 0701-0709 ● ●
1 08.845 HEATER UNIT 8-98086-157-0 01 1 0710- ● ● ●
1 08.845 HEATER UNIT
PARKING BRAKE FLOOR<7XW> 		8-98086-157-0 01 1 0710- ●
1 08.845 HEATER UNIT
PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> 		8-98086-157-0 01 1 0710- ● ●
1 08.845 HEATER UNIT
EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> 		8-97316-027-0 01 1 0306-0309 ● ● ● ● ● ●
1 08.845 HEATER UNIT
EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> 		8-97369-318-0 01 1 0310-0609 ● ● ● ● ● ●
1 08.845 HEATER UNIT
EXC. PARKING BRAKE FLOOR<7XW> 		8-97369-318-0 01 1 0610-0612 ●
1 08.845 HEATER UNIT
EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> 		8-97369-318-0 01 1 0610-0612 ● ●
1 08.845 HEATER UNIT
EXC. PARKING BRAKE FLOOR<7XW> 		8-98071-341-0 01 1 0701-0709 ●
1 08.845 HEATER UNIT
EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> 		8-98071-341-0 01 1 0701-0709 ● ●
1 08.845 HEATER UNIT
EXC. PARKING BRAKE FLOOR<7XW> 		8-98086-159-0 01 1 0710- ●
1 08.845 HEATER UNIT
EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> 		8-98086-159-0 01 1 0710- ● ●
1 08.845 HEATER UNIT
REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> 		8-97234-553-0 01 1 0306-0309 ● ●
1 08.845 HEATER UNIT
REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> 		8-97369-315-0 01 1 0310-0612 ● ●
1 08.845 HEATER UNIT
REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> 		8-98071-337-0 01 1 0701-0709 ● ●
1 08.845 HEATER UNIT
REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> 		8-98086-156-0 01 1 0710- ● ●
1 08.845 HEATER UNIT
REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> 		8-97316-026-0 01 1 0306-0309 ● ●
1 08.845 HEATER UNIT
REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> 		8-97369-317-0 01 1 0310-0612 ● ●
1 08.845 HEATER UNIT
REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> 		8-98071-340-0 01 1 0701-0709 ● ●
1 08.845 HEATER UNIT
REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> 		8-98086-158-0 01 1 0710- ● ●
9 08.854 DUCT; HTR UNIT 8-97364-986-0 01 1 0306-0410 ● ● ●
9 08.854 DUCT; HTR UNIT
EXC. REAR HEATER DUCT<S8C> 		8-97364-986-0 01 1 0306-0410 ● ●
9 08.854 DUCT; HTR UNIT 8-97364-986-0 01 1 0411- ● ● ● ●
9 08.854 DUCT; HTR UNIT
EXC. REAR HEATER DUCT<S8C> 		8-97364-986-0 01 1 0411- ● ●
9 08.854 DUCT; HTR UNIT
REAR HEATER DUCT<S8C> 		8-97364-985-0 01 1 0306- ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-97364-989-0 01 1 0306-0410 ● ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-97364-989-0 01 1 0411- ● ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
09.211 		8-97321-165-0 08 1 0306-0402 ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
09.211 		8-97321-165-0 09 1 0403-0410 ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
09.211 		8-97321-165-0 09 1 0411-0612 ● ● ● ● ● ●
30 08.845 SCREW; HTR UNIT 8-98071-324-0 09 1 0701- ● ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
08.856 		8-97321-276-0 02 1 0306-0410 ●
32 08.852 SCREW; HTR UNIT
PARKING BRAKE FLOOR<7XW> 08.856 		8-97321-276-0 02 1 0306-0410 ● ● ● ●
32 08.852 SCREW; HTR UNIT
08.856 		8-97321-276-0 02 1 0411-0609 ● ●
32 08.852 SCREW; HTR UNIT
PARKING BRAKE FLOOR<7XW> 08.856 		8-97321-276-0 02 1 0411-0609 ● ● ● ●
32 08.852 SCREW; HTR UNIT
08.856 		8-97321-276-0 02 1 0610-0612 ● ● ●
32 08.852 SCREW; HTR UNIT
PARKING BRAKE FLOOR<7XW> 08.856 		8-97321-276-0 02 1 0610-0612 ● ● ●
32 08.852 SCREW; HTR UNIT
09.786 		8-98071-323-0 02 1 0701- ● ● ●
32 08.852 SCREW; HTR UNIT
PARKING BRAKE FLOOR<7XW> 09.786 		8-98071-323-0 02 1 0701- ● ● ●
32 08.852 SCREW; HTR UNIT
EXC. PARKING BRAKE FLOOR<7XW> 08.856 		8-97321-276-0 03 1 0306-0609 ● ● ● ●
32 08.852 SCREW; HTR UNIT
EXC. PARKING BRAKE FLOOR<7XW> 08.856 		8-97321-276-0 03 1 0610-0612 ● ● ●
32 08.852 SCREW; HTR UNIT
EXC. PARKING BRAKE FLOOR<7XW> 09.786 		8-98071-323-0 03 1 0701- ● ● ●
33 09.786 ROD; SHUTTER LEVER
EXC. PARKING BRAKE FLOOR<7XW> 		8-97365-009-0 01 1 0306-0309 ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-97364-992-0 01 1 0306-0410 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
PARKING BRAKE FLOOR<7XW> 		8-97364-992-0 01 1 0306-0410 ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-97364-992-0 01 1 0411-0609 ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
PARKING BRAKE FLOOR<7XW> 		8-97364-992-0 01 1 0411-0609 ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-97364-992-0 01 1 0610- ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
PARKING BRAKE FLOOR<7XW> 		8-97364-992-0 01 1 0610- ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
EXC. PARKING BRAKE FLOOR<7XW> 		8-97365-007-0 01 1 0306-0609 ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
EXC. PARKING BRAKE FLOOR<7XW> 		8-97365-007-0 01 1 0610- ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
EXC. PARKING BRAKE FLOOR<7XW> 		8-97365-008-0 01 1 0306-0609 ● ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
EXC. PARKING BRAKE FLOOR<7XW> 		8-97365-008-0 01 1 0610- ● ● ●
51 08.846 SPRING; HTR UNIT
(A) 		8-97364-994-0 01 1 0306-0410 ● ● ● ● ●
51 08.846 SPRING; HTR UNIT
(A) 		8-97364-994-0 01 1 0411- ● ● ● ● ● ●
51 08.846 SPRING; HTR UNIT
(B) 		8-97364-995-0 01 1 0306-0410 ● ● ● ● ●
51 08.846 SPRING; HTR UNIT
(B) 		8-97364-995-0 01 1 0411- ● ● ● ● ● ●
51 08.846 SPRING; HTR UNIT
(C) 		8-97364-998-0 01 1 0306-0410 ● ● ● ● ●
51 08.846 SPRING; HTR UNIT
(C) 		8-97364-998-0 01 1 0411- ● ● ● ● ● ●
53 08.866 ROD; SHUTTER LEVER
EXC. PARKING BRAKE FLOOR<7XW> 09.786 		8-97365-009-0 01 1 0310-0609 ● ● ● ●
53 08.866 ROD; SHUTTER LEVER
EXC. PARKING BRAKE FLOOR<7XW> 09.786 		8-97365-009-0 01 1 0610- ● ● ●
54 08.854 CLIP; SHUTTER LEVER
EXC. PARKING BRAKE FLOOR<7XW> 		8-97321-371-0 01 1 0306-0609 ● ● ● ●
54 08.854 CLIP; SHUTTER LEVER
EXC. PARKING BRAKE FLOOR<7XW> 		8-97321-371-0 01 1 0610- ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT 8-97321-341-0 02 1 0306-0410 ● ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT 8-97321-341-0 02 1 0411- ● ● ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-97364-988-0 01 1 0306-0410 ● ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-97364-988-0 01 1 0411- ● ● ● ● ● ●
60 08.854 DOOR; MIX,HTR UNIT 8-97333-330-0 01 1 0306-0410 ● ● ● ● ●
60 08.854 DOOR; MIX,HTR UNIT 8-97333-330-0 01 1 0411- ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
(A) 		8-97364-980-0 01 1 0306-0410 ● ● ● ● ●
61 08.854 CASE; HTR UNIT
(A) 		8-97364-980-0 01 1 0411- ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
(B) 		8-97364-982-0 01 1 0306-0410 ● ● ● ● ●
61 08.854 CASE; HTR UNIT
(B) 		8-97364-982-0 01 1 0411- ● ● ● ● ● ●
63 08.856 LINING; HTR UNIT 8-97364-996-0 01 1 0306-0402 ● ● ● ● ●
63 08.856 LINING; HTR UNIT 8-97333-328-0 01 1 0403-0410 ● ● ● ● ●
63 08.856 LINING; HTR UNIT 8-97333-328-0 01 1 0411- ● ● ● ● ● ●
64 09.786 LEVER; MIX,DOOR 8-97364-991-0 01 1 0306-0410 ● ● ● ● ●
64 09.786 LEVER; MIX,DOOR 8-97364-991-0 01 1 0411-0612 ● ● ● ● ● ●
64 09.786 LEVER; MIX,DOOR 8-98071-383-0 01 1 0701- ● ● ● ● ● ●
65 09.786 LEVER; MIX,DOOR 8-97364-990-0 01 1 0306-0410 ● ● ● ● ●
65 09.786 LEVER; MIX,DOOR 8-97364-990-0 01 1 0411- ● ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
09.211 (A) 		8-97321-166-0 02 1 0306-0309 ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
09.211 (A) 		8-97321-166-0 01 1 0310-0410 ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
09.211 (A) 		8-97321-166-0 01 1 0411-0709 ● ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
09.262 (A) 		8-98088-089-0 01 1 0710- ● ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
09.787 (B) 		8-97321-274-0 02 1 0306-0410 ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
09.787 (B) 		8-97321-274-0 02 1 0411- ● ● ● ● ● ●
68 08.854 CORE; HTR UNIT 8-97364-984-0 01 1 0306-0410 ● ● ● ● ●
68 08.854 CORE; HTR UNIT 8-97364-984-0 01 1 0411- ● ● ● ● ● ●
122 08.845 SCREW; DUCT
09.211 		8-97321-165-0 03 1 0306-0309 ● ● ● ● ●
122 08.845 SCREW; DUCT
09.211 		8-97321-165-0 02 1 0310-0410 ● ● ● ● ●
122 08.845 SCREW; DUCT
09.211 		8-97321-165-0 02 1 0411-0612 ● ● ● ● ● ●
122 08.845 SCREW; DUCT 8-98071-324-0 02 1 0701- ● ● ● ● ● ●
133 08.845 CLIP; PIPE 8-97364-993-0 01 1 0306-0410 ● ● ● ● ●
133 08.845 CLIP; PIPE 8-97364-993-0 01 1 0411- ● ● ● ● ● ●
233 08.845 COVER; CORE,HTR UNIT 8-97364-997-0 01 1 0306-0402 ● ● ● ● ●
