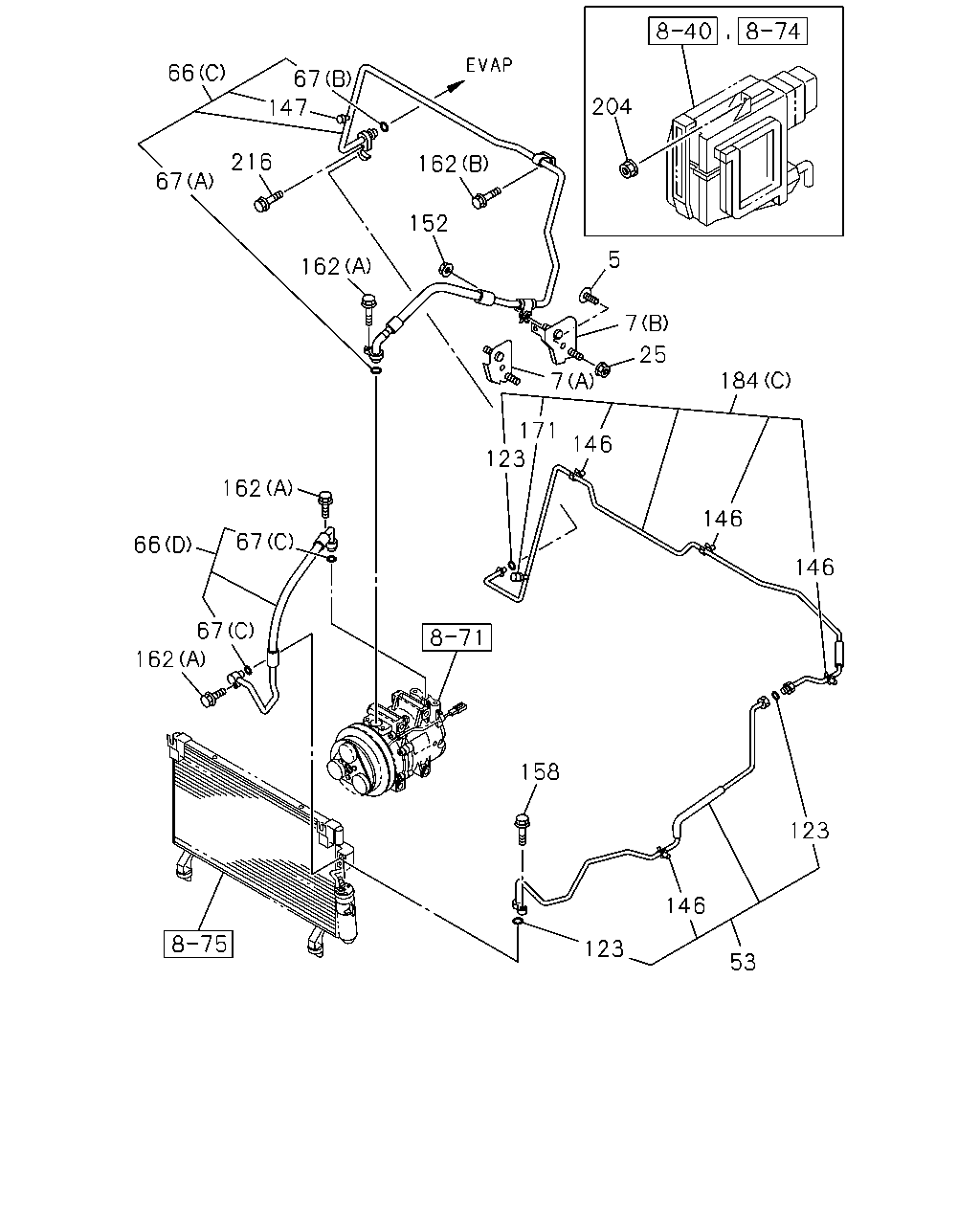

8-52 — PIPING; AIR CONDITIONING (#74250) — 85 parça

66 67 204 147 216 162 67 152 5 162 7 25 184 7 171 146 123 162 146 67 66 146 67 162 158 123 146 123 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 08.820 OD=25	8-94279-810-0	01	1	0610-	●	●	●	●	●	●
7	09.242 BRACKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.686 (B)	8-98006-970-0	01	1	0610-	●	●	●	●	●	●
7	09.242 BRACKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98008-136-0	01	1	0610-	●	●	●	●	●	●
25	09.171 NUT; BRKT AIR CONDITIONER MANUAL CONT(C60) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE	0-91180-106-0	01	1	0610-	●	●	●	●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97378-434-0	01	1	0610-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-97363-724-0	01	1	0306-0410	●	●	●	●		●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-97363-724-0	01	1	0411-0412	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-98002-537-0	01	1	0501-0609	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (C)	8-98007-109-0	01	1	0610-0612	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (C)	8-98072-738-0	01	1	0701-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-97364-084-0	01	1	0306-0410	●	●	●	●		●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-97364-084-0	01	1	0411-0412	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-98002-527-0	01	1	0501-0609	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (D)	8-97363-903-0	01	1	0610-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97321-351-0	01	1	0306-0410	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97321-351-0	01	1	0411-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97321-352-0	01	1	0306-0410	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97321-352-0	01	1	0411-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C)	8-97321-353-0	02	1	0306-0410	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C)	8-97321-353-0	02	1	0411-	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) SCAL	8-97919-270-0	03	1	0306-0410	●	●	●	●		●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) SCAL	8-97919-270-0	03	1	0411-0609	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) SCAL	8-97919-270-0	02	1	0610-	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) SCAL	8-97919-270-0	02	1	0610-	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60)	8-97354-058-0	04	1	0306-0410	●	●	●	●		●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60)	8-97354-058-0	04	1	0411-0609	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60)	8-97354-058-0	01	1	0610-	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60)	8-97354-058-0	03	1	0610-	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60)	8-97386-623-0	01	1	0501-	●	●	●	●	●	●
152	09.225 NUT; CLIP AIR CONDITIONER MANUAL CONT(C60) 08.915 M6 FLANGE	8-98055-704-0	01	1	0610-	●	●	●	●	●	●
158	09.220 BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT(C60) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0306-0410	●	●	●	●		●
158	09.220 BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT(C60) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0411-	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0306-0410	●	●	●	●		●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0411-	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	0610-	●	●	●	●	●	●
171	09.242 CAP; PIPE AIR CONDITIONER MANUAL CONT(C60)	8-97376-622-0	01	1	0610-	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP AIR CONDITIONER MANUAL CONT(C60) (A)	8-97234-597-1	01	1	0306-0410	●	●	●	●		●
184	09.220 PIPE; PIPE TO EVAP AIR CONDITIONER MANUAL CONT(C60) (A)	8-97234-597-1	01	1	0411-0609	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP AIR CONDITIONER MANUAL CONT(C60) (C)	8-98013-164-1	01	1	0610-	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP AIR CONDITIONER MANUAL CONT(C60) (B)	8-97316-031-1	01	1	0306-0410	●	●	●	●		●
184	09.220 PIPE; PIPE TO EVAP AIR CONDITIONER MANUAL CONT(C60) (B)	8-97316-031-1	01	1	0411-0609	●	●	●	●	●	●
204	09.216 NUT 07.833 M6 FLANGE	8-97063-399-0	02	1	0306-0410	●	●	●	●		●
204	09.216 NUT 07.833 M6 FLANGE	8-97063-399-0	02	1	0411-0609	●	●	●	●	●	●
204	09.216 NUT 08.915 M6 FLANGE	8-98055-704-0	02	1	0610-	●	●	●	●	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0306-0410	●	●	●	●		●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0411-	●	●	●	●	●	●

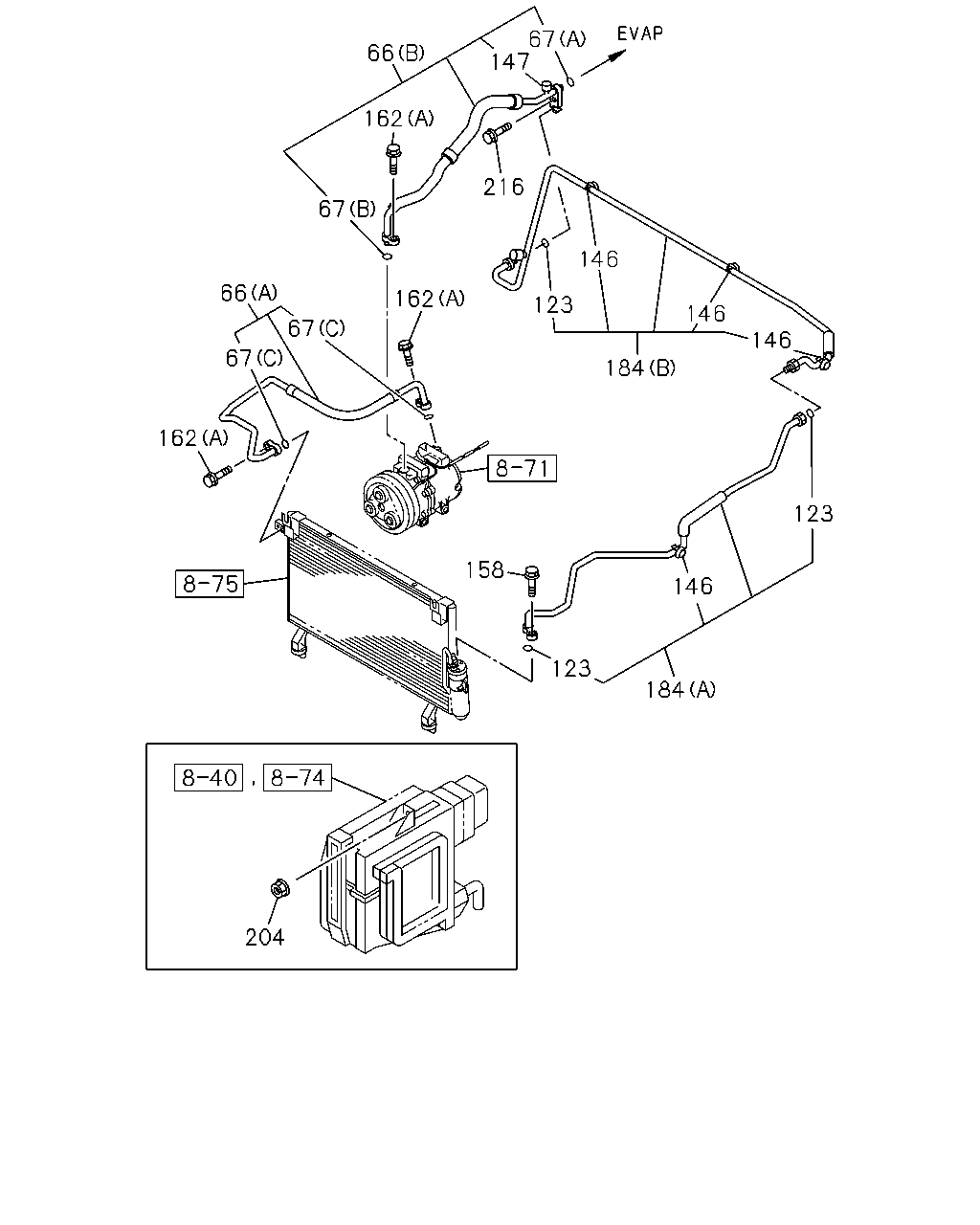

67 147 66 162 216 67 146 66 162 123 146 67 146 67 184 162 123 158 146 123 184 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-97363-724-0	01	1	0306-0410	●	●	●	●		●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-97363-724-0	01	1	0411-0412	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-98002-537-0	01	1	0501-0609	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (C)	8-98007-109-0	01	1	0610-0612	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (C)	8-98072-738-0	01	1	0701-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-97364-084-0	01	1	0306-0410	●	●	●	●		●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-97364-084-0	01	1	0411-0412	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-98002-527-0	01	1	0501-0609	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (D)	8-97363-903-0	01	1	0610-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97321-351-0	01	1	0306-0410	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97321-351-0	01	1	0411-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97321-352-0	01	1	0306-0410	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97321-352-0	01	1	0411-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C)	8-97321-353-0	02	1	0306-0410	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C)	8-97321-353-0	02	1	0411-	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) SCAL	8-97919-270-0	03	1	0306-0410	●	●	●	●		●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) SCAL	8-97919-270-0	03	1	0411-0609	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) SCAL	8-97919-270-0	02	1	0610-	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) SCAL	8-97919-270-0	02	1	0610-	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60)	8-97354-058-0	04	1	0306-0410	●	●	●	●		●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60)	8-97354-058-0	04	1	0411-0609	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60)	8-97354-058-0	01	1	0610-	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60)	8-97354-058-0	03	1	0610-	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60)	8-97386-623-0	01	1	0501-	●	●	●	●	●	●
158	09.220 BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT(C60) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0306-0410	●	●	●	●		●
158	09.220 BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT(C60) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0411-	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0306-0410	●	●	●	●		●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0411-	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	0610-	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP AIR CONDITIONER MANUAL CONT(C60) (A)	8-97234-597-1	01	1	0306-0410	●	●	●	●		●
184	09.220 PIPE; PIPE TO EVAP AIR CONDITIONER MANUAL CONT(C60) (A)	8-97234-597-1	01	1	0411-0609	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP AIR CONDITIONER MANUAL CONT(C60) (C)	8-98013-164-1	01	1	0610-	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP AIR CONDITIONER MANUAL CONT(C60) (B)	8-97316-031-1	01	1	0306-0410	●	●	●	●		●
184	09.220 PIPE; PIPE TO EVAP AIR CONDITIONER MANUAL CONT(C60) (B)	8-97316-031-1	01	1	0411-0609	●	●	●	●	●	●
204	09.216 NUT 07.833 M6 FLANGE	8-97063-399-0	02	1	0306-0410	●	●	●	●		●
204	09.216 NUT 07.833 M6 FLANGE	8-97063-399-0	02	1	0411-0609	●	●	●	●	●	●
204	09.216 NUT 08.915 M6 FLANGE	8-98055-704-0	02	1	0610-	●	●	●	●	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0306-0410	●	●	●	●		●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0411-	●	●	●	●	●	●
