4-01 — PROPELLER SHAFT (#7425) — 85 parça

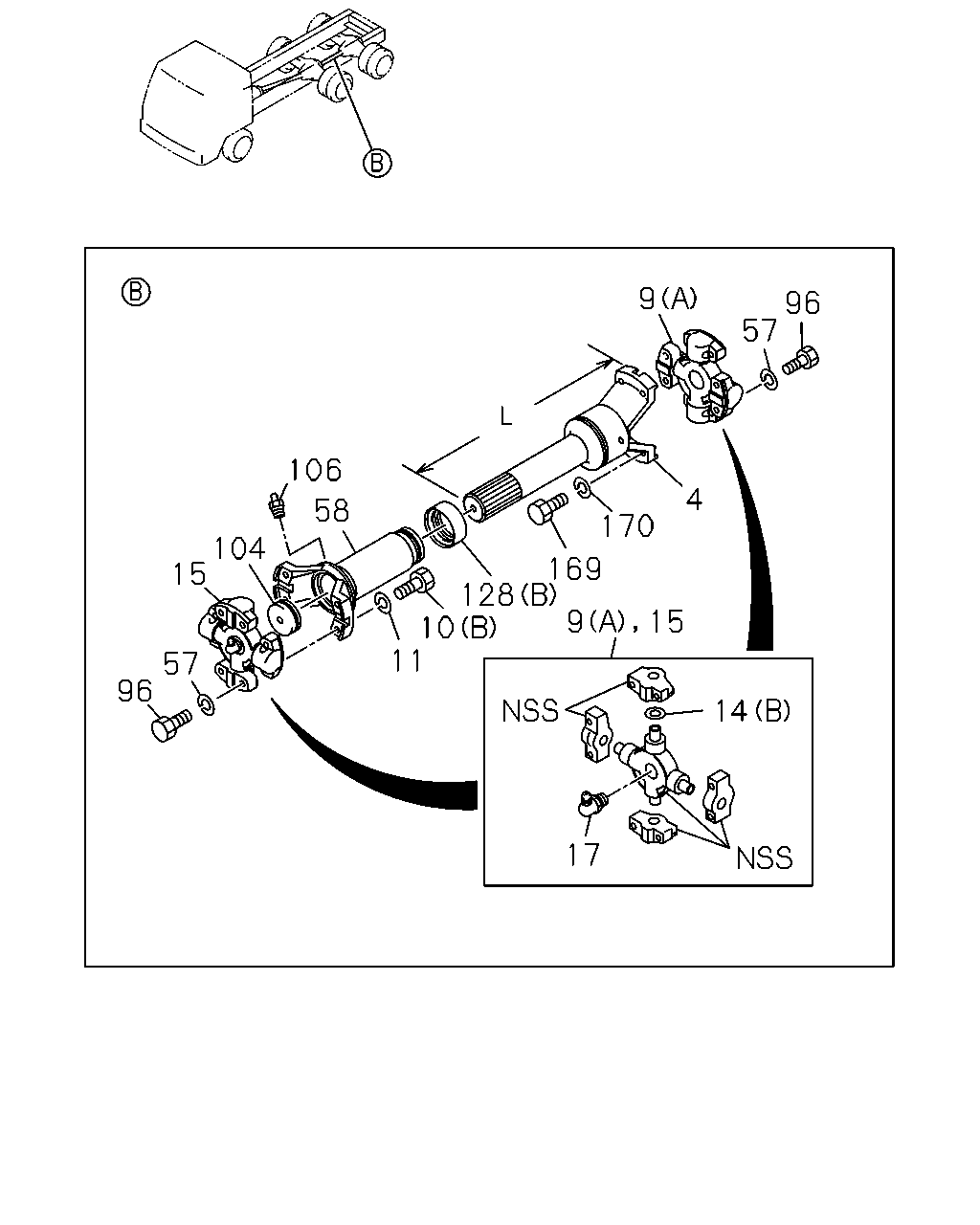

çizim 43727
9 96 57 106 4 58 170 104 15 169 128 9 10 11 15 57 96 14 17
BalonParca AdiParca NoAdetTipApplied Date A B
4 SHAFT; PROP
L=348 		1-37171-127-0 01 1 9812-9912 ● ●
4 SHAFT; PROP
EXC. RR TIRE 12.00-20<98X> L=348 		1-37171-127-1 01 1 0001- ● ●
4 SHAFT; PROP
RR TIRE 12.00-20<98X> L=418 		1-37171-129-1 01 1 0001- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-100-1 01 1 9812- ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (B) 		1-37300-093-0 AR 1 9902- ● ●
10 BOLT; UJT
(B) M12X45 		9-91066-245-0 04 1 9812- ● ●
10 BOLT; UJT
P115 PROP SHAFT<C5X> (A) M10X20 		9-02061-020-0 16 1 9902- ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		9-09150-612-0 04 1 9812- ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 9812- ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT<C5X> (A) 		1-37249-133-0 08 1 9902- ● ●
15 UNIVERSAL CENTER 1-37300-100-1 01 1 9812- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9812-9901 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9902- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT<C5X> PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9902- ● ●
57 WASHER; LK,YOKE
ID=12.2 		9-09150-612-0 08 1 9812- ● ●
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 9812- ● ●
96 BOLT; PROP SHAFT
M12X45 		9-91066-245-0 08 1 9812- ● ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 9812-9901 ● ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 9902- ● ●
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT<C5X> 		1-09600-049-0 01 1 9902- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9812- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> PT1/8 STRAIGHT 		9-09031-010-0 02 1 9902- ● ●
128 SEAL; SLEEVE
(B) 		1-37247-006-0 01 1 9812- ● ●
128 SEAL; SLEEVE
P115 PROP SHAFT<C5X> (A) 		1-37247-020-0 01 1 9902- ● ●
169 BOLT; YOKE,SLEEVE
M12X45 		9-91066-245-0 04 1 9812- ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		9-09150-612-0 04 1 9812- ● ●

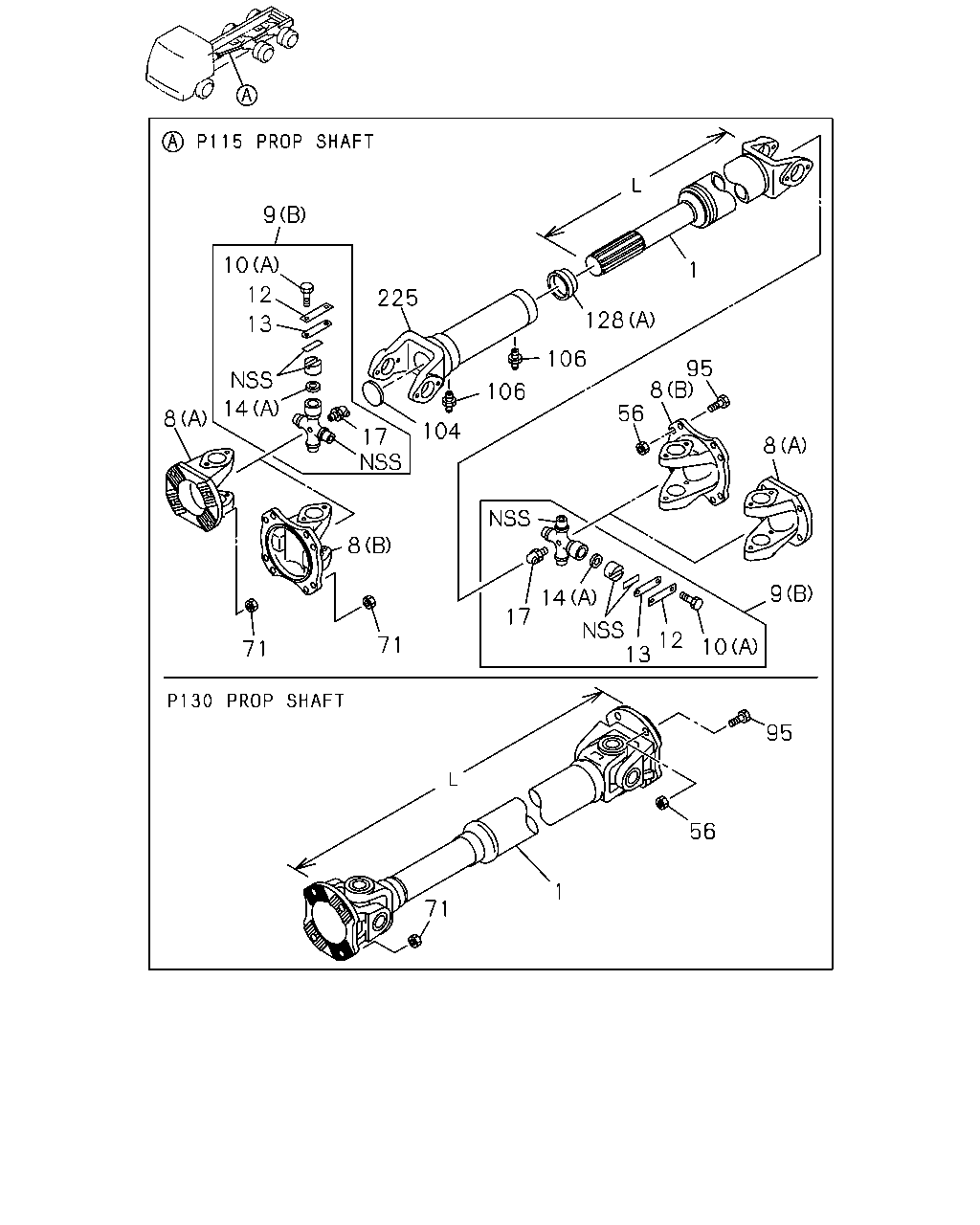

çizim 44695
9 10 1 12 225 128 13 106 95 8 56 106 14 8 104 17 8 8 9 14 17 12 13 71 10 71 95 56 1 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
MJA7 M/T<X9Q> P115 PROP SHAFT<C5X> L=650 		1-37124-075-0 01 1 9905- ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) P115 PROP SHAFT<C5X> L=660 		1-37124-178-0 01 1 9902- ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S221 OD(Y1U) L=915 		1-37124-592-1 01 1 9812-9901 ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S221 OD(Y1U) P130 PROP SHAFT<BEE> L=915 		1-37124-592-1 01 1 9902- ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTLO149 13(Y3Q) P115 PROP SHAFT<C5X> L=940 		1-37124-540-0 01 1 9905-9912 ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTLO149 13(Y3Q) P115 PROP SHAFT<C5X> EXC. RR TIRE 12.00-20<98X> L=940 		1-37124-540-0 01 1 0001- ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTLO169 13(Y3R) P130 PROP SHAFT<BEE> L=1280 		1-37124-507-1 01 1 9905- ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) P115 PROP SHAFT<C5X> L=890 		1-37124-047-0 01 1 9902-9912 ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTLO169 13(Y3R) P115 PROP SHAFT<C5X> RR TIRE 12.00-20<98X> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> L=890 		1-37124-047-0 01 1 0001- ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) P115 PROP SHAFT<C5X> EXC. RR TIRE 12.00-20<98X> L=890 		1-37124-047-0 01 1 0001- ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S221 OD(Y1U) P115 PROP SHAFT<C5X> RR TIRE 12.00-20<98X> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> L=770 		1-37124-020-0 01 1 0001- ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S221 OD(Y1U) P130 PROP SHAFT<BEE> L=1060 		1-37124-726-1 01 1 9904- ●
8 YOKE; FLANGE,PROP SHAFT
MJA7 M/T<X9Q> P115 PROP SHAFT<C5X> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-37211-068-1 02 1 9905- ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> (B) 		1-37211-068-1 01 1 9902-9902 ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-37211-068-1 01 1 9903-9904 ● ●
8 YOKE; FLANGE,PROP SHAFT
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N),TRANSMISSION-FULLER RTLO149 13(Y3Q) P115 PROP SHAFT<C5X> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-37211-068-1 01 1 9905-9912 ● ●
8 YOKE; FLANGE,PROP SHAFT
MJA7 M/T<X9Q> P115 PROP SHAFT<C5X> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-37211-068-1 01 1 9905-9912 ●
8 YOKE; FLANGE,PROP SHAFT
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N),TRANSMISSION-FULLER RTLO149 13(Y3Q) P115 PROP SHAFT<C5X> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>,RR TIRE12.00-20<98X> (B) 		1-37211-068-1 01 1 0001- ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-37211-068-1 01 1 0001- ●
8 YOKE; FLANGE,PROP SHAFT
TRANSMISSION-ZF 16S221 OD(Y1U), TRANSMISSION-FULLERRTLO169 13(Y3R) P115 PROP SHAFT<C5X> RR TIRE 12.00-20<98X> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-37211-068-1 01 1 0001- ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37211-069-2 01 1 9902-9902 ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-069-2 02 1 9903-9904 ● ●
8 YOKE; FLANGE,PROP SHAFT
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N),TRANSMISSION-FULLER RTLO149 13(Y3Q) P115 PROP SHAFT<C5X> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-069-2 02 1 9905-9912 ● ●
8 YOKE; FLANGE,PROP SHAFT
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N),TRANSMISSION-FULLER RTLO149 13(Y3Q) P115 PROP SHAFT<C5X> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>,RR TIRE12.00-20<98X> (A) 		1-37211-069-2 01 1 0001- ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-069-2 01 1 0001- ●
8 YOKE; FLANGE,PROP SHAFT
TRANSMISSION-ZF 16S221 OD(Y1U), TRANSMISSION-FULLERRTLO169 13(Y3R) P115 PROP SHAFT<C5X> RR TIRE 12.00-20<98X> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-069-2 01 1 0001- ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-069-2 01 1 9903-9904 ● ●
8 YOKE; FLANGE,PROP SHAFT
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N),TRANSMISSION-FULLER RTLO149 13(Y3Q) P115 PROP SHAFT<C5X> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-069-2 01 1 9905-9912 ● ●
8 YOKE; FLANGE,PROP SHAFT
MJA7 M/T<X9Q> P115 PROP SHAFT<C5X> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-069-2 01 1 9905-9912 ●
8 YOKE; FLANGE,PROP SHAFT
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) P115 PROP SHAFT<C5X> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-069-2 02 1 0001- ●
8 YOKE; FLANGE,PROP SHAFT
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N),TRANSMISSION-FULLER RTLO149 13(Y3Q) P115 PROP SHAFT<C5X> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. RR TIRE 12.00-20<98X> (A) 		1-37211-069-2 02 1 0001- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-100-1 01 1 9812- ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (B) 		1-37300-093-0 AR 1 9902- ● ●
10 BOLT; UJT
(B) M12X45 		9-91066-245-0 04 1 9812- ● ●
10 BOLT; UJT
P115 PROP SHAFT<C5X> (A) M10X20 		9-02061-020-0 16 1 9902- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37356-009-0 04 1 9902- ● ●
13 COVER; FRT UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37355-021-0 04 1 9902- ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 9812- ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT<C5X> (A) 		1-37249-133-0 08 1 9902- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9812-9901 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9902- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT<C5X> PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9902- ● ●
56 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 9812-9901 ● ●
56 NUT; YOKE
P130 PROP SHAFT<BEE> M14 FLANGE 		1-09440-048-0 04 1 9902- ● ●
56 NUT; YOKE
P115 PROP SHAFT<C5X> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M14 FLANGE 		1-09440-048-0 04 1 9902- ● ●
56 NUT; YOKE
P115 PROP SHAFT<C5X> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M16 FLANGE 		1-09449-065-0 08 1 9902- ● ●
71 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 9812-9904 ● ●
71 NUT; YOKE
FULLER M/T<X9B>,ZF M/T<X9E> M14 FLANGE 		1-09440-048-0 04 1 9905- ● ●
71 NUT; YOKE
ISUZU M/T<X9A> M16 FLANGE 		1-09449-065-0 08 1 9905- ● ●
95 BOLT; YOKE,FINAL
P115 PROP SHAFT<C5X> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M16X48 		1-09000-383-0 08 1 9902- ● ●
95 BOLT; YOKE,FINAL
P130 PROP SHAFT<BEE> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M14X50 		1-09000-645-0 04 1 9904- ● ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 9812-9901 ● ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 9902- ● ●
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT<C5X> 		1-09600-049-0 01 1 9902- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9812- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> PT1/8 STRAIGHT 		9-09031-010-0 02 1 9902- ● ●
128 SEAL; SLEEVE
(B) 		1-37247-006-0 01 1 9812- ● ●
128 SEAL; SLEEVE
P115 PROP SHAFT<C5X> (A) 		1-37247-020-0 01 1 9902- ● ●
225 YOKE; SLEEVE,PROP SHAFT
P115 PROP SHAFT<C5X> L=345 		1-37241-107-1 01 1 9902- ● ●
