8-50 — AIR CONDITIONING SYSTEM; FRONT (#74249) — 56 parça

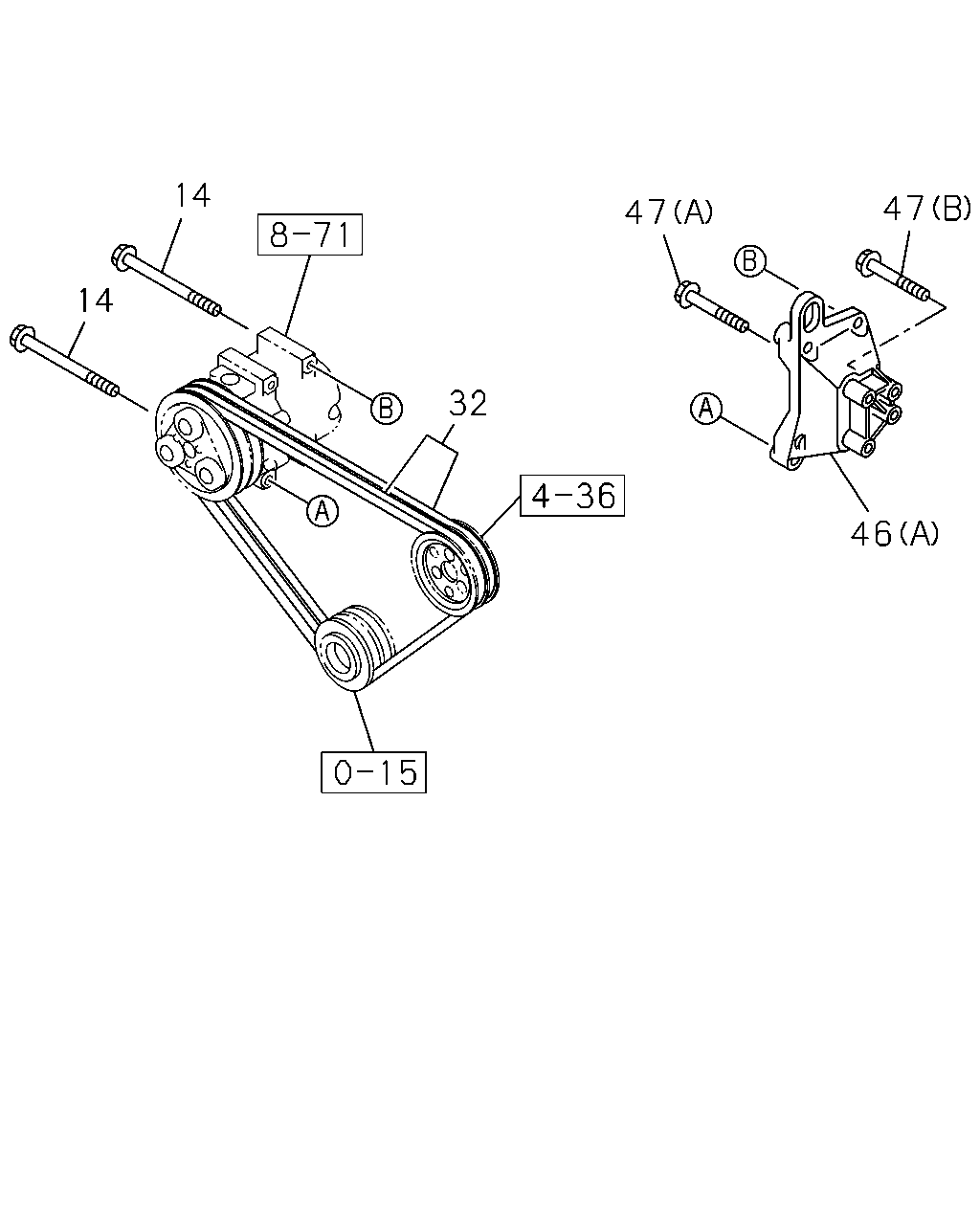

çizim 153291
14 47 47 14 32 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
14 09.171 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60) M10X100 FLANGE 		0-28151-000-0 04 1 0306-0410 ● ● ● ● ●
14 09.171 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60) M10X100 FLANGE 		0-28151-000-0 04 1 0411- ● ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) L=1510 1 SET=2 PIECE BANDO 		8-97942-726-0 01 1 0306-0609 ● ● ● ● ●
32 01.066 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60) MITSUBOSHI 		8-97944-104-0 01 1 0610-0711 ● ● ● ● ● ●
32 01.066 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60) L=1355 MITSUBOSHI 		8-98088-385-0 01 1 0712- ● ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) L=1510 1 SET=2 PIECE(8979427270) MITSUBOSHI 		8-97942-728-0 01 1 0306-0609 ● ● ● ● ●
32 01.066 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60) BANDO 		8-97944-138-0 01 1 0610- ● ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) L=1537 1 SET=2 PIECE BANDO 		8-97942-725-0 01 1 0306-0410 ● ●
32 01.066 BELT; A/C CMPR
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) L=1537 1 SET=2 PIECE BANDO 		8-97942-725-0 01 1 0411-0609 ● ● ●
32 01.066 BELT; A/C CMPR
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) L=1537 1 SET=2 PIECE(8979427240) MITSUBOSHI 		8-97942-729-0 01 1 0306-0410 ● ●
32 01.066 BELT; A/C CMPR
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) L=1537 1 SET=2 PIECE(8979427240) MITSUBOSHI 		8-97942-729-0 01 1 0411-0609 ● ● ●
46 09.171 BRACKET; CMPR
4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97358-563-0 01 1 0306-0609 ● ● ● ● ●
46 09.171 BRACKET; CMPR
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98039-618-0 01 1 0610- ● ● ● ● ● ●
46 09.171 BRACKET; CMPR
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97358-564-0 01 1 0306-0410 ● ●
46 09.171 BRACKET; CMPR
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97358-564-0 01 1 0411-0609 ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 02 1 0306-0609 ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60) 06.216 (D) M8X25 FLANGE 		0-28650-825-0 03 1 0610- ● ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) 00.685 (A) M10X45 FLANGE 		0-28051-045-0 02 1 0306-0609 ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60) (C) M8X35 FLANGE 		8-98049-562-0 01 1 0610- ● ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) M8X45 FLANGE 		0-28050-845-0 02 1 0306-0410 ● ●
47 09.173 BOLT; BRKT TO BODY
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) M8X45 FLANGE 		0-28050-845-0 02 1 0411-0609 ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A) M10X50 FLANGE 		0-28051-050-0 02 1 0306-0410 ● ●
47 09.173 BOLT; BRKT TO BODY
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A) M10X50 FLANGE 		0-28051-050-0 02 1 0411-0609 ● ● ●

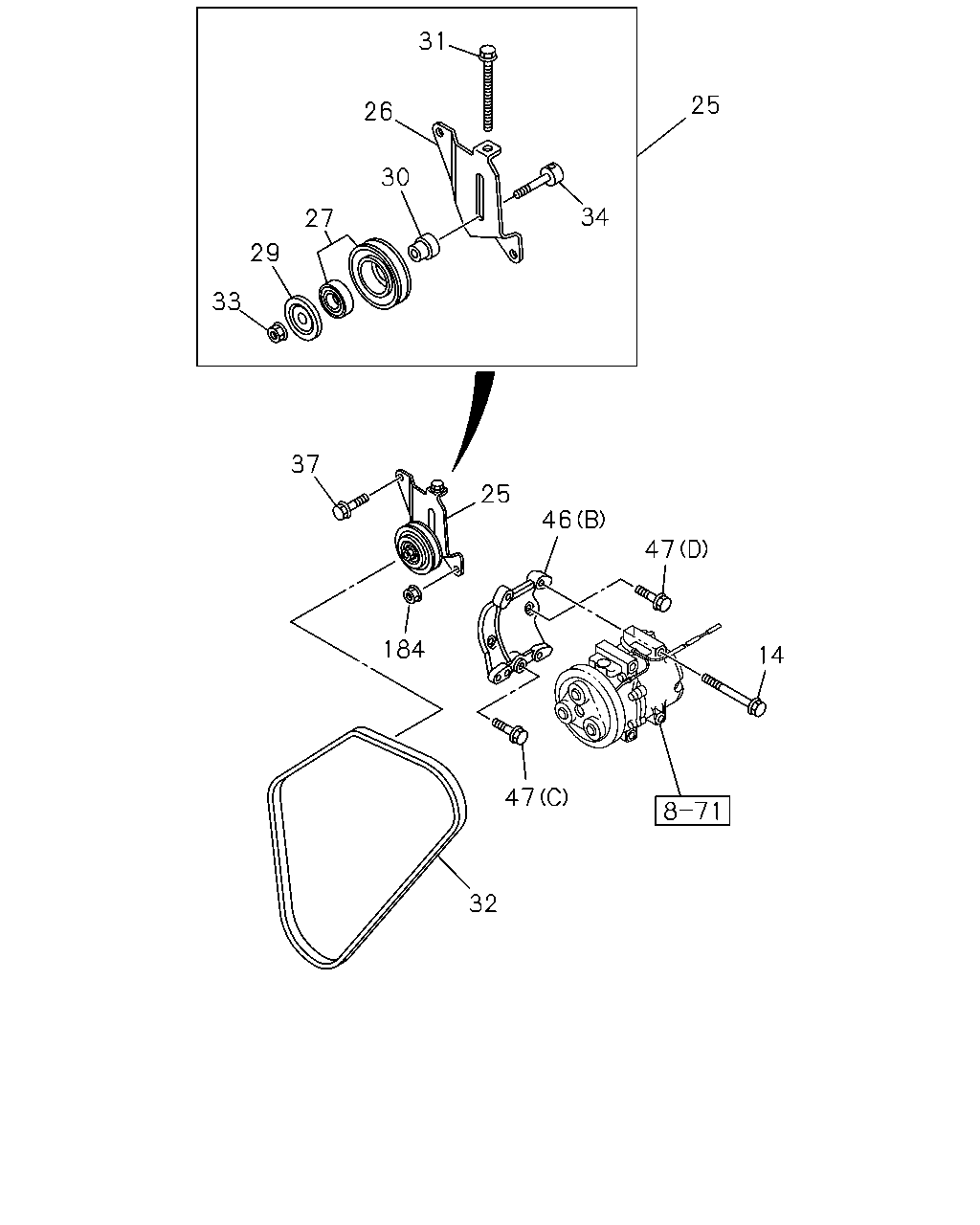

çizim 153475
31 25 26 30 34 27 29 33 37 25 46 47 184 14 47 32
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
14 09.171 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60) M10X100 FLANGE 		0-28151-000-0 04 1 0306-0410 ● ● ● ● ●
14 09.171 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60) M10X100 FLANGE 		0-28151-000-0 04 1 0411- ● ● ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-98051-011-0 01 1 0610- ● ● ● ● ● ●
26 09.180 BRACKET; IDLE PULLEY,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97377-329-0 01 1 0610-0910 ● ● ● ● ● ●
27 09.180 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97377-328-0 01 1 0610-0910 ● ● ● ● ● ●
29 09.181 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-97377-334-1 01 1 0610-0910 ● ● ● ● ● ●
30 09.181 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-97377-333-2 01 1 0610-0910 ● ● ● ● ● ●
31 09.181 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) M8X75 		8-97377-330-2 01 1 0610-0910 ● ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) L=1510 1 SET=2 PIECE BANDO 		8-97942-726-0 01 1 0306-0609 ● ● ● ● ●
32 01.066 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60) MITSUBOSHI 		8-97944-104-0 01 1 0610-0711 ● ● ● ● ● ●
32 01.066 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60) L=1355 MITSUBOSHI 		8-98088-385-0 01 1 0712- ● ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) L=1510 1 SET=2 PIECE(8979427270) MITSUBOSHI 		8-97942-728-0 01 1 0306-0609 ● ● ● ● ●
32 01.066 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60) BANDO 		8-97944-138-0 01 1 0610- ● ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) L=1537 1 SET=2 PIECE BANDO 		8-97942-725-0 01 1 0306-0410 ● ●
32 01.066 BELT; A/C CMPR
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) L=1537 1 SET=2 PIECE BANDO 		8-97942-725-0 01 1 0411-0609 ● ● ●
32 01.066 BELT; A/C CMPR
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) L=1537 1 SET=2 PIECE(8979427240) MITSUBOSHI 		8-97942-729-0 01 1 0306-0410 ● ●
32 01.066 BELT; A/C CMPR
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) L=1537 1 SET=2 PIECE(8979427240) MITSUBOSHI 		8-97942-729-0 01 1 0411-0609 ● ● ●
33 09.181 NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONT(C60) M10 		8-97377-331-0 01 1 0610-0910 ● ● ● ● ● ●
34 09.181 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-97945-181-0 01 1 0610-0910 ● ● ● ● ● ●
37 09.173 BOLT; PULLEY BRKT
AIR CONDITIONER MANUAL CONT(C60) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0610- ● ● ● ● ● ●
46 09.171 BRACKET; CMPR
4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97358-563-0 01 1 0306-0609 ● ● ● ● ●
46 09.171 BRACKET; CMPR
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98039-618-0 01 1 0610- ● ● ● ● ● ●
46 09.171 BRACKET; CMPR
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97358-564-0 01 1 0306-0410 ● ●
46 09.171 BRACKET; CMPR
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97358-564-0 01 1 0411-0609 ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 02 1 0306-0609 ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60) 06.216 (D) M8X25 FLANGE 		0-28650-825-0 03 1 0610- ● ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) 00.685 (A) M10X45 FLANGE 		0-28051-045-0 02 1 0306-0609 ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60) (C) M8X35 FLANGE 		8-98049-562-0 01 1 0610- ● ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) M8X45 FLANGE 		0-28050-845-0 02 1 0306-0410 ● ●
47 09.173 BOLT; BRKT TO BODY
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) M8X45 FLANGE 		0-28050-845-0 02 1 0411-0609 ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A) M10X50 FLANGE 		0-28051-050-0 02 1 0306-0410 ● ●
47 09.173 BOLT; BRKT TO BODY
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A) M10X50 FLANGE 		0-28051-050-0 02 1 0411-0609 ● ● ●
184 09.242 NUT; A/C PIPE BRKT
AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE 		0-91180-208-0 01 1 0610- ● ● ● ● ● ●
