8-40 — HEATER SYSTEM (#74246) — 85 parça

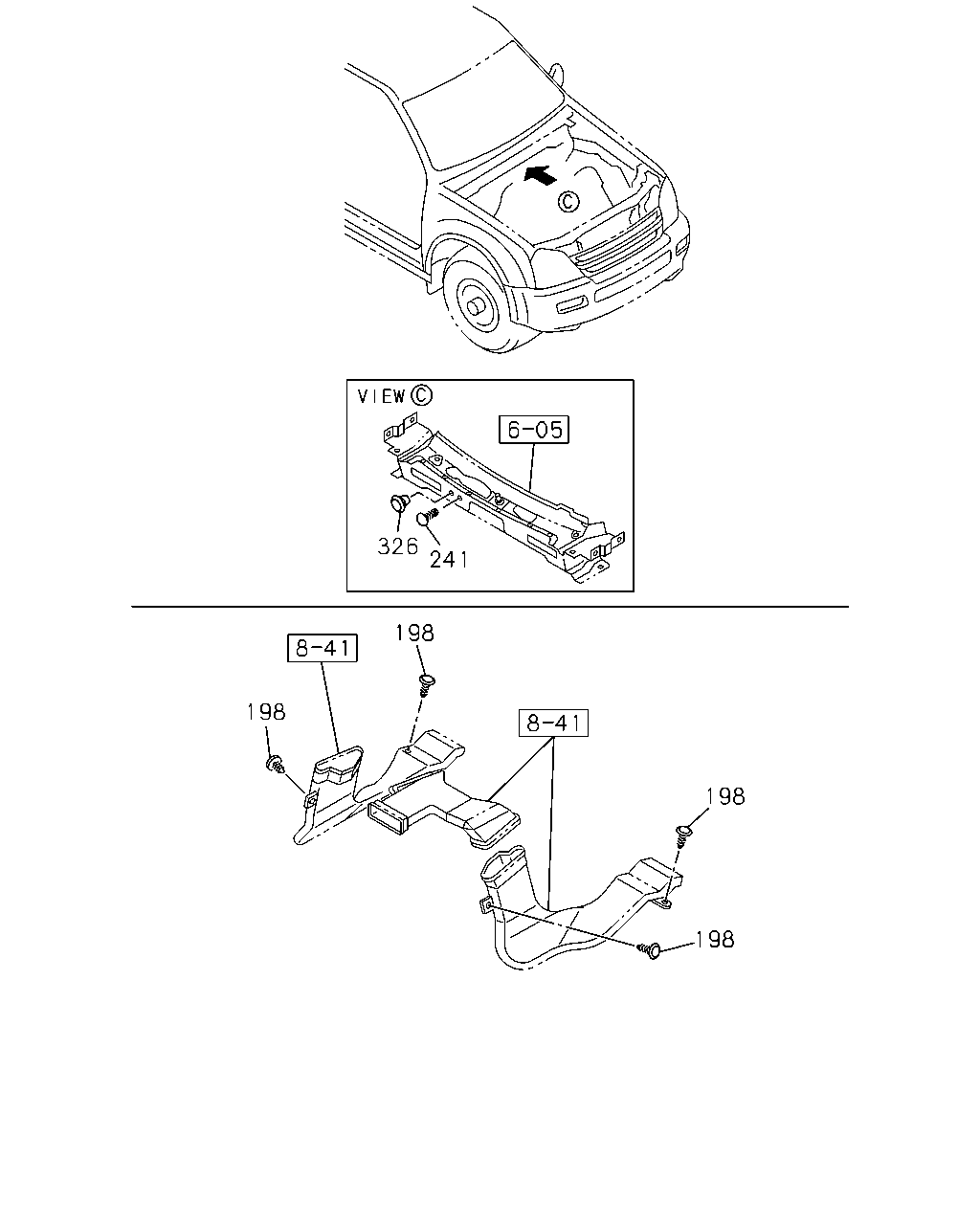

326 241 198 198 198 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
198	09.787 CLIP; DUCT REAR HEATER DUCT<S8C> 16.800 L=19 BLACK	8-94363-776-0	04	1	0306-	●	●
241	16.550 PLUG; RUBBER,EVAP DRAIN HOLE 4JA1-TC ENG(L4Z) 16.067	8-94279-922-0	01	1	0306-0402	●		●	●
241	16.550 PLUG; RUBBER,EVAP DRAIN HOLE 16.067	8-94279-922-0	01	1	0306-0402		●			●
241	16.550 PLUG; RUBBER,EVAP DRAIN HOLE 4JA1-TC ENG(L4Z) 16.067	8-94279-922-0	02	1	0403-0410	●		●	●
241	16.550 PLUG; RUBBER,EVAP DRAIN HOLE 16.067	8-94279-922-0	02	1	0403-0410		●			●
241	16.550 PLUG; RUBBER,EVAP DRAIN HOLE 4JA1-TC ENG(L4Z) 16.067	8-94279-922-0	02	1	0411-0508	●		●	●
241	16.550 PLUG; RUBBER,EVAP DRAIN HOLE 16.067	8-94279-922-0	02	1	0411-0508		●			●
241	16.550 PLUG; RUBBER,EVAP DRAIN HOLE 4JH1-TC ENG(RDM) 16.067	8-94279-922-0	02	1	0411-0508						●
241	16.550 PLUG; RUBBER,EVAP DRAIN HOLE 4JA1-TC ENG(L4Z) 16.067	8-94279-922-0	02	1	0509-0609	●		●	●
241	16.550 PLUG; RUBBER,EVAP DRAIN HOLE 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 16.067	8-94279-922-0	02	1	0509-0609		●			●
241	16.550 PLUG; RUBBER,EVAP DRAIN HOLE 4JH1-TC ENG(RDM) 16.067	8-94279-922-0	02	1	0509-0609						●
241	16.550 PLUG; RUBBER,EVAP DRAIN HOLE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42) 16.067	8-94279-922-0	01	1	0610-	●	●	●	●	●	●
326	08.845 GROMMET; DRAIN HOSE HEATER & DEFROSTER(C42) 16.550 OD=12	9-09956-122-0	02	1	0306-0410	●	●	●	●	●
326	08.845 GROMMET; DRAIN HOSE HEATER & DEFROSTER(C42) 16.550 OD=12	9-09956-122-0	02	1	0411-	●	●	●	●	●	●

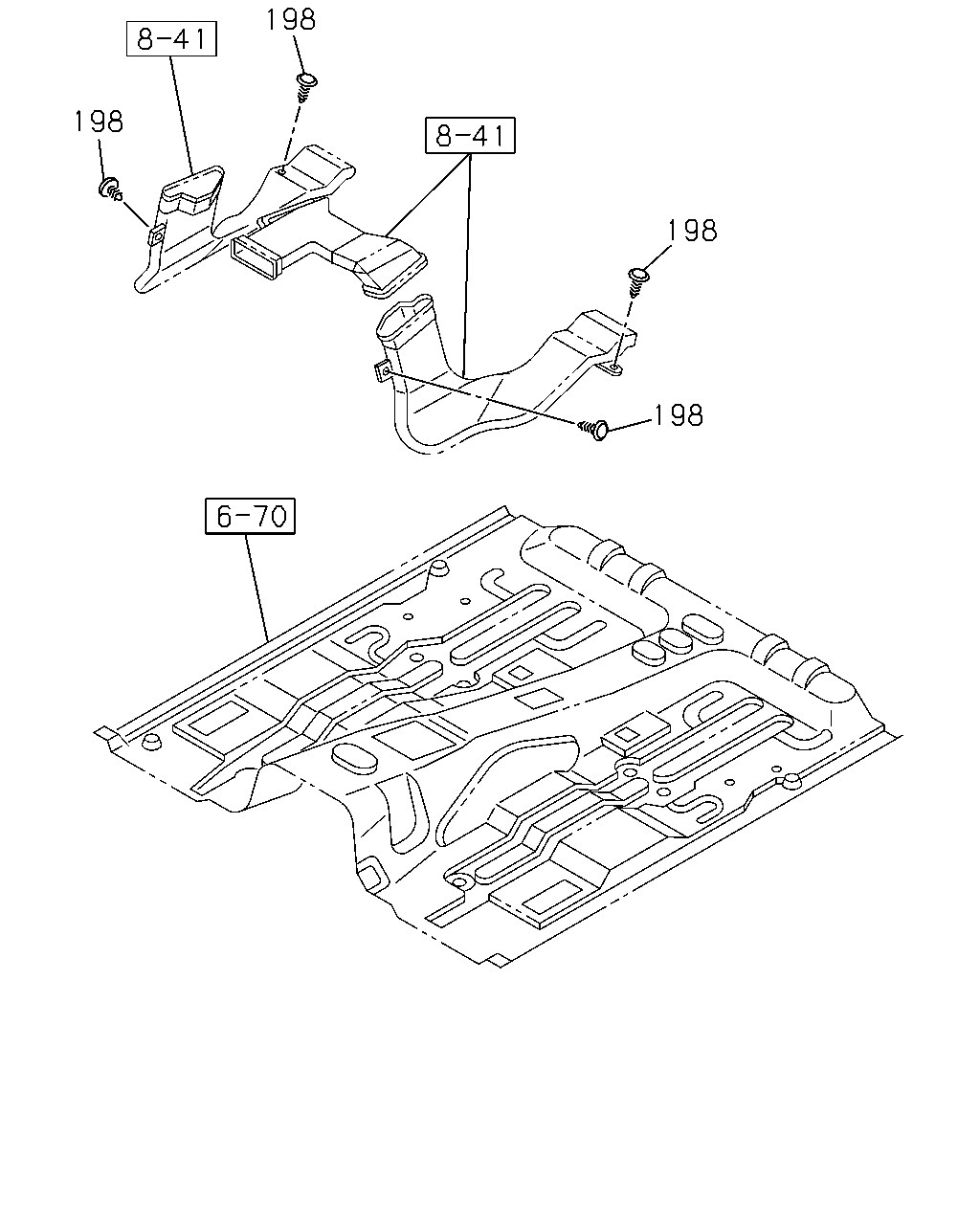

198 198 198 198

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
	198	09.787 CLIP; DUCT REAR HEATER DUCT<S8C> 16.800 L=19 BLACK	8-94363-776-0	04	1	0306-	●	●

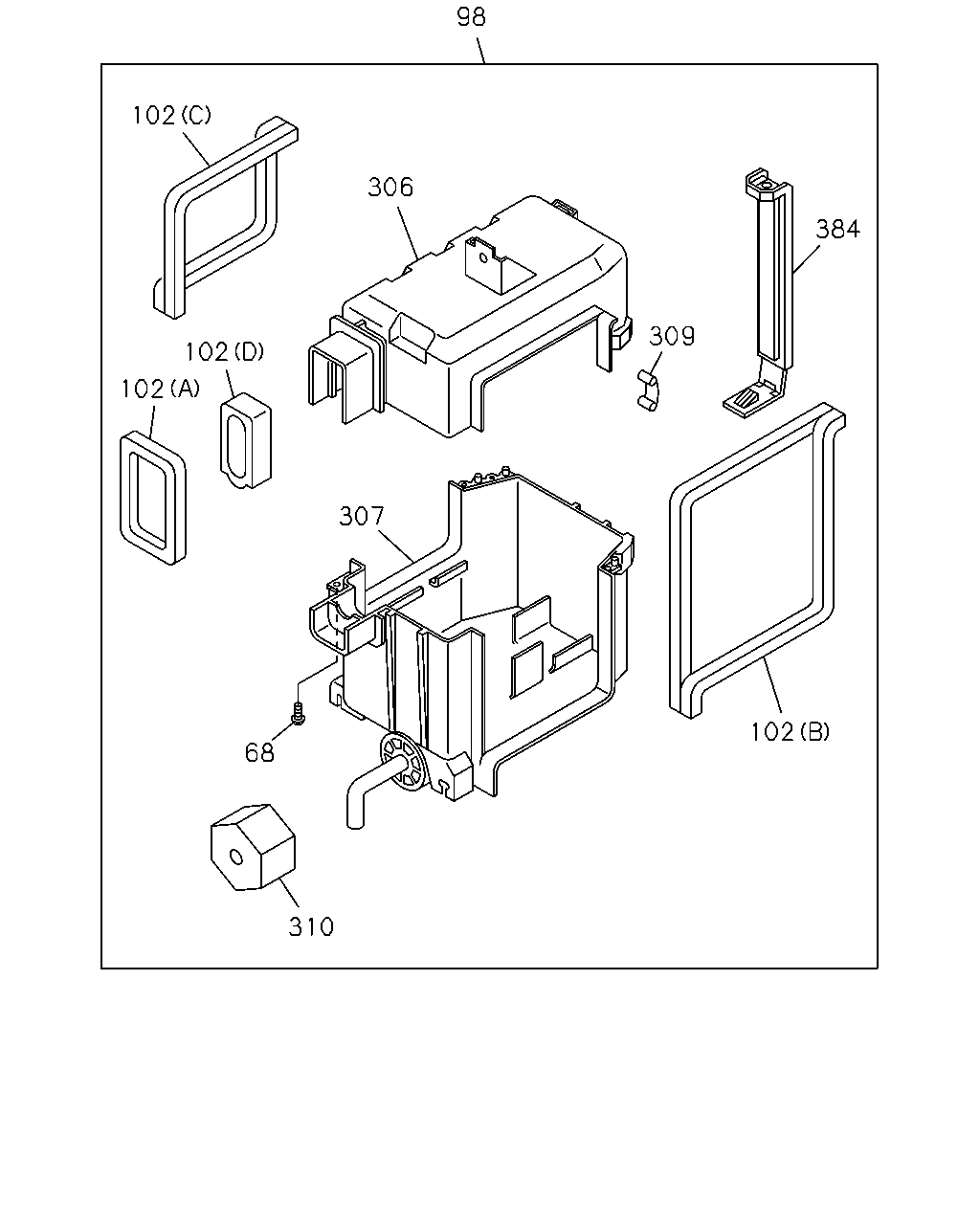

98 102 306 384 309 102 102 307 102 68 310

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
68	09.786 SCREW; HTR DUCT HEATER & DEFROSTER(C42) 09.211	8-97321-165-0	05	1	0306-0404	●	●	●	●	●
68	09.786 SCREW; HTR DUCT HEATER & DEFROSTER(C42) 09.211	8-97321-165-0	04	1	0405-0410	●	●	●	●	●
68	09.786 SCREW; HTR DUCT HEATER & DEFROSTER(C42) 09.211	8-97321-165-0	04	1	0411-0612	●	●	●	●	●	●
68	09.786 SCREW; HTR DUCT HEATER & DEFROSTER(C42)	8-98071-323-0	04	1	0701-0709	●	●	●	●	●	●
68	09.786 SCREW; HTR DUCT HEATER & DEFROSTER(C42) 09.211	8-97321-165-0	04	1	0710-	●	●	●	●	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT HEATER & DEFROSTER(C42)	8-97234-558-0	01	1	0306-0404	●	●	●	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT HEATER & DEFROSTER(C42)	8-97369-333-0	01	1	0405-0410	●	●	●	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT HEATER & DEFROSTER(C42)	8-97369-333-0	01	1	0411-0609	●	●	●	●	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT HEATER & DEFROSTER(C42)	8-98045-326-0	01	1	0610-0612	●	●	●	●	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT HEATER & DEFROSTER(C42)	8-98063-510-0	01	1	0701-0709	●	●	●	●	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT HEATER & DEFROSTER(C42)	8-98086-179-0	01	1	0710-	●	●	●	●	●	●
102	09.262 LINING; HTR DUCT HEATER & DEFROSTER(C42) 09.211 (A)	8-97321-158-1	01	1	0306-0410	●	●	●	●	●
102	09.262 LINING; HTR DUCT HEATER & DEFROSTER(C42) 09.211 (A)	8-97321-158-1	01	1	0411-	●	●	●	●	●	●
102	09.262 LINING; HTR DUCT HEATER & DEFROSTER(C42) 09.211 (B)	8-97321-159-0	01	1	0306-0410	●	●	●	●	●
102	09.262 LINING; HTR DUCT HEATER & DEFROSTER(C42) 09.211 (B)	8-97321-159-0	01	1	0411-	●	●	●	●	●	●
102	09.262 LINING; HTR DUCT HEATER & DEFROSTER(C42) 09.211 (C)	8-97321-160-0	01	1	0306-0410	●	●	●	●	●
102	09.262 LINING; HTR DUCT HEATER & DEFROSTER(C42) 09.211 (C)	8-97321-160-0	01	1	0411-0612	●	●	●	●	●	●
102	09.262 LINING; HTR DUCT HEATER & DEFROSTER(C42) 09.211 (C)	8-98063-684-0	01	1	0701-	●	●	●	●	●	●
102	09.262 LINING; HTR DUCT HEATER & DEFROSTER(C42) (D)	8-97355-831-0	01	1	0306-0410	●	●	●	●	●
102	09.262 LINING; HTR DUCT HEATER & DEFROSTER(C42) (D)	8-97355-831-0	01	1	0411-	●	●	●	●	●	●
306	08.845 CASE; UPR,HTR DUCT HEATER & DEFROSTER(C42) 09.211	8-97365-415-0	01	1	0306-0410	●	●	●	●	●
306	08.845 CASE; UPR,HTR DUCT HEATER & DEFROSTER(C42) 09.211	8-97365-415-0	01	1	0411-0609	●	●	●	●	●	●
306	08.845 CASE; UPR,HTR DUCT HEATER & DEFROSTER(C42)	8-98055-334-0	01	1	0610-	●	●	●	●	●	●
307	08.845 CASE; LWR,HTR DUCT HEATER & DEFROSTER(C42) 09.211	8-97365-416-0	01	1	0306-0404	●	●	●	●	●
307	08.845 CASE; LWR,HTR DUCT HEATER & DEFROSTER(C42)	8-98002-788-0	01	1	0405-0410	●	●	●	●	●
307	08.845 CASE; LWR,HTR DUCT HEATER & DEFROSTER(C42)	8-98002-788-0	01	1	0411-0609	●	●	●	●	●	●
307	08.845 CASE; LWR,HTR DUCT HEATER & DEFROSTER(C42)	8-98055-338-0	01	1	0610-	●	●	●	●	●	●
309	09.262 CLIP; CASE,HTR DUCT HEATER & DEFROSTER(C42) 09.211	8-97321-166-0	01	1	0306-0410	●	●	●	●	●
309	09.262 CLIP; CASE,HTR DUCT HEATER & DEFROSTER(C42) 09.211	8-97321-166-0	01	1	0411-0709	●	●	●	●	●	●
309	09.262 CLIP; CASE,HTR DUCT HEATER & DEFROSTER(C42)	8-98088-089-0	01	1	0710-	●	●	●	●	●	●
310	08.845 GROMMET; HTR DUCT HEATER & DEFROSTER(C42) 09.211	8-97321-157-0	01	1	0306-0410	●	●	●	●	●
310	08.845 GROMMET; HTR DUCT HEATER & DEFROSTER(C42) 09.211	8-97321-157-0	01	1	0411-	●	●	●	●	●	●
384	08.845 COVER; DUCT HEATER & DEFROSTER(C42) 09.211	8-97321-156-0	01	1	0306-0410	●	●	●	●	●
384	08.845 COVER; DUCT HEATER & DEFROSTER(C42) 09.211	8-97321-156-0	01	1	0411-0609	●	●	●	●	●	●

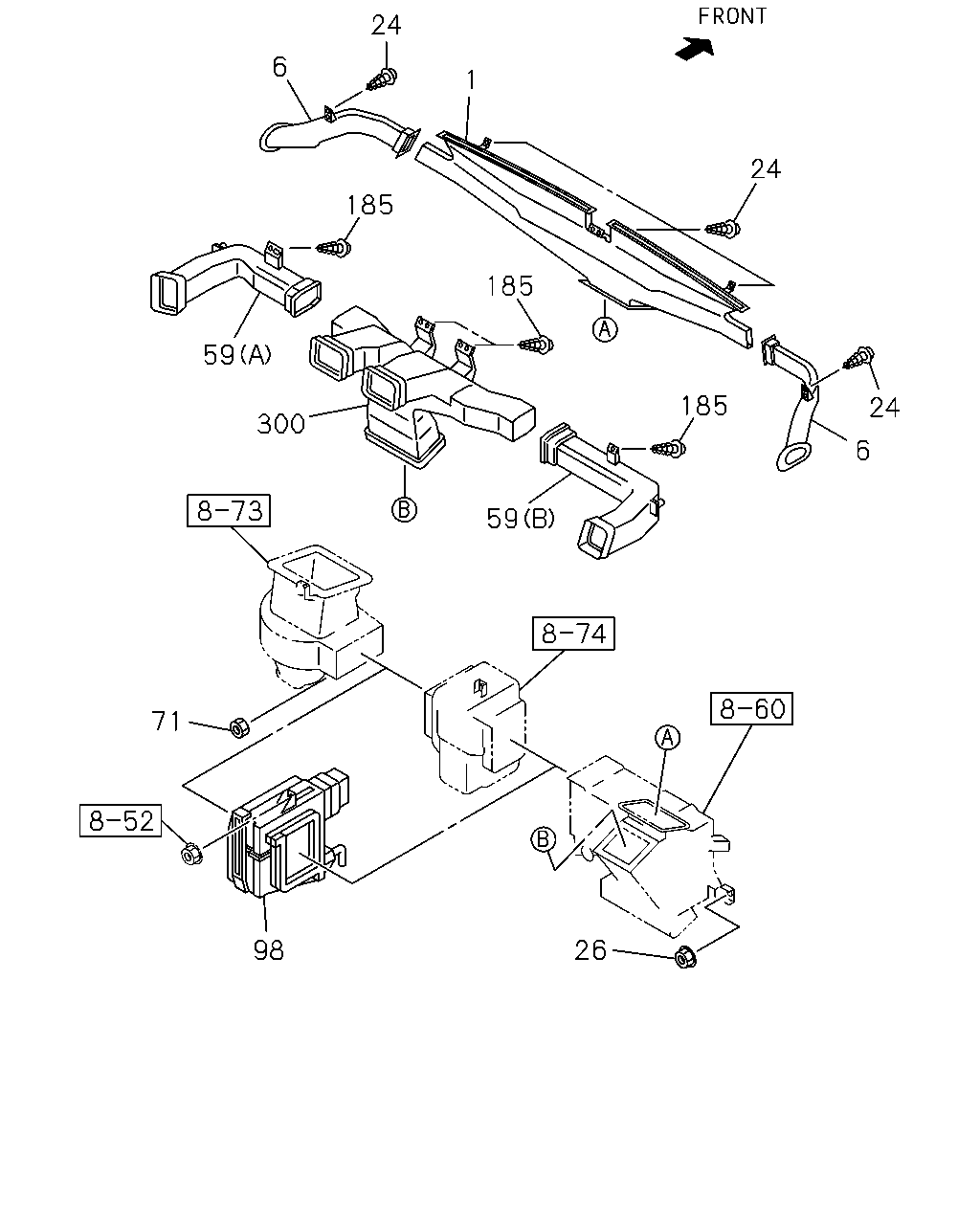

24 6 1 24 185 185 59 185 24 300 6 59 71 26 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	09.779 NOZZLE; DEFROSTER,INST PNL	8-97316-590-1	01	1	0306-0410	●	●	●	●	●
1	09.779 NOZZLE; DEFROSTER,INST PNL	8-97316-590-1	01	1	0411-0709	●	●	●	●	●	●
1	09.779 NOZZLE; DEFROSTER,INST PNL	8-97316-590-1	01	1	0710-	●	●	●	●	●	●
6	09.779 DUCT; SIDE DEFROSTER	8-97235-878-0	01	1	0306-0410	●	●	●	●	●
6	09.779 DUCT; SIDE DEFROSTER	8-97235-878-0	01	1	0411-	●	●	●	●	●	●
6	09.779 DUCT; SIDE DEFROSTER	8-97235-874-0	01	1	0306-0410	●	●	●	●	●
6	09.779 DUCT; SIDE DEFROSTER	8-97235-874-0	01	1	0411-	●	●	●	●	●	●
24	03.890 SCREW; NOZZLE TO INST PNL 16.085 M5X16 TAPPING	9-09829-323-1	05	1	0306-0410	●	●	●	●	●
24	03.890 SCREW; NOZZLE TO INST PNL 16.085 M5X16 TAPPING	9-09829-323-1	05	1	0411-0612	●	●	●	●	●	●
24	03.890 SCREW; NOZZLE TO INST PNL 08.083 M5X16 TAPPING	8-98061-685-0	05	1	0701-1003	●	●	●	●	●	●
24	03.890 SCREW; NOZZLE TO INST PNL 08.083 M5X16 TAPPING	8-98167-449-0	05	1	1004-	●	●	●	●	●	●
26	08.845 NUT; HTR 07.833 M6 FLANGE	8-97063-399-0	04	1	0306-0410	●	●	●	●	●
26	08.845 NUT; HTR 07.833 M6 FLANGE	8-97063-399-0	04	1	0411-0609	●	●	●	●	●	●
26	08.845 NUT; HTR 08.915 M6 FLANGE	8-98055-704-0	04	1	0610-	●	●	●	●	●	●
59	09.786 DUCT; VENT,ASSIST SIDE (A)	8-97316-594-0	01	1	0306-0410	●	●	●	●	●
59	09.786 DUCT; VENT,ASSIST SIDE (A)	8-97316-594-0	01	1	0411-0609	●	●	●	●	●	●
59	09.786 DUCT; VENT,ASSIST SIDE (A)	8-98007-085-0	01	1	0610-	●	●	●	●	●	●
59	09.786 DUCT; VENT,ASSIST SIDE (B)	8-97316-595-0	01	1	0306-0410	●	●	●	●	●
59	09.786 DUCT; VENT,ASSIST SIDE (B)	8-97316-595-0	01	1	0411-0609	●	●	●	●	●	●
59	09.786 DUCT; VENT,ASSIST SIDE (B)	8-98007-086-0	01	1	0610-	●	●	●	●	●	●
71	08.845 NUT; BLOWER UNIT TO DASH 07.833 M6 FLANGE	8-97063-399-0	03	1	0306-0410	●	●	●	●	●
71	08.845 NUT; BLOWER UNIT TO DASH 07.833 M6 FLANGE	8-97063-399-0	03	1	0411-0609	●	●	●	●	●	●
71	08.845 NUT; BLOWER UNIT TO DASH 08.915 M6 FLANGE	8-98055-704-0	03	1	0610-	●	●	●	●	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT HEATER & DEFROSTER(C42)	8-97234-558-0	01	1	0306-0404	●	●	●	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT HEATER & DEFROSTER(C42)	8-97369-333-0	01	1	0405-0410	●	●	●	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT HEATER & DEFROSTER(C42)	8-97369-333-0	01	1	0411-0609	●	●	●	●	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT HEATER & DEFROSTER(C42)	8-98045-326-0	01	1	0610-0612	●	●	●	●	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT HEATER & DEFROSTER(C42)	8-98063-510-0	01	1	0701-0709	●	●	●	●	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT HEATER & DEFROSTER(C42)	8-98086-179-0	01	1	0710-	●	●	●	●	●	●
185	09.262 SCREW; VENT DUCT 16.085 M5X16 TAPPING	9-09829-323-1	04	1	0306-0410	●	●	●	●	●
185	09.262 SCREW; VENT DUCT 16.085 M5X16 TAPPING	9-09829-323-1	04	1	0411-0612	●	●	●	●	●	●
185	09.262 SCREW; VENT DUCT 08.083 M5X16 TAPPING	8-98061-685-0	04	1	0701-1003	●	●	●	●	●	●
185	09.262 SCREW; VENT DUCT 08.083 M5X16 TAPPING	8-98167-449-0	04	1	1004-	●	●	●	●	●	●
300	09.264 DUCT; VENT,CENTER	8-97357-828-0	01	1	0306-0410	●	●	●	●	●
300	09.264 DUCT; VENT,CENTER	8-97357-828-0	01	1	0411-0609	●	●	●	●	●	●
300	09.264 DUCT; VENT,CENTER	8-98007-075-0	01	1	0610-	●	●	●	●	●	●
