◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50966 - TFR/TFS(EUROPE)-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#74245) — 105 parça

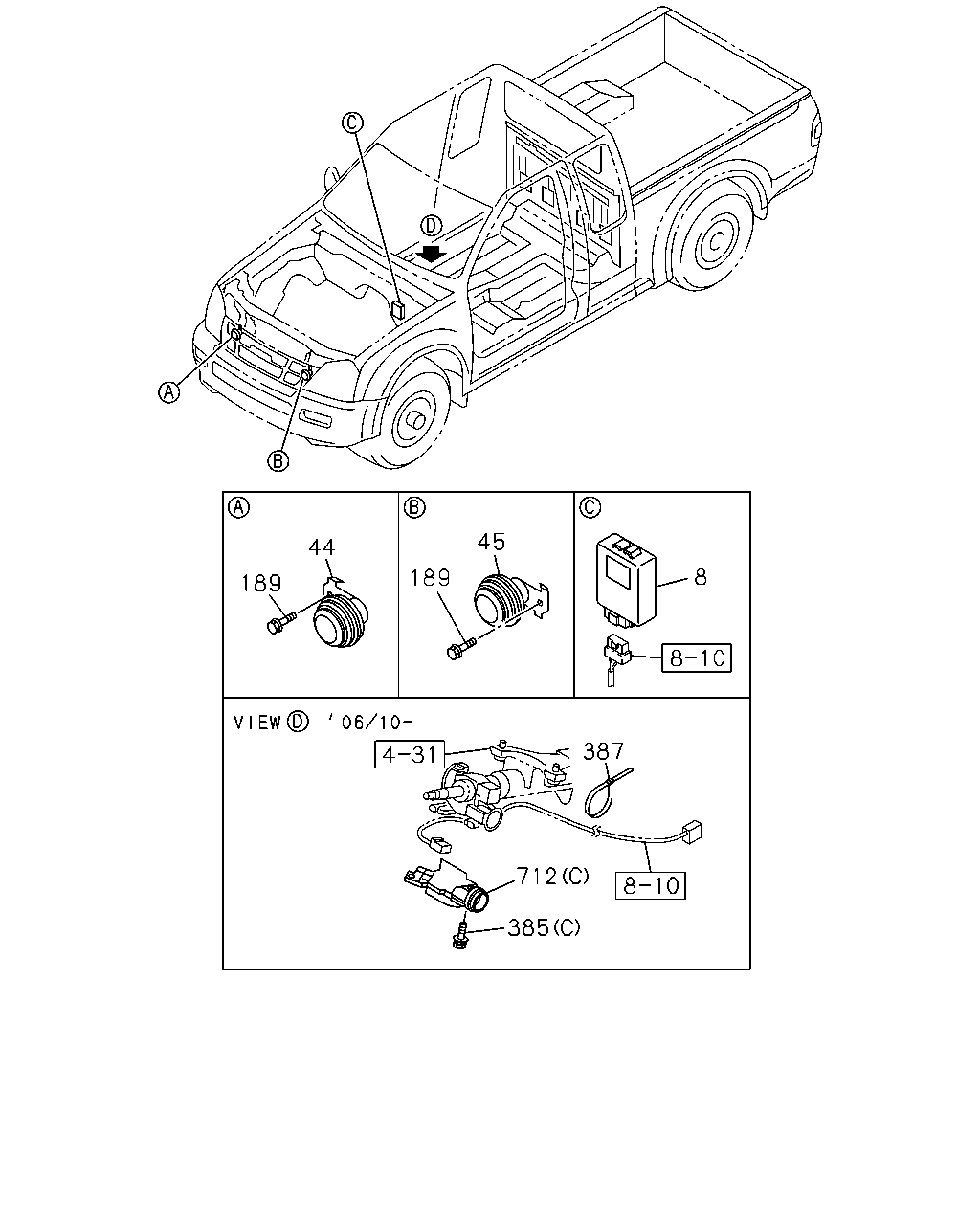

çizim 153270
45 44 8 189 189 387 712 385
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 16.067 RELAY; WIPER
12V 		8-97302-100-0 01 1 0306-0410 ● ● ● ● ●
8 16.067 RELAY; WIPER
12V 		8-97302-100-0 01 1 0411-0609 ● ● ● ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 12V 		8-97302-100-0 01 1 0610-0709 ● ● ● ● ●
8 16.067 RELAY; WIPER
12V 		8-97302-100-0 01 1 0610-0709 ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 12V 		8-97302-100-0 01 1 0710- ● ● ● ●
8 16.067 RELAY; WIPER
12V 		8-97302-100-0 01 1 0710- ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> 		8-97237-046-0 01 1 0306-0410 ● ● ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> 		8-97237-046-0 01 1 0411- ● ● ● ● ● ●
45 02.810 HORN; LOW NOTE 8-97237-047-0 01 1 0306-0410 ● ● ● ● ●
45 02.810 HORN; LOW NOTE 8-97237-047-0 01 1 0411- ● ● ● ● ● ●
189 02.812 BOLT; HORN
DUAL TONE HORN<U05> 02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0306-0410 ● ● ● ● ●
189 02.812 BOLT; HORN
DUAL TONE HORN<U05> 02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0411- ● ● ● ● ● ●
189 02.812 BOLT; HORN
EXC. DUAL TONE HORN<U05> 02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0306-0410 ● ● ● ● ●
189 02.812 BOLT; HORN
EXC. DUAL TONE HORN<U05> 02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0411- ● ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 0306-0410 ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 0411-0609 ● ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
02.819 (C) M4X12 W/LK&PL WASHER 		9-03920-412-0 01 1 0306-0410 ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
02.819 (C) M4X12 W/LK&PL WASHER 		9-03920-412-0 01 1 0411-0508 ● ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.819 (C) M4X12 W/LK&PL WASHER 		9-03920-412-0 01 1 0509-0606 ● ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.510 (C) M4X12 W/LK&PL WASHER 		0-36230-412-0 01 1 0607-0609 ● ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.510 (C) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0610- ● ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 0306-0410 ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 0411-0612 ● ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
08.083 (B) M5X16 TAPPING 		8-98061-685-0 02 1 0701-1004 ● ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
08.083 (B) M5X16 TAPPING 		8-98167-449-0 02 1 1005- ● ● ● ● ● ●
387 02.363 CLIP; BAND
L=140 		8-97920-656-0 01 1 0306-0410 ● ● ● ● ●
387 02.363 CLIP; BAND
L=140 		8-97920-656-0 01 1 0411- ● ● ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
16.263 (A) 		8-97234-671-0 01 1 0306-0408 ● ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
(A) 		8-97377-324-0 01 1 0409-0410 ● ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
(A) 		8-97377-324-0 01 1 0411-0508 ● ● ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (A) 		8-97377-324-0 01 1 0509-0609 ● ● ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
06.500 (B) 		8-97251-755-0 01 1 0306-0410 ● ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
06.500 (B) 		8-97251-755-0 01 1 0411-0508 ● ● ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 06.500 (B) 		8-97251-755-0 01 1 0509-0609 ● ● ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (C) 		8-98008-412-0 01 1 0610- ● ● ● ● ● ●

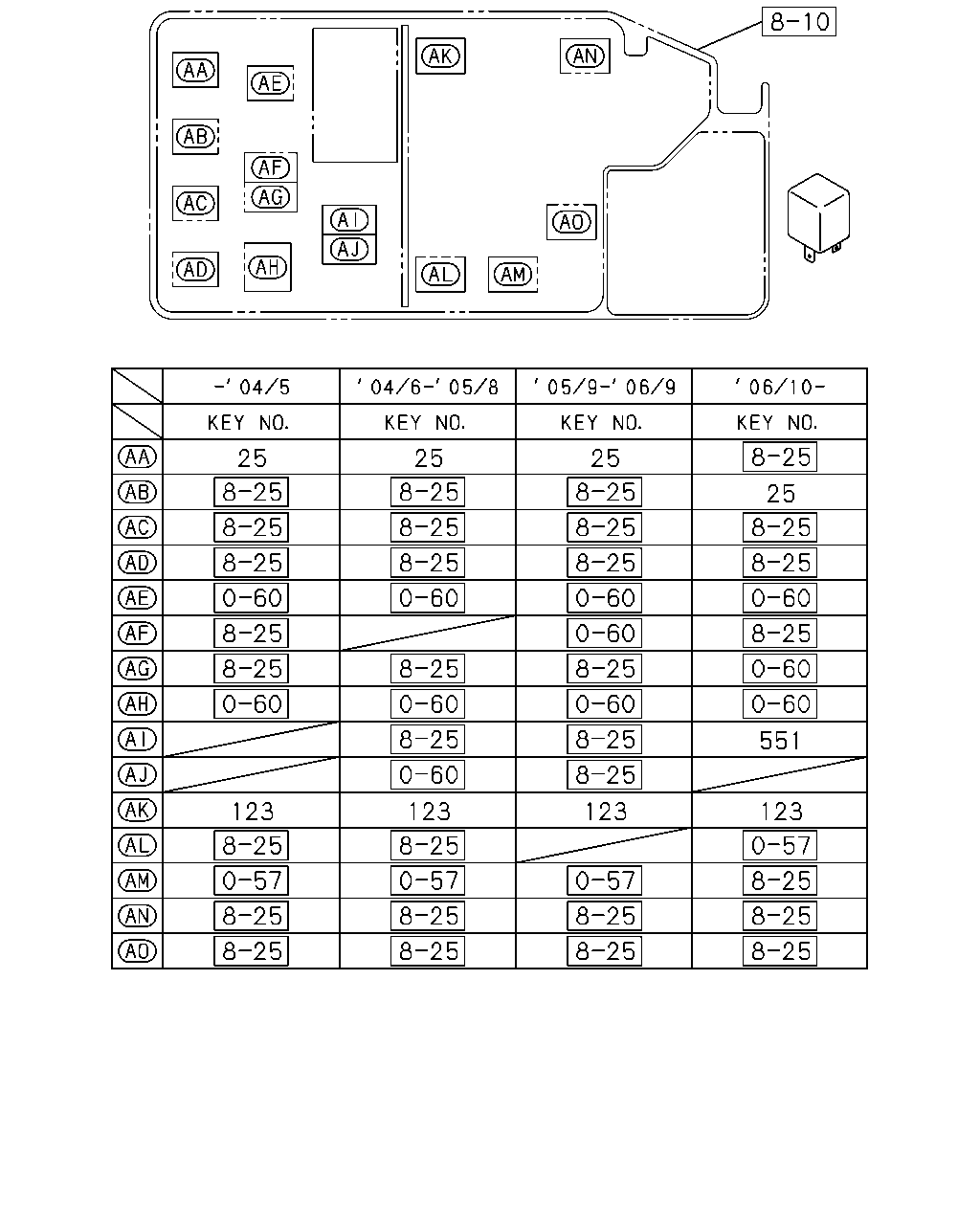

çizim 153272
25 25 25 25 551 123 123 123 123
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
25 02.100 RELAY; TAIL LAMP
02.485 12V YAZAKI 		8-97309-292-0 01 1 0306-0410 ● ● ● ● ●
25 02.100 RELAY; TAIL LAMP
02.485 12V YAZAKI 		8-97309-292-0 01 1 0411-0609 ● ● ● ● ● ●
25 02.100 RELAY; TAIL LAMP
02.575 12V OMRON 		8-98005-407-0 01 1 0610- ● ● ● ● ● ●
25 02.100 RELAY; TAIL LAMP
09.778 12V YAZAKI 		8-97309-293-0 01 1 0710- ● ● ● ● ● ●
123 02.270 RELAY; HTR
03.670 12V YAZAKI 		8-98146-834-0 01 1 0911- ● ● ● ● ● ●
123 02.270 RELAY; HTR
02.485 12V YAZAKI 		8-97309-294-0 01 1 0306-0410 ● ● ● ● ●
123 02.270 RELAY; HTR
02.485 12V YAZAKI 		8-97309-294-0 01 1 0411-0609 ● ● ● ● ● ●
123 02.270 RELAY; HTR
02.510 12V OMRON 		8-97125-441-1 01 1 0509-0910 ● ● ● ● ● ●
123 02.270 RELAY; HTR
02.485 12V YAZAKI 		8-97309-294-0 01 1 0710-0910 ● ● ● ● ● ●
551 02.510 RELAY; TRANSMISSION
02.575 12V OMRON 		8-98005-407-0 01 1 0610- ● ● ● ● ● ●
551 02.510 RELAY; TRANSMISSION
09.778 12V YAZAKI 		8-97309-293-0 01 1 0710- ● ● ● ● ● ●

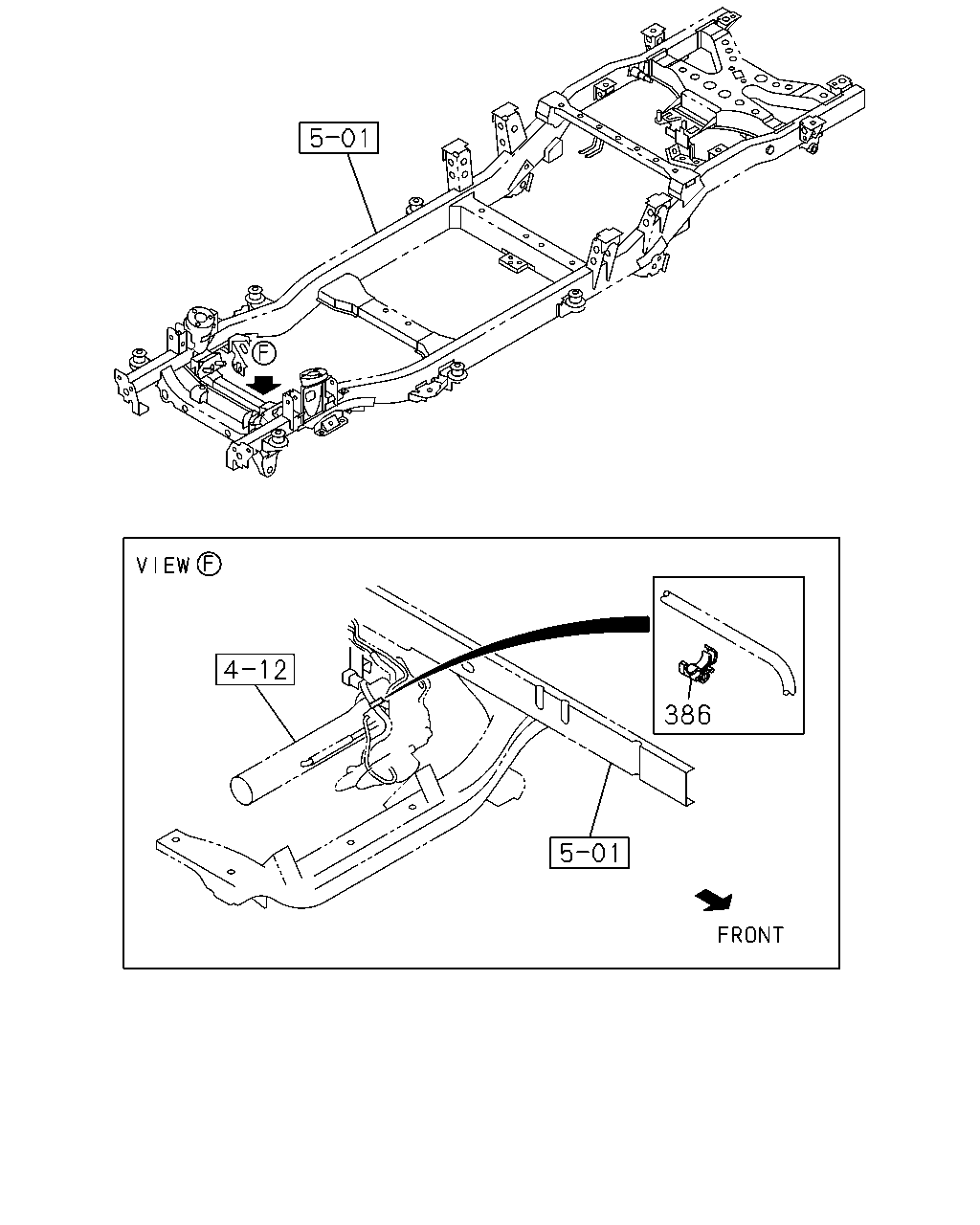

çizim 153286
386
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
386 02.559 CLIP; HARNESS
SHIFT ON THE FLY<NR4> ID=7-10 		8-94472-578-0 01 1 0306-0410 ● ●
386 02.559 CLIP; HARNESS
SHIFT ON THE FLY<NR4> ID=7-10 		8-94472-578-0 01 1 0411- ● ● ●

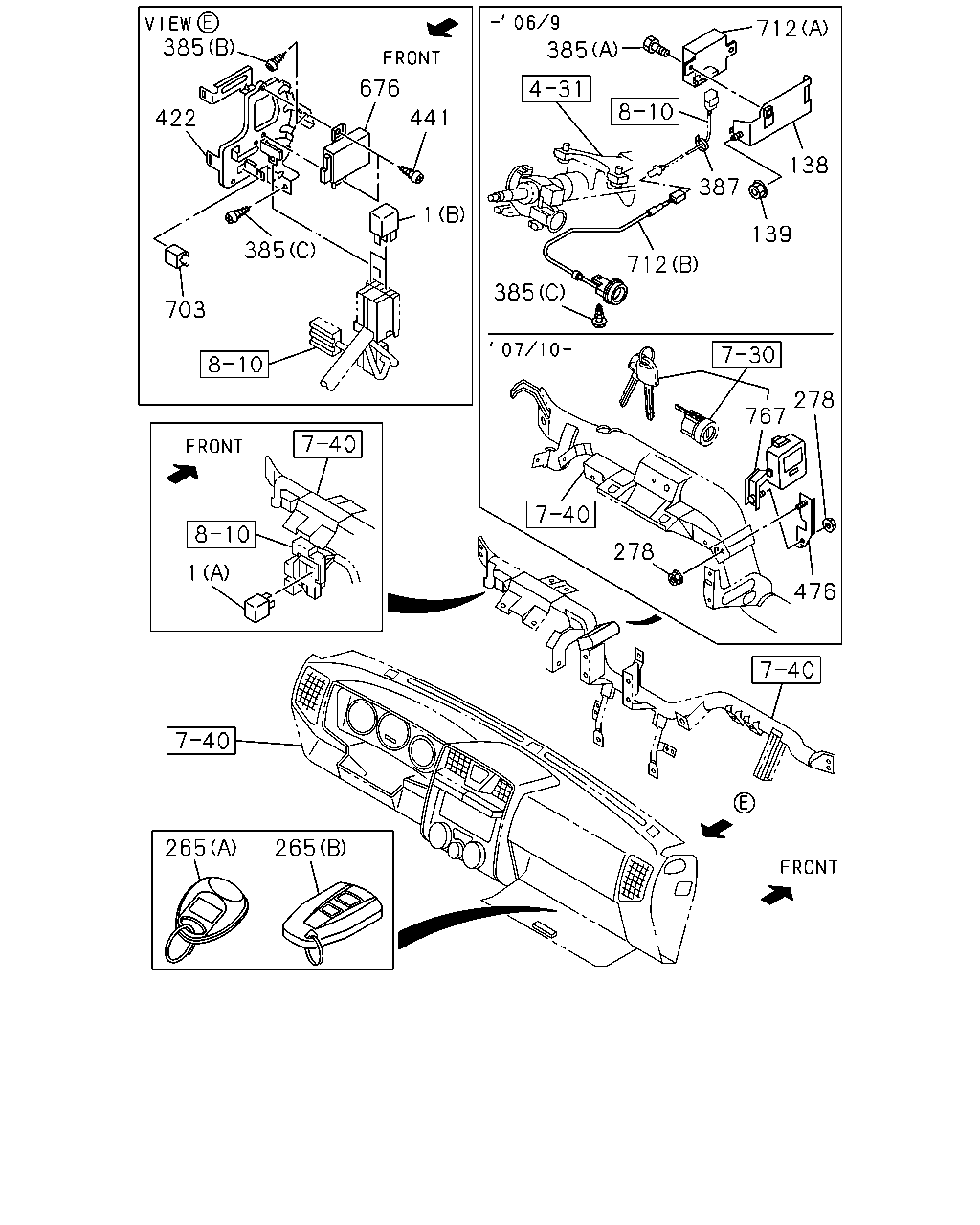

çizim 153290
385 712 385 676 422 441 138 387 1 139 385 712 385 703 278 767 278 1 476 265 265
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.575 UNIT; FLASHER
(A) 12V DENSO 		8-97912-779-0 01 1 0306-0410 ● ● ● ● ●
1 02.575 UNIT; FLASHER
(A) 12V DENSO 		8-97912-779-0 01 1 0411-0510 ● ● ● ● ● ●
1 02.575 UNIT; FLASHER
(A) 12V DENSO 		8-98032-675-0 01 1 0511-1404 ● ● ● ● ● ●
1 02.575 UNIT; FLASHER
(A) DENSO 		8-97202-225-1 01 1 1405- ● ● ● ● ● ●
1 02.575 UNIT; FLASHER
REMOTE CONT DOOR LOCK<AP5> 09.778 (B) 12V YAZAKI 		8-97309-293-0 02 1 0306-0410 ● ● ● ● ●
1 02.575 UNIT; FLASHER
REMOTE CONT DOOR LOCK<AP5> 09.778 (B) 12V YAZAKI 		8-97309-293-0 02 1 0411-0502 ● ● ● ● ● ●
1 02.575 UNIT; FLASHER
REMOTE CONT DOOR LOCK<AP5> (B) 12V OMRON 		8-98005-407-0 02 1 0503-0508 ● ● ● ● ● ●
138 02.810 BRACKET; ANTI THEFT CONT 8-97357-768-0 01 1 0306-0410 ● ● ● ● ●
138 02.810 BRACKET; ANTI THEFT CONT 8-97357-768-0 01 1 0411-0609 ● ● ● ● ● ●
139 02.810 NUT; ANTI THEFT BRKT
01.062 M6 FLANGE 		0-91180-106-0 01 1 0306-0410 ● ● ● ● ●
139 02.810 NUT; ANTI THEFT BRKT
01.062 M6 FLANGE 		0-91180-106-0 01 1 0411-0609 ● ● ● ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
REMOTE CONT DOOR LOCK<AP5> (A) 		8-90508-961-2 01 1 0306-0410 ● ● ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
REMOTE CONT DOOR LOCK<AP5> (A) 		8-90508-961-2 01 1 0411-0412 ● ● ● ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
REMOTE CONT DOOR LOCK<AP5> (A) 		8-97378-442-0 02 1 0501-0508 ● ● ● ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
REMOTE CONT DOOR LOCK<AP5> (B) 		8-98000-035-0 02 1 0509-0709 ● ● ● ● ● ●
278 03.415 NUT; CONT UNIT
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK<AP5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0710- ● ● ● ●
278 03.415 NUT; CONT UNIT
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK<AP5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0710- ● ● ● ●
385 03.670 BOLT; CONT UNIT
03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 0306-0410 ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 0411-0609 ● ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
02.819 (C) M4X12 W/LK&PL WASHER 		9-03920-412-0 01 1 0306-0410 ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
02.819 (C) M4X12 W/LK&PL WASHER 		9-03920-412-0 01 1 0411-0508 ● ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.819 (C) M4X12 W/LK&PL WASHER 		9-03920-412-0 01 1 0509-0606 ● ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.510 (C) M4X12 W/LK&PL WASHER 		0-36230-412-0 01 1 0607-0609 ● ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.510 (C) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0610- ● ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 0306-0410 ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 0411-0612 ● ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
08.083 (B) M5X16 TAPPING 		8-98061-685-0 02 1 0701-1004 ● ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
08.083 (B) M5X16 TAPPING 		8-98167-449-0 02 1 1005- ● ● ● ● ● ●
387 02.363 CLIP; BAND
L=140 		8-97920-656-0 01 1 0306-0410 ● ● ● ● ●
387 02.363 CLIP; BAND
L=140 		8-97920-656-0 01 1 0411- ● ● ● ● ● ●
422 03.415 BRACKET; CONT UNIT 8-97318-954-1 01 1 0306-0404 ● ● ● ● ●
422 03.415 BRACKET; CONT UNIT 8-97381-411-0 01 1 0405-0410 ● ● ● ● ●
422 03.415 BRACKET; CONT UNIT 8-97381-411-0 01 1 0411- ● ● ● ● ● ●
441 02.575 SCREW; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 0306-0410 ● ● ● ● ●
441 02.575 SCREW; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 0411-0702 ● ● ● ● ● ●
441 02.575 SCREW; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> 08.083 M5X16 TAPPING 		8-98061-685-0 02 1 0703-0709 ● ● ● ● ● ●
441 02.575 SCREW; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> 08.083 M5X16 TAPPING 		8-98061-685-0 02 1 0710-1003 ● ● ● ●
441 02.575 SCREW; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> 08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1004- ● ● ● ●
476 03.407 SPACER
4JK1-TCX ENG(LR0) REMOTE CONT DOOR LOCK<AP5> 		8-98097-697-0 01 1 0710- ● ●
476 03.407 SPACER
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK<AP5> 		8-98097-697-0 01 1 0710- ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<AP5> 		8-97361-705-0 01 1 0306-0410 ● ● ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<AP5> 		8-97361-705-0 01 1 0411-0508 ● ● ● ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<AP5> 		8-98000-034-0 01 1 0509-0709 ● ● ● ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
4JK1-TCX ENG(LR0) REMOTE CONT DOOR LOCK<AP5> 		8-98053-167-0 01 1 0710- ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK<AP5> 		8-98053-167-0 01 1 0710- ● ●
703 09.778 TIMER; DEFOGGER
REAR DEFOGGER<C49> 12V 		8-97301-600-0 01 1 0306- ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
16.263 (A) 		8-97234-671-0 01 1 0306-0408 ● ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
(A) 		8-97377-324-0 01 1 0409-0410 ● ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
(A) 		8-97377-324-0 01 1 0411-0508 ● ● ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (A) 		8-97377-324-0 01 1 0509-0609 ● ● ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
06.500 (B) 		8-97251-755-0 01 1 0306-0410 ● ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
06.500 (B) 		8-97251-755-0 01 1 0411-0508 ● ● ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 06.500 (B) 		8-97251-755-0 01 1 0509-0609 ● ● ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (C) 		8-98008-412-0 01 1 0610- ● ● ● ● ● ●
767 07.450 RECEIVER ASM; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> 		8-98053-170-2 01 1 0710-0912 ● ● ● ●
767 07.450 RECEIVER ASM; KEYLESS ENTRY
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> EXC. LOCK END GATE<8CW> 		8-98053-170-2 01 1 1001-1004 ● ● ● ●
767 07.450 RECEIVER ASM; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> 		8-98053-170-2 01 1 1005- ● ● ● ●
