◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50966 - TFR/TFS(EUROPE)-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM ▶
8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#74244) — 41 parça

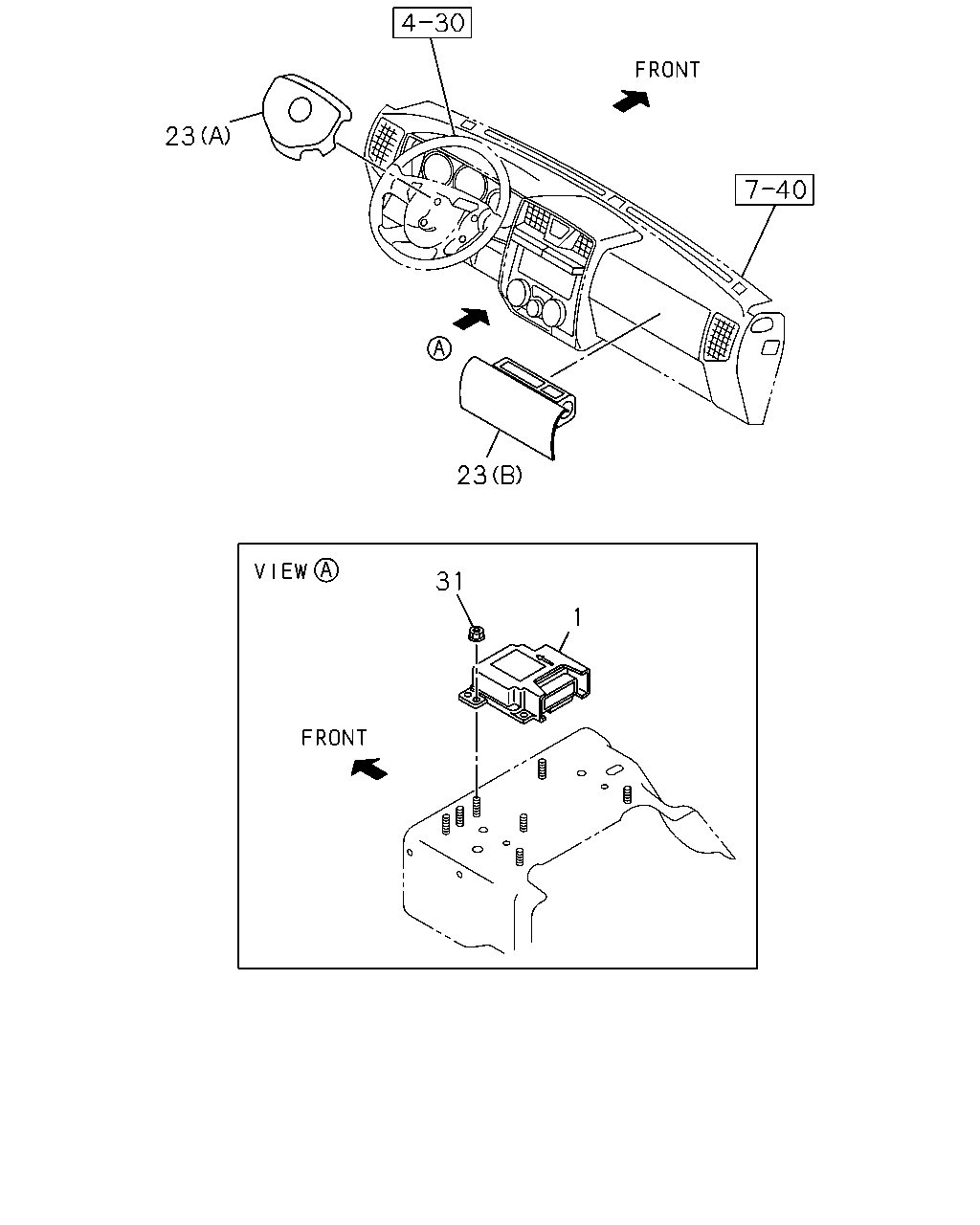

çizim 153257
23 23 31 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER(AK5) 		8-97360-409-0 01 1 0306-0410 ● ● ● ● ●
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER(AK5) 		8-97360-409-0 01 1 0411-0510 ● ● ● ● ● ●
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER(AK5) 		8-98032-628-0 01 1 0511-0609 ● ● ● ● ● ●
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER(AK5) 		8-98039-725-0 01 1 0610-0905 ● ● ● ● ● ●
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER(AK5) 		8-98122-211-0 01 1 0906- ● ● ● ● ● ●
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER(AJ3) 		8-97360-408-0 01 1 0306-0410 ● ● ● ● ●
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER(AJ3) 		8-97360-408-0 01 1 0411-0510 ● ● ● ● ● ●
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER(AJ3) 		8-98032-627-0 01 1 0511-0609 ● ● ● ● ● ●
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER(AJ3) 		8-98039-726-0 01 1 0610- ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
CHEVROLET BRAND<RWE> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY 		8-97408-900-0 01 1 0810-0904 ●
23 02.559 AIR BAG UNIT
CHEVROLET BRAND<RWE> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY 		8-97417-276-0 01 1 0905-0906 ●
23 02.559 AIR BAG UNIT
CHEVROLET BRAND<RWE> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY 		8-97418-296-0 01 1 0907-1007 ●
23 02.559 AIR BAG UNIT
CHEVROLET BRAND<RWE> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY 		8-97418-296-0 01 1 1008- ● ●
23 02.559 AIR BAG UNIT
(A) DARK GRAY 		8-97294-068-5 01 1 0306-0306 ● ● ●
23 02.559 AIR BAG UNIT
STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY 		8-97294-068-5 01 1 0306-0306 ● ●
23 02.559 AIR BAG UNIT
(A) DARK GRAY 		8-97396-931-0 01 1 0306-0312 ● ● ●
23 02.559 AIR BAG UNIT
STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY 		8-97396-931-0 01 1 0306-0312 ● ●
23 02.559 AIR BAG UNIT
(A) DARK GRAY 		8-97397-845-0 01 1 0401-0410 ● ● ●
23 02.559 AIR BAG UNIT
STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY 		8-97397-845-0 01 1 0401-0410 ● ●
23 02.559 AIR BAG UNIT
(A) DARK GRAY 		8-97397-845-0 01 1 0411-0609 ● ● ●
23 02.559 AIR BAG UNIT
STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY 		8-97397-845-0 01 1 0411-0609 ● ●
23 02.559 AIR BAG UNIT
STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> ISUZU BRAND<7WL> (A) DARK GRAY 		8-97397-845-0 01 1 0411-0609 ●
23 02.559 AIR BAG UNIT
STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY 		8-97408-898-0 01 1 0610-0709 ● ● ● ● ●
23 02.559 AIR BAG UNIT
INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY 		8-97408-898-0 01 1 0610-0709 ●
23 02.559 AIR BAG UNIT
STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> ISUZU BRAND<7WL> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY 		8-97408-898-0 01 1 0710-0710 ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY 		8-97408-898-0 01 1 0711-0809 ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> ISUZU BRAND<7WL> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY 		8-97408-898-0 01 1 0810-0904 ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> ISUZU BRAND<7WL> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY 		8-97417-274-0 01 1 0905-0906 ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> ISUZU BRAND<7WL> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY 		8-97418-298-0 01 1 0907-1003 ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> ISUZU BRAND<7WL> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY 		8-97418-298-0 01 1 1004- ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97396-840-0 01 1 0306-0410 ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97396-840-1 01 1 0411-0609 ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97408-903-0 01 1 0610-0610 ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97408-901-1 01 1 0610-0910 ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97408-901-1 01 1 0911-1007 ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) (B) BLACK 		8-97422-062-0 01 1 1008- ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
CHEVROLET BRAND<RWE> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY 		8-97408-900-0 01 1 0710-0710 ●
23 02.559 AIR BAG UNIT
STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> CHEVROLET BRAND<RWE> (A) DARK GRAY 		8-97397-846-0 01 1 0411-0609 ●
31 14.865 NUT
01.062 M6 FLANGE 		0-91150-206-0 03 1 0306-0402 ● ● ● ● ●
31 14.865 NUT
01.540 M6 FLANGE 		0-91180-206-0 03 1 0403-0410 ● ● ● ● ●
31 14.865 NUT
01.540 M6 FLANGE 		0-91180-206-0 03 1 0411- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
