Sayfa 8-25 - Isuzu EPC

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#74242) — 363 parça

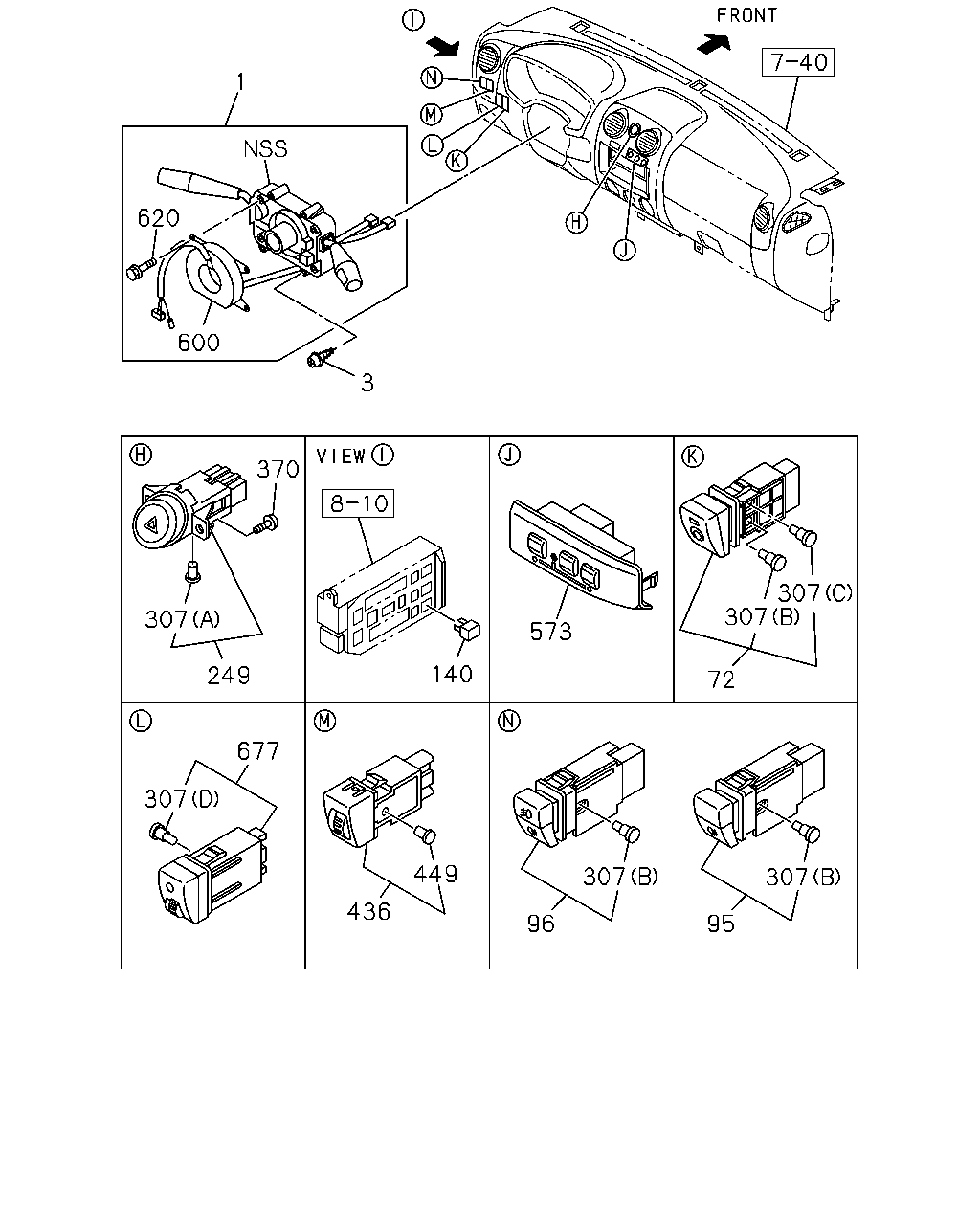

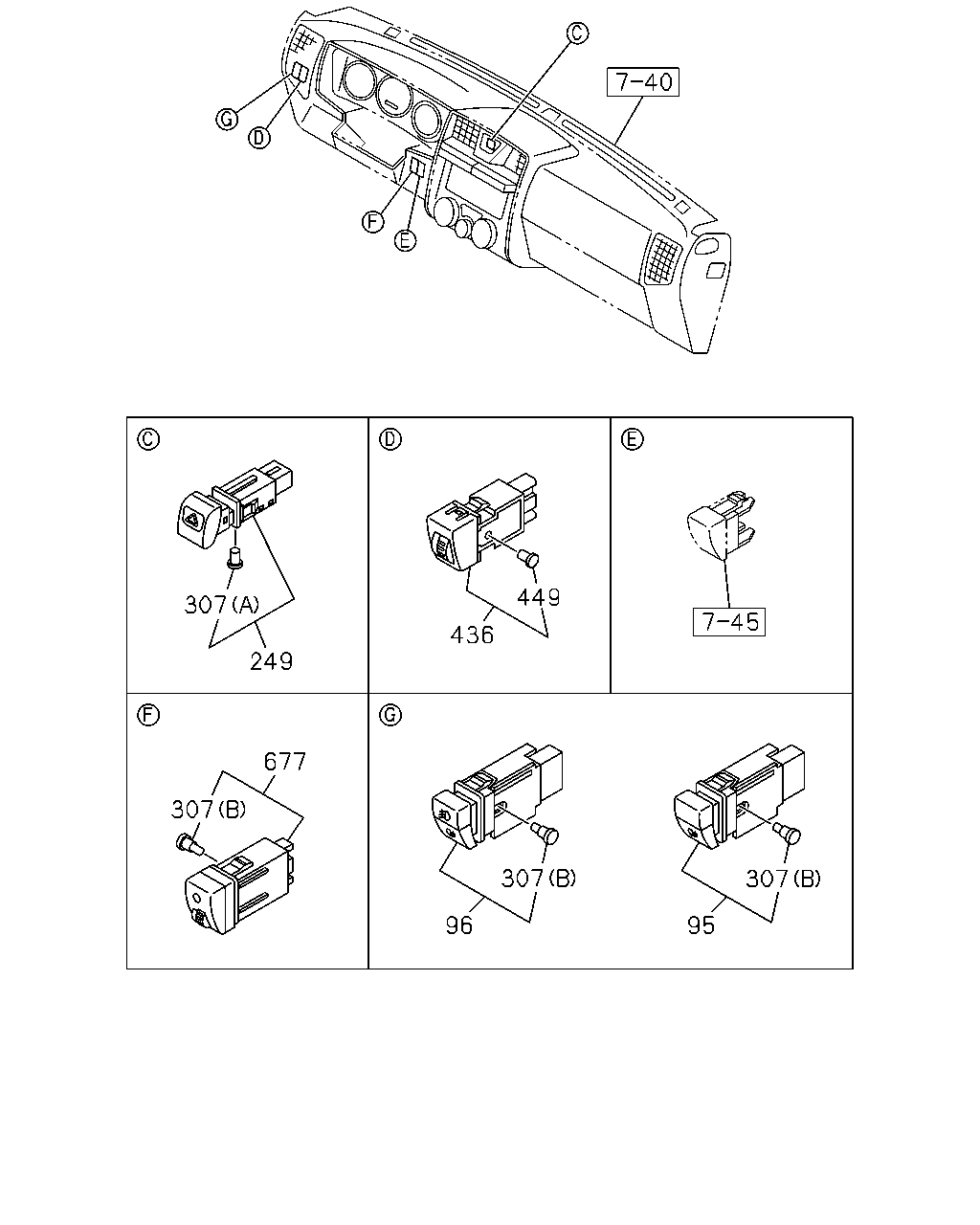

449 307 436 249 677 307 307 307 96 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
95	02.575 SWITCH; RR FOG LAMP EXC. FOG LAMP<T96>	8-97313-981-0	01	1	0306-0410	●	●	●	●	●
95	02.575 SWITCH; RR FOG LAMP EXC. FOG LAMP<T96>	8-97313-981-0	01	1	0411-0411	●	●	●	●	●	●
95	02.575 SWITCH; RR FOG LAMP EXC. FOG LAMP<T96>	8-98000-500-0	01	1	0412-0609	●	●	●	●	●	●
95	02.575 SWITCH; RR FOG LAMP EXC. FOG LAMP<T96> DARK GRAY	8-97403-904-0	01	1	0610-1003	●	●	●	●	●	●
95	02.575 SWITCH; RR FOG LAMP EXC. FOG LAMP<T96> DARK GRAY	8-97418-510-0	01	1	1004-	●	●	●	●	●	●
96	02.485 SWITCH; FOG LAMP FOG LAMP<T96>	8-97313-982-0	01	1	0306-0410	●	●	●	●	●
96	02.485 SWITCH; FOG LAMP FOG LAMP<T96>	8-97313-982-0	01	1	0411-0411	●	●	●	●	●	●
96	02.485 SWITCH; FOG LAMP FOG LAMP<T96>	8-98000-501-0	01	1	0412-0609	●	●	●	●	●	●
96	02.485 SWITCH; FOG LAMP FOG LAMP<T96> DARK GRAY	8-97403-902-0	01	1	0610-1003	●	●	●	●	●	●
96	02.485 SWITCH; FOG LAMP FOG LAMP<T96> DARK GRAY	8-97418-807-0	01	1	1004-	●	●	●	●	●	●
249	02.485 SWITCH; HAZARD DARK GRAY	8-97238-511-0	01	1	0306-0410	●	●	●	●	●
249	02.485 SWITCH; HAZARD DARK GRAY	8-97238-511-0	01	1	0411-0609	●	●	●	●	●	●
249	02.485 SWITCH; HAZARD	8-98046-194-0	01	1	0610-	●	●	●	●	●	●
307	08.991 BULB ASM; SW (B) 14V 0.84W	8-97327-317-0	01	1	0306-0410	●	●	●	●	●
307	08.991 BULB ASM; SW (B) 14V 0.84W	8-97327-317-0	01	1	0411-0609	●	●	●	●	●	●
307	08.991 BULB ASM; SW (B) 14V 0.84W	8-97327-317-0	01	1	0610-0709	●	●	●	●	●	●
307	08.991 BULB ASM; SW AUTO CRUISE CONT<K30> (B) 14V 0.84W	8-97327-317-0	01	1	0610-0709				●	●	●
307	08.991 BULB ASM; SW (B) 14V 0.84W	8-97327-317-0	01	1	0710-1003	●	●	●	●	●	●
307	08.991 BULB ASM; SW AUTO CRUISE CONT<K30> (B) 14V 0.84W	8-97327-317-0	01	1	0710-1003				●	●
307	08.991 BULB ASM; SW (B) 14V 0.84W	8-98152-588-0	01	1	1004-	●	●	●	●	●	●
307	08.991 BULB ASM; SW AUTO CRUISE CONT<K30> (B) 14V 0.84W	8-98152-588-0	01	1	1004-				●	●
307	08.991 BULB ASM; SW (A) 14V 0.91W	8-97327-526-0	01	1	0306-0410	●	●	●	●	●
307	08.991 BULB ASM; SW (A) 14V 0.91W	8-97327-526-0	01	1	0411-0609	●	●	●	●	●	●
307	08.991 BULB ASM; SW (D) 14V 0.84W	8-97329-092-0	01	1	0610-1003	●	●	●	●	●	●
307	08.991 BULB ASM; SW (D) 14V 0.84W	8-98159-550-0	01	1	1004-	●	●	●	●	●	●
307	08.991 BULB ASM; SW (A)	8-98057-959-0	01	1	0610-	●	●	●	●	●	●
307	08.991 BULB ASM; SW AUTO CRUISE CONT<K30> (C) 14V 0.91W	8-97355-451-0	01	1	0610-0709				●	●	●
307	08.991 BULB ASM; SW AUTO CRUISE CONT<K30> (C) 14V 0.91W	8-97355-451-0	01	1	0710-1003				●	●
307	08.991 BULB ASM; SW AUTO CRUISE CONT<K30> (C) 14V 0.91W	8-97355-451-0	01	1	1004-				●	●
436	02.485 SWITCH; HEADLAMP LEVELING	8-97288-784-0	01	1	0306-0410	●	●	●	●	●
436	02.485 SWITCH; HEADLAMP LEVELING	8-97288-784-0	01	1	0411-0609	●	●	●	●	●	●
436	02.485 SWITCH; HEADLAMP LEVELING DARK GRAY	8-97403-901-0	01	1	0610-1003	●	●	●	●	●	●
436	02.485 SWITCH; HEADLAMP LEVELING DARK GRAY	8-97418-806-0	01	1	1004-	●	●	●	●	●	●
449	08.991 BULB ASM; HEADLAMP LEVELING SW 14V 0.84W	8-97327-317-0	01	1	0306-0410	●	●	●	●	●
449	08.991 BULB ASM; HEADLAMP LEVELING SW 14V 0.84W	8-97327-317-0	01	1	0411-1003	●	●	●	●	●	●
449	08.991 BULB ASM; HEADLAMP LEVELING SW 14V 0.84W	8-98152-588-0	01	1	1004-	●	●	●	●	●	●
677	02.485 SWITCH; ILLUMINATION	8-97238-512-0	01	1	0306-0410	●	●	●	●	●
677	02.485 SWITCH; ILLUMINATION	8-97238-512-0	01	1	0411-0609	●	●	●	●	●	●
677	02.485 SWITCH; ILLUMINATION DARK GRAY	8-97403-903-0	01	1	0610-1003	●	●	●	●	●	●
677	02.485 SWITCH; ILLUMINATION DARK GRAY	8-97418-808-0	01	1	1004-	●	●	●	●	●	●

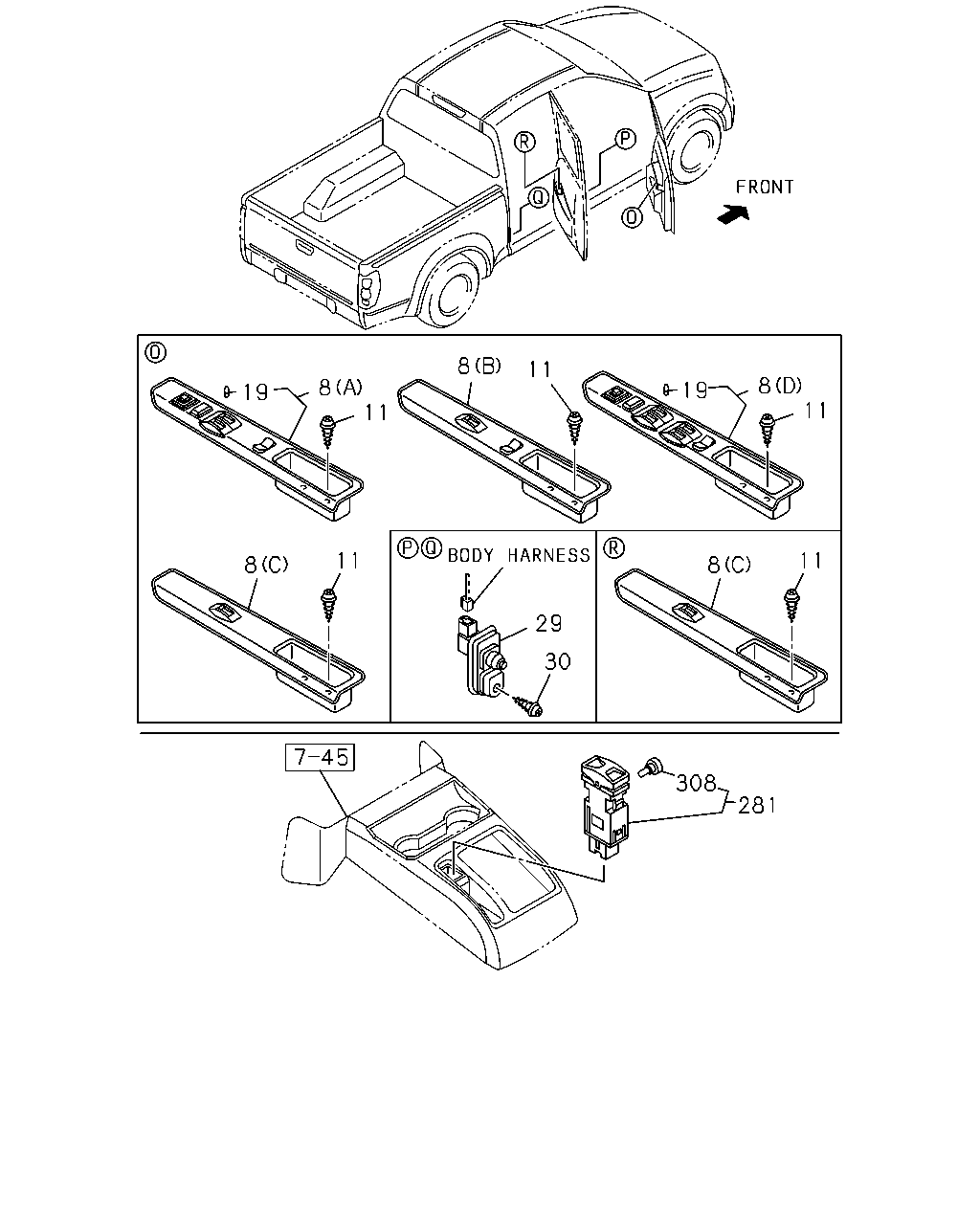

8 11 8 11 8 11 19 19 11 11 8 8 29 30 308 281

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER DARK GRAY	8-97396-536-0	01	1	0306-0408	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (A) DRIVER DARK GRAY	8-97396-536-0	01	1	0306-0408				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER DARK GRAY	8-97396-536-0	01	1	0409-0410	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (A) DRIVER DARK GRAY	8-97396-536-0	01	1	0409-0410				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER DARK GRAY	8-97396-536-0	01	1	0411-0508	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (A) DRIVER DARK GRAY	8-97396-536-0	01	1	0411-0508				●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER DARK GRAY	8-97396-536-0	01	1	0509-0609	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGN AL<DF9> (A) DRIVER DARK GRAY	8-97396-536-0	01	1	0509-0609				●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGN AL<DF9>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (A) DRIVER DARK GRAY	8-97403-619-0	01	1	0610-0709	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER DARK GRAY	8-97403-619-0	01	1	0610-0709		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGN AL<DF9> (A) DRIVER DARK GRAY	8-97403-619-0	01	1	0610-0709				●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGN AL<DL2> (A) DRIVER DARK GRAY	8-97403-619-0	01	1	0710-0809	●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER DARK GRAY	8-97403-619-0	01	1	0710-0809		●				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGN AL<DNQ> (A) DRIVER DARK GRAY	8-97403-619-0	01	1	0810-1003	●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER DARK GRAY	8-97403-619-0	01	1	0810-1003		●				●
8	16.263 SWITCH; POWER WINDOW INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGN AL<DNQ> (A) DRIVER DARK GRAY	8-97418-574-0	01	1	1004-	●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER DARK GRAY	8-97418-574-0	01	1	1004-		●				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (B) PASSENGER DARK GRAY	8-97396-114-0	01	1	0306-0408	●	●	●	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (B) PASSENGER DARK GRAY	8-97396-114-0	01	1	0409-0410	●	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (B) PASSENGER DARK GRAY	8-97396-114-0	01	1	0409-0410				●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (B) PASSENGER DARK GRAY	8-97396-114-0	01	1	0411-0508	●	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (B) PASSENGER DARK GRAY	8-97396-114-0	01	1	0411-0508				●	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (C) PASSENGER DARK GRAY	8-97400-387-0	01	1	0509-0609	●	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) PASSENGER DARK GRAY	8-97400-387-0	01	1	0509-0609				●	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) PASSENGER DARK GRAY	8-97403-894-0	01	1	0610-0709	●		●	●	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (C) PASSENGER DARK GRAY	8-97403-894-0	01	1	0610-0709		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) PASSENGER DARK GRAY	8-97403-894-0	01	1	0710-1003	●		●	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (C) PASSENGER DARK GRAY	8-97403-894-0	01	1	0710-1003		●				●
8	16.263 SWITCH; POWER WINDOW INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) PASSENGER DARK GRAY	8-97403-894-0	01	1	1004-	●		●	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (C) PASSENGER DARK GRAY	8-97403-894-0	01	1	1004-		●				●
8	16.263 SWITCH; POWER WINDOW GRADE DX(RBA) POWER WINDOW FRT&REAR DOOR<A31> (C) REAR DARK GRAY	8-97392-410-0	01	1	0306-0408			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (C) REAR DARK GRAY	8-97392-410-0	01	1	0306-0408					●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (C) REAR DARK GRAY	8-97392-410-0	01	1	0409-0502			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) REAR DARK GRAY	8-97392-410-0	01	1	0409-0502					●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (C) REAR DARK GRAY	8-97400-390-0	01	1	0503-0609			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) REAR DARK GRAY	8-97400-390-0	01	1	0503-0609					●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) REAR DARK GRAY	8-97400-753-0	01	1	0610-1003			●		●
8	16.263 SWITCH; POWER WINDOW INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) REAR DARK GRAY	8-97400-753-0	01	1	1004-			●		●
8	16.263 SWITCH; POWER WINDOW GRADE DX(RBA) POWER WINDOW FRT&REAR DOOR<A31> (C) REAR DARK GRAY	8-97392-411-0	01	1	0306-0408			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (C) REAR DARK GRAY	8-97392-411-0	01	1	0306-0408					●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (C) REAR DARK GRAY	8-97392-411-0	01	1	0409-0502			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) REAR DARK GRAY	8-97392-411-0	01	1	0409-0502					●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (C) REAR DARK GRAY	8-97400-391-0	01	1	0503-0609			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) REAR DARK GRAY	8-97400-391-0	01	1	0503-0609					●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) REAR DARK GRAY	8-97400-754-0	01	1	0610-1003			●		●
8	16.263 SWITCH; POWER WINDOW INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) REAR DARK GRAY	8-97400-754-0	01	1	1004-			●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (D) DRIVER DARK GRAY	8-97396-538-0	01	1	0306-0408			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (D) DRIVER DARK GRAY	8-97396-538-0	01	1	0306-0408					●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (D) DRIVER DARK GRAY	8-97396-538-0	01	1	0409-0508			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (D) DRIVER DARK GRAY	8-97396-538-0	01	1	0409-0508					●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (D) DRIVER DARK GRAY	8-97396-538-0	01	1	0509-0609			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGN AL<DF9> (D) DRIVER DARK GRAY	8-97396-538-0	01	1	0509-0609					●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGN AL<DF9>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (D) DRIVER DARK GRAY	8-97403-620-0	01	1	0610-0709			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGN AL<DF9> (D) DRIVER DARK GRAY	8-97403-620-0	01	1	0610-0709					●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGN AL<DL2> (D) DRIVER DARK GRAY	8-97403-620-0	01	1	0710-0809			●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGN AL<DNQ> (D) DRIVER DARK GRAY	8-97403-620-0	01	1	0810-1003			●		●
8	16.263 SWITCH; POWER WINDOW INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGN AL<DNQ> (D) DRIVER DARK GRAY	8-97418-575-0	01	1	1004-			●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (A) DRIVER DARK GRAY	8-97396-537-0	01	1	0306-0408				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> EXC. INTERIOR SILVER BEZEL<BY9> (A) DRIVER DARK GRAY	8-97396-537-0	01	1	0409-0410				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> EXC. INTERIOR SILVER BEZEL<BY9> (A) DRIVER DARK GRAY	8-97396-537-0	01	1	0411-0508				●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. INTERIOR SILVER BEZEL<BY9> (A) DRIVER DARK GRAY	8-97400-747-0	01	1	0509-0609				●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR ELECTRIC CON T BRIGHT<7HX> EXC. INTERIOR SILVER BEZEL<BY9> (A) DRIVER DARK GRAY	8-97403-691-0	01	1	0610-0709	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. INTERIOR SILVER BEZEL<BY9> (A) DRIVER DARK GRAY	8-97403-691-0	01	1	0610-0709				●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DL2> EXC. INTERIOR SILVER BEZEL<BY9> (A) DRIVER DARK GRAY	8-97408-585-0	01	1	0710-0809	●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. INTERIOR SILVER BEZEL<BY9> (A) DRIVER DARK GRAY	8-97408-585-0	01	1	0810-1003	●			●
8	16.263 SWITCH; POWER WINDOW INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. INTERIOR SILVER BEZEL<BY9> (A) DRIVER DARK GRAY	8-97418-584-0	01	1	1004-	●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (A) DRIVER LIGHT GRAY	8-97400-382-0	01	1	0409-0410				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (A) DRIVER LIGHT GRAY	8-97400-382-0	01	1	0411-0508				●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (A) DRIVER LIGHT GRAY	8-97400-748-0	01	1	0509-0609				●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR ELECTRIC CON T BRIGHT<7HX> (A) DRIVER LIGHT GRAY	8-97403-692-0	01	1	0610-0709	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (A) DRIVER LIGHT GRAY	8-97403-692-0	01	1	0610-0709				●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DL2> (A) DRIVER LIGHT GRAY	8-97408-586-0	01	1	0710-0809	●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> (A) DRIVER LIGHT GRAY	8-97408-586-0	01	1	0810-1003	●			●
8	16.263 SWITCH; POWER WINDOW INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> (A) DRIVER LIGHT GRAY	8-97418-585-0	01	1	1004-	●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (A) DRIVER LIGHT GRAY	8-97400-381-0	01	1	0409-0410				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (A) DRIVER LIGHT GRAY	8-97400-381-0	01	1	0411-0508				●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (A) DRIVER LIGHT GRAY	8-97400-381-0	01	1	0509-0609				●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR ELECTRI C CONT BRIGHT<7HX> (A) DRIVER LIGHT GRAY	8-97403-621-0	01	1	0610-0709	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (A) DRIVER LIGHT GRAY	8-97403-621-0	01	1	0610-0709				●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DL2> (A) DRIVER LIGHT GRAY	8-97403-621-0	01	1	0710-0809	●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> (A) DRIVER LIGHT GRAY	8-97403-621-0	01	1	0810-1003	●			●
8	16.263 SWITCH; POWER WINDOW INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> (A) DRIVER LIGHT GRAY	8-97418-576-0	01	1	1004-	●			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (B) PASSENGER LIGHT GRAY	8-97400-388-0	01	1	0409-0410				●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (B) PASSENGER LIGHT GRAY	8-97400-388-0	01	1	0411-0508				●	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (C) PASSENGER LIGHT GRAY	8-97400-389-0	01	1	0509-0609				●	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (C) PASSENGER LIGHT GRAY	8-97403-895-0	01	1	0610-0709	●		●	●	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (C) PASSENGER LIGHT GRAY	8-97403-895-0	01	1	0710-1003	●		●	●	●
8	16.263 SWITCH; POWER WINDOW INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (C) PASSENGER LIGHT GRAY	8-97403-895-0	01	1	1004-	●		●	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (D) DRIVER DARK GRAY	8-97396-539-0	01	1	0306-0408					●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> EXC. INTERIOR SILVER BEZEL<BY9> (D) DRIVER DARK GRAY	8-97396-539-0	01	1	0409-0508					●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. INTERIOR SILVER BEZEL<BY9> (D) DRIVER DARK GRAY	8-97400-750-0	01	1	0509-0609					●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR ELECTRIC CON T BRIGHT<7HX> EXC. INTERIOR SILVER BEZEL<BY9> (D) DRIVER DARK GRAY	8-97403-693-0	01	1	0610-0709			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. INTERIOR SILVER BEZEL<BY9> (D) DRIVER DARK GRAY	8-97403-693-0	01	1	0610-0709					●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DL2> EXC. INTERIOR SILVER BEZEL<BY9> (D) DRIVER DARK GRAY	8-97408-587-0	01	1	0710-0809			●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. INTERIOR SILVER BEZEL<BY9> (D) DRIVER DARK GRAY	8-97408-587-0	01	1	0810-1003			●		●
8	16.263 SWITCH; POWER WINDOW INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. INTERIOR SILVER BEZEL<BY9> (D) DRIVER DARK GRAY	8-97418-589-0	01	1	1004-			●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (C) REAR LIGHT GRAY	8-97298-473-0	01	1	0409-0502					●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (C) REAR LIGHT GRAY	8-97400-392-0	01	1	0503-0609					●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (C) REAR LIGHT GRAY	8-97403-896-0	01	1	0610-1003			●		●
8	16.263 SWITCH; POWER WINDOW INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (C) REAR LIGHT GRAY	8-97403-896-0	01	1	1004-			●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (C) REAR LIGHT GRAY	8-97298-474-0	01	1	0409-0502					●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (C) REAR LIGHT GRAY	8-97400-394-0	01	1	0503-0609					●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (C) REAR LIGHT GRAY	8-97403-897-0	01	1	0610-1003			●		●
8	16.263 SWITCH; POWER WINDOW INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (C) REAR LIGHT GRAY	8-97403-897-0	01	1	1004-			●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (D) DRIVER LIGHT GRAY	8-97400-383-0	01	1	0409-0508					●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (D) DRIVER LIGHT GRAY	8-97400-751-0	01	1	0509-0609					●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR ELECTRIC CON T BRIGHT<7HX> (D) DRIVER LIGHT GRAY	8-97403-694-0	01	1	0610-0709			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (D) DRIVER LIGHT GRAY	8-97403-694-0	01	1	0610-0709					●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DL2> (D) DRIVER LIGHT GRAY	8-97408-588-0	01	1	0710-0809			●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> (D) DRIVER LIGHT GRAY	8-97408-588-0	01	1	0810-1003			●		●
8	16.263 SWITCH; POWER WINDOW INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> (D) DRIVER LIGHT GRAY	8-97418-590-0	01	1	1004-			●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (D) DRIVER LIGHT GRAY	8-97400-749-0	01	1	0409-0508					●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (D) DRIVER LIGHT GRAY	8-97400-749-0	01	1	0509-0609					●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR ELECTRI C CONT BRIGHT<7HX> (D) DRIVER LIGHT GRAY	8-97403-622-0	01	1	0610-0709			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (D) DRIVER LIGHT GRAY	8-97403-622-0	01	1	0610-0709					●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DL2> (D) DRIVER LIGHT GRAY	8-97403-622-0	01	1	0710-0809			●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> (D) DRIVER LIGHT GRAY	8-97403-622-0	01	1	0810-1003			●		●
8	16.263 SWITCH; POWER WINDOW INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> (D) DRIVER LIGHT GRAY	8-97418-577-0	01	1	1004-			●		●
11	03.885 BOLT; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 12.182 M5X14	8-94152-495-0	04	1	0306-0410	●	●	●	●	●
11	03.885 BOLT; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 12.182 M5X14	8-94152-495-0	04	1	0306-0410			●		●
11	03.885 BOLT; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 12.182 M5X14	8-94152-495-0	04	1	0411-	●	●	●	●	●	●
11	03.885 BOLT; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 12.182 M5X14	8-94152-495-0	04	1	0411-			●		●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31>	8-97327-881-0	01	1	0306-0410	●	●	●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>	8-97327-881-0	01	1	0306-0410				●	●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31>	8-97327-881-0	01	1	0411-0508	●	●	●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>	8-97327-881-0	01	1	0411-0508				●	●	●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31>	8-97327-881-0	01	1	0509-0709	●	●	●	●	●	●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DL2>	8-97327-881-0	01	1	0710-0806	●		●	●	●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31>	8-97327-881-0	01	1	0710-0806		●				●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31>	8-97327-881-0	01	1	0807-1003	●	●	●	●	●	●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31>	8-98152-589-0	01	1	1004-	●	●	●	●	●	●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>	8-97327-881-0	02	1	0306-0410				●	●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>	8-97327-881-0	02	1	0411-0508				●	●	●
29	16.263 SWITCH; DOOR	8-97313-208-0	02	1	0306-0307	●	●		●
29	16.263 SWITCH; DOOR	8-97313-208-0	02	1	0308-0410	●	●	●	●	●
29	16.263 SWITCH; DOOR	8-97313-208-0	02	1	0308-0410			●		●
29	16.263 SWITCH; DOOR	8-97313-208-0	02	1	0411-	●	●	●	●	●	●
29	16.263 SWITCH; DOOR	8-97313-208-0	02	1	0411-			●		●
29	16.263 SWITCH; DOOR	8-97313-208-0	04	1	0306-0307			●		●
30	16.263 SCREW; DOOR SW 10.240 M5X14	8-94120-095-0	02	1	0306-0307	●	●		●
30	16.263 SCREW; DOOR SW 10.240 M5X14	8-94120-095-0	02	1	0308-0410	●	●	●	●	●
30	16.263 SCREW; DOOR SW 10.240 M5X14	8-94120-095-0	02	1	0308-0410			●		●
30	16.263 SCREW; DOOR SW 10.240 M5X14	8-94120-095-0	02	1	0411-	●	●	●	●	●	●
30	16.263 SCREW; DOOR SW 10.240 M5X14	8-94120-095-0	02	1	0411-			●		●
30	16.263 SCREW; DOOR SW 10.240 M5X14	8-94120-095-0	04	1	0306-0307			●		●
281	04.057 SWITCH; SELECT,TRANS CONT A/T 4 SPEED-JATCO(RMK) 16.283 DARK GRAY	8-97300-364-0	01	1	0306-0609				●	●
281	04.057 SWITCH; SELECT,TRANS CONT A/T AISIN(RMD) DARK GRAY	8-97396-692-0	01	1	0610-1003				●	●
281	04.057 SWITCH; SELECT,TRANS CONT A/T AISIN(RMD) DARK GRAY	8-97418-478-0	01	1	1004-				●	●
308	08.991 BULB; SELECT SW A/T 4 SPEED-JATCO(RMK) 14V 0.84W	8-97329-092-0	01	1	0306-0609				●	●
308	08.991 BULB; SELECT SW A/T AISIN(RMD) 14V 0.84W	8-97329-092-0	01	1	0610-1003				●	●
308	08.991 BULB; SELECT SW A/T AISIN(RMD) 14V 0.84W	8-98152-591-0	01	1	1004-				●	●

1 620 600 3 12 140 573

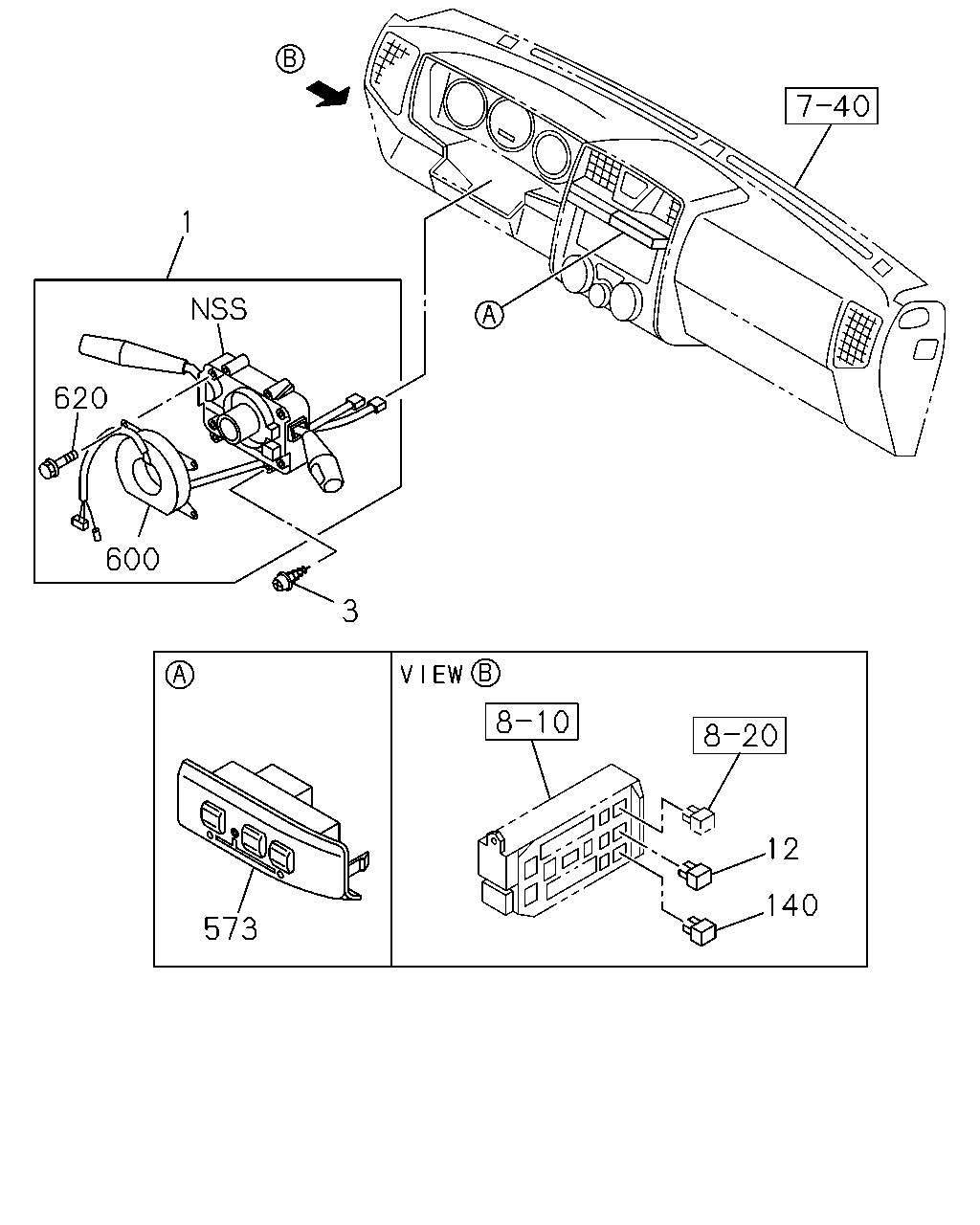

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	02.895 SWITCH; COMB	8-97360-695-0	01	1	0306-0410	●	●	●	●	●
1	02.895 SWITCH; COMB	8-97360-695-0	01	1	0411-0609	●	●	●	●	●	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13>	8-98007-721-0	01	1	0610-0709	●		●
1	02.895 SWITCH; COMB	8-98007-721-0	01	1	0610-0709		●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30>	8-98007-721-0	01	1	0610-0709				●	●	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13>	8-98007-721-0	01	1	0710-	●		●
1	02.895 SWITCH; COMB	8-98007-721-0	01	1	0710-		●				●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30>	8-98007-721-0	01	1	0710-				●	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30>	8-98007-729-0	01	1	0610-0709				●	●	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30>	8-98007-729-0	01	1	0710-				●	●
3	02.897 SCREW; COMB SW 03.483 M5X14 W/LK&PL WASHER	9-03920-514-0	02	1	0306-0410	●	●	●	●	●
3	02.897 SCREW; COMB SW 03.483 M5X14 W/LK&PL WASHER	9-03920-514-0	02	1	0411-0606	●	●	●	●	●	●
3	02.897 SCREW; COMB SW M5X14 W/LK&PL WASHER	0-36230-514-0	02	1	0607-	●	●	●	●	●	●
12	08.852 RELAY; POWER WINDOW 09.778 12V YAZAKI	8-97309-293-0	01	1	0711-	●	●	●	●	●	●
12	08.852 RELAY; POWER WINDOW REMOTE CONT DOOR LOCK<AP5> 09.778 12V YAZAKI	8-97309-293-0	01	1	0306-0410	●	●	●	●	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 09.778 12V YAZAKI	8-97309-293-0	01	1	0306-0410	●	●	●	●	●
12	08.852 RELAY; POWER WINDOW REMOTE CONT DOOR LOCK<AP5> 09.778 12V YAZAKI	8-97309-293-0	01	1	0411-0609	●	●	●	●	●	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 09.778 12V YAZAKI	8-97309-293-0	01	1	0411-0609	●	●	●	●	●	●
12	08.852 RELAY; POWER WINDOW REMOTE CONT DOOR LOCK<AP5> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0609	●	●	●	●	●	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0609	●	●	●	●	●	●
12	08.852 RELAY; POWER WINDOW 02.575 12V OMRON	8-98005-407-0	01	1	0610-	●	●	●	●	●	●
140	09.778 RELAY; RR DEFOGGER 12V YAZAKI	8-97309-293-0	01	1	0711-	●	●	●	●	●	●
140	09.778 RELAY; RR DEFOGGER 12V YAZAKI	8-97309-293-0	01	1	0306-0410	●	●	●	●	●
140	09.778 RELAY; RR DEFOGGER 12V YAZAKI	8-97309-293-0	01	1	0411-0609	●	●	●	●	●	●
140	09.778 RELAY; RR DEFOGGER 02.575 12V OMRON	8-98005-407-0	01	1	0509-	●	●	●	●	●	●
573	09.755 SWITCH; 4WD DARK GRAY	8-97298-476-0	01	1	0306-0408				●	●
573	09.755 SWITCH; 4WD EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY	8-97298-476-0	01	1	0409-0410				●	●
573	09.755 SWITCH; 4WD EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY	8-97298-476-0	01	1	0411-0609				●	●	●
573	09.755 SWITCH; 4WD EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY	8-97407-364-0	01	1	0610-0709				●	●	●
573	09.755 SWITCH; 4WD EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY	8-97407-364-0	01	1	0710-1003				●	●
573	09.755 SWITCH; 4WD DARK GRAY	8-97407-364-0	01	1	0710-1003						●
573	09.755 SWITCH; 4WD INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY	8-97418-809-0	01	1	1004-				●	●
573	09.755 SWITCH; 4WD DARK GRAY	8-97418-809-0	01	1	1004-						●
573	09.755 SWITCH; 4WD INTERIOR SILVER BEZEL<BY9> LIGHT GRAY	8-97298-475-0	01	1	0409-0410				●	●
573	09.755 SWITCH; 4WD INTERIOR SILVER BEZEL<BY9> LIGHT GRAY	8-97298-475-0	01	1	0411-0609				●	●	●
573	09.755 SWITCH; 4WD INTERIOR SILVER BEZEL<BY9> LIGHT GRAY	8-97407-362-0	01	1	0610-0709				●	●	●
573	09.755 SWITCH; 4WD INTERIOR SILVER BEZEL<BY9> LIGHT GRAY	8-97407-362-0	01	1	0710-1003				●	●
573	09.755 SWITCH; 4WD INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> LIGHT GRAY	8-97418-479-0	01	1	1004-				●	●
600	02.895 COIL ASM; SIR	8-97308-028-1	01	1	0306-0410	●	●	●	●	●
600	02.895 COIL ASM; SIR	8-97308-028-1	01	1	0411-0609	●	●	●	●	●	●
600	02.895 COIL ASM; SIR INTERMITTENT WIPER<C13>	8-98014-766-0	01	1	0610-0709	●		●	●	●	●
600	02.895 COIL ASM; SIR	8-98014-766-0	01	1	0610-0709		●
600	02.895 COIL ASM; SIR INTERMITTENT WIPER<C13>	8-98014-766-0	01	1	0710-	●		●	●	●
600	02.895 COIL ASM; SIR	8-98014-766-0	01	1	0710-		●				●
620	02.895 SCREW; COIL,COMB SW	8-97166-506-0	06	1	0306-0410	●	●	●	●	●
620	02.895 SCREW; COIL,COMB SW	8-97166-506-0	06	1	0411-0609	●	●	●	●	●	●
620	02.895 SCREW; COIL,COMB SW INTERMITTENT WIPER<C13>	8-97166-506-0	06	1	0610-0709	●		●	●	●	●
620	02.895 SCREW; COIL,COMB SW	8-97166-506-0	06	1	0610-0709		●
620	02.895 SCREW; COIL,COMB SW INTERMITTENT WIPER<C13>	8-97166-506-0	06	1	0710-	●		●	●	●
620	02.895 SCREW; COIL,COMB SW	8-97166-506-0	06	1	0710-		●				●

1 620 600 3 370 307 307 307 573 140 249 72 677 307 449 307 307 436 96 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	02.895 SWITCH; COMB	8-97360-695-0	01	1	0306-0410	●	●	●	●	●
1	02.895 SWITCH; COMB	8-97360-695-0	01	1	0411-0609	●	●	●	●	●	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13>	8-98007-721-0	01	1	0610-0709	●		●
1	02.895 SWITCH; COMB	8-98007-721-0	01	1	0610-0709		●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30>	8-98007-721-0	01	1	0610-0709				●	●	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13>	8-98007-721-0	01	1	0710-	●		●
1	02.895 SWITCH; COMB	8-98007-721-0	01	1	0710-		●				●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30>	8-98007-721-0	01	1	0710-				●	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30>	8-98007-729-0	01	1	0610-0709				●	●	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30>	8-98007-729-0	01	1	0710-				●	●
3	02.897 SCREW; COMB SW 03.483 M5X14 W/LK&PL WASHER	9-03920-514-0	02	1	0306-0410	●	●	●	●	●
3	02.897 SCREW; COMB SW 03.483 M5X14 W/LK&PL WASHER	9-03920-514-0	02	1	0411-0606	●	●	●	●	●	●
3	02.897 SCREW; COMB SW M5X14 W/LK&PL WASHER	0-36230-514-0	02	1	0607-	●	●	●	●	●	●
72	02.485 SWITCH; CRUISE CONT AUTO CRUISE CONT<K30> DARK GRAY	8-97403-884-0	01	1	0610-0709				●	●	●
72	02.485 SWITCH; CRUISE CONT AUTO CRUISE CONT<K30> DARK GRAY	8-97403-884-0	01	1	0710-1003				●	●
72	02.485 SWITCH; CRUISE CONT AUTO CRUISE CONT<K30> DARK GRAY	8-97418-805-0	01	1	1004-				●	●
95	02.575 SWITCH; RR FOG LAMP EXC. FOG LAMP<T96>	8-97313-981-0	01	1	0306-0410	●	●	●	●	●
95	02.575 SWITCH; RR FOG LAMP EXC. FOG LAMP<T96>	8-97313-981-0	01	1	0411-0411	●	●	●	●	●	●
95	02.575 SWITCH; RR FOG LAMP EXC. FOG LAMP<T96>	8-98000-500-0	01	1	0412-0609	●	●	●	●	●	●
95	02.575 SWITCH; RR FOG LAMP EXC. FOG LAMP<T96> DARK GRAY	8-97403-904-0	01	1	0610-1003	●	●	●	●	●	●
95	02.575 SWITCH; RR FOG LAMP EXC. FOG LAMP<T96> DARK GRAY	8-97418-510-0	01	1	1004-	●	●	●	●	●	●
96	02.485 SWITCH; FOG LAMP FOG LAMP<T96>	8-97313-982-0	01	1	0306-0410	●	●	●	●	●
96	02.485 SWITCH; FOG LAMP FOG LAMP<T96>	8-97313-982-0	01	1	0411-0411	●	●	●	●	●	●
96	02.485 SWITCH; FOG LAMP FOG LAMP<T96>	8-98000-501-0	01	1	0412-0609	●	●	●	●	●	●
96	02.485 SWITCH; FOG LAMP FOG LAMP<T96> DARK GRAY	8-97403-902-0	01	1	0610-1003	●	●	●	●	●	●
96	02.485 SWITCH; FOG LAMP FOG LAMP<T96> DARK GRAY	8-97418-807-0	01	1	1004-	●	●	●	●	●	●
140	09.778 RELAY; RR DEFOGGER 12V YAZAKI	8-97309-293-0	01	1	0711-	●	●	●	●	●	●
140	09.778 RELAY; RR DEFOGGER 12V YAZAKI	8-97309-293-0	01	1	0306-0410	●	●	●	●	●
140	09.778 RELAY; RR DEFOGGER 12V YAZAKI	8-97309-293-0	01	1	0411-0609	●	●	●	●	●	●
140	09.778 RELAY; RR DEFOGGER 02.575 12V OMRON	8-98005-407-0	01	1	0509-	●	●	●	●	●	●
249	02.485 SWITCH; HAZARD DARK GRAY	8-97238-511-0	01	1	0306-0410	●	●	●	●	●
249	02.485 SWITCH; HAZARD DARK GRAY	8-97238-511-0	01	1	0411-0609	●	●	●	●	●	●
249	02.485 SWITCH; HAZARD	8-98046-194-0	01	1	0610-	●	●	●	●	●	●
307	08.991 BULB ASM; SW (B) 14V 0.84W	8-97327-317-0	01	1	0306-0410	●	●	●	●	●
307	08.991 BULB ASM; SW (B) 14V 0.84W	8-97327-317-0	01	1	0411-0609	●	●	●	●	●	●
307	08.991 BULB ASM; SW (B) 14V 0.84W	8-97327-317-0	01	1	0610-0709	●	●	●	●	●	●
307	08.991 BULB ASM; SW AUTO CRUISE CONT<K30> (B) 14V 0.84W	8-97327-317-0	01	1	0610-0709				●	●	●
307	08.991 BULB ASM; SW (B) 14V 0.84W	8-97327-317-0	01	1	0710-1003	●	●	●	●	●	●
307	08.991 BULB ASM; SW AUTO CRUISE CONT<K30> (B) 14V 0.84W	8-97327-317-0	01	1	0710-1003				●	●
307	08.991 BULB ASM; SW (B) 14V 0.84W	8-98152-588-0	01	1	1004-	●	●	●	●	●	●
307	08.991 BULB ASM; SW AUTO CRUISE CONT<K30> (B) 14V 0.84W	8-98152-588-0	01	1	1004-				●	●
307	08.991 BULB ASM; SW (A) 14V 0.91W	8-97327-526-0	01	1	0306-0410	●	●	●	●	●
307	08.991 BULB ASM; SW (A) 14V 0.91W	8-97327-526-0	01	1	0411-0609	●	●	●	●	●	●
307	08.991 BULB ASM; SW (D) 14V 0.84W	8-97329-092-0	01	1	0610-1003	●	●	●	●	●	●
307	08.991 BULB ASM; SW (D) 14V 0.84W	8-98159-550-0	01	1	1004-	●	●	●	●	●	●
307	08.991 BULB ASM; SW (A)	8-98057-959-0	01	1	0610-	●	●	●	●	●	●
307	08.991 BULB ASM; SW AUTO CRUISE CONT<K30> (C) 14V 0.91W	8-97355-451-0	01	1	0610-0709				●	●	●
307	08.991 BULB ASM; SW AUTO CRUISE CONT<K30> (C) 14V 0.91W	8-97355-451-0	01	1	0710-1003				●	●
307	08.991 BULB ASM; SW AUTO CRUISE CONT<K30> (C) 14V 0.91W	8-97355-451-0	01	1	1004-				●	●
370	16.495 BOLT; SW 16.085 M5X16 TAPPING	9-09829-323-1	02	1	0610-0612	●	●	●	●	●	●
370	16.495 BOLT; SW 08.083 M5X16 TAPPING	8-98061-685-0	02	1	0701-1004	●	●	●	●	●	●
370	16.495 BOLT; SW 08.083 M5X16 TAPPING	8-98167-449-0	02	1	1005-	●	●	●	●	●	●
436	02.485 SWITCH; HEADLAMP LEVELING	8-97288-784-0	01	1	0306-0410	●	●	●	●	●
436	02.485 SWITCH; HEADLAMP LEVELING	8-97288-784-0	01	1	0411-0609	●	●	●	●	●	●
436	02.485 SWITCH; HEADLAMP LEVELING DARK GRAY	8-97403-901-0	01	1	0610-1003	●	●	●	●	●	●
436	02.485 SWITCH; HEADLAMP LEVELING DARK GRAY	8-97418-806-0	01	1	1004-	●	●	●	●	●	●
449	08.991 BULB ASM; HEADLAMP LEVELING SW 14V 0.84W	8-97327-317-0	01	1	0306-0410	●	●	●	●	●
449	08.991 BULB ASM; HEADLAMP LEVELING SW 14V 0.84W	8-97327-317-0	01	1	0411-1003	●	●	●	●	●	●
449	08.991 BULB ASM; HEADLAMP LEVELING SW 14V 0.84W	8-98152-588-0	01	1	1004-	●	●	●	●	●	●
573	09.755 SWITCH; 4WD DARK GRAY	8-97298-476-0	01	1	0306-0408				●	●
573	09.755 SWITCH; 4WD EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY	8-97298-476-0	01	1	0409-0410				●	●
573	09.755 SWITCH; 4WD EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY	8-97298-476-0	01	1	0411-0609				●	●	●
573	09.755 SWITCH; 4WD EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY	8-97407-364-0	01	1	0610-0709				●	●	●
573	09.755 SWITCH; 4WD EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY	8-97407-364-0	01	1	0710-1003				●	●
573	09.755 SWITCH; 4WD DARK GRAY	8-97407-364-0	01	1	0710-1003						●
573	09.755 SWITCH; 4WD INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY	8-97418-809-0	01	1	1004-				●	●
573	09.755 SWITCH; 4WD DARK GRAY	8-97418-809-0	01	1	1004-						●
573	09.755 SWITCH; 4WD INTERIOR SILVER BEZEL<BY9> LIGHT GRAY	8-97298-475-0	01	1	0409-0410				●	●
573	09.755 SWITCH; 4WD INTERIOR SILVER BEZEL<BY9> LIGHT GRAY	8-97298-475-0	01	1	0411-0609				●	●	●
573	09.755 SWITCH; 4WD INTERIOR SILVER BEZEL<BY9> LIGHT GRAY	8-97407-362-0	01	1	0610-0709				●	●	●
573	09.755 SWITCH; 4WD INTERIOR SILVER BEZEL<BY9> LIGHT GRAY	8-97407-362-0	01	1	0710-1003				●	●
573	09.755 SWITCH; 4WD INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> LIGHT GRAY	8-97418-479-0	01	1	1004-				●	●
600	02.895 COIL ASM; SIR	8-97308-028-1	01	1	0306-0410	●	●	●	●	●
600	02.895 COIL ASM; SIR	8-97308-028-1	01	1	0411-0609	●	●	●	●	●	●
600	02.895 COIL ASM; SIR INTERMITTENT WIPER<C13>	8-98014-766-0	01	1	0610-0709	●		●	●	●	●
600	02.895 COIL ASM; SIR	8-98014-766-0	01	1	0610-0709		●
600	02.895 COIL ASM; SIR INTERMITTENT WIPER<C13>	8-98014-766-0	01	1	0710-	●		●	●	●
600	02.895 COIL ASM; SIR	8-98014-766-0	01	1	0710-		●				●
620	02.895 SCREW; COIL,COMB SW	8-97166-506-0	06	1	0306-0410	●	●	●	●	●
620	02.895 SCREW; COIL,COMB SW	8-97166-506-0	06	1	0411-0609	●	●	●	●	●	●
620	02.895 SCREW; COIL,COMB SW INTERMITTENT WIPER<C13>	8-97166-506-0	06	1	0610-0709	●		●	●	●	●
620	02.895 SCREW; COIL,COMB SW	8-97166-506-0	06	1	0610-0709		●
620	02.895 SCREW; COIL,COMB SW INTERMITTENT WIPER<C13>	8-97166-506-0	06	1	0710-	●		●	●	●
620	02.895 SCREW; COIL,COMB SW	8-97166-506-0	06	1	0710-		●				●
677	02.485 SWITCH; ILLUMINATION	8-97238-512-0	01	1	0306-0410	●	●	●	●	●
677	02.485 SWITCH; ILLUMINATION	8-97238-512-0	01	1	0411-0609	●	●	●	●	●	●
677	02.485 SWITCH; ILLUMINATION DARK GRAY	8-97403-903-0	01	1	0610-1003	●	●	●	●	●	●
677	02.485 SWITCH; ILLUMINATION DARK GRAY	8-97418-808-0	01	1	1004-	●	●	●	●	●	●

99 99 99 99 45 45 45 45 208 208 208 208 154 85 98 99 98 85 154 154 98 85 85 277 164 164 164 164 490 490 490 490

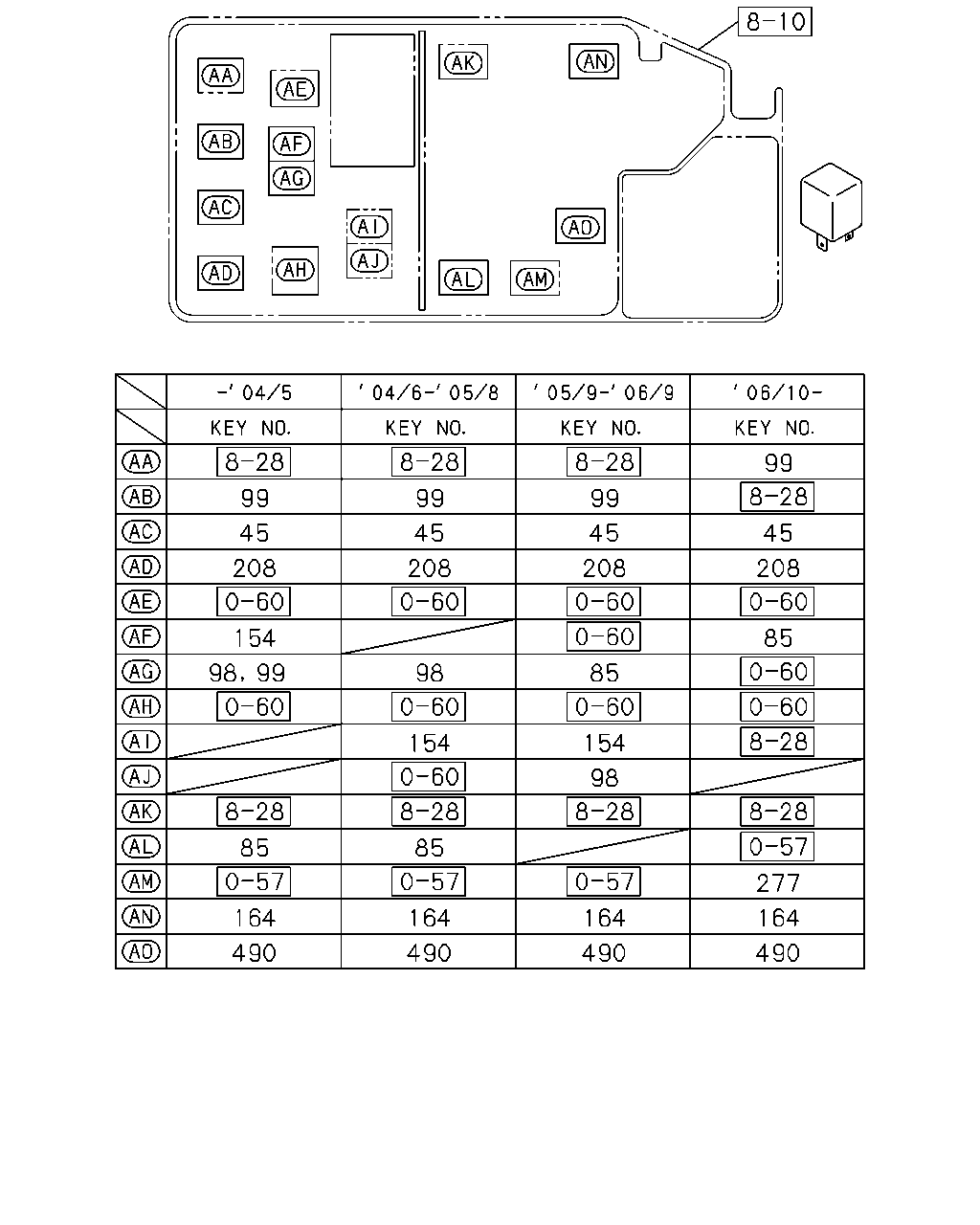

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
45	02.252 RELAY; HORN 02.485 12V YAZAKI	8-97309-292-0	01	1	0306-0410	●	●	●	●	●
45	02.252 RELAY; HORN 02.485 12V YAZAKI	8-97309-292-0	01	1	0411-0609	●	●	●	●	●	●
45	02.252 RELAY; HORN 02.575 12V OMRON	8-98005-407-0	01	1	0509-	●	●	●	●	●	●
45	02.252 RELAY; HORN 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 12V YAZAKI	8-97309-294-0	01	1	0306-0410	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 12V YAZAKI	8-97309-294-0	01	1	0411-0508	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 12V YAZAKI	8-97309-292-0	01	1	0509-0609	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 02.575 12V OMRON	8-98005-407-0	01	1	0509-	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●	●	●
98	02.485 RELAY; RR FOG LAMP 12V YAZAKI	8-97309-292-0	01	1	0403-0410	●	●	●	●	●
98	02.485 RELAY; RR FOG LAMP 12V YAZAKI	8-97309-292-0	01	1	0411-0609	●	●	●	●	●	●
98	02.485 RELAY; RR FOG LAMP 02.575 12V OMRON	8-98005-407-0	01	1	0509-0709	●	●	●	●	●	●
98	02.485 RELAY; RR FOG LAMP 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●	●	●
99	02.485 RELAY; FOG LAMP 12V YAZAKI	8-97309-292-0	02	1	0306-0402	●	●	●	●	●
99	02.485 RELAY; FOG LAMP 12V YAZAKI	8-97309-292-0	01	1	0403-0410	●	●	●	●	●
99	02.485 RELAY; FOG LAMP 12V YAZAKI	8-97309-292-0	01	1	0411-0609	●	●	●	●	●	●
99	02.485 RELAY; FOG LAMP 02.575 12V OMRON	8-98005-407-0	01	1	0509-	●	●	●	●	●	●
99	02.485 RELAY; FOG LAMP 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 09.778 12V YAZAKI	8-97309-293-0	01	1	0306-0410	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 09.778 12V YAZAKI	8-97309-293-0	01	1	0411-0609	●	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 02.575 12V OMRON	8-98005-407-0	01	1	0509-	●	●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR 09.778 12V YAZAKI	8-97309-293-0	01	1	0306-0410	●	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR 09.778 12V YAZAKI	8-97309-293-0	01	1	0411-0609	●	●	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR 02.575 12V OMRON	8-98005-407-0	01	1	0509-	●	●	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●	●	●
208	02.485 RELAY; DIMMER & PASSING 12V YAZAKI	8-97309-292-0	01	1	0306-0410	●	●	●	●	●
208	02.485 RELAY; DIMMER & PASSING 12V YAZAKI	8-97309-292-0	01	1	0411-	●	●	●	●	●	●
277	03.900 RELAY; FUEL PUMP 02.575 12V OMRON	8-98005-407-0	01	1	0610-	●	●	●	●	●	●
277	03.900 RELAY; FUEL PUMP 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●	●	●
490	09.277 RELAY; THERMO 09.778 12V YAZAKI	8-97309-293-0	01	1	0306-0410	●	●	●	●	●
490	09.277 RELAY; THERMO 09.778 12V YAZAKI	8-97309-293-0	01	1	0411-0609	●	●	●	●	●	●
490	09.277 RELAY; THERMO 02.575 12V OMRON	8-98005-407-0	01	1	0509-	●	●	●	●	●	●
490	09.277 RELAY; THERMO 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
