◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50966 - TFR/TFS(EUROPE)-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#74241) — 208 parça

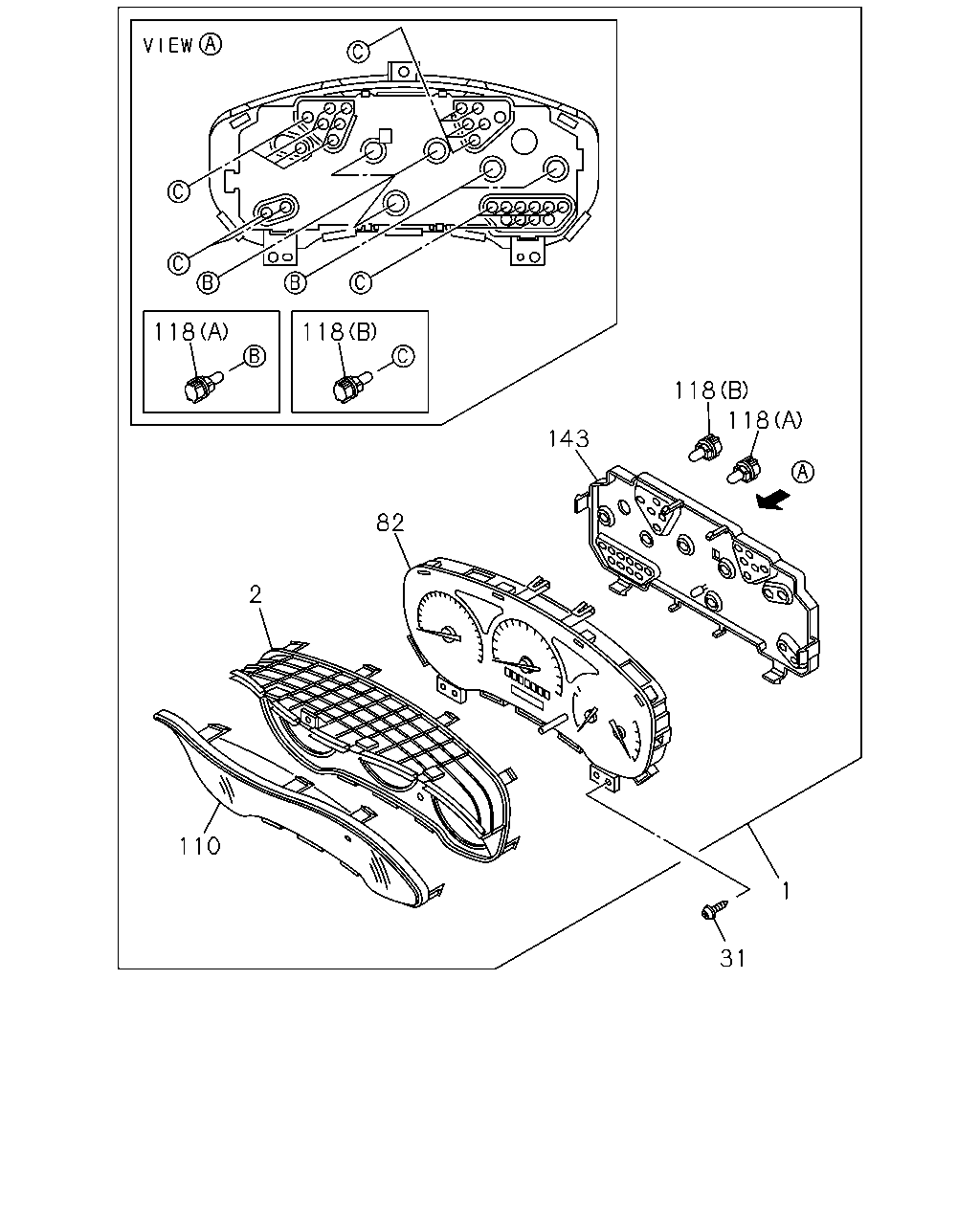

çizim 153245
118 118 118 118 143 82 2 110 1 31
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.735 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> 		8-97363-746-0 01 1 0306-0408 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> 		8-97363-746-0 01 1 0409-0410 ● ● ●
1 09.735 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> EXC. INTERIOR SILVER BEZEL<BY9> 		8-97363-746-0 01 1 0409-0410 ● ●
1 09.735 METER COMPL; CLUSTER
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> 		8-97363-746-0 01 1 0411-0508 ● ● ●
1 09.735 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> EXC. INTERIOR SILVER BEZEL<BY9> 		8-97363-746-0 01 1 0411-0508 ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> EXC. INTERIOR SILVER BEZEL<BY9> 		8-97363-746-0 01 1 0411-0508 ●
1 09.735 METER COMPL; CLUSTER
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> 		8-97386-663-0 01 1 0509-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> EXC. INTERIOR SILVER BEZEL<BY9> 		8-97386-663-0 01 1 0509-0606 ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> EXC. INTERIOR SILVER BEZEL<BY9> 		8-97386-663-0 01 1 0509-0606 ●
1 09.735 METER COMPL; CLUSTER
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> 		8-97386-663-0 01 1 0607-0609 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> EXC. INTERIOR SILVER BEZEL<BY9> 		8-97386-663-0 01 1 0607-0609 ● ●
1 09.735 METER COMPL; CLUSTER
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> TACHOMETER<U16> 		8-98046-281-0 01 1 0610-1003 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> TACHOMETER<U16> 		8-98152-707-0 01 1 1004- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-97363-744-0 01 1 0306-0410 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-97363-744-0 01 1 0411-0508 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-97386-661-0 01 1 0509-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-97386-661-0 01 1 0509-0606 ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-97386-661-0 01 1 0509-0606 ●
1 09.735 METER COMPL; CLUSTER
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-97386-661-0 01 1 0607-0609 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA> 		8-98046-285-0 01 1 0610-0710 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) TACHOMETER<U16> 		8-98046-285-0 01 1 0610-0710 ●
1 09.735 METER COMPL; CLUSTER
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA> 		8-98046-285-0 01 1 0711-1003 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA> 		8-98154-500-0 01 1 1004- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
A/T 4 SPEED-JATCO(RMK) TACHOMETER<U16> 		8-97363-747-0 01 1 0306-0408 ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) TACHOMETER<U16> EXC. INTERIOR SILVER BEZEL<BY9> 		8-97363-747-0 01 1 0409-0508 ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) TACHOMETER<U16> EXC. INTERIOR SILVER BEZEL<BY9> 		8-97386-664-0 01 1 0509-0606 ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) TACHOMETER<U16> EXC. INTERIOR SILVER BEZEL<BY9> 		8-98041-118-0 01 1 0607-0609 ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA> 		8-98046-264-0 01 1 0610-1003 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA> 		8-98154-486-0 01 1 1004- ● ● ●
1 09.735 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5G(RSP) INTERIOR SILVER BEZEL<BY9> TACHOMETER<U16> 		8-97383-432-0 01 1 0409-0410 ● ●
1 09.735 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5G(RSP) INTERIOR SILVER BEZEL<BY9> TACHOMETER<U16> 		8-97383-432-0 01 1 0411-0508 ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) INTERIOR SILVER BEZEL<BY9> TACHOMETER<U16> 		8-97383-432-0 01 1 0411-0508 ●
1 09.735 METER COMPL; CLUSTER
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) INTERIOR SILVER BEZEL<BY9> TACHOMETER<U16> 		8-97387-823-0 01 1 0509-0606 ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) INTERIOR SILVER BEZEL<BY9> TACHOMETER<U16> 		8-97387-823-0 01 1 0509-0606 ●
1 09.735 METER COMPL; CLUSTER
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP) INTERIOR SILVER BEZEL<BY9> TACHOMETER<U16> 		8-97387-823-0 01 1 0607-0609 ● ●
1 09.735 METER COMPL; CLUSTER
EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA>,TACHOMETER<U16> 		8-98046-272-0 01 1 0610-0709 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA>,TACHOMETER<U16> 		8-98046-272-0 01 1 0710-1003 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA>,TACHOMETER<U16> 		8-98154-492-0 01 1 1004- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) INTERIOR SILVER BEZEL<BY9> TACHOMETER<U16> 		8-97383-431-0 01 1 0409-0508 ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) INTERIOR SILVER BEZEL<BY9> TACHOMETER<U16> 		8-97387-822-0 01 1 0509-0606 ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) INTERIOR SILVER BEZEL<BY9> TACHOMETER<U16> 		8-98041-134-0 01 1 0607-0609 ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> TACHOMETER<U16> 		8-98046-250-0 01 1 0610-0709 ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> TACHOMETER<U16> 		8-98046-250-0 01 1 0610-0709 ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> TACHOMETER<U16> 		8-98046-250-0 01 1 0710-1003 ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> TACHOMETER<U16> 		8-98152-705-0 01 1 1004- ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) INTERIOR SILVER BEZEL<BY9> TACHOMETER<U16> 		8-98041-135-0 01 1 0607-0609 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> TACHOMETER<U16> 		8-98046-257-0 01 1 0610-1003 ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> TACHOMETER<U16> 		8-98152-706-0 01 1 1004- ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> EXC. INTERIOR SILVER BEZEL<BY9> 		8-98041-117-0 01 1 0607-0609 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA> 		8-98046-278-0 01 1 0610-1003 ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA> 		8-98154-496-0 01 1 1004- ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-98041-115-0 01 1 0607-0609 ● ● ●
2 09.735 PANEL; CLUSTER 8-97305-574-0 01 1 0306-0408 ● ● ● ● ●
2 09.735 PANEL; CLUSTER 8-97305-574-0 01 1 0409-0410 ● ● ●
2 09.735 PANEL; CLUSTER
TACHOMETER<U16> EXC. INTERIOR SILVER BEZEL<BY9> 		8-97305-574-0 01 1 0409-0410 ● ●
2 09.735 PANEL; CLUSTER
EXC. TACHOMETER<U16> 		8-97305-574-0 01 1 0409-0410 ● ●
2 09.735 PANEL; CLUSTER 8-97305-574-0 01 1 0411-0609 ● ● ●
2 09.735 PANEL; CLUSTER
TACHOMETER<U16> EXC. INTERIOR SILVER BEZEL<BY9> 		8-97305-574-0 01 1 0411-0609 ● ● ●
2 09.735 PANEL; CLUSTER
EXC. TACHOMETER<U16> 		8-97305-574-0 01 1 0411-0609 ● ● ●
2 09.735 PANEL; CLUSTER
EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA> 		8-98047-113-0 01 1 0610- ● ● ● ● ● ●
2 09.735 PANEL; CLUSTER
INTERIOR SILVER BEZEL<BY9> TACHOMETER<U16> 		8-97305-575-0 01 1 0409-0410 ● ●
2 09.735 PANEL; CLUSTER
INTERIOR SILVER BEZEL<BY9> TACHOMETER<U16> 		8-97305-575-0 01 1 0411-0609 ● ● ●
2 09.735 PANEL; CLUSTER
ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> 		8-98047-112-0 01 1 0610-1003 ● ● ● ● ●
2 09.735 PANEL; CLUSTER
ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> 		8-98153-332-0 01 1 1004- ● ● ● ● ●
31 09.761 SCREW; METER,INST PANEL
16.085 M5X16 TAPPING 		9-09829-323-1 03 1 0306-0410 ● ● ● ● ●
31 09.761 SCREW; METER,INST PANEL
16.085 M5X16 TAPPING 		9-09829-323-1 03 1 0411-0702 ● ● ● ● ● ●
31 09.761 SCREW; METER,INST PANEL
08.083 M5X16 TAPPING 		8-98061-685-0 03 1 0703-1003 ● ● ● ● ● ●
31 09.761 SCREW; METER,INST PANEL
08.083 M5X16 TAPPING 		8-98167-449-0 03 1 1004- ● ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> 		8-97358-285-0 01 1 0306-0410 ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> 		8-97358-285-0 01 1 0411-0508 ● ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> 		8-97389-984-0 01 1 0509-0609 ● ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-97358-265-0 01 1 0306-0410 ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-97358-265-0 01 1 0411-0508 ● ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-97389-960-0 01 1 0509-0609 ● ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
A/T 4 SPEED-JATCO(RMK) TACHOMETER<U16> 		8-97358-293-0 01 1 0306-0508 ● ●
82 09.743 CASE ASM; CLUSTER METER
A/T 4 SPEED-JATCO(RMK) TACHOMETER<U16> 		8-97389-985-0 01 1 0509-0609 ● ●
110 09.748 GLASS; CLUSTER METER 8-97305-572-0 01 1 0306-0410 ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER 8-97305-572-0 01 1 0411-0609 ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> 		8-98047-110-0 01 1 0610- ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA> 		8-98047-111-0 01 1 0610- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
M/T MUA 5 SPEED 5G(RSP) (B) 14V 1.12W 		8-97305-600-0 18 1 0306-0410 ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
M/T MUA 5 SPEED 5G(RSP) (B) 14V 1.12W 		8-97305-600-0 18 1 0411-0508 ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) (B) 14V 1.12W 		8-98003-832-0 18 1 0509-0609 ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> (A) 14V 2W 		8-97305-590-0 05 1 0306-0410 ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> (A) 14V 2W 		8-97305-590-0 05 1 0411-0508 ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> (A) 14V 2W 		8-98003-831-0 05 1 0509-0609 ● ● ●
118 08.991 BULB; CLUSTER METER
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> (A) 14V 2W 		8-98003-831-0 05 1 0509-0609 ● ●
118 08.991 BULB; CLUSTER METER
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> (A) 14V 2W 		8-98003-831-0 05 1 0509-0609 ●
118 08.991 BULB; CLUSTER METER
TACHOMETER<U16> (A) 14V 2W 		8-97305-590-0 07 1 0306-0410 ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
TACHOMETER<U16> (A) 14V 2W 		8-97305-590-0 07 1 0411-0508 ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
TACHOMETER<U16> (A) 14V 2W 		8-98003-831-0 07 1 0509-0609 ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
A/T 4 SPEED-JATCO(RMK) TACHOMETER<U16> (B) 14V 1.12W 		8-97305-600-0 22 1 0306-0508 ● ●
118 08.991 BULB; CLUSTER METER
A/T 4 SPEED-JATCO(RMK) TACHOMETER<U16> (B) 14V 1.12W 		8-98003-832-0 22 1 0509-0609 ● ●
143 09.715 COVER; CLUSTER METER 8-97305-577-0 01 1 0306-0410 ● ● ● ● ●
143 09.715 COVER; CLUSTER METER 8-97305-577-0 01 1 0411-0609 ● ● ● ● ● ●
143 09.715 COVER; CLUSTER METER
TACHOMETER<U16> 		8-98047-114-0 01 1 0610- ● ● ● ● ● ●
143 09.715 COVER; CLUSTER METER
EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA>,TACHOMETER<U16> 		8-98047-115-0 01 1 0610-0709 ● ● ● ● ● ●
143 09.715 COVER; CLUSTER METER
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA>,TACHOMETER<U16> 		8-98047-115-0 01 1 0710- ● ● ● ● ● ●

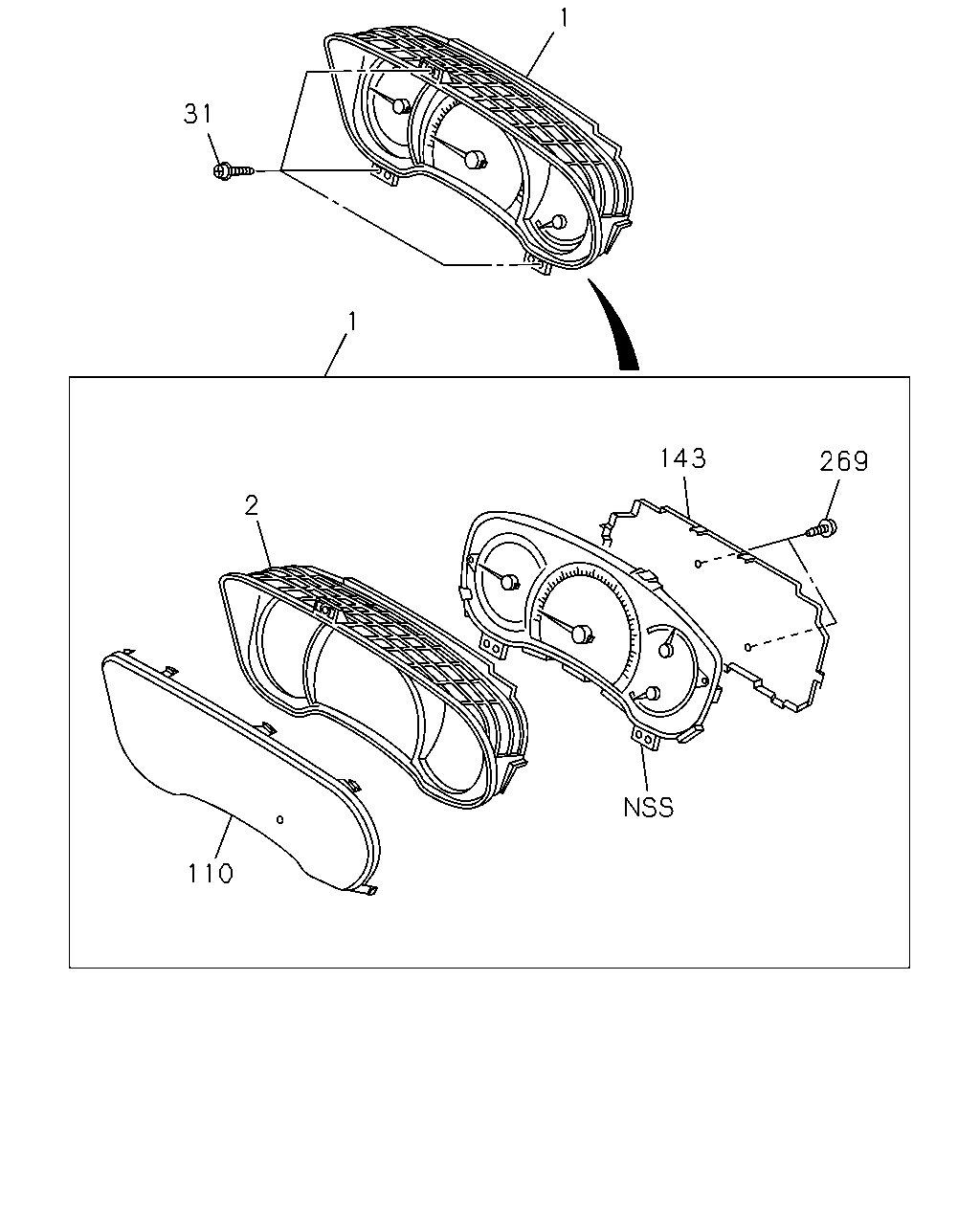

çizim 153277
1 31 1 143 269 2 110
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.735 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> 		8-97363-746-0 01 1 0306-0408 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> 		8-97363-746-0 01 1 0409-0410 ● ● ●
1 09.735 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> EXC. INTERIOR SILVER BEZEL<BY9> 		8-97363-746-0 01 1 0409-0410 ● ●
1 09.735 METER COMPL; CLUSTER
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> 		8-97363-746-0 01 1 0411-0508 ● ● ●
1 09.735 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> EXC. INTERIOR SILVER BEZEL<BY9> 		8-97363-746-0 01 1 0411-0508 ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> EXC. INTERIOR SILVER BEZEL<BY9> 		8-97363-746-0 01 1 0411-0508 ●
1 09.735 METER COMPL; CLUSTER
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> 		8-97386-663-0 01 1 0509-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> EXC. INTERIOR SILVER BEZEL<BY9> 		8-97386-663-0 01 1 0509-0606 ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> EXC. INTERIOR SILVER BEZEL<BY9> 		8-97386-663-0 01 1 0509-0606 ●
1 09.735 METER COMPL; CLUSTER
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> 		8-97386-663-0 01 1 0607-0609 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> EXC. INTERIOR SILVER BEZEL<BY9> 		8-97386-663-0 01 1 0607-0609 ● ●
1 09.735 METER COMPL; CLUSTER
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> TACHOMETER<U16> 		8-98046-281-0 01 1 0610-1003 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> TACHOMETER<U16> 		8-98152-707-0 01 1 1004- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-97363-744-0 01 1 0306-0410 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-97363-744-0 01 1 0411-0508 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-97386-661-0 01 1 0509-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-97386-661-0 01 1 0509-0606 ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-97386-661-0 01 1 0509-0606 ●
1 09.735 METER COMPL; CLUSTER
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-97386-661-0 01 1 0607-0609 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA> 		8-98046-285-0 01 1 0610-0710 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) TACHOMETER<U16> 		8-98046-285-0 01 1 0610-0710 ●
1 09.735 METER COMPL; CLUSTER
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA> 		8-98046-285-0 01 1 0711-1003 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA> 		8-98154-500-0 01 1 1004- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
A/T 4 SPEED-JATCO(RMK) TACHOMETER<U16> 		8-97363-747-0 01 1 0306-0408 ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) TACHOMETER<U16> EXC. INTERIOR SILVER BEZEL<BY9> 		8-97363-747-0 01 1 0409-0508 ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) TACHOMETER<U16> EXC. INTERIOR SILVER BEZEL<BY9> 		8-97386-664-0 01 1 0509-0606 ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) TACHOMETER<U16> EXC. INTERIOR SILVER BEZEL<BY9> 		8-98041-118-0 01 1 0607-0609 ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA> 		8-98046-264-0 01 1 0610-1003 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA> 		8-98154-486-0 01 1 1004- ● ● ●
1 09.735 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5G(RSP) INTERIOR SILVER BEZEL<BY9> TACHOMETER<U16> 		8-97383-432-0 01 1 0409-0410 ● ●
1 09.735 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5G(RSP) INTERIOR SILVER BEZEL<BY9> TACHOMETER<U16> 		8-97383-432-0 01 1 0411-0508 ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) INTERIOR SILVER BEZEL<BY9> TACHOMETER<U16> 		8-97383-432-0 01 1 0411-0508 ●
1 09.735 METER COMPL; CLUSTER
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) INTERIOR SILVER BEZEL<BY9> TACHOMETER<U16> 		8-97387-823-0 01 1 0509-0606 ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) INTERIOR SILVER BEZEL<BY9> TACHOMETER<U16> 		8-97387-823-0 01 1 0509-0606 ●
1 09.735 METER COMPL; CLUSTER
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP) INTERIOR SILVER BEZEL<BY9> TACHOMETER<U16> 		8-97387-823-0 01 1 0607-0609 ● ●
1 09.735 METER COMPL; CLUSTER
EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA>,TACHOMETER<U16> 		8-98046-272-0 01 1 0610-0709 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA>,TACHOMETER<U16> 		8-98046-272-0 01 1 0710-1003 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA>,TACHOMETER<U16> 		8-98154-492-0 01 1 1004- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) INTERIOR SILVER BEZEL<BY9> TACHOMETER<U16> 		8-97383-431-0 01 1 0409-0508 ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) INTERIOR SILVER BEZEL<BY9> TACHOMETER<U16> 		8-97387-822-0 01 1 0509-0606 ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) INTERIOR SILVER BEZEL<BY9> TACHOMETER<U16> 		8-98041-134-0 01 1 0607-0609 ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> TACHOMETER<U16> 		8-98046-250-0 01 1 0610-0709 ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> TACHOMETER<U16> 		8-98046-250-0 01 1 0610-0709 ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> TACHOMETER<U16> 		8-98046-250-0 01 1 0710-1003 ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> TACHOMETER<U16> 		8-98152-705-0 01 1 1004- ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) INTERIOR SILVER BEZEL<BY9> TACHOMETER<U16> 		8-98041-135-0 01 1 0607-0609 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> TACHOMETER<U16> 		8-98046-257-0 01 1 0610-1003 ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> TACHOMETER<U16> 		8-98152-706-0 01 1 1004- ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> EXC. INTERIOR SILVER BEZEL<BY9> 		8-98041-117-0 01 1 0607-0609 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA> 		8-98046-278-0 01 1 0610-1003 ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA> 		8-98154-496-0 01 1 1004- ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-98041-115-0 01 1 0607-0609 ● ● ●
2 09.735 PANEL; CLUSTER 8-97305-574-0 01 1 0306-0408 ● ● ● ● ●
2 09.735 PANEL; CLUSTER 8-97305-574-0 01 1 0409-0410 ● ● ●
2 09.735 PANEL; CLUSTER
TACHOMETER<U16> EXC. INTERIOR SILVER BEZEL<BY9> 		8-97305-574-0 01 1 0409-0410 ● ●
2 09.735 PANEL; CLUSTER
EXC. TACHOMETER<U16> 		8-97305-574-0 01 1 0409-0410 ● ●
2 09.735 PANEL; CLUSTER 8-97305-574-0 01 1 0411-0609 ● ● ●
2 09.735 PANEL; CLUSTER
TACHOMETER<U16> EXC. INTERIOR SILVER BEZEL<BY9> 		8-97305-574-0 01 1 0411-0609 ● ● ●
2 09.735 PANEL; CLUSTER
EXC. TACHOMETER<U16> 		8-97305-574-0 01 1 0411-0609 ● ● ●
2 09.735 PANEL; CLUSTER
EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA> 		8-98047-113-0 01 1 0610- ● ● ● ● ● ●
2 09.735 PANEL; CLUSTER
INTERIOR SILVER BEZEL<BY9> TACHOMETER<U16> 		8-97305-575-0 01 1 0409-0410 ● ●
2 09.735 PANEL; CLUSTER
INTERIOR SILVER BEZEL<BY9> TACHOMETER<U16> 		8-97305-575-0 01 1 0411-0609 ● ● ●
2 09.735 PANEL; CLUSTER
ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> 		8-98047-112-0 01 1 0610-1003 ● ● ● ● ●
2 09.735 PANEL; CLUSTER
ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> 		8-98153-332-0 01 1 1004- ● ● ● ● ●
31 09.761 SCREW; METER,INST PANEL
16.085 M5X16 TAPPING 		9-09829-323-1 03 1 0306-0410 ● ● ● ● ●
31 09.761 SCREW; METER,INST PANEL
16.085 M5X16 TAPPING 		9-09829-323-1 03 1 0411-0702 ● ● ● ● ● ●
31 09.761 SCREW; METER,INST PANEL
08.083 M5X16 TAPPING 		8-98061-685-0 03 1 0703-1003 ● ● ● ● ● ●
31 09.761 SCREW; METER,INST PANEL
08.083 M5X16 TAPPING 		8-98167-449-0 03 1 1004- ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER 8-97305-572-0 01 1 0306-0410 ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER 8-97305-572-0 01 1 0411-0609 ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> 		8-98047-110-0 01 1 0610- ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA> 		8-98047-111-0 01 1 0610- ● ● ● ● ● ●
143 09.715 COVER; CLUSTER METER 8-97305-577-0 01 1 0306-0410 ● ● ● ● ●
143 09.715 COVER; CLUSTER METER 8-97305-577-0 01 1 0411-0609 ● ● ● ● ● ●
143 09.715 COVER; CLUSTER METER
TACHOMETER<U16> 		8-98047-114-0 01 1 0610- ● ● ● ● ● ●
143 09.715 COVER; CLUSTER METER
EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA>,TACHOMETER<U16> 		8-98047-115-0 01 1 0610-0709 ● ● ● ● ● ●
143 09.715 COVER; CLUSTER METER
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA>,TACHOMETER<U16> 		8-98047-115-0 01 1 0710- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER 8-98047-116-0 03 1 0610- ● ● ● ● ● ●

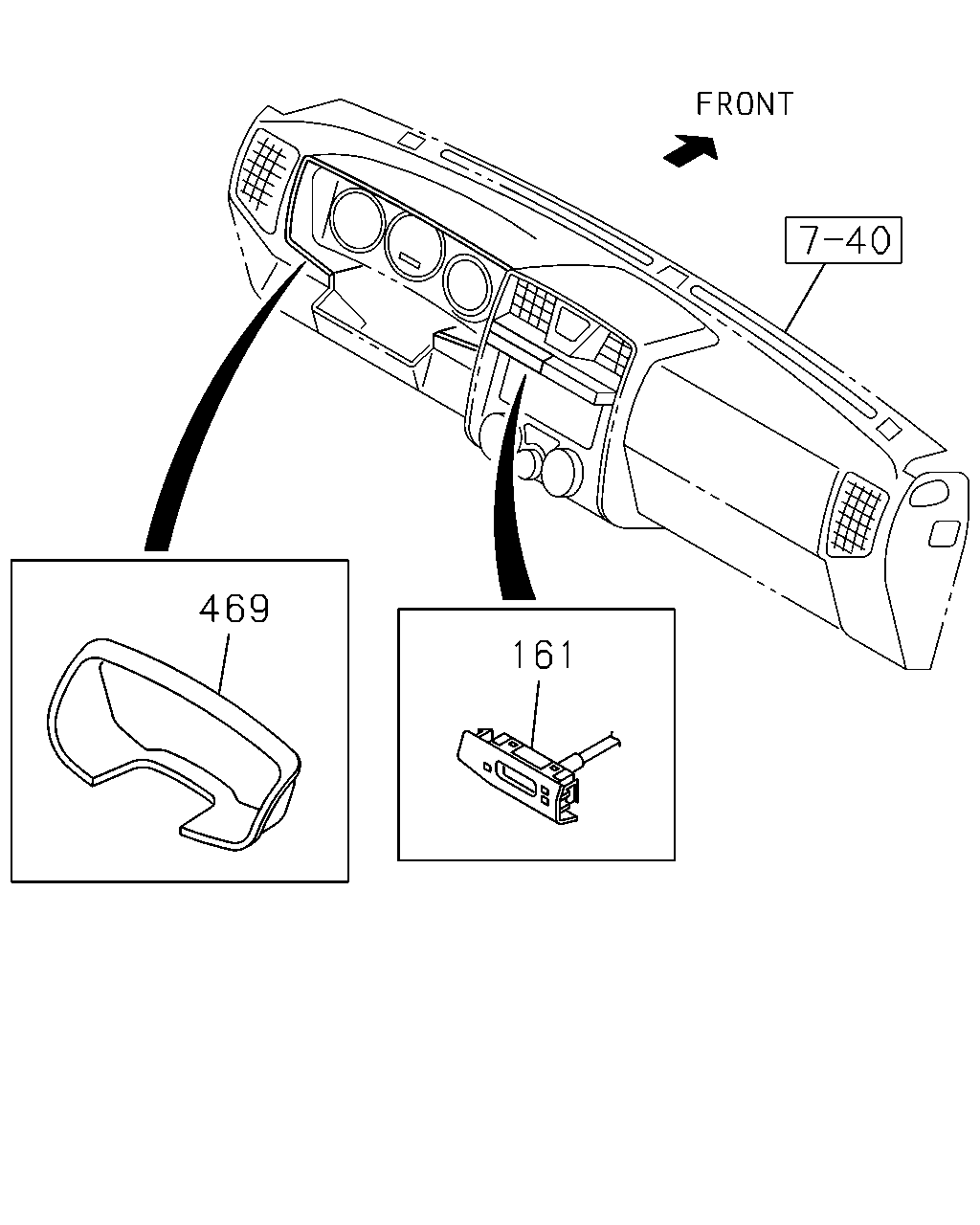

çizim 153480
469 161
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
161 09.772 CLOCK; CLUSTER METER
GRADE DX(RBA) DIGITAL CLOCK<UE8> DARK GRAY 		8-97396-394-0 01 1 0306-0408 ● ● ●
161 09.772 CLOCK; CLUSTER METER
DARK GRAY 		8-97396-394-0 01 1 0306-0408 ● ●
161 09.772 CLOCK; CLUSTER METER
DIGITAL CLOCK<UE8> DARK GRAY 		8-97396-394-0 01 1 0409-0410 ● ● ●
161 09.772 CLOCK; CLUSTER METER
EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97396-394-0 01 1 0409-0410 ● ●
161 09.772 CLOCK; CLUSTER METER
DIGITAL CLOCK<UE8> DARK GRAY 		8-97396-394-0 01 1 0411-0609 ● ● ●
161 09.772 CLOCK; CLUSTER METER
EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97396-394-0 01 1 0411-0609 ● ● ●
161 09.772 CLOCK; CLUSTER METER
DIGITAL CLOCK<UE8> EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97407-359-0 01 1 0610-0709 ● ●
161 09.772 CLOCK; CLUSTER METER
DIGITAL CLOCK<UE8> DARK GRAY 		8-97407-359-0 01 1 0610-0709 ●
161 09.772 CLOCK; CLUSTER METER
EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97407-359-0 01 1 0610-0709 ● ● ●
161 09.772 CLOCK; CLUSTER METER
DIGITAL CLOCK<UE8> EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97407-359-0 01 1 0710-1003 ● ●
161 09.772 CLOCK; CLUSTER METER
DIGITAL CLOCK<UE8> DARK GRAY 		8-97407-359-0 01 1 0710-1003 ●
161 09.772 CLOCK; CLUSTER METER
EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97407-359-0 01 1 0710-1003 ● ●
161 09.772 CLOCK; CLUSTER METER
DARK GRAY 		8-97407-359-0 01 1 0710-1003 ●
161 09.772 CLOCK; CLUSTER METER
DIGITAL CLOCK<UE8> EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97418-610-0 01 1 1004- ● ●
161 09.772 CLOCK; CLUSTER METER
DIGITAL CLOCK<UE8> DARK GRAY 		8-97418-610-0 01 1 1004- ●
161 09.772 CLOCK; CLUSTER METER
EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97418-610-0 01 1 1004- ● ●
161 09.772 CLOCK; CLUSTER METER
DARK GRAY 		8-97418-610-0 01 1 1004- ●
161 09.772 CLOCK; CLUSTER METER
INTERIOR SILVER BEZEL<BY9> LIGHT GRAY 		8-97396-393-0 01 1 0409-0410 ● ●
161 09.772 CLOCK; CLUSTER METER
INTERIOR SILVER BEZEL<BY9> LIGHT GRAY 		8-97396-393-0 01 1 0411-0609 ● ● ●
161 09.772 CLOCK; CLUSTER METER
INTERIOR SILVER BEZEL<BY9> DIGITAL CLOCK<UE8> LIGHT GRAY 		8-97407-360-0 01 1 0610-0709 ● ●
161 09.772 CLOCK; CLUSTER METER
INTERIOR SILVER BEZEL<BY9> LIGHT GRAY 		8-97407-360-0 01 1 0610-0709 ● ● ●
161 09.772 CLOCK; CLUSTER METER
INTERIOR SILVER BEZEL<BY9> DIGITAL CLOCK<UE8> LIGHT GRAY 		8-97407-360-0 01 1 0710-1003 ● ●
161 09.772 CLOCK; CLUSTER METER
INTERIOR SILVER BEZEL<BY9> LIGHT GRAY 		8-97407-360-0 01 1 0710-1003 ● ●
161 09.772 CLOCK; CLUSTER METER
DIGITAL CLOCK<UE8> INTERIOR SILVER BEZEL<BY9> LIGHT GRAY 		8-97418-483-0 01 1 1004- ● ●
161 09.772 CLOCK; CLUSTER METER
INTERIOR SILVER BEZEL<BY9> LIGHT GRAY 		8-97418-483-0 01 1 1004- ● ●
469 16.080 PLATE; INSTRUMENT PANEL
EXC. TILT STEERING<N33> DARK GRAY 		8-97421-861-0 01 1 1005- ● ● ● ● ● ●
469 16.080 PLATE; INSTRUMENT PANEL
16.081 DARK GRAY 		8-97294-069-0 01 1 0306-0410 ● ● ● ● ●
469 16.080 PLATE; INSTRUMENT PANEL
16.081 DARK GRAY 		8-97294-069-0 01 1 0411-0508 ● ● ● ● ● ●
469 16.080 PLATE; INSTRUMENT PANEL
DARK GRAY 		8-97404-874-0 01 1 0509-0609 ● ● ● ● ● ●
469 16.080 PLATE; INSTRUMENT PANEL
DARK GRAY 		8-97404-875-0 01 1 0610-0612 ● ● ● ● ● ●
469 16.080 PLATE; INSTRUMENT PANEL
DARK GRAY 		8-97409-178-0 01 1 0701-1004 ● ● ● ● ● ●
469 16.080 PLATE; INSTRUMENT PANEL
TILT STEERING<N33> DARK GRAY 		8-97409-178-0 01 1 1005- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
