◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50966 - TFR/TFS(EUROPE)-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#74240) — 10 parça

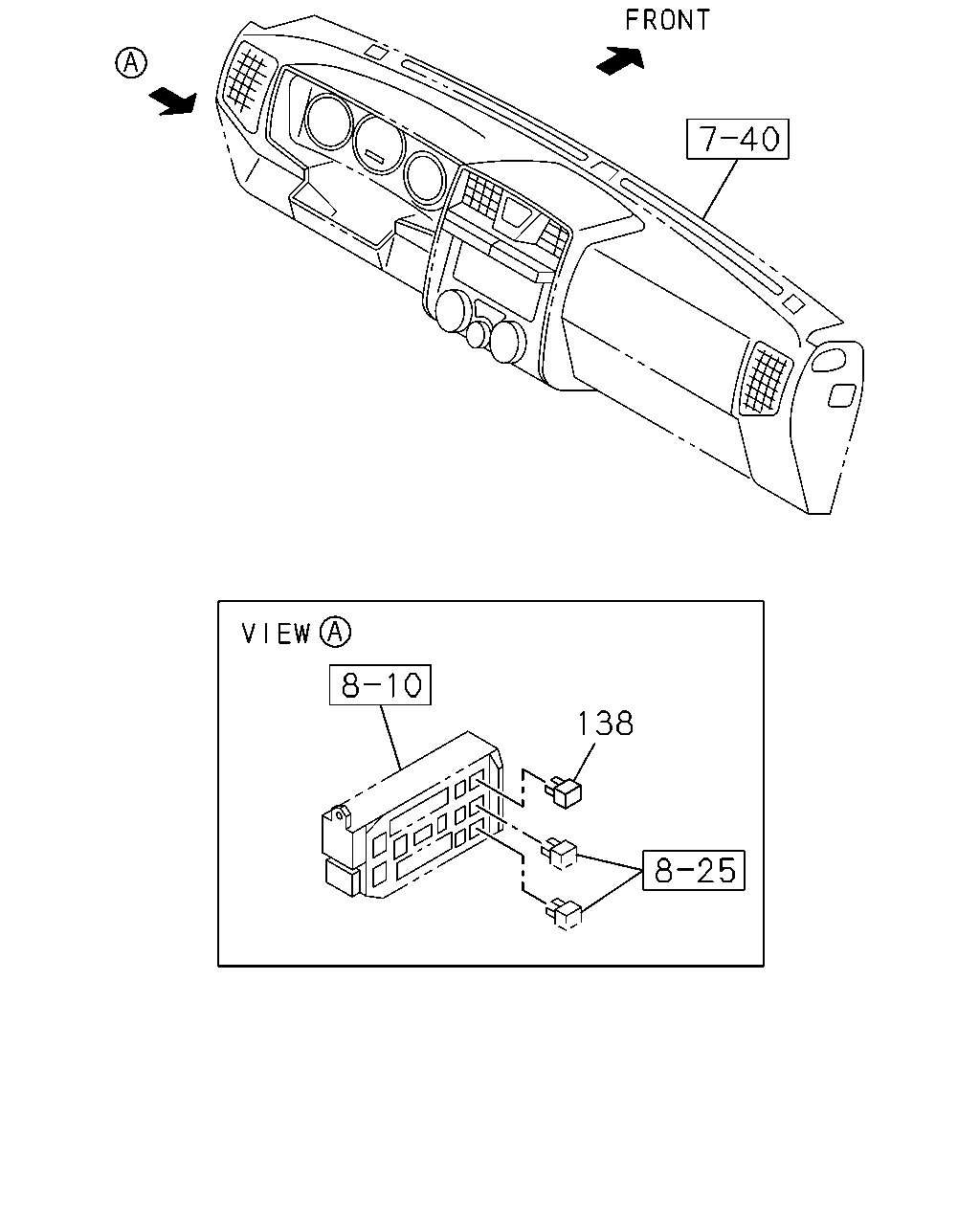

çizim 153236
138
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
138 08.852 RELAY; ACCESSORY
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 09.778 12V YAZAKI 		8-97309-293-0 01 1 0306-0410 ● ● ● ● ●
138 08.852 RELAY; ACCESSORY
M/T MUA 5 SPEED 5G(RSP) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 09.778 12V YAZAKI 		8-97309-293-0 01 1 0306-0410 ● ● ●
138 08.852 RELAY; ACCESSORY
A/T 4 SPEED-JATCO(RMK) REMOTE CONT DOOR LOCK<AP5> 09.778 12V YAZAKI 		8-97309-293-0 01 1 0306-0410 ● ●
138 08.852 RELAY; ACCESSORY
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 09.778 12V YAZAKI 		8-97309-293-0 01 1 0306-0410 ● ●
138 08.852 RELAY; ACCESSORY
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 09.778 12V YAZAKI 		8-97309-293-0 01 1 0411-0508 ● ● ● ● ● ●
138 08.852 RELAY; ACCESSORY
M/T MUA 5 SPEED 5G(RSP) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 09.778 12V YAZAKI 		8-97309-293-0 01 1 0411-0508 ● ● ● ●
138 08.852 RELAY; ACCESSORY
A/T 4 SPEED-JATCO(RMK) REMOTE CONT DOOR LOCK<AP5> 09.778 12V YAZAKI 		8-97309-293-0 01 1 0411-0508 ● ●
138 08.852 RELAY; ACCESSORY
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 09.778 12V YAZAKI 		8-97309-293-0 01 1 0411-0508 ● ●
138 08.852 RELAY; ACCESSORY
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-97364-229-0 01 1 0306-0410 ● ● ● ● ●
138 08.852 RELAY; ACCESSORY
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-97364-229-0 01 1 0411-0508 ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
